12 holders with collets come with the machine
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

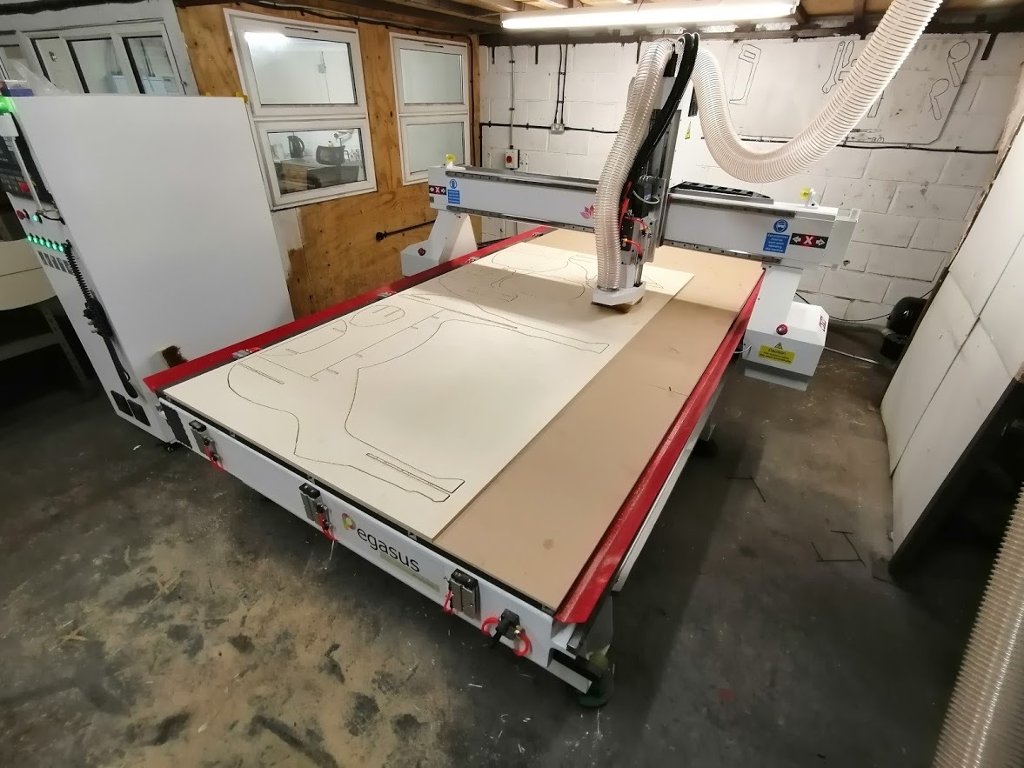

Bed Size - 1500 x 3000mm
Gantry Height - 300mm Standard clearance with 400mm Z Axis travel
Spindle - Model ES951 - 9kW HSD Italian
Spindle Speed - 24000rpm
Accuracy - ±0.01mm

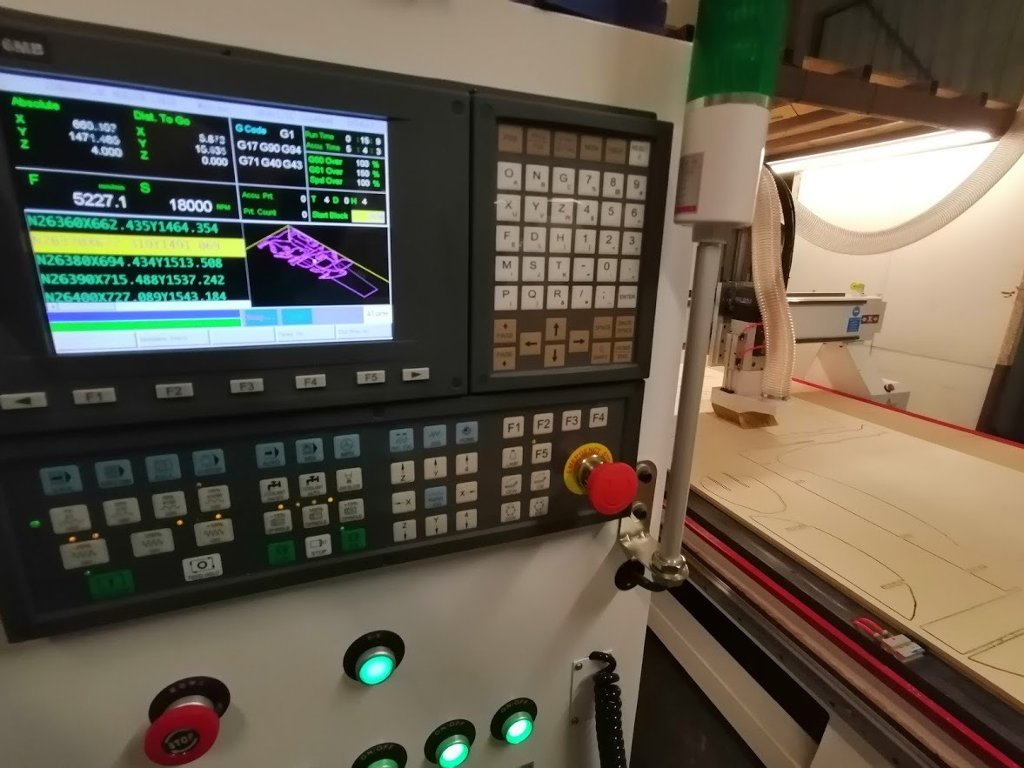

Control System - Syntec with remote handwheel & button vacuum zone

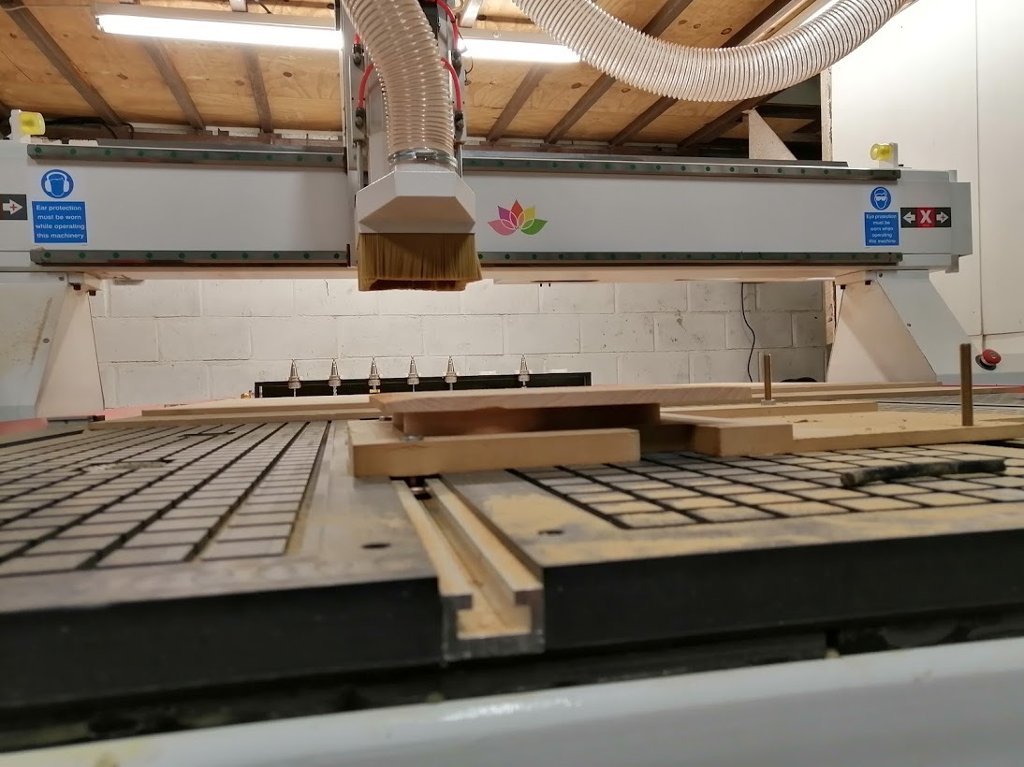

Vacuum System - Matrix Table In Six Zones With Combined T-slot
Vacuum Power - 5.5kW x 2
Dust Extraction System - 7.5kW dust extraction
XY Structure - Helical Rack And HIWIN Linear Bearing
Z Structure - TBI MOTION Ball Screw And HIWIN Linear Bearing
Bearing Lubrication System - Automatic oil injection
Tool Measurement System - Automatic Tool Sensor
Tool Change & Collets - Carousel with 12 tool change position
Collets - ER32 Collets x 12
Drives and Motors - Yaskawa Servo motors & drives
Frequency Inverter - Rexroth Inverter
Working Voltage - 415v
Software - VCarve Pro
