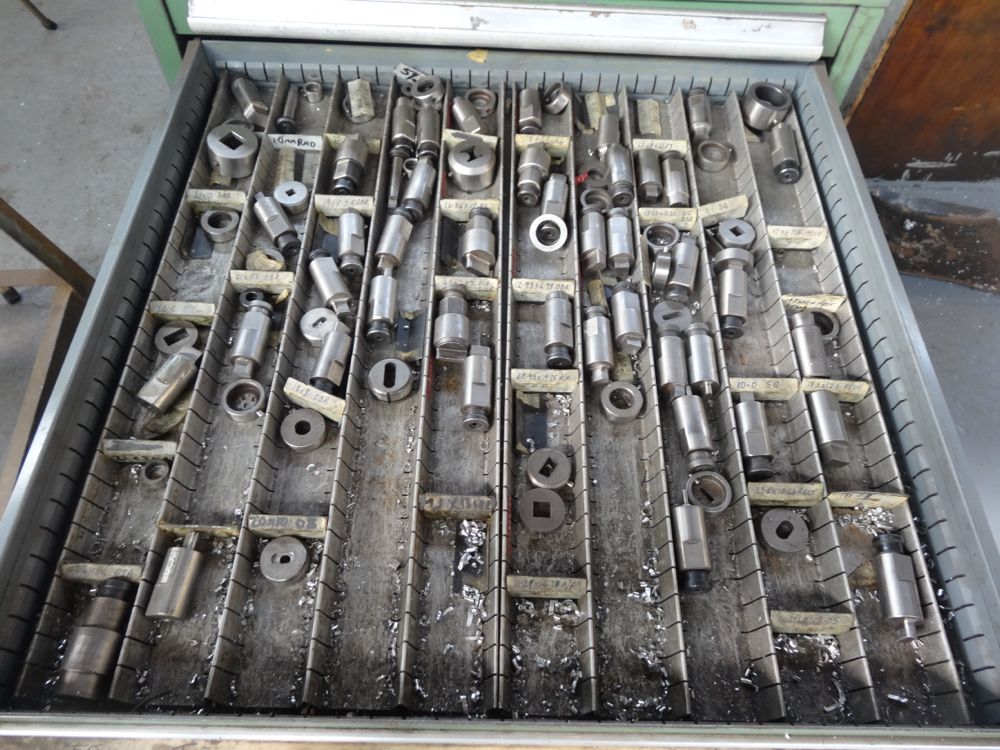

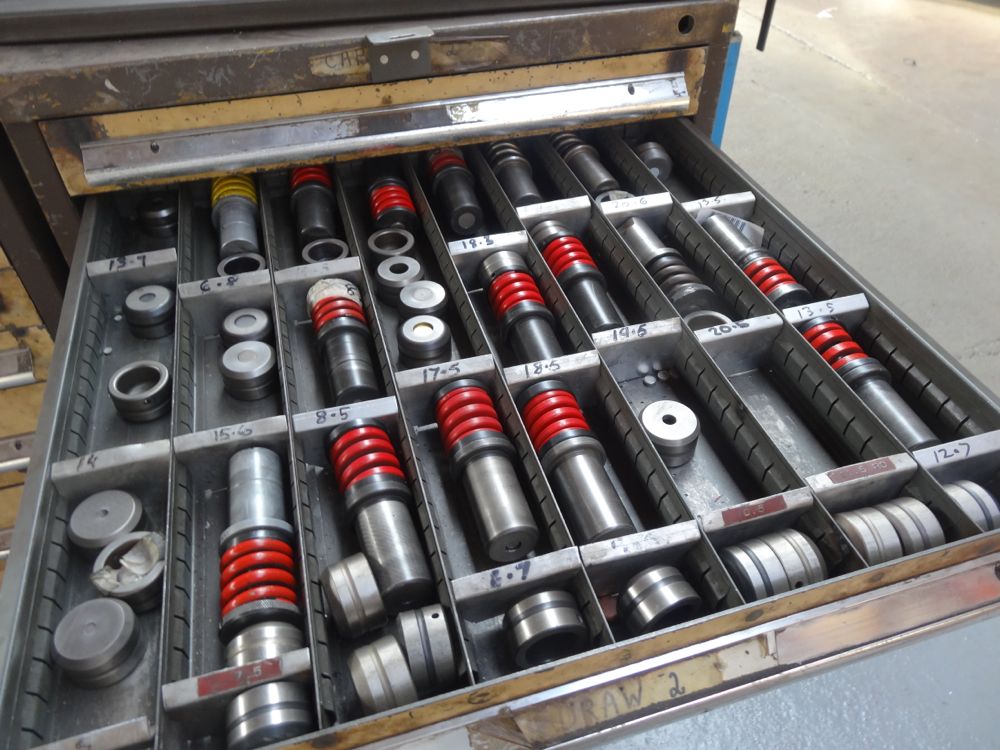

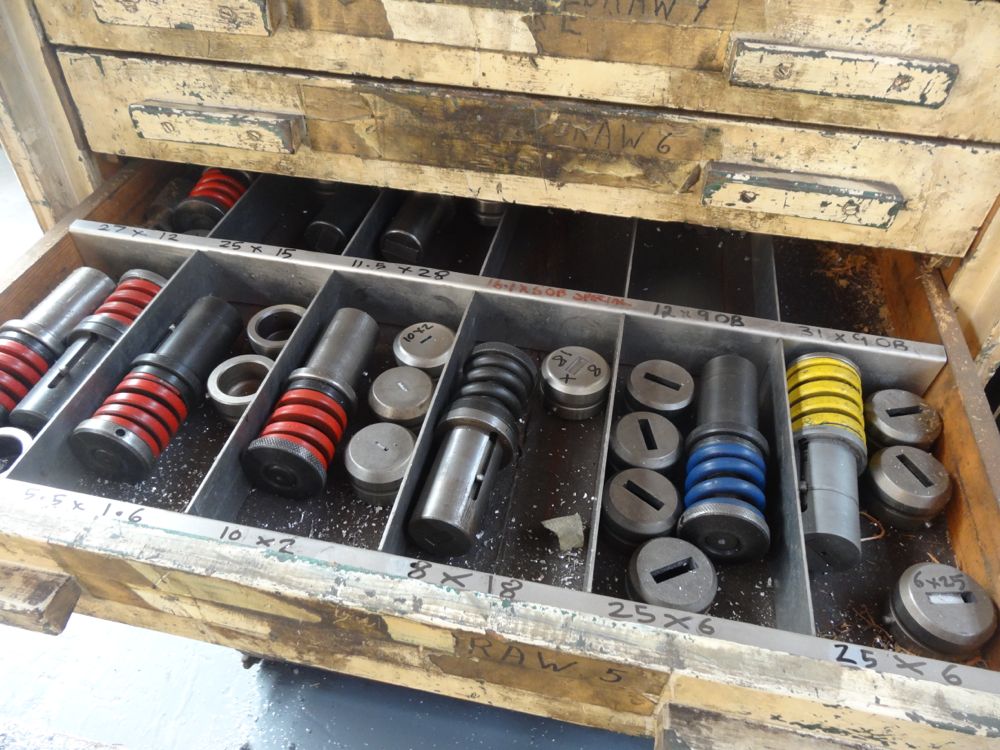

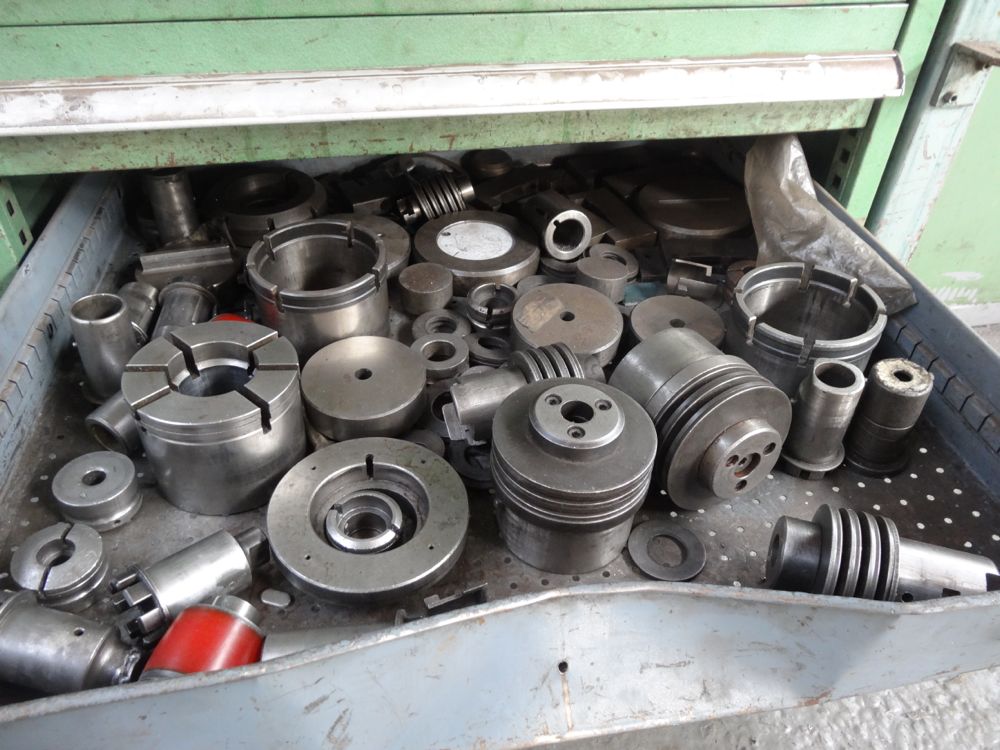

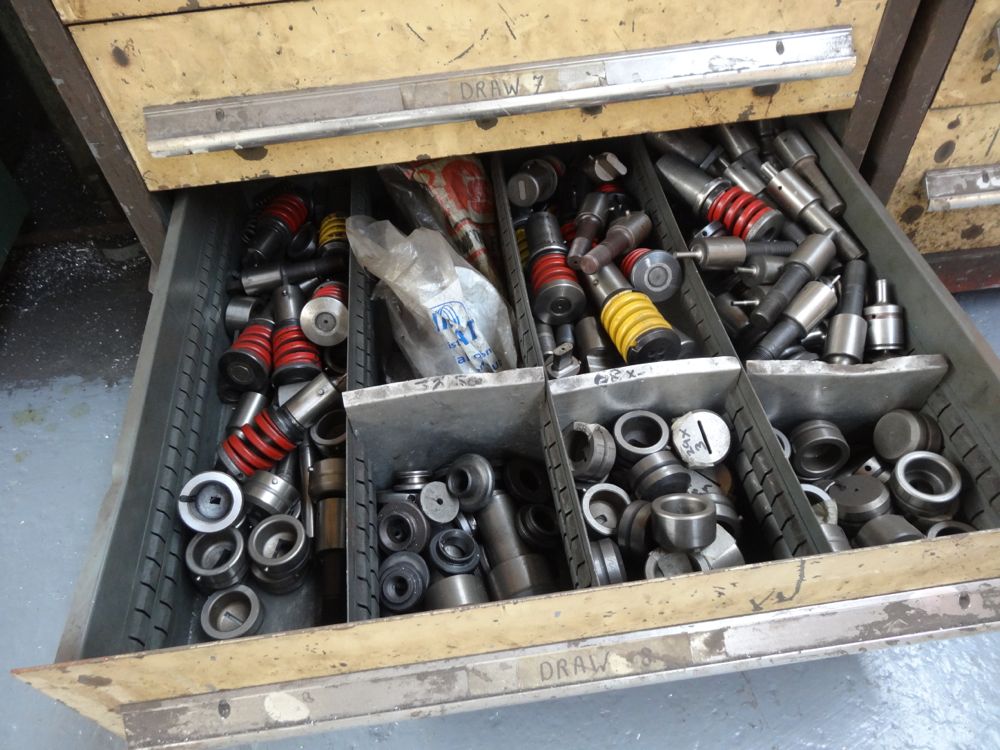

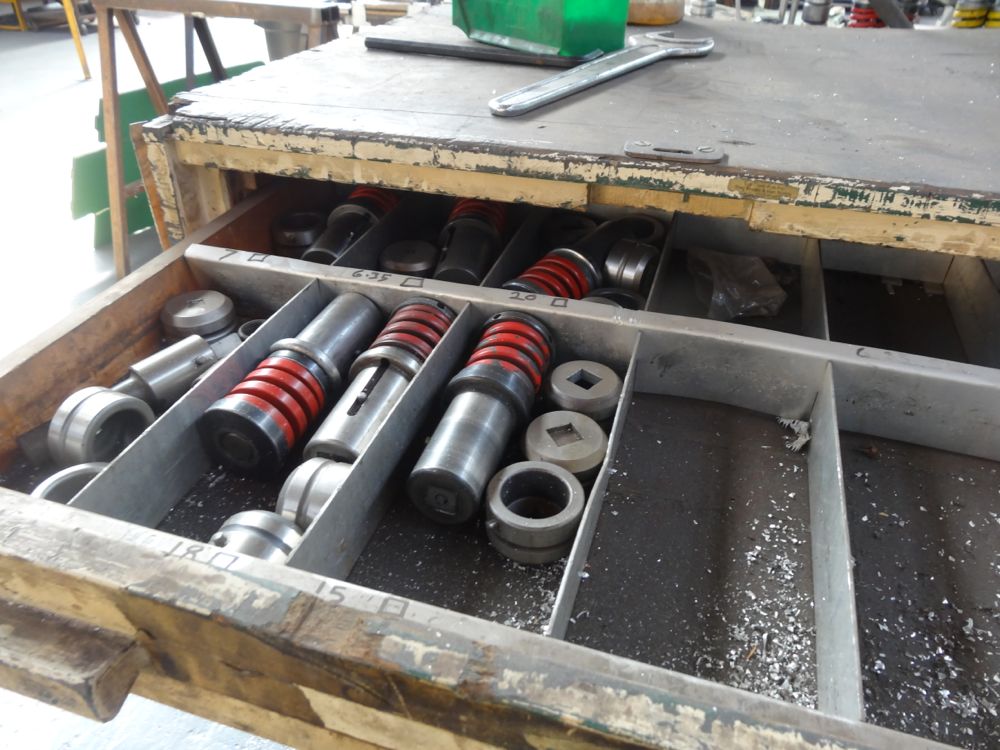

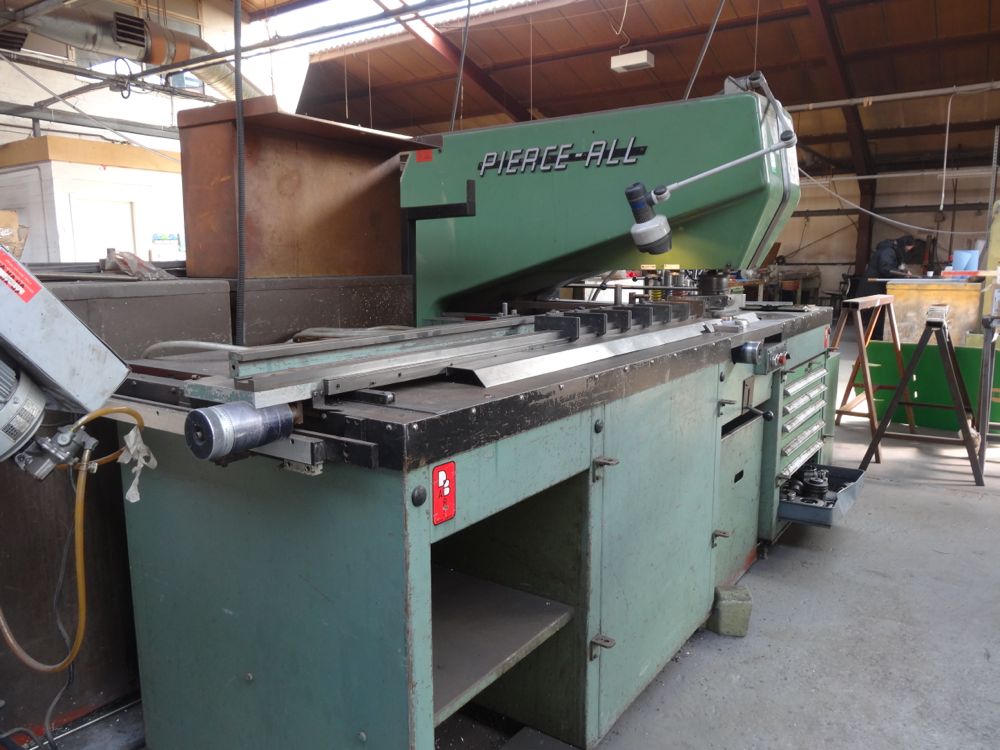

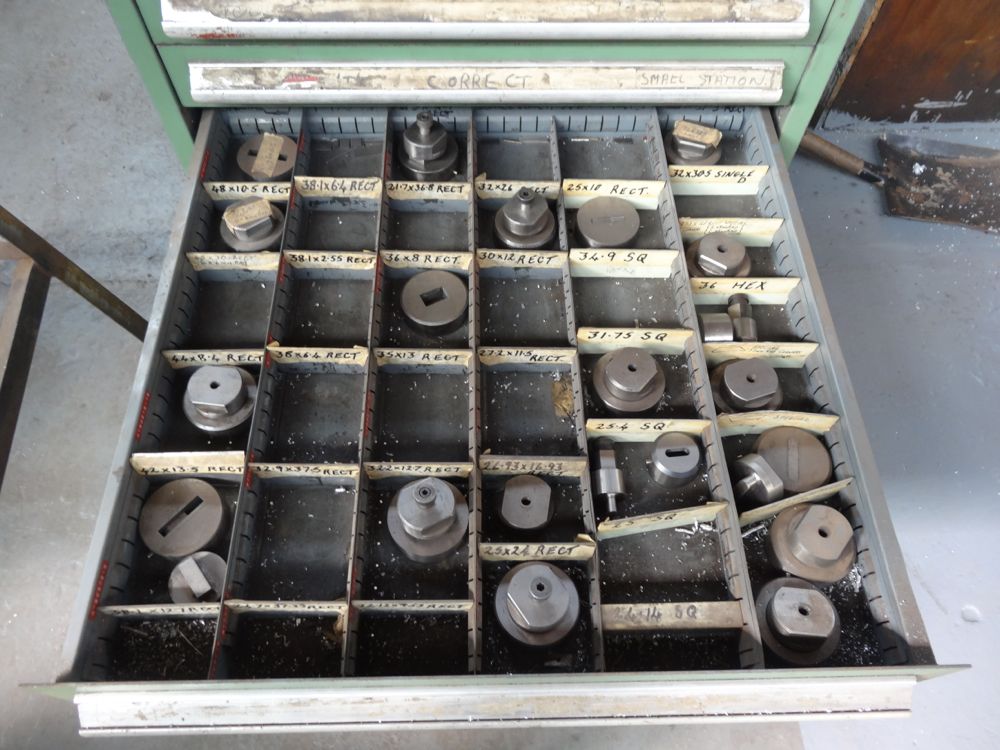

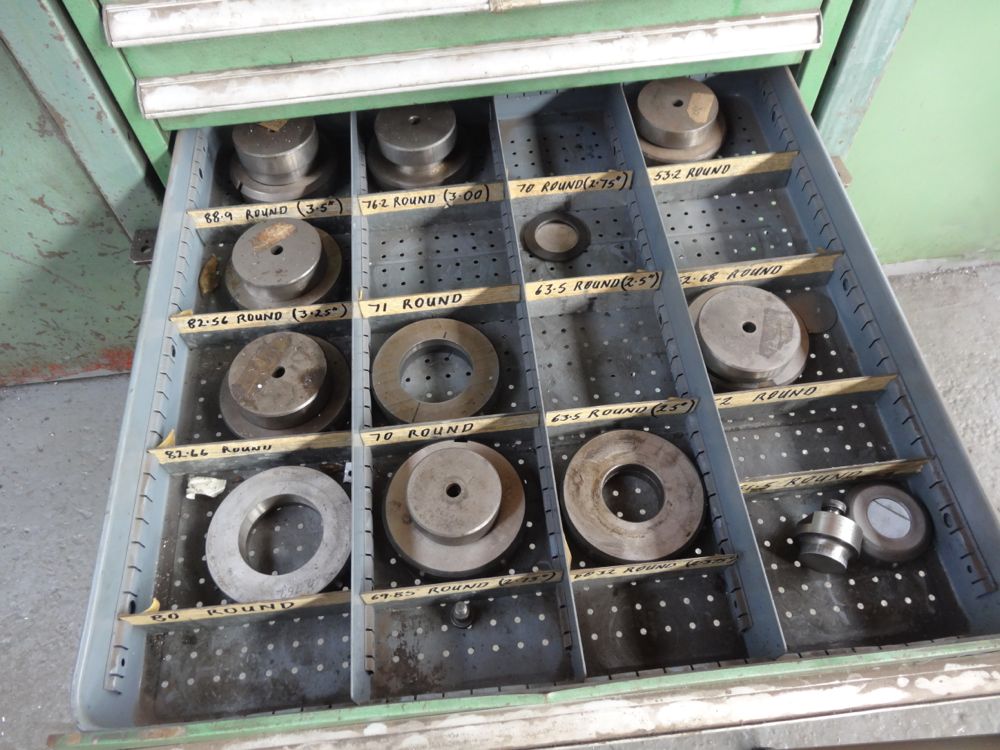

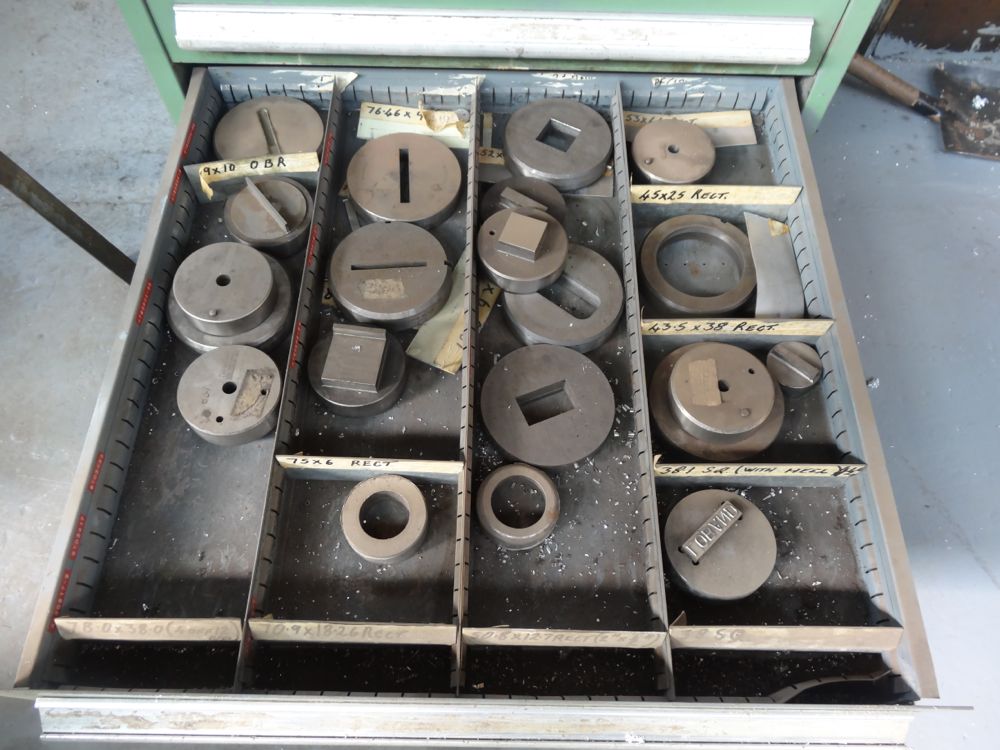

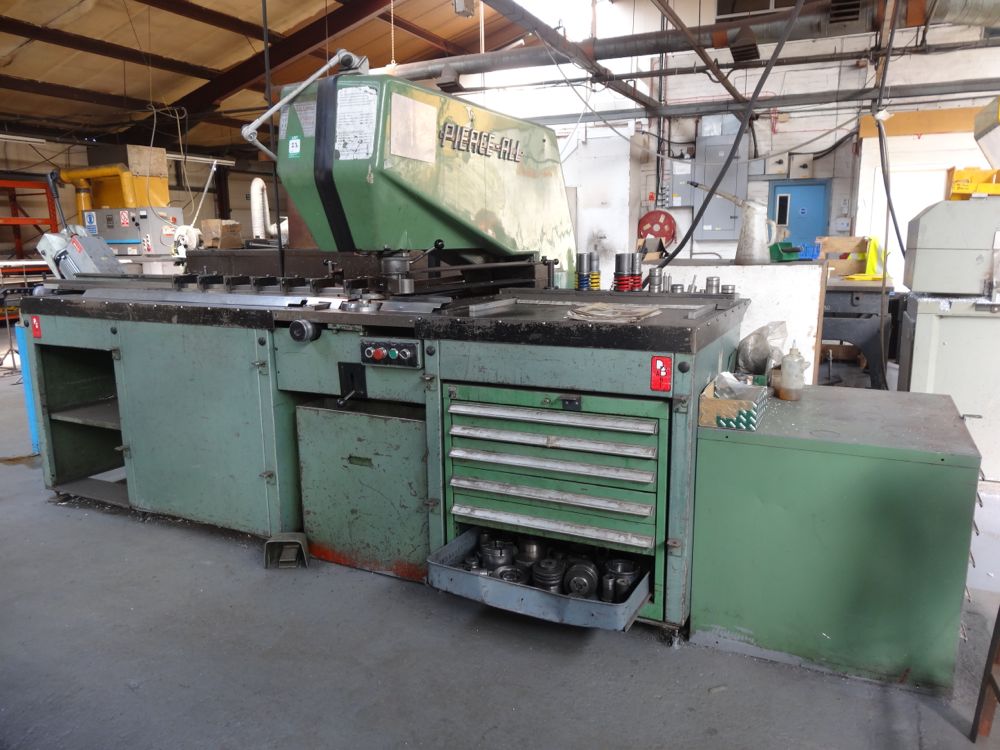

Pierce-all Punching Machine and Tooling

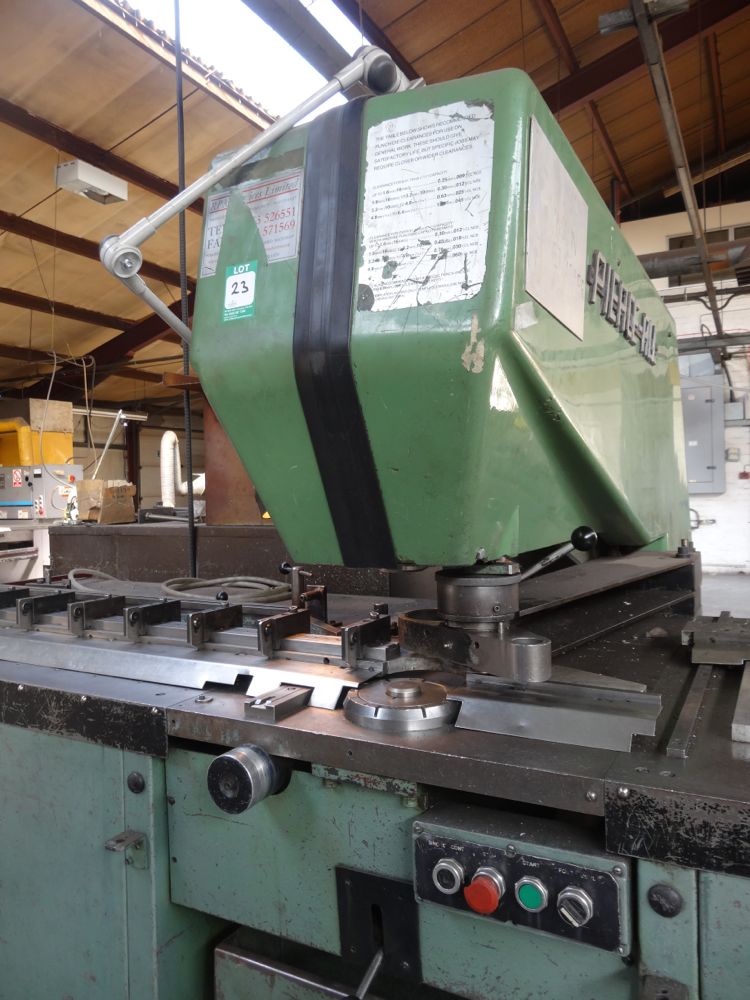

Lot 23 - Pierce-all Punching Machine and Tooling

Description:

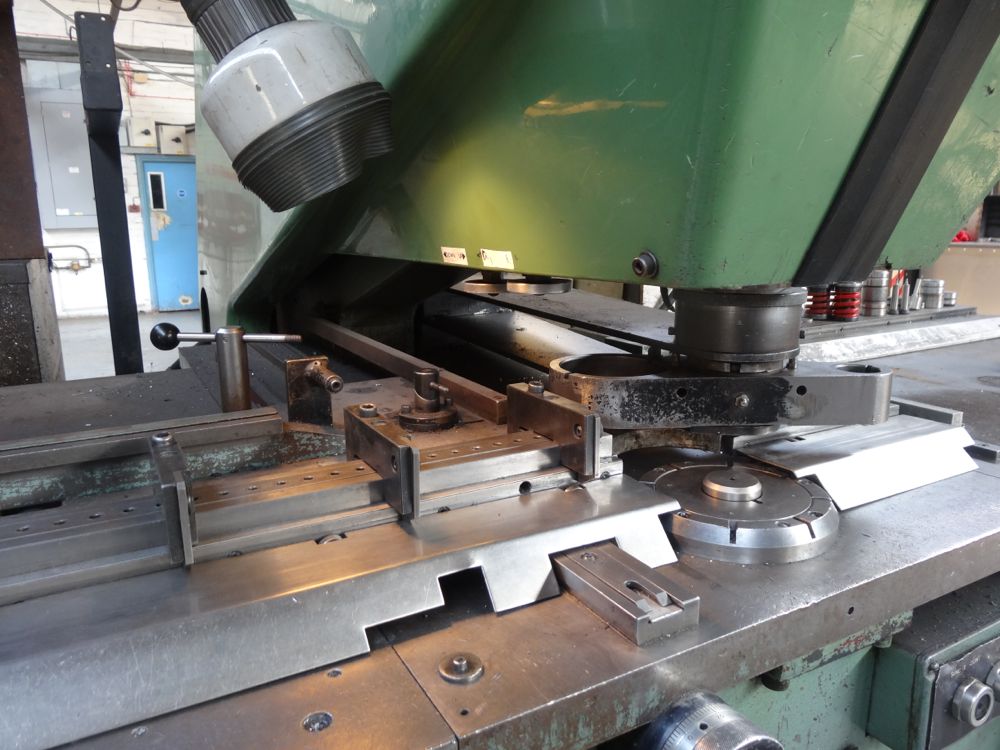

An open throat of 762mm allows punching over a sheet of 1.5m depth. Front work supports and side tables allow large sheets to be worked freely.Duplicating and direct dialling controls are standard features.

weight: 2.75 ton

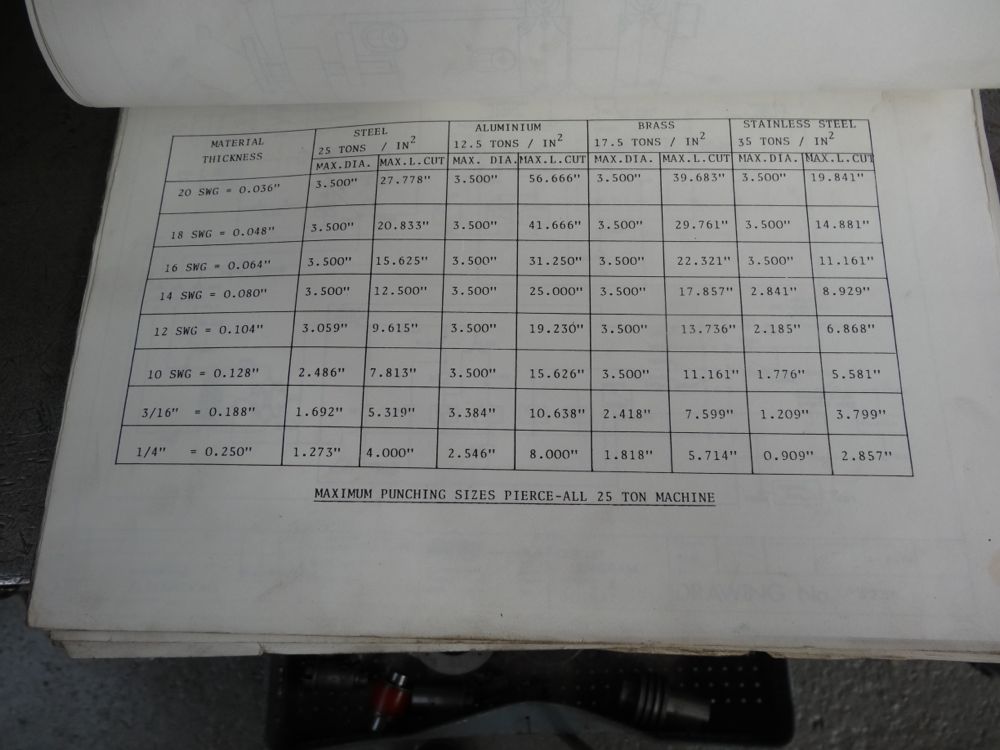

Max. material thickness 6mm
Max. punching diameter : 88.9mm
Max. hit rate : 160hpm
Throat depth : 762mm
Side gauge : 1829mm
Table area : 3048mm x 1067mm
Duplicating capacity : 762mm x 1372mm
Micro gauging : Standard
Back lock gauge : Standard
Duplicator lock : Standard
Hydraulic sheet clamps : Standard

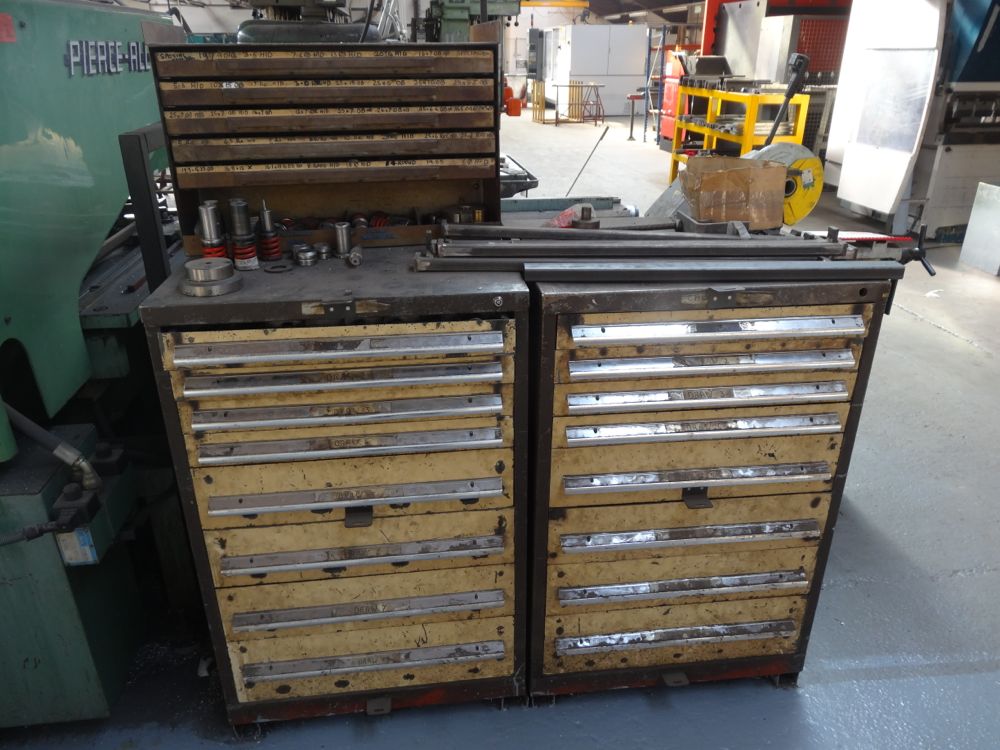

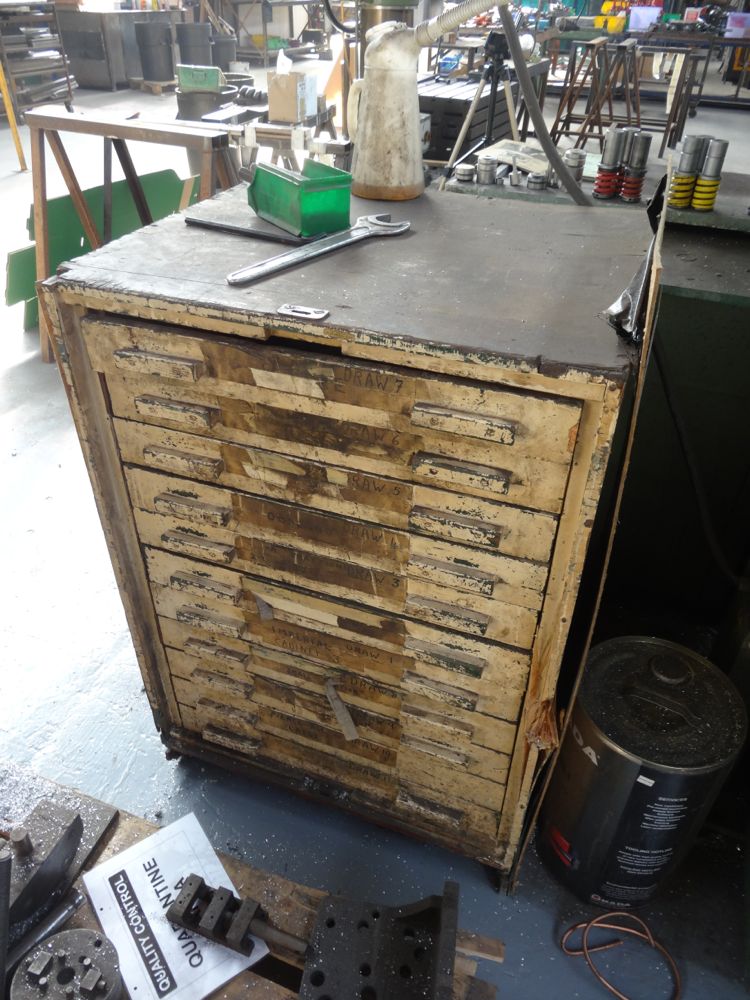

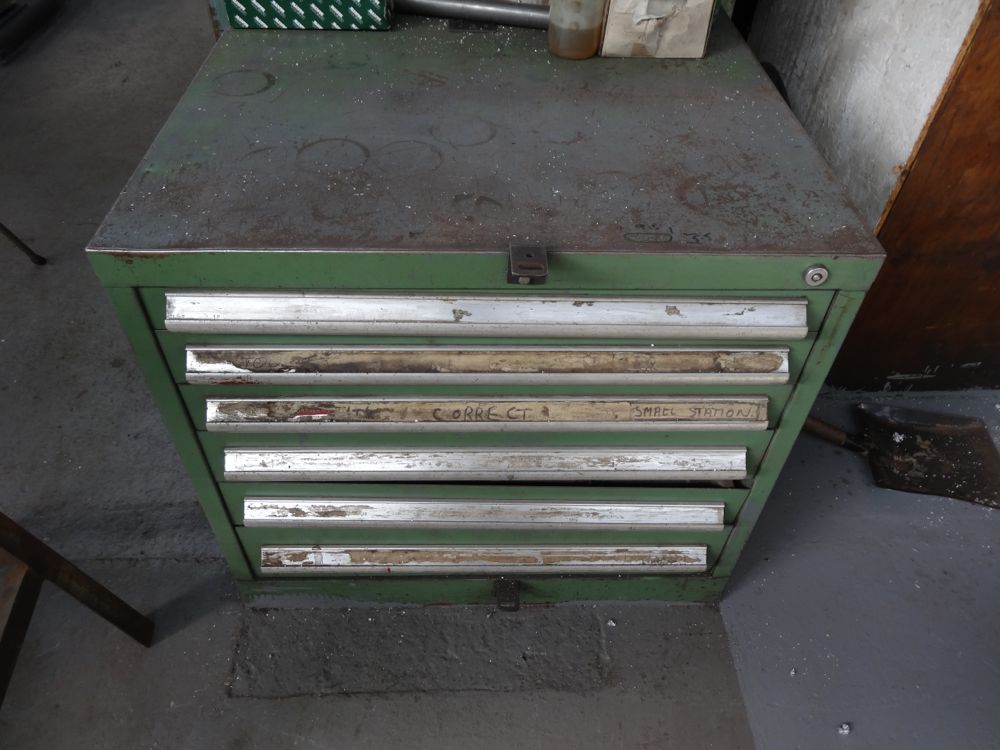

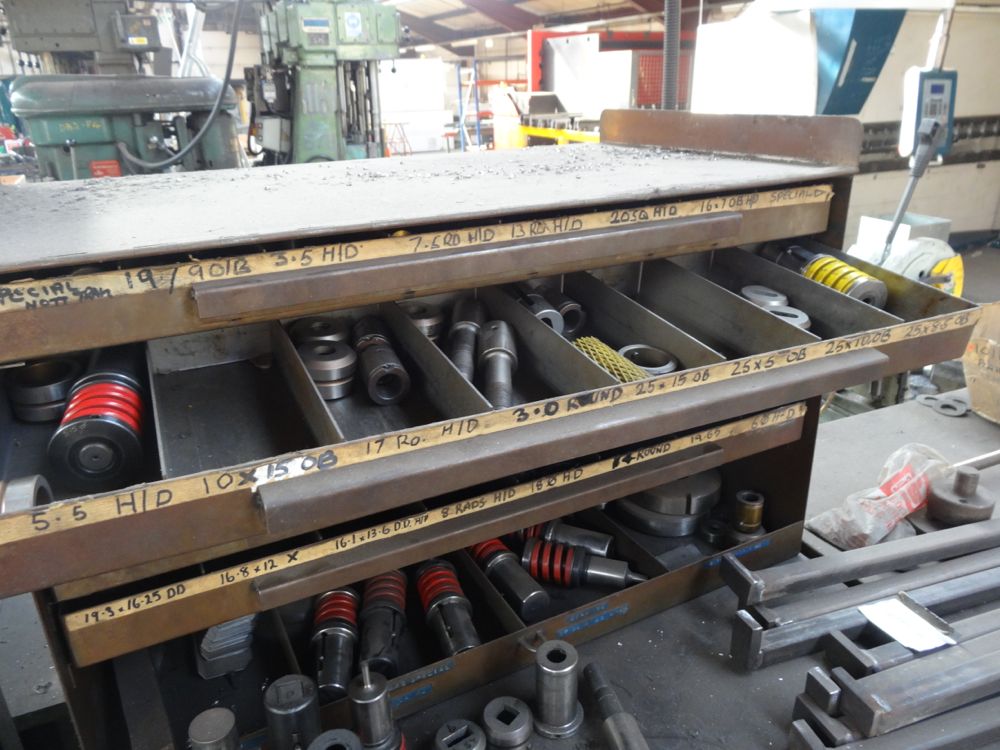

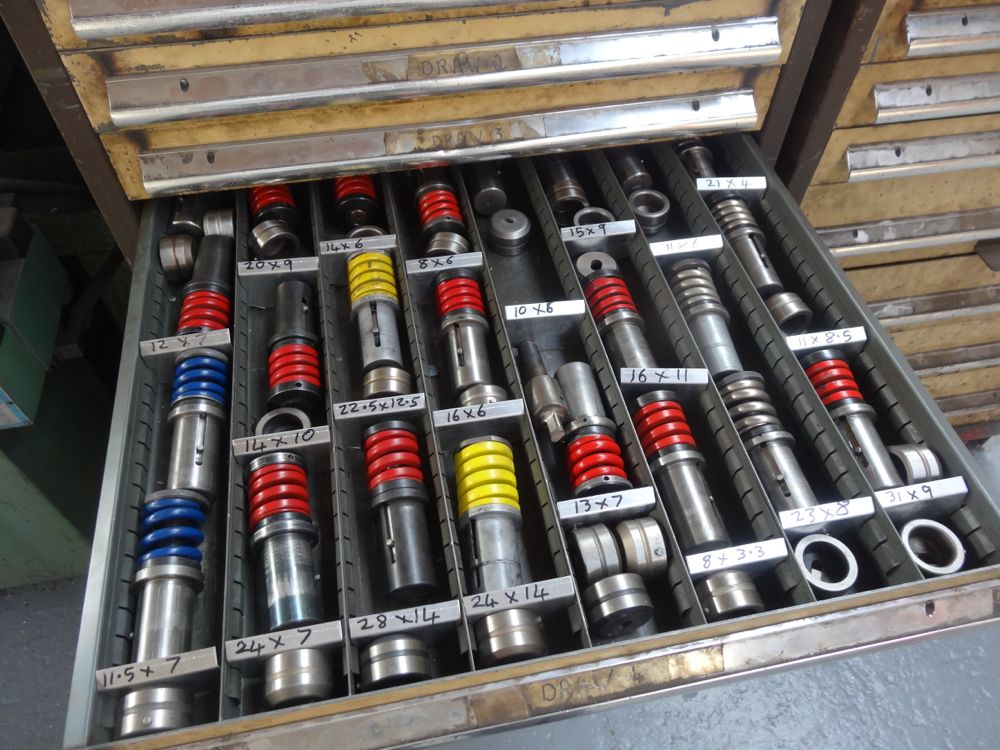

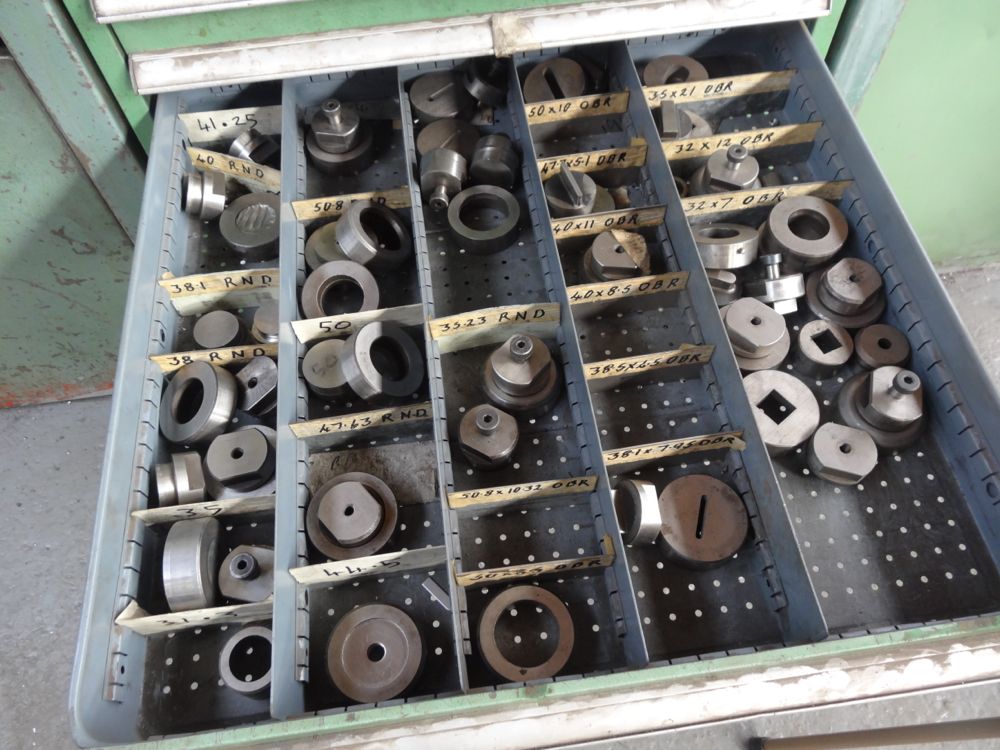

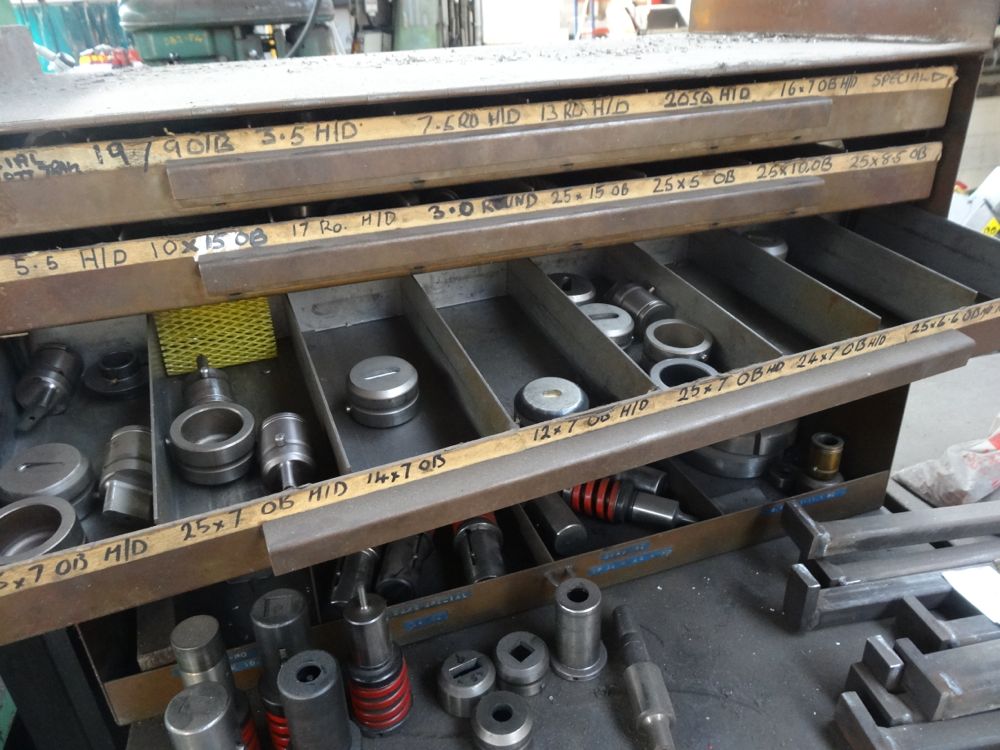

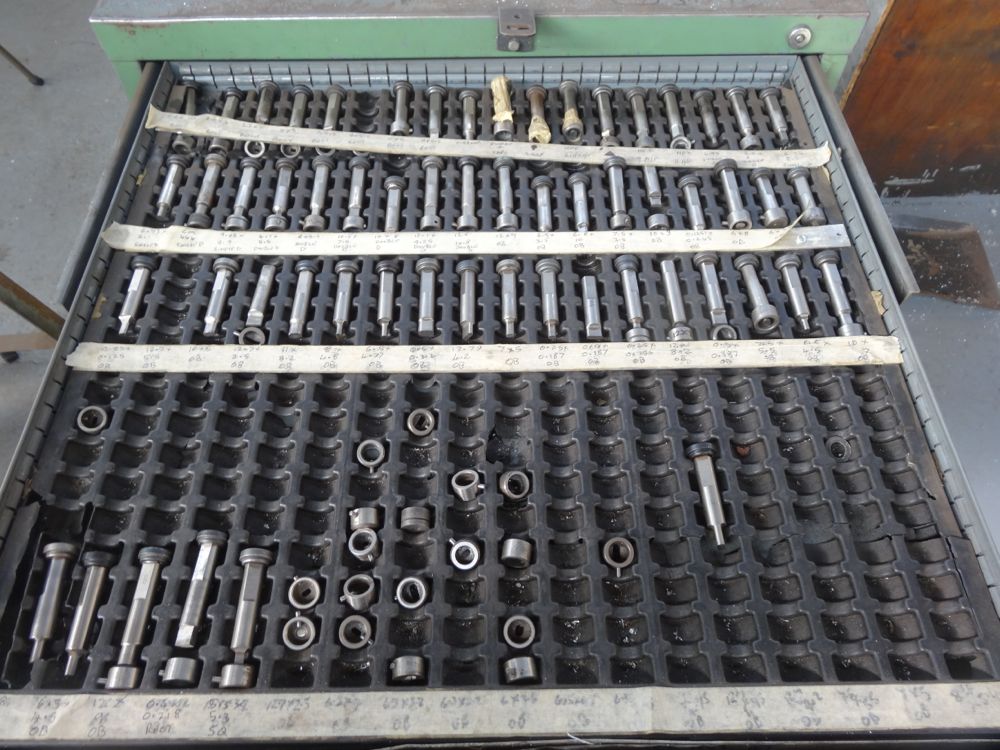

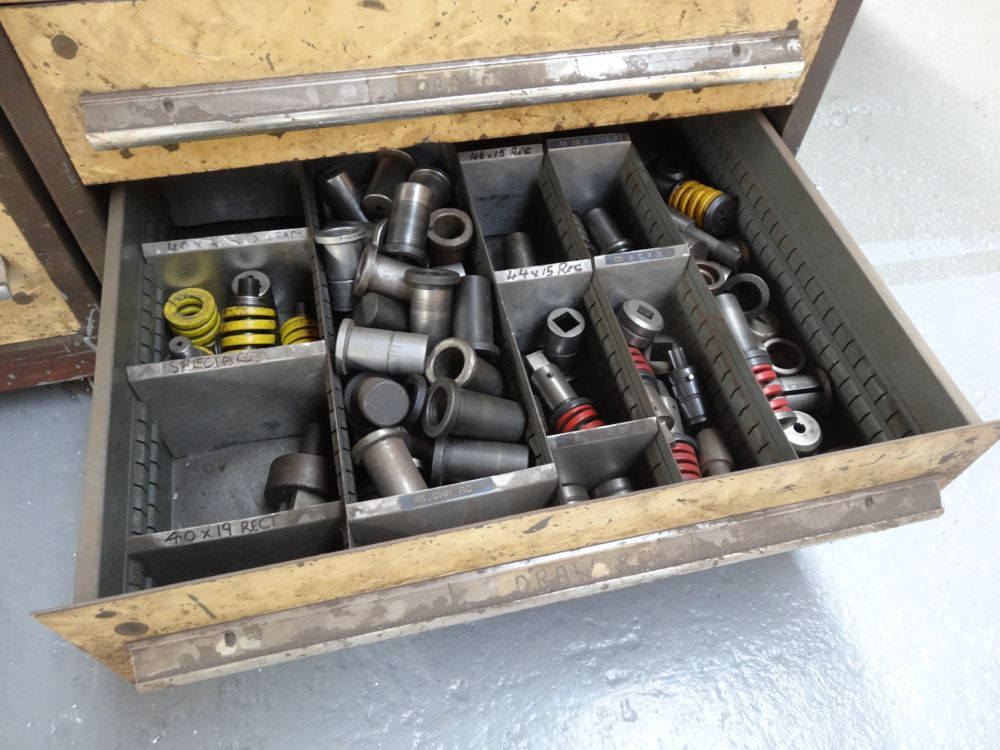

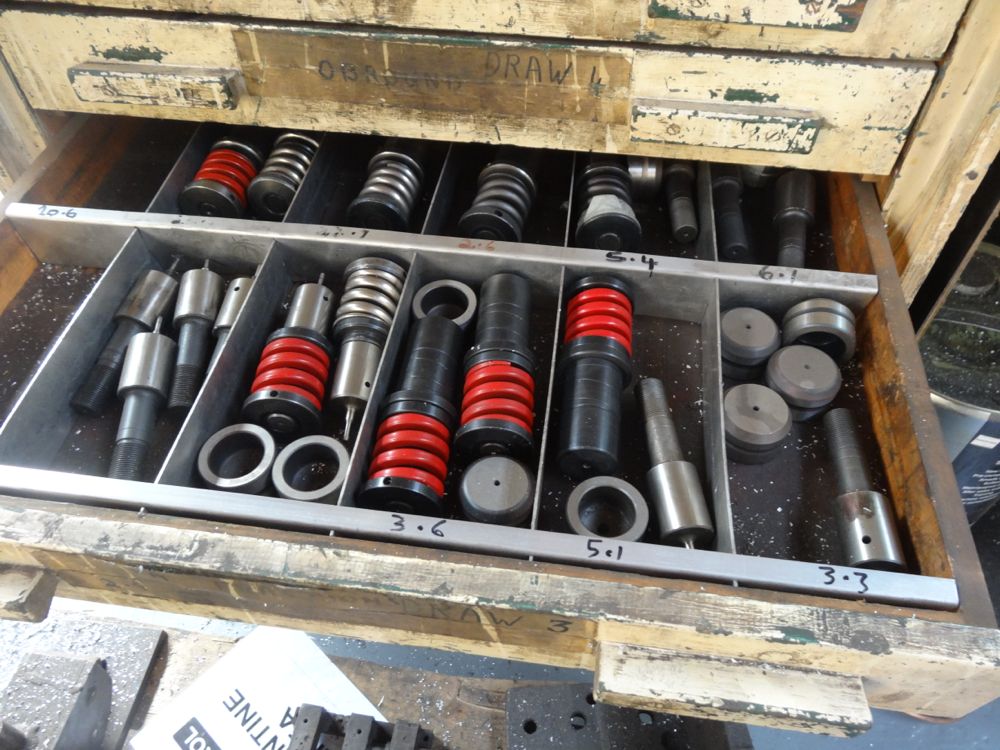

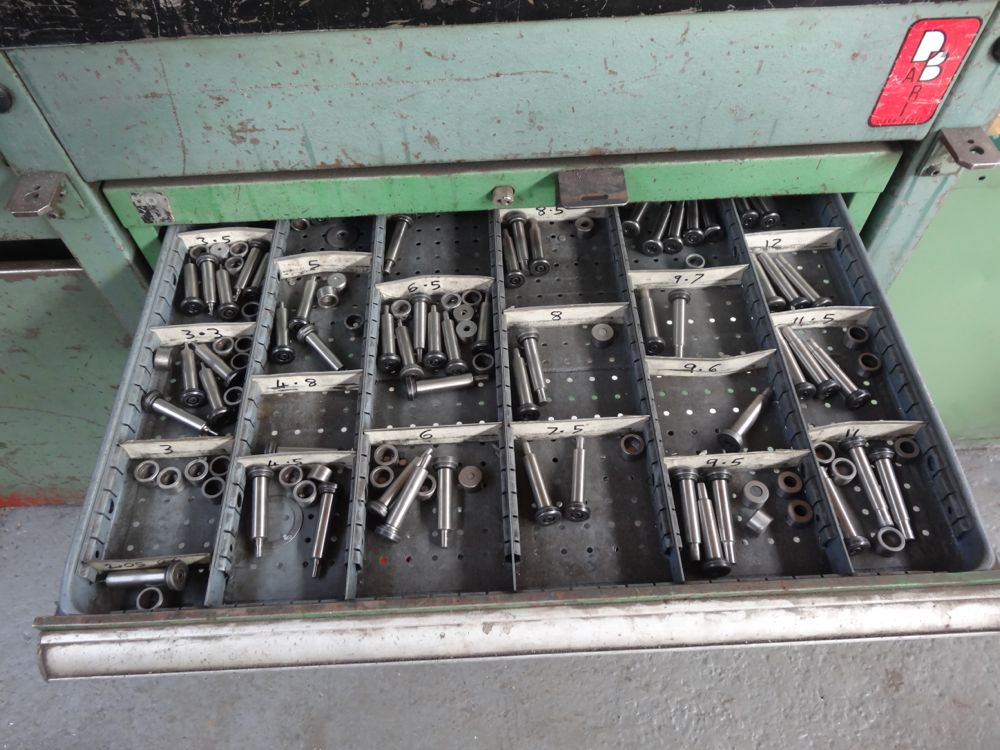

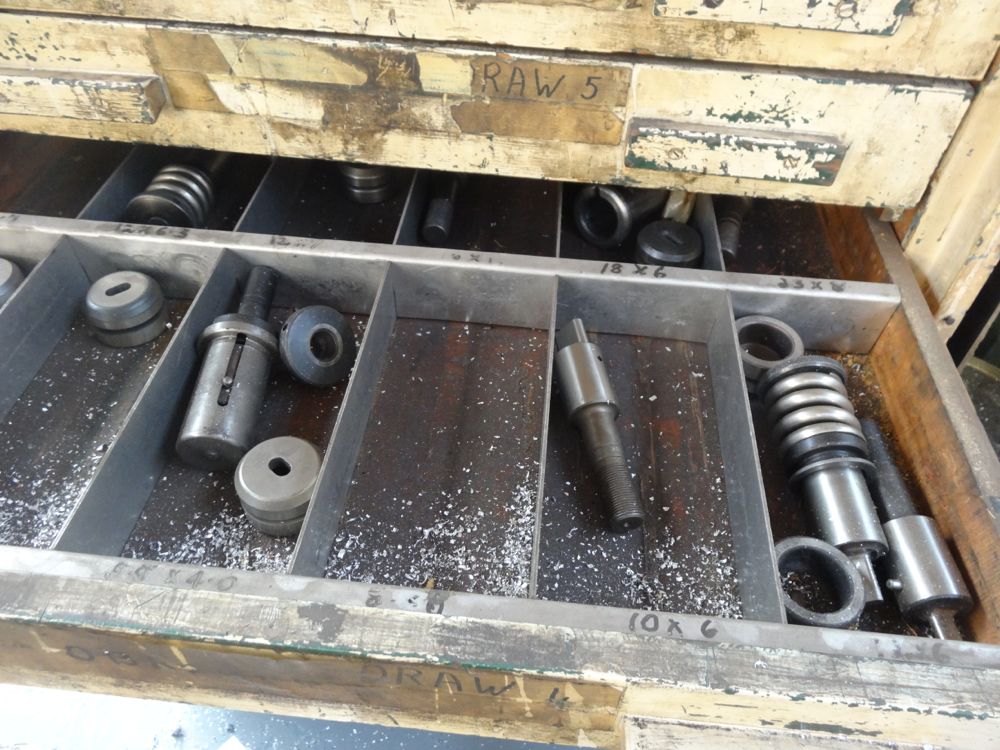

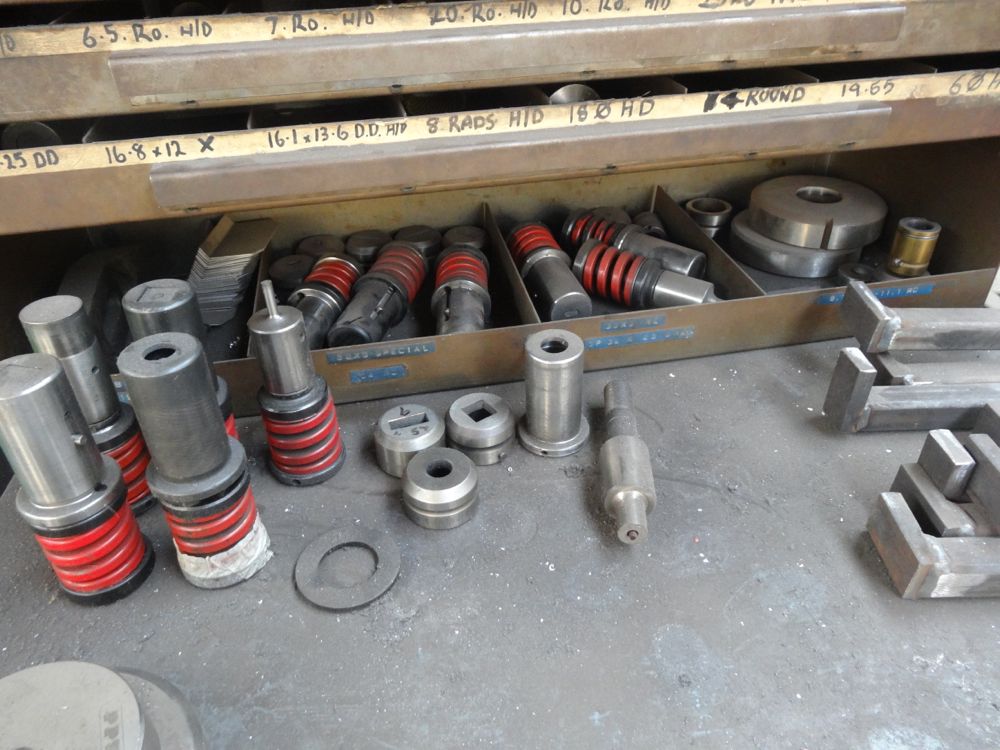

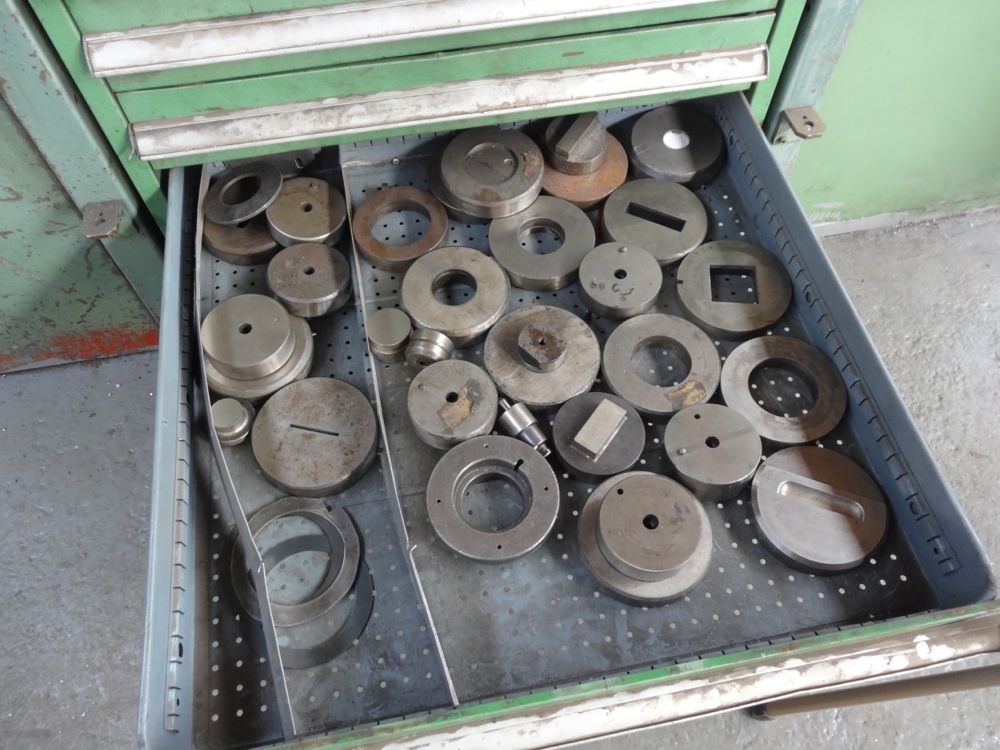

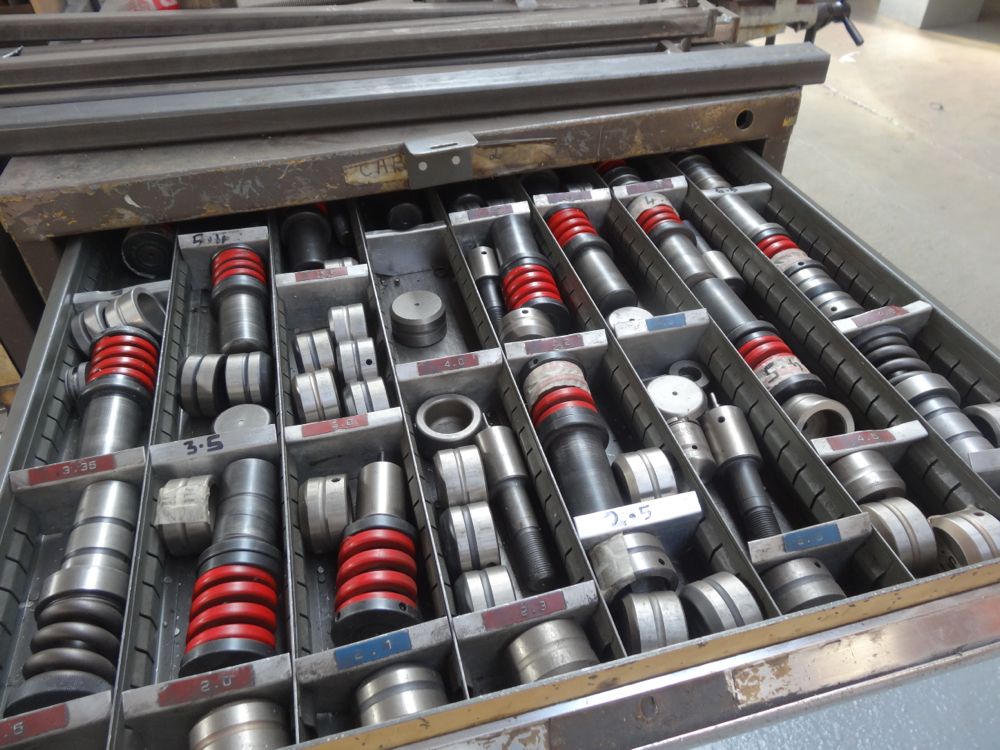

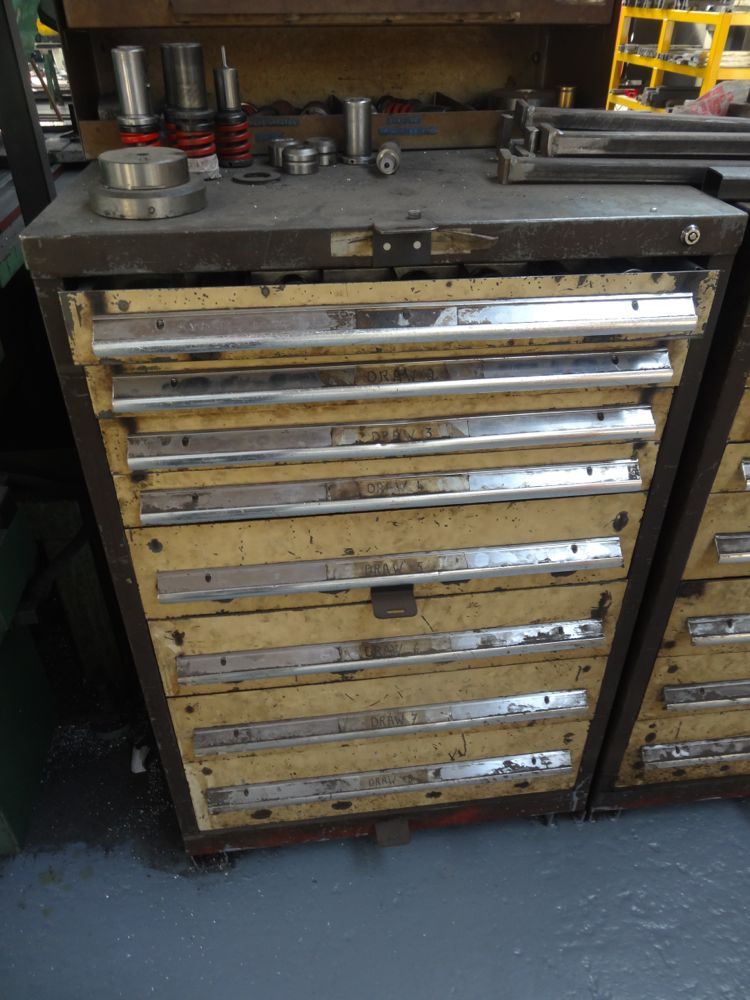

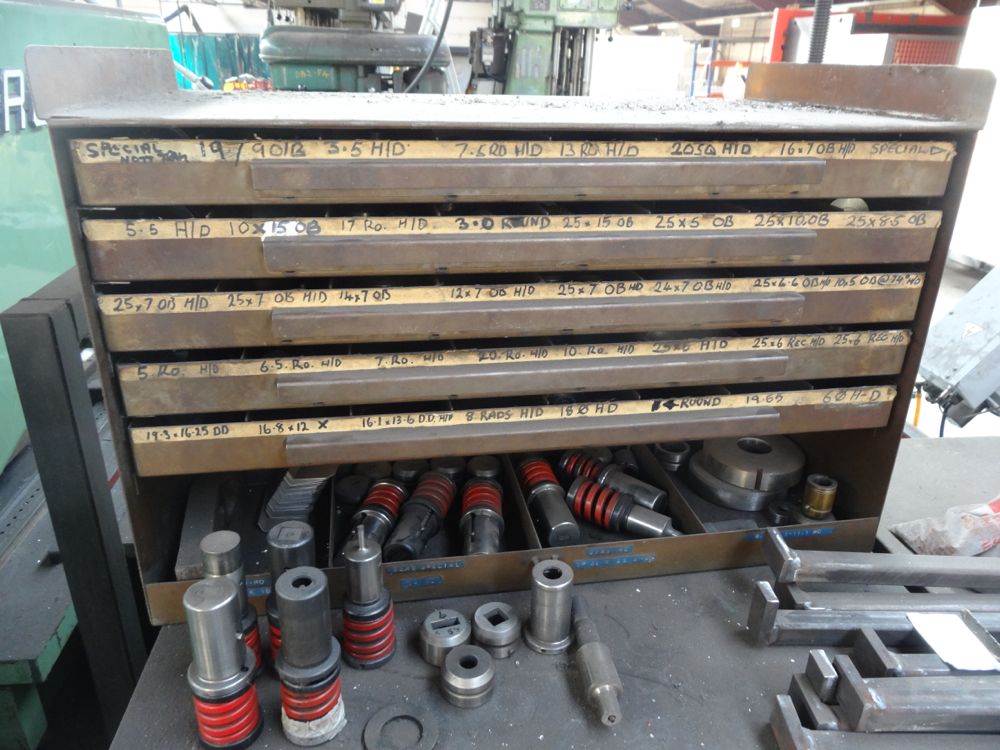

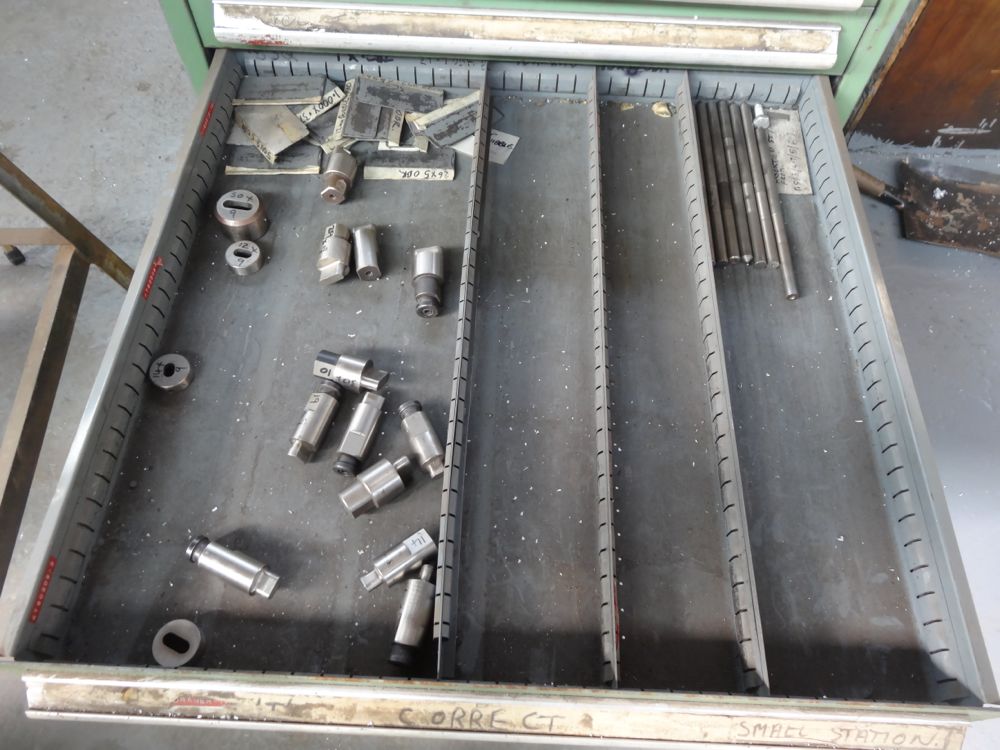

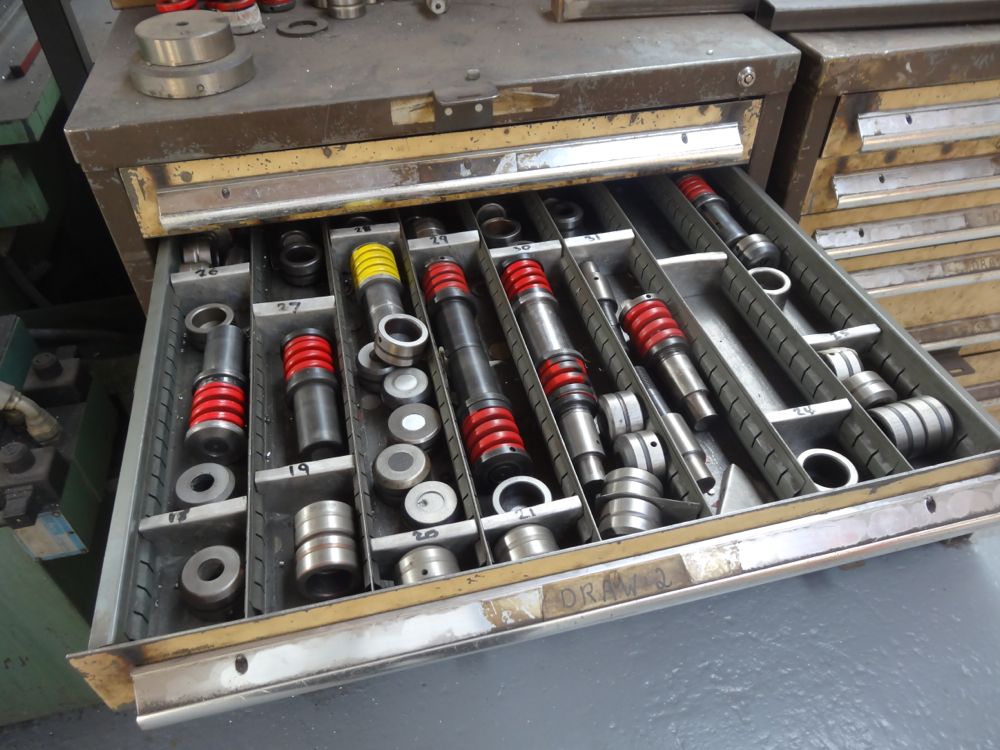

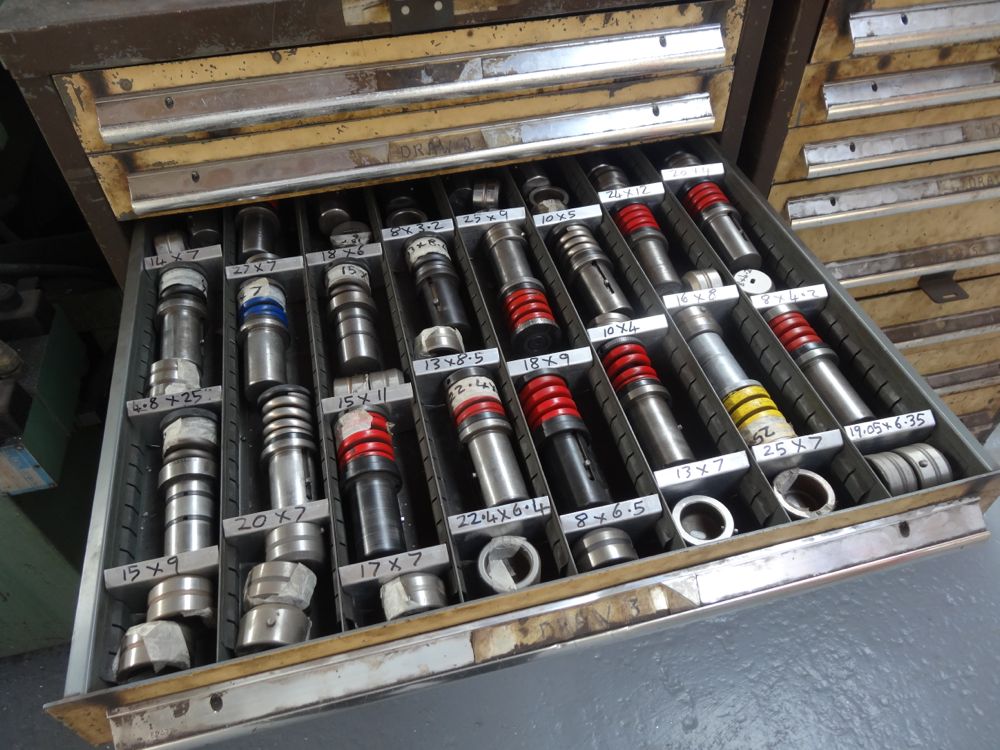

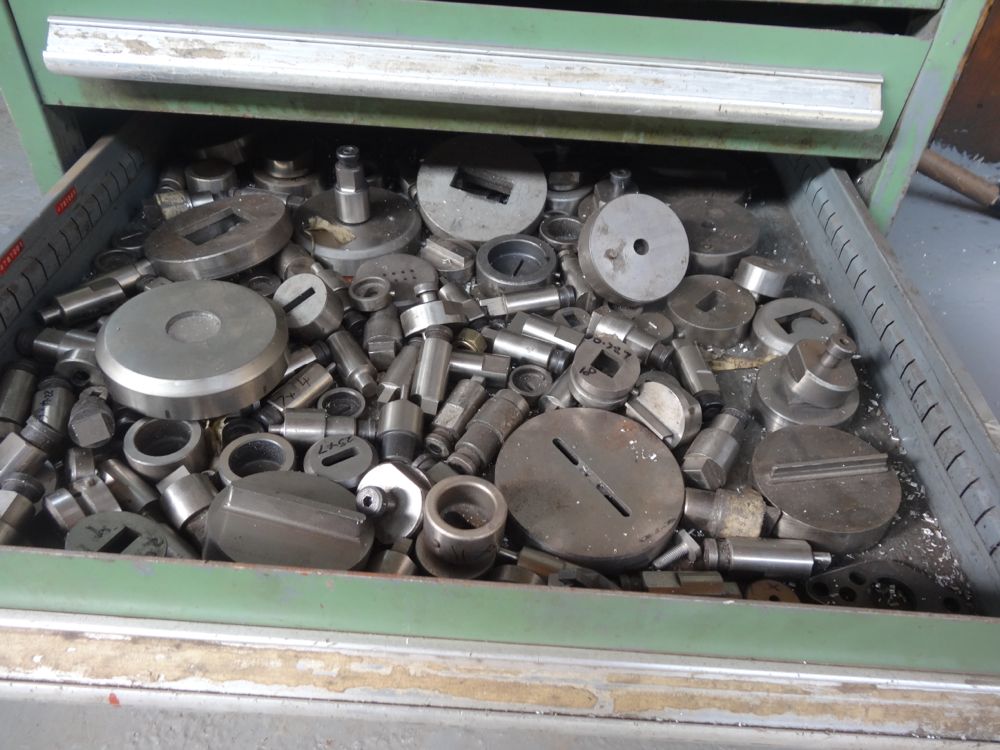

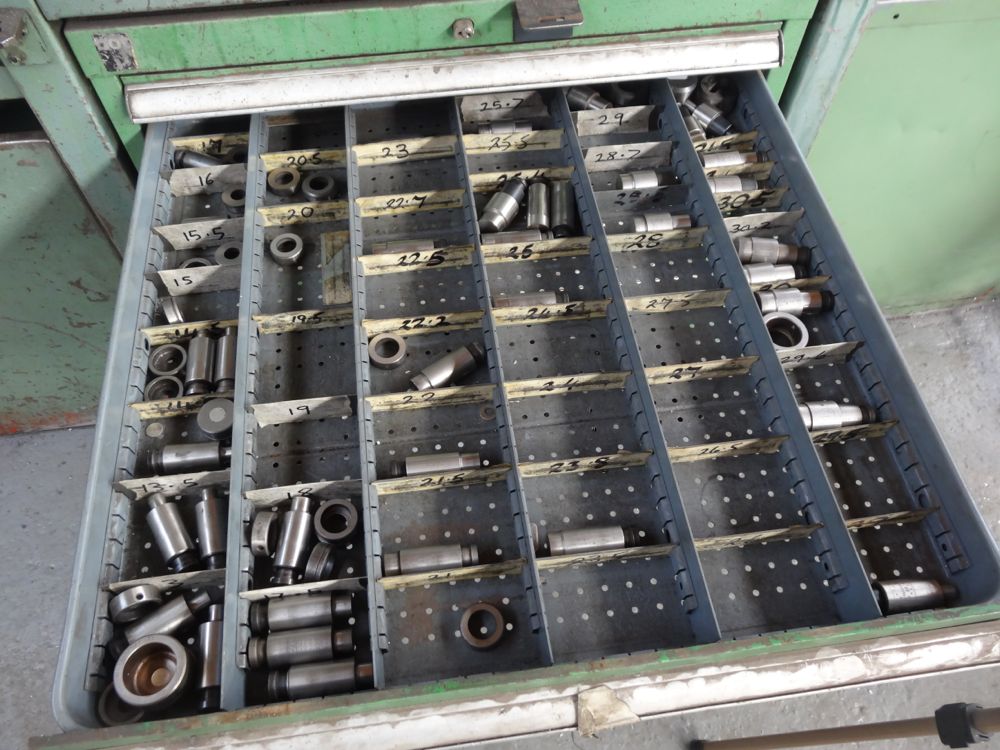

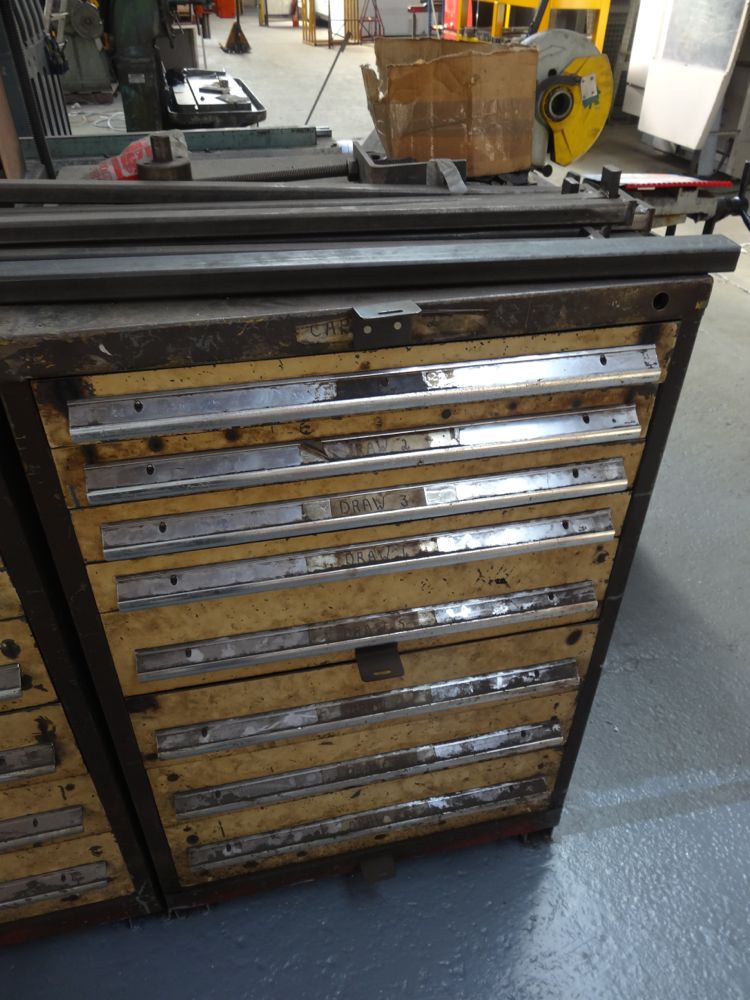

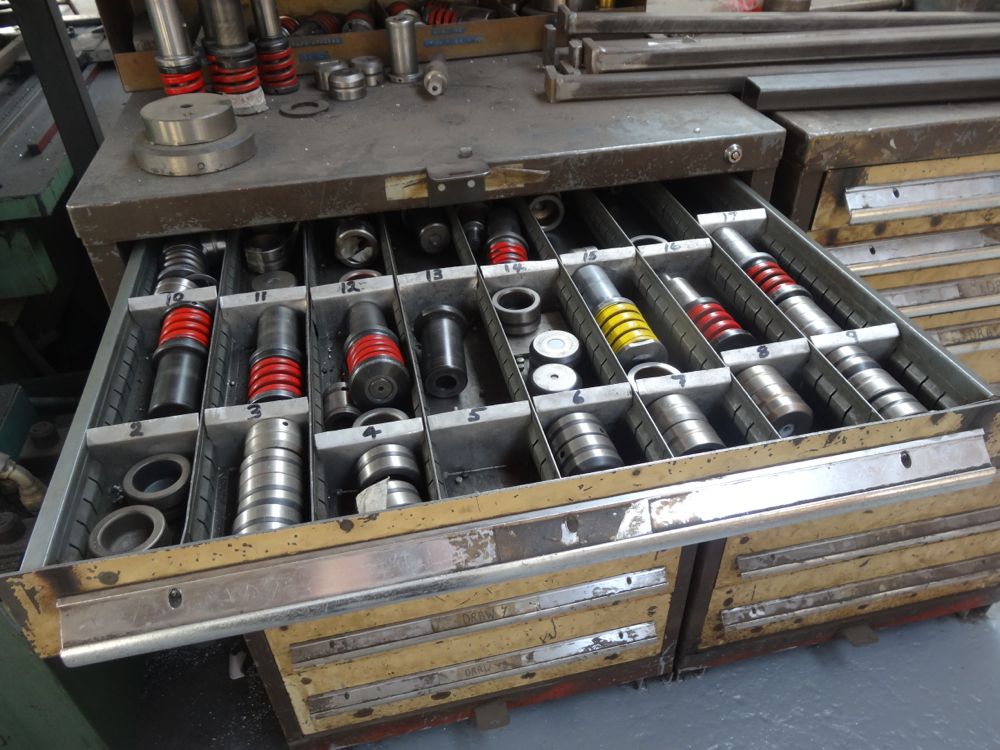

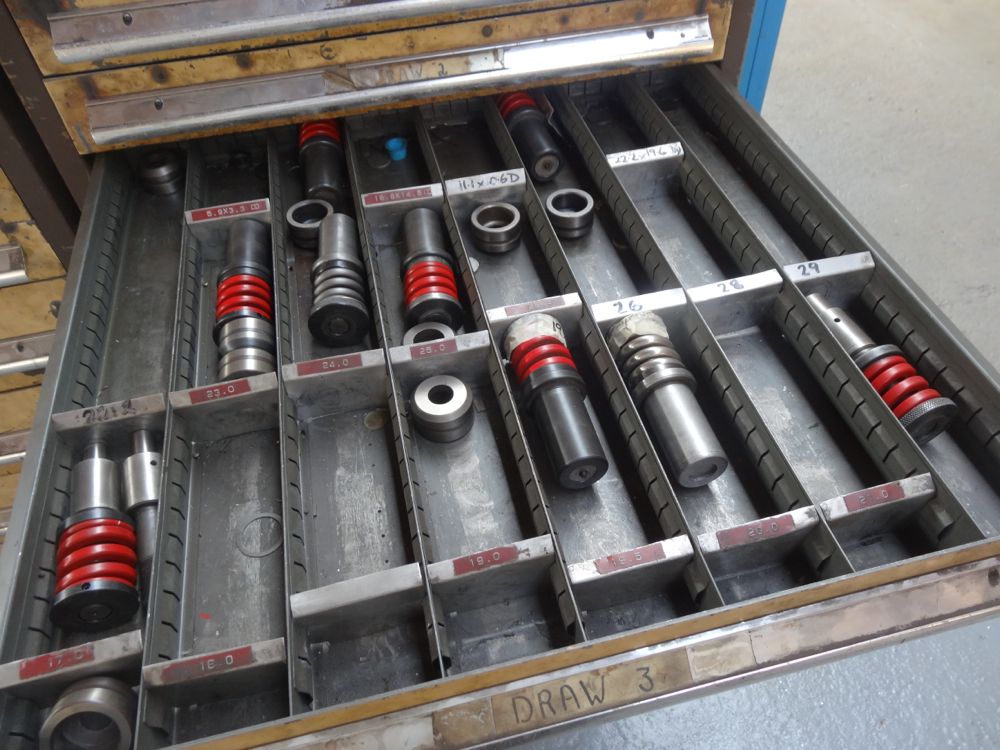

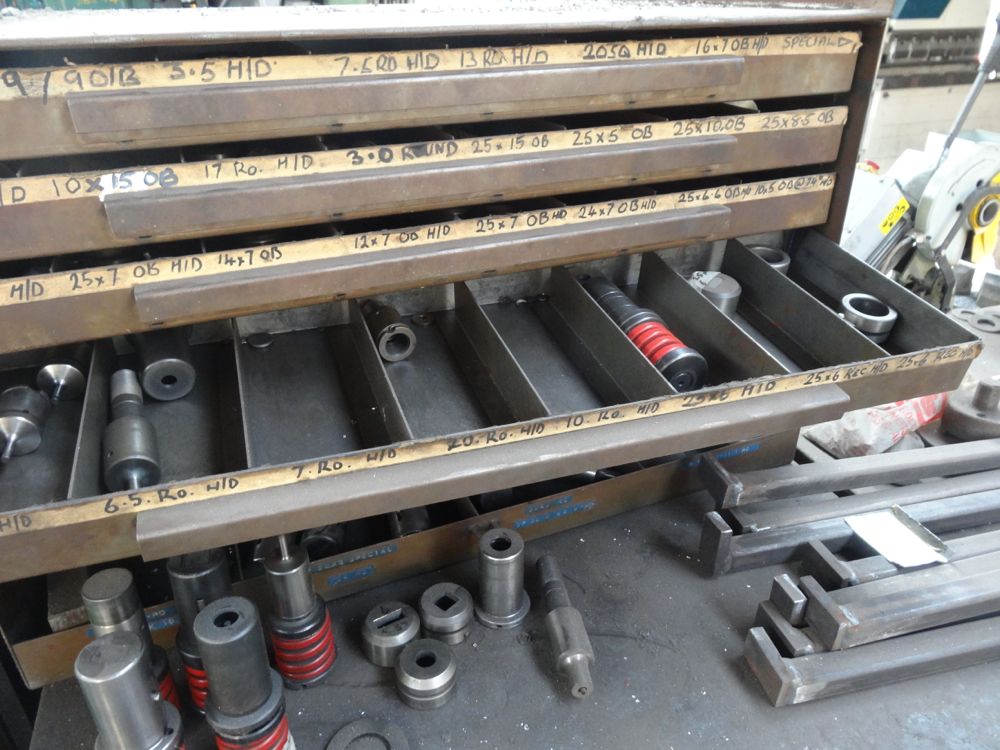

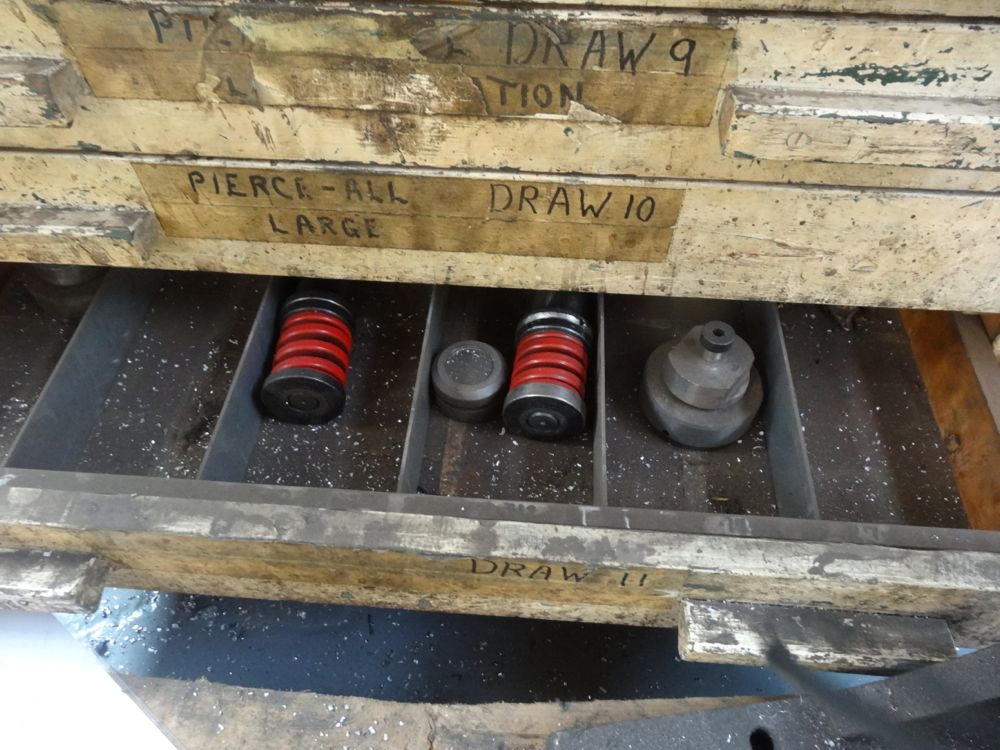

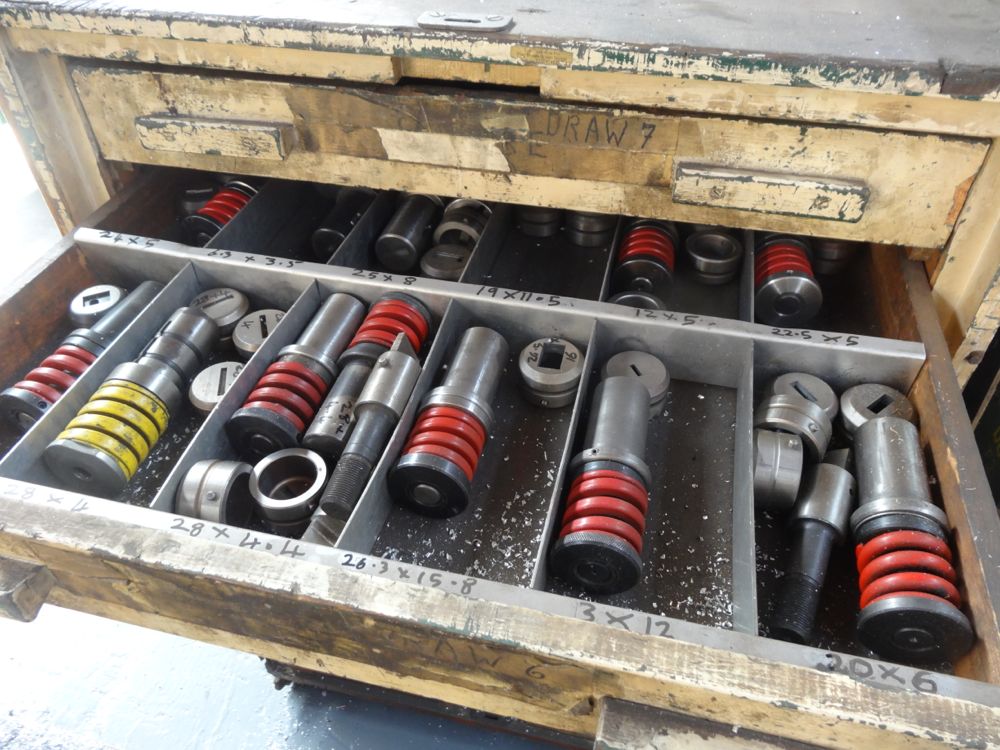

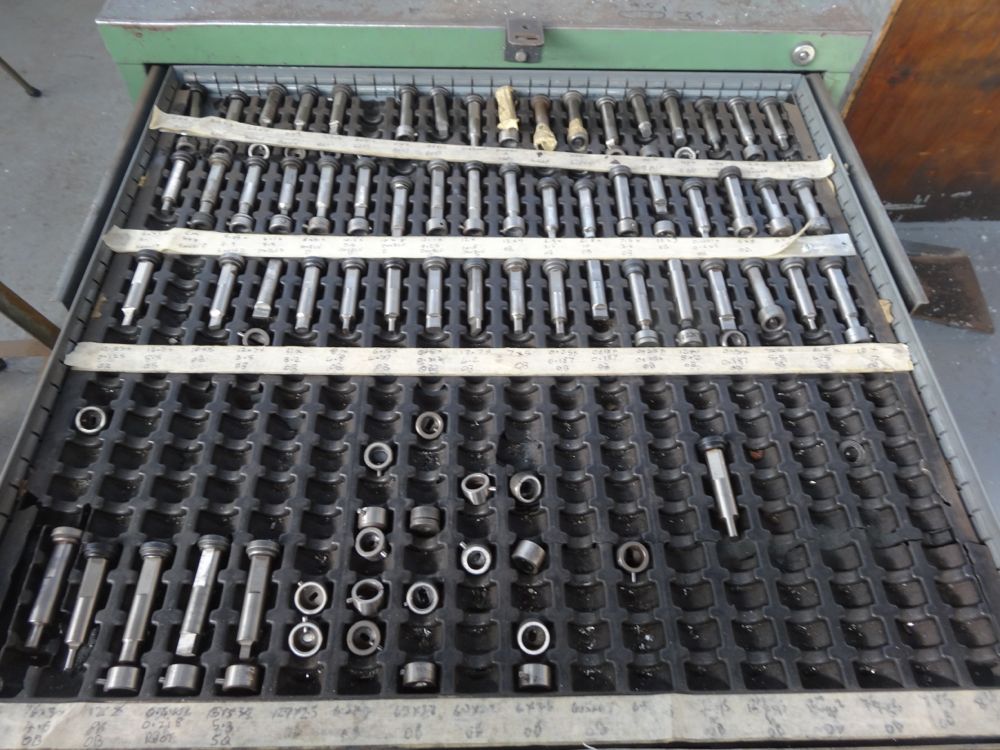

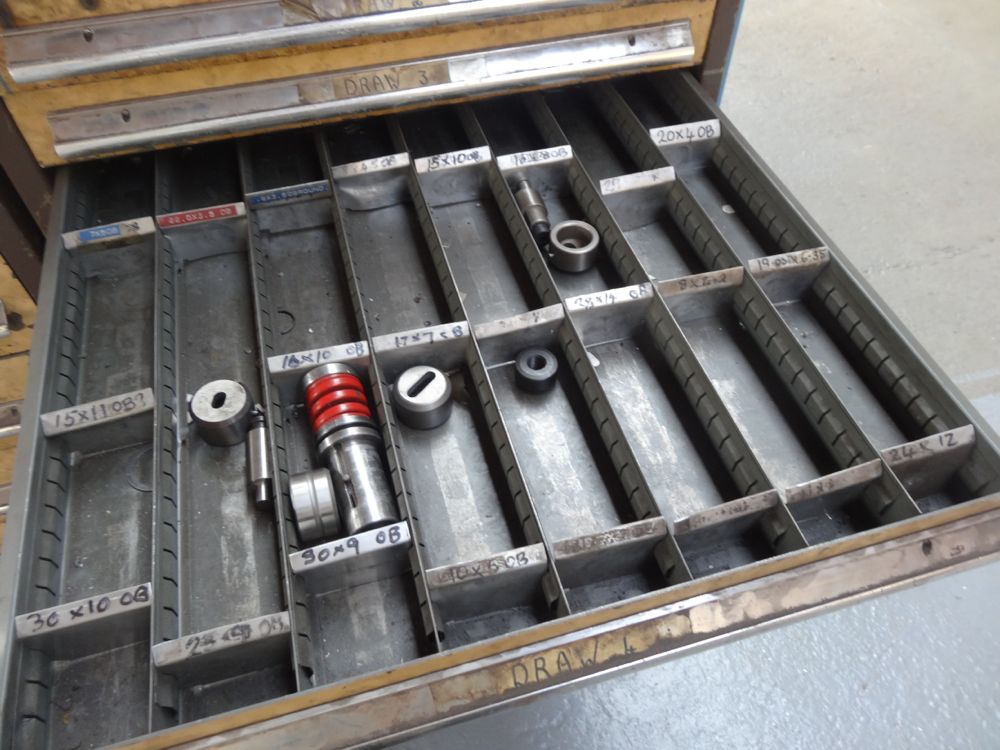

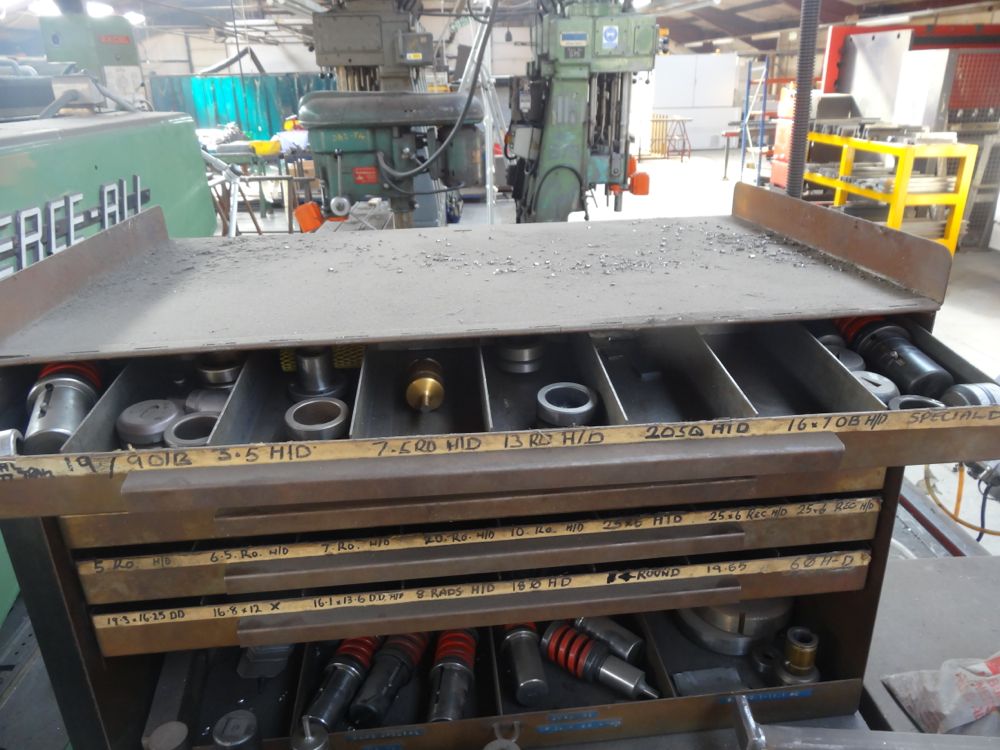

Tool cabinet : Standard
Support arms for sheet metal: Standard
LxWxH: 4000 x 2100 x 1900mm

Location: Engments Ltd, Derby

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
