Lot 7 - Pinacho Taurus 260 (2008) Fanuc 21iTB
Description:

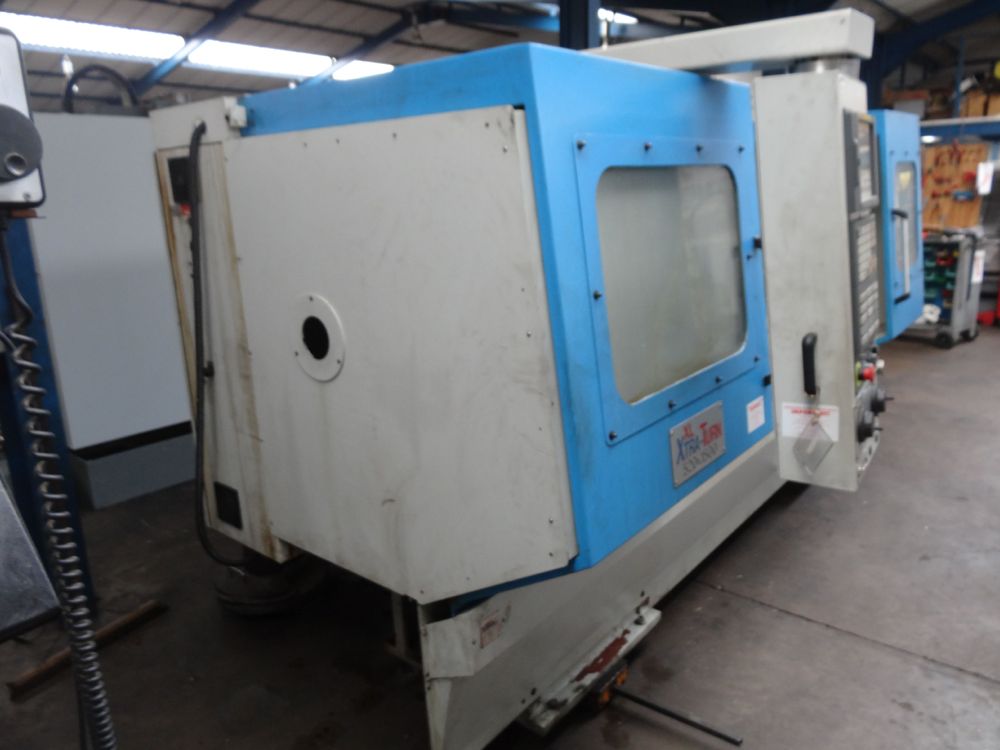

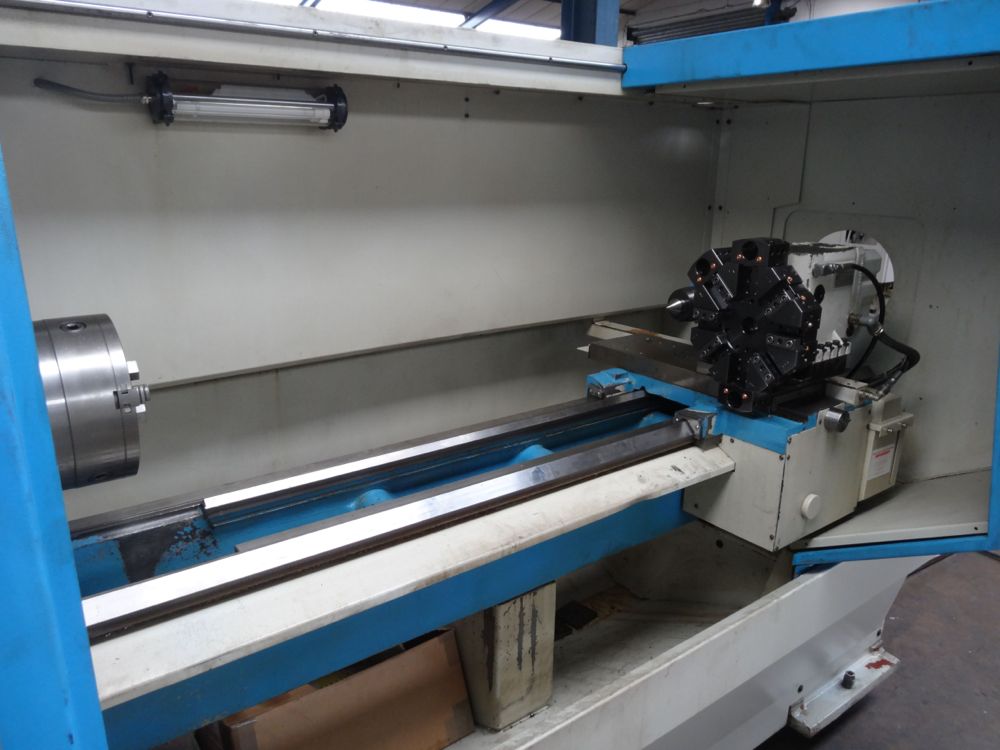

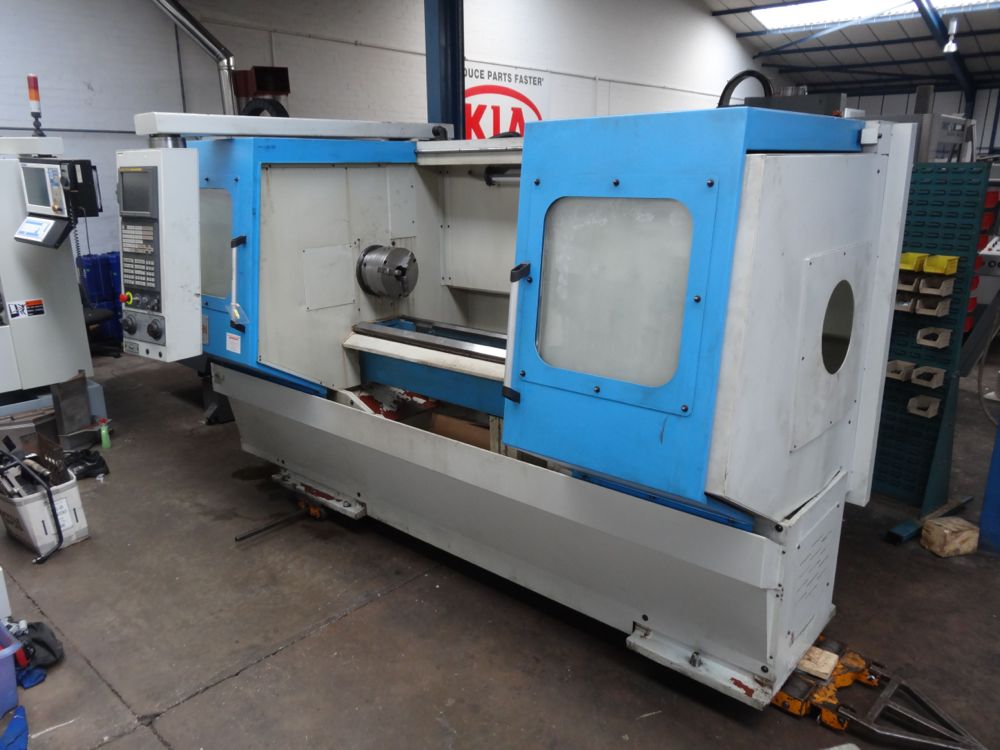

Pinacho Taurus 260 CNC Lathe (2008)

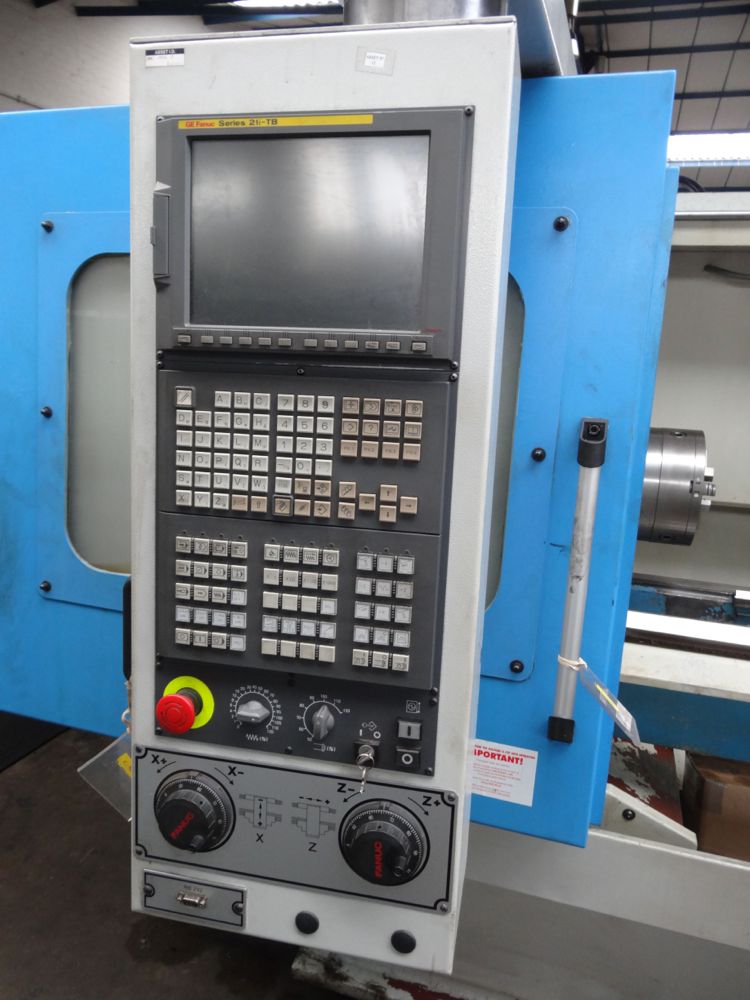

Control: Fanuc 21iTB
Capacity
Centre Height: 260mm
Distance Between Centres: 1000-1500mm
Swing Over Bed: 530mm
Swing Over Carriage: 475mm
Swing Over Crosslide: 315mm
Bed Width: 350mm
Headstock
Main Spindle Bore: 80-105mm

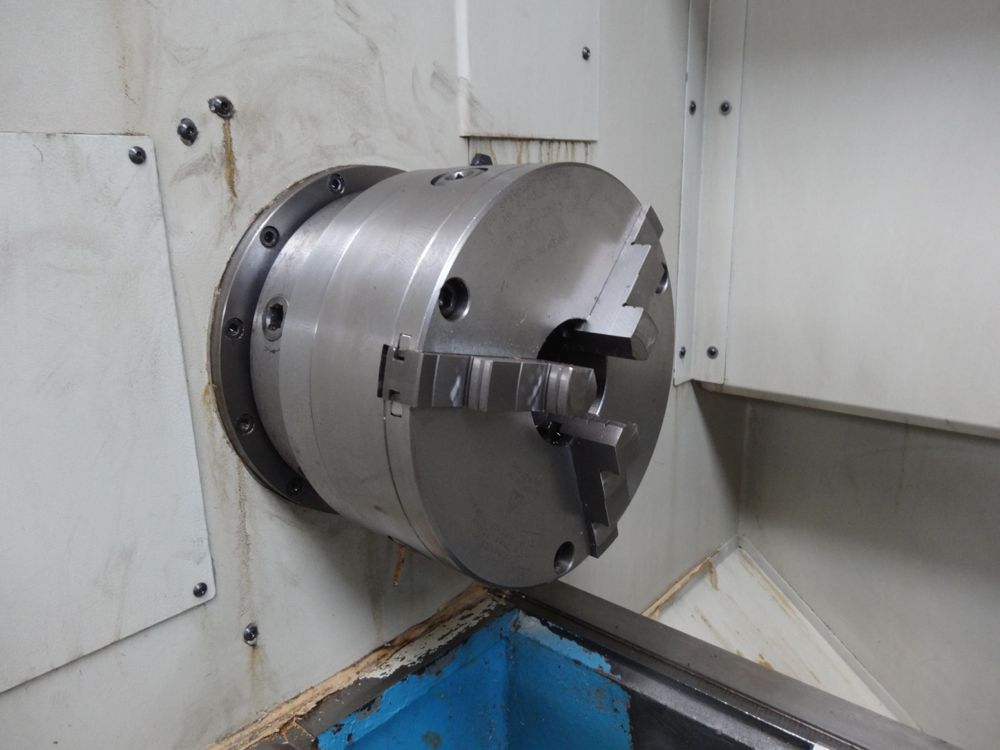

Main Spindle Nose: Camlock-no8, DIN 55027-no8
Main Spindle Taper: 5
No of Speed Ranges: 2
Variable Spindle Speed r.p.m: 0-564, 564-2500
Feeds
Z,X Working Feed (mm/min): 0-7000mm
Z,X Rapoid Motion (m/min): 10
Tail Stock
Tail Stock Shank diameter: 72mm
Tail Stock Shank Travel: 180mm
Tail Stock Taper: 5
Motors
Main Motor Power: 11KW
Power of Z Axis Motor C.A. in Nm: 8
Power of x Axis Motor C.A. in Nm: 4
Pump Motort Power: 0.57KW
Manuals

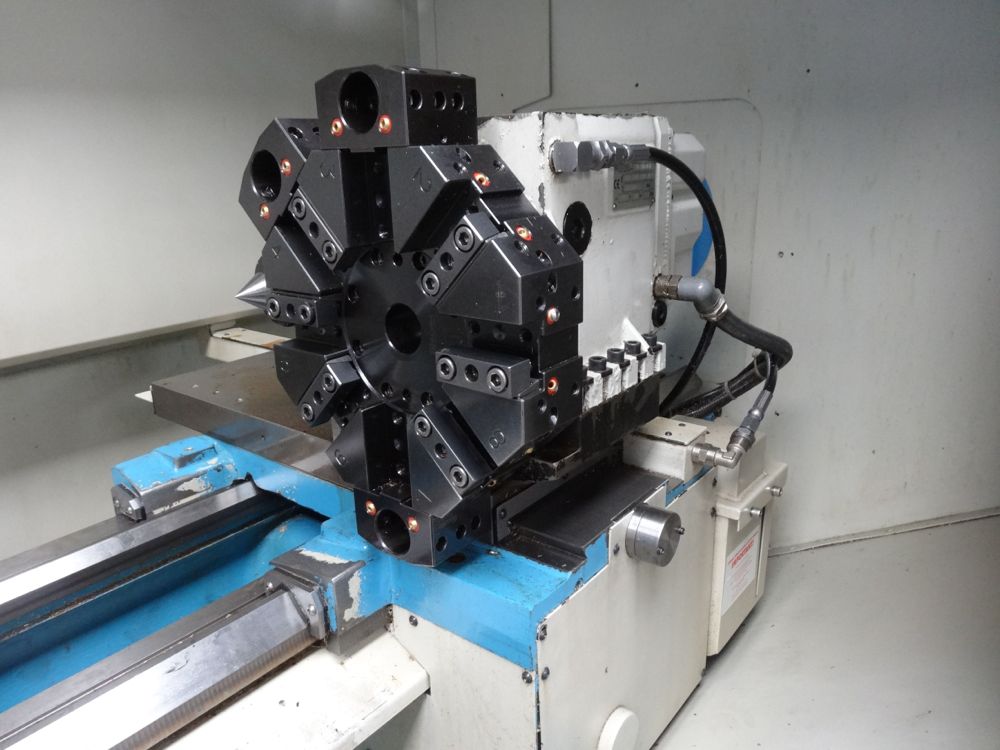

Selection of Tool Holders and Jaws
Location: Coventry, Can be loaded to flat truck for Free.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
