Puma TT1800 SY CNC Lathe (2007)

Lot 1 - Puma TT1800 SY CNC Lathe (2007)

Description:

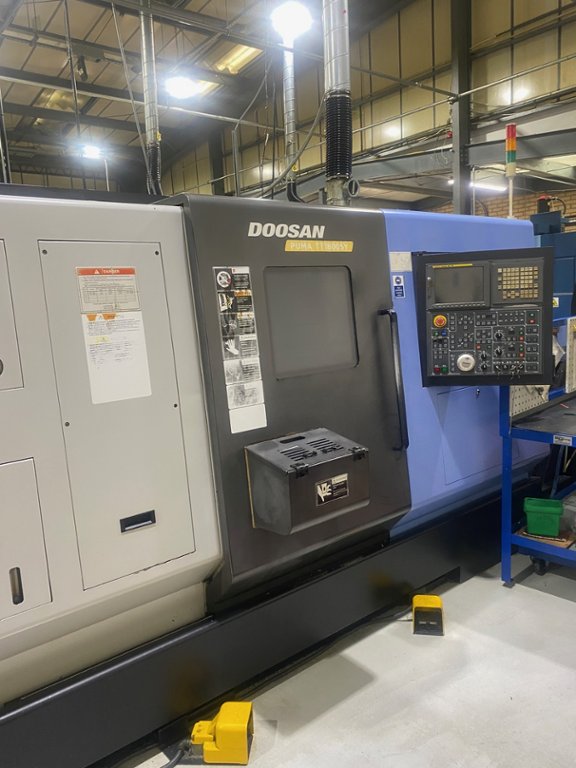

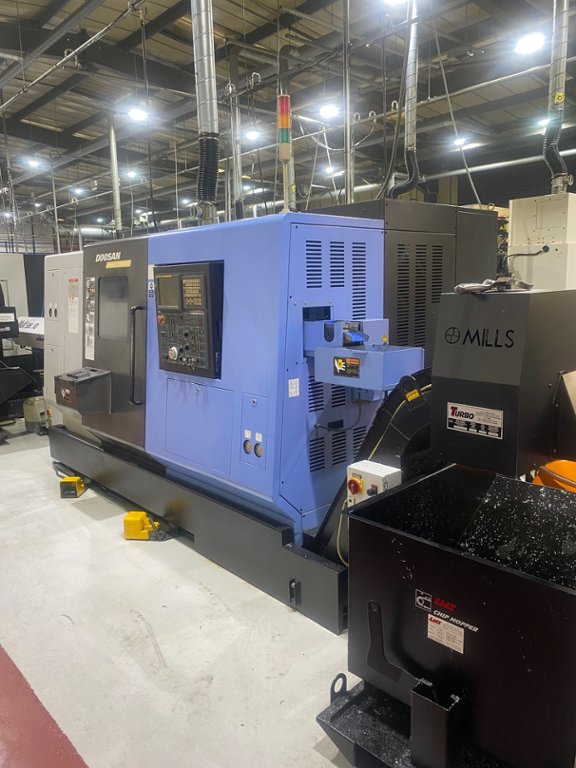

A well presented Doosan Puma TT1800SY (2007) for sale on behalf of a manufacturer within the medical component industry due to new machinery purchase.

Spindle Speed: 5000rpm
Spindle Motor Power: 22kw
Rapid Feedrates: X x Z: 20 x 40m/minute
Swing: 230mm
Bar Capacity: 65mm

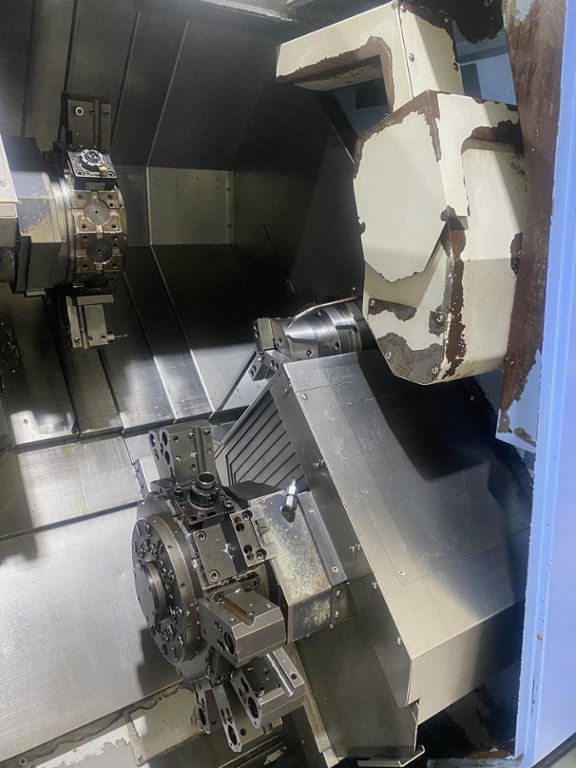

Turret Positions: 12+12
Sub Spindle Motor Power: 15Kw

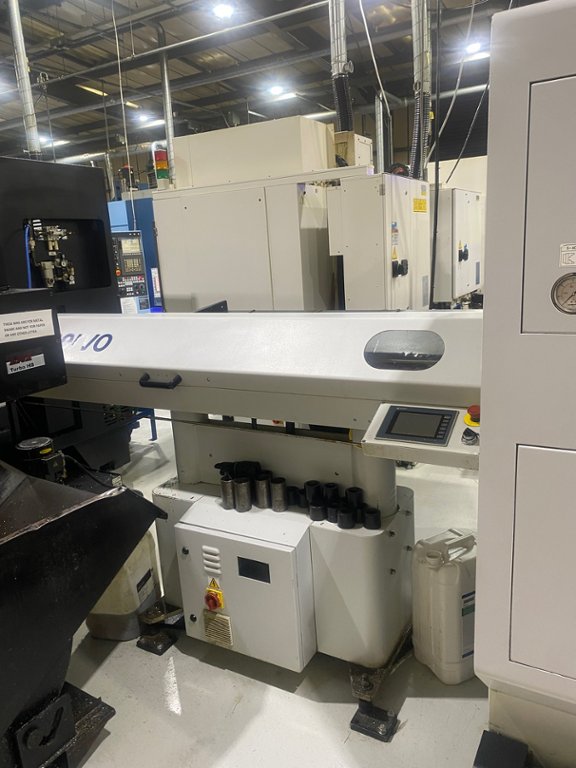

Additional Equipment: 3000mm Iemca Magazine Barfeed
Y Axis Travel: ± 50mm
C axis: 0.001 degree
Control: FANUC 18i
Machine Dimensions L x D x H: 3905 x 2070 x 2080mm
Machine Weight: 8800kg
Maximum Cutting diameter: 230mm
Maximum Cutting Length: 230mm
Milling RPM: 5000rpm @5.5kW
Description:
C axis & Milling, Tool setter, Coolant, Y-Axis, Interlocked guards, Low Volt Light, Magazine Barfeed,Parts Catcher, Manuals, C Axis (0.001deg) on Sub Spindle, Swarf Conveyor, Sub Spindle

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
