Lot 6 - Quaser MV204II VMC with integrated 4th Axis & Heidenhain Control (2001)
Description:

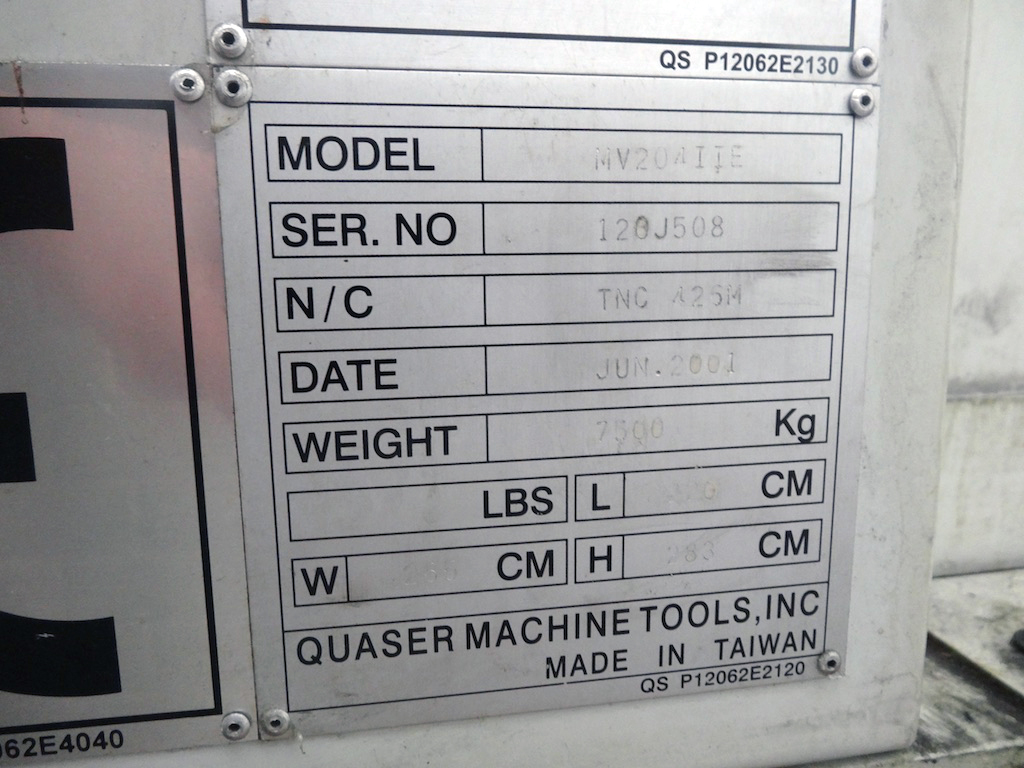

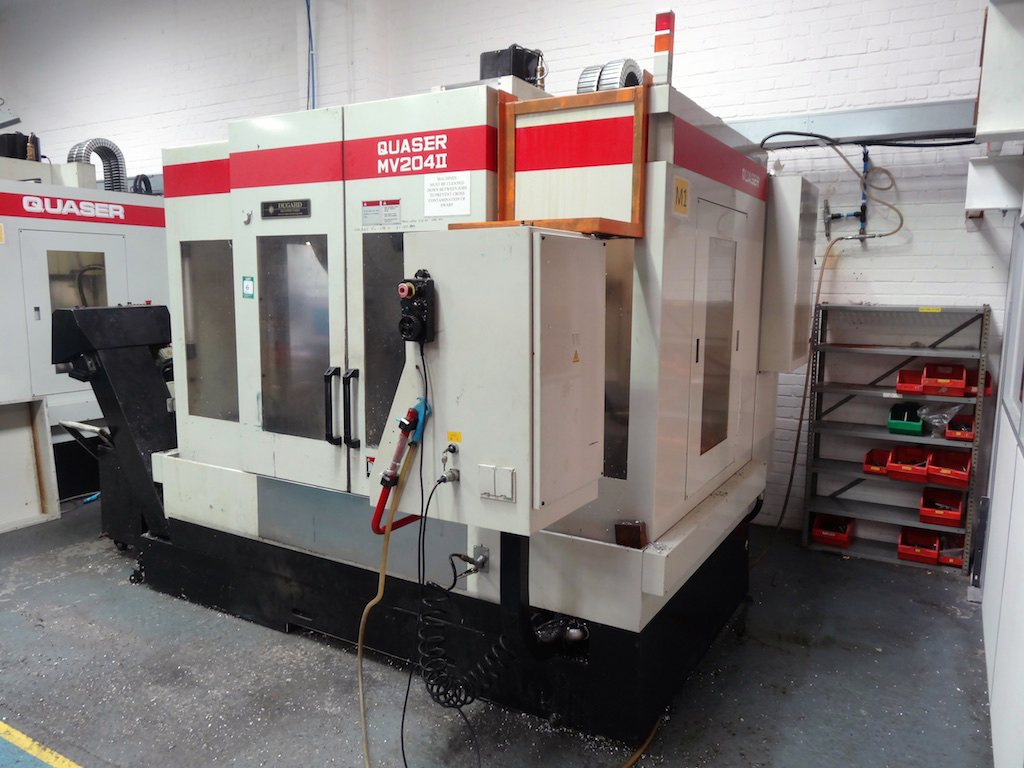

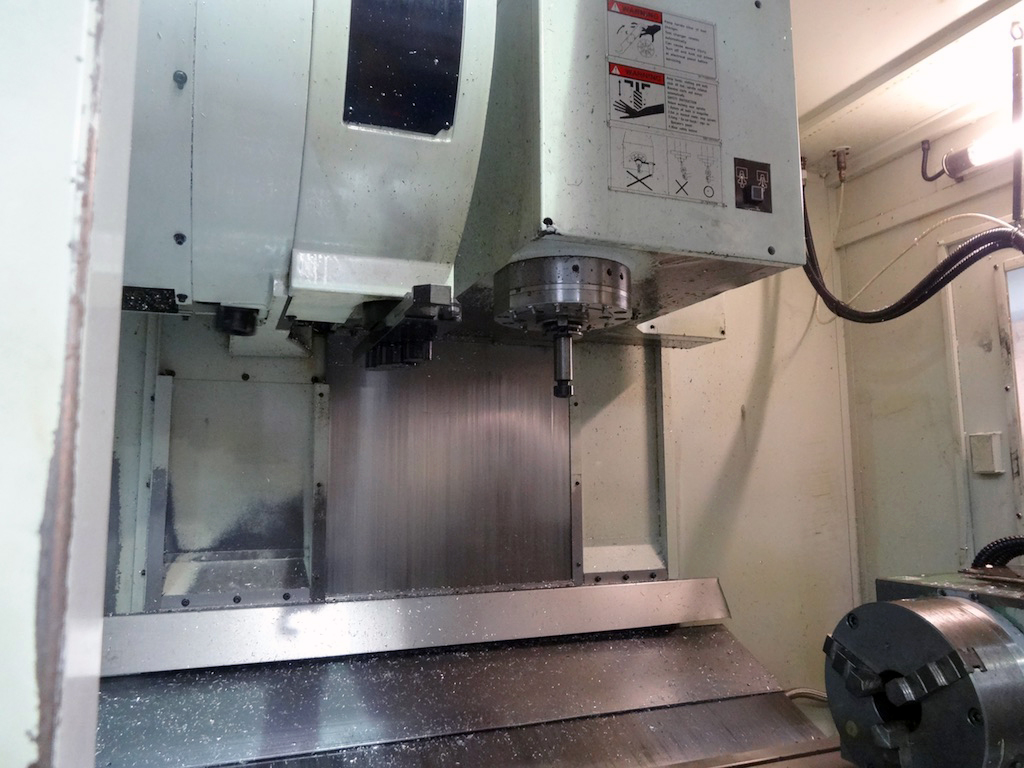

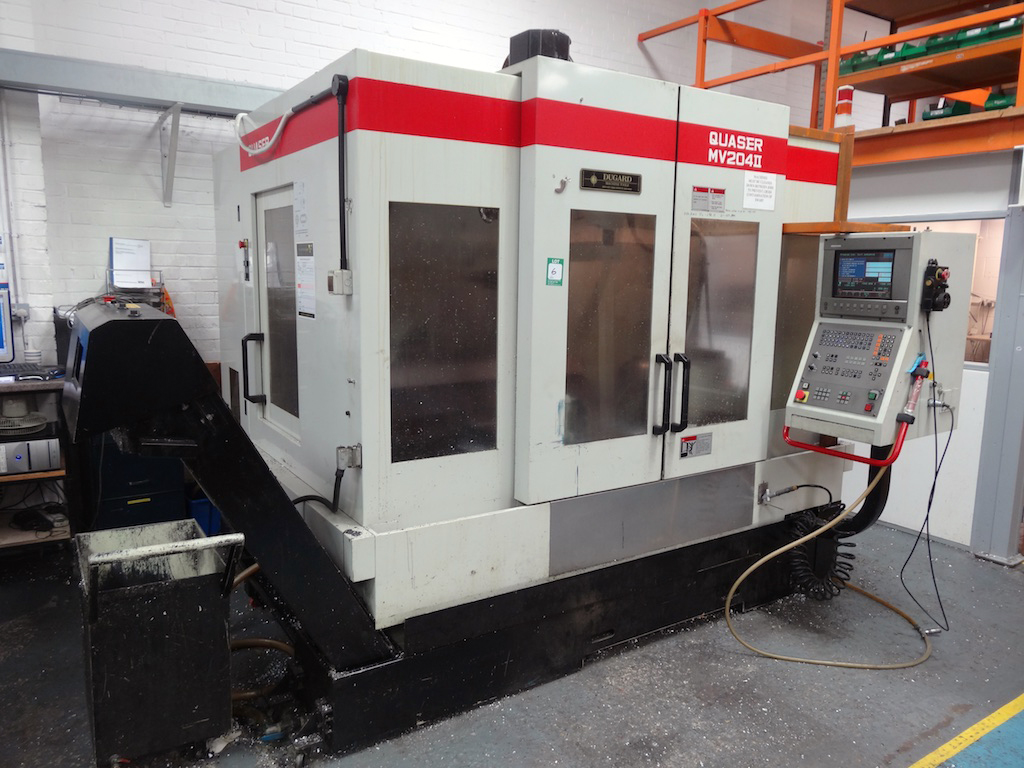

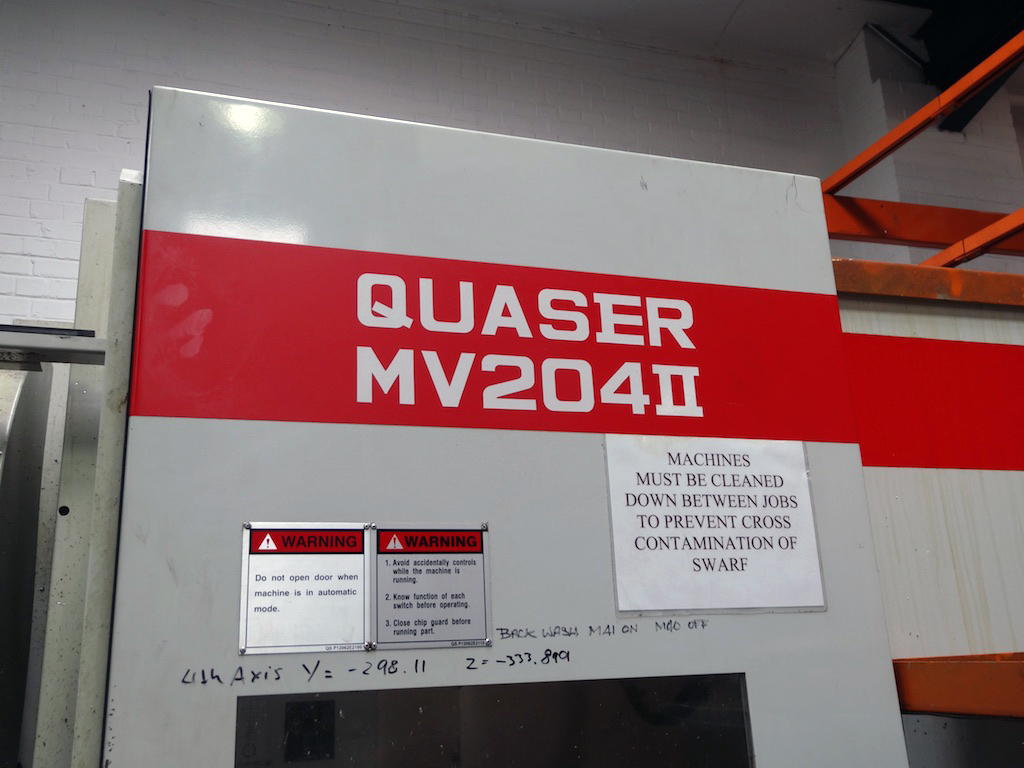

Quaser MV204II VMC

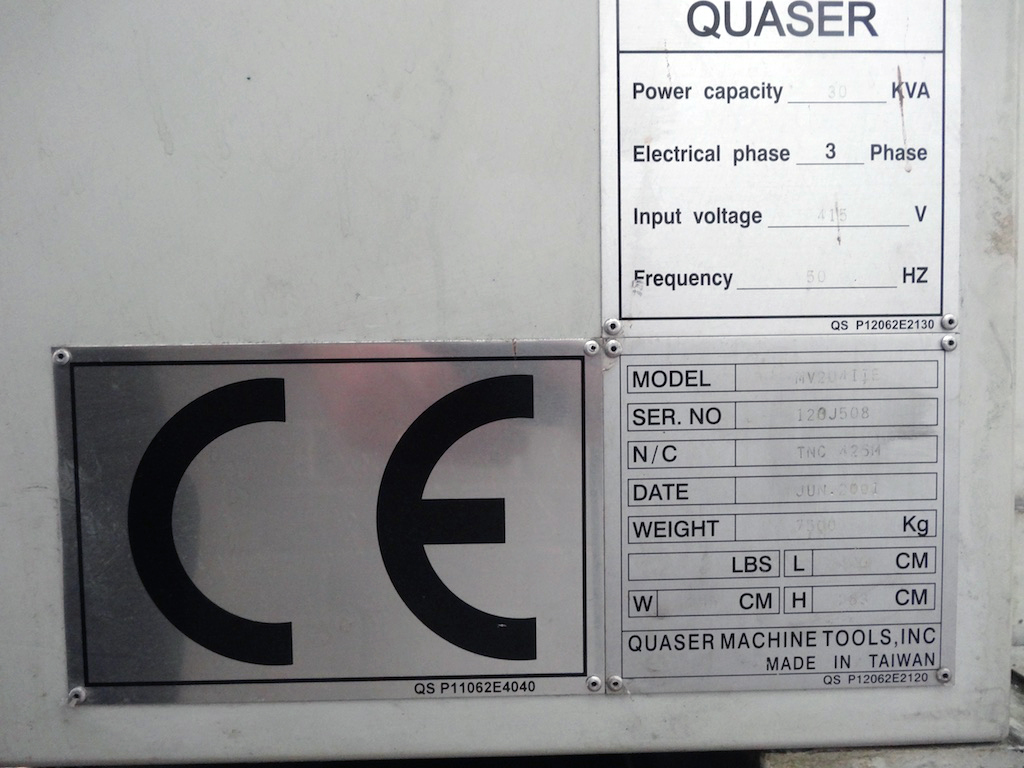

S/n: 120J508
Date: June 2001
L x W x H: 2650 x 2200 x 2825mm
Weight: 7500kg

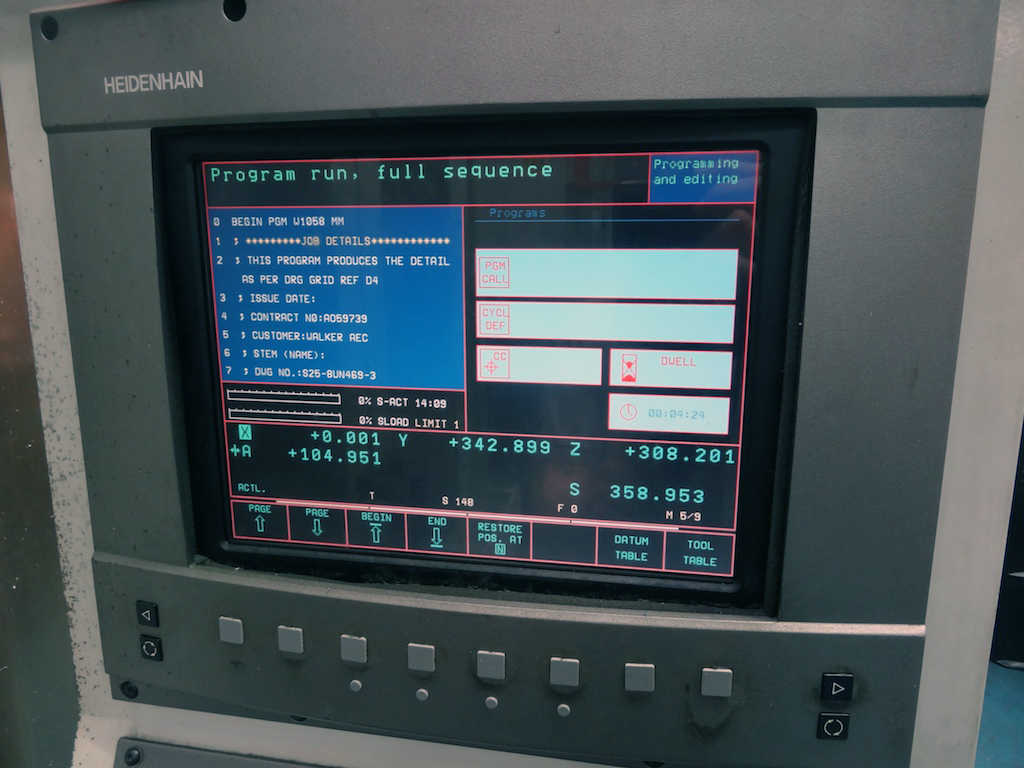

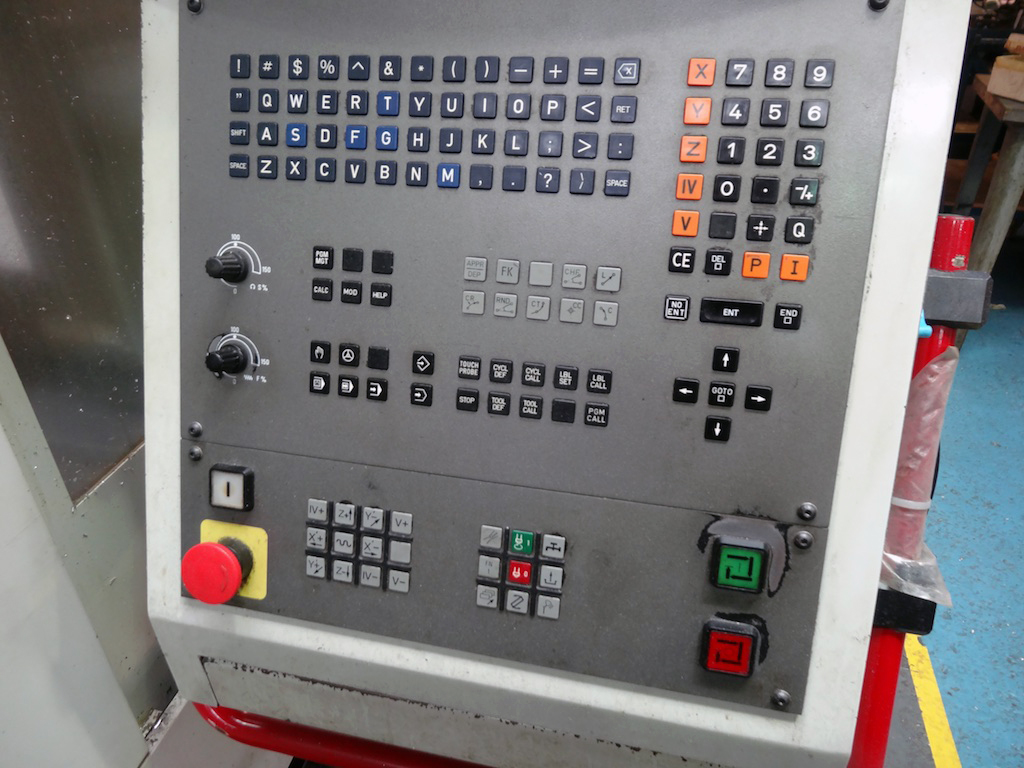

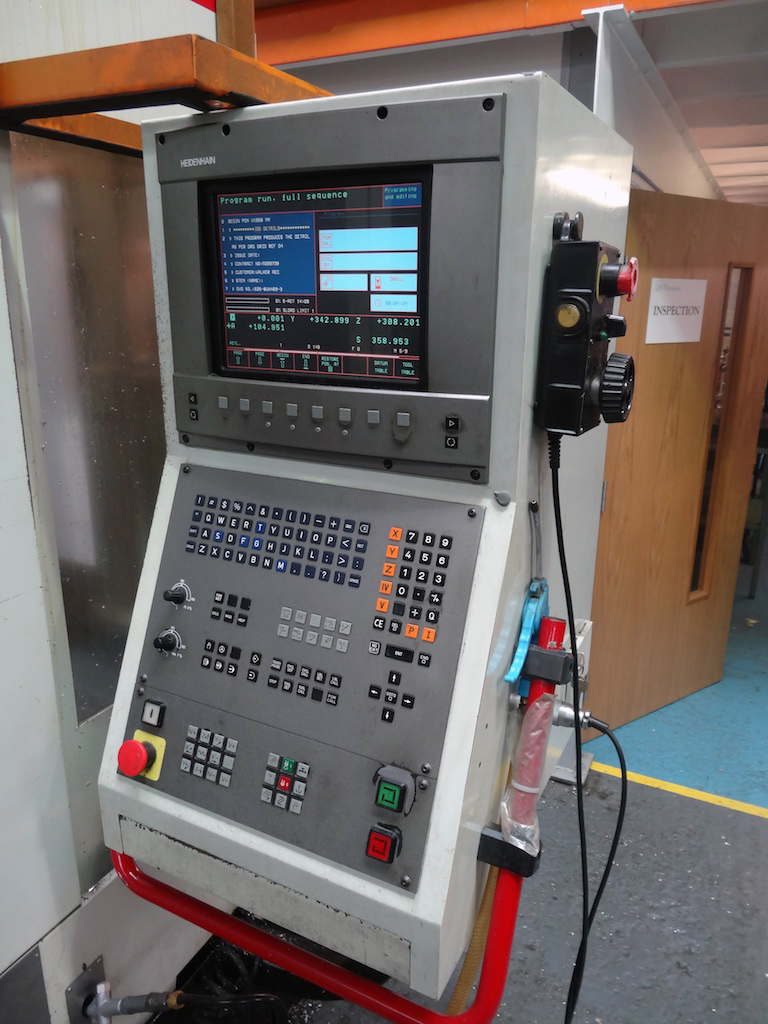

Heidenhain 426 control

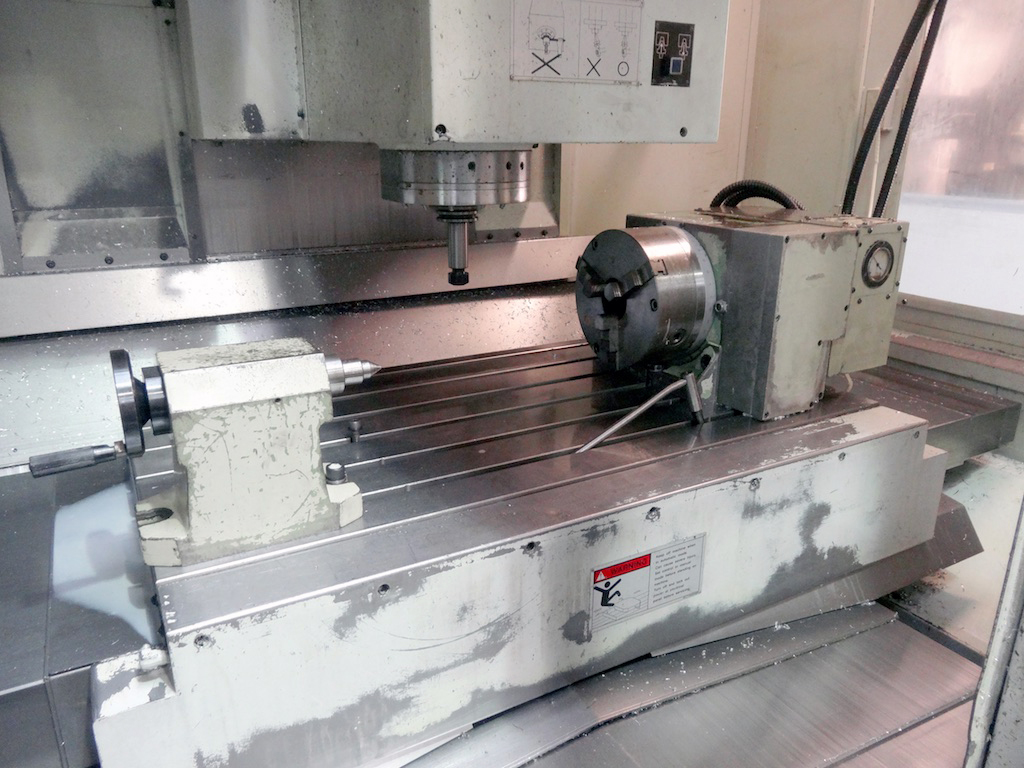

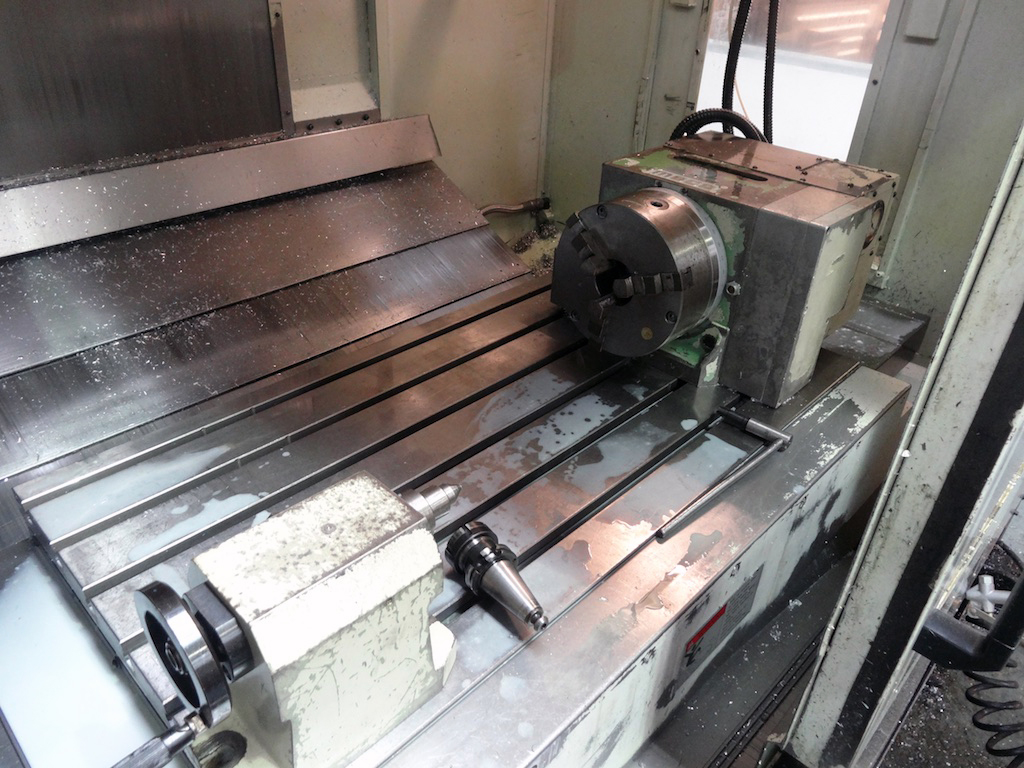

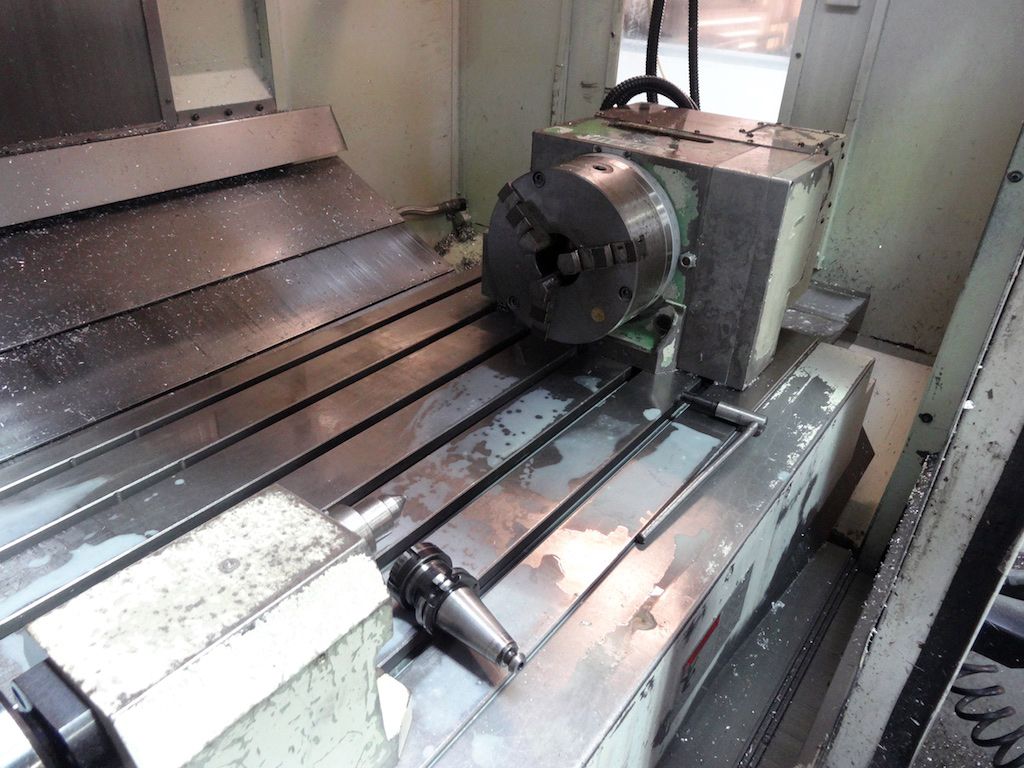

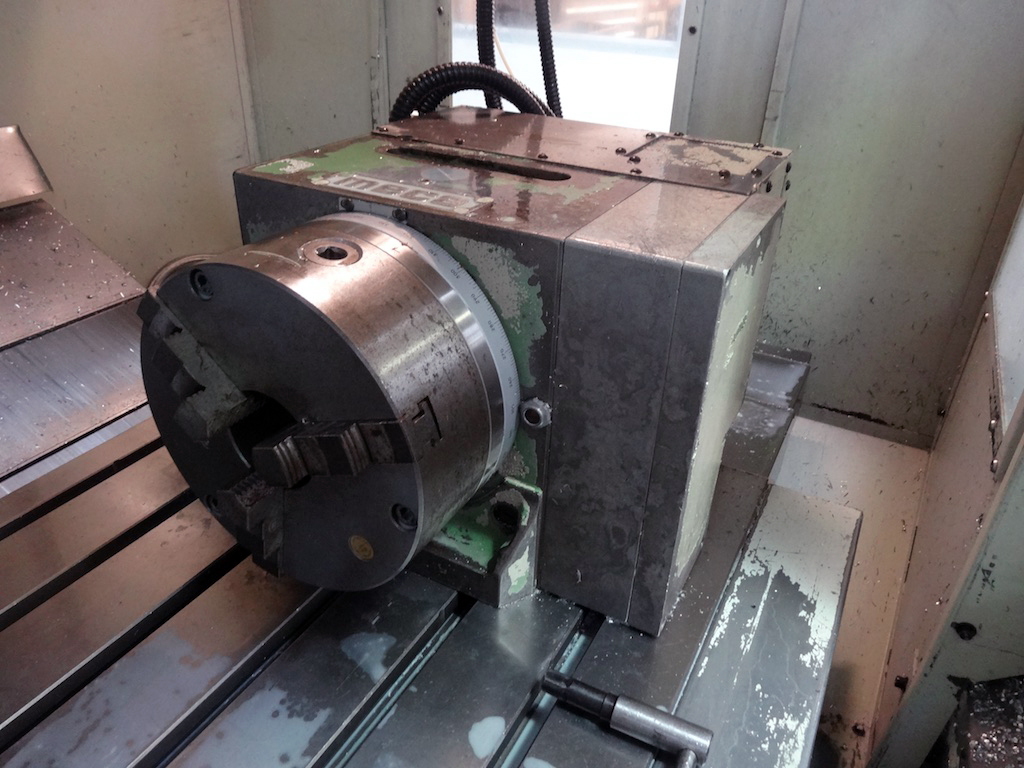

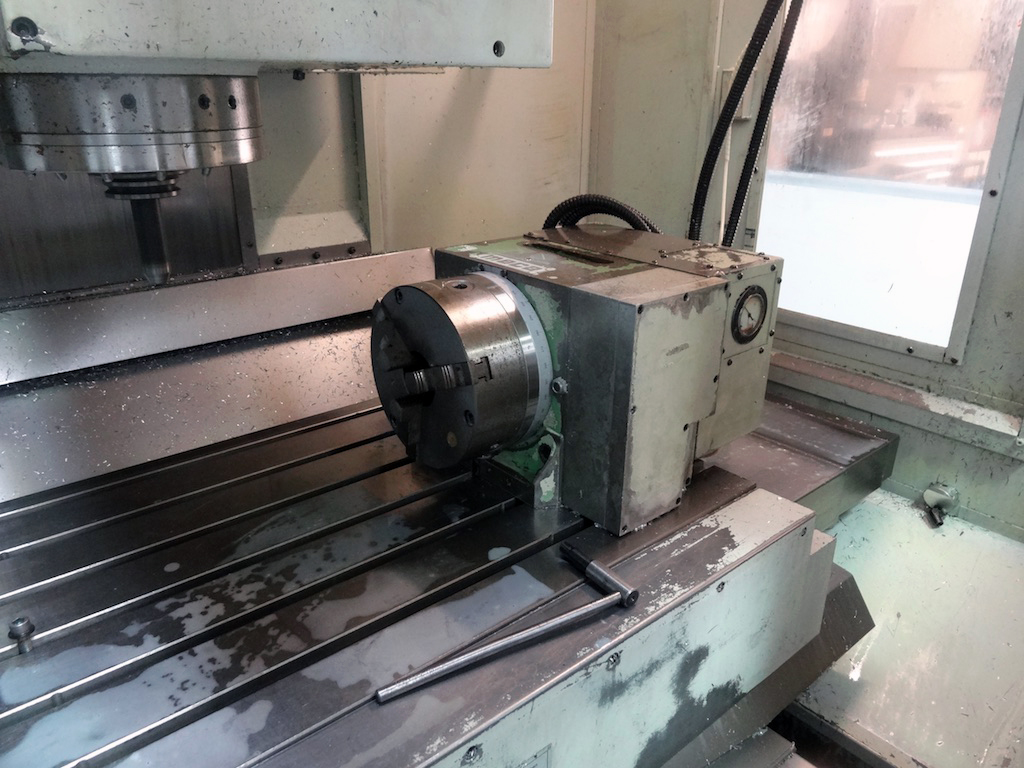

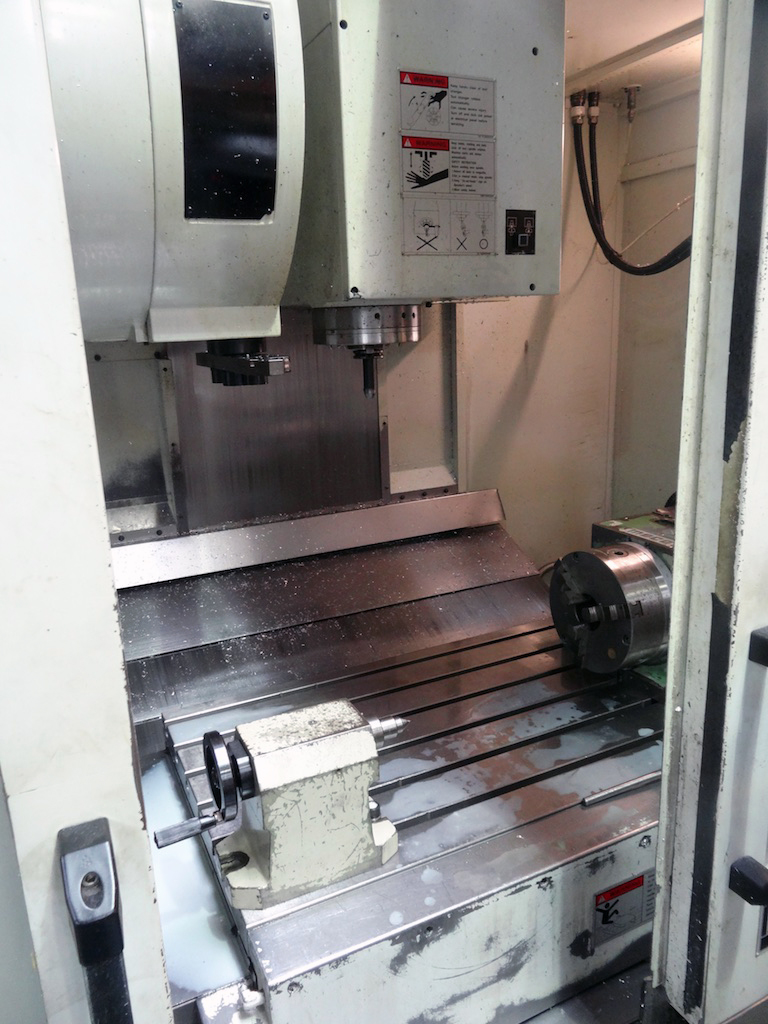

4th Axis

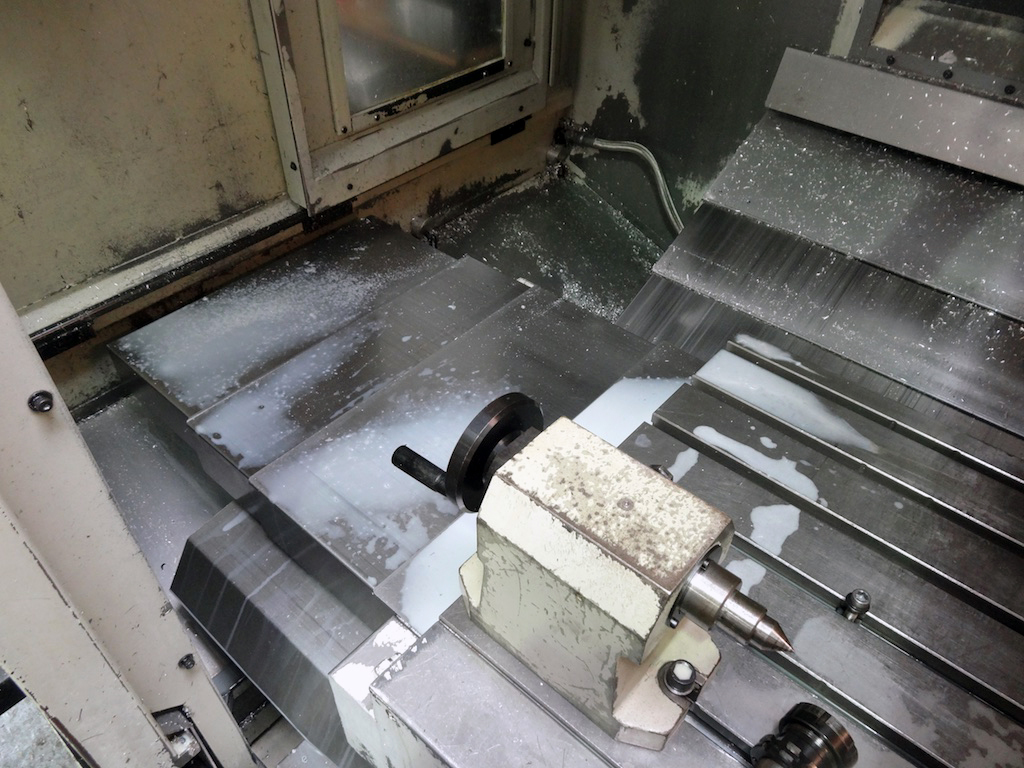

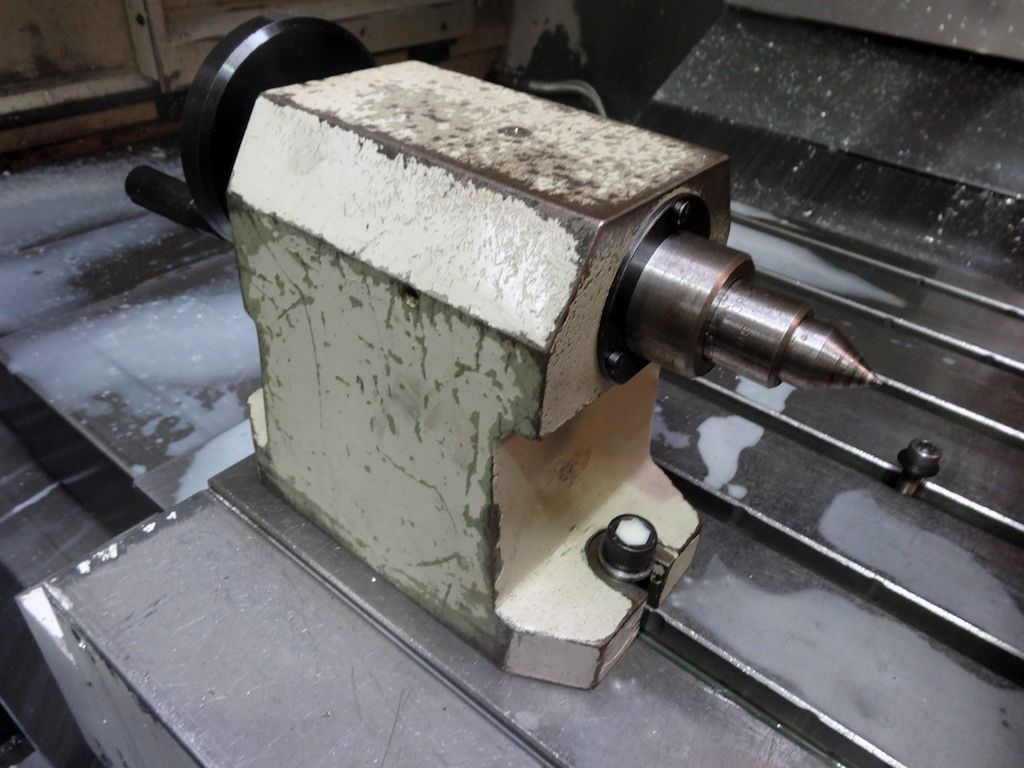

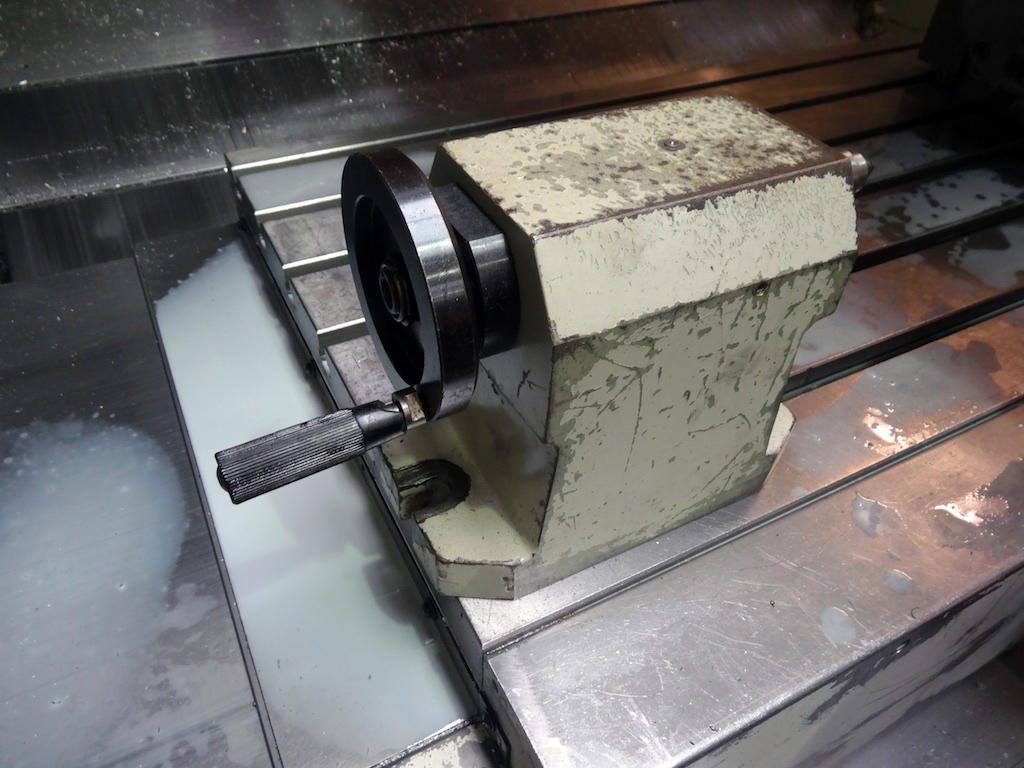

Tailstock

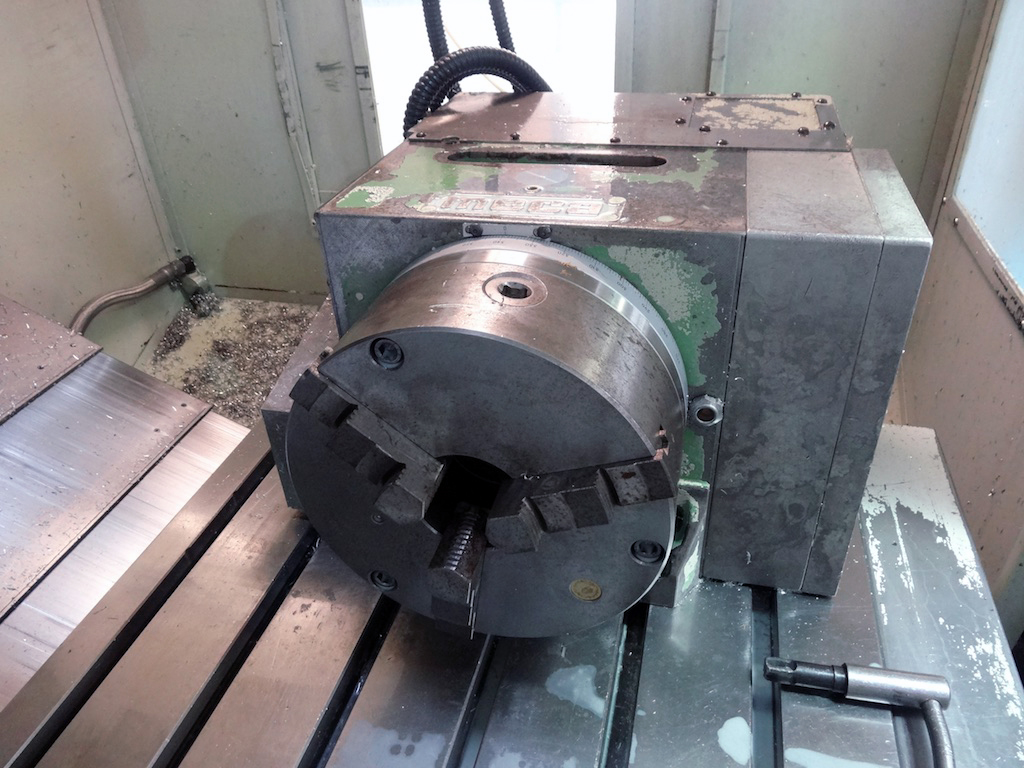

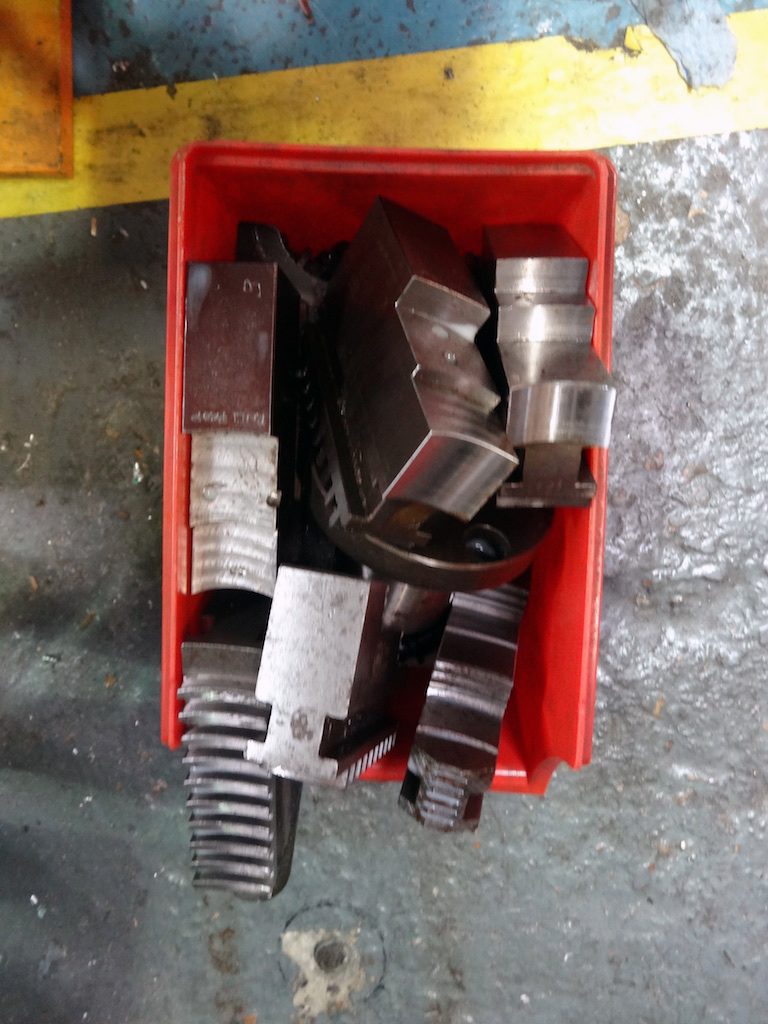

10” 3 jaw chuck

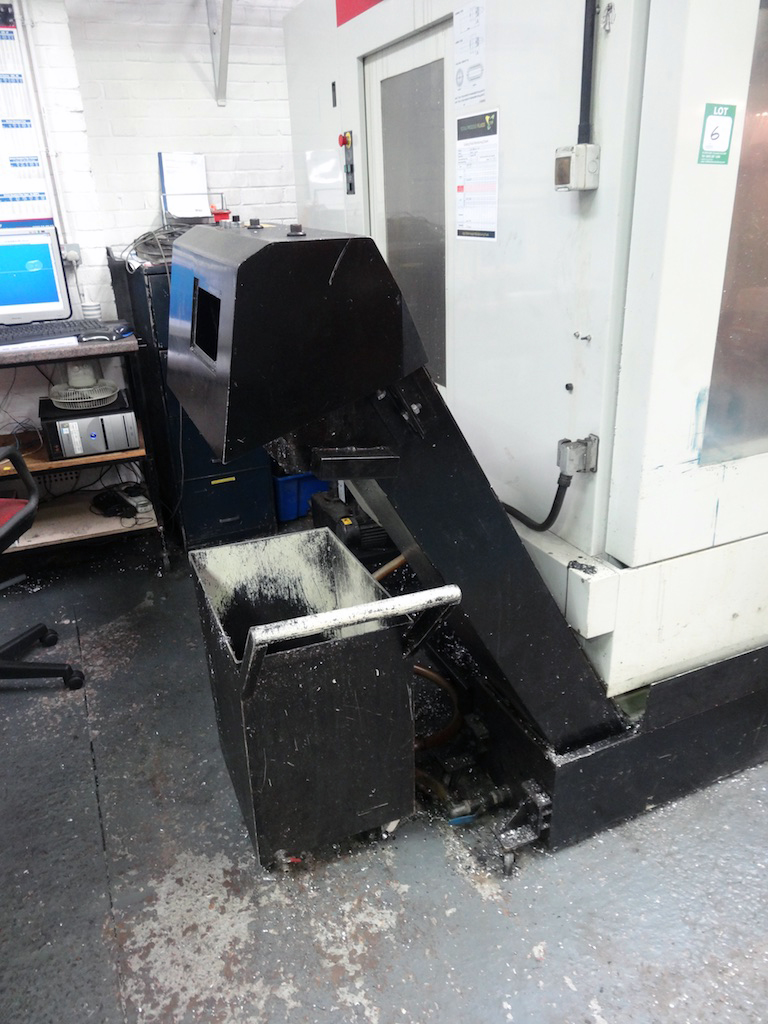

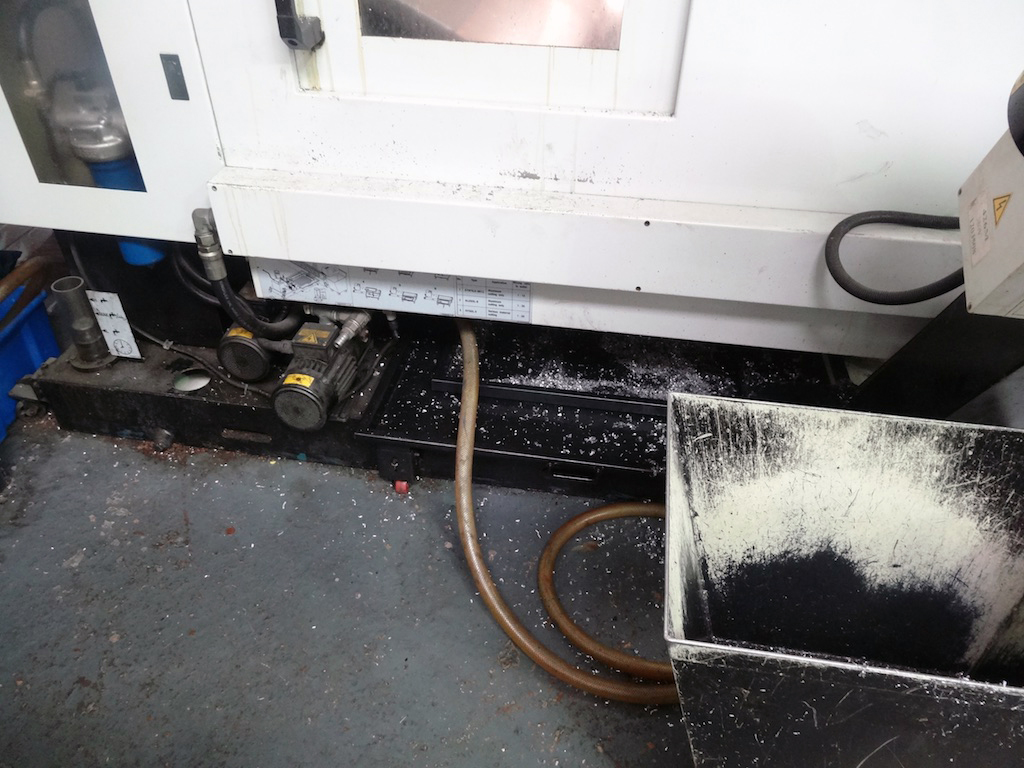

Swarf conveyor
X axis travel: 1020mm
Y axis travel: 600mm
Z axis travel: 560mm
Distance from table surface to spindle gauge plane: 150-710mm
Table size: 635 x 1200mm
Table load cap: 1000kg
Table configuration: 6 x 18 H 8 T slots mm
Max spindle speed: 7500/10300 min-1
Number of spindle speed ranges:1
max spindle torque: 252 N.m
Type of spindle taper hole: 7/24 taper no 40
Spindle bearing inner dia: 70 mm
Rapid traverse x y and z: 32000 mm/min
Feed rate: 1-20000 mm/min
Jog feed rate: 2000 mm/min
Type of tool shank: ISO 40 (BT40)

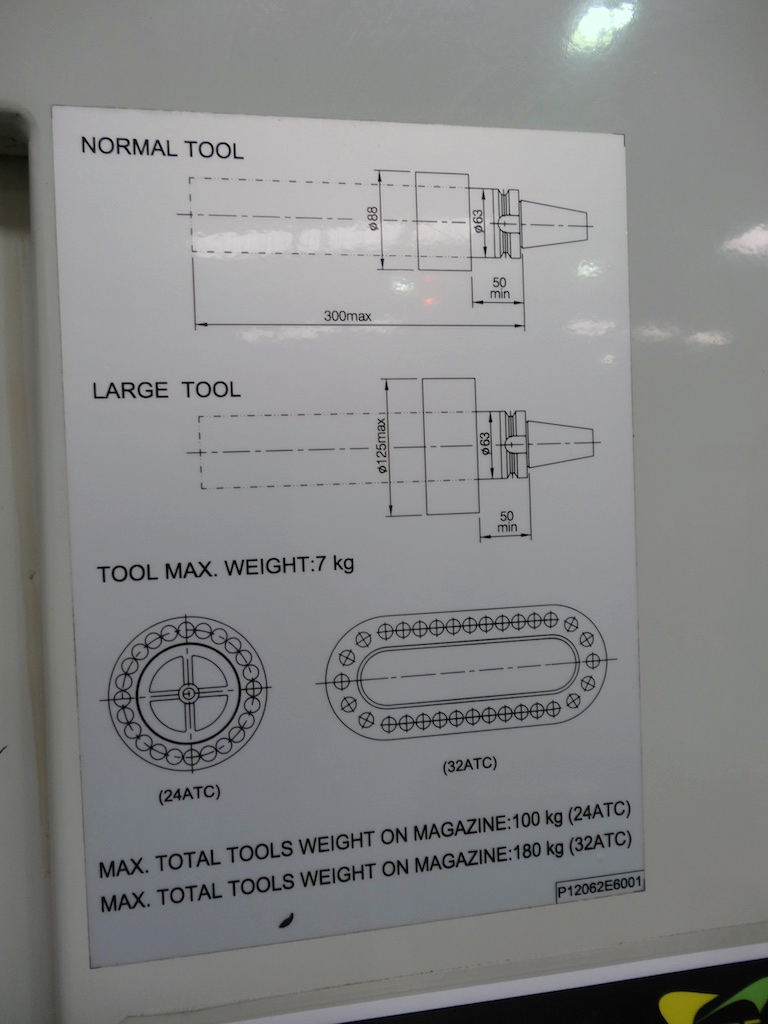

Tool storage cap: 24
Max tool dia(without adjacent tools): 88mm/125mm
Max tool length: 300mm
Max tool mass: 7kg
Method of selection: Random system
Tool change time ( tool to tool): 2.5 sec
Tool change time (chip to Chip): 6 sec

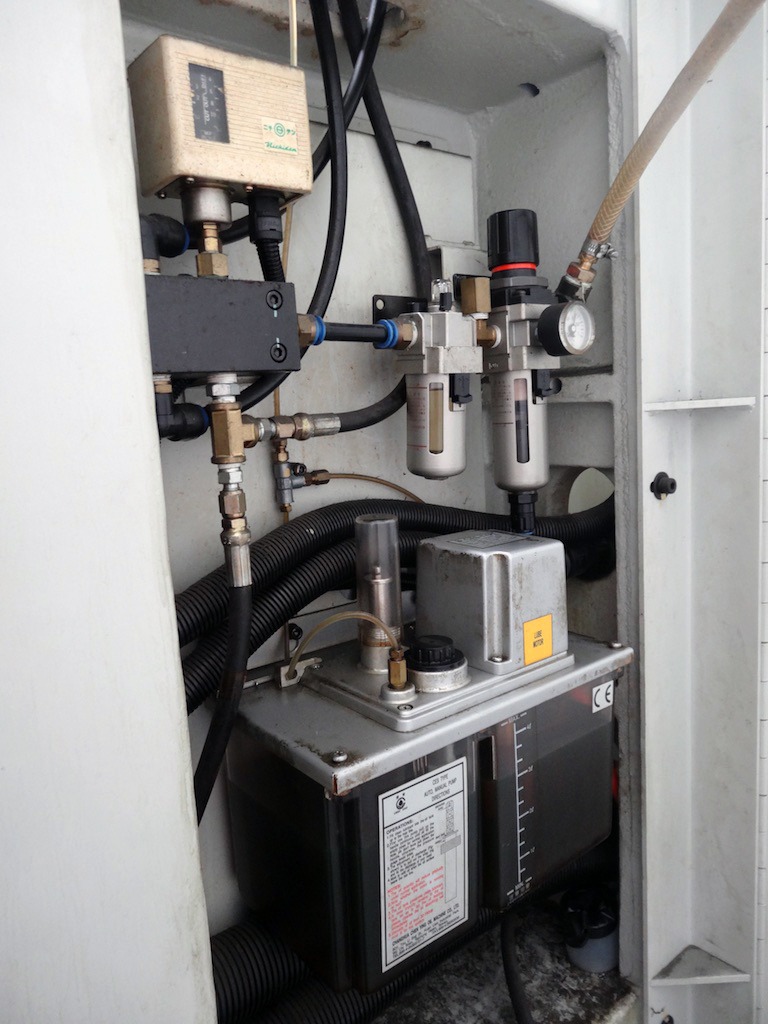

Lubricant tank cap: 4L
Coolant dirty tank: 400L

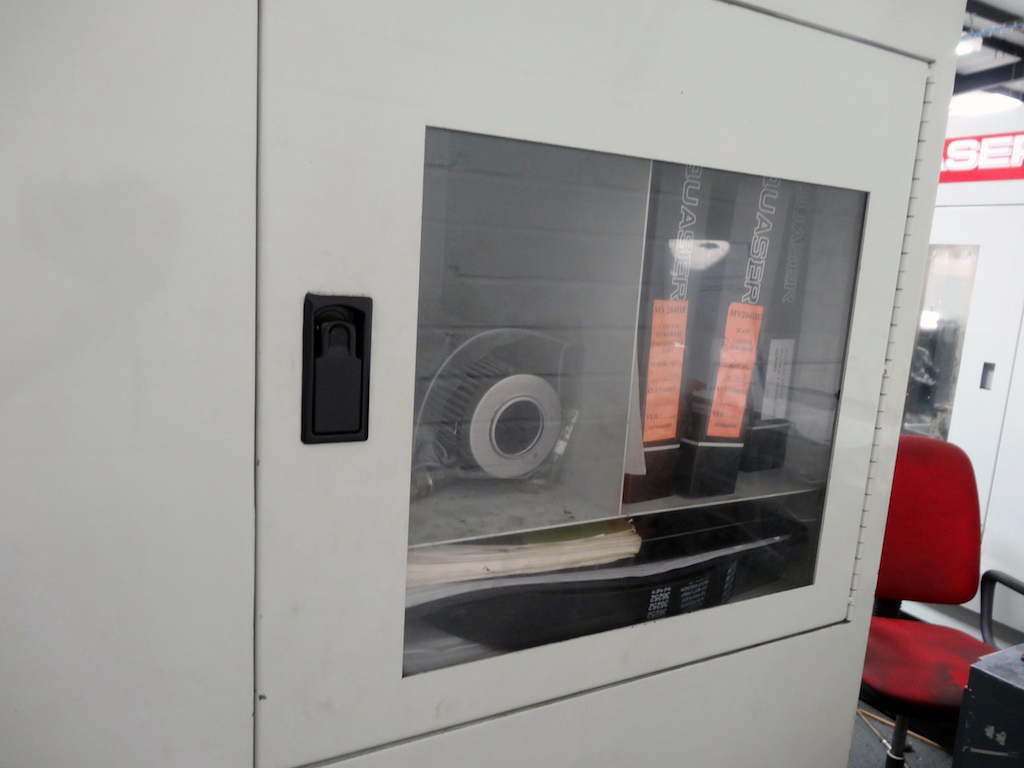

Library located in rear of machine for manuals
Tooling and Tool holders as per photos
Location: Poole
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
