Lot 46 - Ridsdale DieterT Permeability Meter
Description:

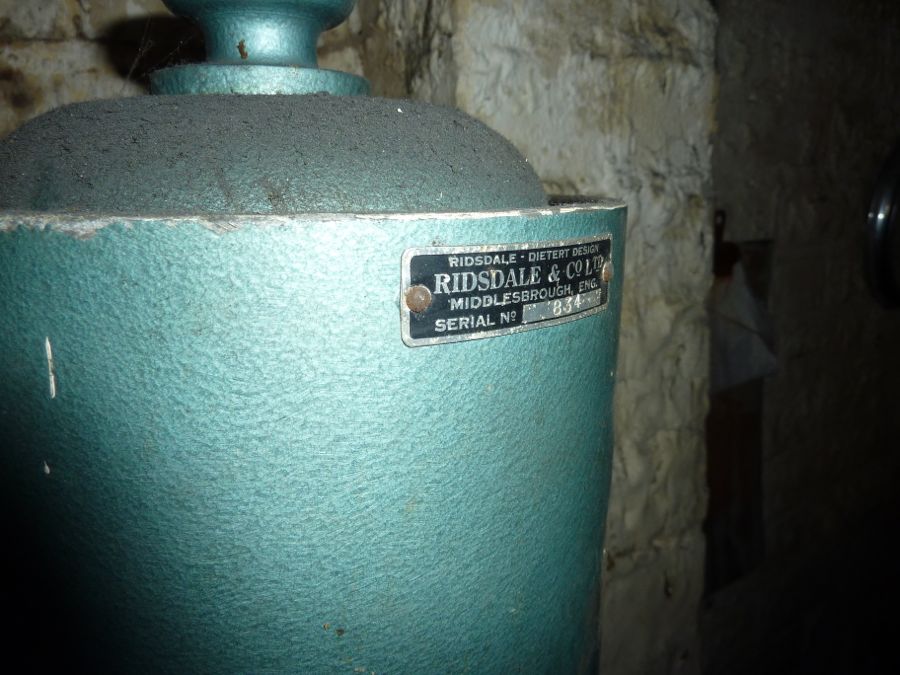

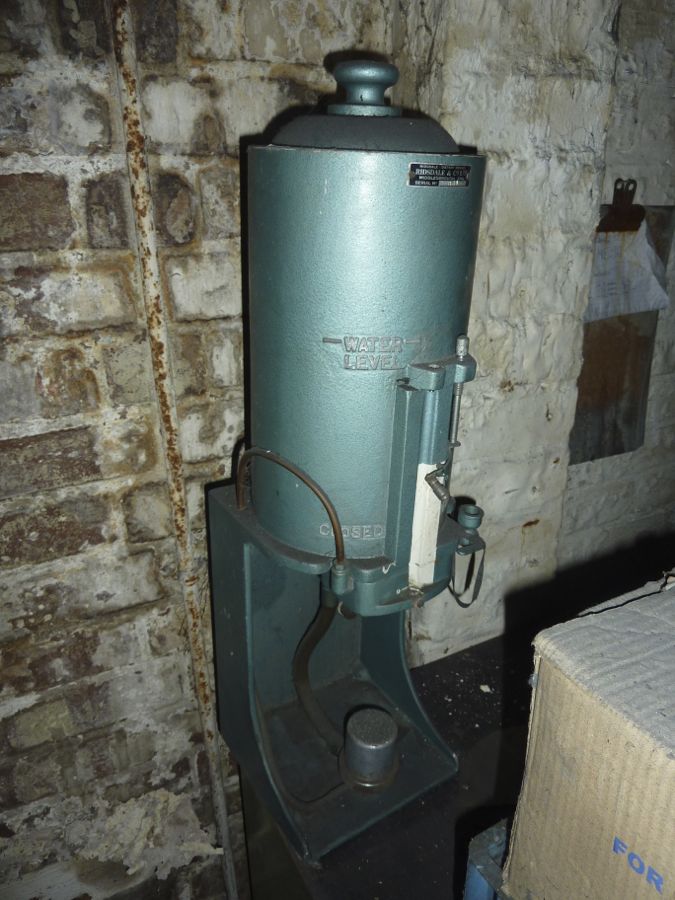

Ridsdale DieterT Permeability Meter
‘O’ ring sealing mechanism and standard orifice. Clear flexible tubes facilitate routine cleaning and maintenance.
The Permeability Meter can be used for determining the permeability of AFS (imperial) or DIN (metric) test specimens in accordance with British and AFS standard specifications. The body of the permeability meter is a strong aluminium casting consisting of a water tank and base. Inside the water tank floats a balanced air bell which is calibrated to deliver two litres of air at a constant pressure of 10 cm water.
An expanding ‘O’ ring is used to form an airtight seal between the centre post and the specimen tube. Each meter is supplied with two standard orifices for rapid determination of permeability.
SPECIFICATIONS:- Net Weight: 13 kg
Dimensions: 200 x 200 x 680 mm
Gross Weight: 25 kg
Gross Dimensions: 280 x 310 x 780 mm
http://www.precisionthailand.com/upload/images/Document/fst_cat.pdf
Location: The Factory, Jackson Road, Holbrooks, Coventry CV6 4BT
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
