Lot 22 - Roscamat 400 Tapping Arm and Table
Description:

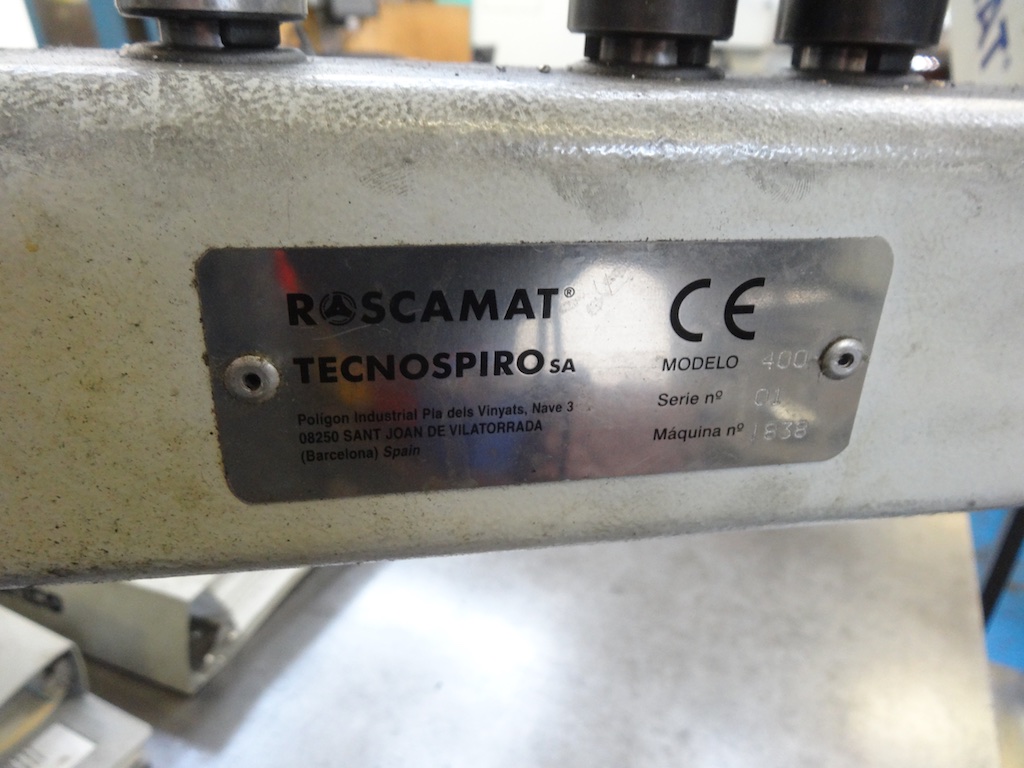

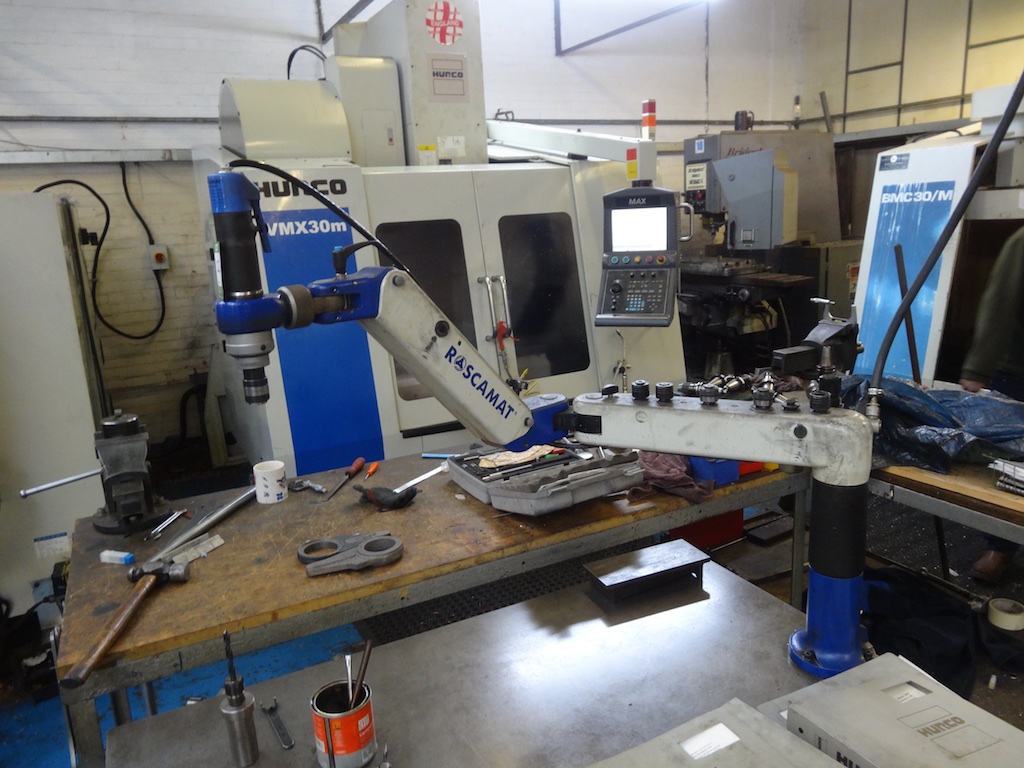

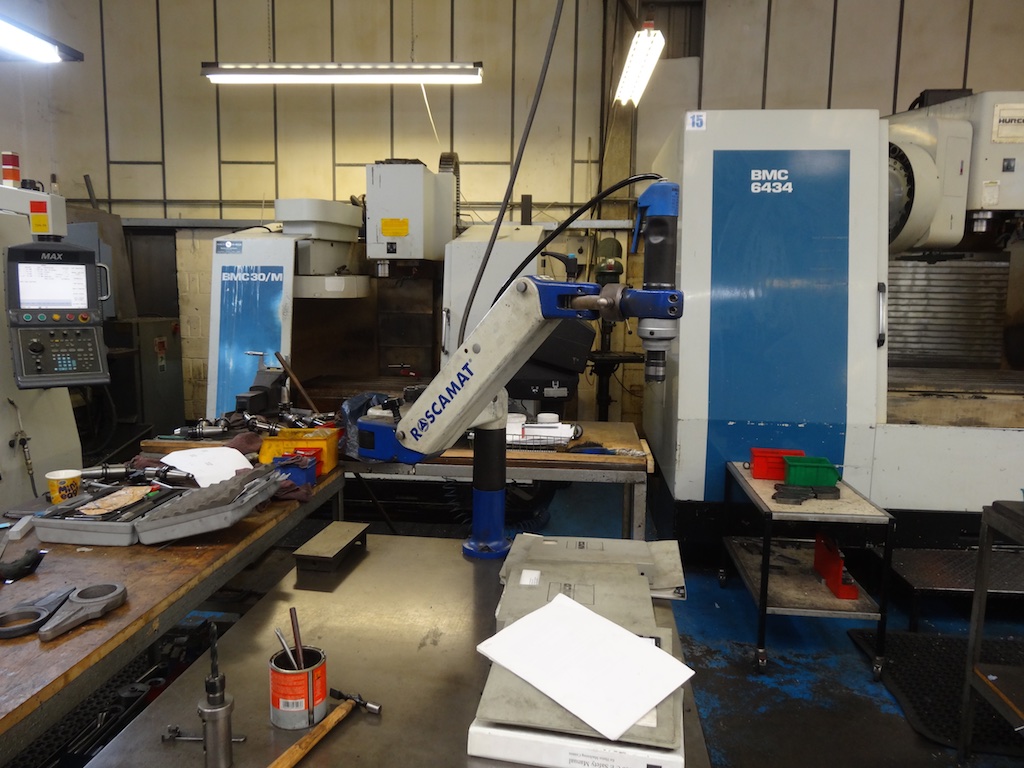

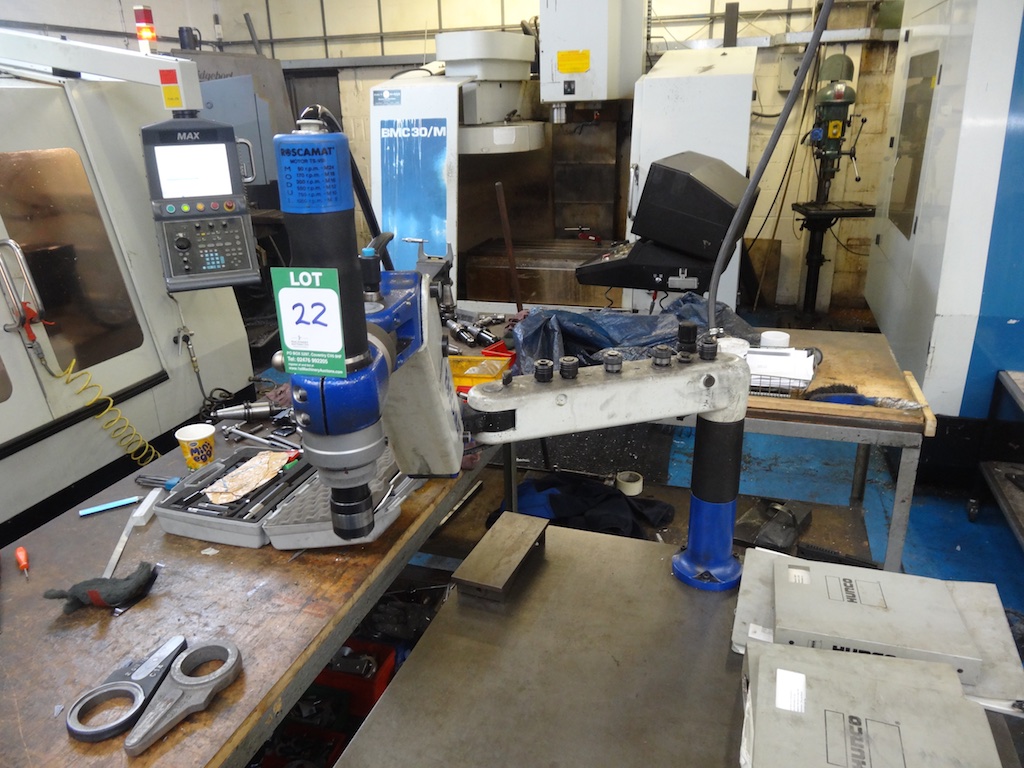

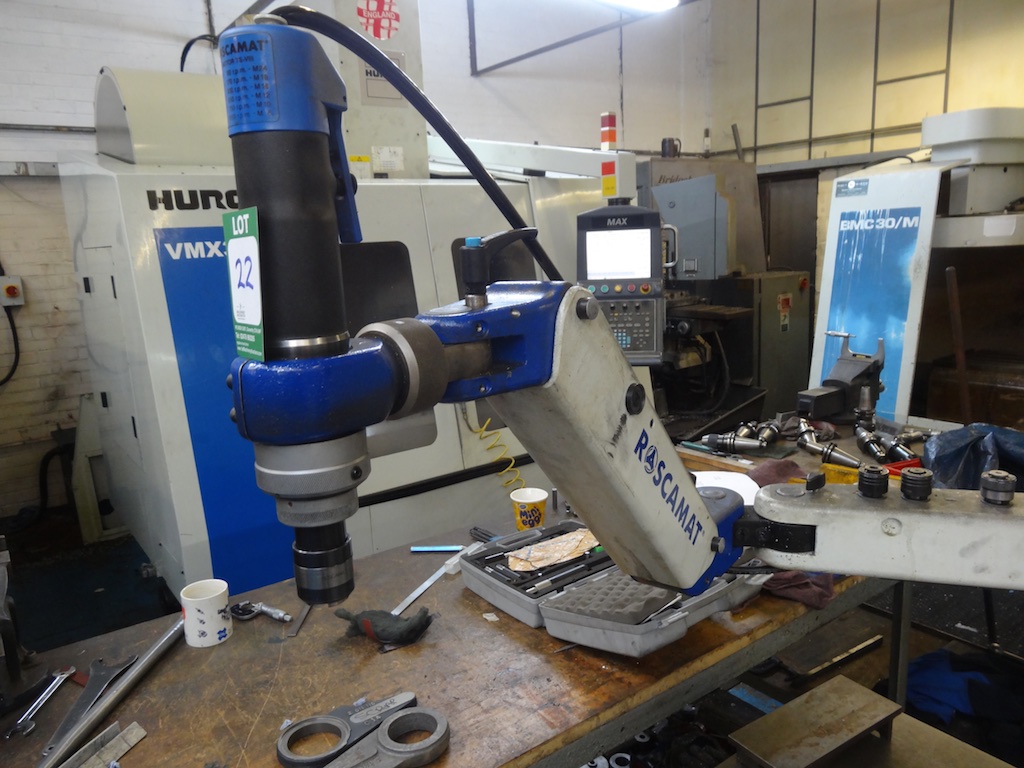

ROSCAMAT 400 Pneumatic Tapping Machine and Table

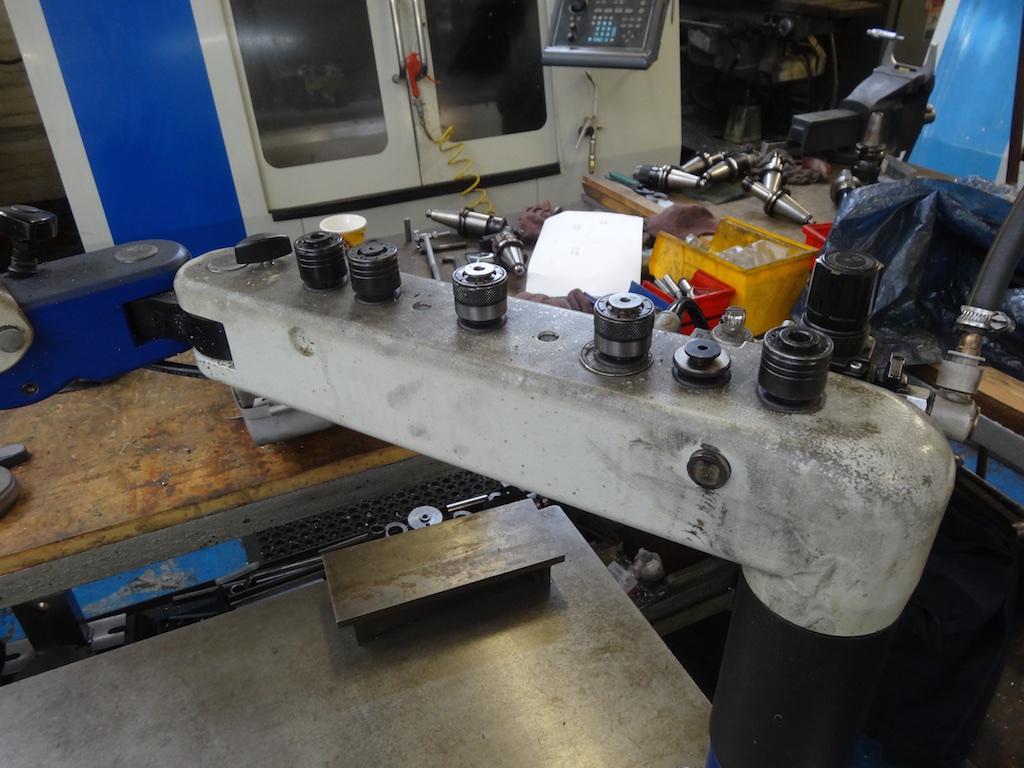

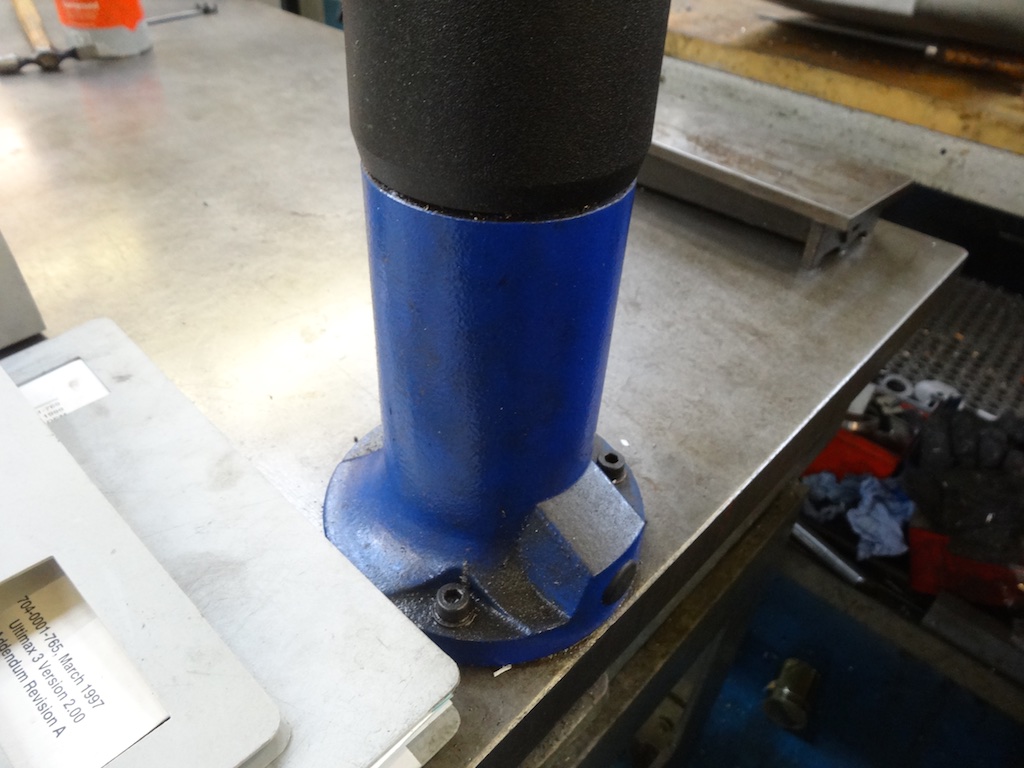

The machine, which can be easily fastened to a work bench or table using three M8 screws or a simple fastening clamp, consists of a radial arm with a 360º turning radius.
It is connected to a vertically moving swivel arm that always maintains perpendicularity to the reference plane – which is the machine support surface.

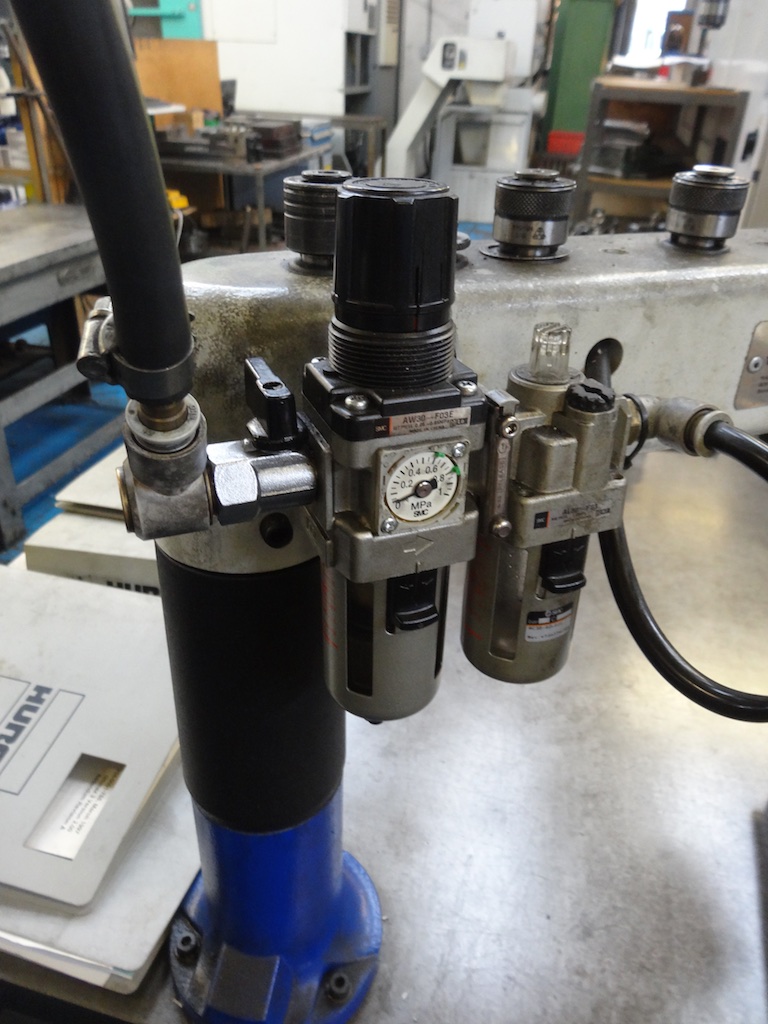

It is equipped with a pneumatic motor that includes an air unit (lubricator + filter + regulator) for correct operation.
The modular system consisting in a series of 7 quick-change modules (reducers) is provided for coupling to said motor. As a result of this 7 output speeds (90, 170, 300, 550, 750, 1050 and 2100 rpm) are available thus allowing to adapt the tap speed to every type of thread.

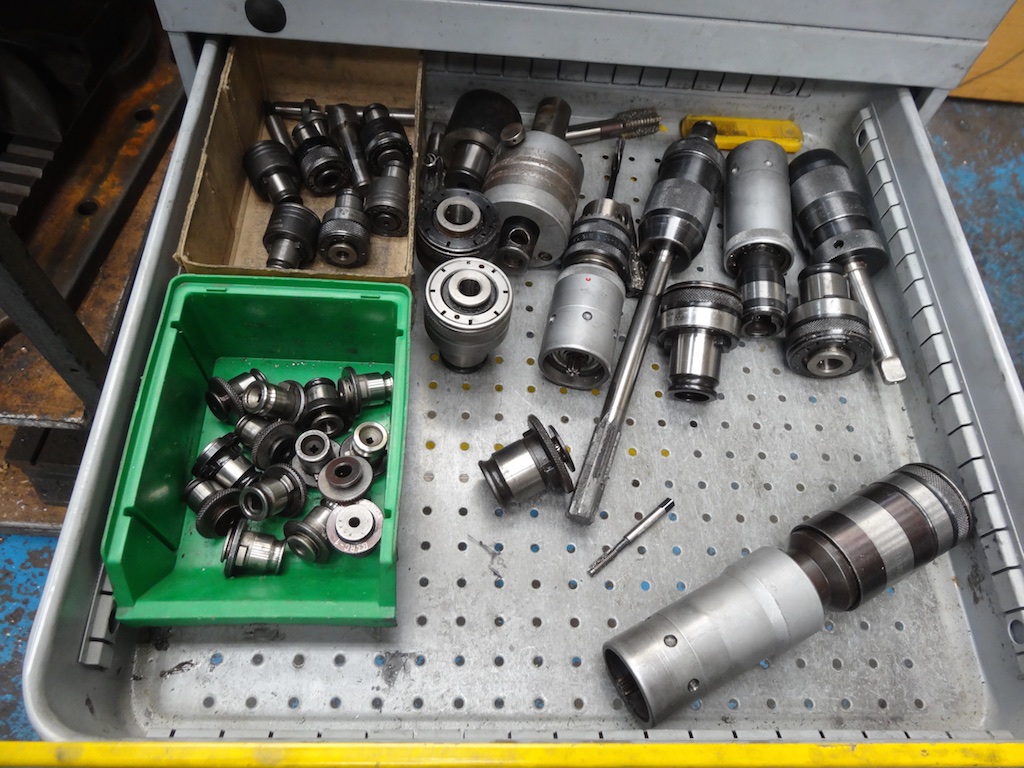

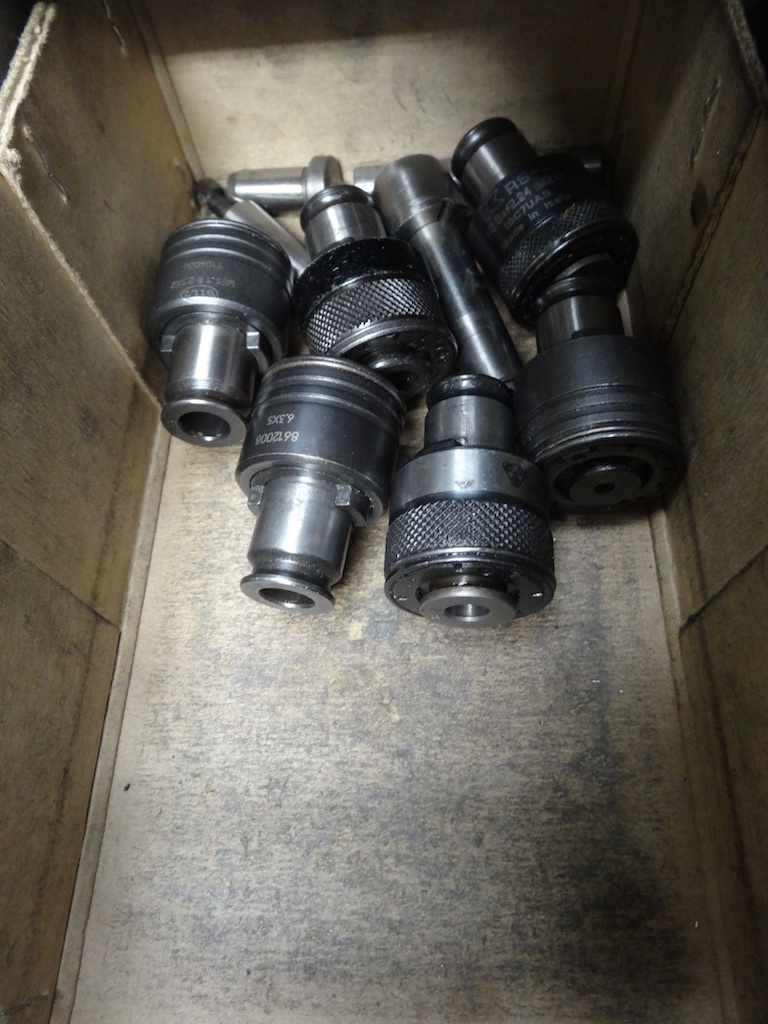

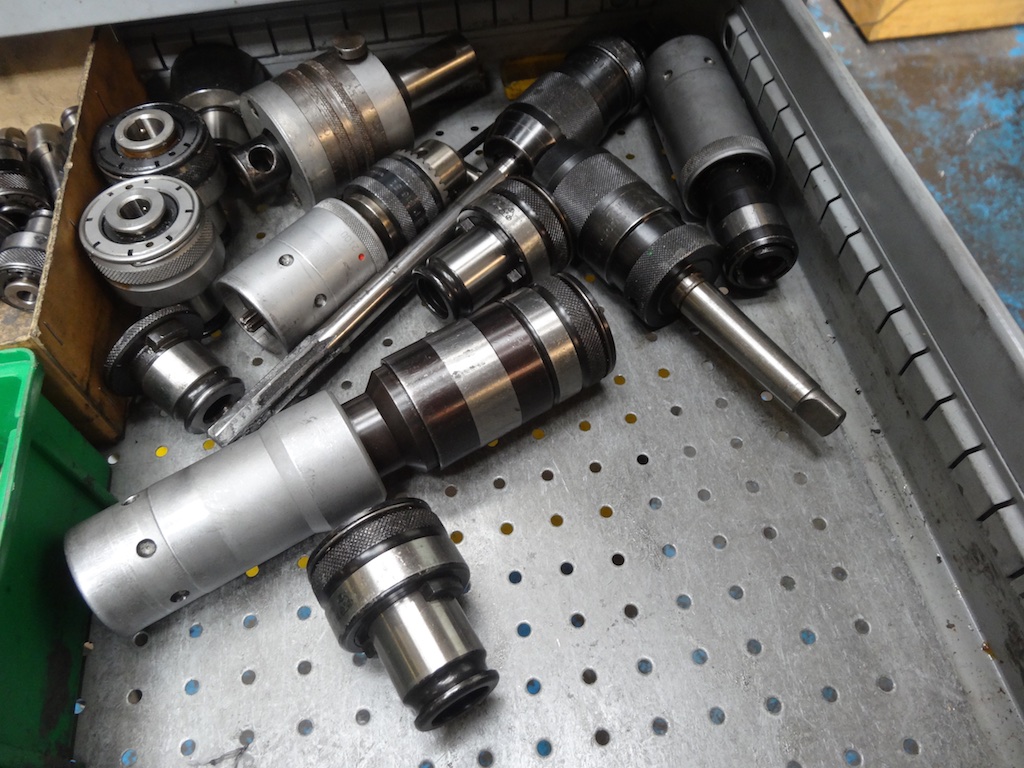

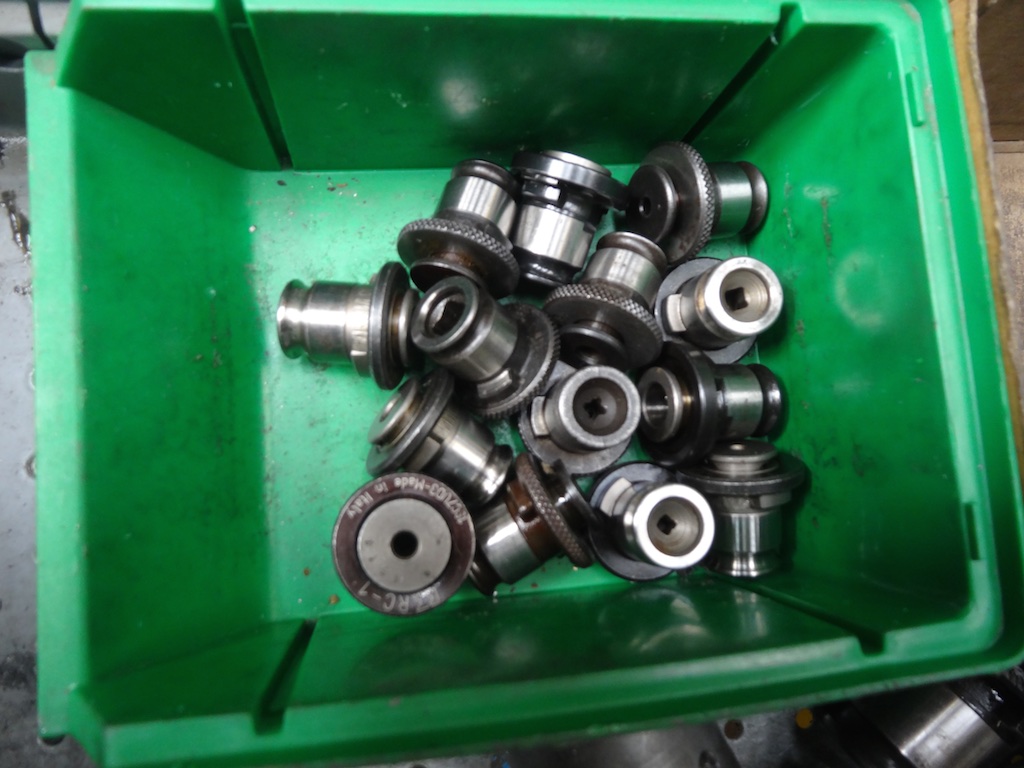

The handle allows to balance the tilting arm and to position it at the operator's convenience. The modular system admits the quick-change tap holders with or without safety clutch depending on the intended job (blind or through holes).
Thread capacity from M2 up to M24 (M27)
Location: Oxon UK
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
