SAMSUNG PL45 LM 3 Axis CNC Lathe (2013) - Only 75 Hours Run Time

Lot 1 - SAMSUNG PL45 LM 3 Axis CNC Lathe (2013) - Only 75 Hours Run Time

Description:

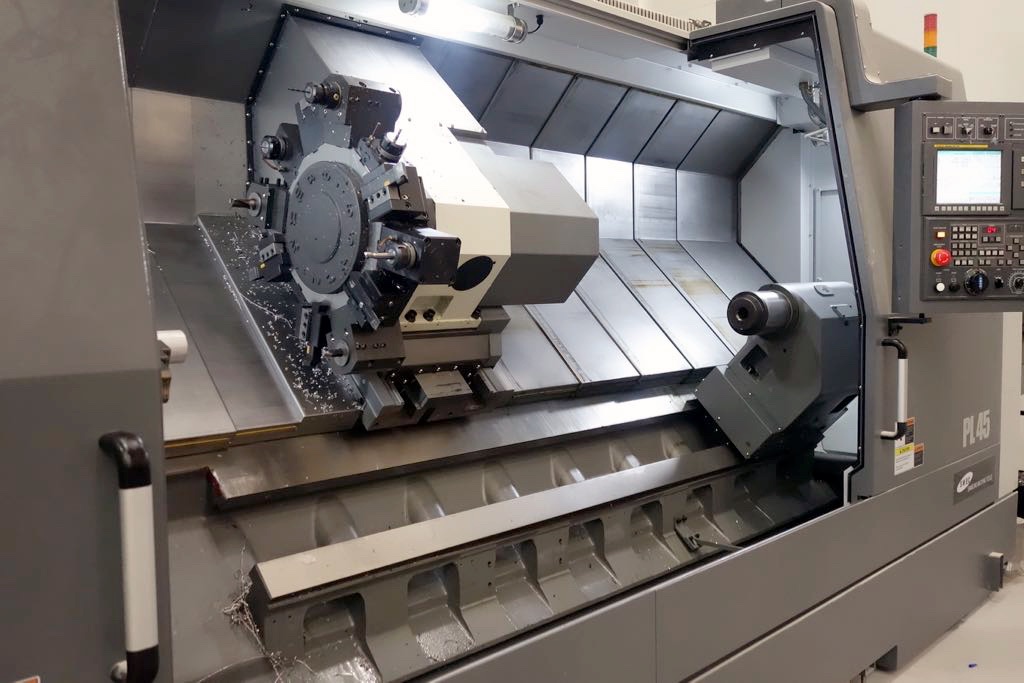

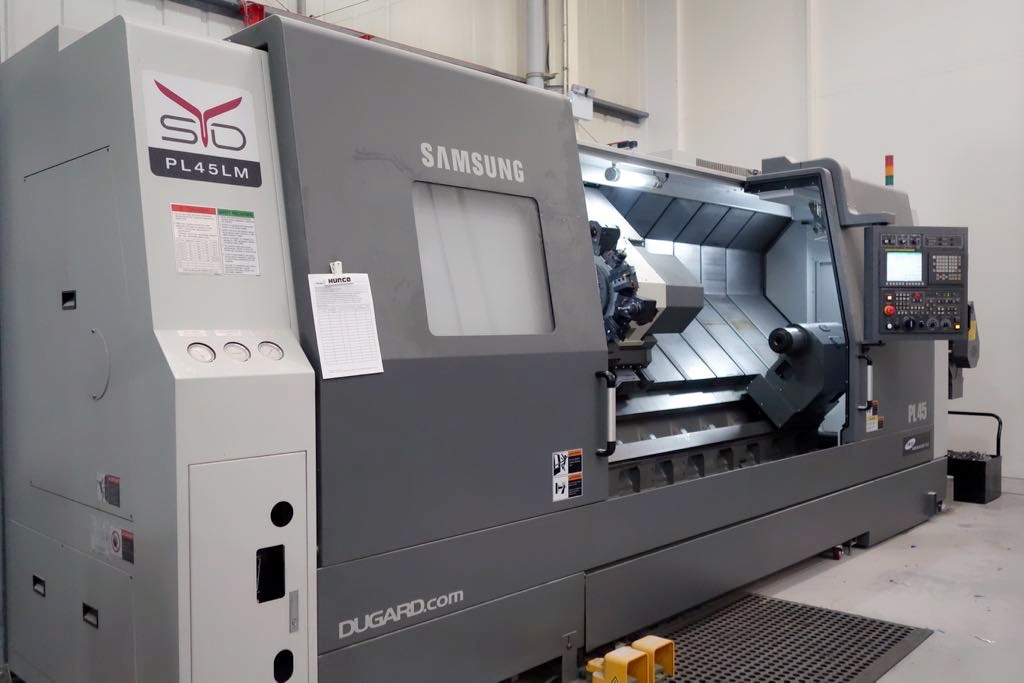

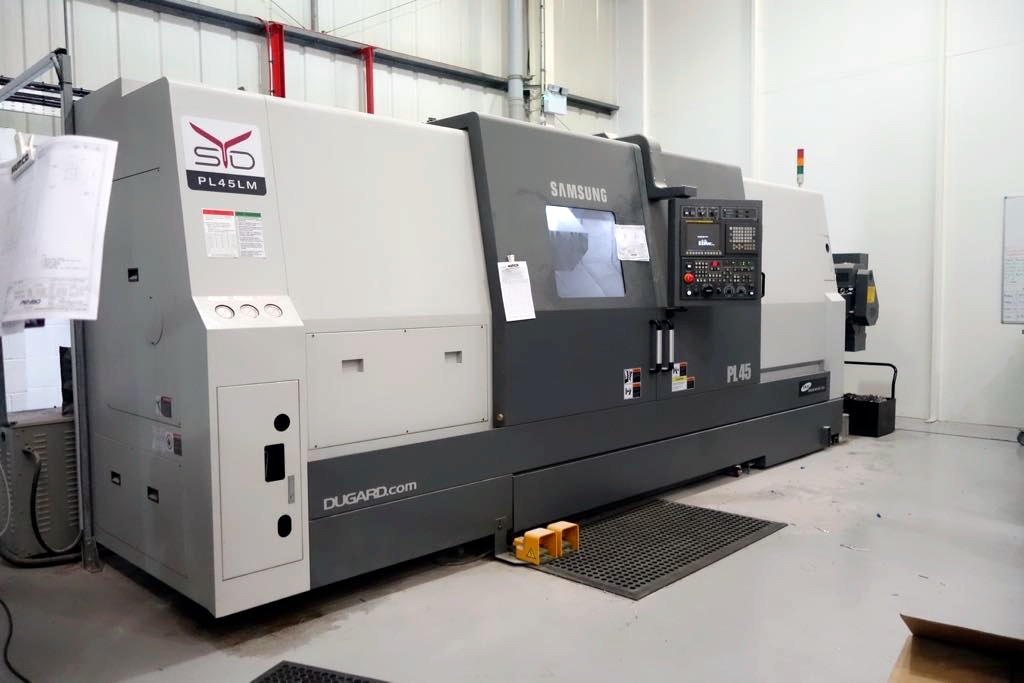

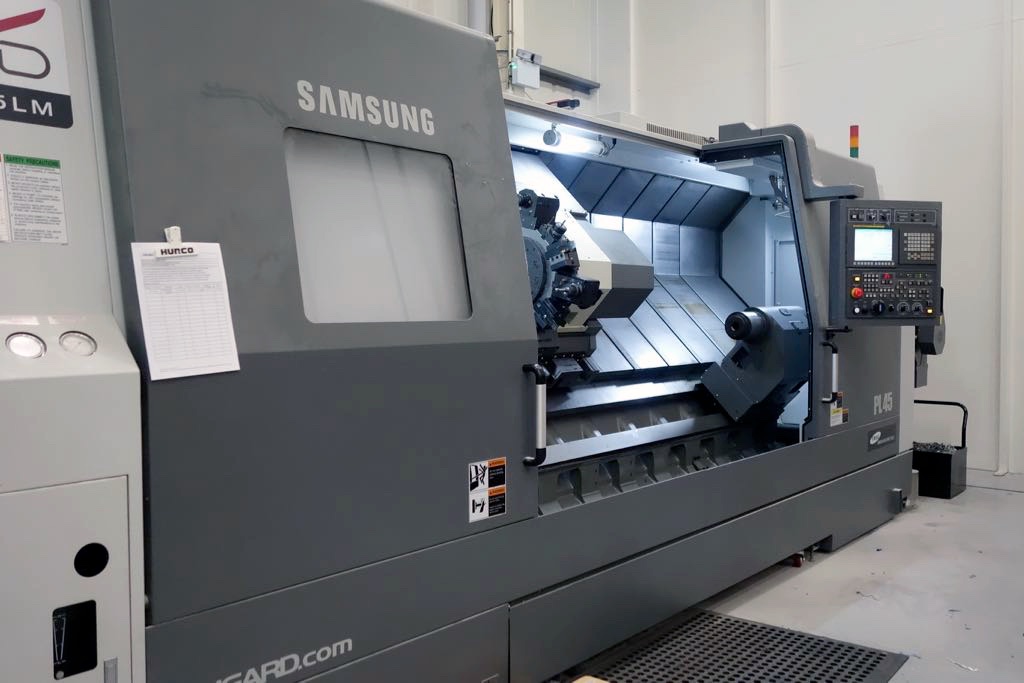

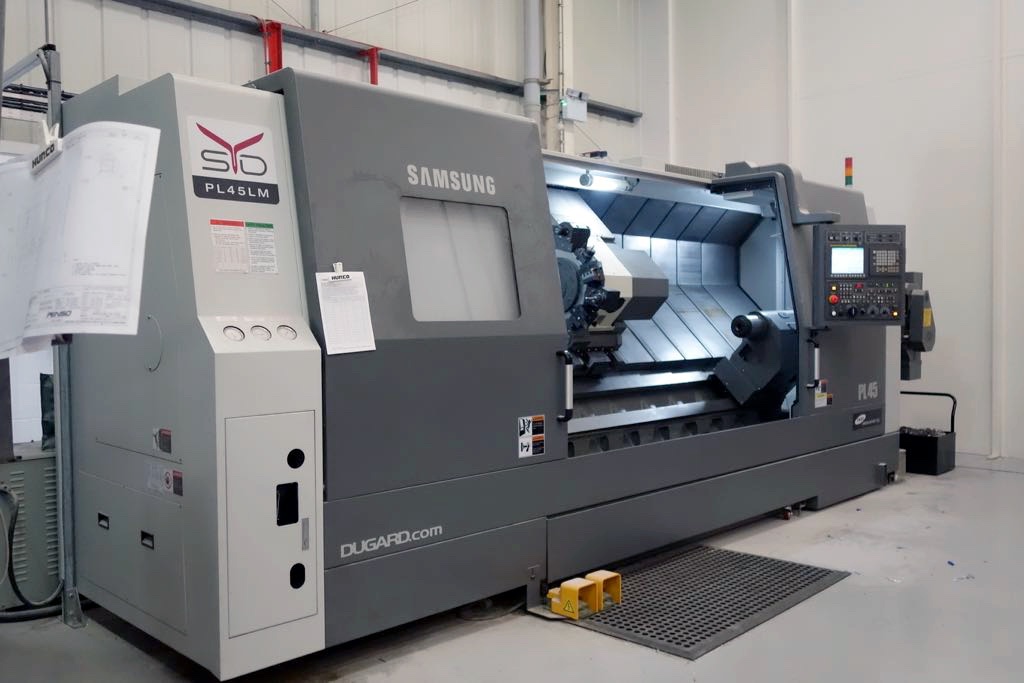

SAMSUNG PL45 LM 3 Axis CNC Lathe (2013)

Under 75 hours Run Time

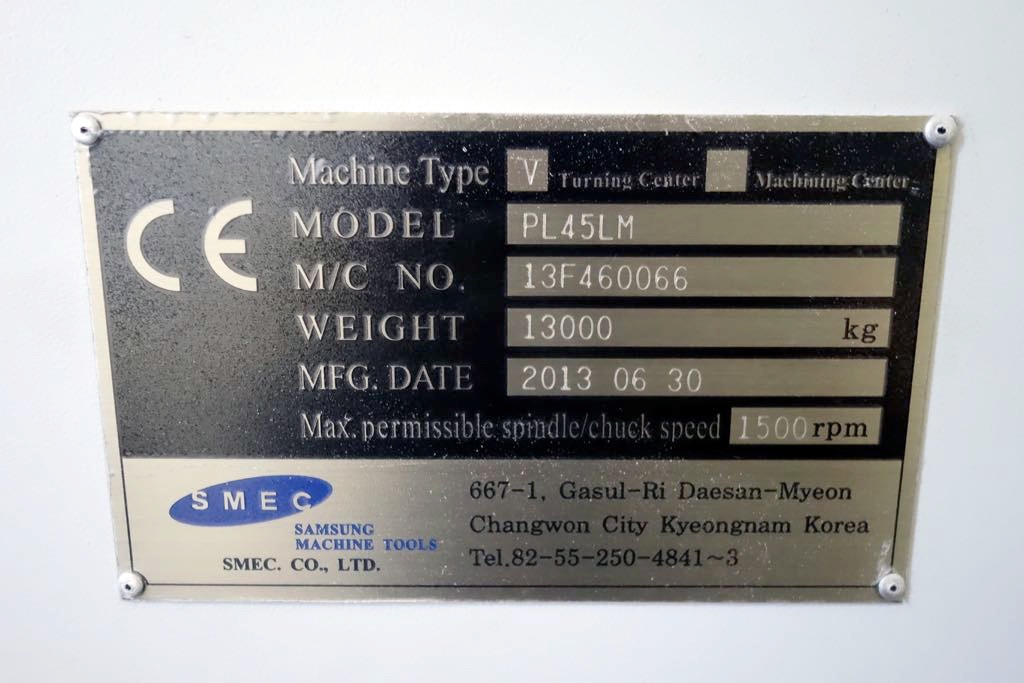

Model: PL45LM
M/c No: 13F460066
Date: 2013 06 30

Floor space: L x W: 6705 x 2154mm
Height: 2374mm
Weight: 13000kg

3 Axis (XZC) with Driven tooling.

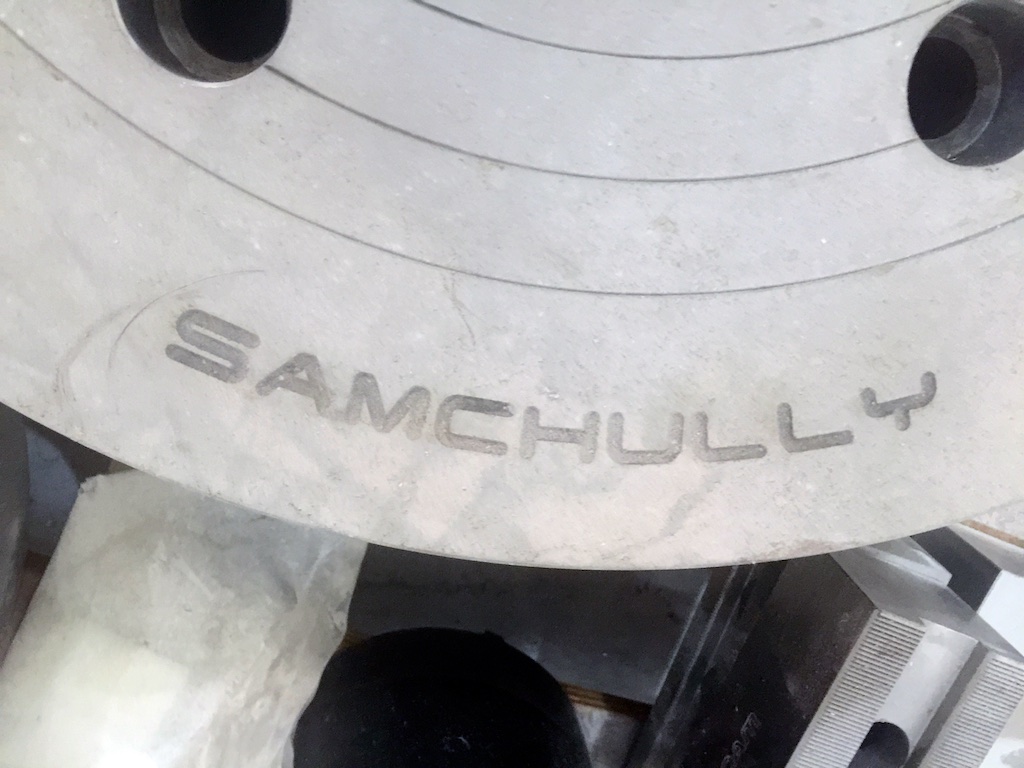

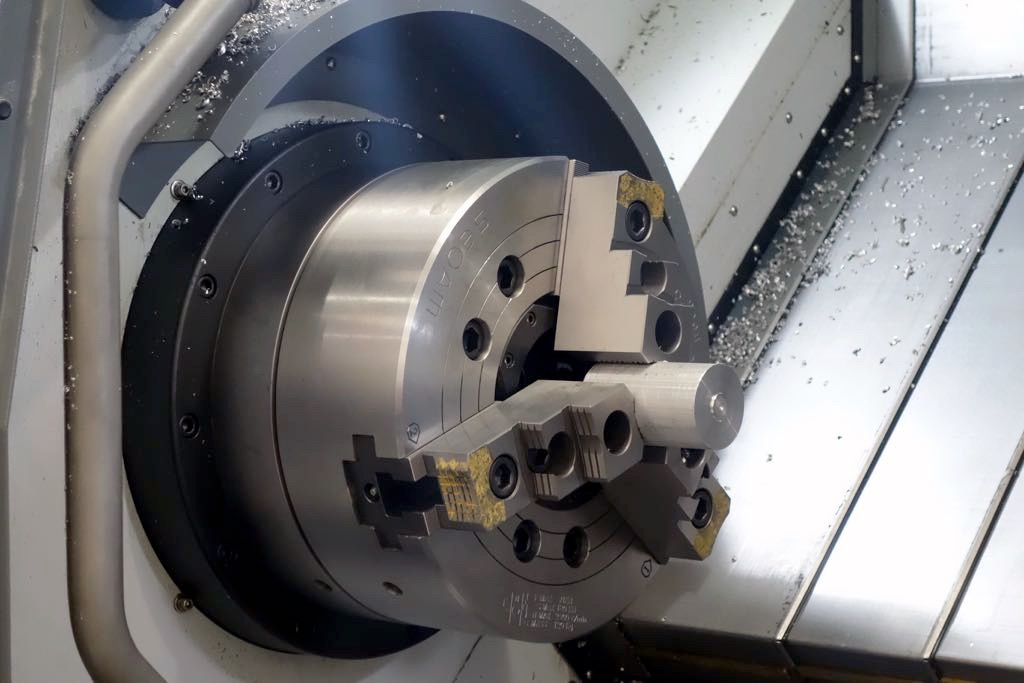

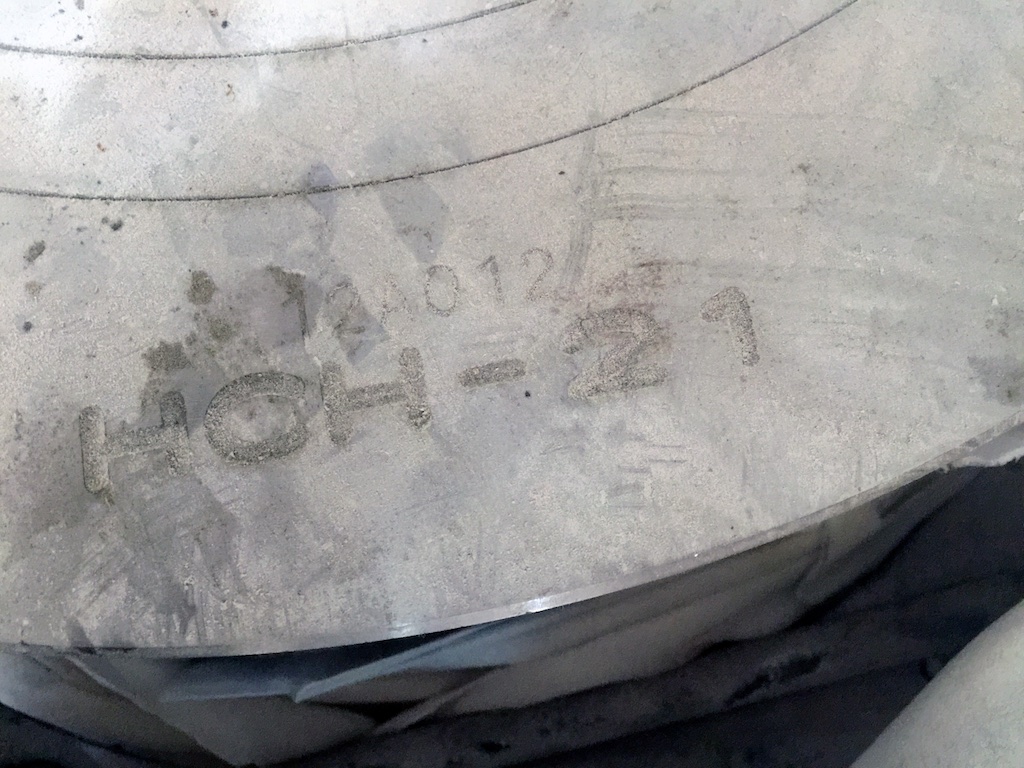

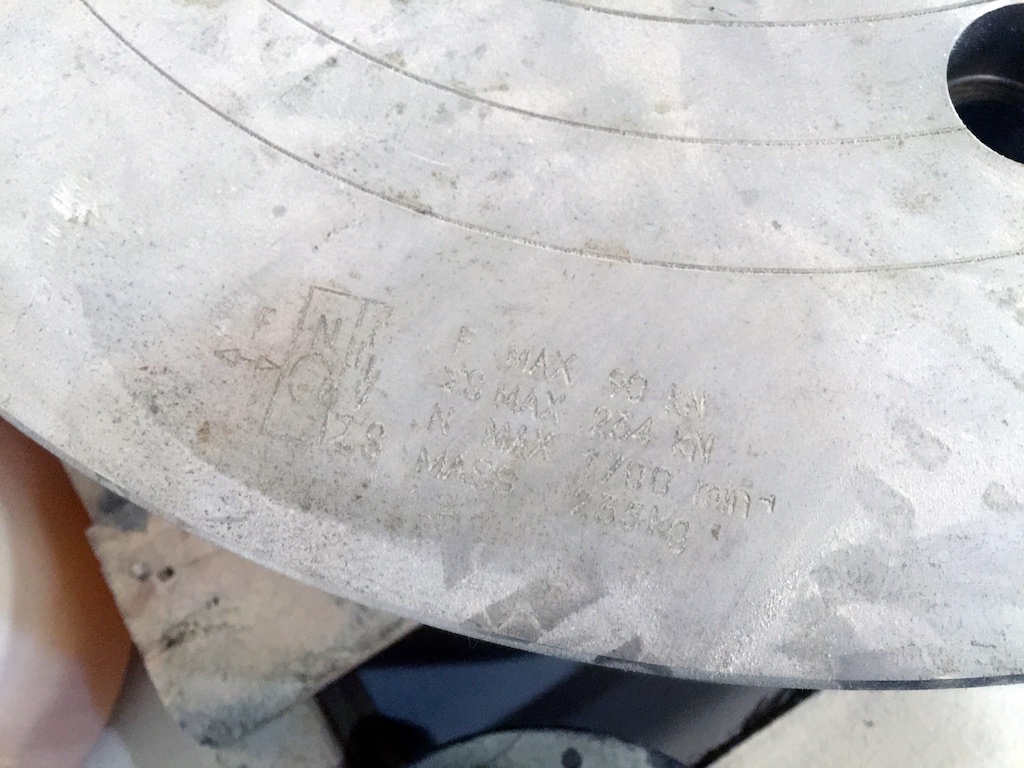

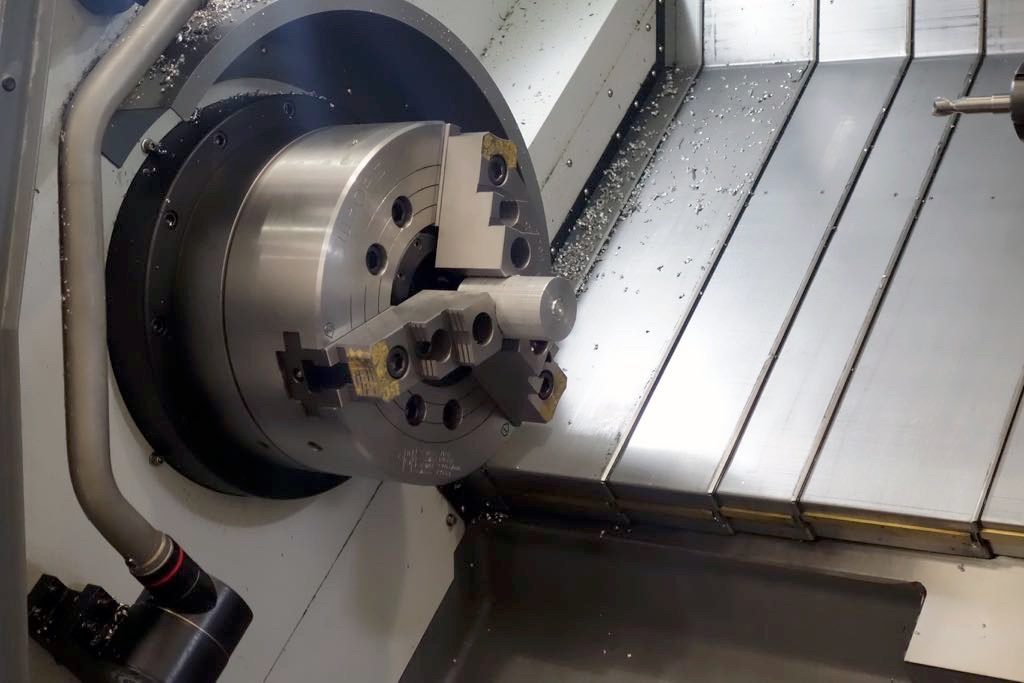

21" & 15" Chucks Standard included with machine.

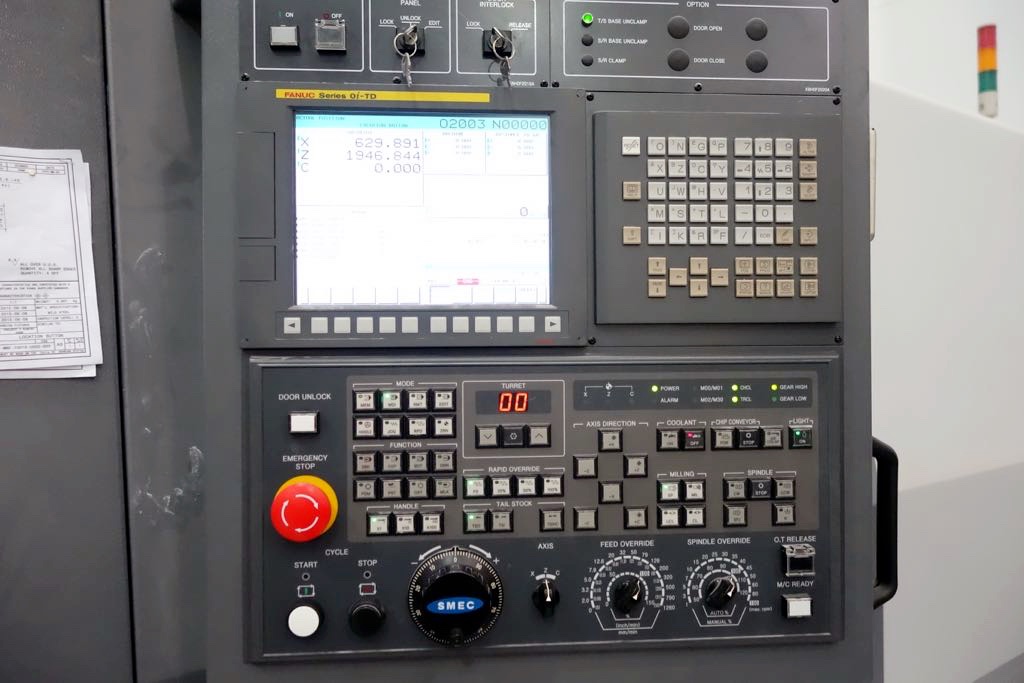

Control: Fanuc Oi~TD (21i-TD):
Simultanious controllable axes: X, Z axis
Least command increment: 0.001mm
Least input increment: 0.001mm

Capacity:
Swing over bed: 775mm
Swing over saddle: 630mm
Recom. turning dia: 380mm
Max. machining dia: 690mm
Max machinig length: 3055mm
Bar working dia: 117mm

Travels:
X axis travel: 350mm
X axis travel: 3130mm

Main Spindle:
Spindle speed: 2000 rpm
Spindle nose: A2-11ASA
Spindle through hole dia: 132mm
Min. spindle indexing angle: 0.001 deg

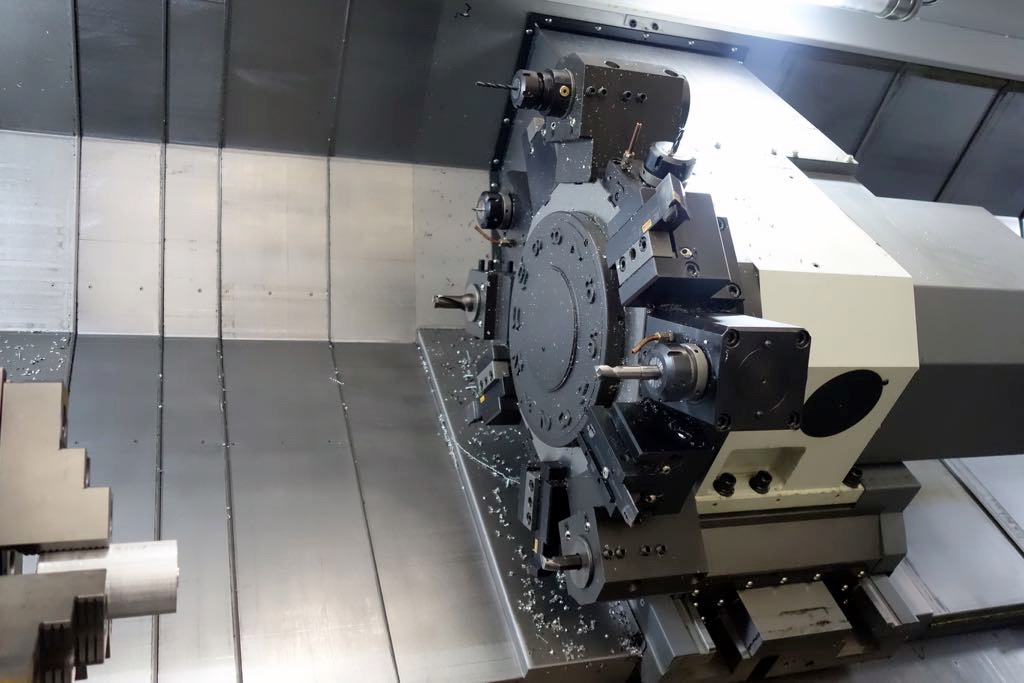

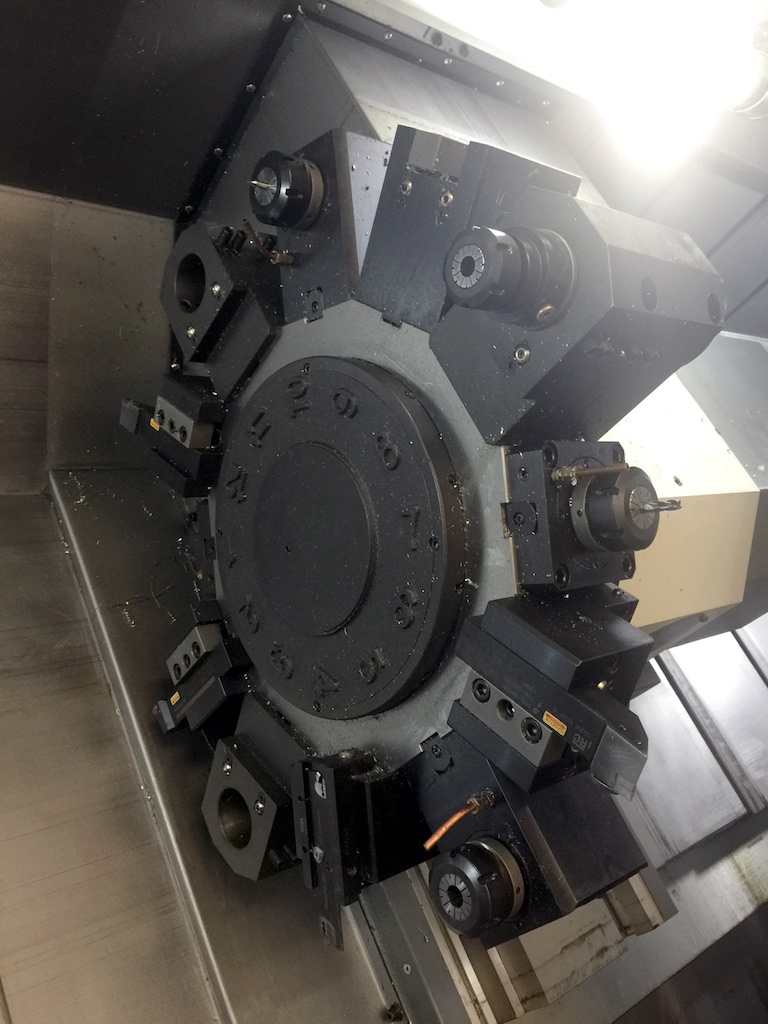

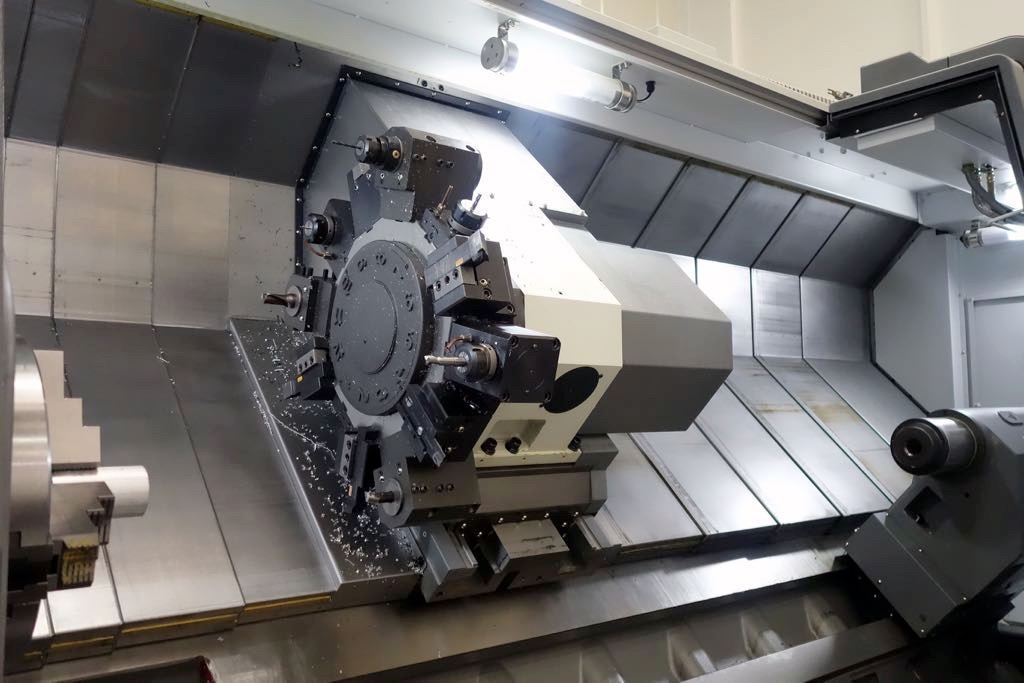

Turret:
Number of tool stations: 12
Shank size for square tool: 32mm
Shank dia for boring bar: 60mm
Idexing time:0.2sec
Rotary tool spindle speed: 4000rpm

Feed rate:
Rapid traverse (X/Z): 20/10m/min
Feed per revolution: 0.0016-500mm/rev

Tailstock:
Tailstock travel: 3055mm
Quill Dia: 160mm
Quill bore taper: MT-5 (built in)
Quill travel: 150mm

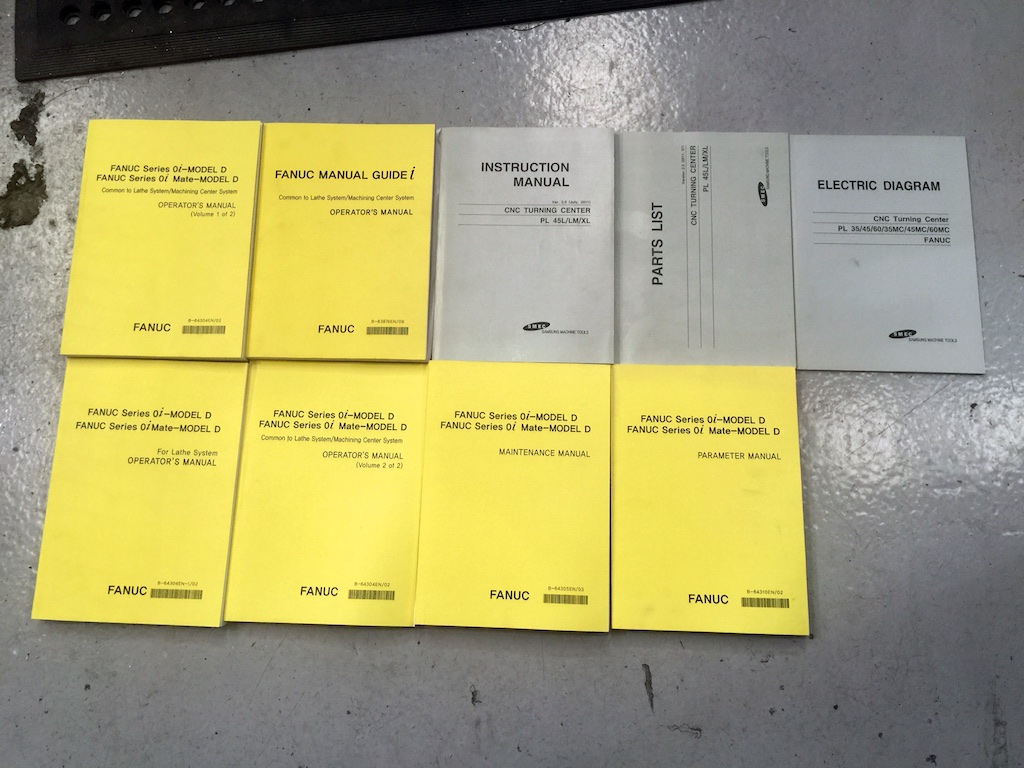

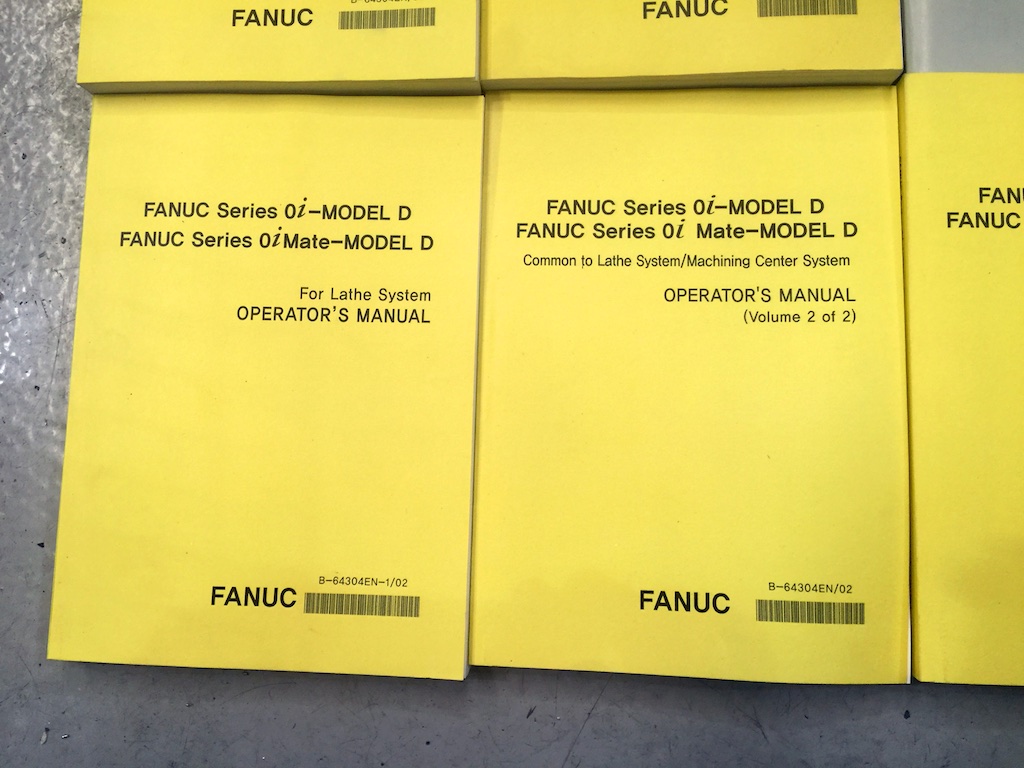

Full Set of Manuals,

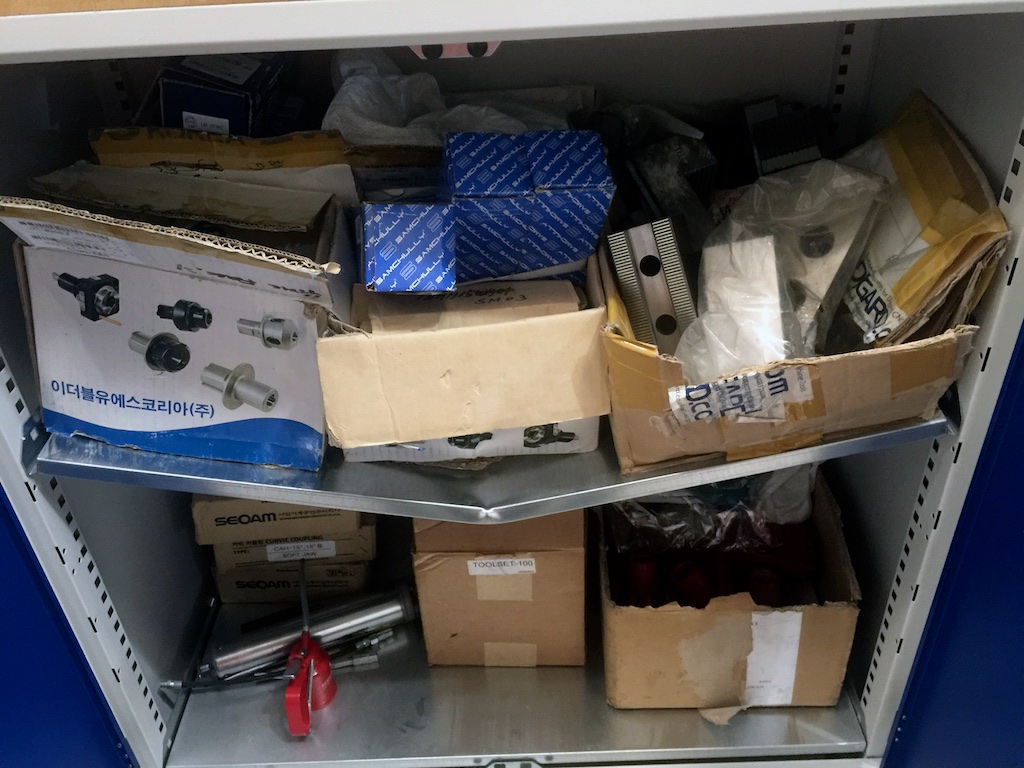

Tooling Package includes all toolholder in Turret and Items inside cabinet, see photo.

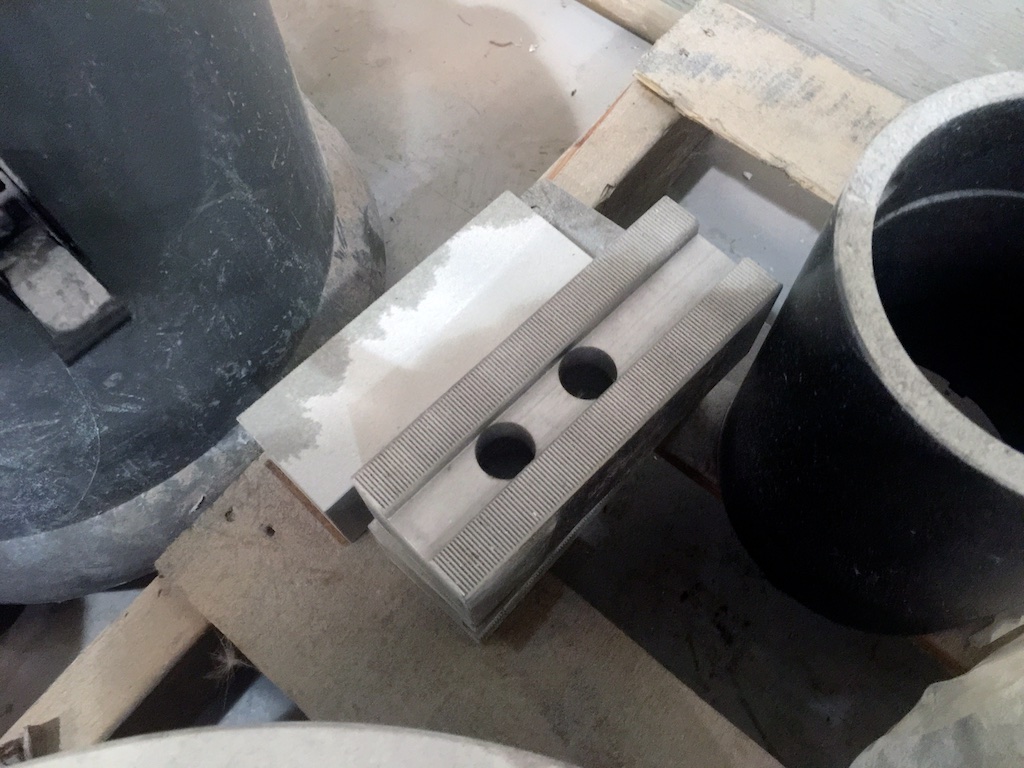

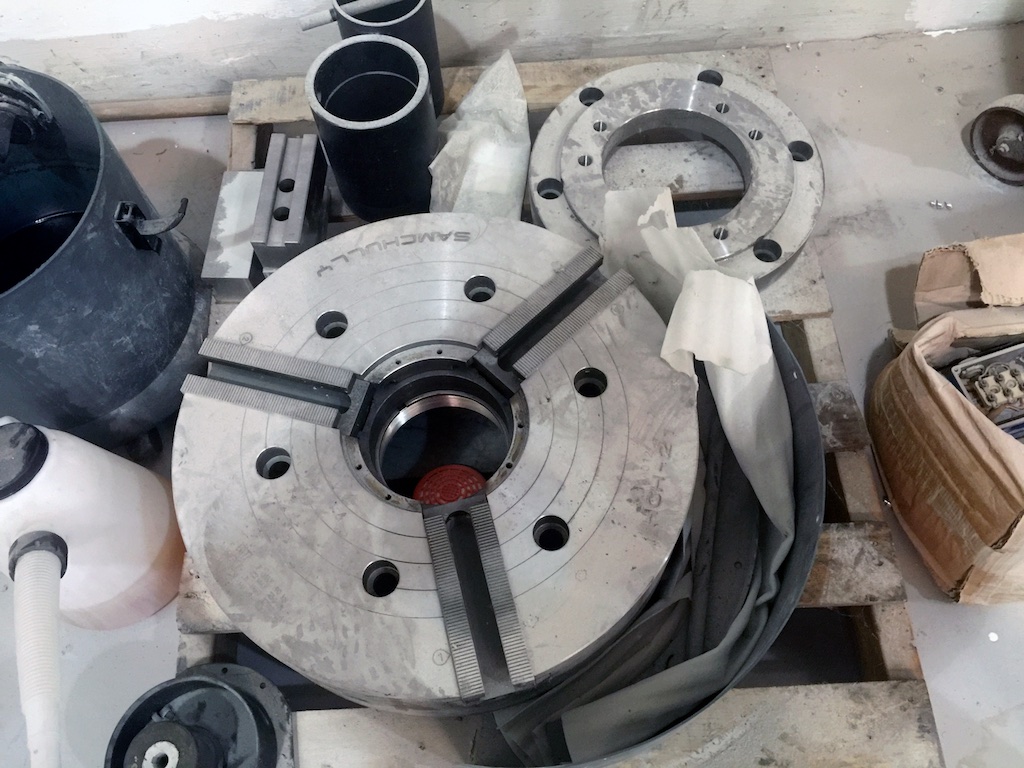

There are lots of new jaws, Running Centre and other Standard toolholders and Acessories.

Location: Coventry

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
