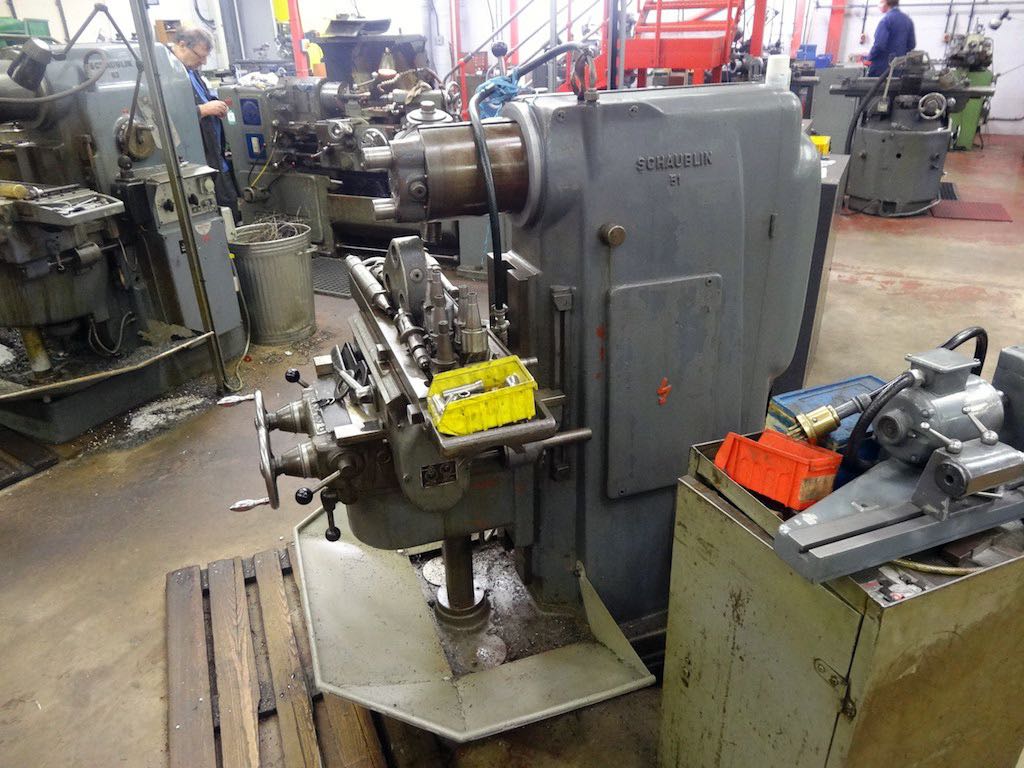

Lot 7 - Schaublin Universal Milling Machine
Description:

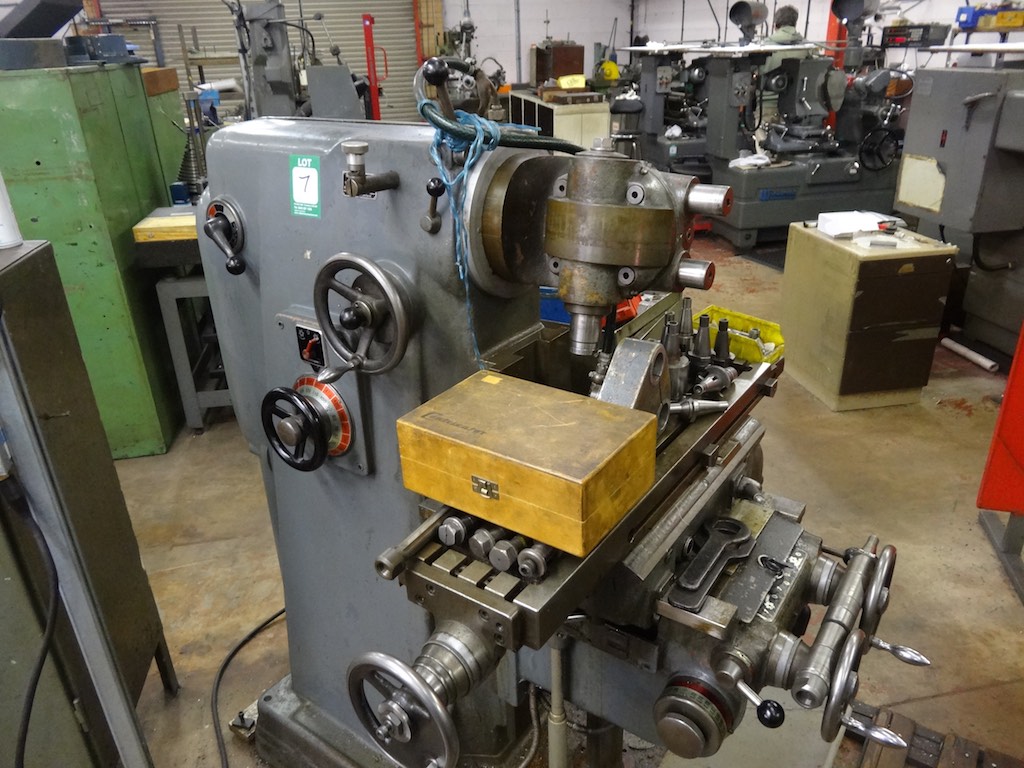

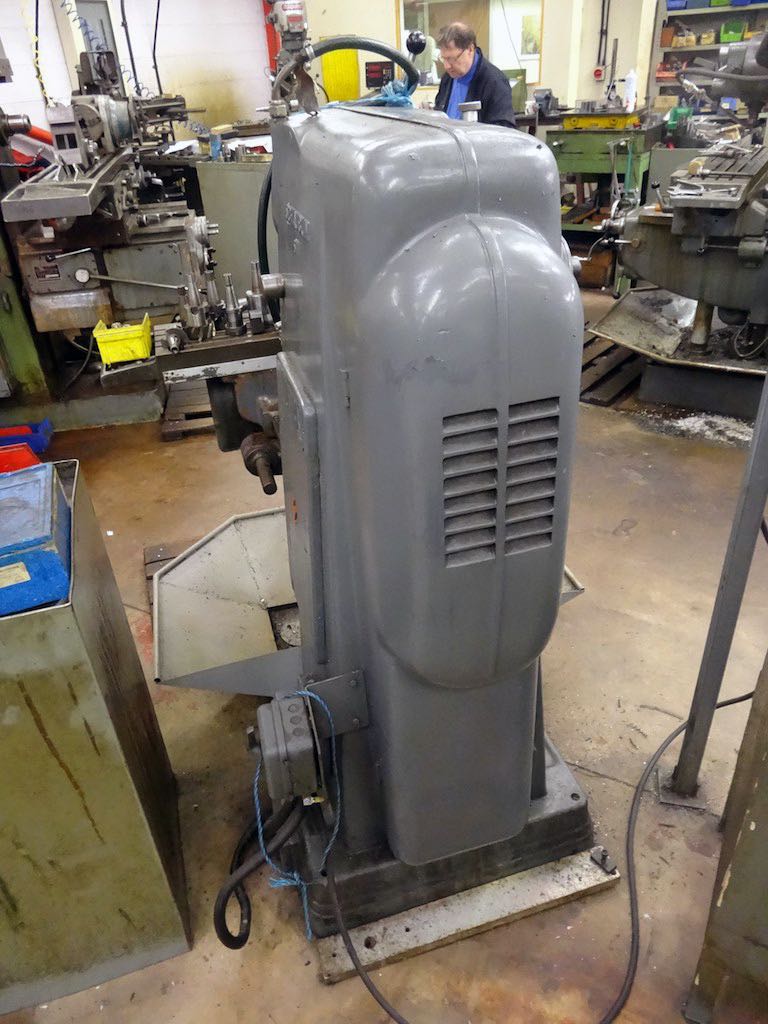

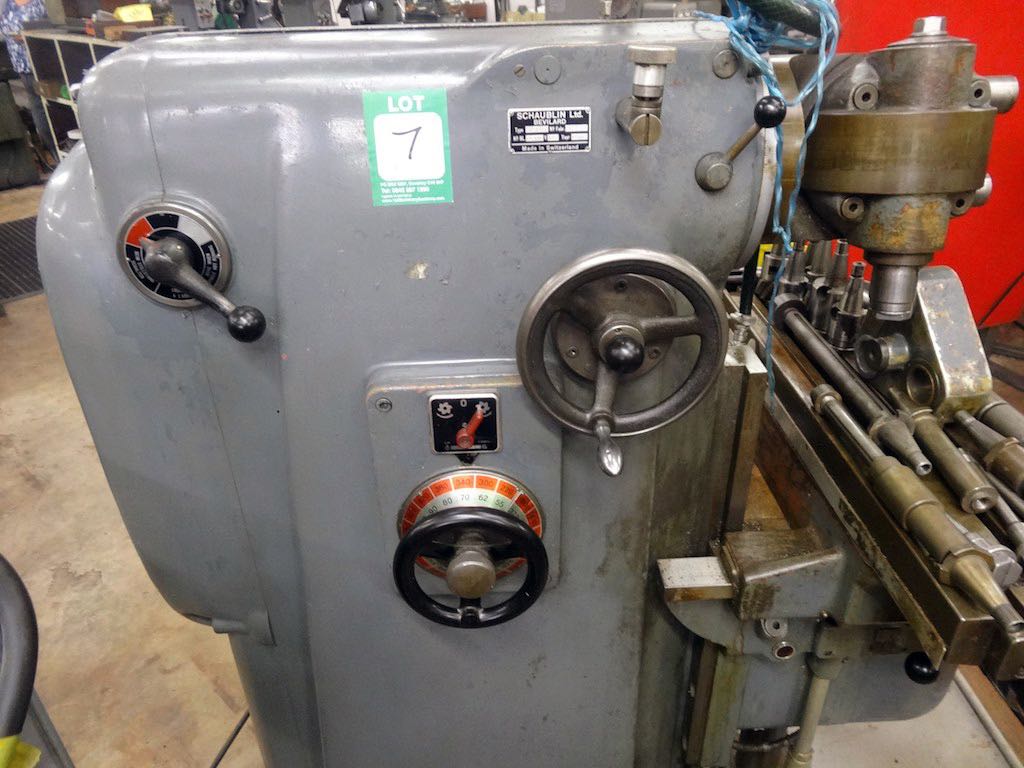

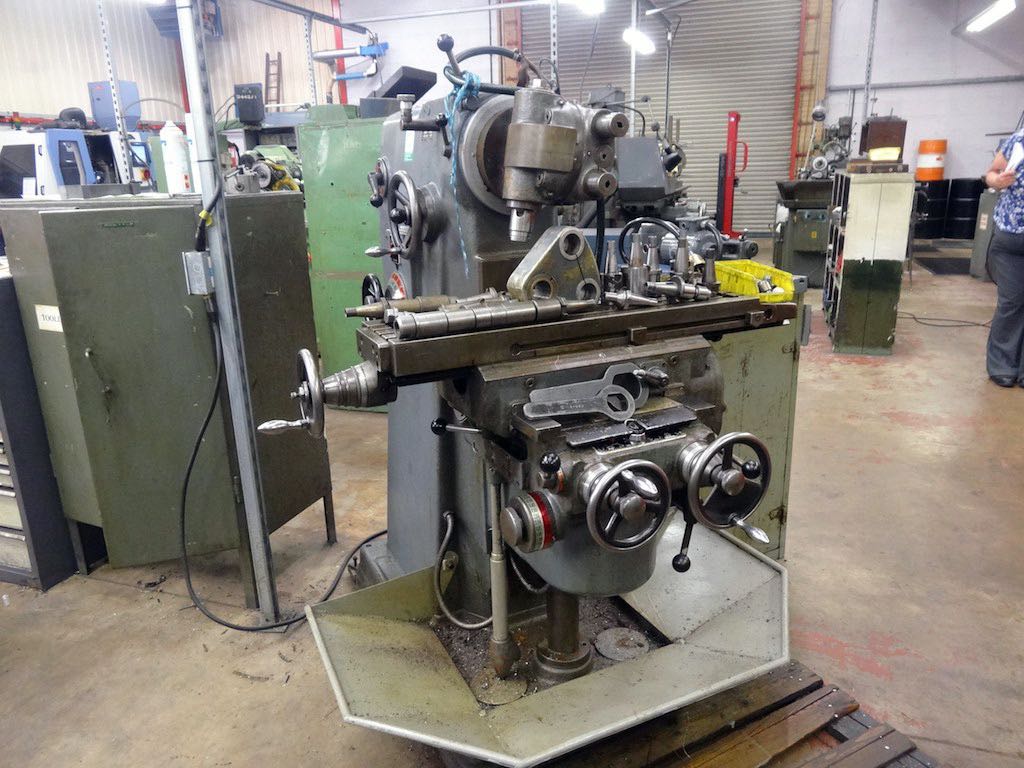

Schaublin Universal Milling Machine

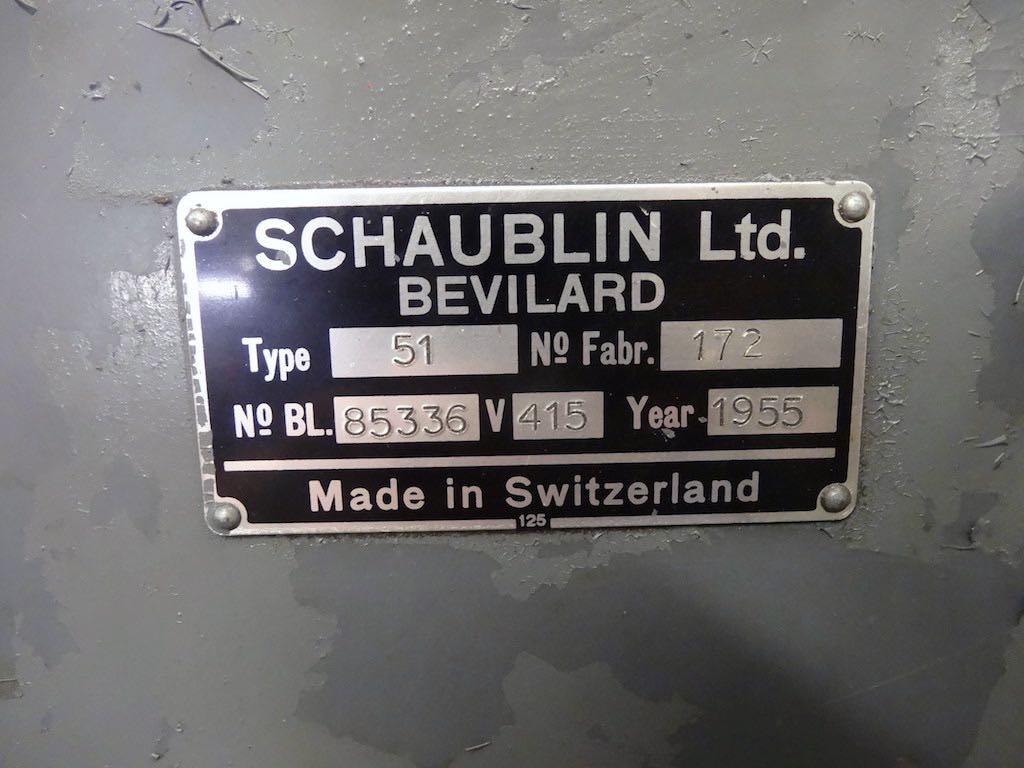

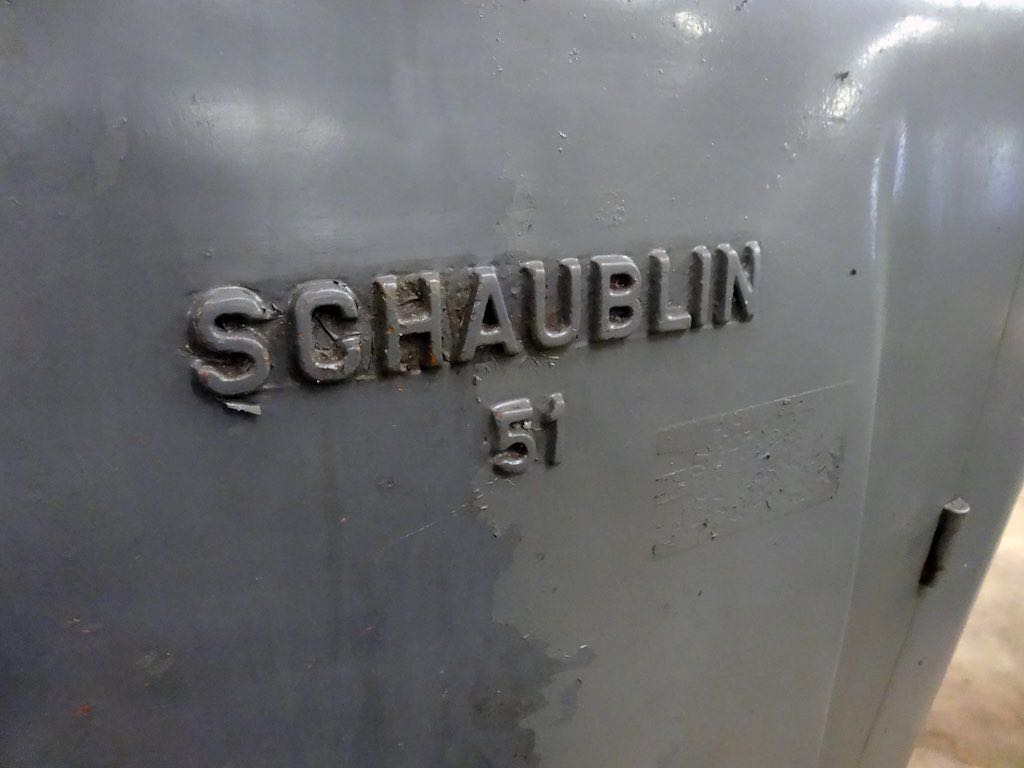

Type: S1
Fabrication Number: 172
S/n: BL85336
Year: 1995
L x W x H: 1330 x 1630 x 1650mm
Weight: 1000kg
Working surface: 750 x 215mm
Number of t slots: 4 x 12mm @ 40mm apart
Table movements:
Longitudinal: 500 Automatic, 17-130,170-1300mm/min
Longitudinal for spiral milling: 360 Automatic 17-130 mm/min
Vertical: 400 Automatic

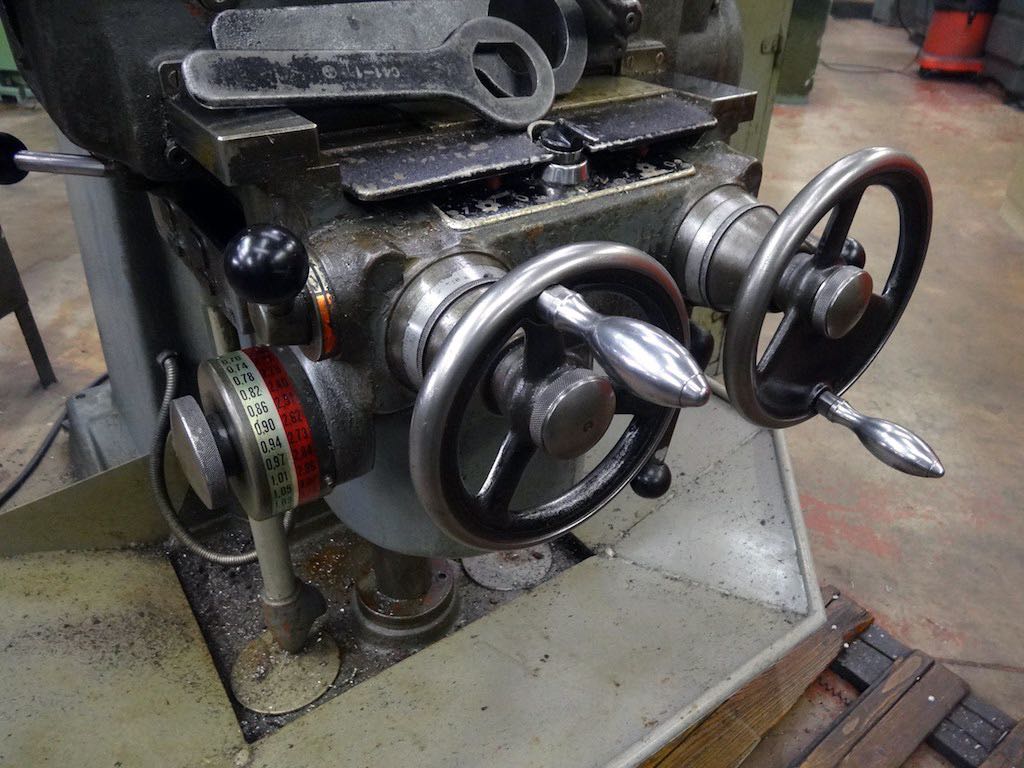

Cross: 160 by handwheel

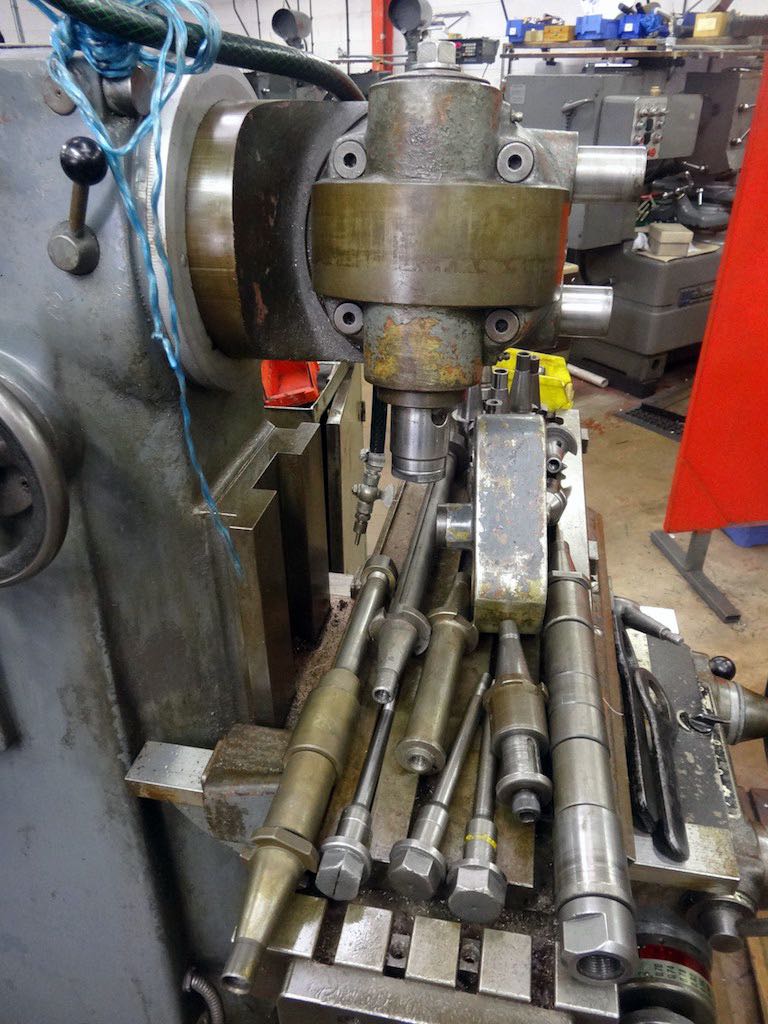

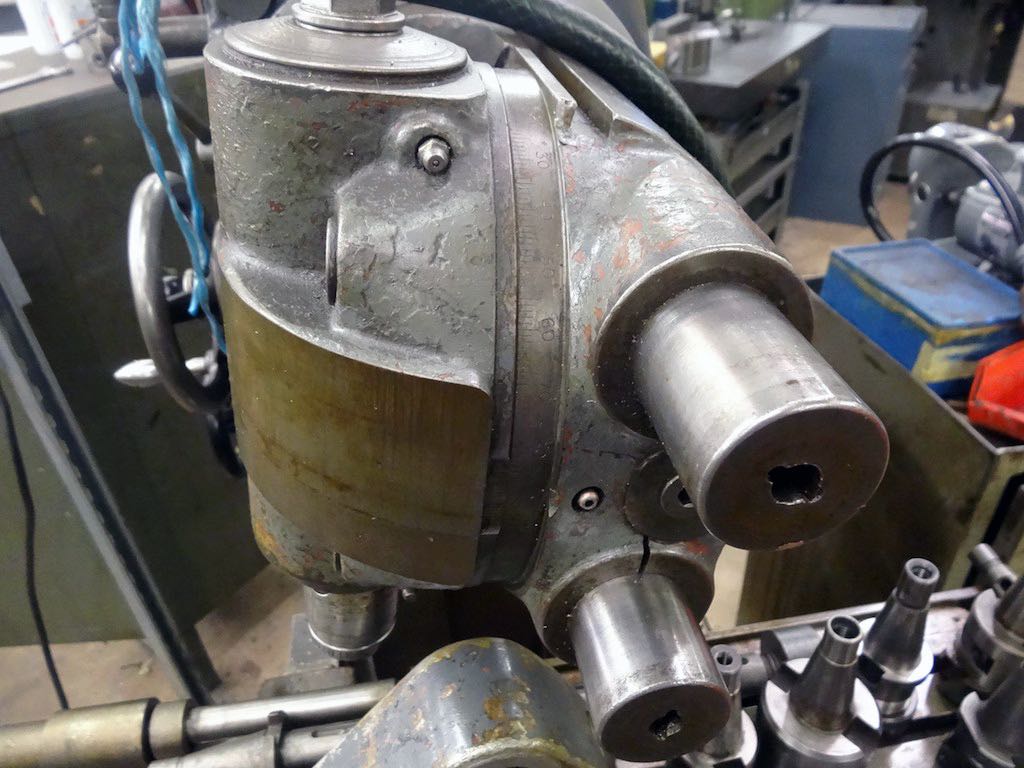

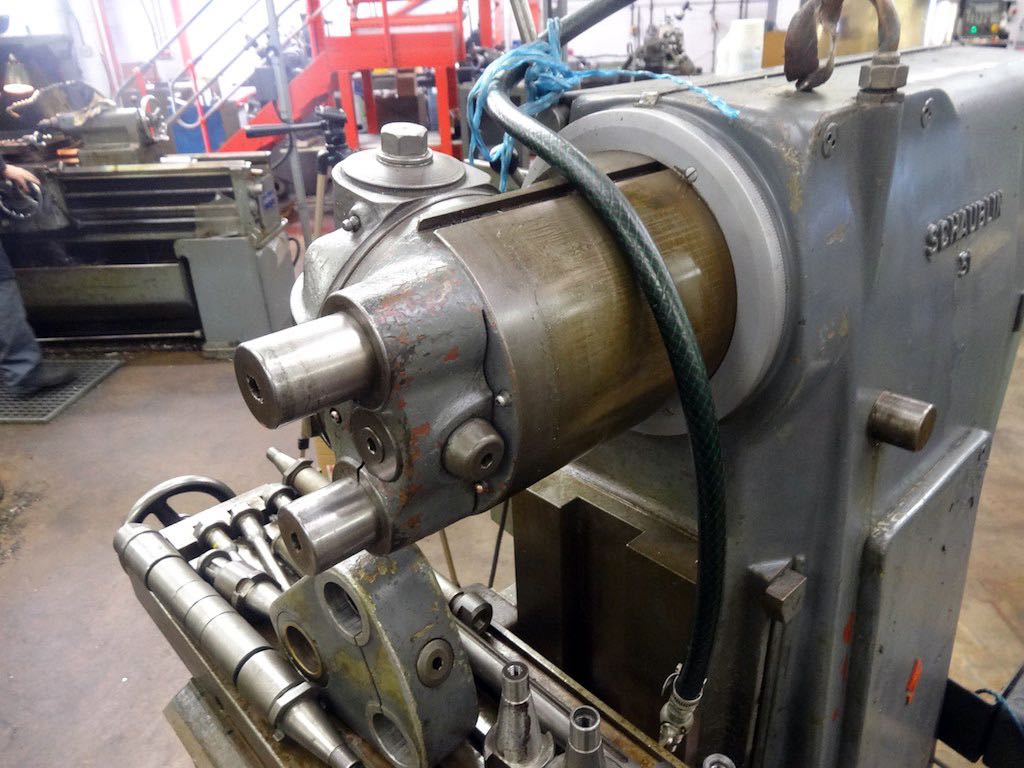

Spindle head: VSM 33931 size 32 taking P-type spring collets 200mm shank dia
Reduction bushes for Morse 1 and 2

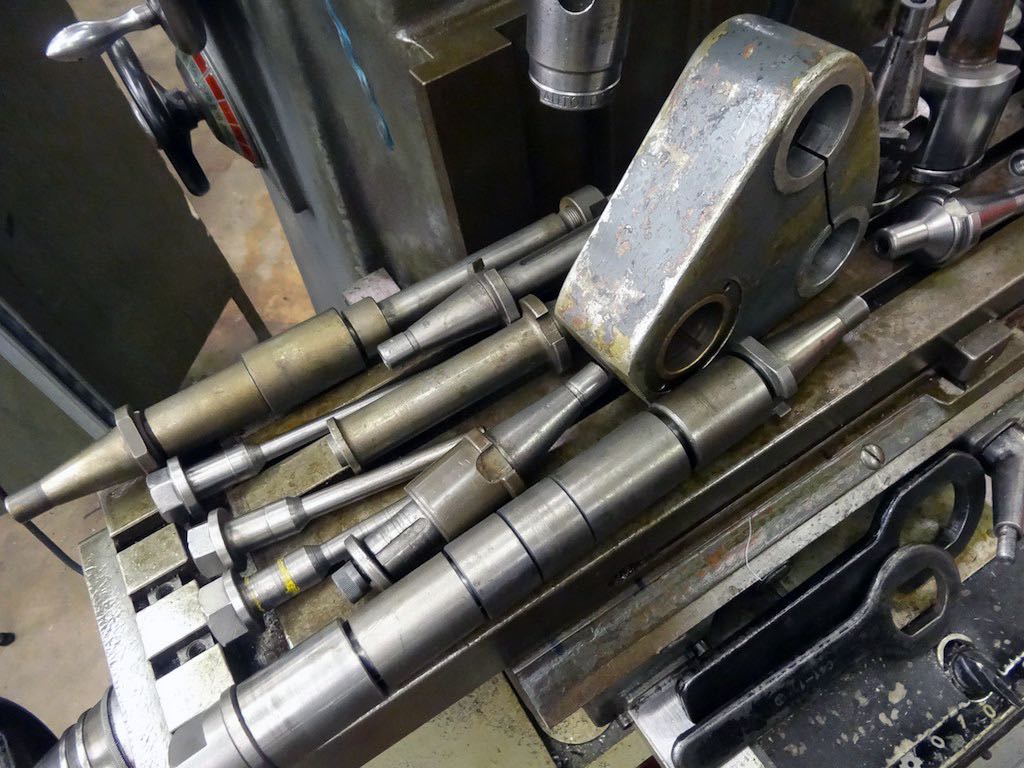

Dia of long and stub arbors: 16, 22 25.4 and 27
Angular setting of spindle: All angles in all planes
Spindle speeds ( by means of speed regulator) : 50-2300

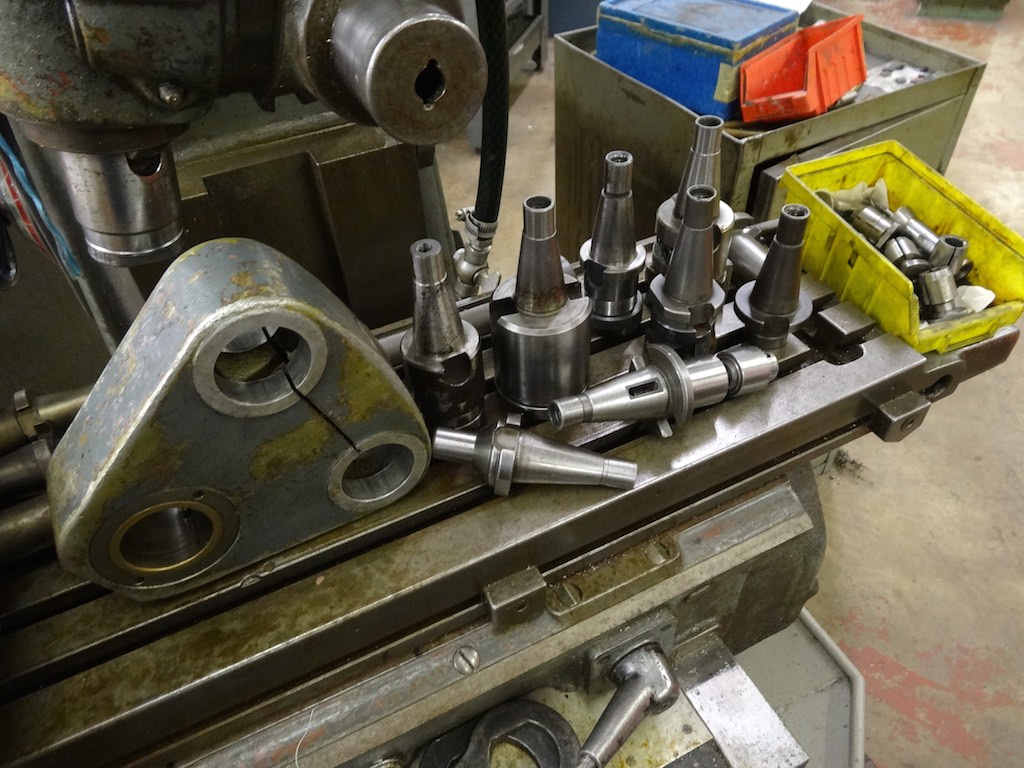

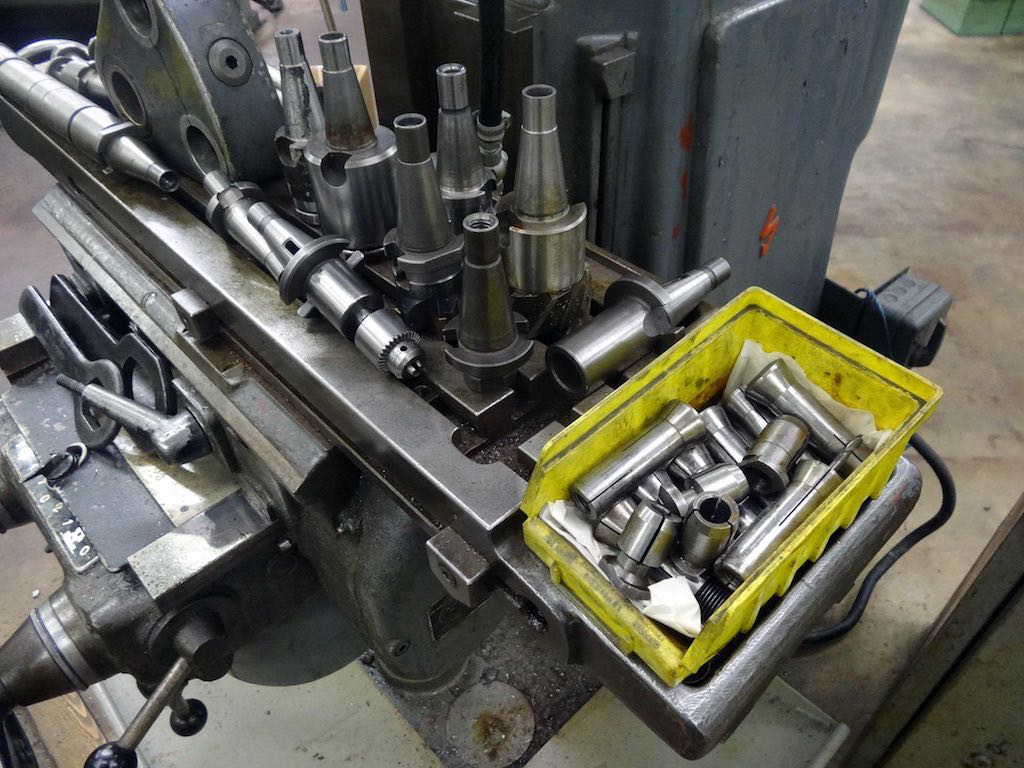

Various Clarkson tool holders
Arbour with 3 x 1.5" holes
Location: Telford
