Lot 15 - Shape Delta model 1250TN CNC Punching Machine (year 1998)
Description:

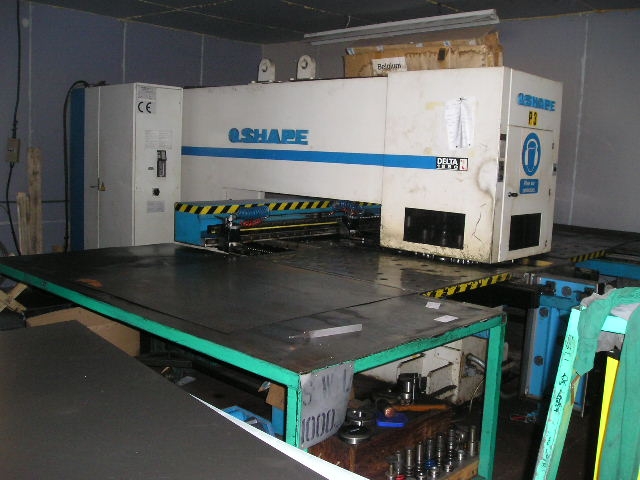

Shape Delta model 1250TN CNC Punching Machine
Tonnage 20 Tons
Punching Area 1275mm x 1275mm
With one reposition 2575mm x 1275mm
Max sheet thickness 6.4mm
Hit Rate 25mm centres 250 Hits/min
Sheet positioning speed 50m/minute

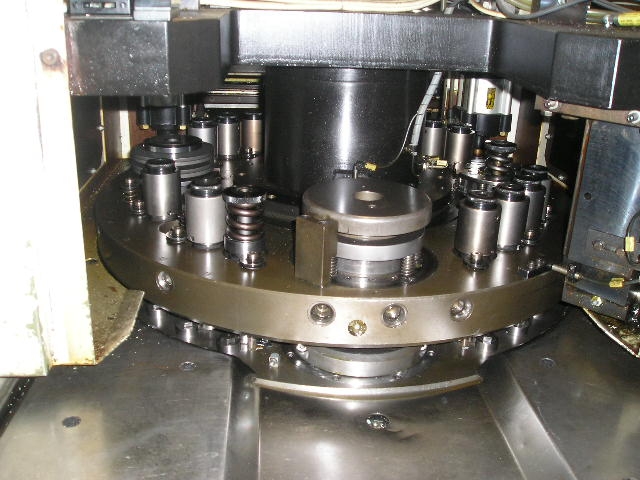

Turret Thin style
Turret Stations 20 16 x B 2 x D 2 x D Auto Index

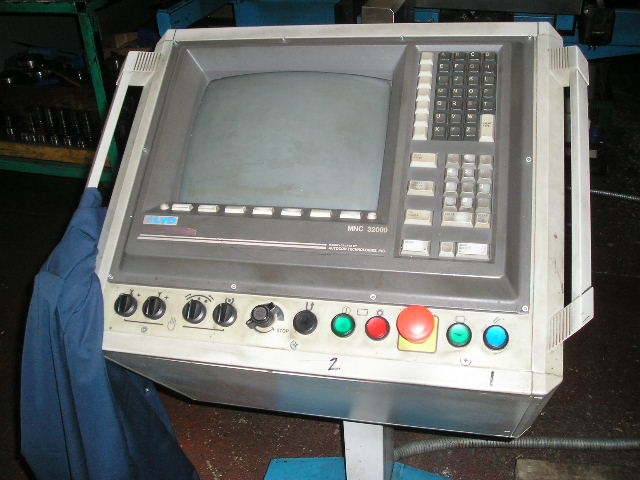

CNC Control MCN32000
Dimensions H 2120mm W 4895mm L 2720mm
Weight 15,200 Kgs
Year 1998
Serial Number 24933
Complete with tooling
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
