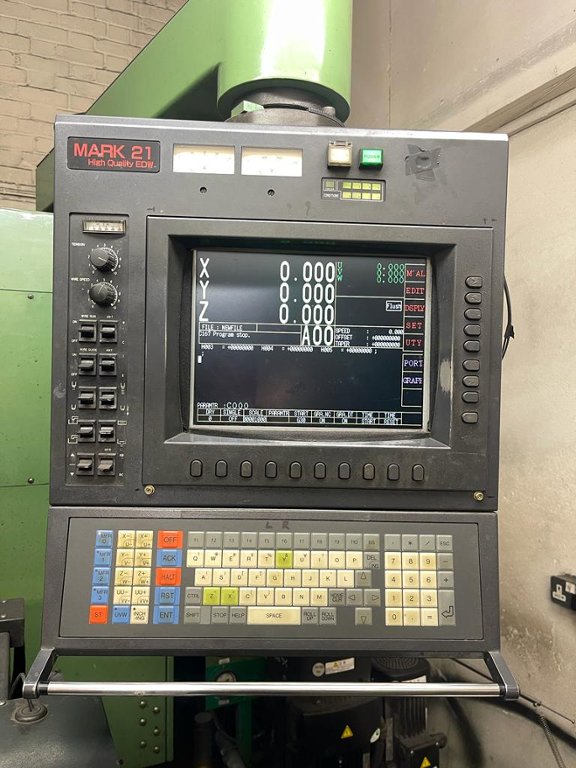

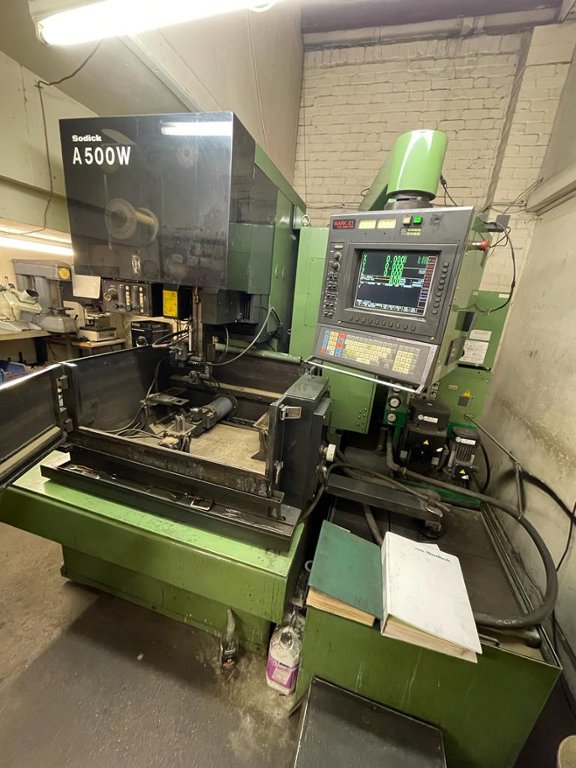

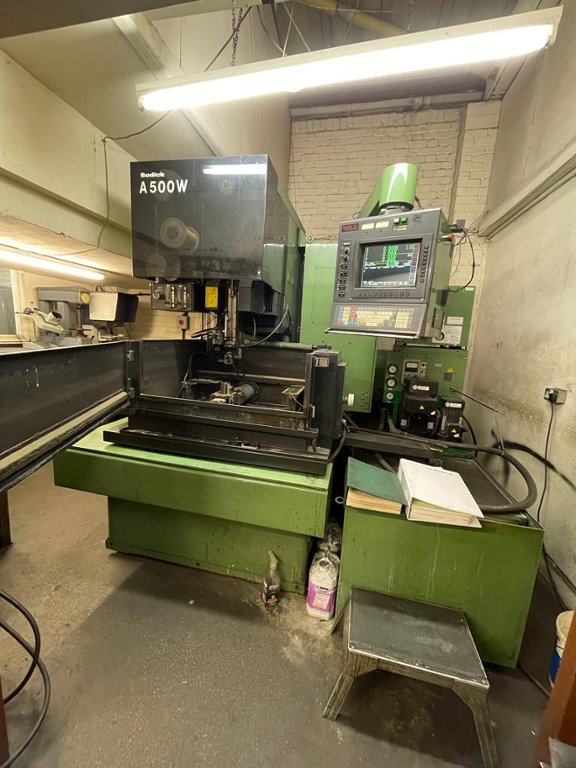

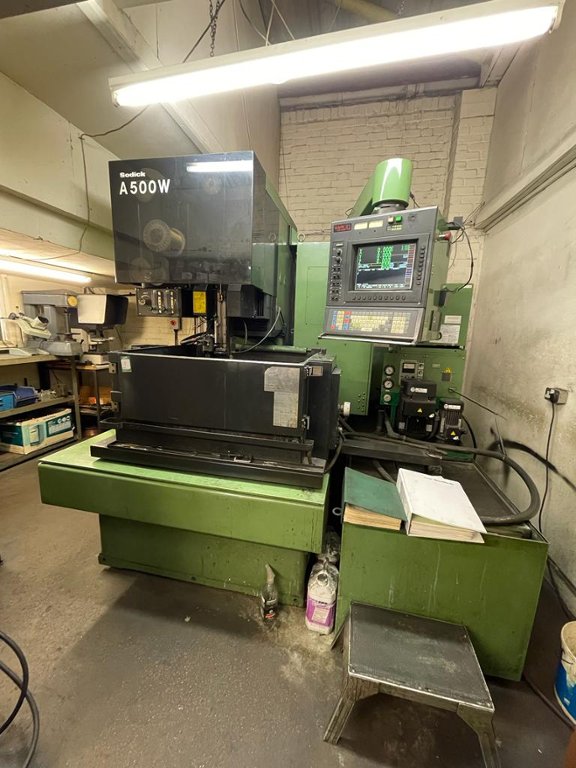

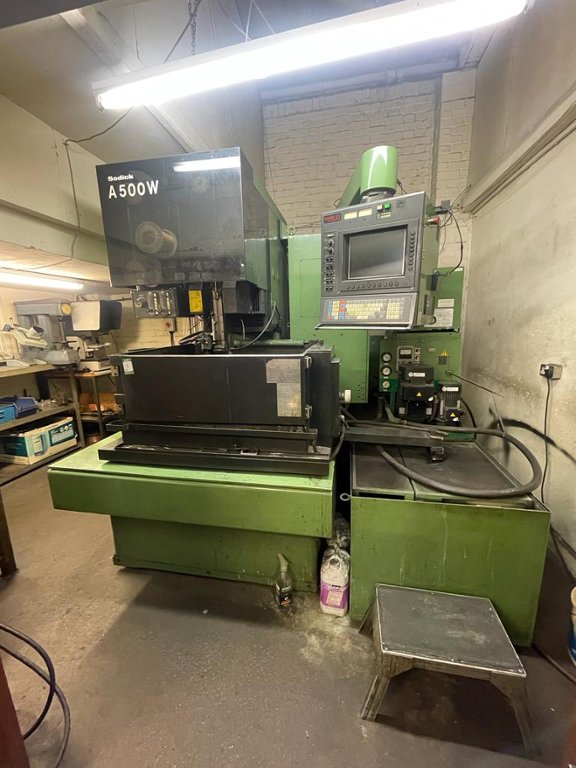

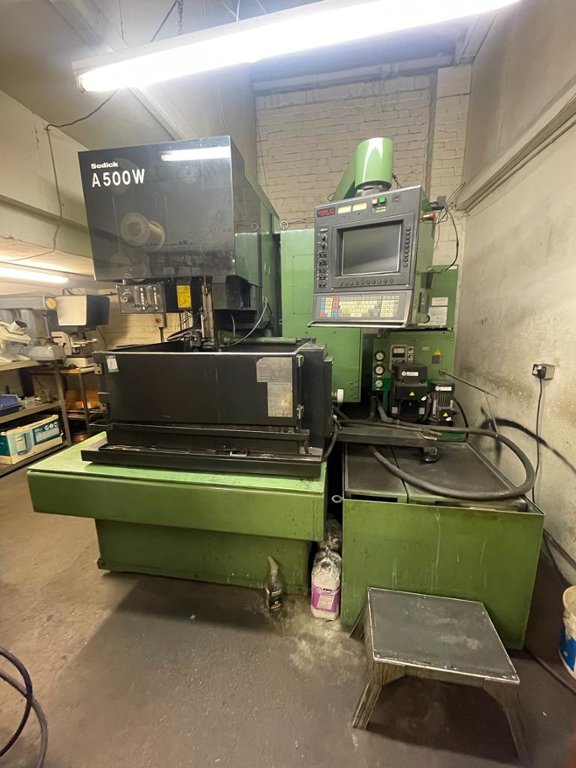

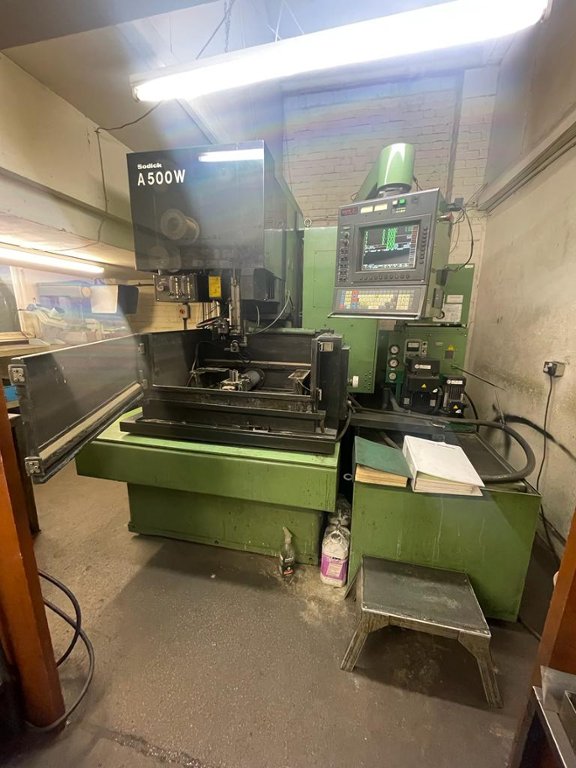

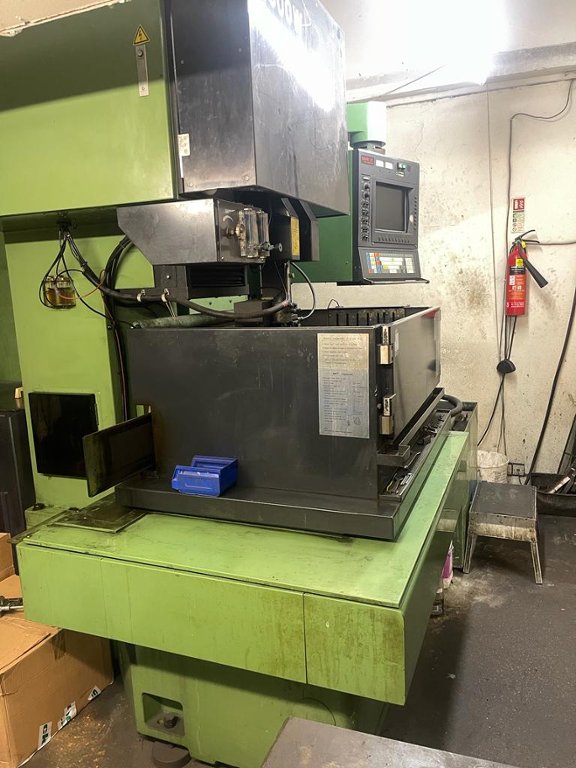

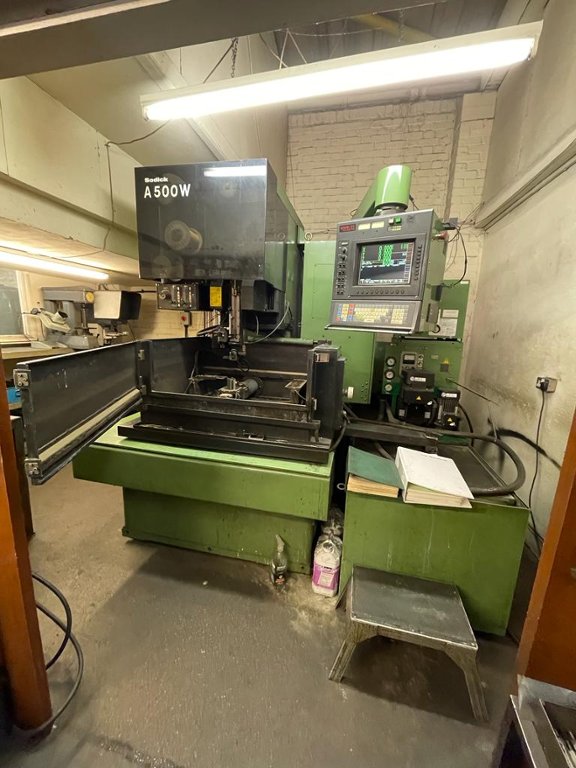

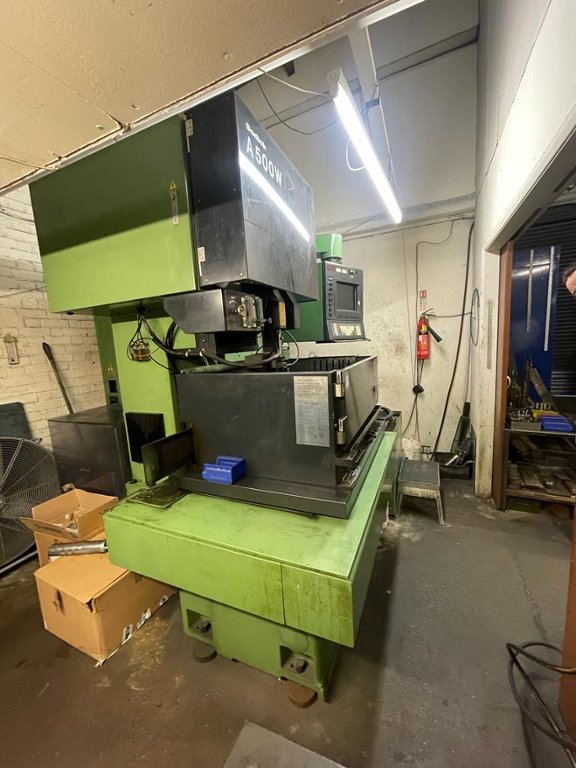

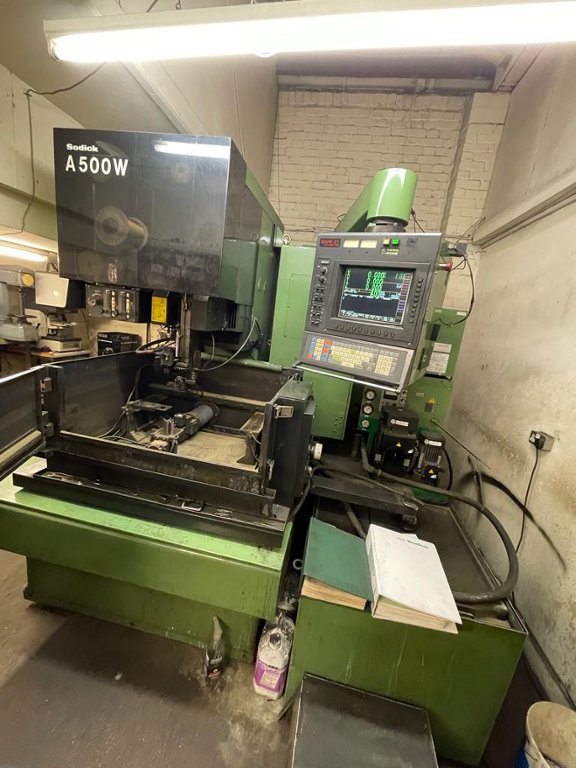

Sodick A500W Mark 21c EDM (1995)

Lot 1 - Sodick A500W Mark 21c EDM (1995)

Description:

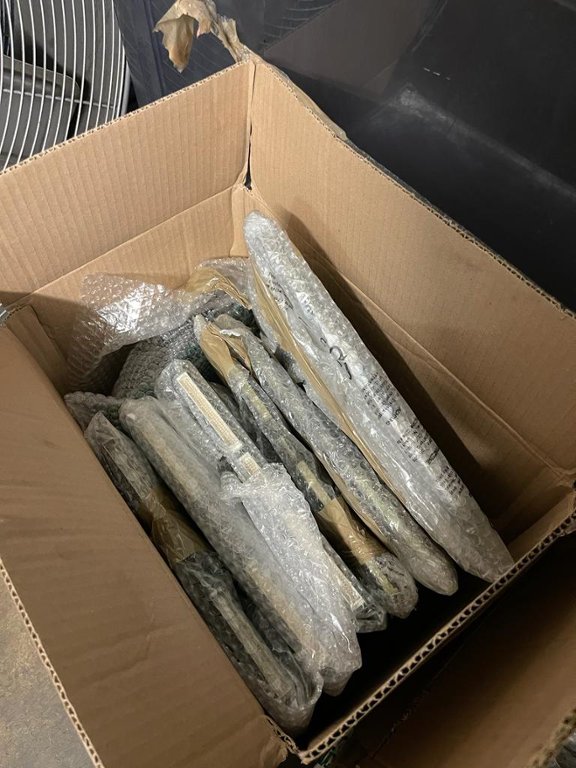

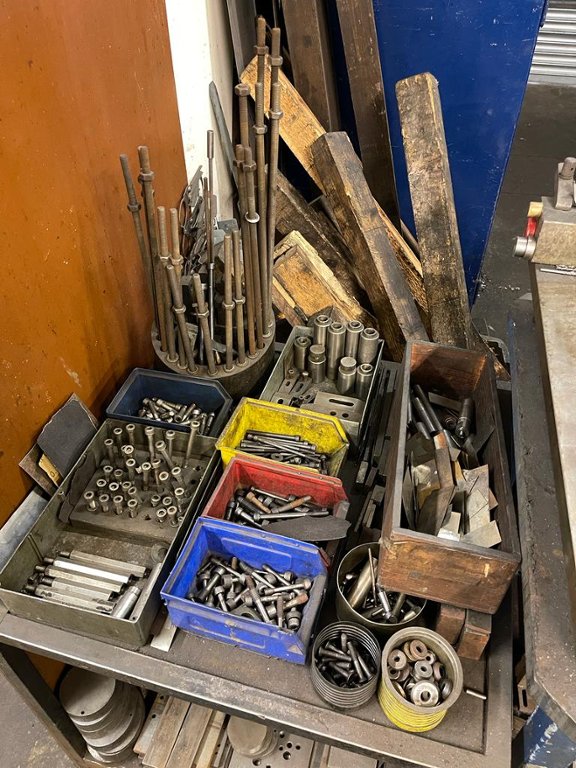

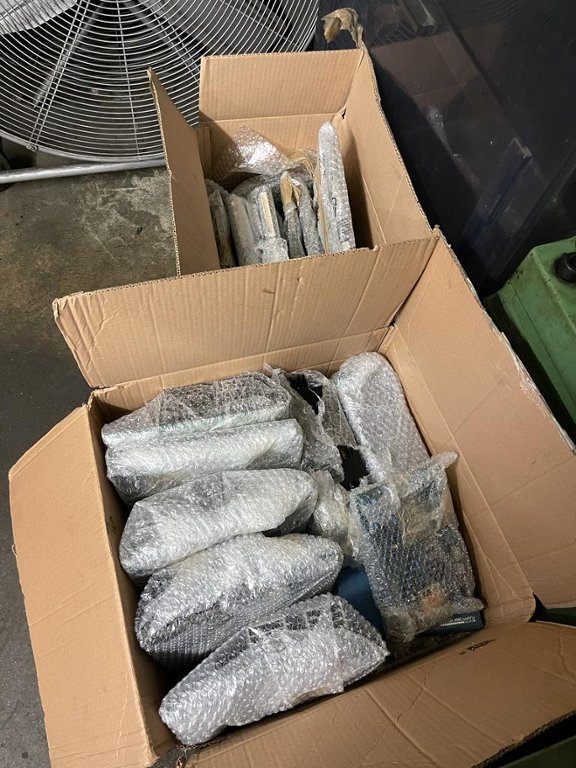

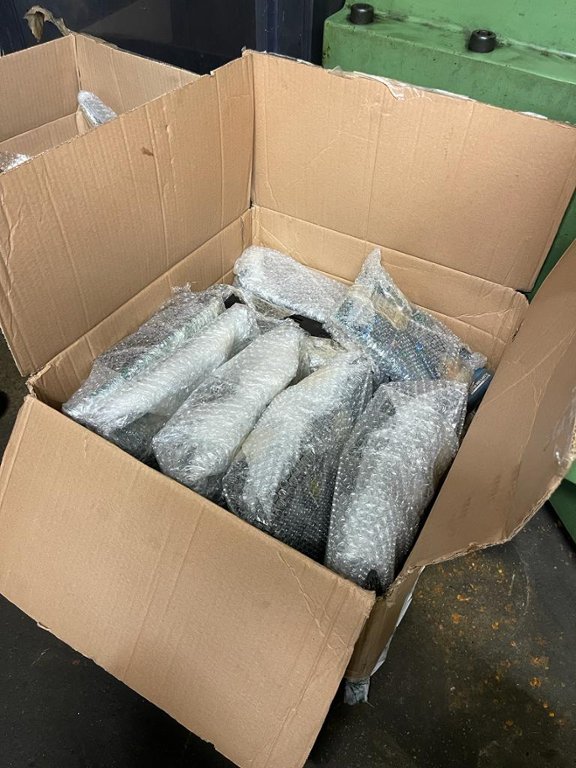

Has had a complete overhaul with a new set of pumps, brand new circut board and spares and ball screws have been replaced.

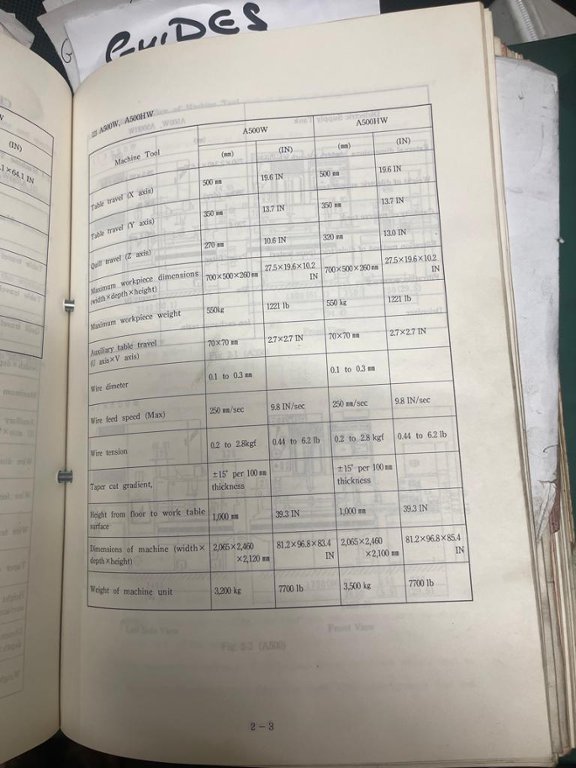

Comes with the manuals

Table Travel (X Axis) - 500mm

Table Travel (Y Axis) - 350mm

Quill Travel (Z Axis) - 270mm

Maximum Workpiece Dimensions - 700 x 500 x 260mm

Maximum Workpiece Weight - 550kg

Auxilliary Table Travel (U Axis x V Axis) - 70x70mm

Wire Dimeter - 0.1 to 0.3mm

Wire Feed Speed (Max) - 250 mm/sec

Wire Tension - 0.2 to 2.8kgf

Taper Cut Gradient - ±15 per 100mm thickness

Height from floor to work table surface - 1000mm
