Lot 9 - Sodick A 500W Wire Cutting EDM Machine
Description:

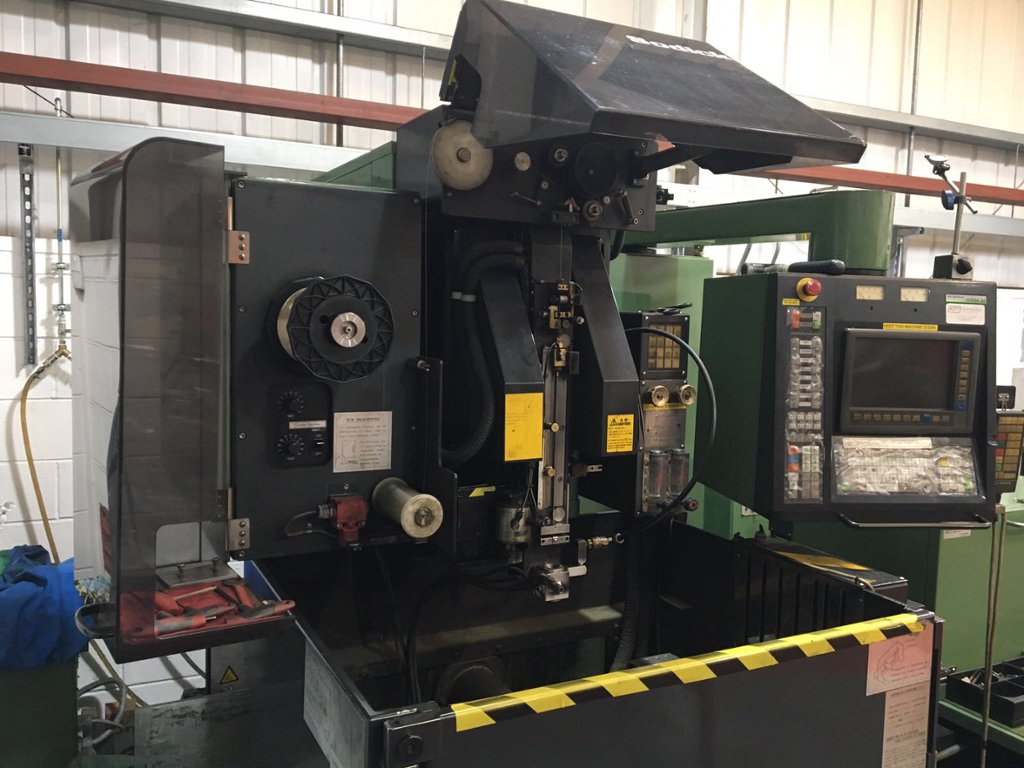

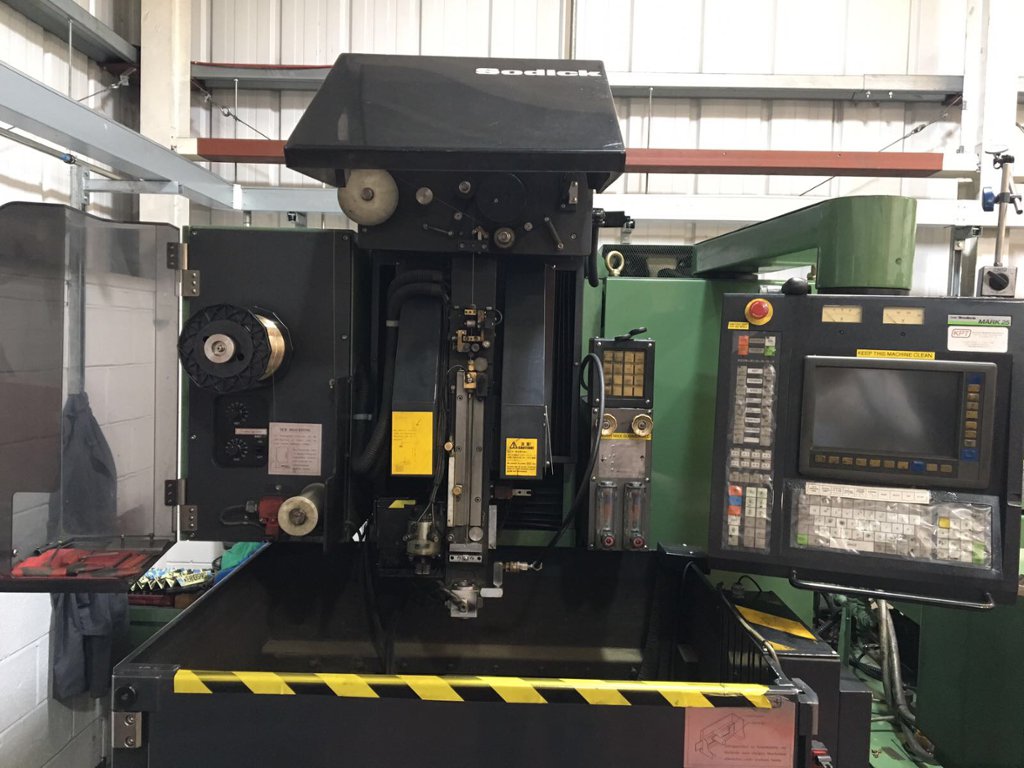

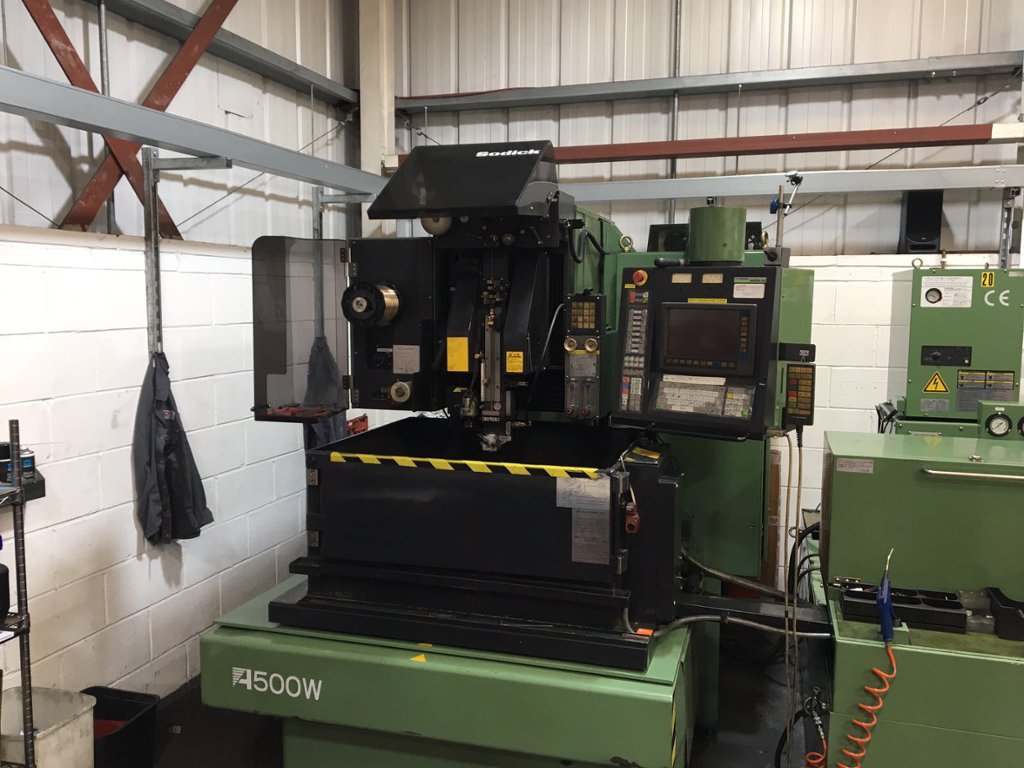

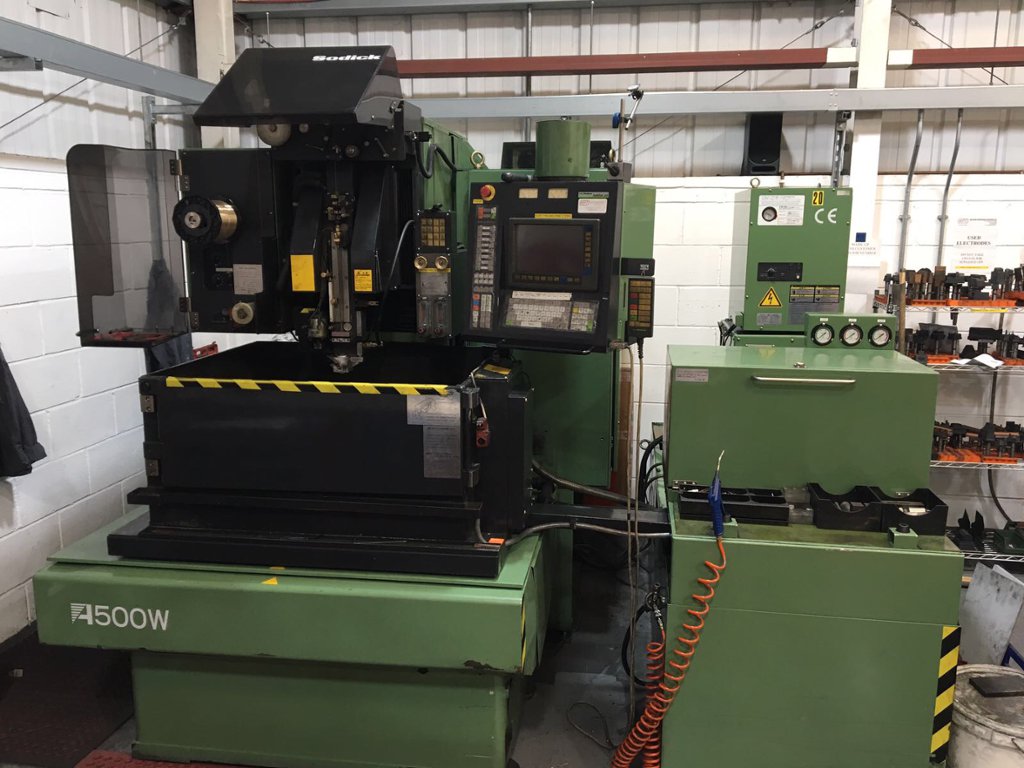

Sodick CNC Wire Cutting EDM Machine
Model: A-500W
Year: 1998

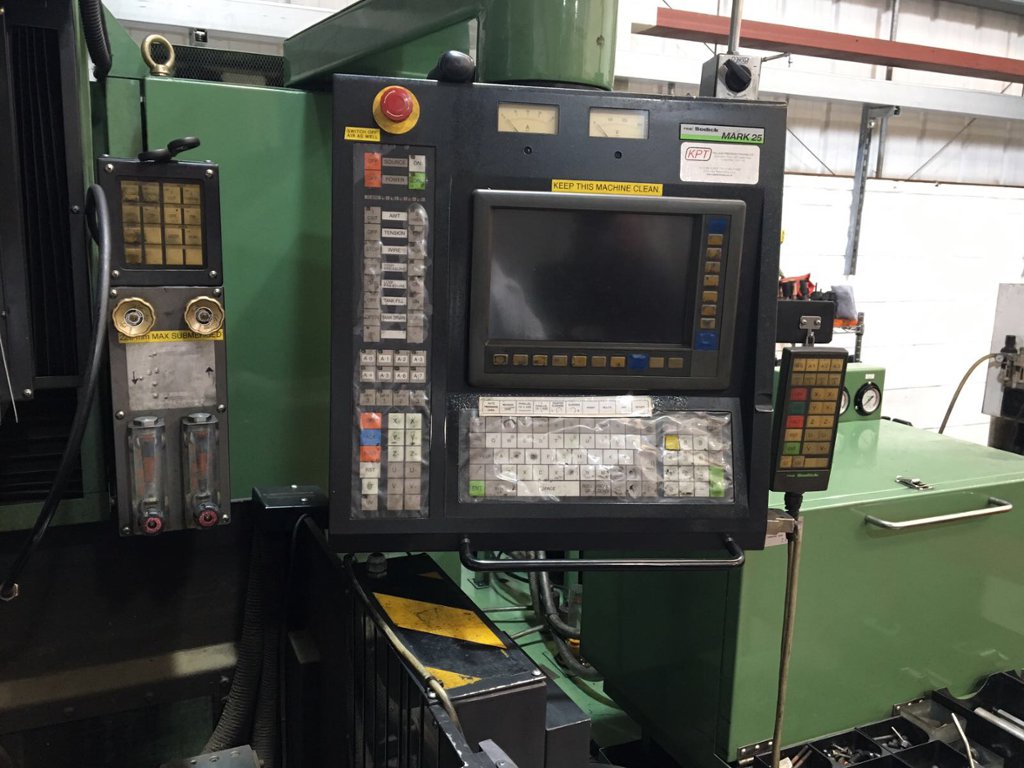

Control: MARK-25, strokes (X, Y, Z): 500 x 350 x 270 mm, strokes(U, V): 70 x 70 mm, MAX PART SIZE: 700 x 500 x 260 mm, MAX WORKPIECE WEIGHT: 700 Kgs, Angle: + / - 15 °, Wire diameter: 0.1 to 0.3 mm, TENSION WIRE: 0.2 to 0.8 mm, WIRE SPEED: 250 mm / sec, POWER: 15 Kw.
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
06 Apr 2017 15:10:00 BST
Location: Leicester
Transport information
- Weight: 700 Kgs
- Other Transport Details: Loaded free of charge
