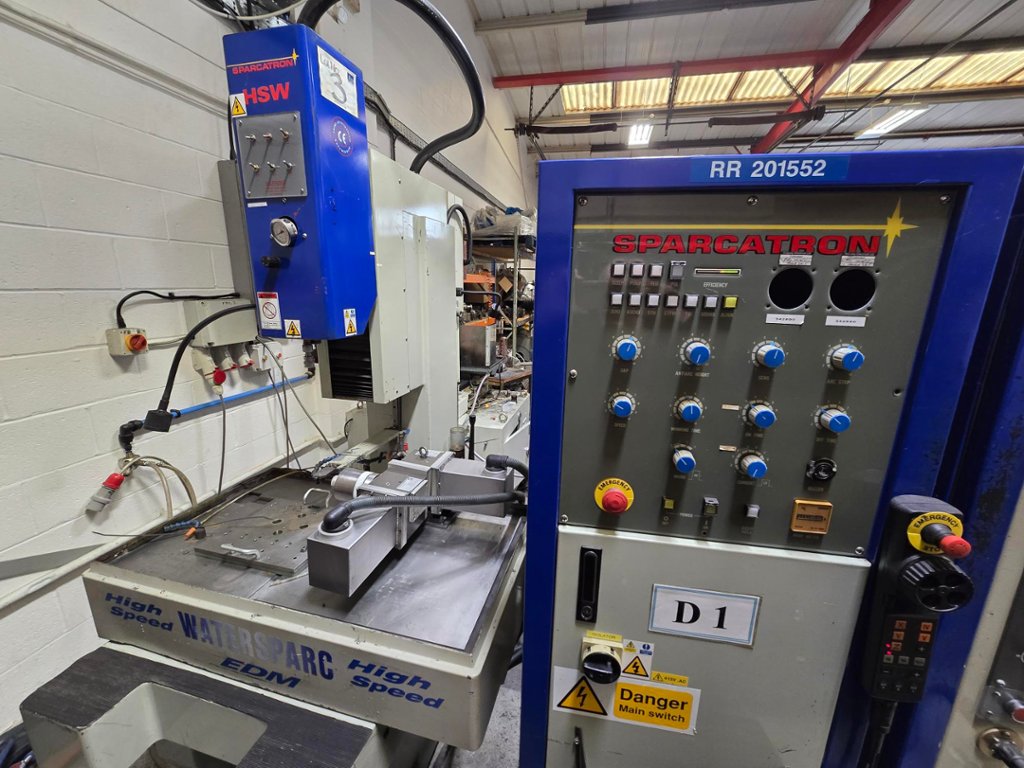

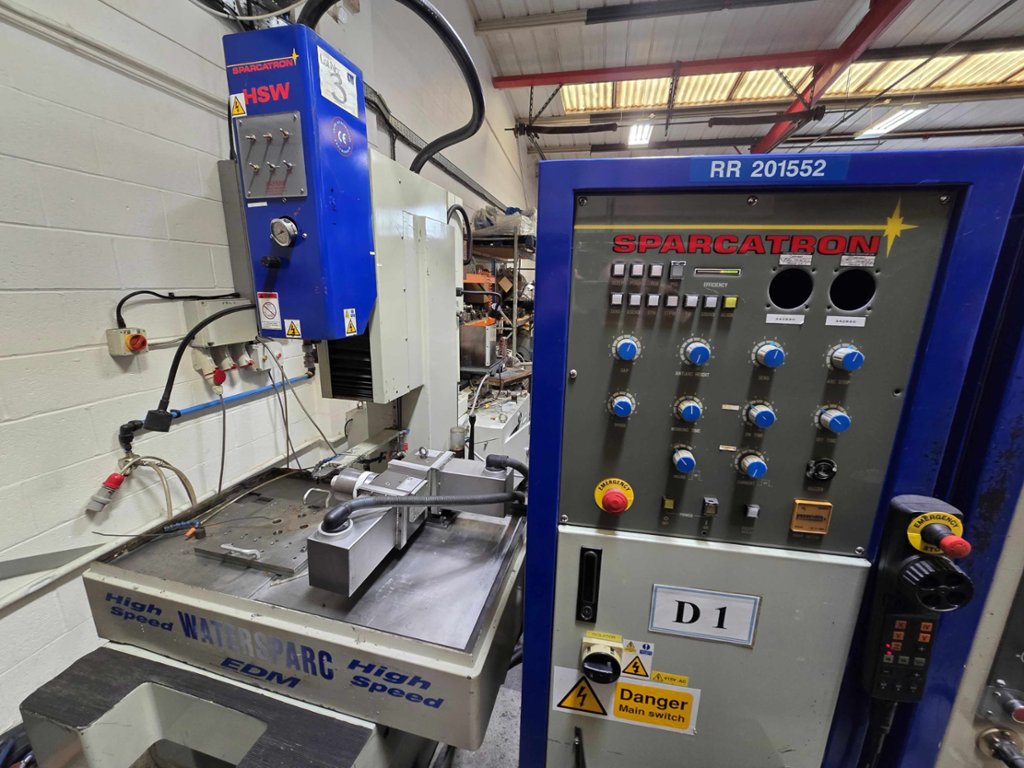

Sparcatron EDM Hole Driller 5 axis Heidenhain Control (Approx 1999)

Lot 24 - Sparcatron EDM Hole Driller 5 axis Heidenhain Control (Approx 1999)

Description:

Ex-aerospace company machine
EDM high pressure de-ionised water dielectric small hole driller 0.3mm to 3mm diameter using brass of copper tubes.

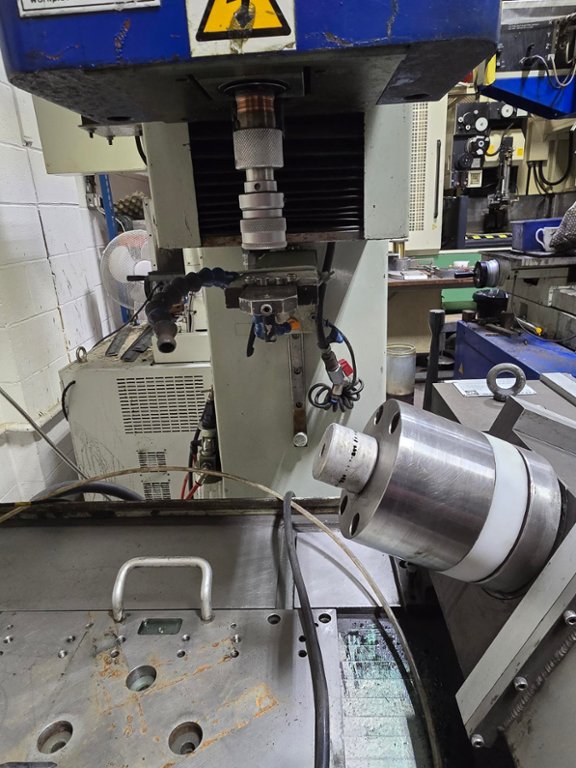

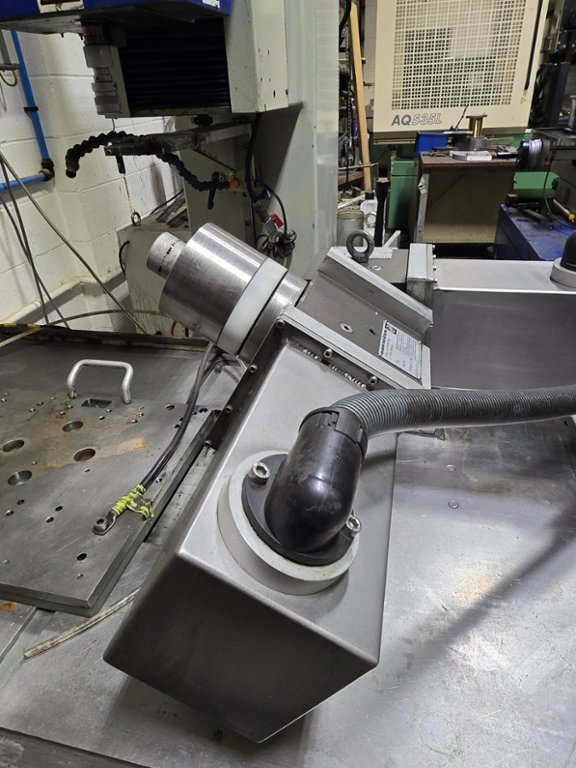

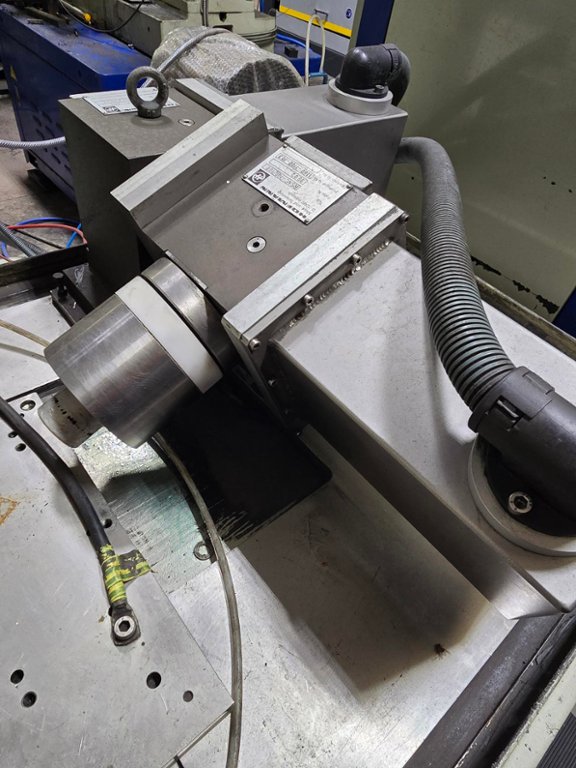

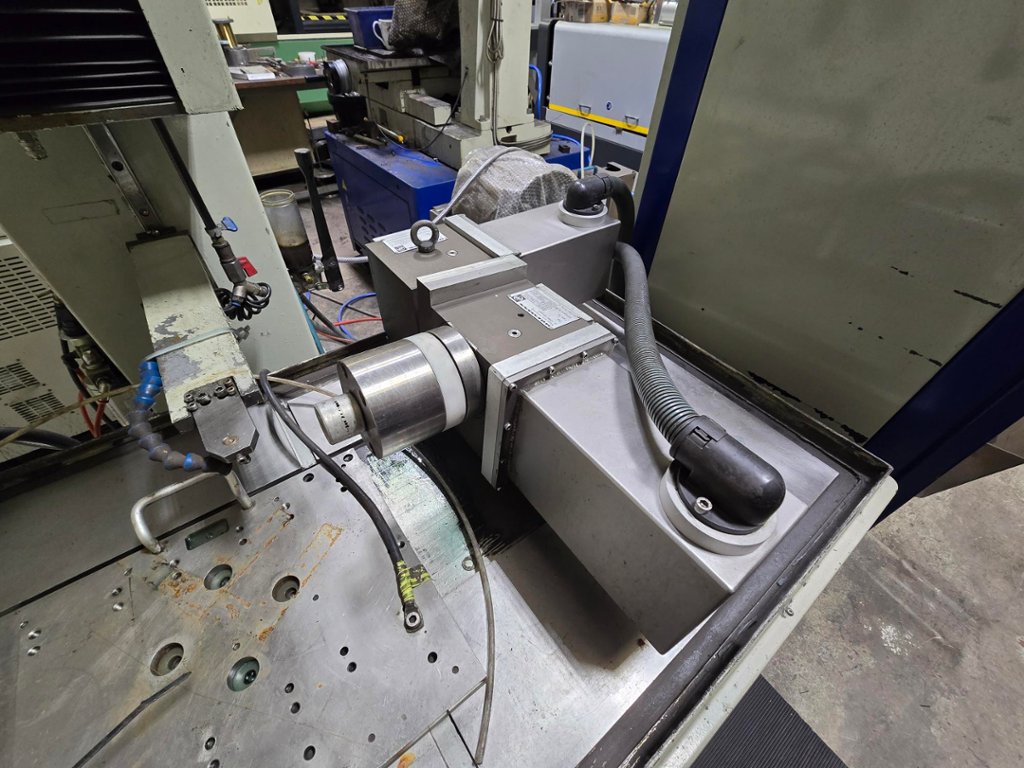

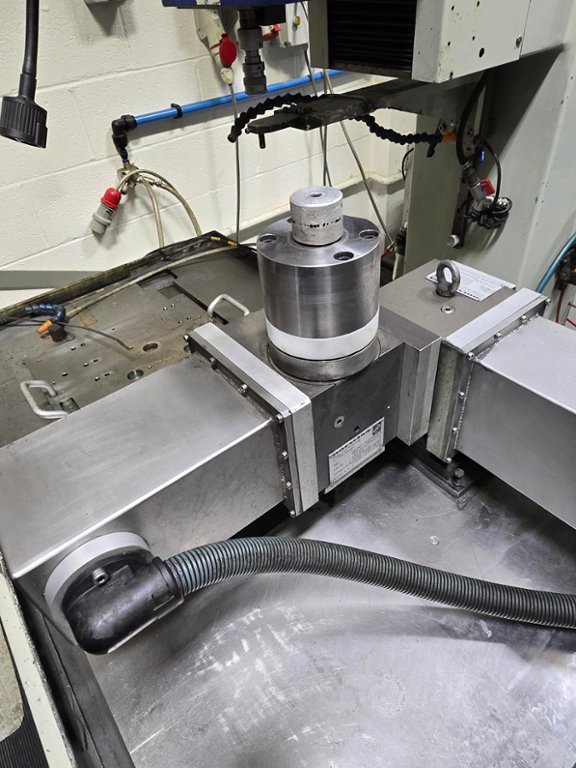

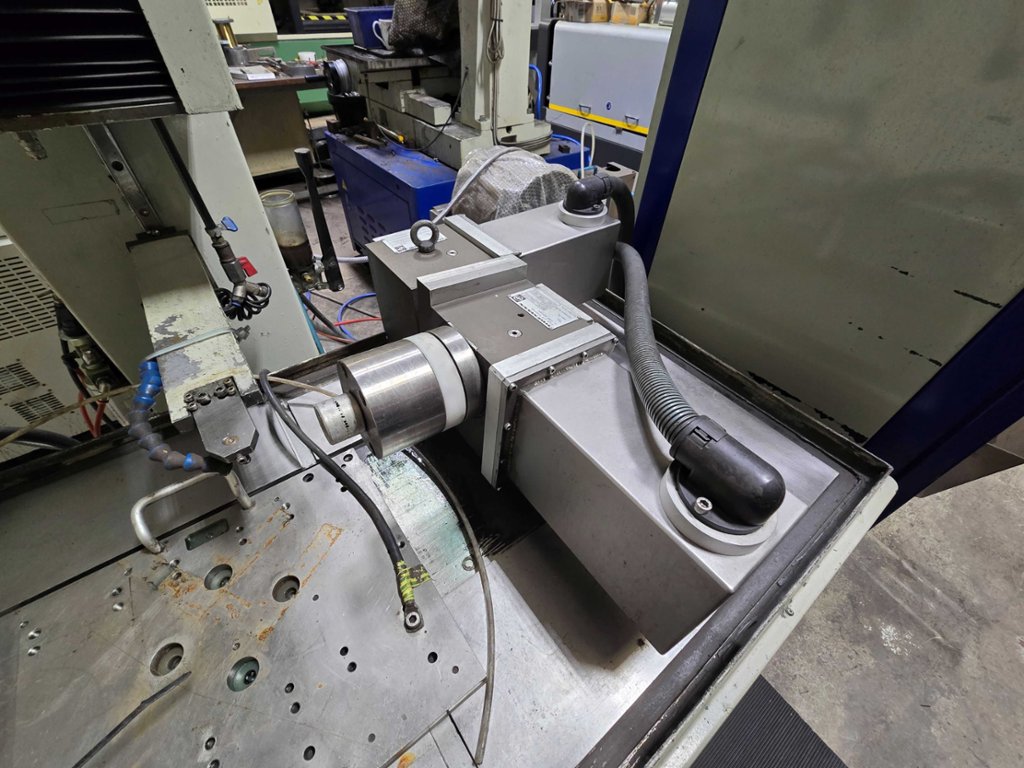

Incudes Hofmann EDM 4th 5th axis rotary unit
4th/5th axis offset so table can be used for mounting parts and drilling.

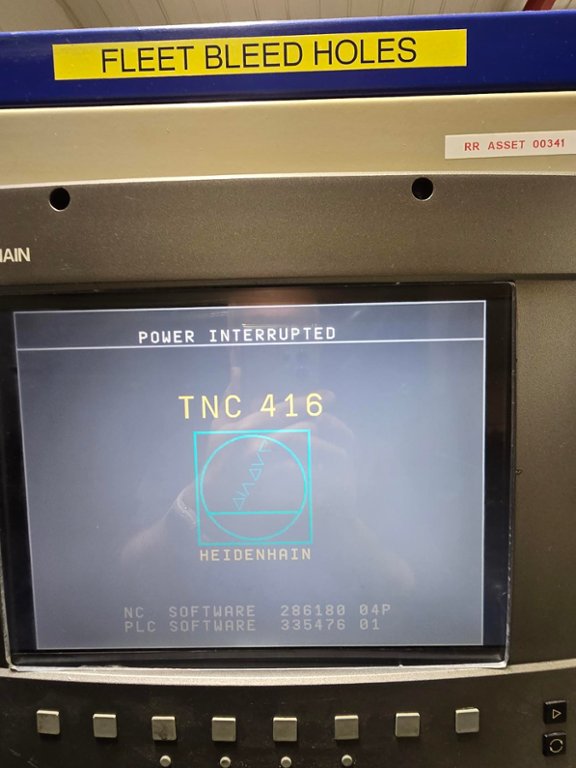

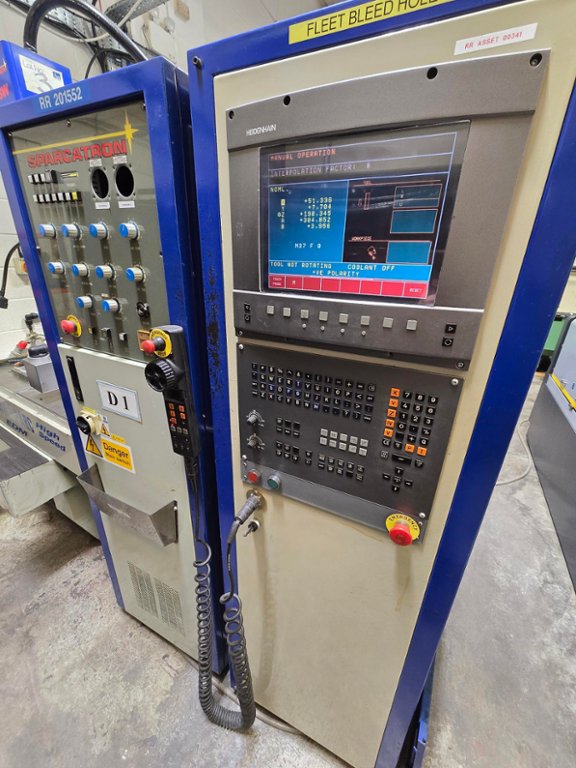

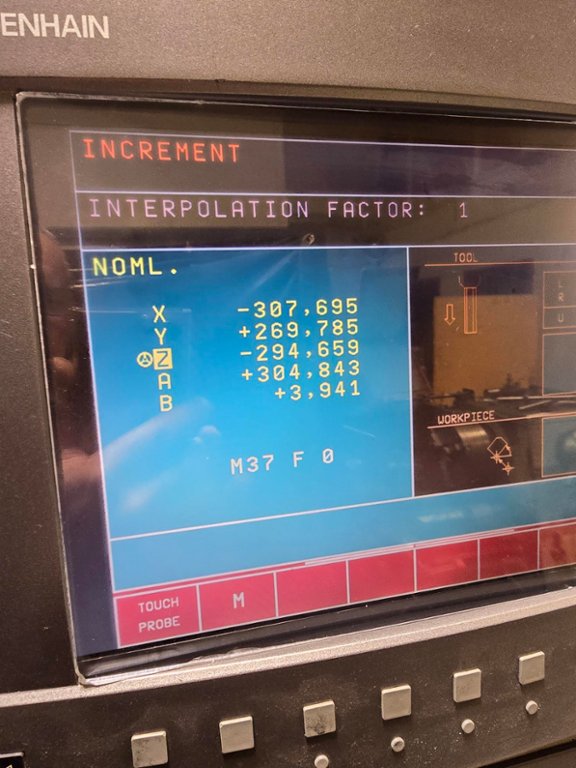

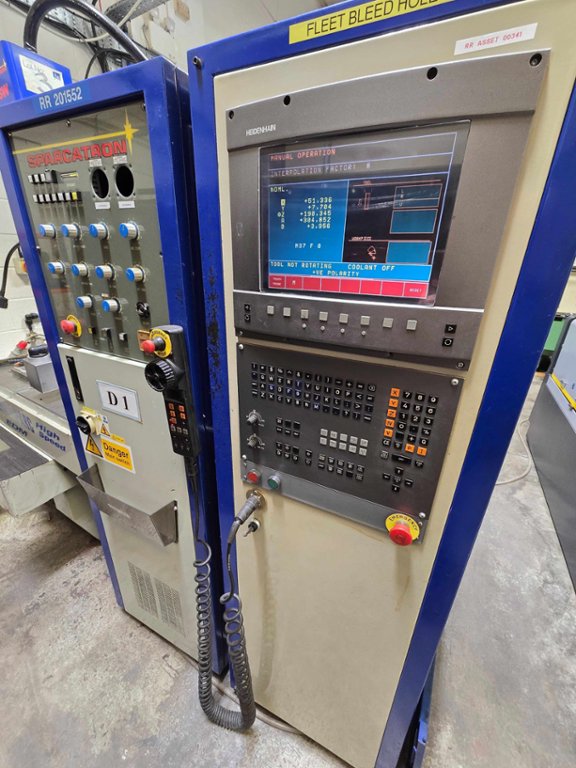

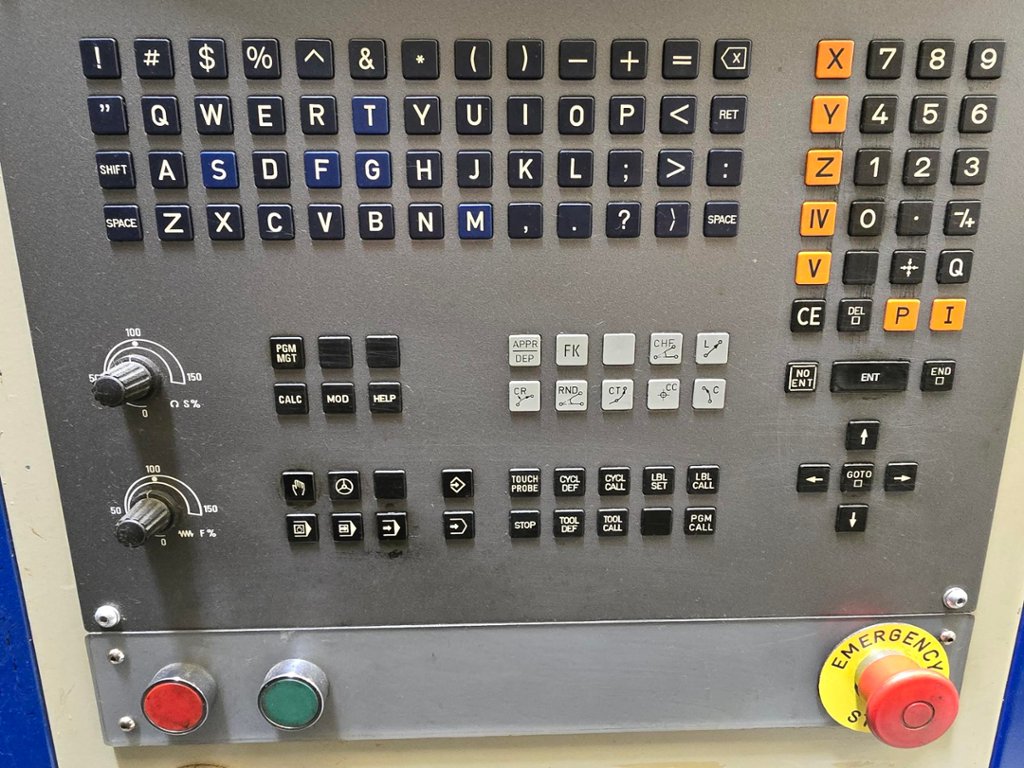

Heidenhain TNC416 control
Travel
X 305
Y 270
Z 295
A360 deg+
B120 deg
Insulated interface plate

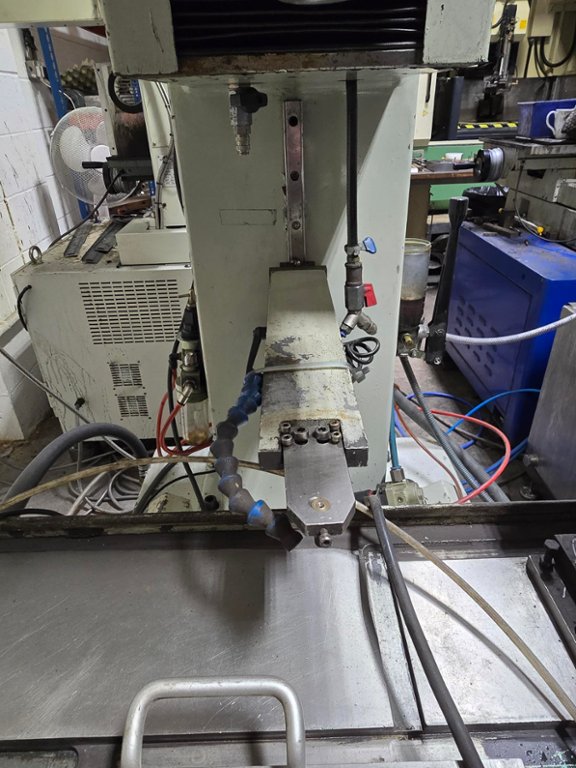

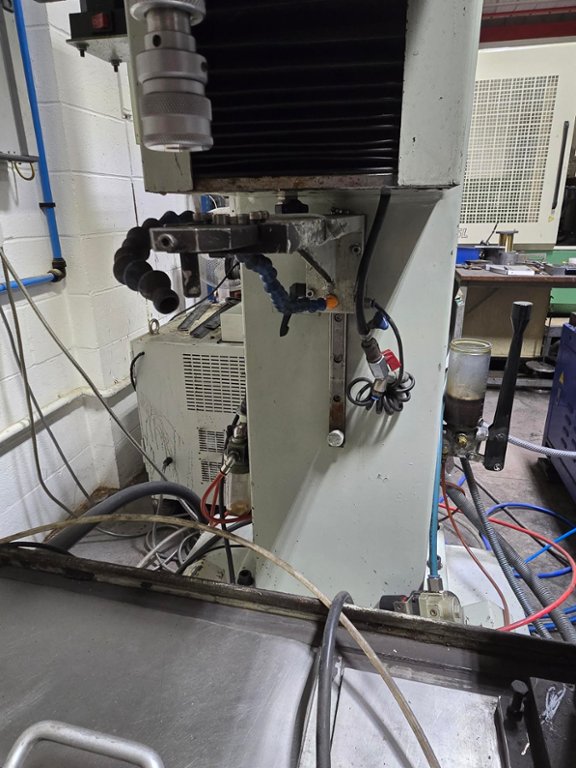

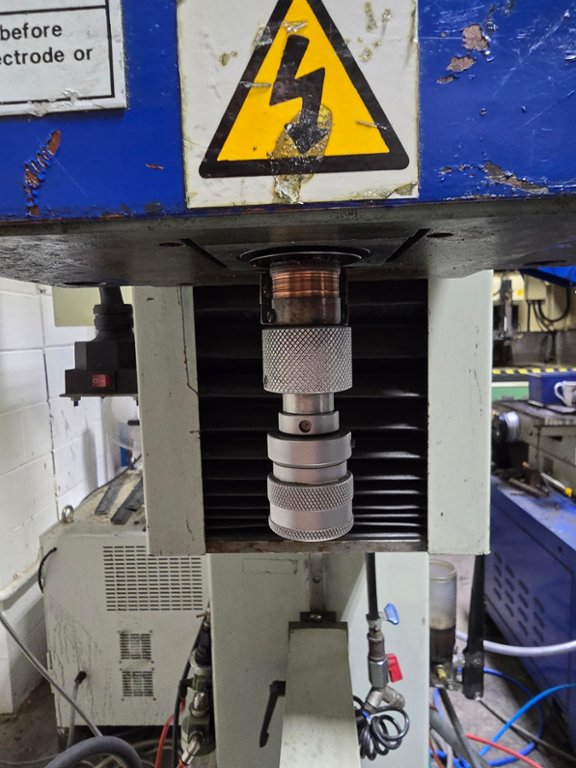

Adjustable guide up to height 300mm

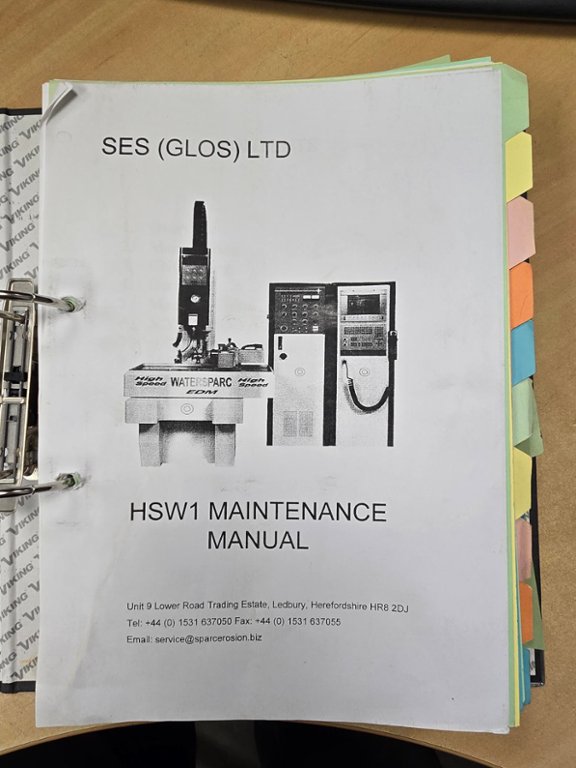

Manual and diagrams
Footprint W2.7m D 1.6m H2.5m
