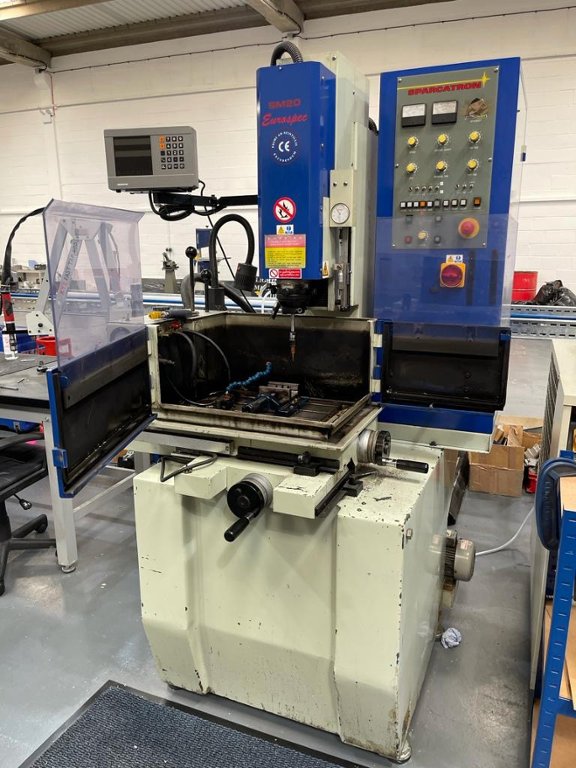

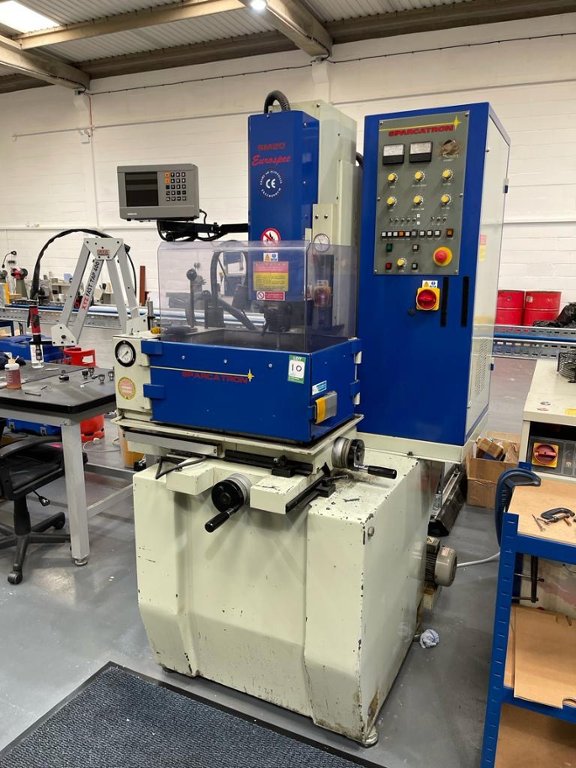

Lot 10 - Sparcatron SM20 EDM Machine

Description:

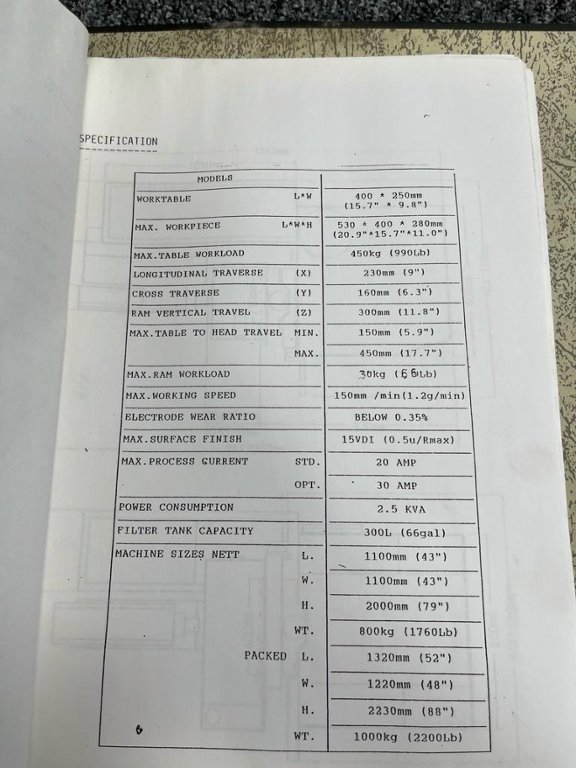

Generator Model 30a - 21"w x 43"d x 41"h

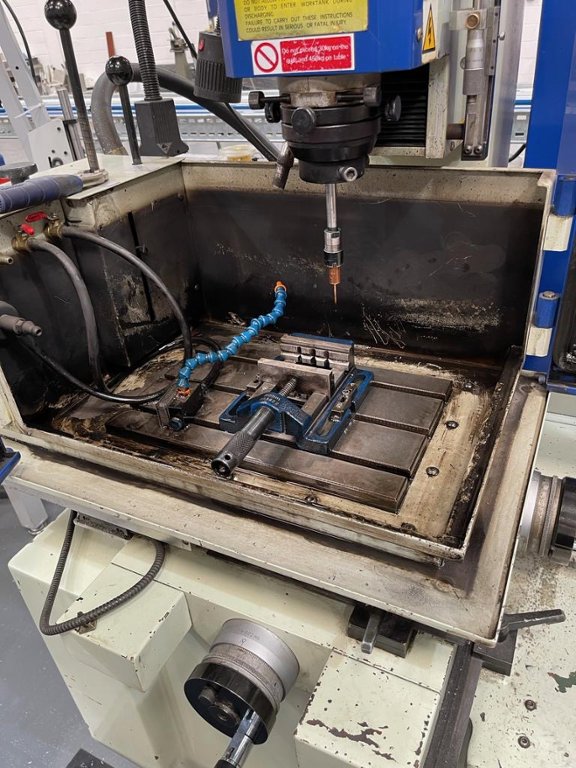

Work table - 400 x 250mm

Max workpiece - 530 x 400 x 280mm

Max table workload - 450kg

Longitudinal traverse - 230mm

Cross traverse - 160mm

Ram vertical travel - 300mm

Max table to head travel - 150mm (min) 450mm (max)

Max ram workload - 30kg

Max working speed - 150mm/min

Electrode wear ratio - Below 0.35%

Max surface finish - 15 vdi

Max process current - std - 150amp, opt - 30amp

Power consumpsion - 2.5kva

Filter tank capacity - 300L









* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

22 Jul 2021 15:00:00 BST


Final remove by date: 05/Aug/2021

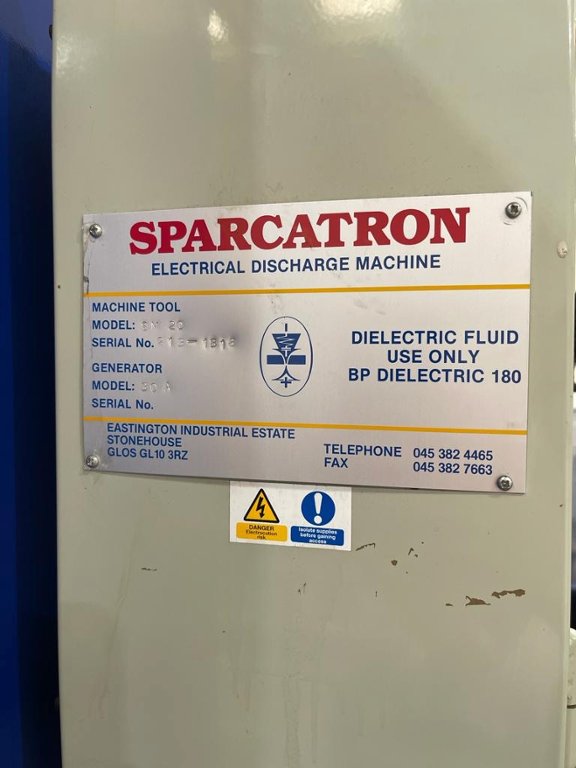

Serial Number: 213-1818

Location: Banbury

Lot location

Transport information

  • Width: 43"
  • Depth: 43"
  • Height: 79"
  • Weight: 800 kg
  • Other Transport Details: Loaded to suitable transport £100
