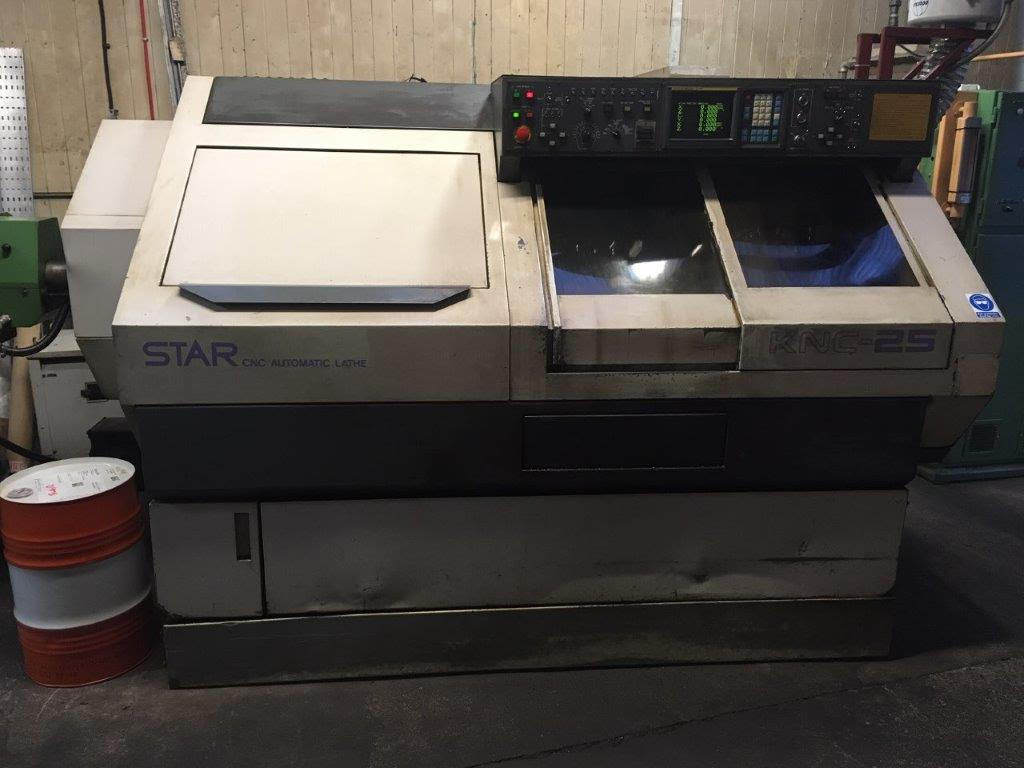

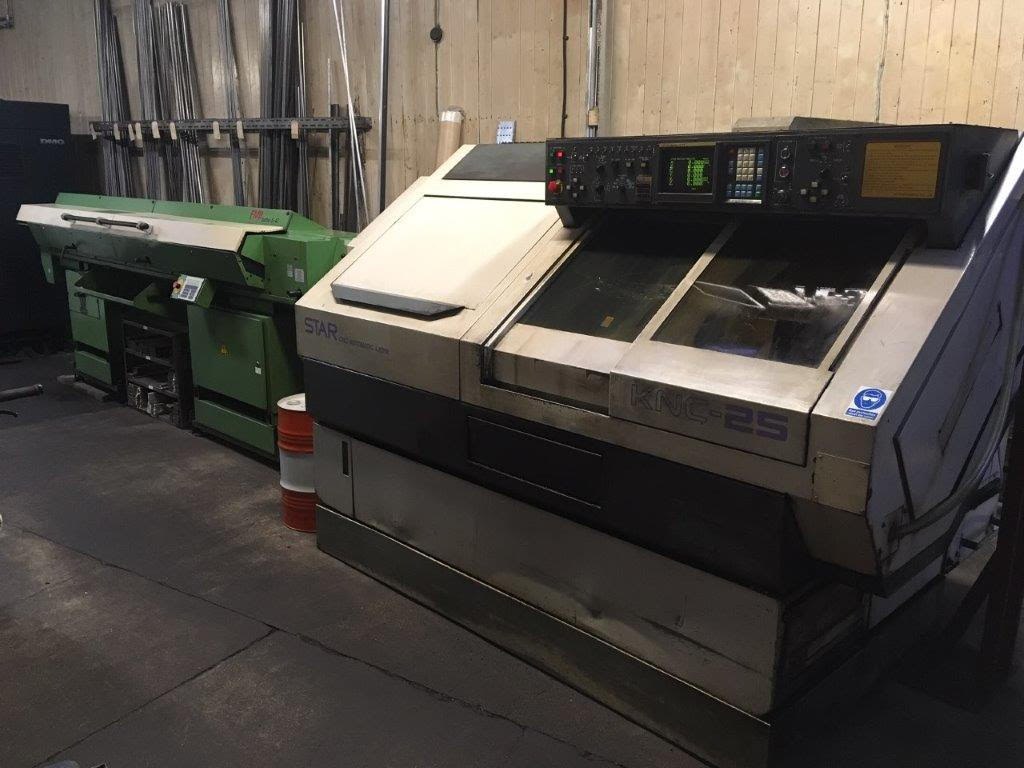

Lot 1 - Star KNC 25 CNC Lathe (1989)

Description:

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

Max. turning diameter - 25 mm

Turning length - 295 mm

Max. drilling diameter - 23 mm

Max. threading diameter - 12 M (Metric)

Spindle speeds: stepless from 200 rpm up to 7000 rpm

B axis resolution max. - 0.01 °

Number of driven tools - 2x10

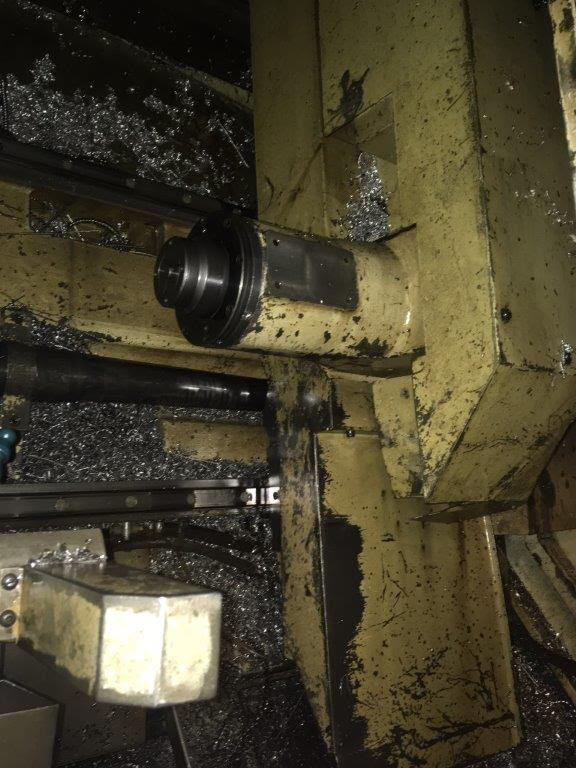

Back spindle: speeds: from 250 rpm up to 5000 rpm

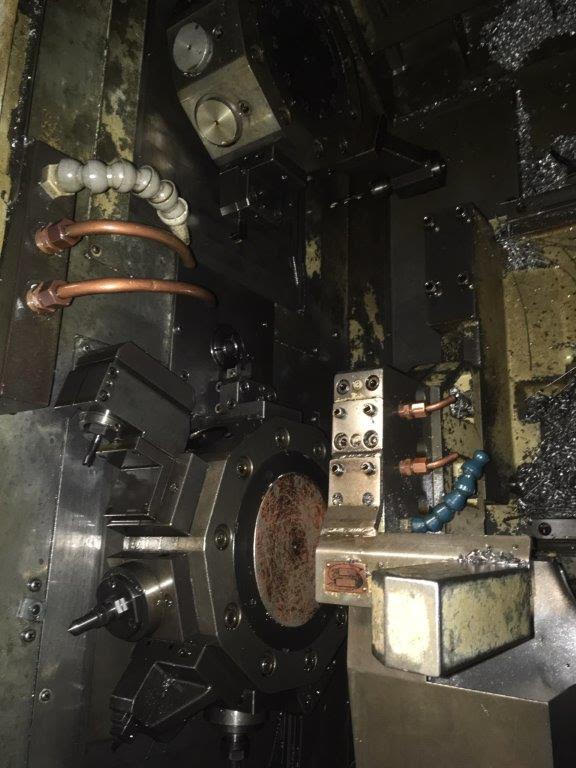

Turret slide: number - 2, number of tools - 2x10, number of driven tools - 2x10 Spindle speeds (turning tools) - 225/4500 rpm

Voltage - 50 Hz 3x 400 Volt

Spindle indexing device

Spindle indexing device every 0.01 °

C axis

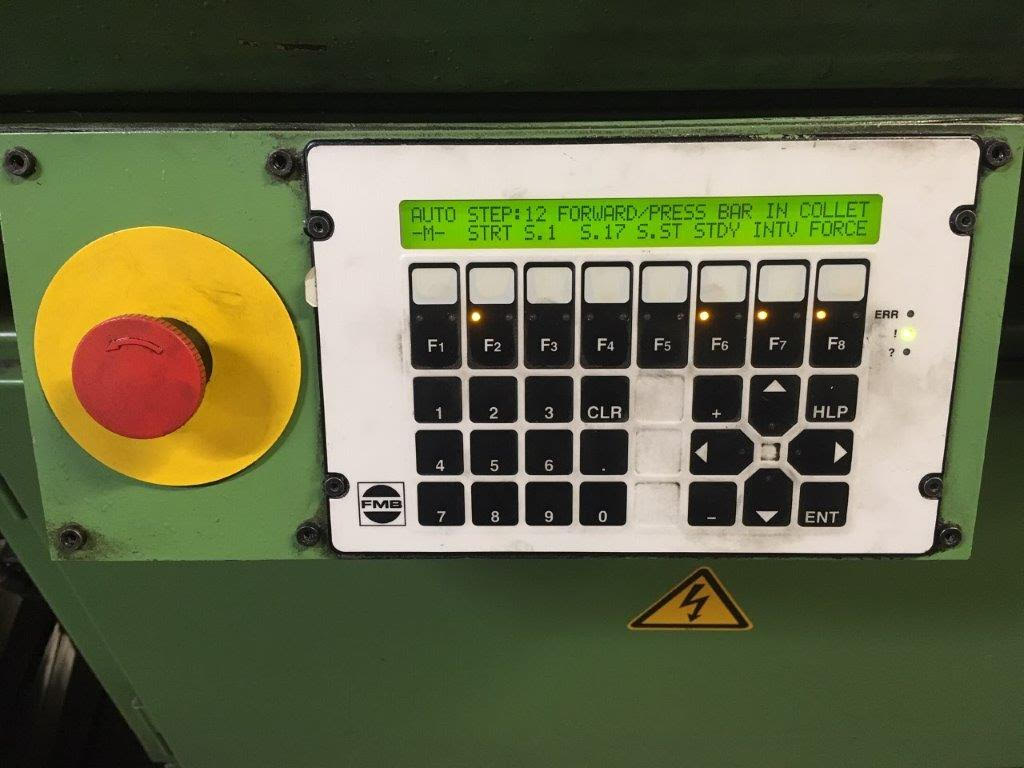

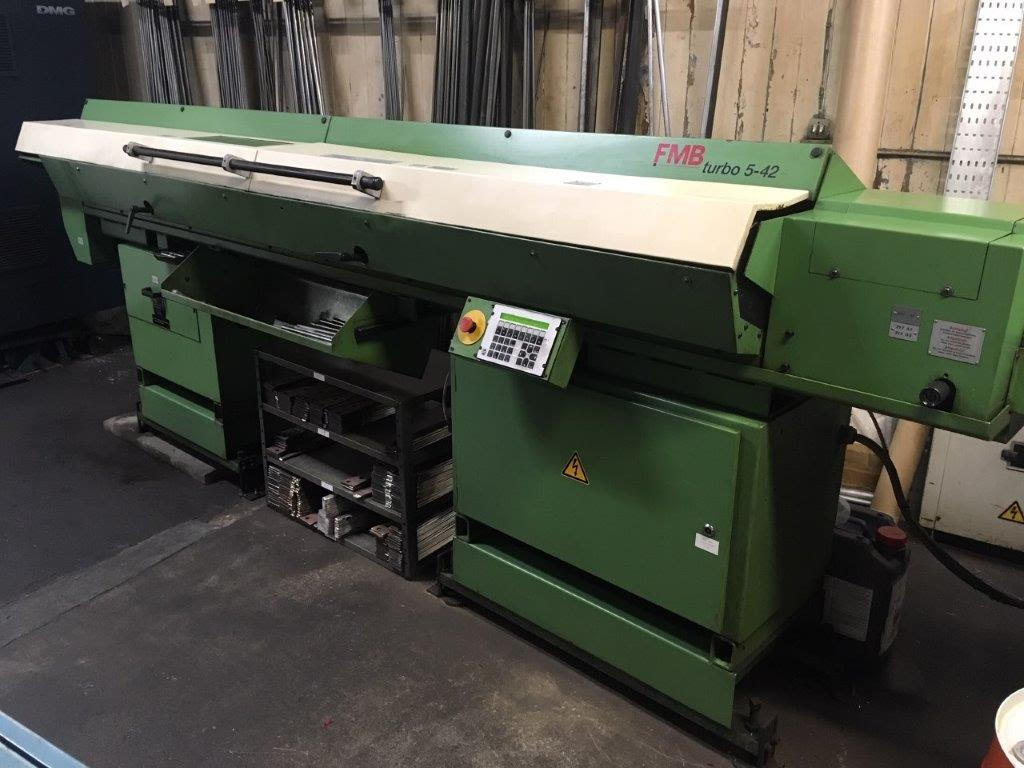

Automatic bar loader (num. bars) - FMB Turbo 3000/1700

Pick-up device: Diamètre de serrage max. - 25 mm, Max. clamping length - 150 mm

Set of toolholders - 5X

Bid information

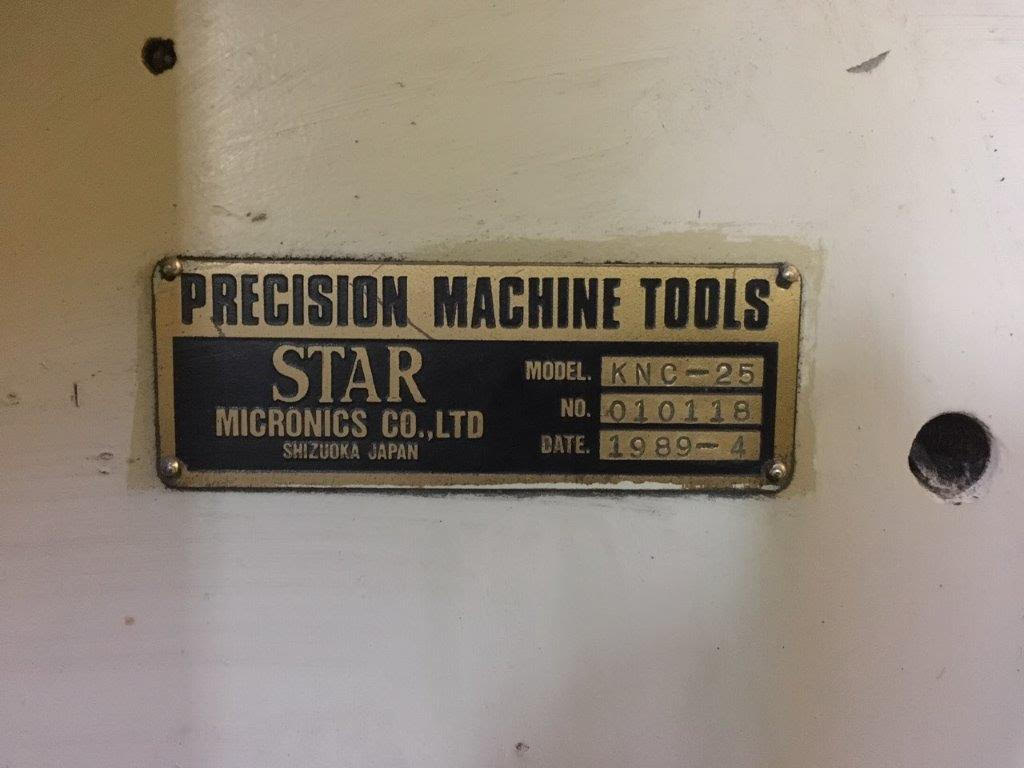

Serial Number: 010118

Location: Derby

Transport information

• Width: 2950 mm
• Depth: 1850 mm
• Height: 1800 mm
• Weight: 4000kg
• Other Transport Details: £100 Loaded to flat bed or curtain sider only.
