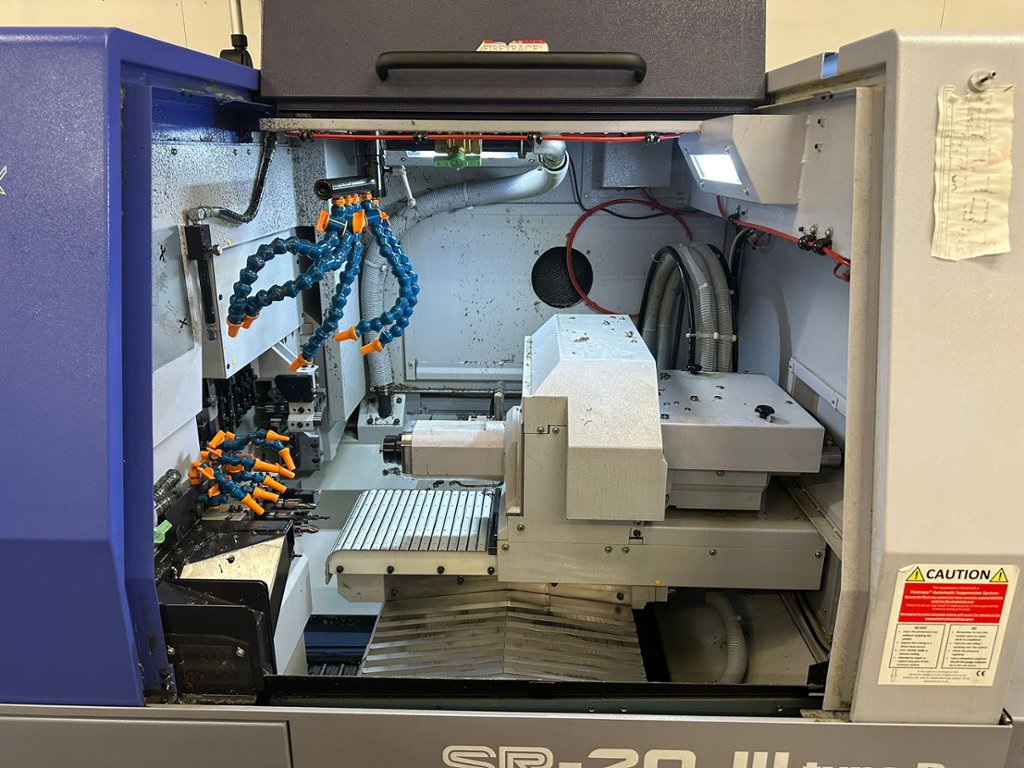

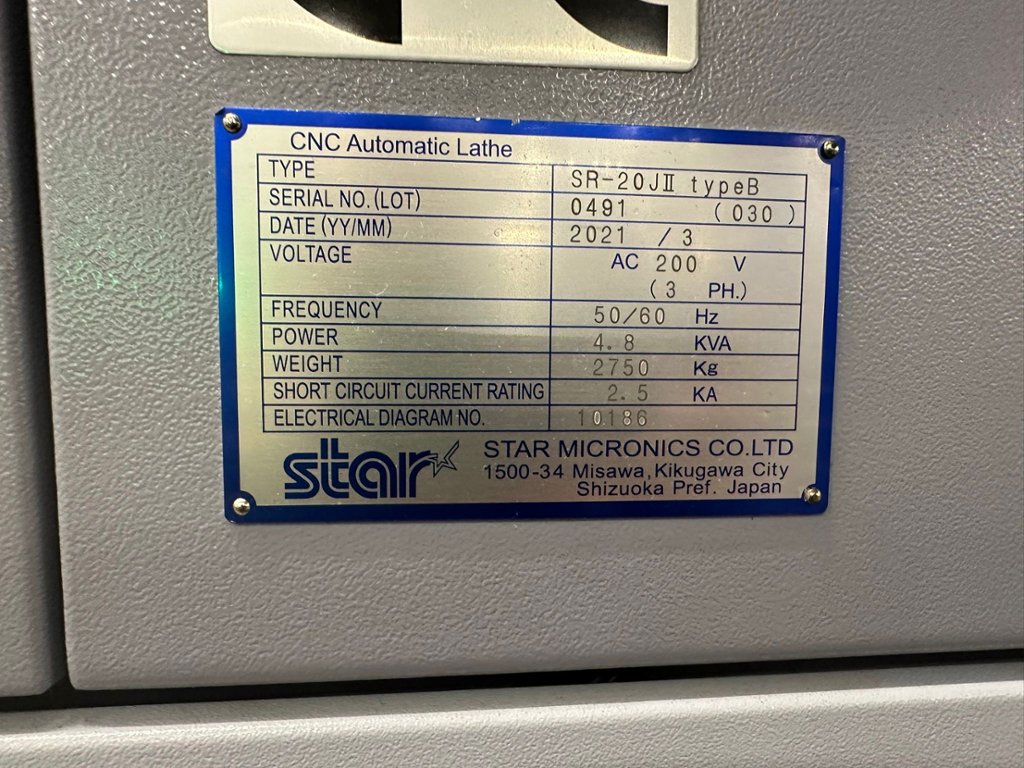

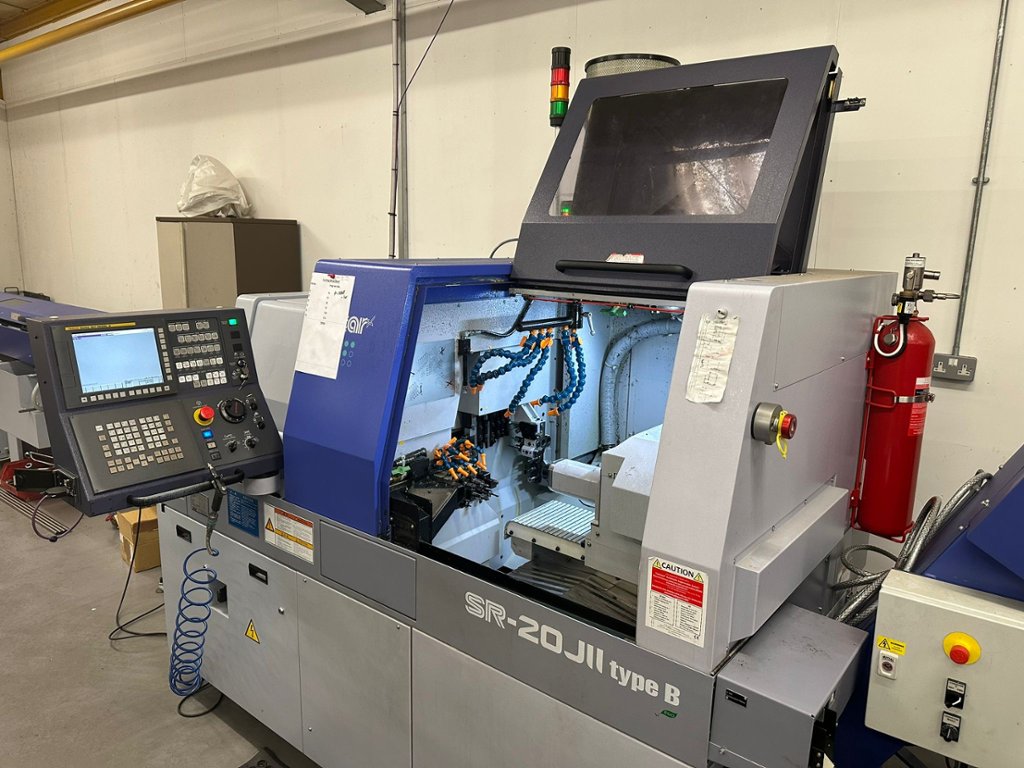

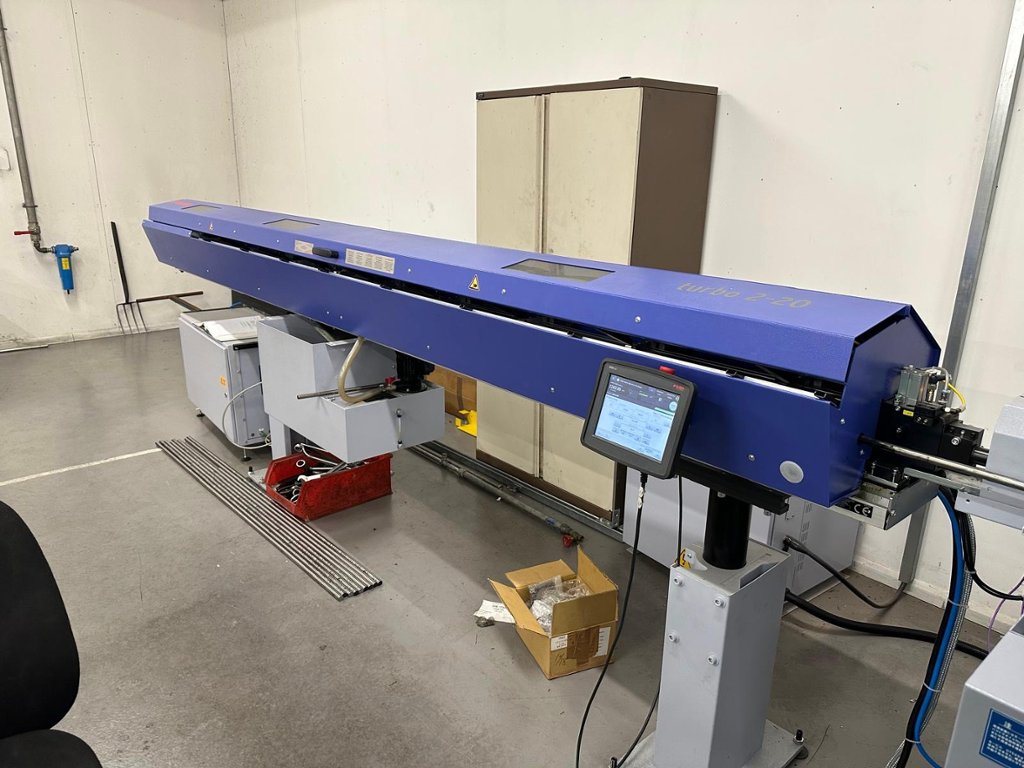

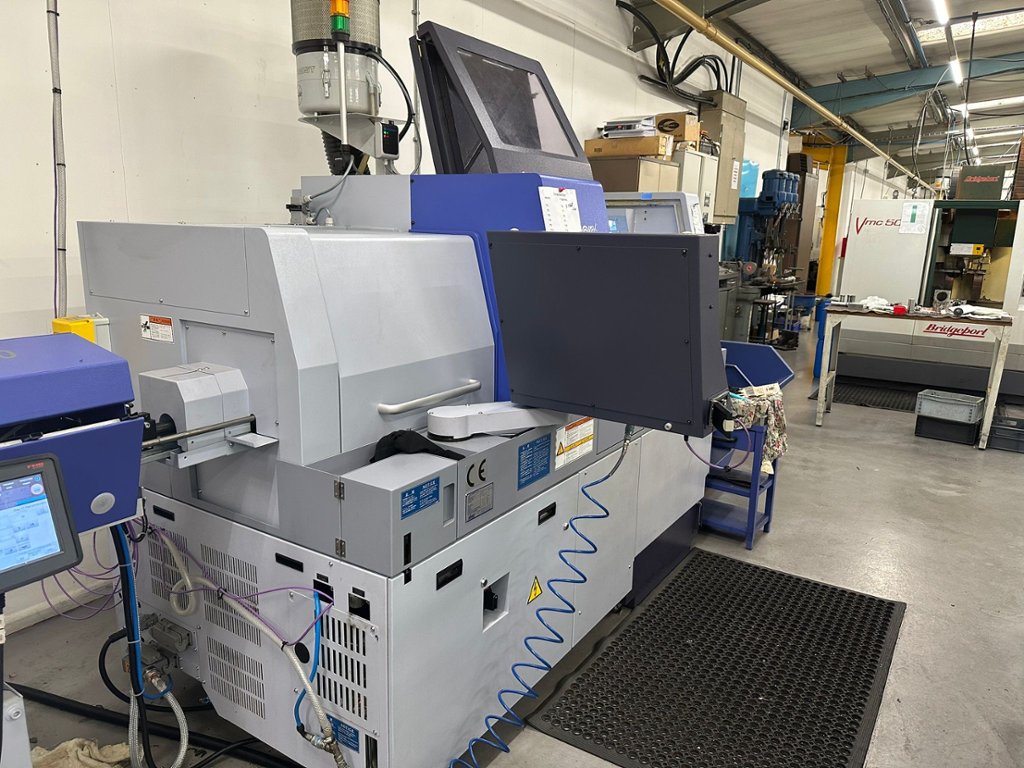

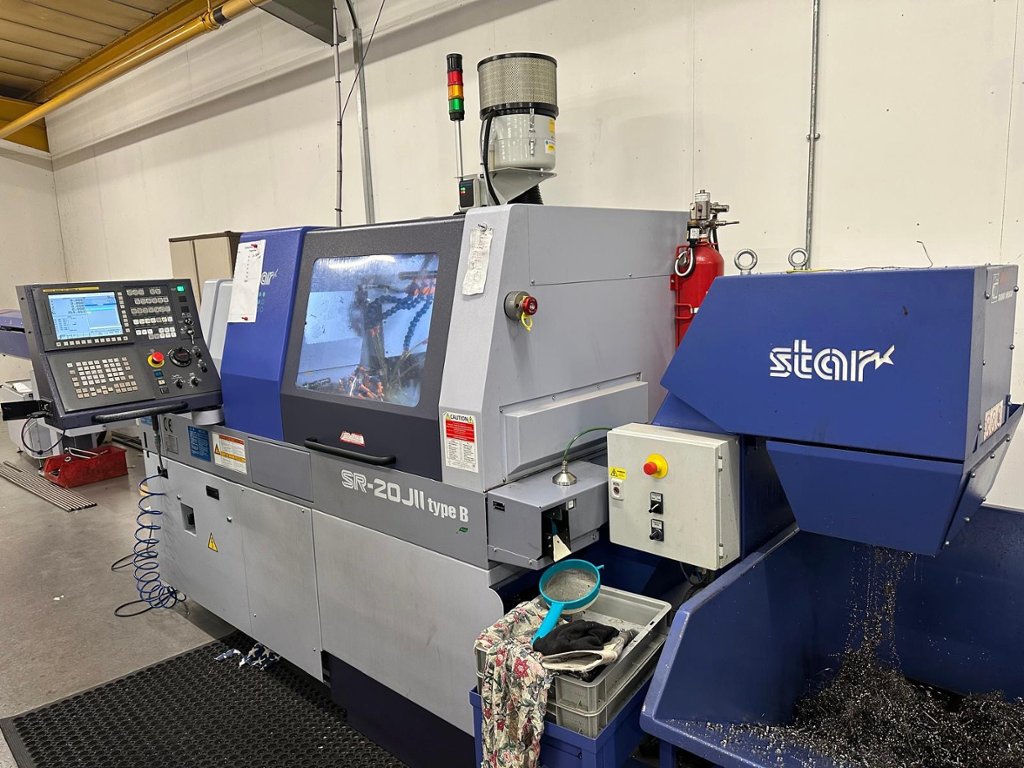

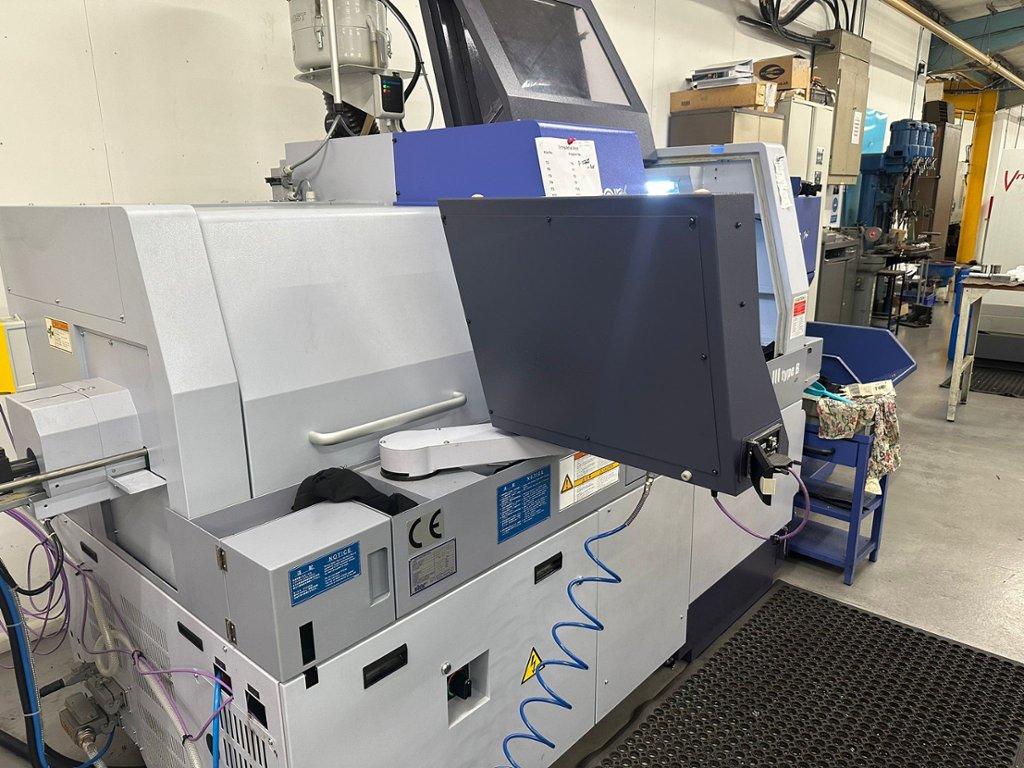

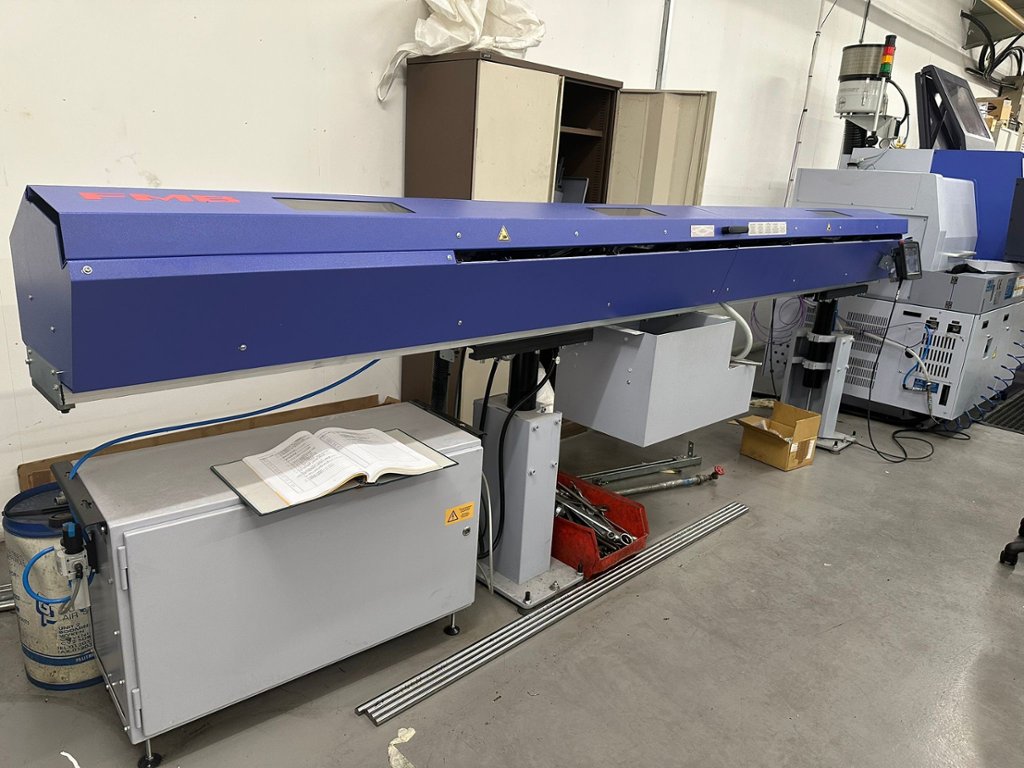

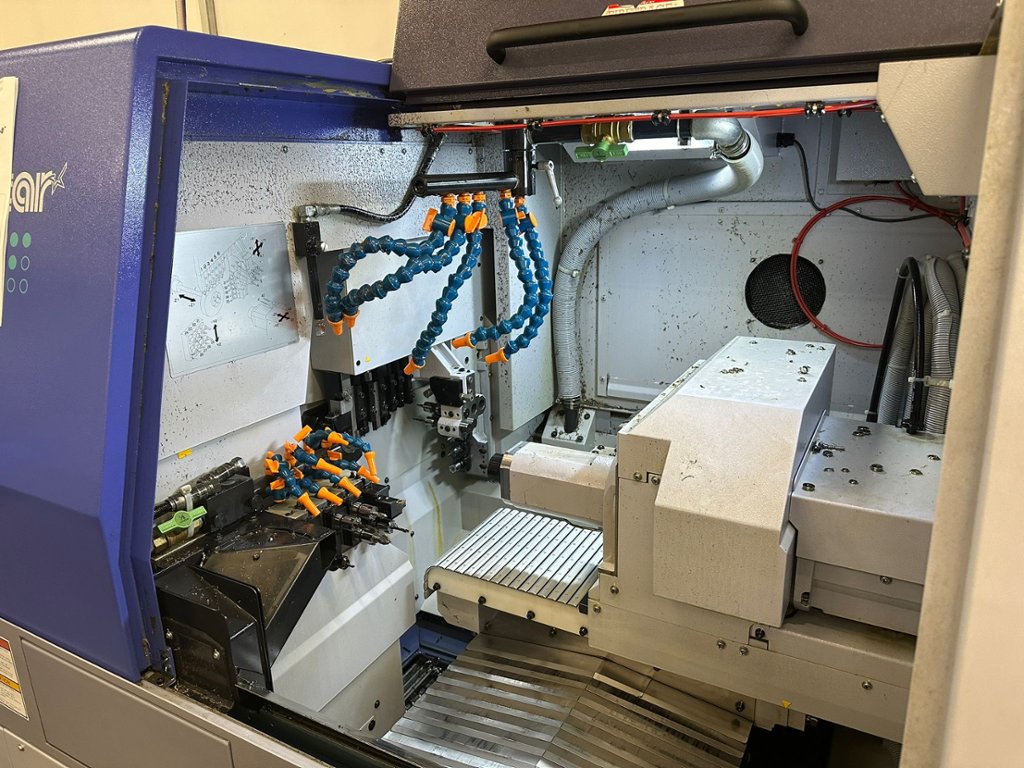

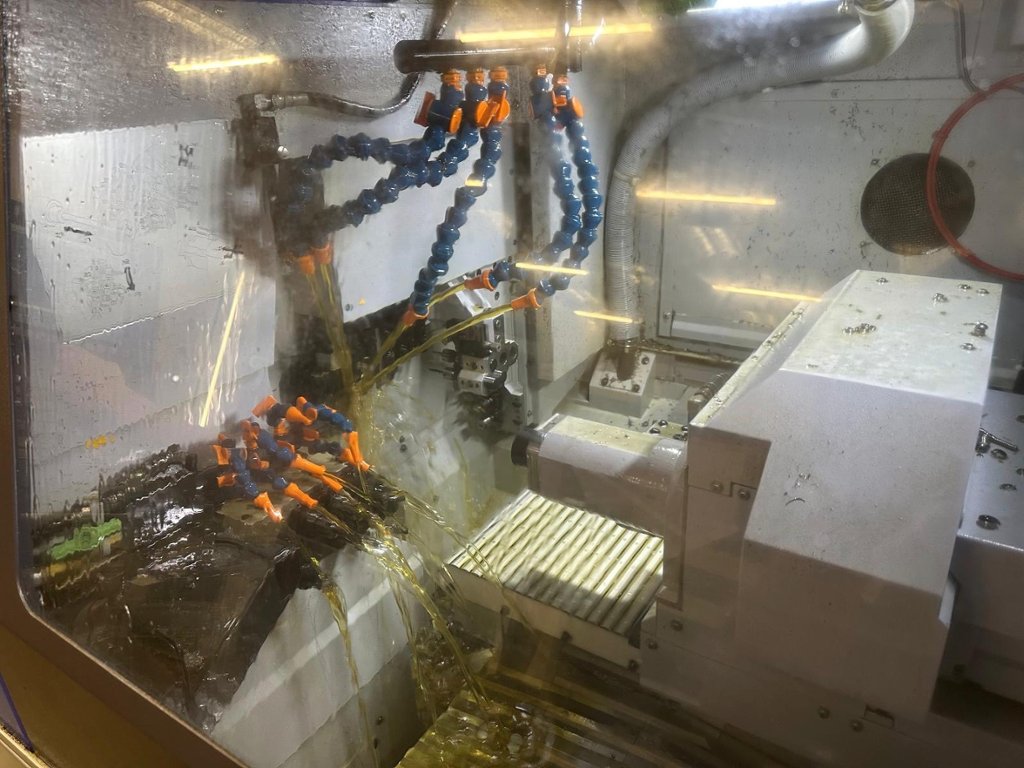

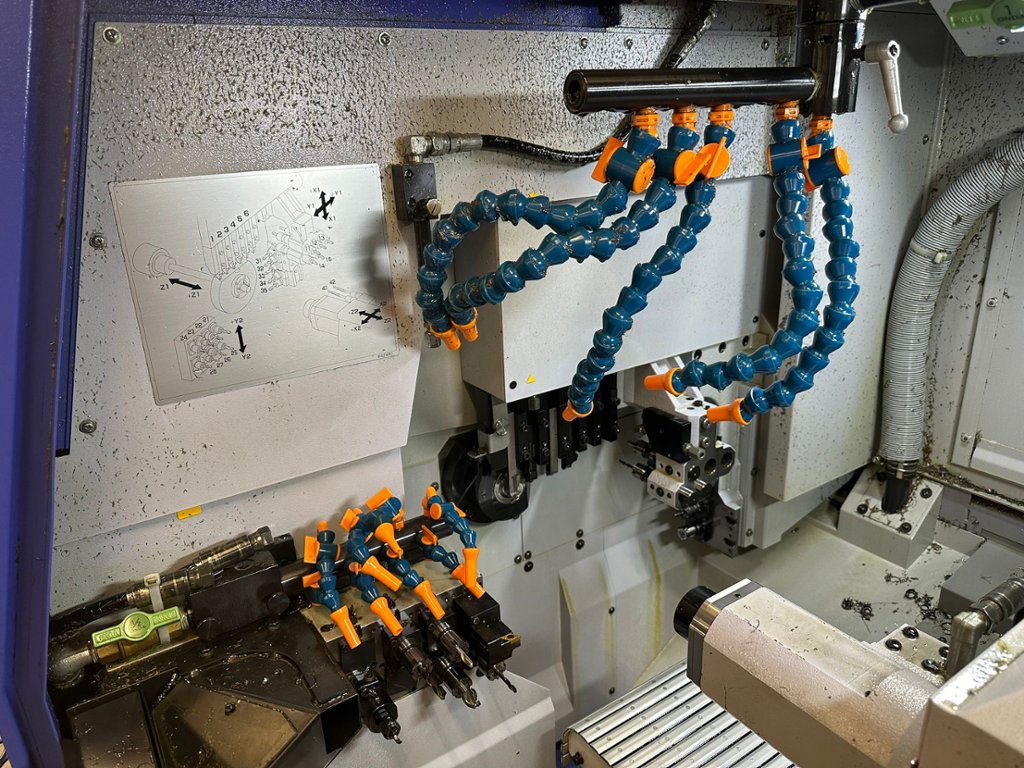

Star SR-20 JII Type B Sliding Head Lathe (2021) & MB TURBO 2-20/3200 Barfeed

Lot 1 - Star SR-20 JII Type B Sliding Head Lathe (2021) & MB TURBO 2-20/3200 Barfeed

Description:

Working Hours : 1407 - still in use

STANDARD BAR CAPACITY (MM): Ø20

OVERSIZE CHUCKING CAPACITY (MM): Ø22.2

MAX CHUCKING CAPACITY N.G.B (MM): Ø22.2

MAX JBS CHUCKING CAPACITY (MM): N/A

MAX Z-AXIS STROKE STD GUIDE BUSH (MM): 205

MAX Z-AXIS STROKE JBS GUIDE BUSH (MM): N/A

MAX Z-AXIS STROKE N.G.B (MM): 50

MAX PART LENGTH 'A' - FRONT EJECT (MM): 80

MAX PROJECTION LENGTH 'B' (MM): 30

MAX INSERT LENGTH 'C' - FRONT EJECT (MM): 75

MIN PICK-UP POSITION 'D' (MM): 14

STANDARD LH PART-OFF WIDTH 'E' (MM): 12

MAX MAIN SPINDLE SPEED (RPM): 10000

MAX MAIN SPINDLE POWER TOOL (RPM): 8000

MAX SUB SPINDLE SPEED (RPM): 10000

MAX SUB SPINDLE POWER TOOL (RPM): 8000

N.G.B = NON-GUIDE BUSH

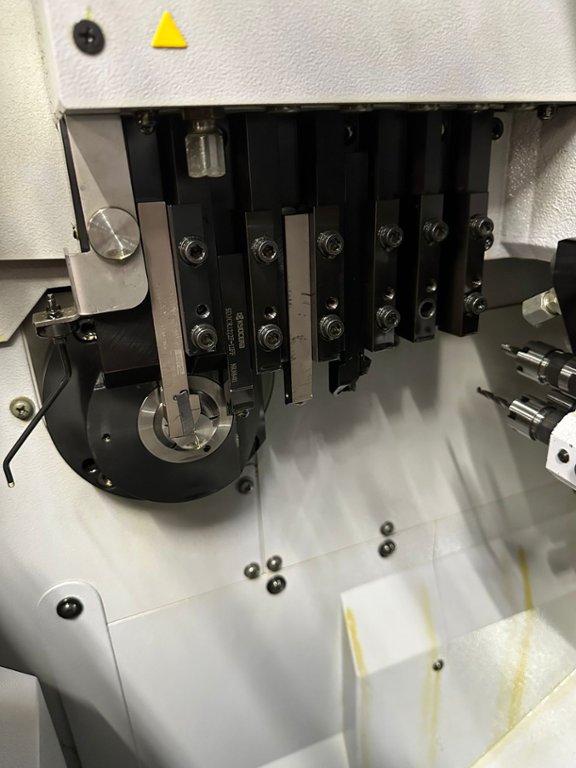

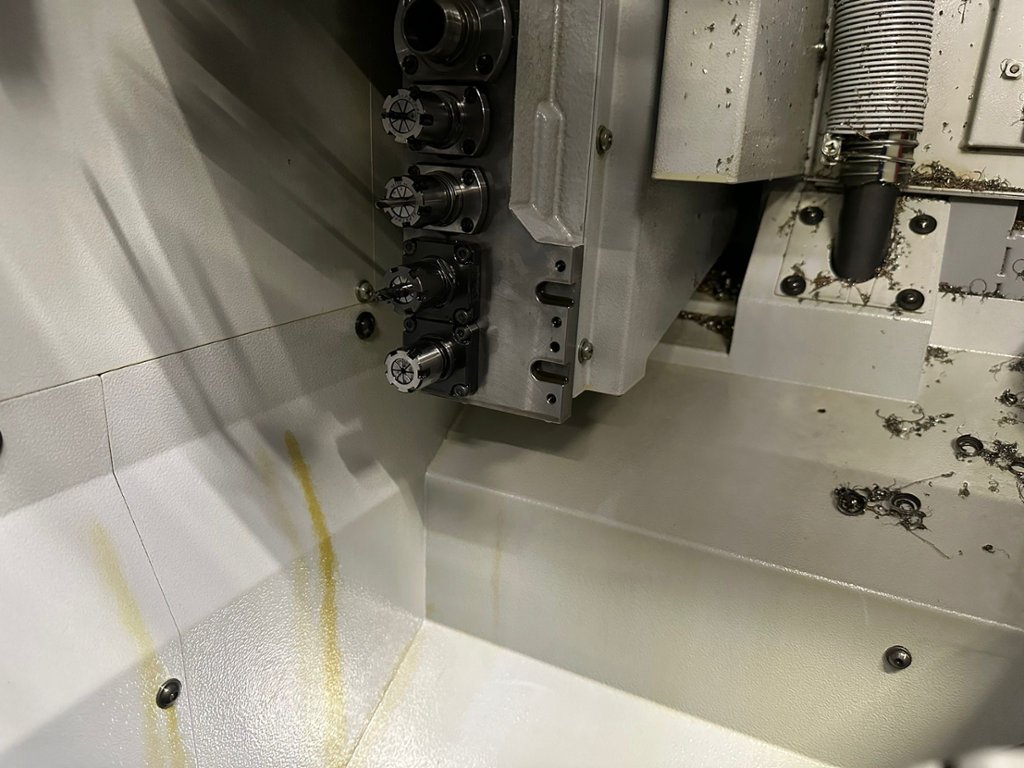

PLATEN (TURRET) TOOL SHANK SIZE(S): 12 x 12 MM 22 MM
DRILL SLEEVE DIA SIZE(S):ER-16

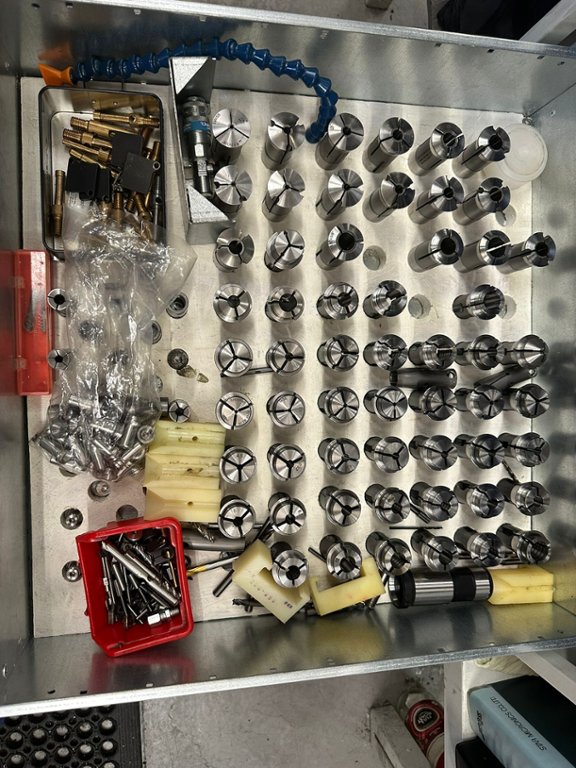

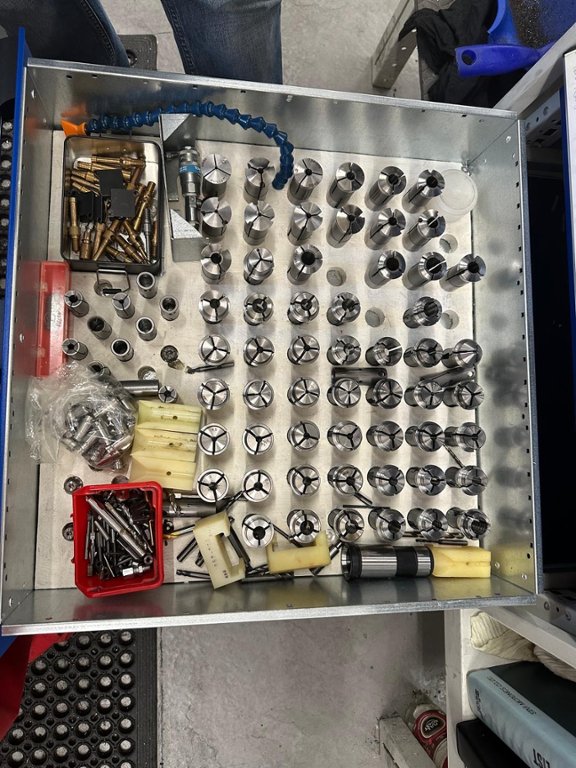

DRILL SLEEVE ER COLLET SIZE(S):ER-16 & ER-20
CROSS WORKING (PDT*) ER COLLET SIZE(S): BACK WORKING STATIC ER COLLET SIZE(S): ER-16
BACK WORKING (PDT*) ER COLLET SIZE(S): ER-16

*PDT = POWER DRIVEN TOOL

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
