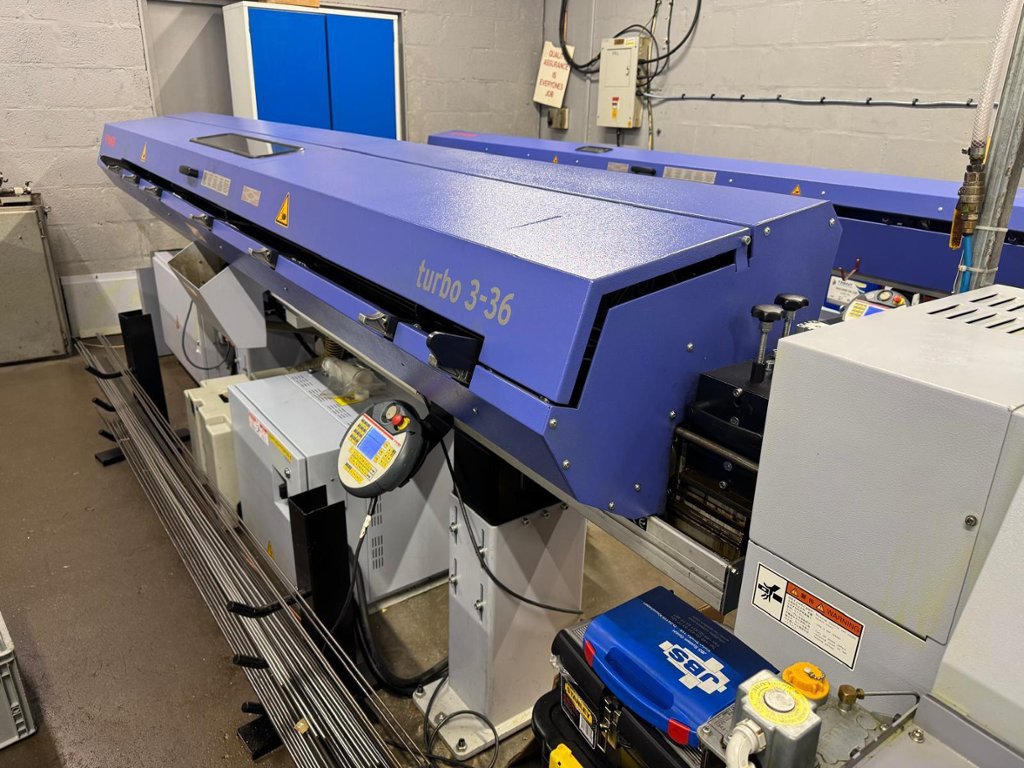

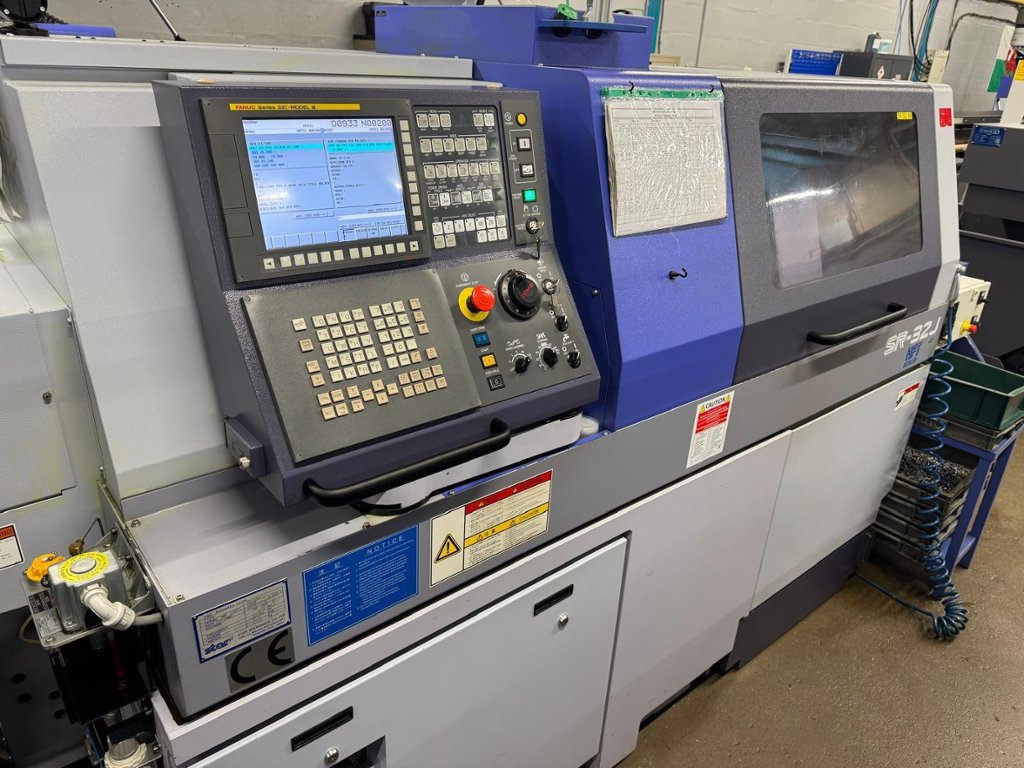

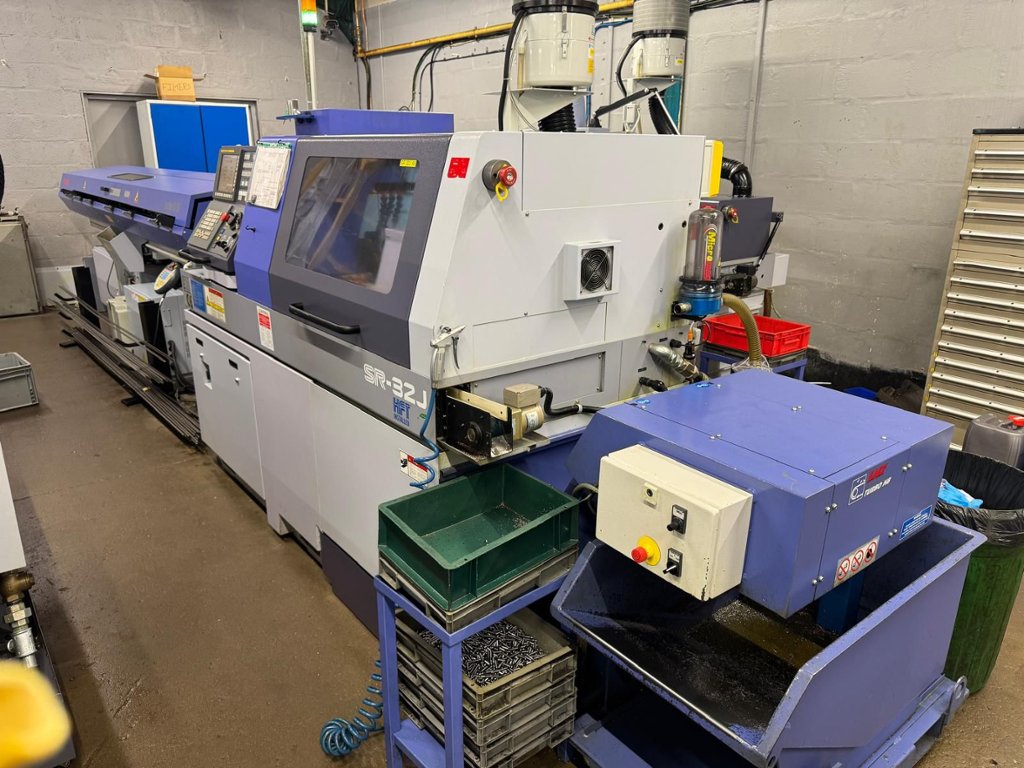

Star SR-32J Swiss Type CNC Lathe (2018) With Barfeed

Lot 1 - Star SR-32J Swiss Type CNC Lathe (2018) With Barfeed

Description:

Comes with the standard guide bush and an adaptable JBS bush system.

Max. machining diameter - φ32mm(1-1/4in) OP:φ34mm(1-11/32in)

Max. headstock stroke

Standard - 320mm(12-19/32in), R.M.G.B. type - 286.5mm(11-9/32in)

Number of tools - 6 tools, Tool shank - 16mm

5-Spindle sleeve holder

Number of tools - Front 5 tools & Rear 5 tools, Max. drilling capability - φ13mm(33/64in), Max. tapping capability - M12×P1.75

Power driven attachment

Number of tools - Cross milling 3 tools(ER20)＋Cartridge type 2 positions, Cross milling 4 tools(ER16)＋Cartridge type 2 positions, Cross milling 6 tools(ER16)

Max. drilling capability - φ10mm(25/64in), Max. tapping capability - M8×P1.25

Spindle speed - Cross milling：Max.6,000min-1, Cartridge-type tool：Max.8,000min-1, Drive motor - 2.2kW(continuous) / 3.0kW(5min./30%ED)

Rapid feed rate - 35m/min ( X1, X2,Y1, Z1, Z2 ), 24m/min ( Y2 ) : type B only, Main spindle indexing angle - C-axis control, Main spindle speed - Max.8,000min-1, Main spindle motor - 7.5kW(continuous) / 11.0kW(10min./25%ED), Coolant tank capacity - 275ℓ, Power consumption - 8.1kVA

A-weighted sound pressure : note-1 - Max.77dB

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
