Lot 4 - Takisawa TC-1 CNC Lathe
Description:
SOLD

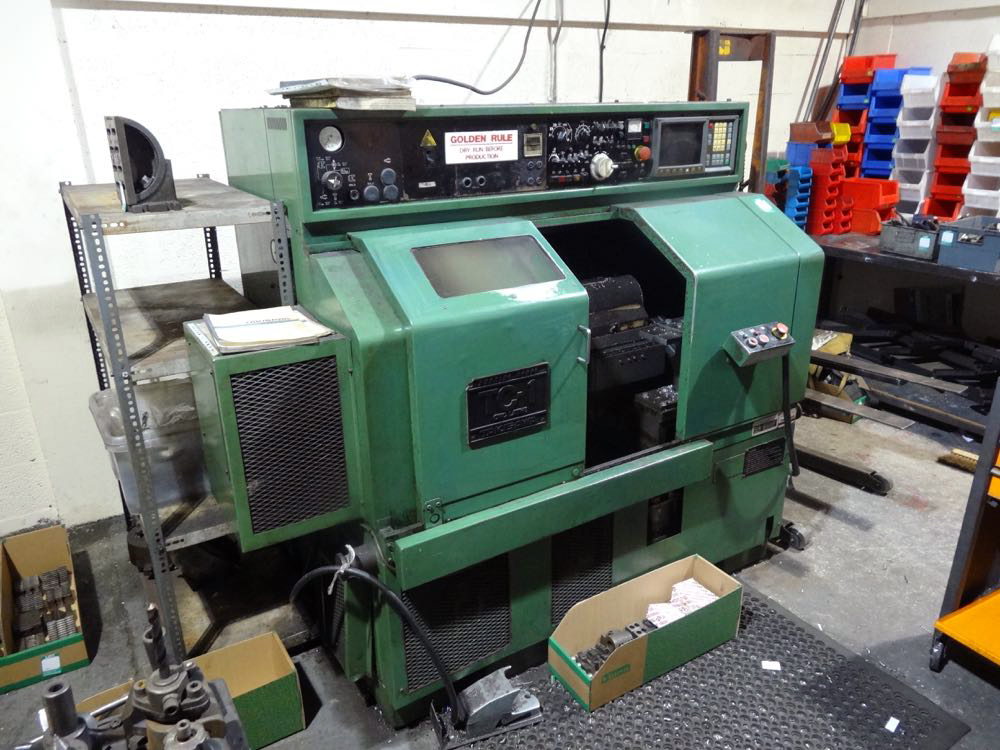

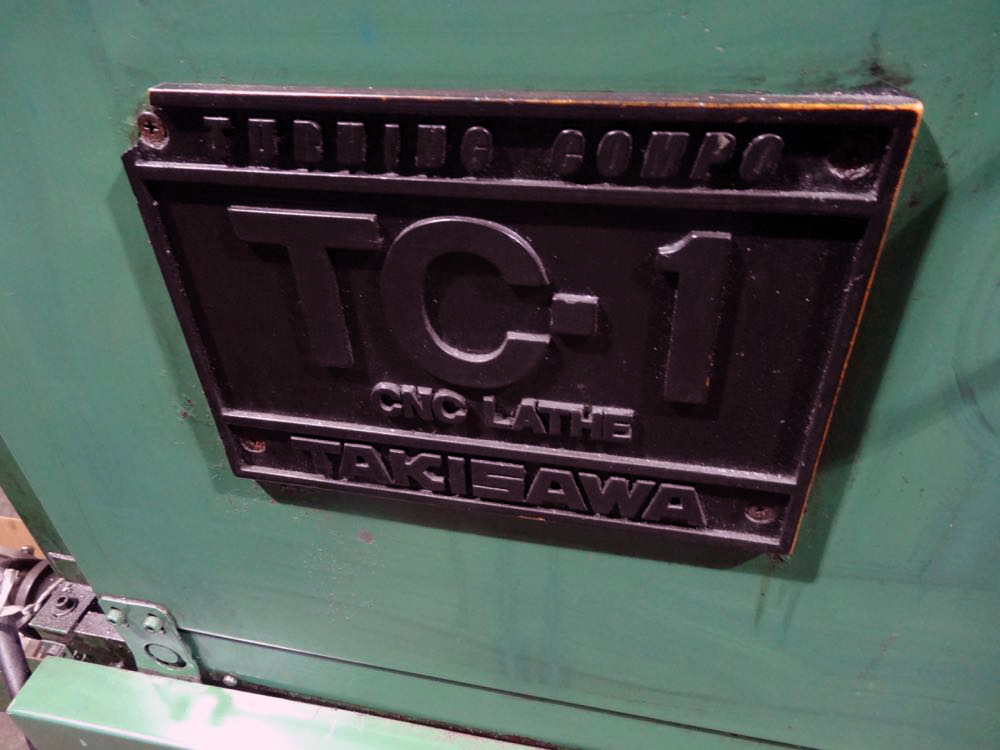

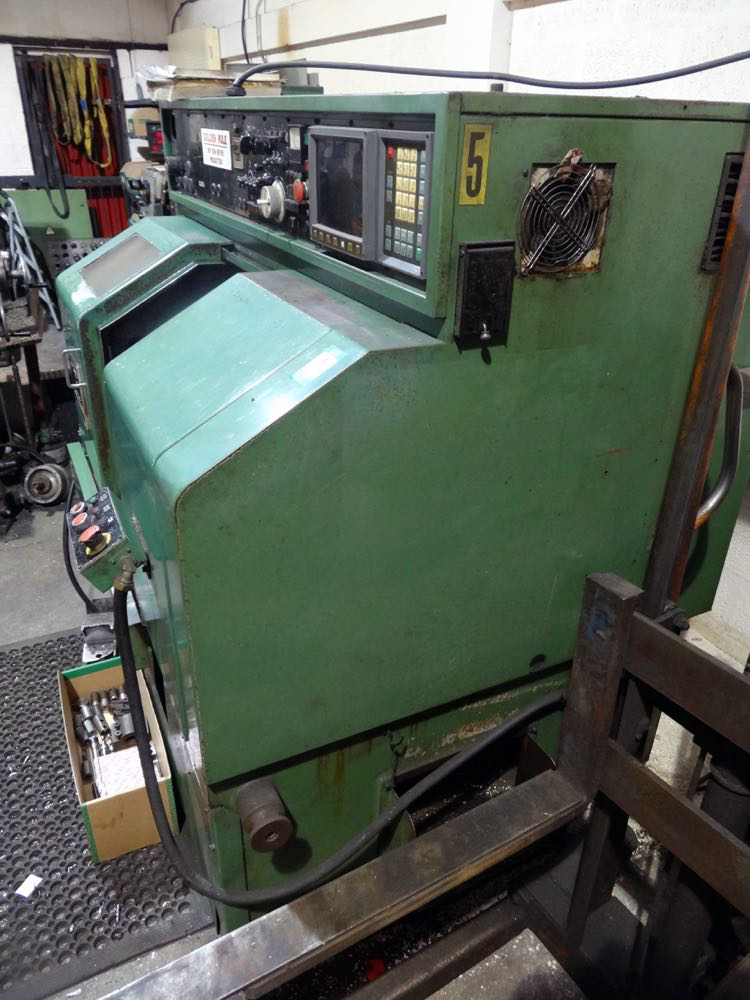

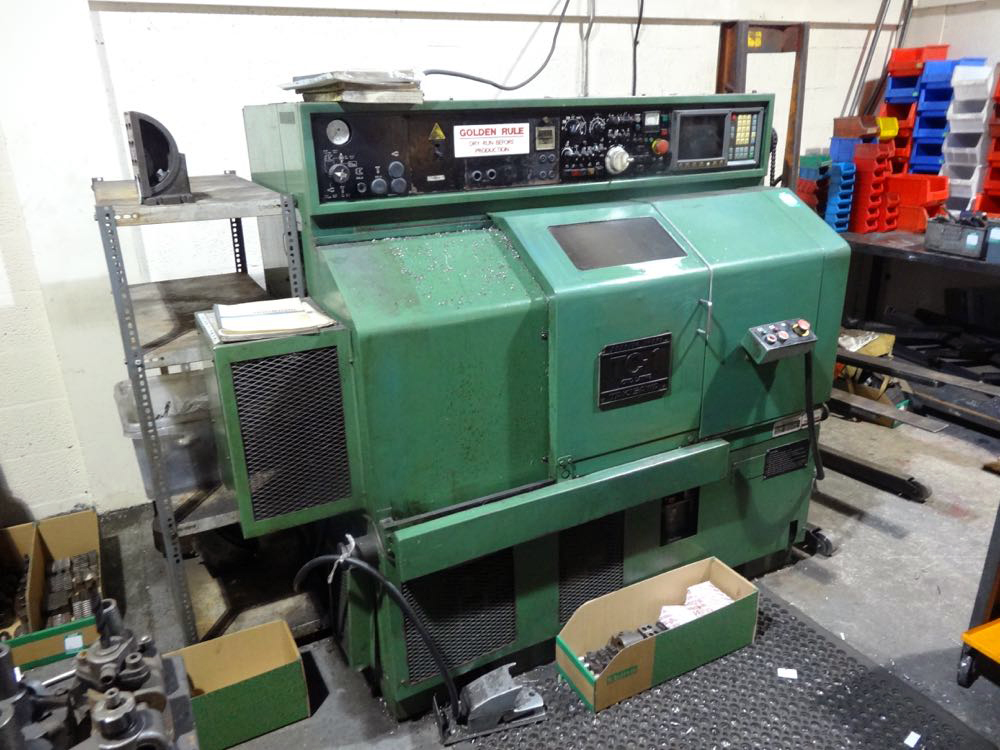

Takisawa TC-1 CNC Lathe
S/n: THZU390
LxWxH: 1.9m x 1.3m x 1.8m
Weight: 3Ton

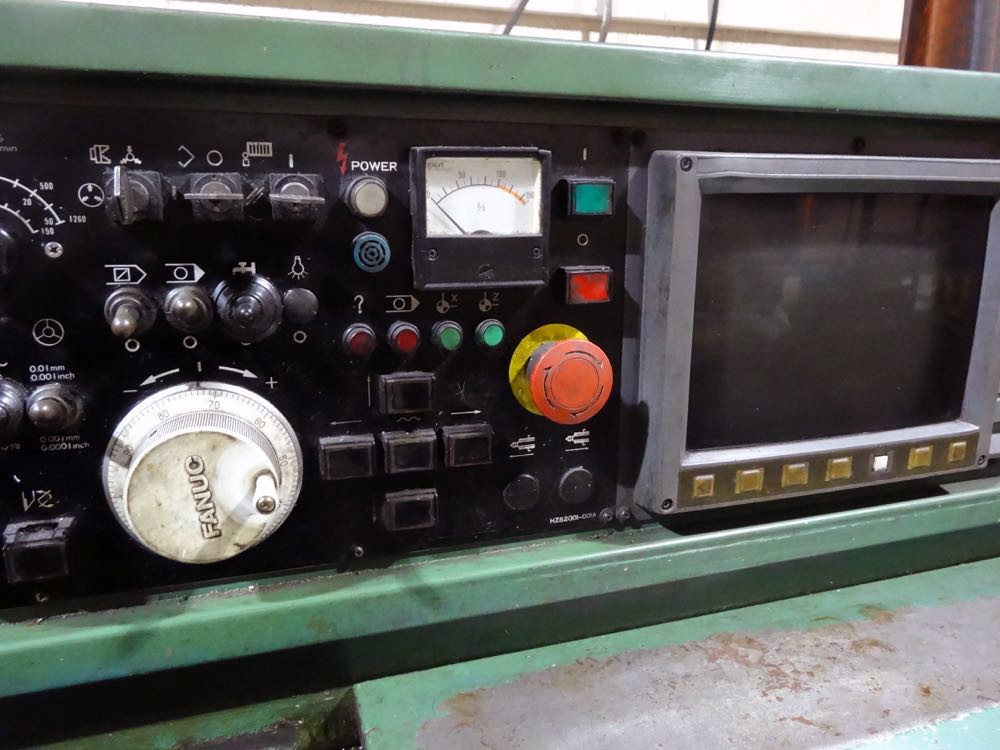

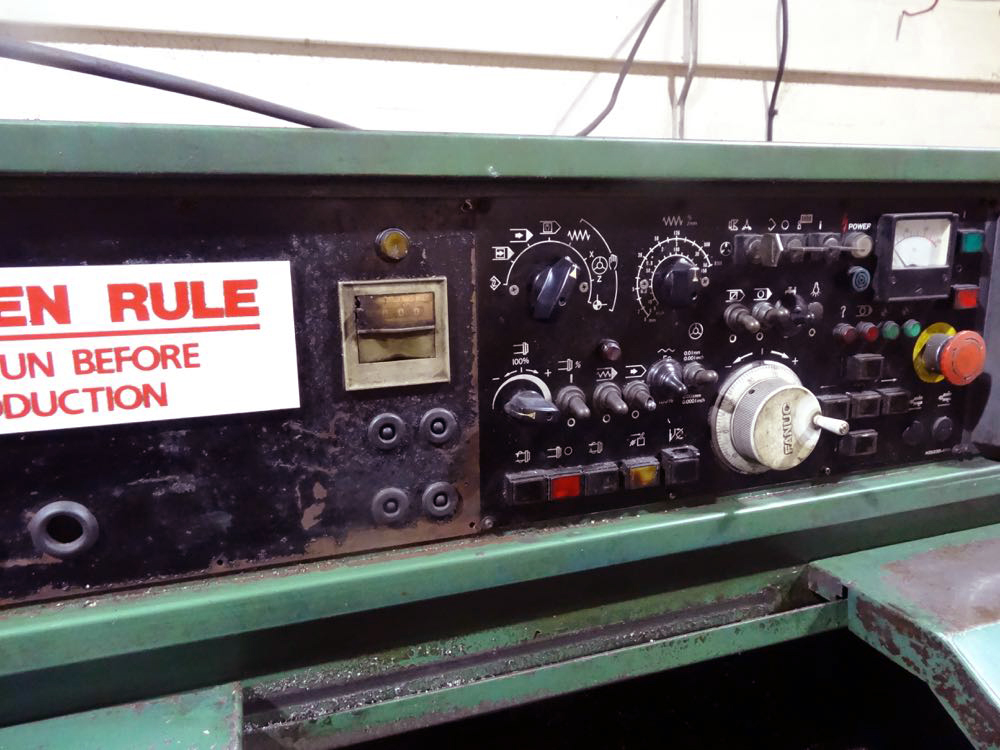

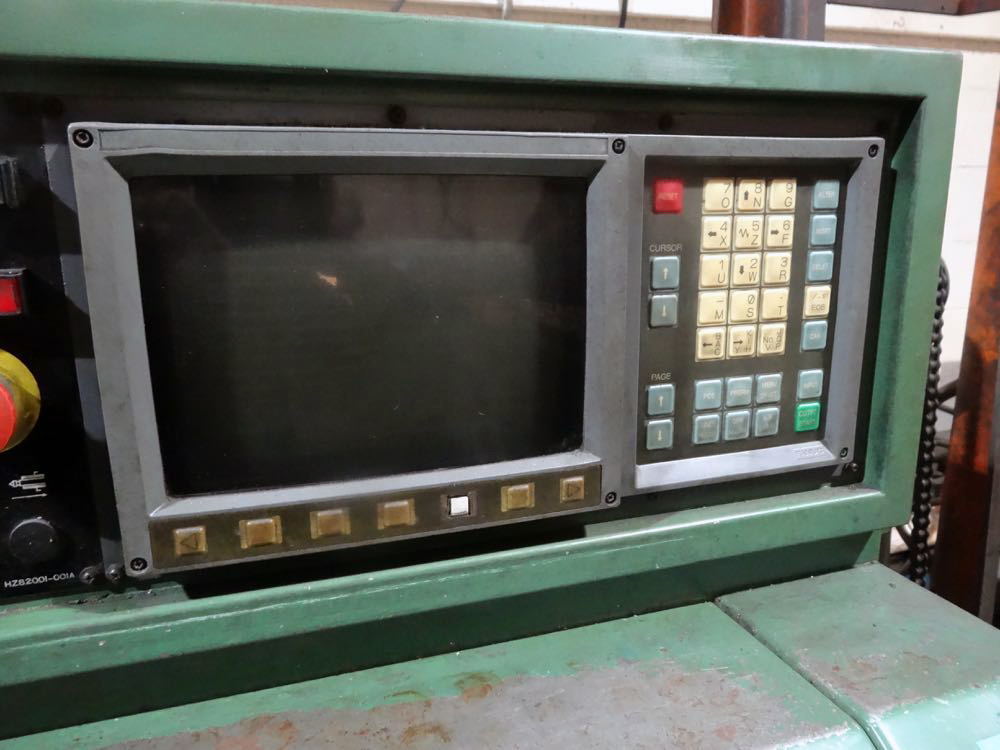

Control system: Fanuc OTC
Number of axis: 2

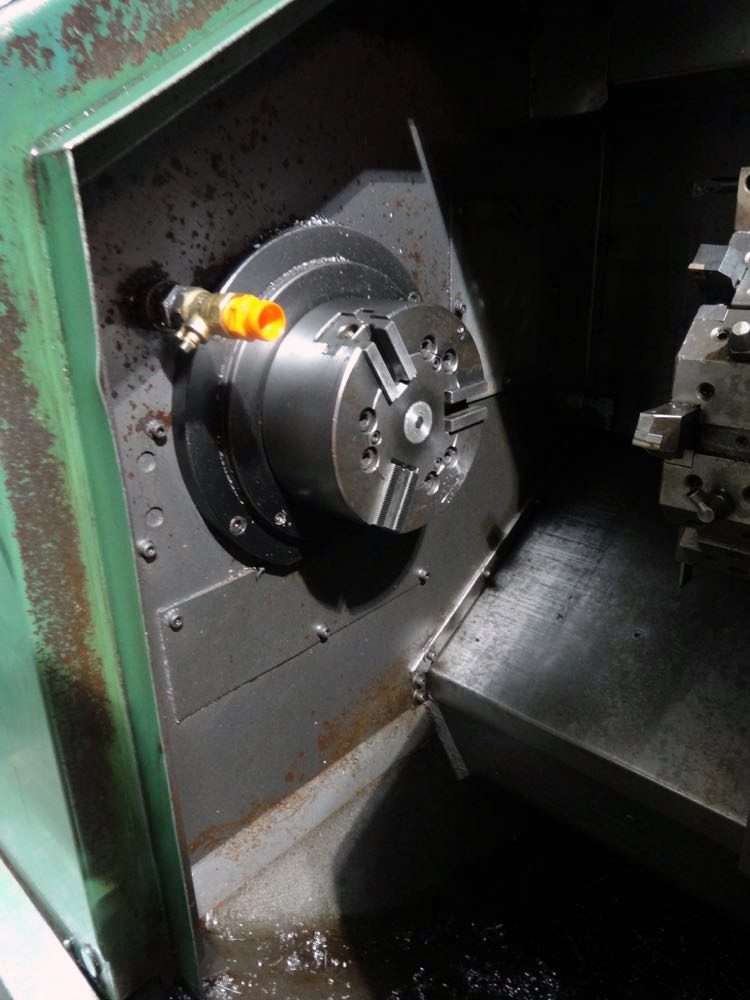

Chuck size: 160mm
X axis travel: 105 mm
Z axis travel: 315 mm
Spindle speed: 45 - 4500 rpm
Max. swing 400mm
Swing over saddle: 350mm
Distance between centres: 450mm

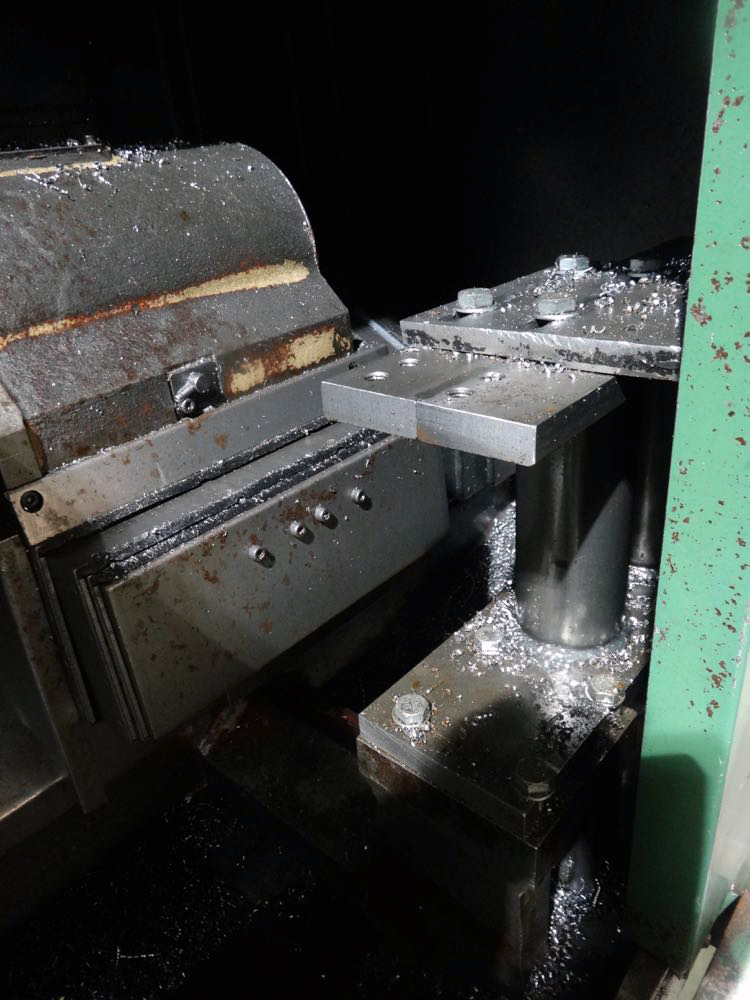

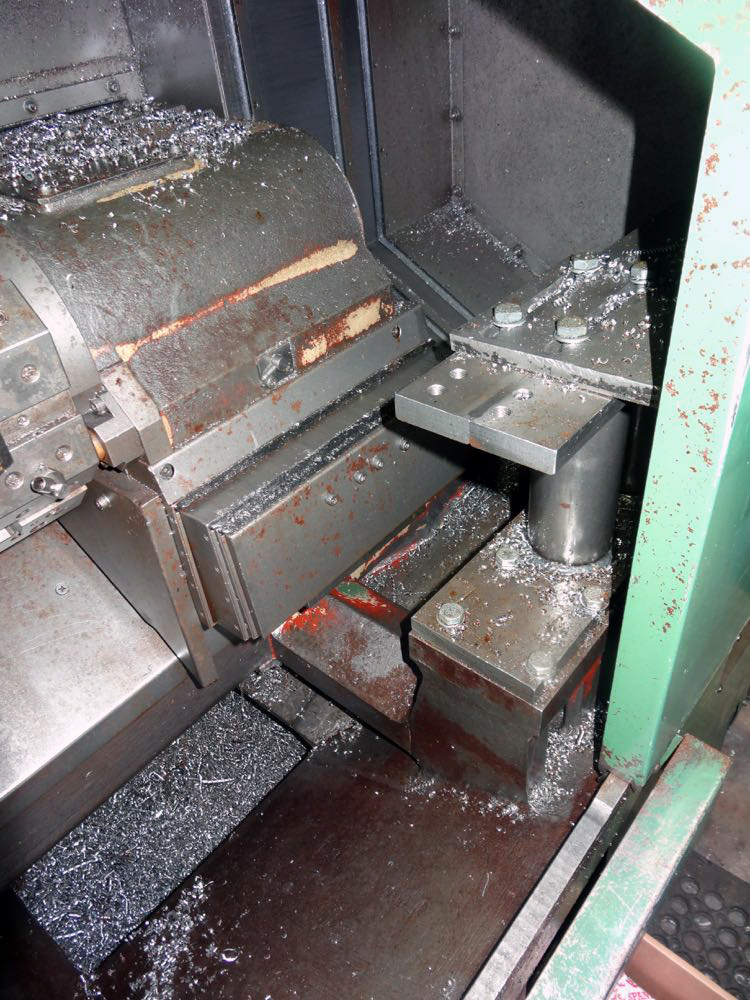

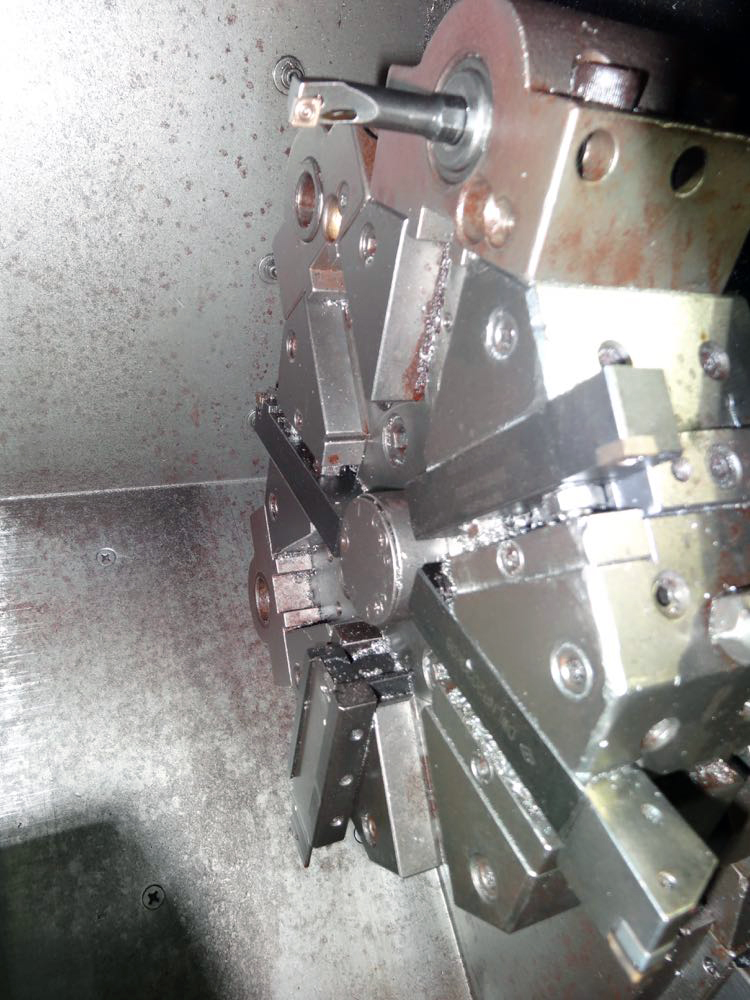

Tool storage capacity: 8 pc octagaonal drum
Turret indexing time: 0.5sec
ATC: Yes
Tailstock spindle dia: 50mm
Travel of tailstock spindle: 100mm
Taper hole in tailstock spindle: MT.3
Spindle drive motor: 5.5 kW
Net weight: 3 ton
Dimension (LxWxH): 1.9x1.3x1.8 m
Location: Leicester, Can be loaded for £100
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
