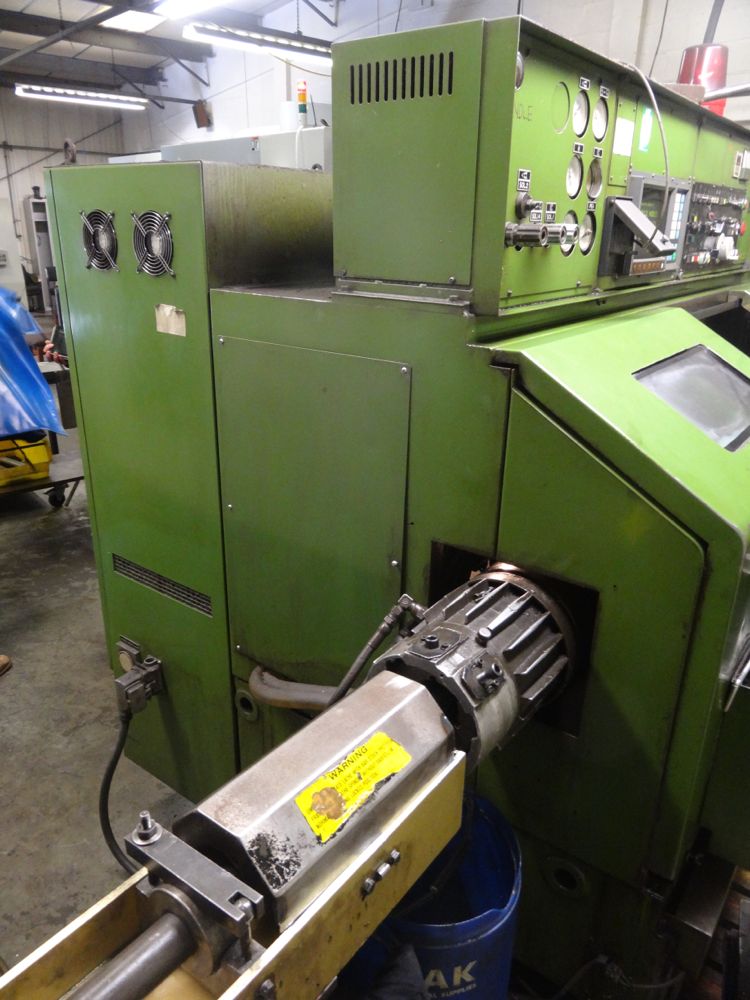

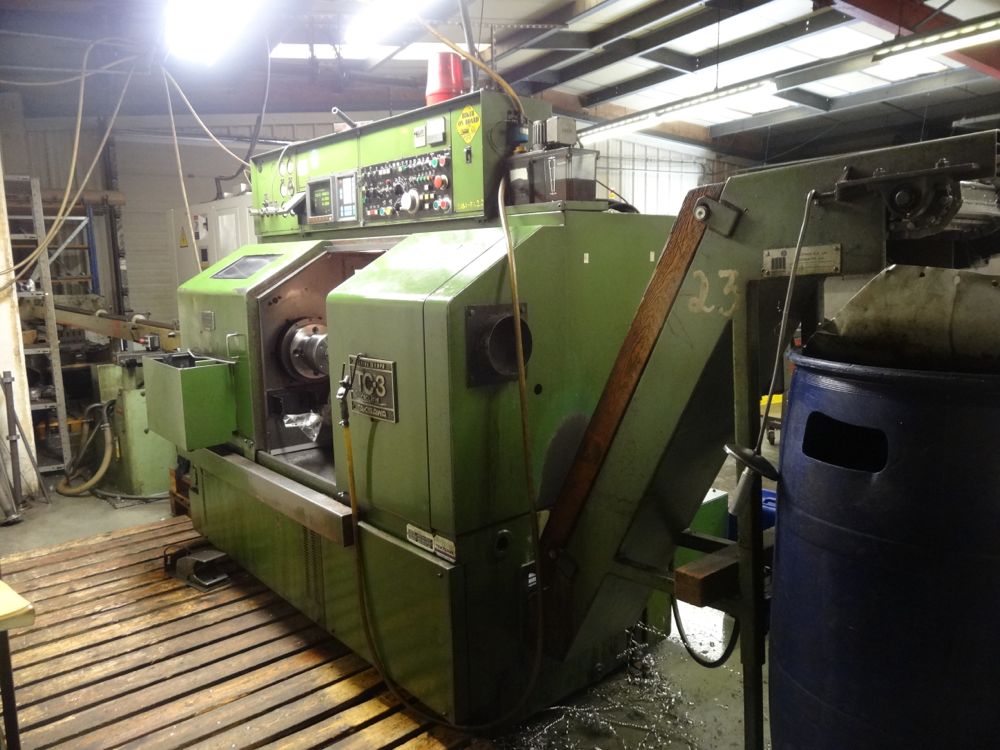

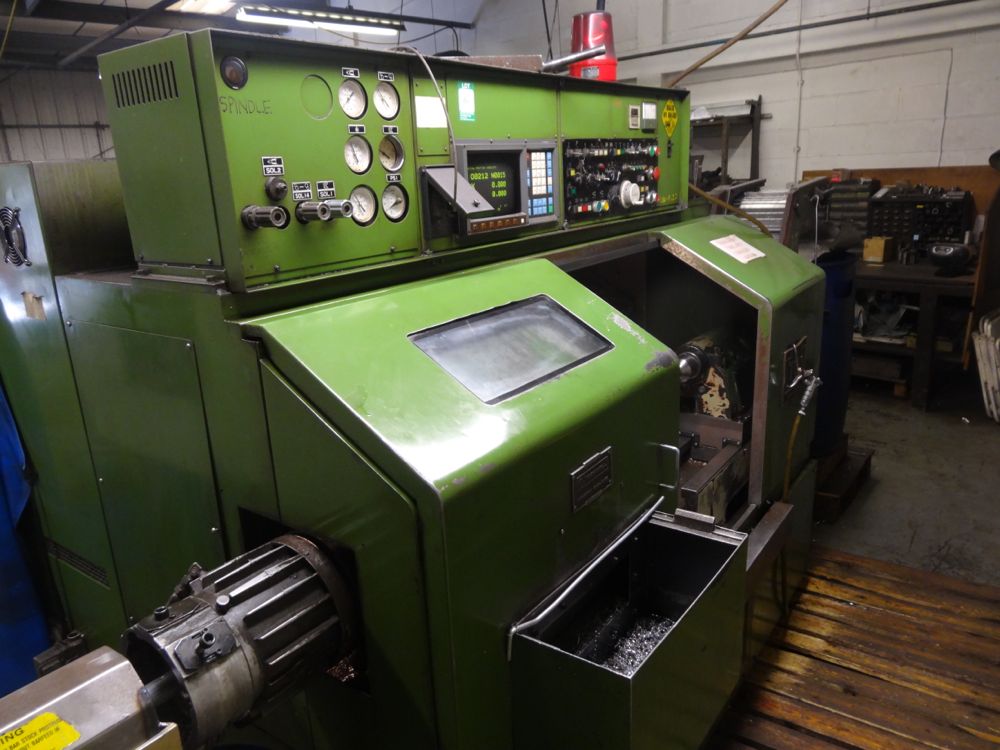

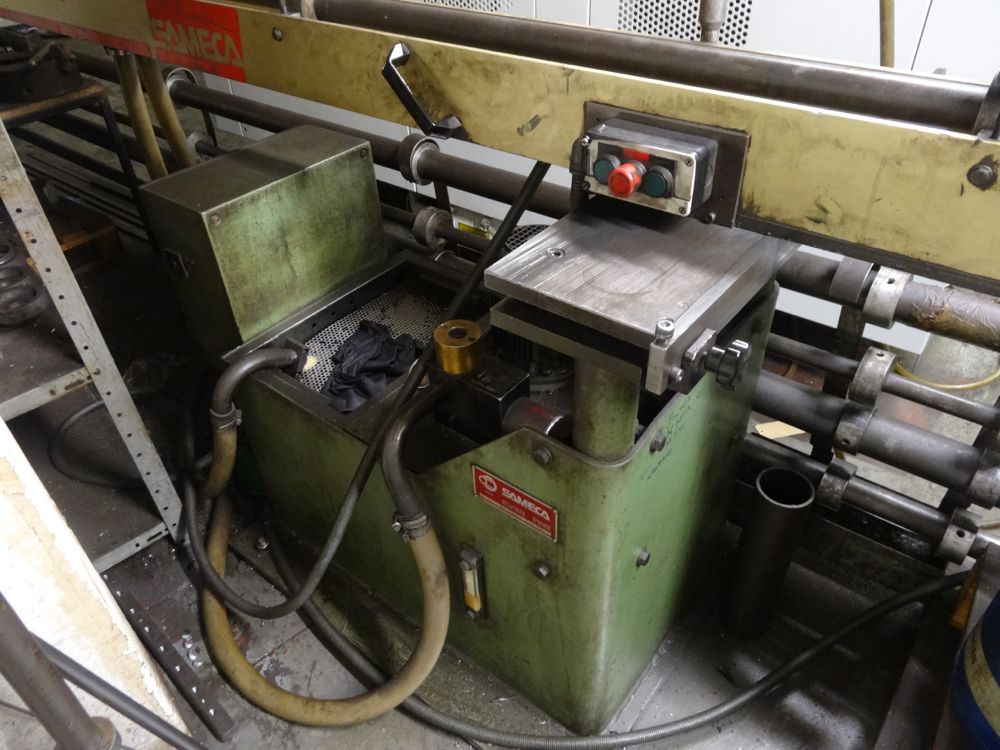

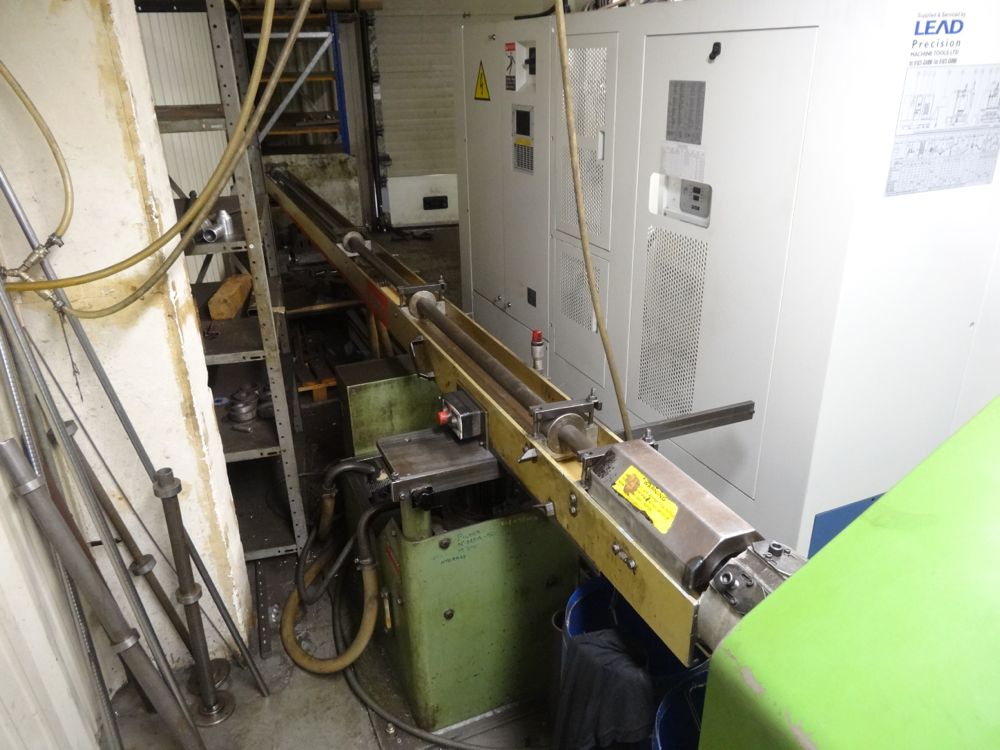

Lot 6 - Takisawa TC-3 Turning Centre With Barfeed
Description:

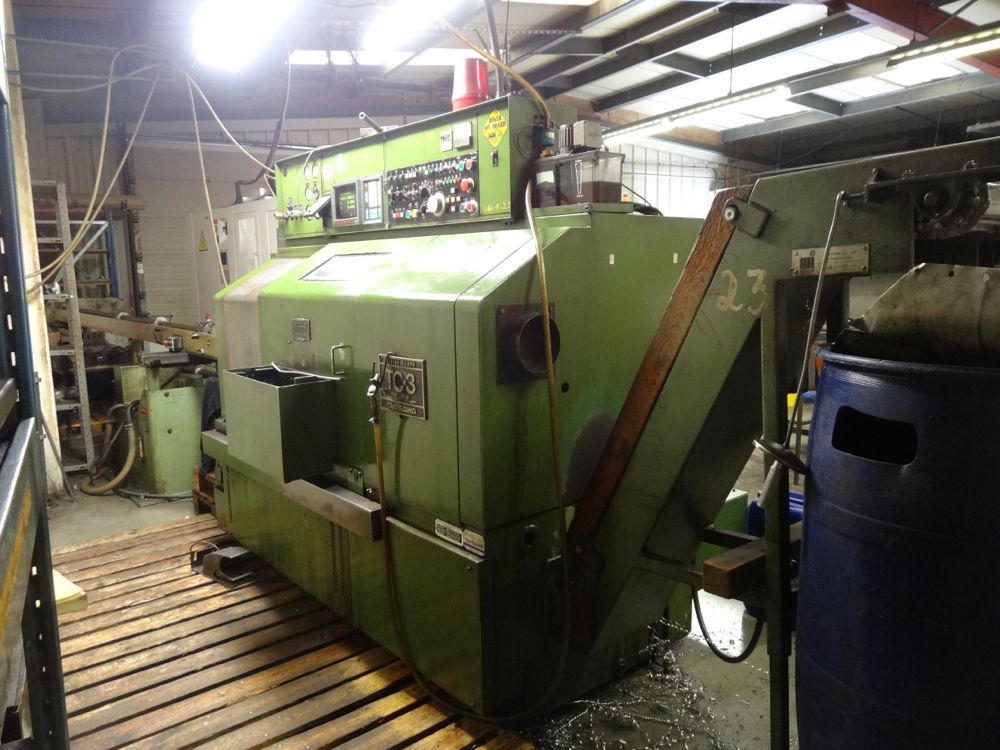

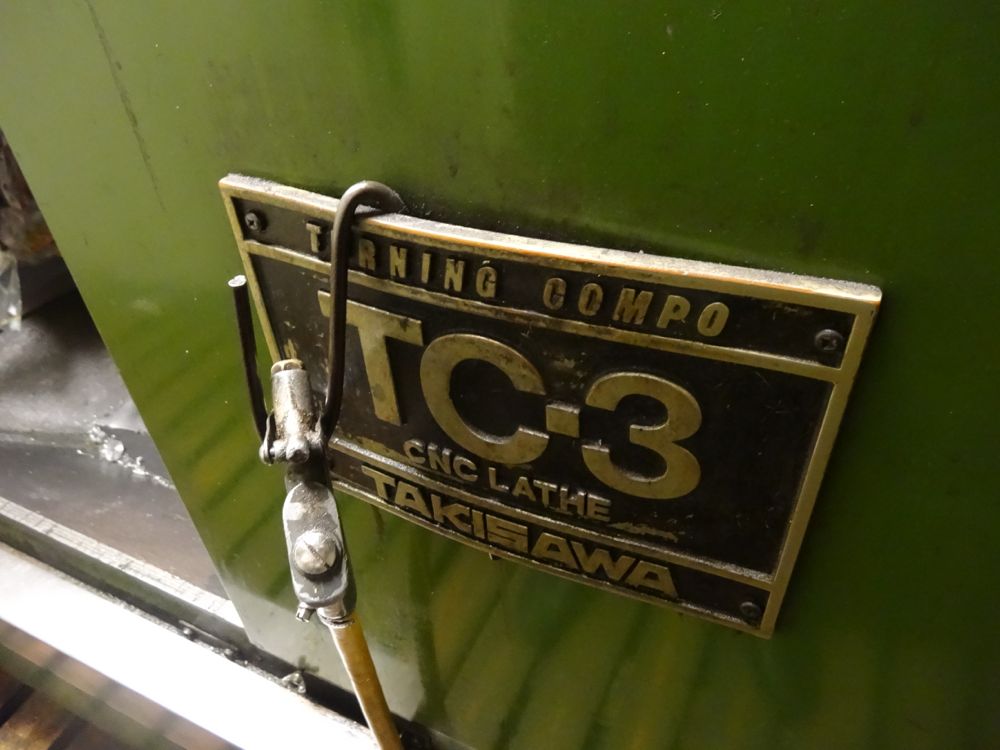

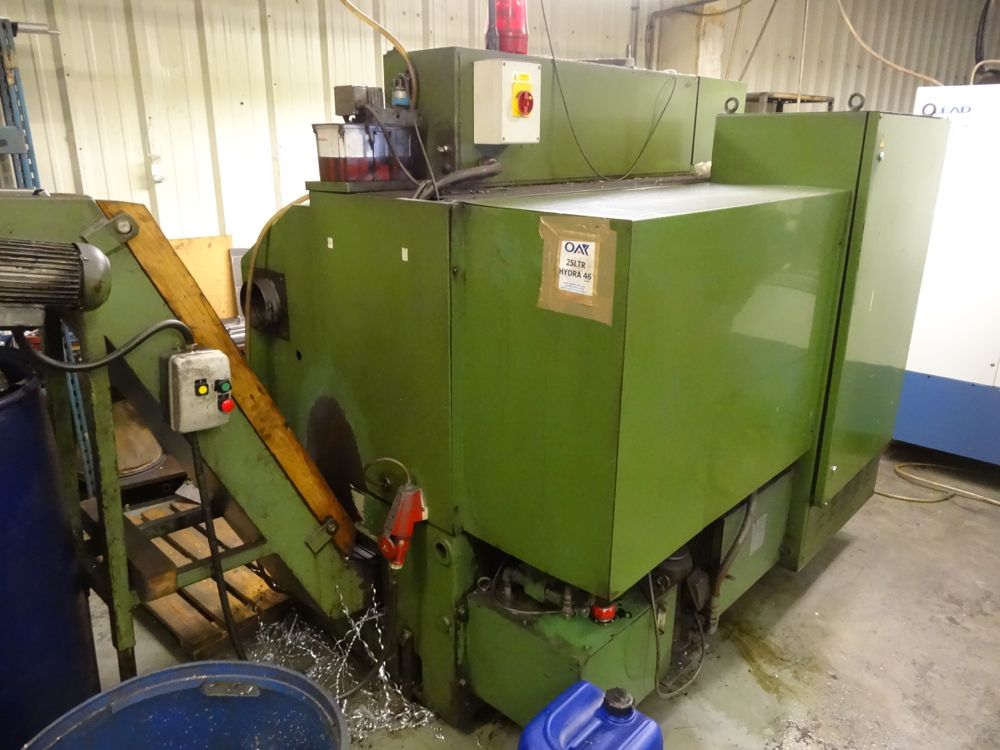

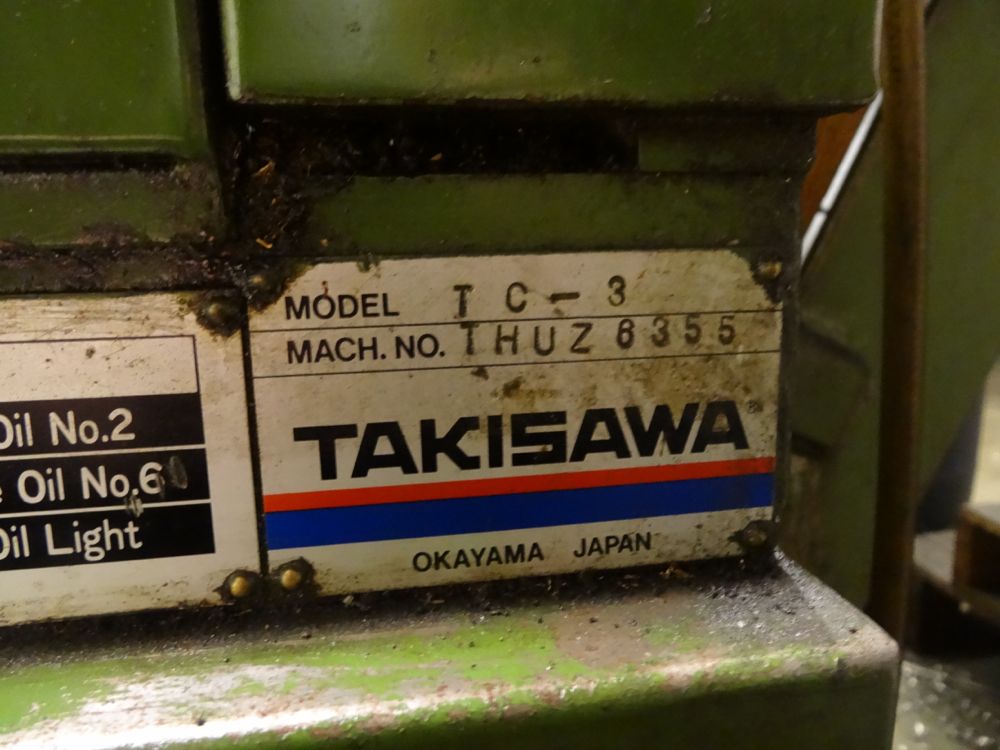

Takisawa TC-3 Turning Centre With Barfeed

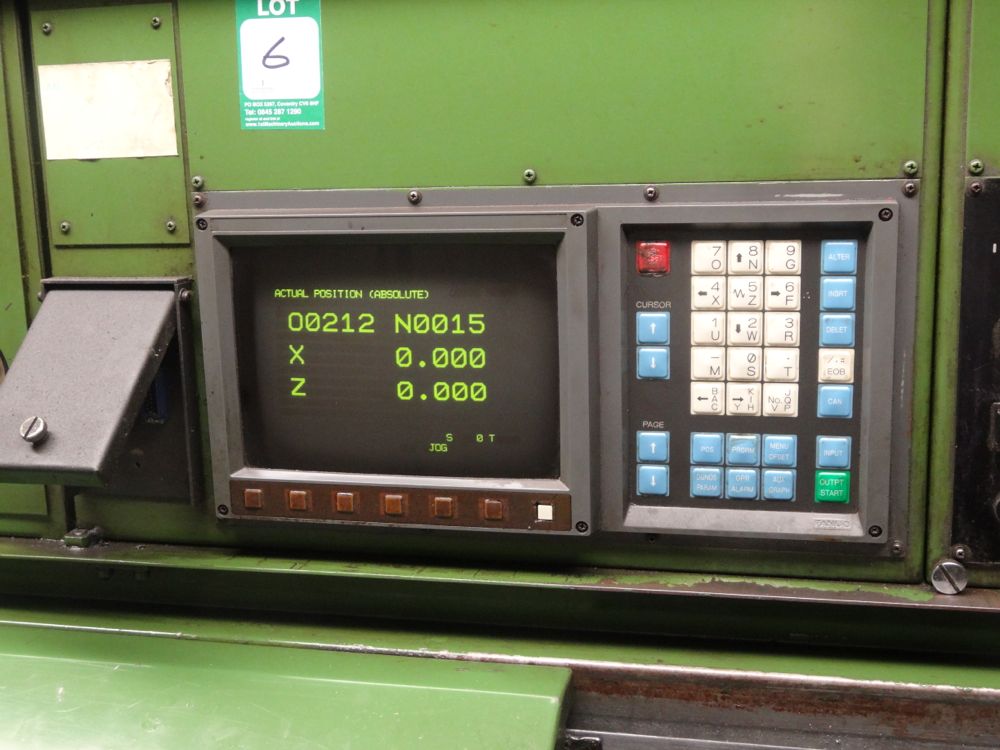

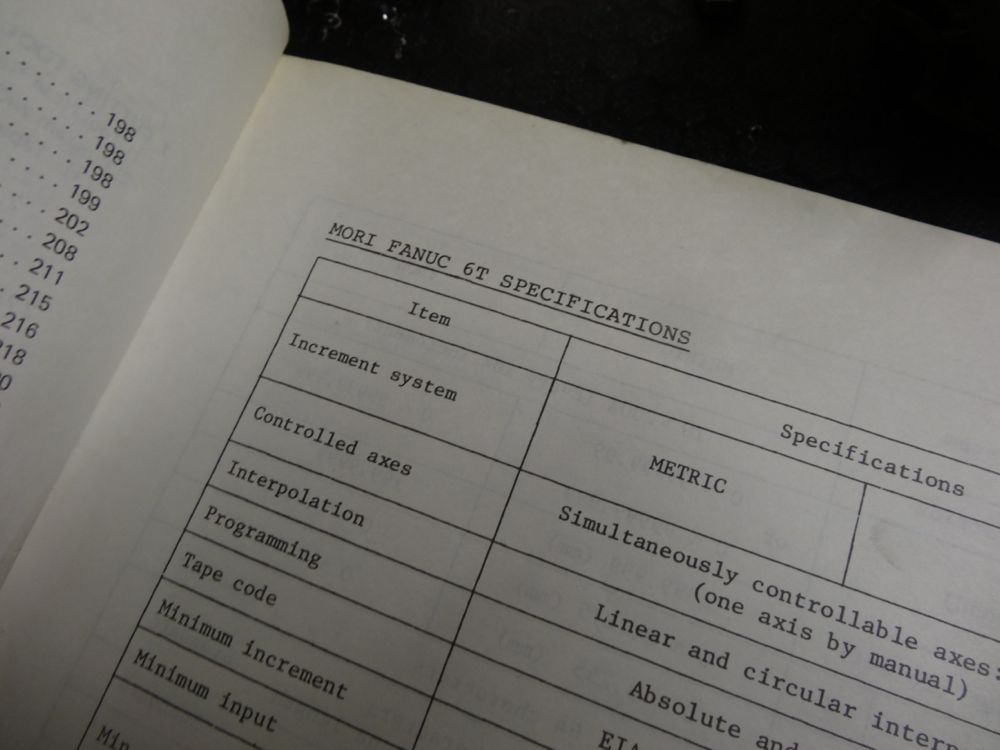

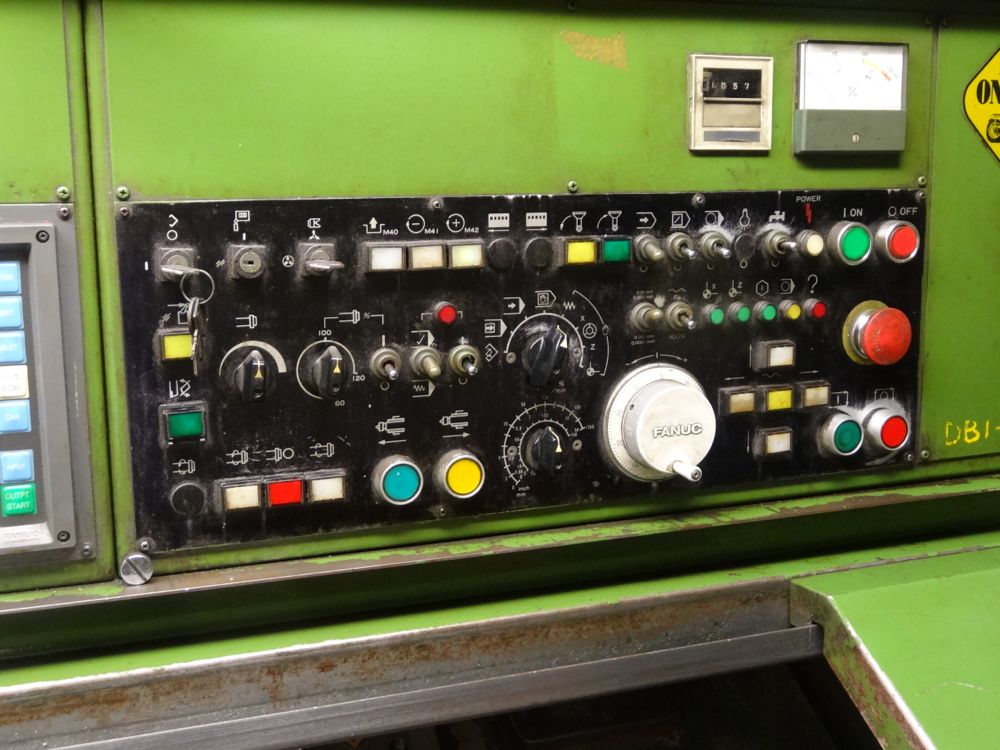

Fanuc Control

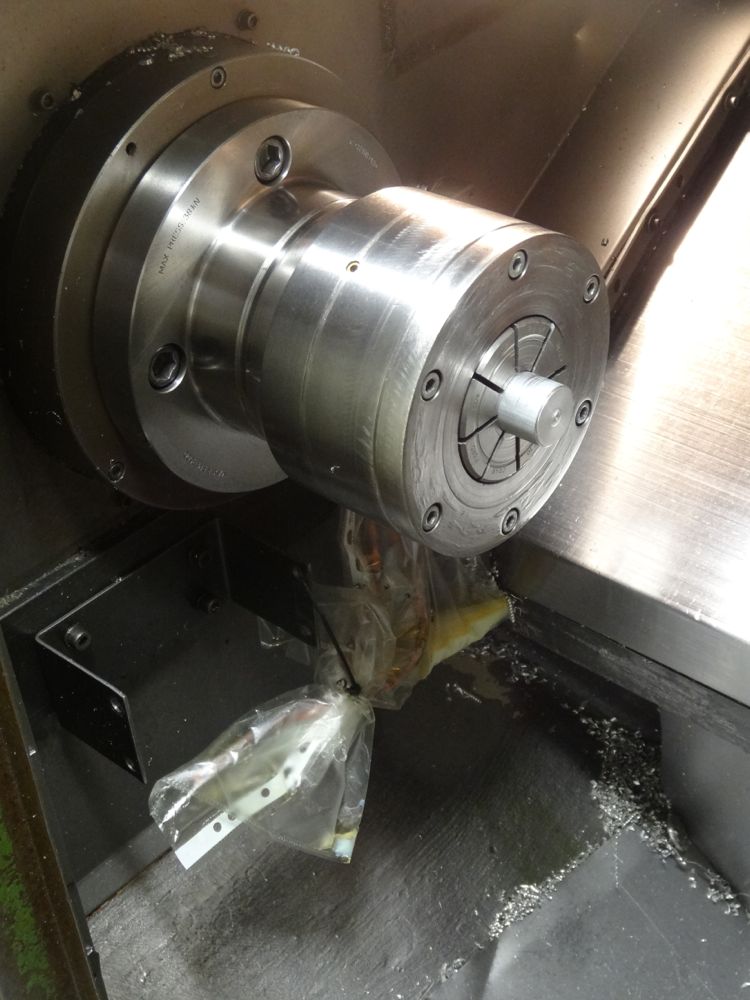

Head spindle
spindle head according to DIN 55201
spindle diameter: 120mm
spindle milling: 78mm
max. torque: 442Nm
Operating range
bar diameter 65mm
chuck diameter: 250mm
diameter on bed: 500mm
swing on cross slide: 400mm
max. swing: 300mm
length between centers: 520mm
center distance: 675mm
centre height: 250mm
Main drive
three-phase a.c. motor, stepless programmable
main spindle motor AC: kW15
speed range: 32-3200U/min

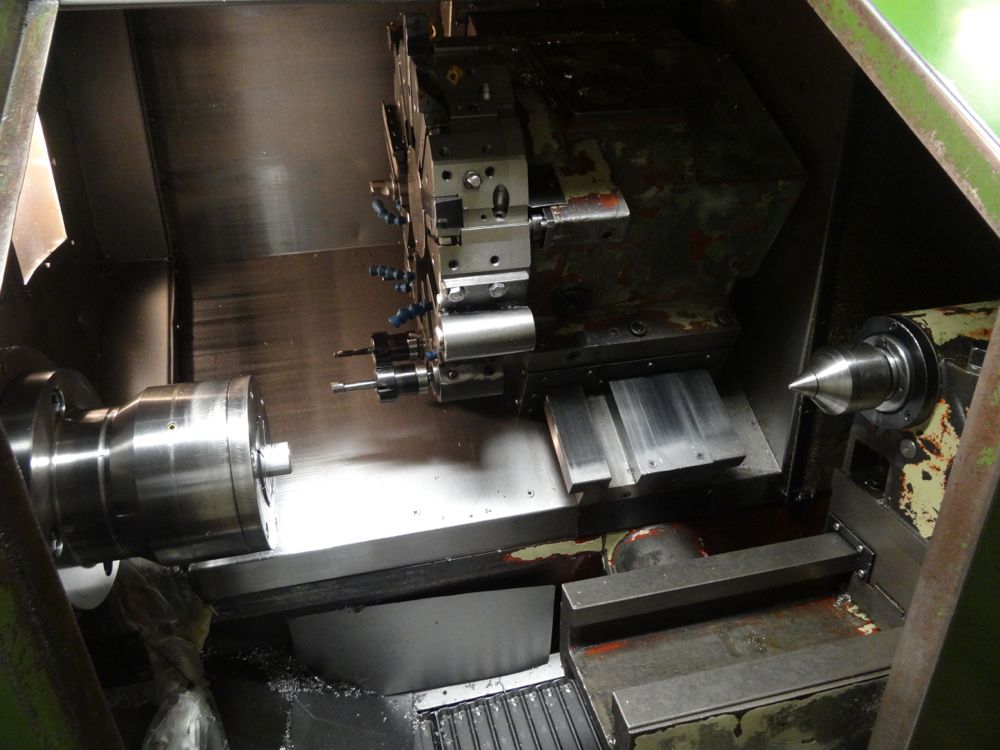

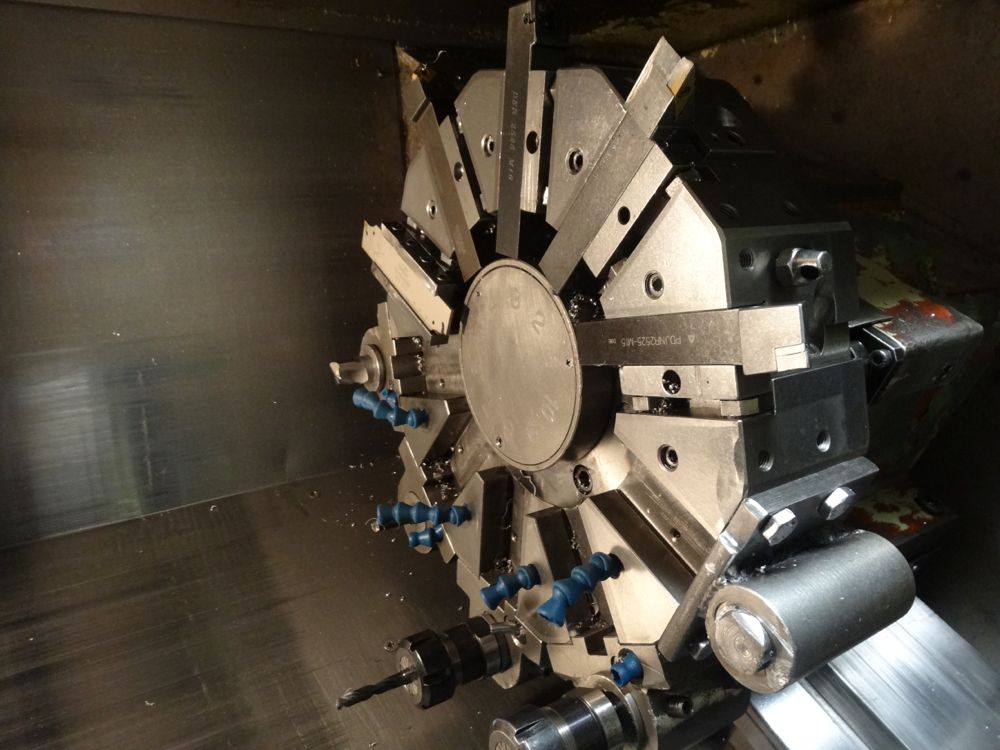

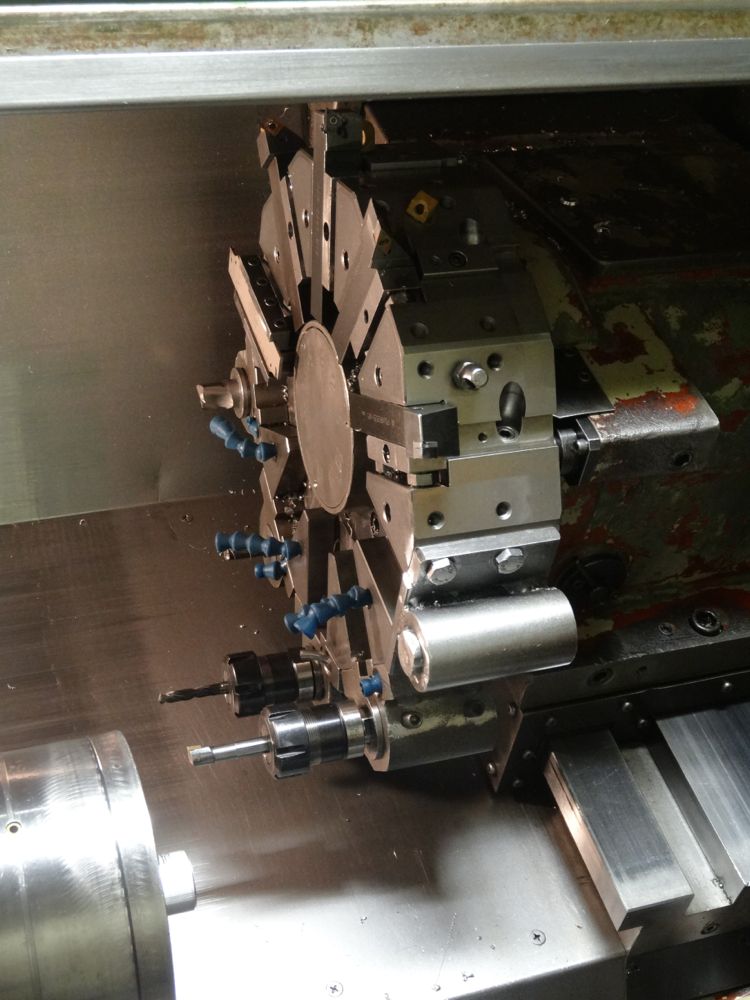

Tool head W1
tool holder in turret: 8
shaft cross section: 25
max. tool diameter: 50mm
max. tool size: 200mm
longitudinal route z 610mm
transverse route x 170mm
Feed drive
x-axis:
fast traverse: 6000mm/min
feed: 0,001-40,000mm/U
feed: 1-5000mm/min
z-axis:
fast traverse: 12000mm/min
feed: 0,001-40,000mm/U
feed: 1-5000mm/min
thread pitch: 0,001-40,000mm/U
feed motor: kW0,8

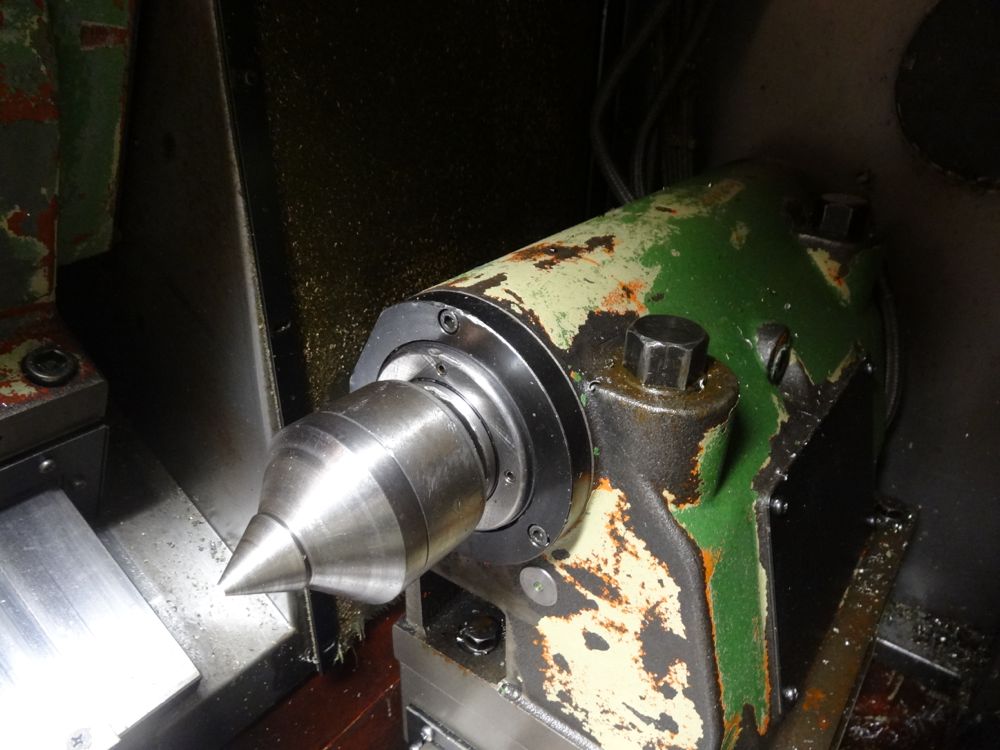

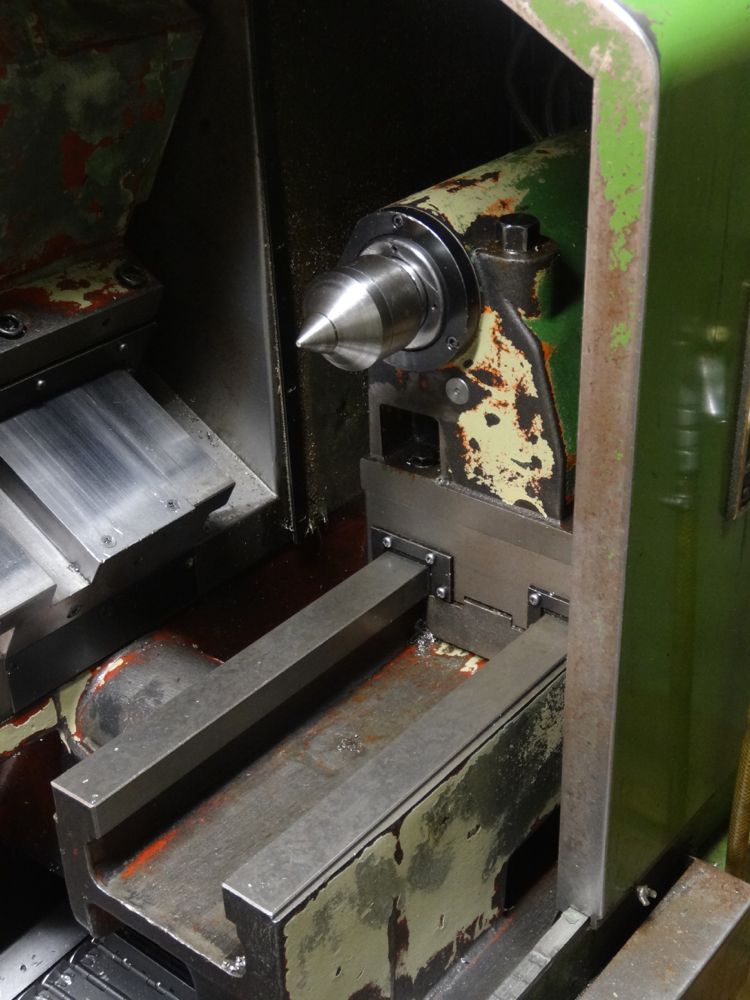

Tail stock:
sleeve diameter: 90mm
sleeve stroke: 120mm
socket, taper according to DIN228: MK5
power rating: 28KVA
General
length: 3100mm
Width: 1700mm
Height: 2100mm
Weight: 3000kg

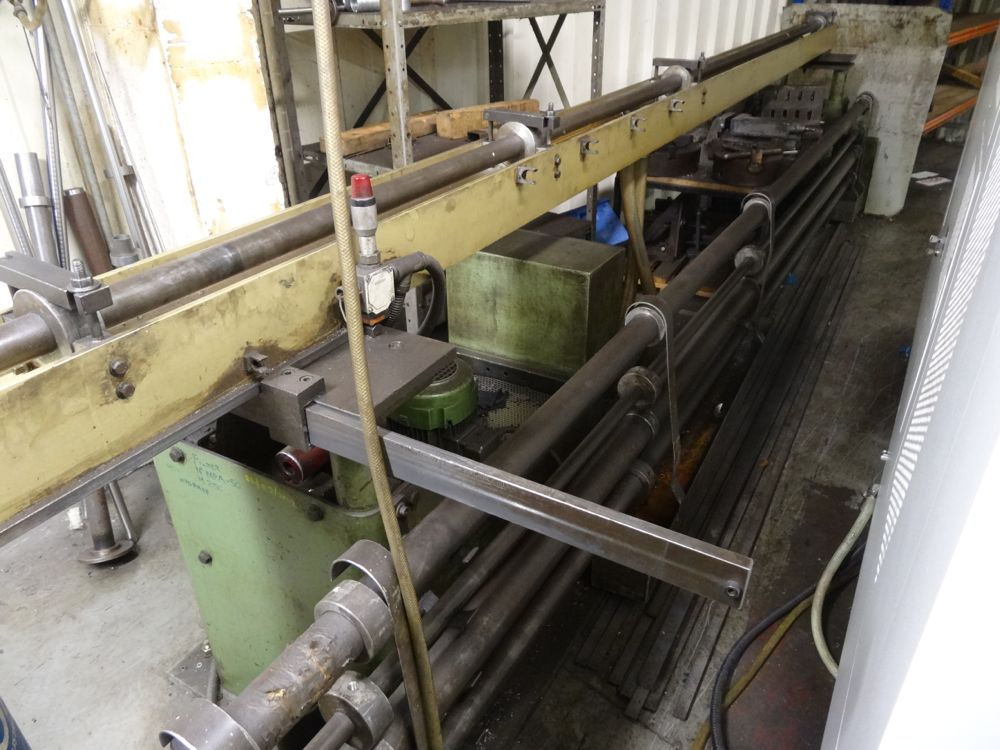

Bar:4800
Location: Engments Ltd, Derby
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
