Lot 17 - Talyrond 50 – Retrofitted with Logitrace v 2011.1 Windows software
Description:

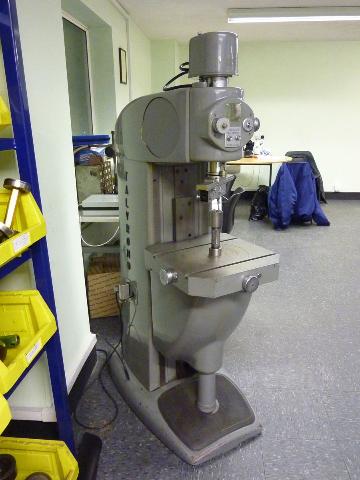

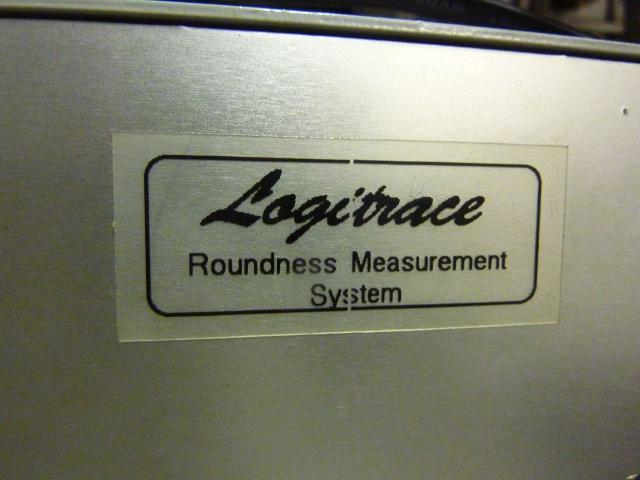

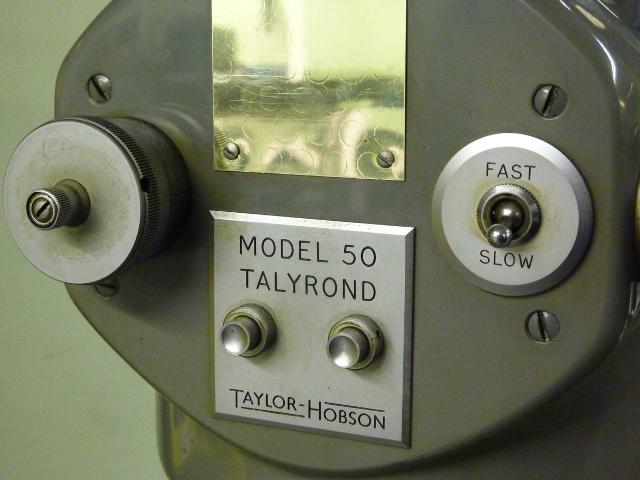

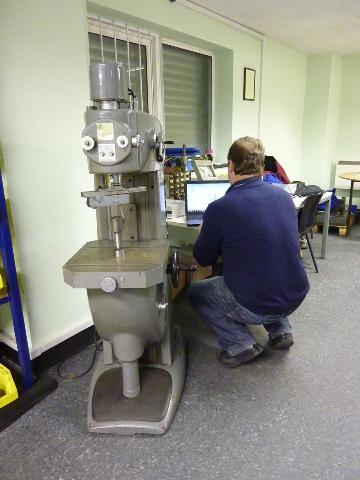

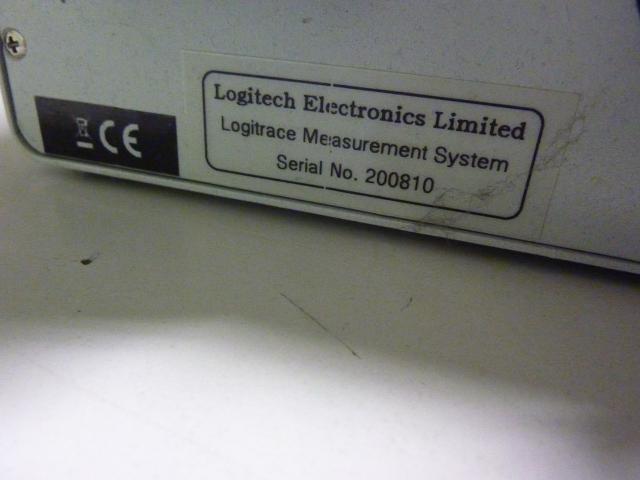

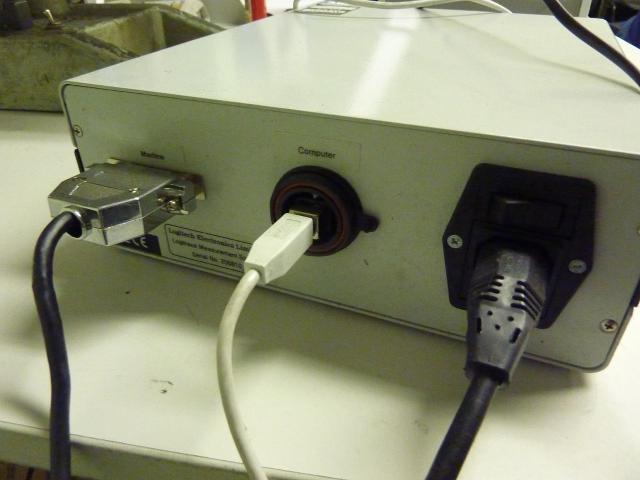

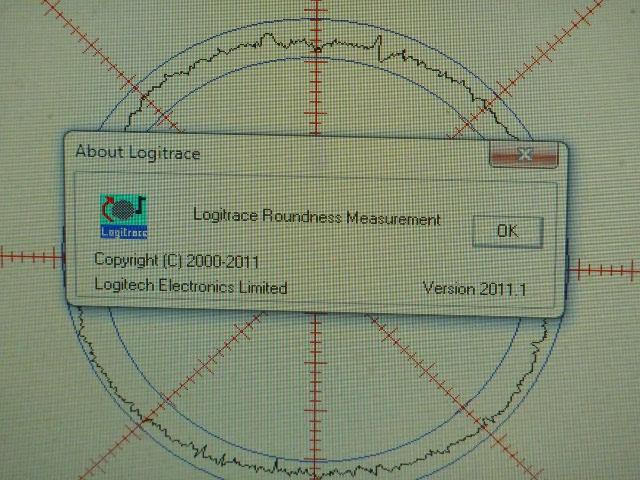

Talyrond 50 – Retrofitted with Logitrace v 2011.1 Windows software

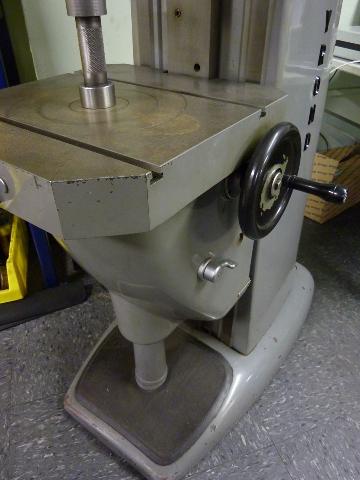

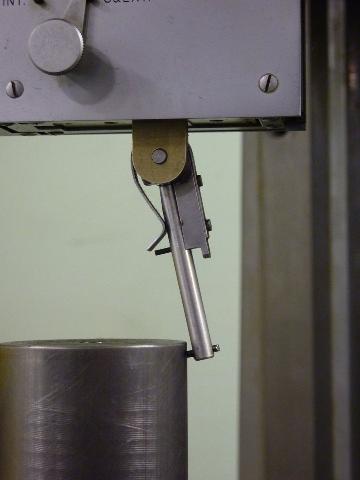

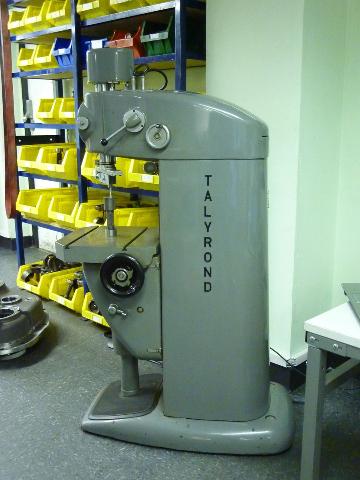

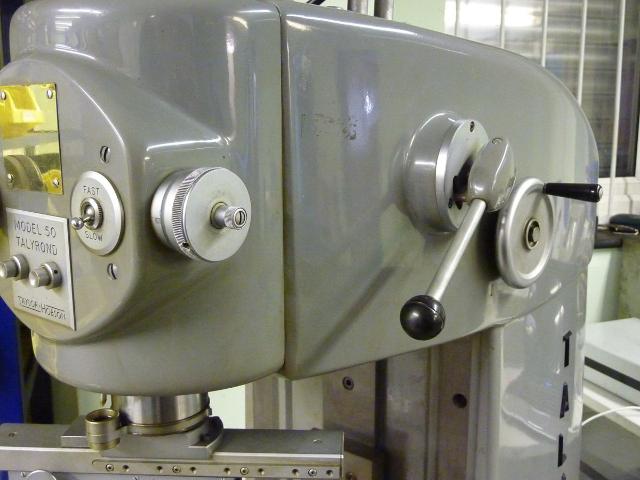

Self standing robust constructionRotating Spindle - easy centeringRotation speed: 3rpm Centering Coarse & Fine KnobsMax work piece diameter: 400 mmMax measurable diameter: 300mmStylus resolution: 0,01 - 0,05 μmStylus measuring range: 600 μm Polar filter: 1 - 15, 1- 50, 1- 150, 1 – 500, 15 – 150, 15- 500Harmonics: in 4 bandsParameters: Roundness, Concentricity, Eccentricity, Flatness, Squareness, Coaxiality, Run-out

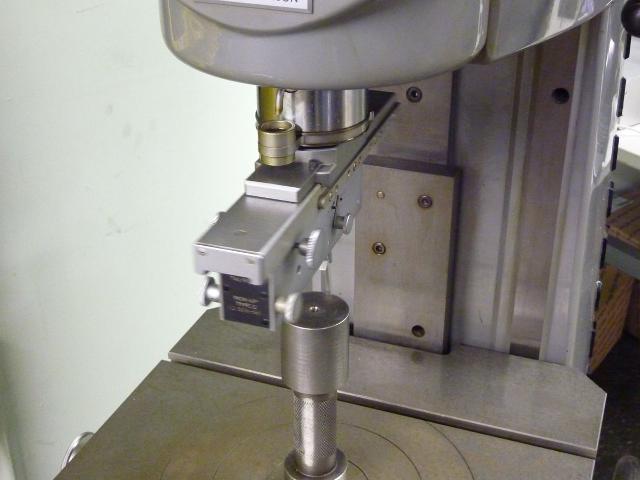

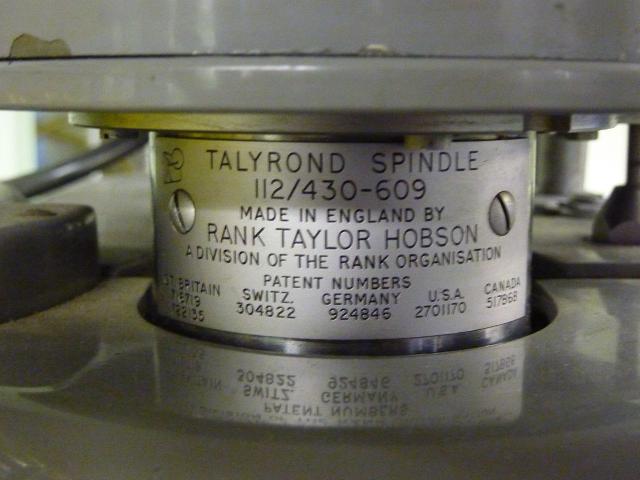

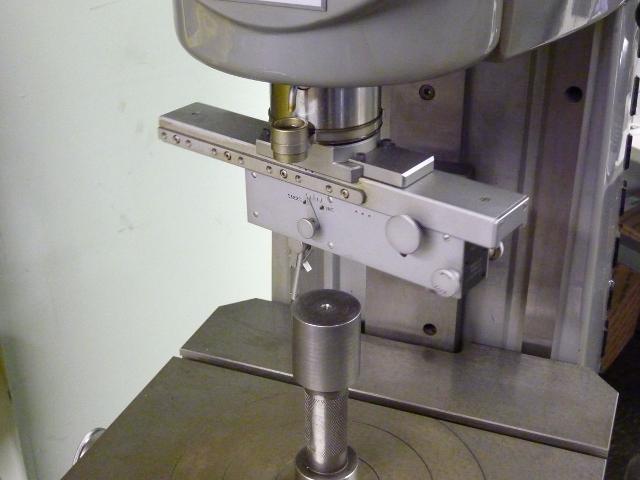

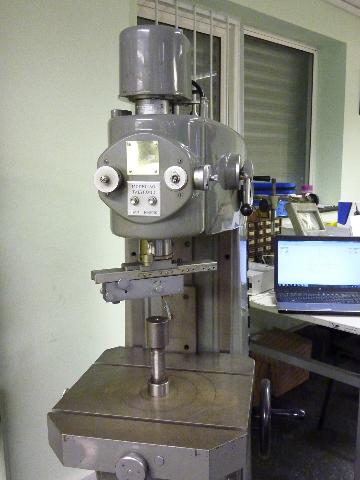

The Talyrond 50 instrument has a rotating spindle with an oil-hydrostatic bearing. Whilst the Talyrond 50 maintains a high level of measurement accuracy and performance reliability, it represents only a minimum of capital investment.
All Integrated to make one precise instrument to detect and assess the following results in Roundness, Concentricity, Eccentricity, Flatness (rotating 3D profile display), Squareness, Coaxiality and Run-out.

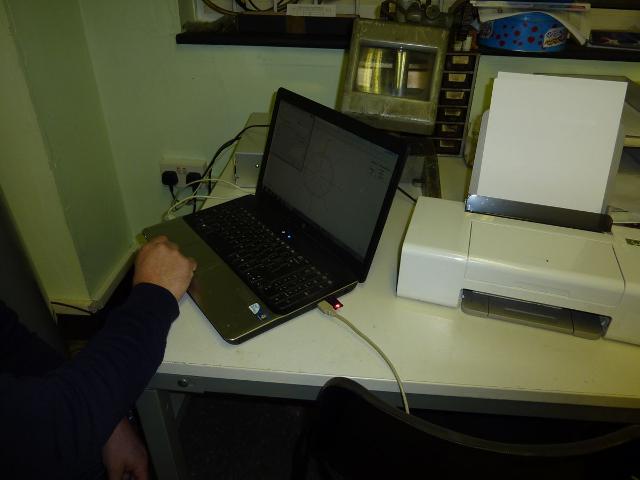

Please note: Laptop is not included, but a PC will be supplied with the software installed.
Location: Coventry
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
