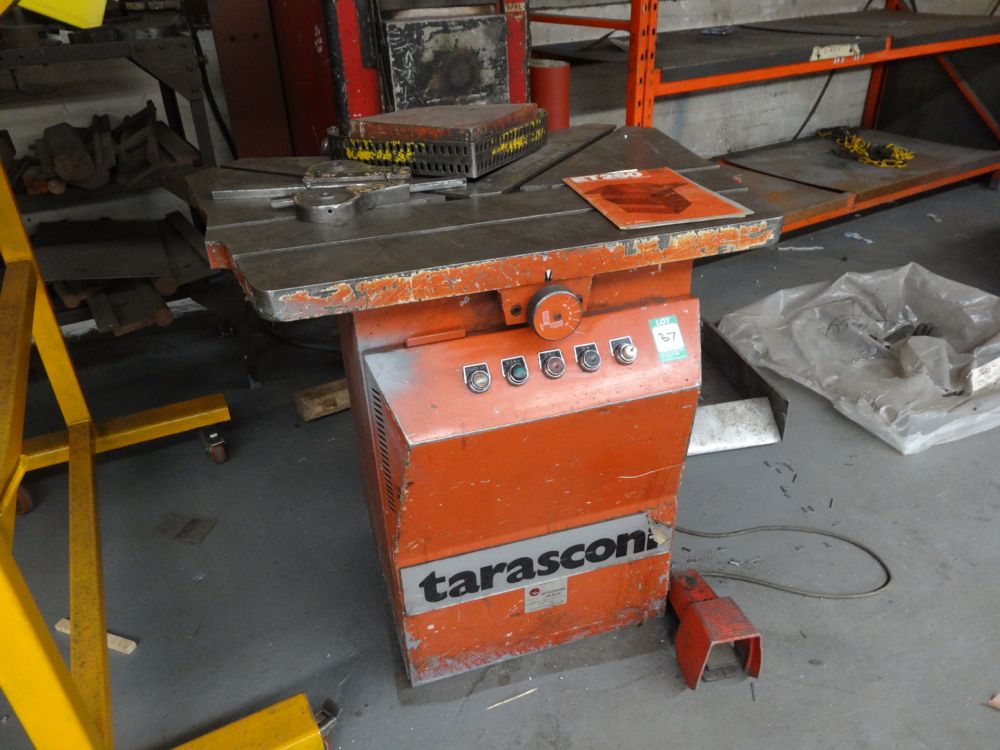

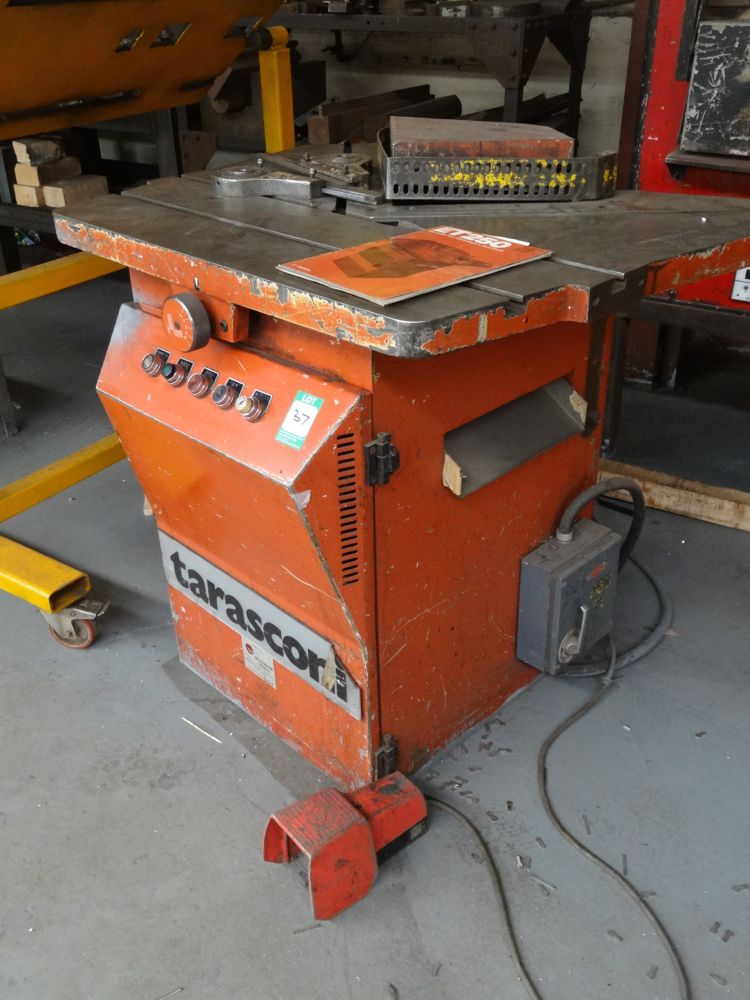

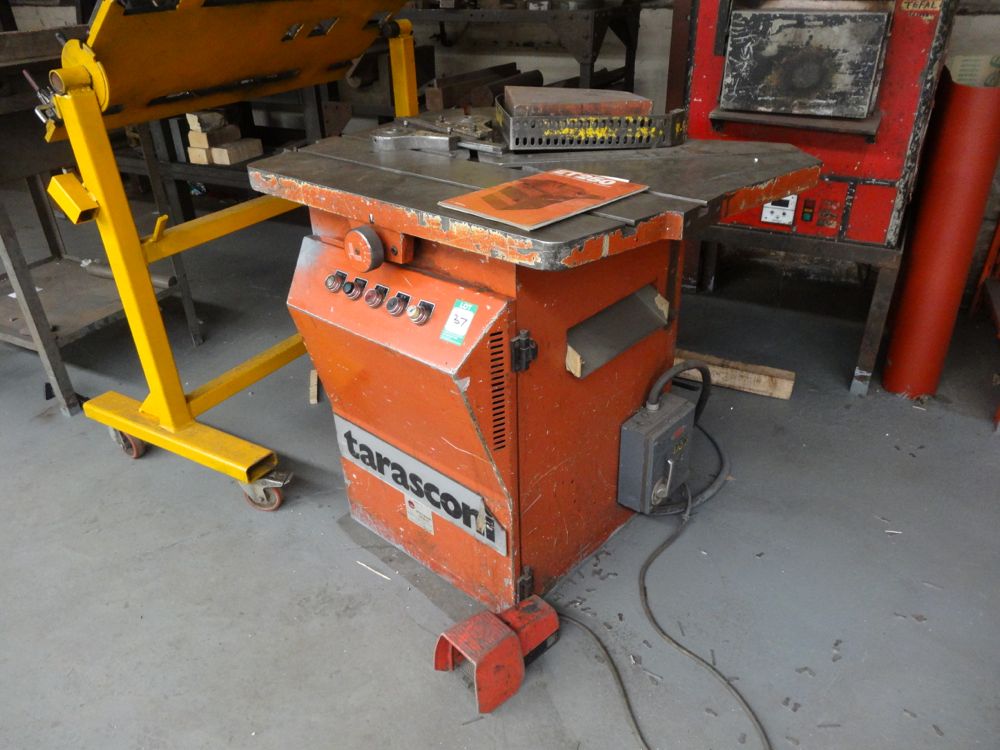

Tarasconi Notching Machine

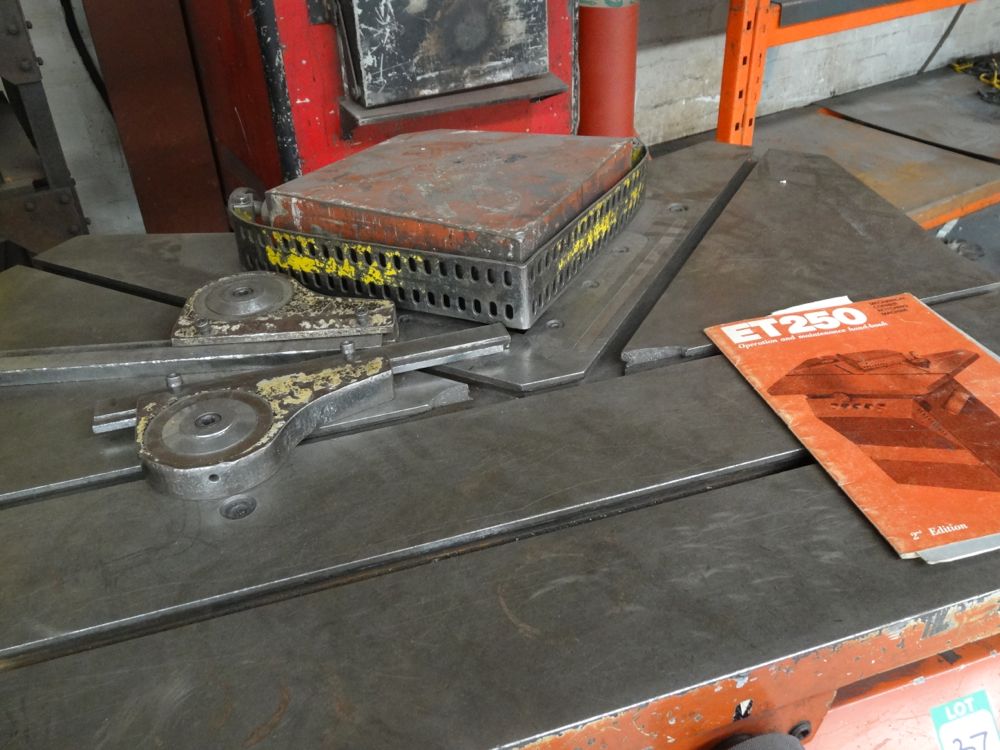

Lot 37 - Tarasconi Notching Machine

Description:

The corner notching machine MOD. ET-250 runs by means of a flywheel, supplying the necessary power for notching and by means of a Schuler mechanical clutch with rocking key, which permits the connection of the flywheel to the notching head shaft. The mechanism also permits the automatic release of the key after every notch by means of an electrically controlled release lever.

The accurate execution of the machined pieces to the heat treatments and the particular study of the clutch geometry an high working frequence (over 60 cycles/minute)

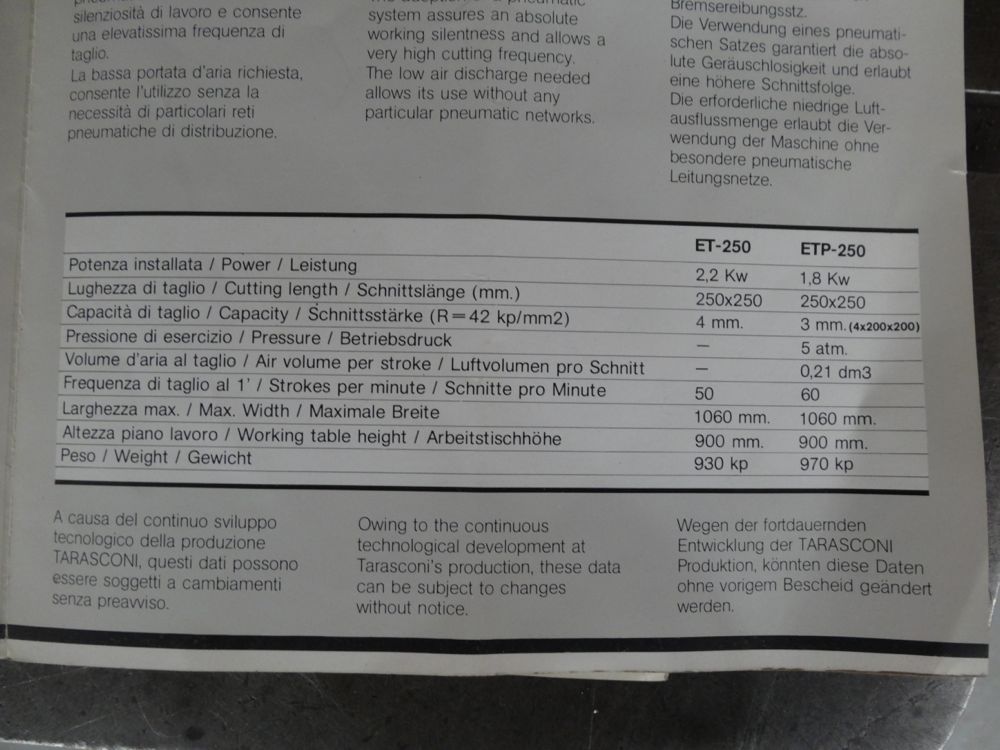

Power: 2.2kW

Capacity 4mm x 42kp/mm2 (10Ga. stainless, 3/16 mild x 9 3/16")

Framework in electro -welded steel with high strength, normalised, supplied with attached slide guides in molybdenum

Ground working table

Slide guides in pearlitic cast iron ground and scrape-finished

Eccentric shaft in alloyed steel hardened by induction on friction surfaces

Bushing are precision bored after their cold insertion in the machine

Schuler mechanical clutch with rocking key and band brake

Flywheel assembled on dust proof bearings without greasing need

Blade is Hi-carbon, Hi Chrome, suitable shearing stainless and mild steel
980mm H x 1060mm W x 800mm D

Location: Engments Ltd, Derby

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
