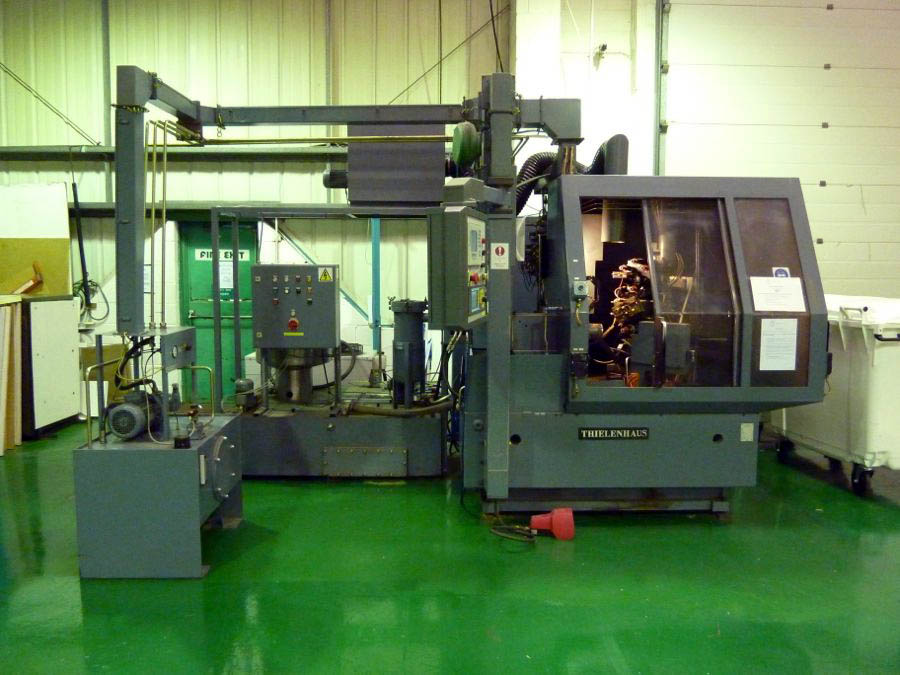

Thielenhaus KF 50 Super-Finishing Machine

Lot 16 - Thielenhaus KF 50 Super-Finishing Machine

Description:

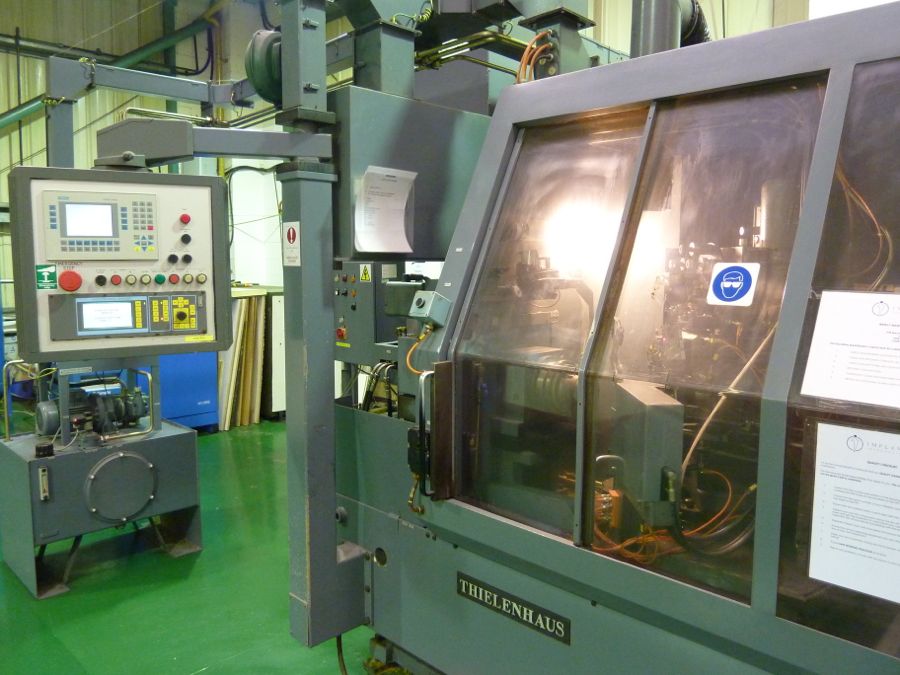

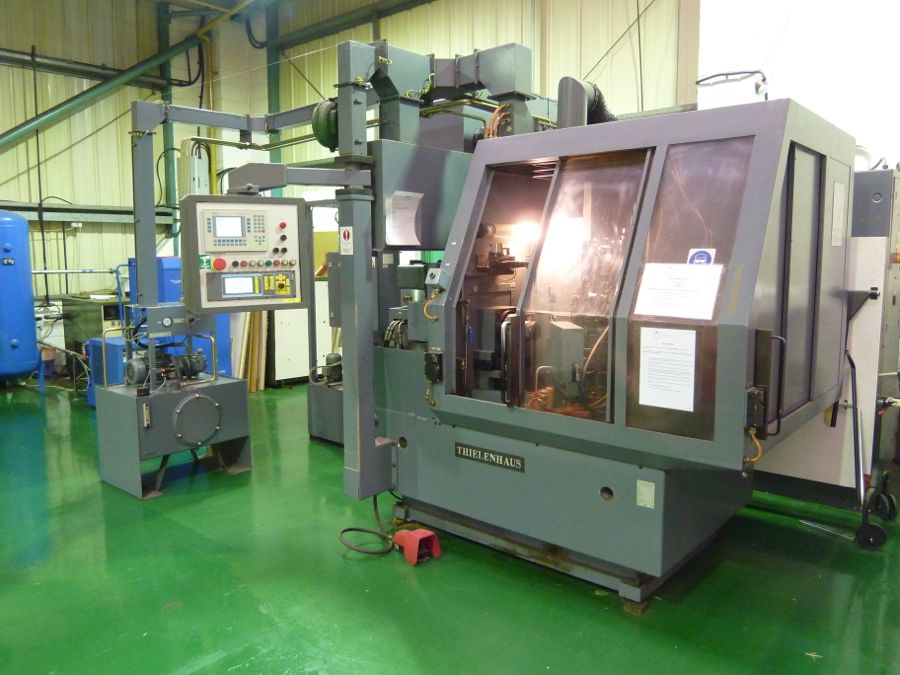

Thielenhaus Model KF 50 Super-Finishing Machine

Year 1997

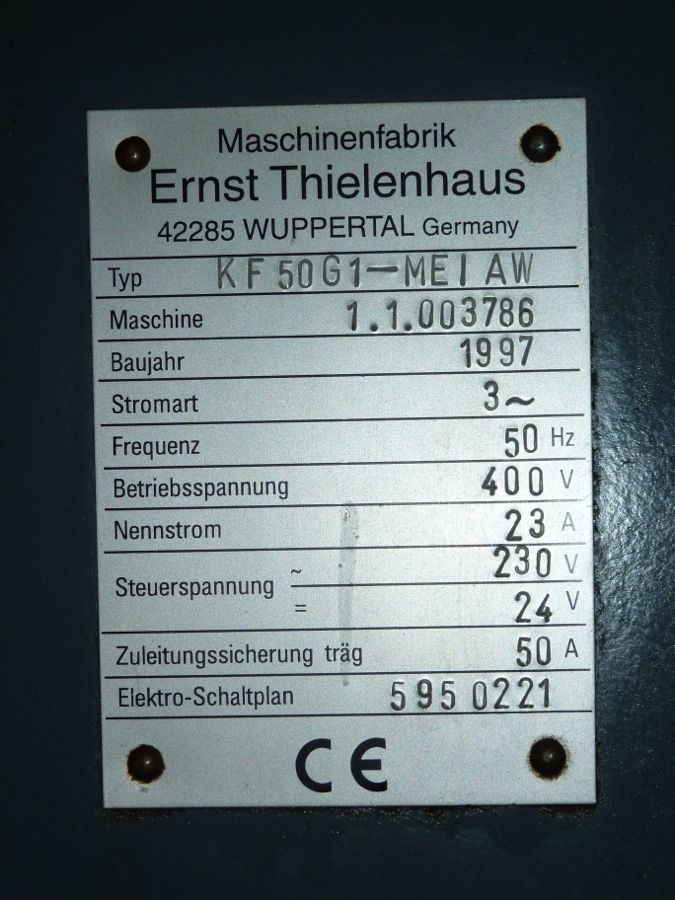

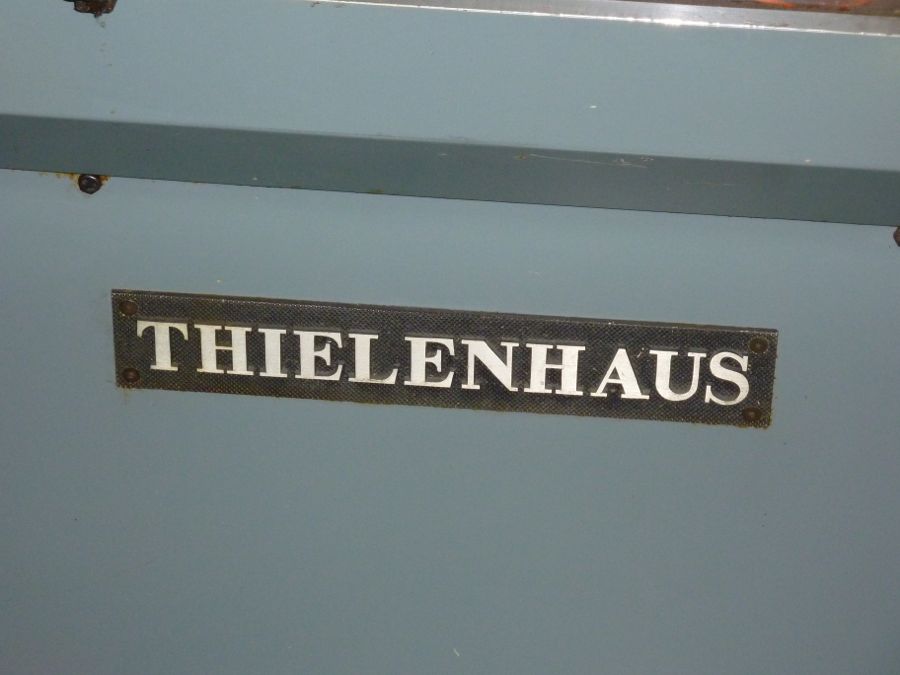

Make: Thielenhaus
Model Type: KF 50 G1-Me/AW

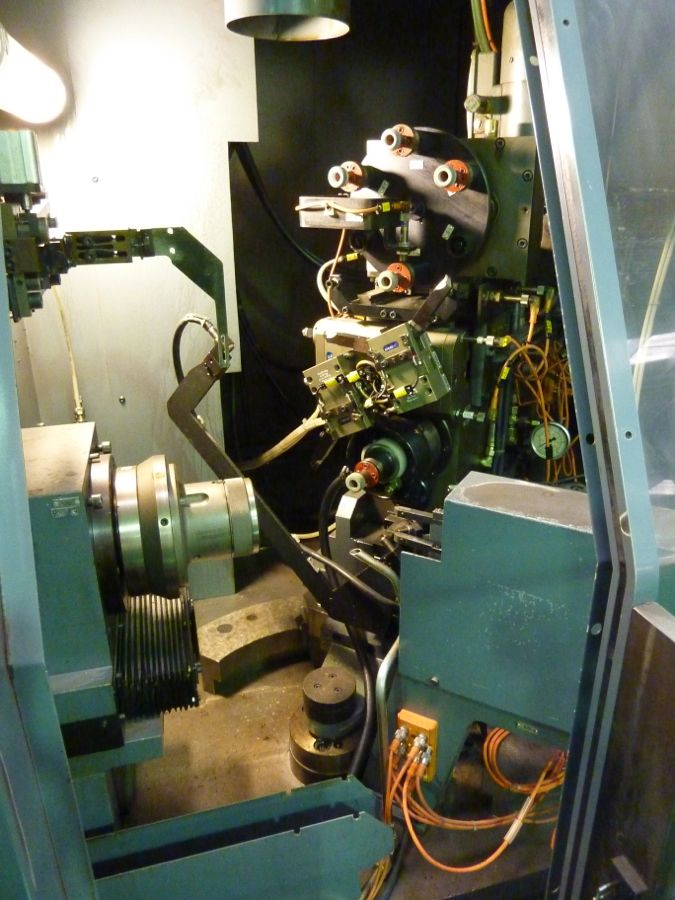

Flat and spherical microfinish machine

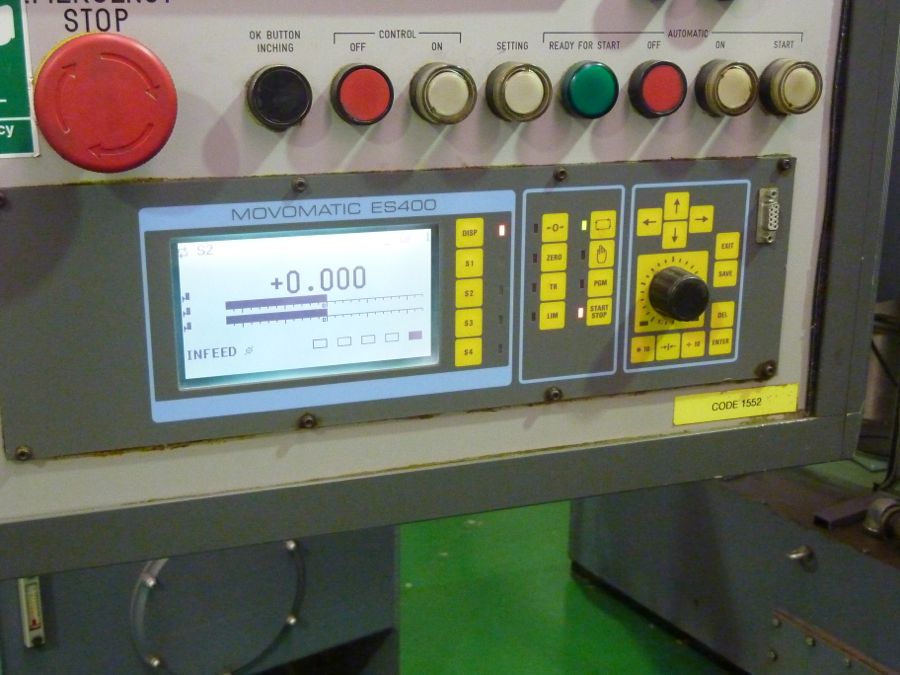

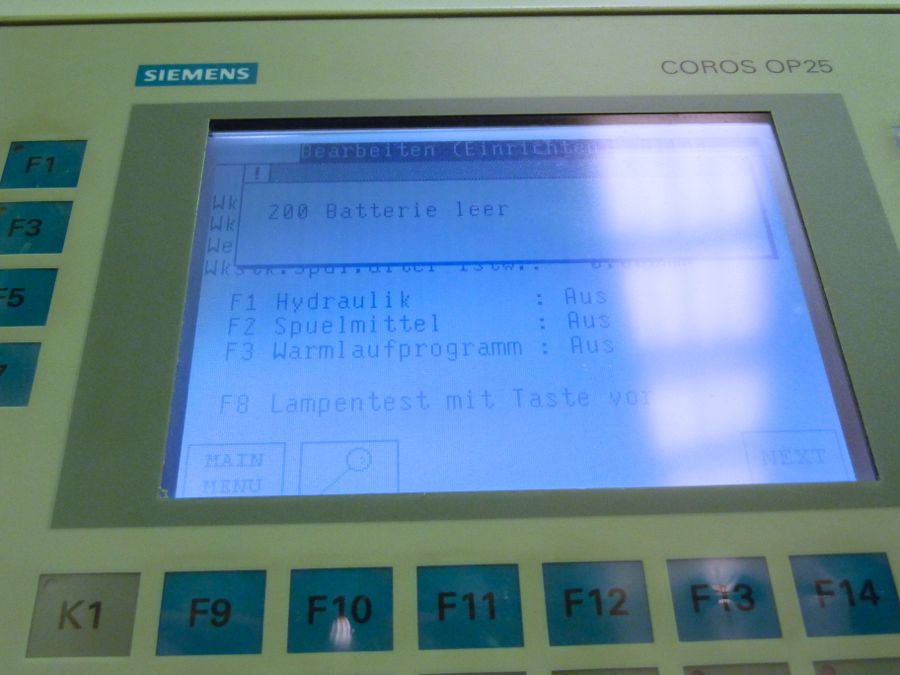

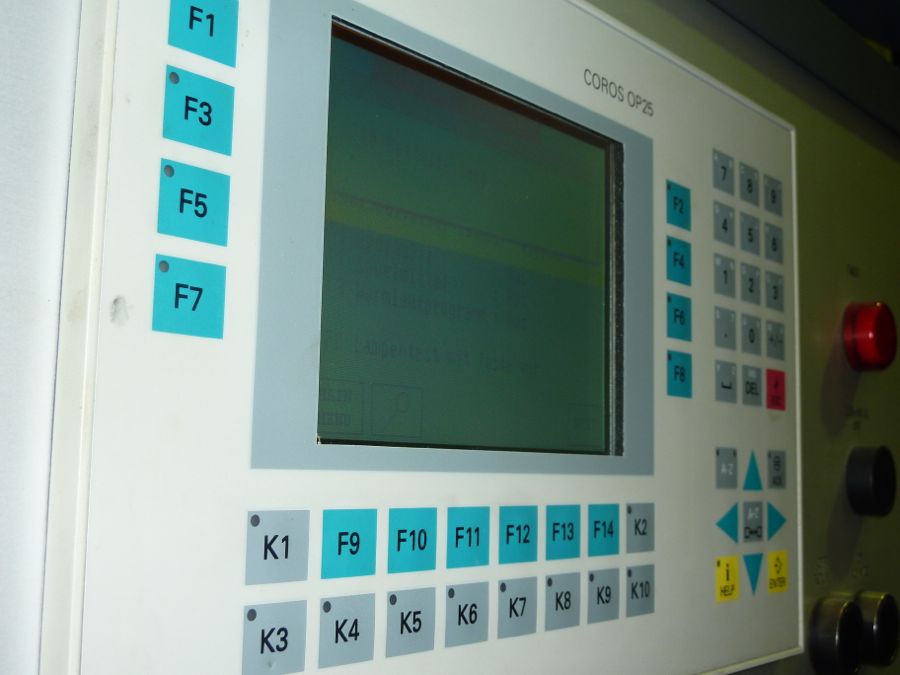

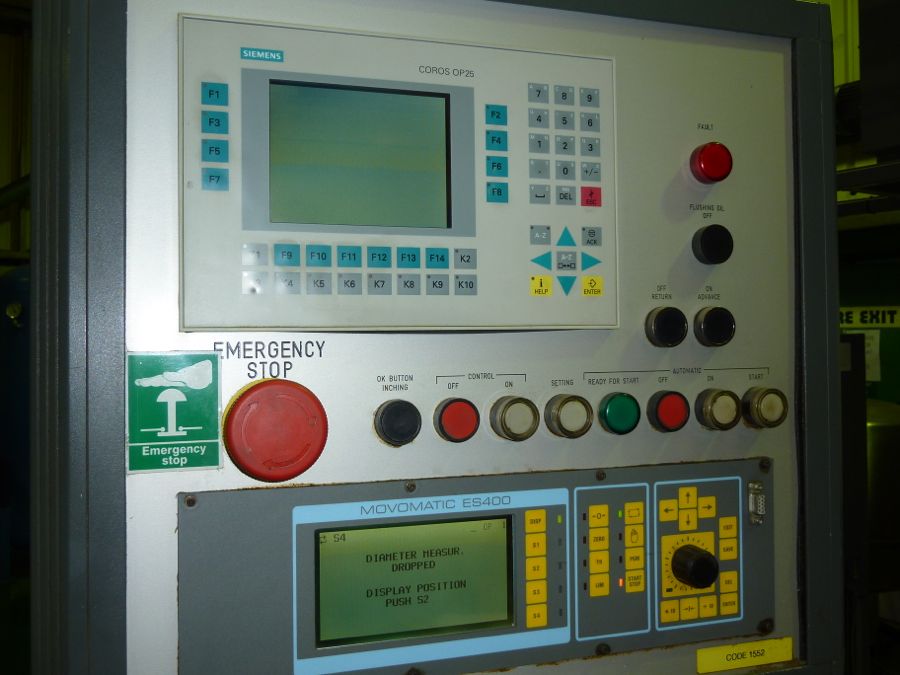

Seimens SIMATIC S5 COROS OP25, MOVOMATIC ES400 Controls

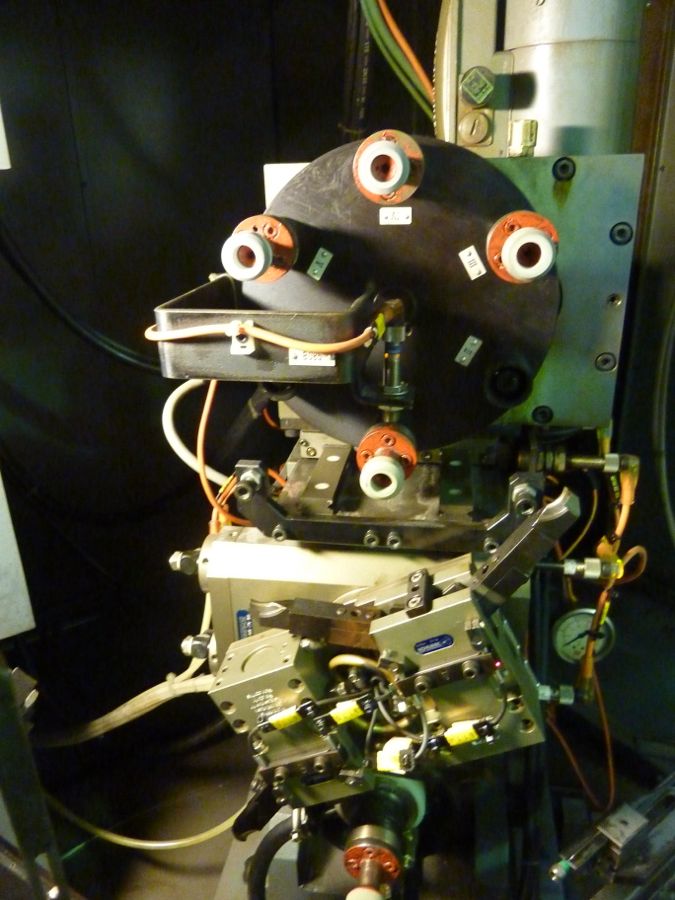

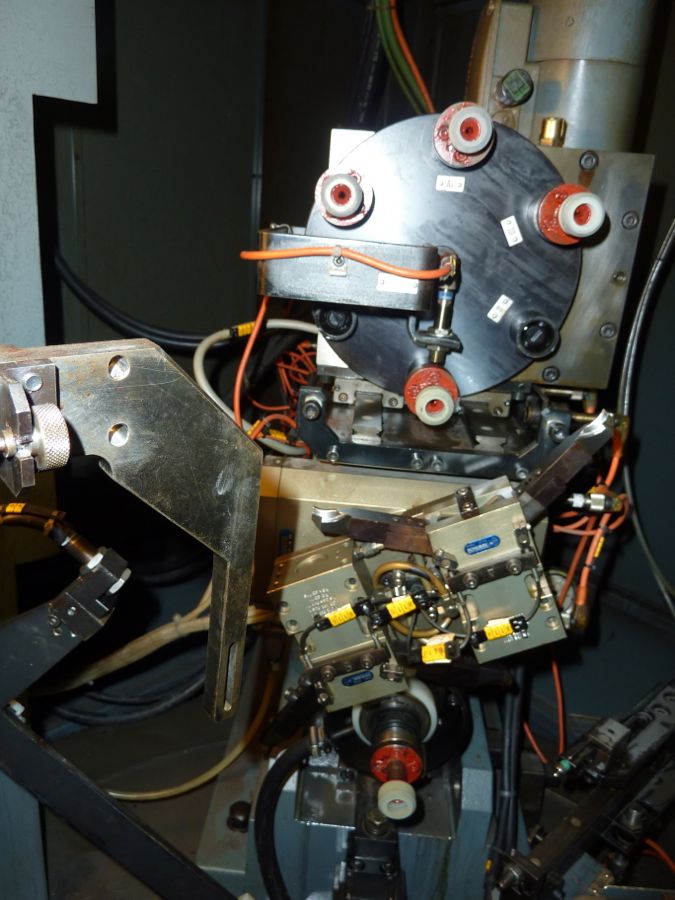

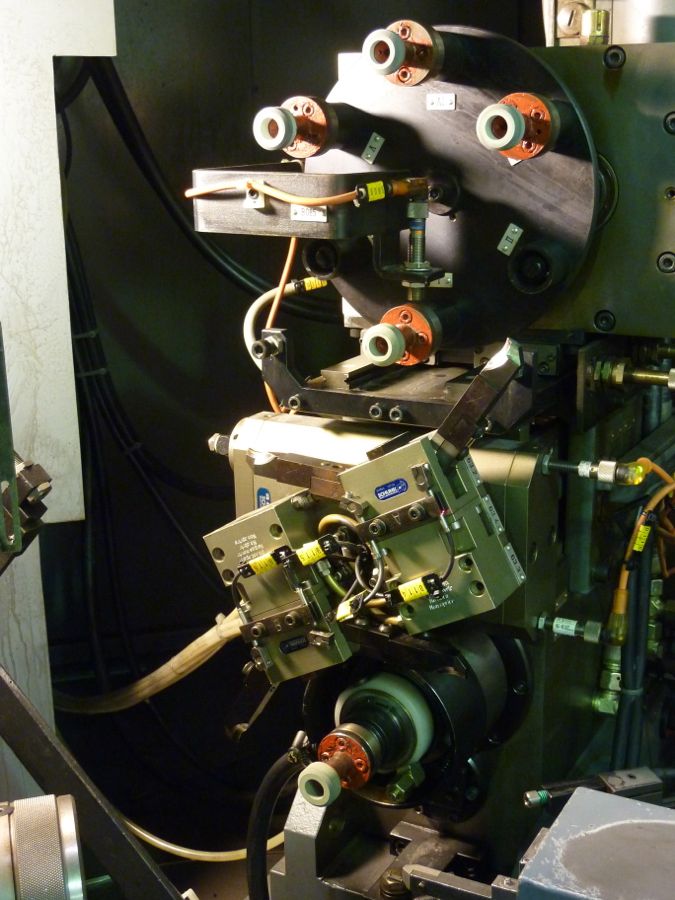

Machine for balls or sockets / endoprotheses etc

Rougness turned RA: <0.005 mm
Max. Working Diameter: 70 mm.

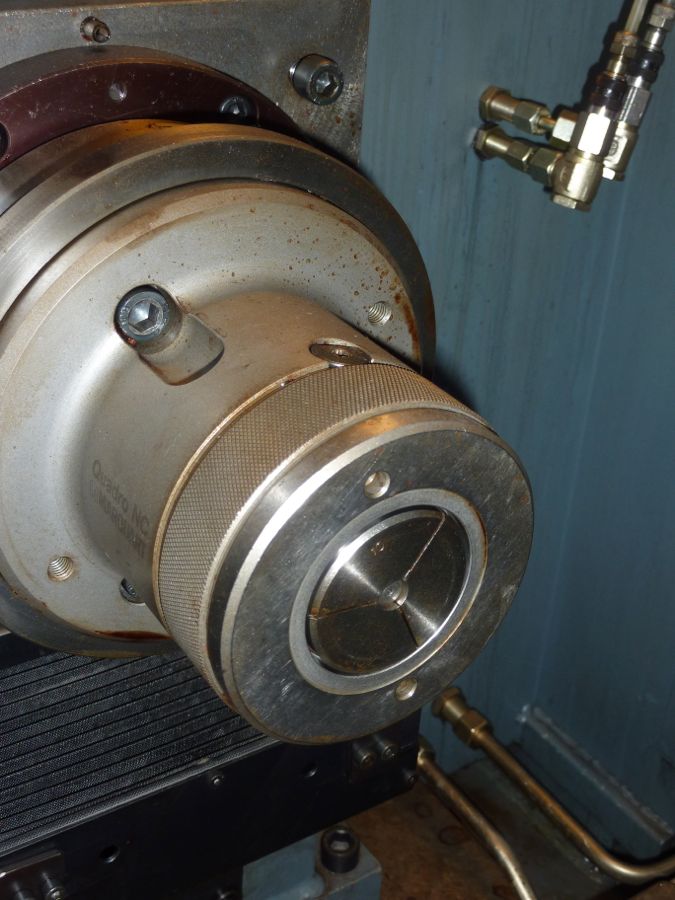

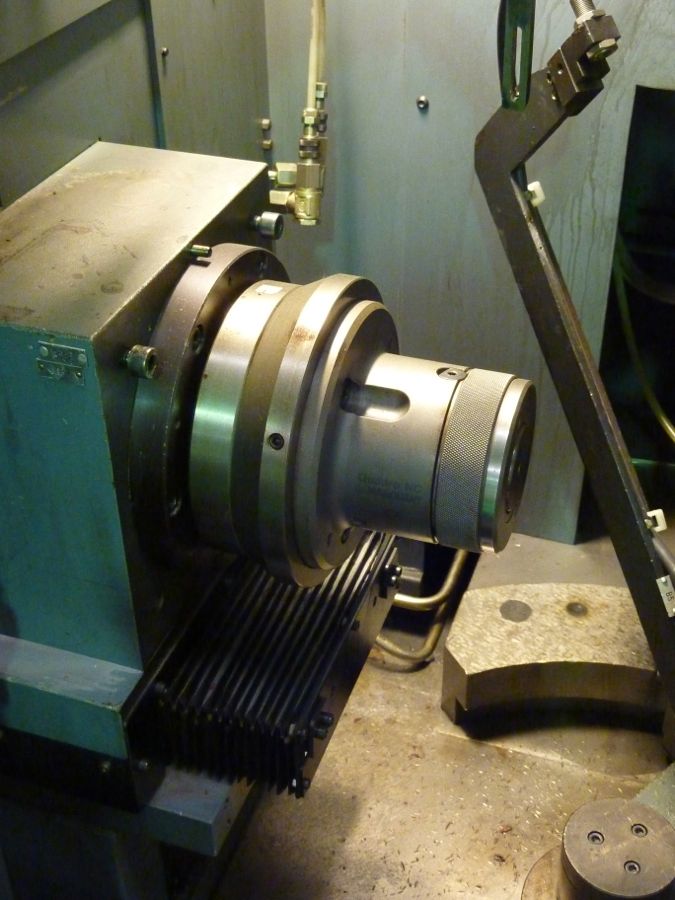

Workpiece Headstock Axial Positioning Max: 200mm
Microfinish Unit: 1
Microfinish Unit Swiveling Range (Adjustment) 0-90 degrees
Cup Wheel Diameter Max: 60mm
Microfinish Spindle Sleeve Path: 100mm
Microfinish Spindle Speed Range: 50-4000rpm
Feeding Carriage (Stroke): 100mm
Longitudinal Carrage (Stroke): 22mm
Cross Carriage (Setting Range): +- 10mm
Measuring Control Carriage (Stroke): 100mm
Dividing Unit (Dividing Angle): Constant 60 degrees

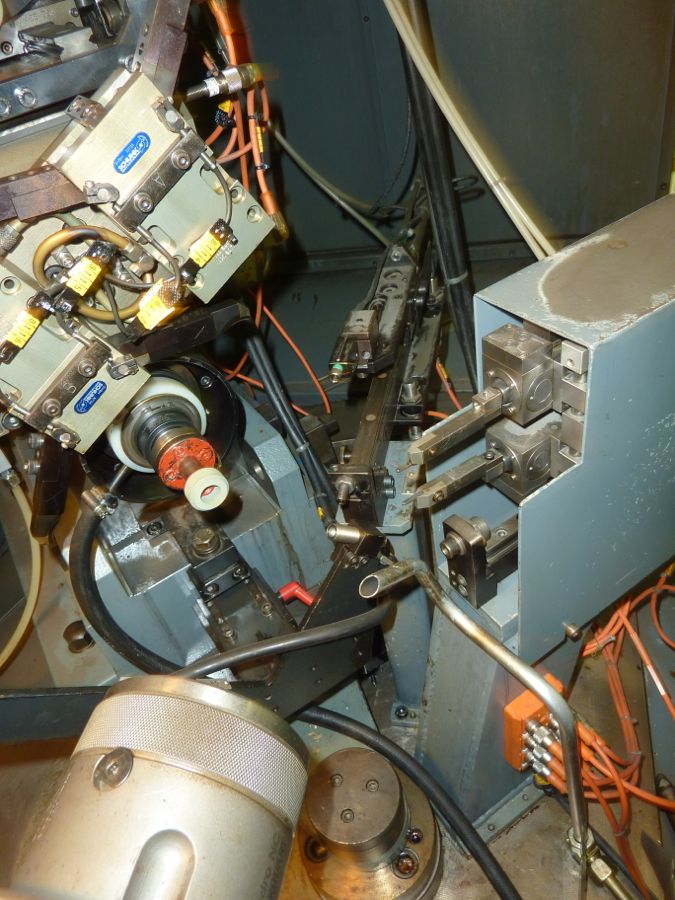

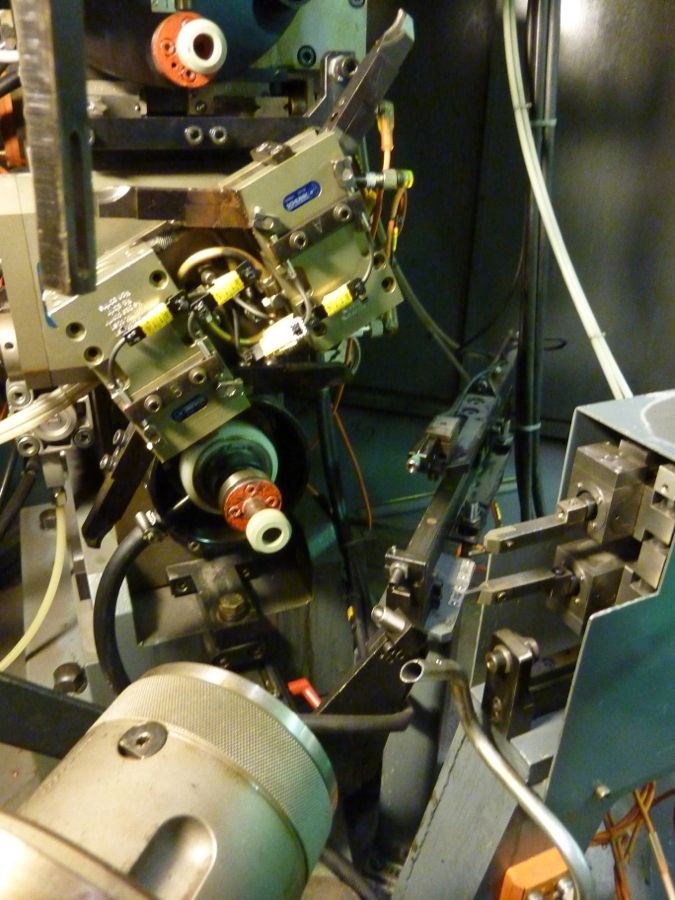

Grabbing and Swivelling Unit: Contant 180 degrees

Includes:
Electric system

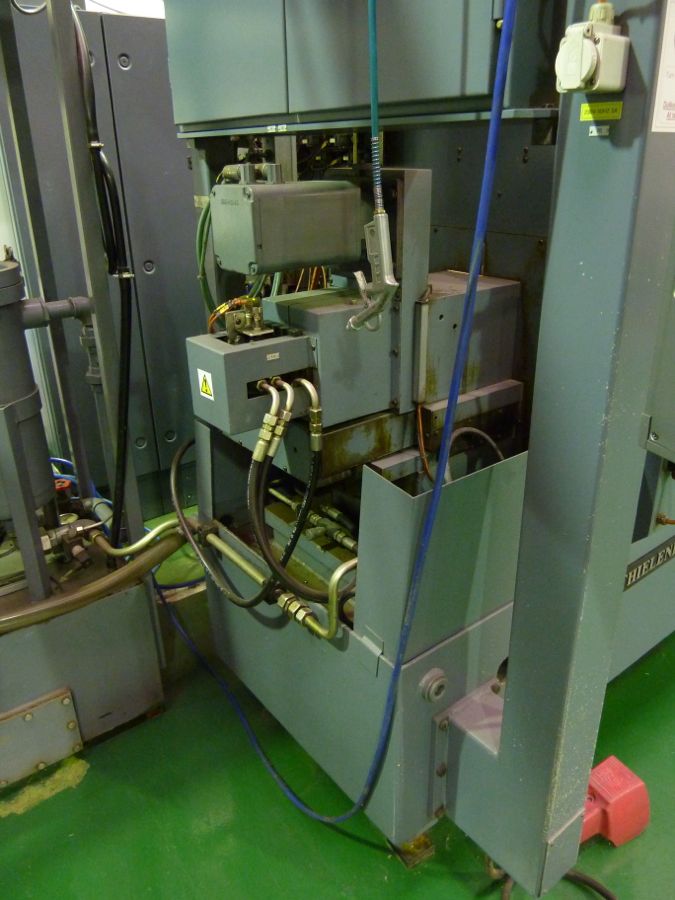

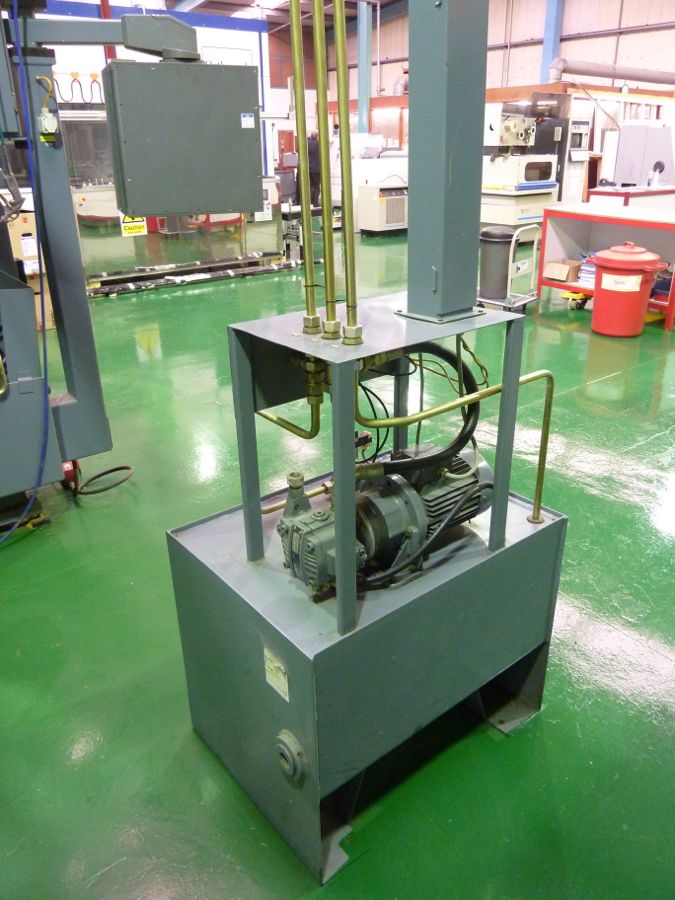

Hydraulic System
Pneumatic System

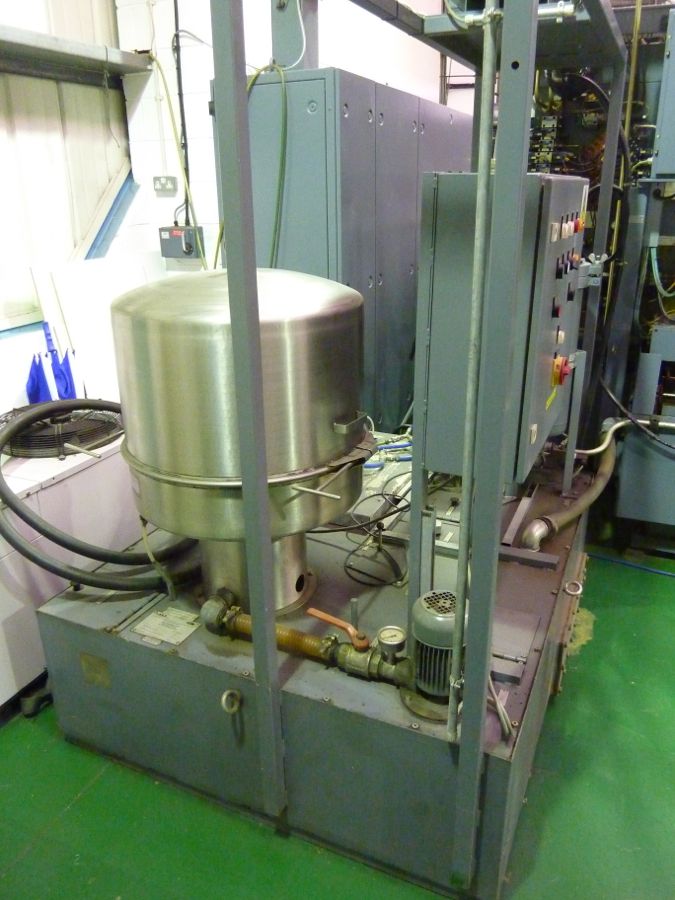

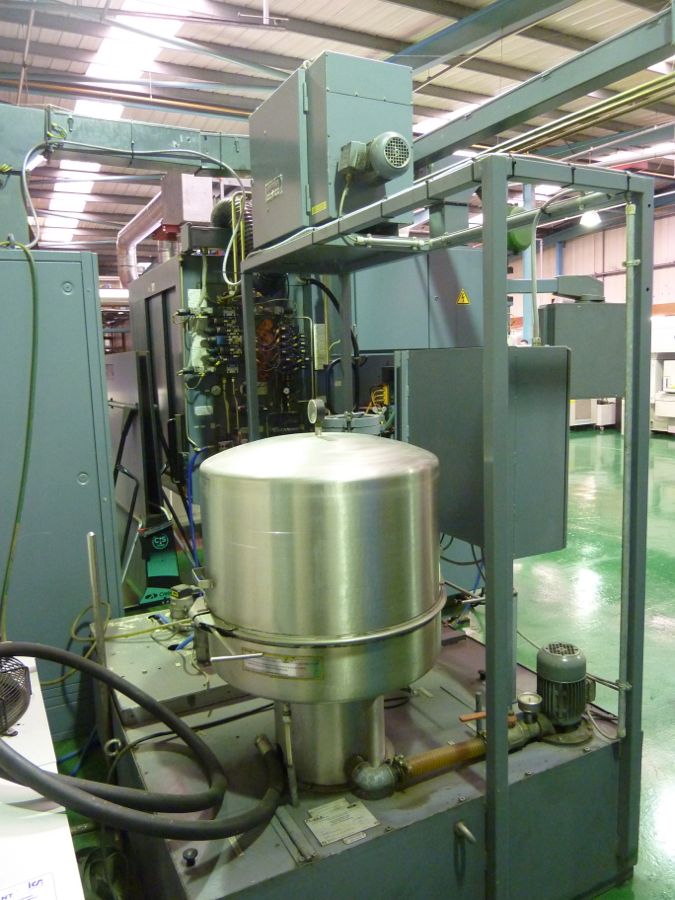

Flushing Agent System
Special Device (Measurement Control)
Special Device (Dressing Tools)
Automatic Dressing Device
Manuals

Dimensions and Weight:
5.0m x 6.2M, 3500kg

Location: Middlesbrough, Cleveland

If you require further information regarding decommission and reinstallation please contact:
Neil Donnelly
HBK Ltd
07899 957417

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
