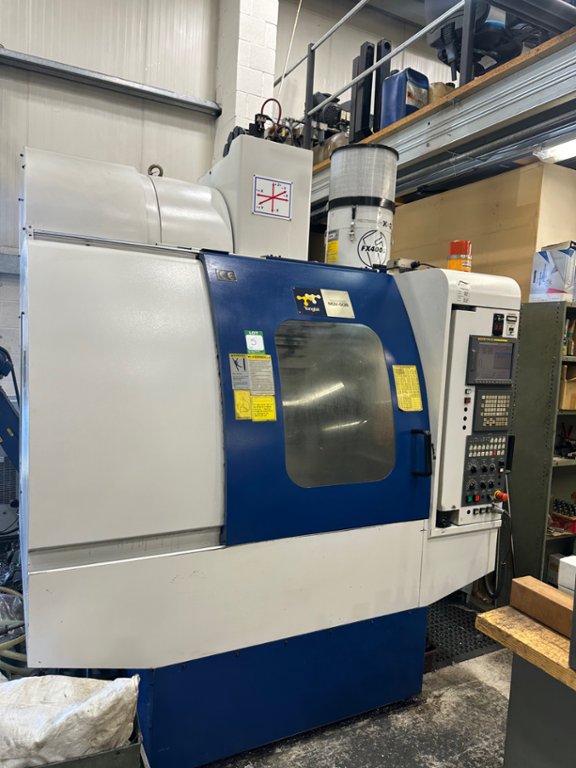

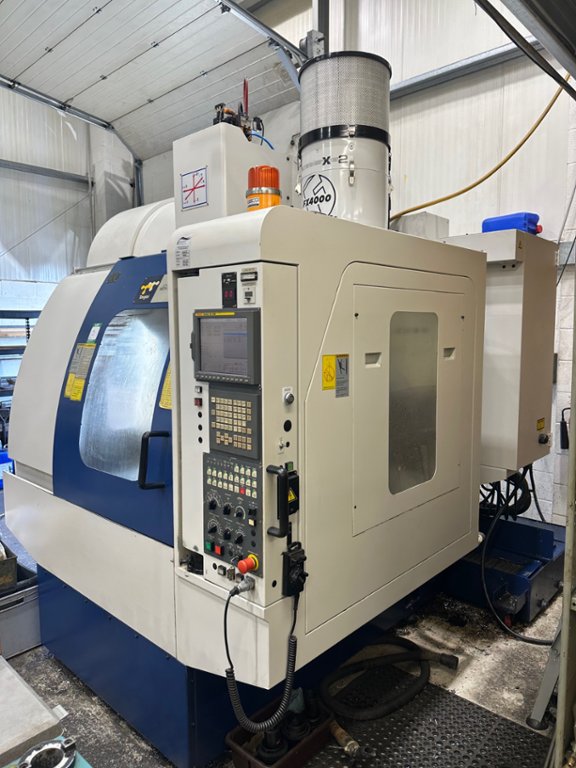

Tongtai MDV-508 CNC Vertical Machining Centre (2007)

Lot 5 - Tongtai MDV-508 CNC Vertical Machining Centre (2007)

Description:

No tooling included

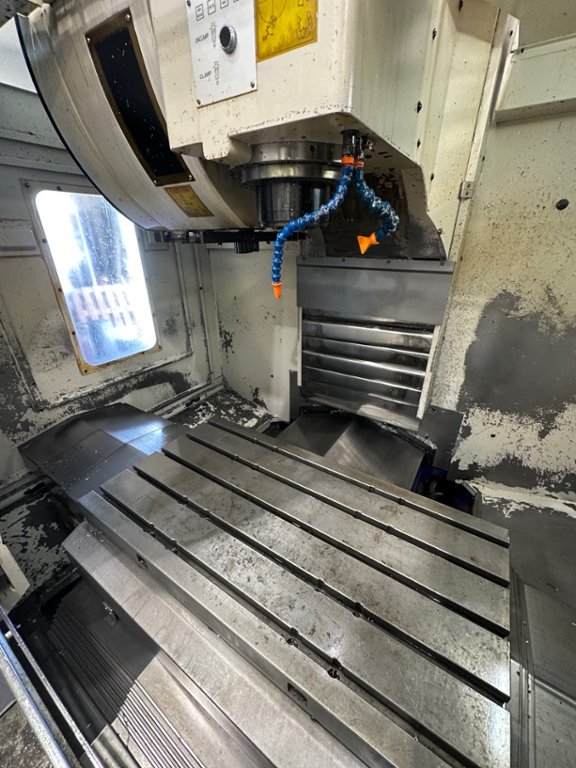

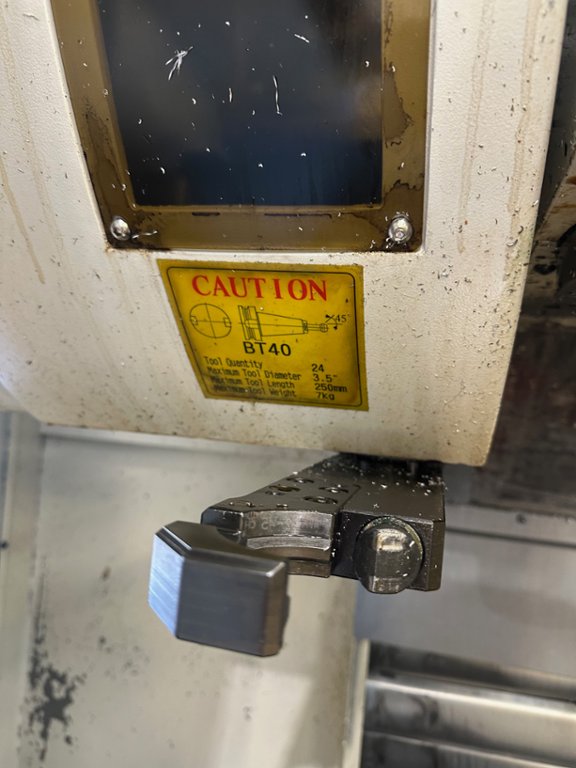

Working area - 950mm - 500mm, Longitudinal Travel X - 850mm, Cross Travel Y - 500mm, Vertical Travel Z - 530mm, Distance between Spindle Table Top - Max - 630mm - Min - 100mm, Max Table Load - 500kg, Table Height - 900mm, Rapid Traverse (X/Y/Z) - X,Y - 24m/min - Z - 24m/min, Cutting Feed - 1 - 1000 mm/min, Spindle Nose - BT40, Spindle Speed - 60-12000 rpm, Spindle Motor - 18.5/22Kw, Tool Capacity - 24, Max Tool Diameter - 88mm, Max Tool Dia x Length - 250mm, Max Tool Weight - 7kg, Tool Holder - BT40

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
