Lot 26 - TOS TRENS SN 710S 2m Gap Lathe
Description:

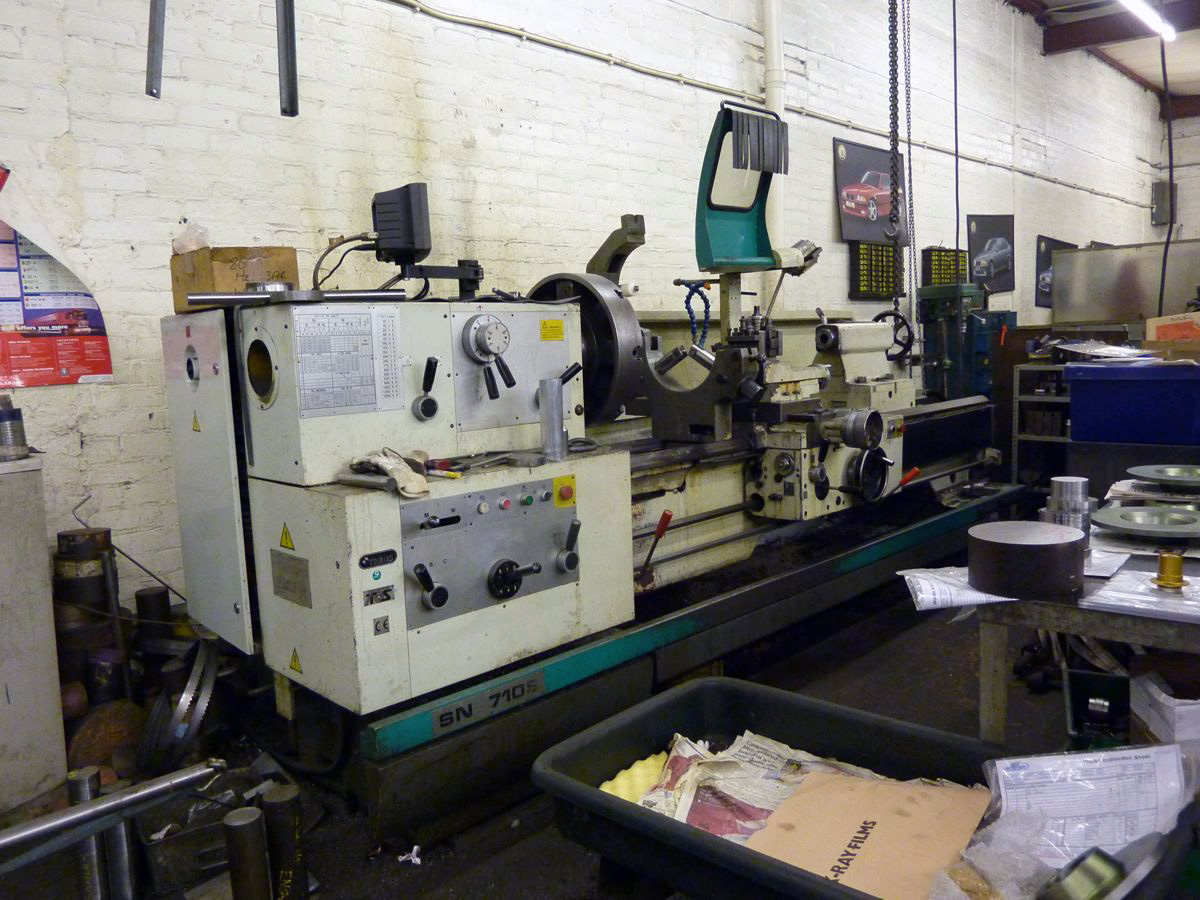

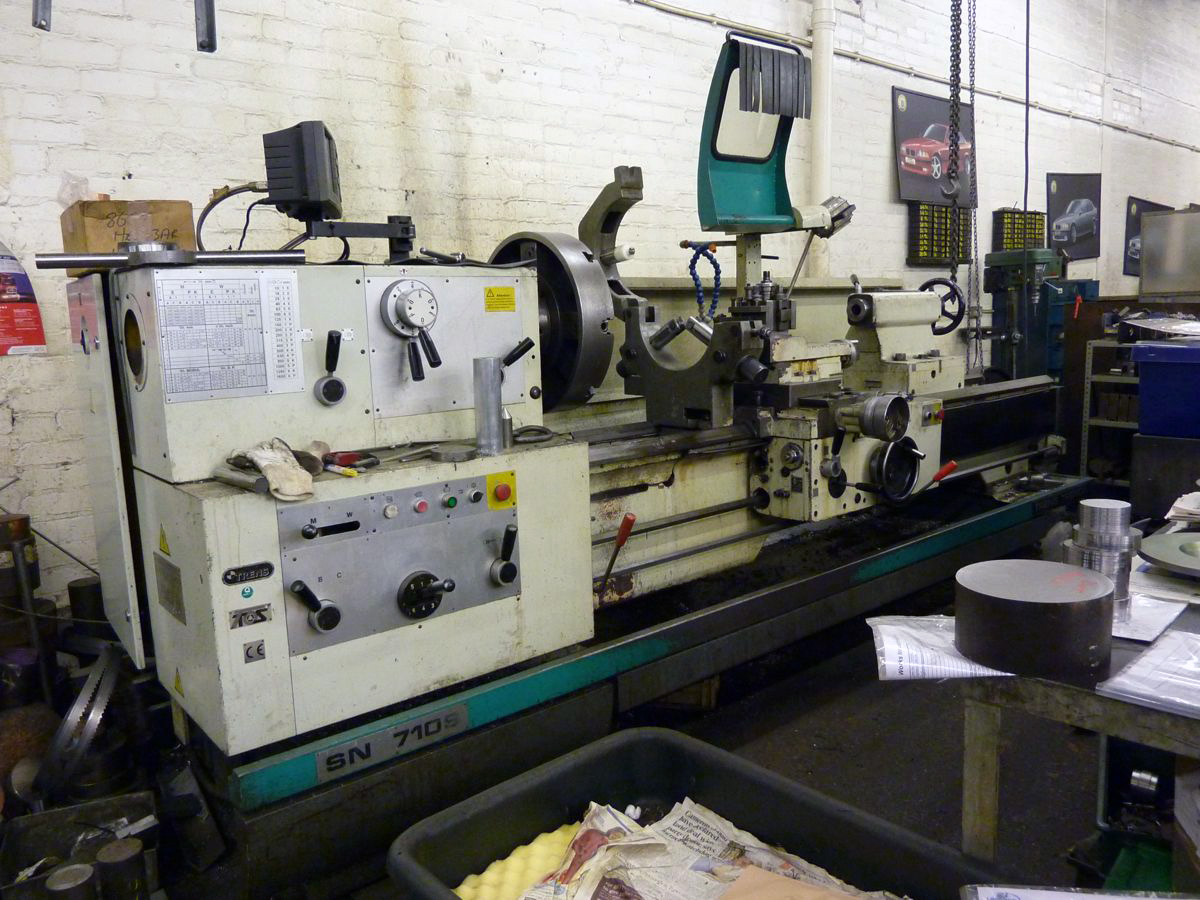

TOS TRENS SN 710S 2m Gap Lathe

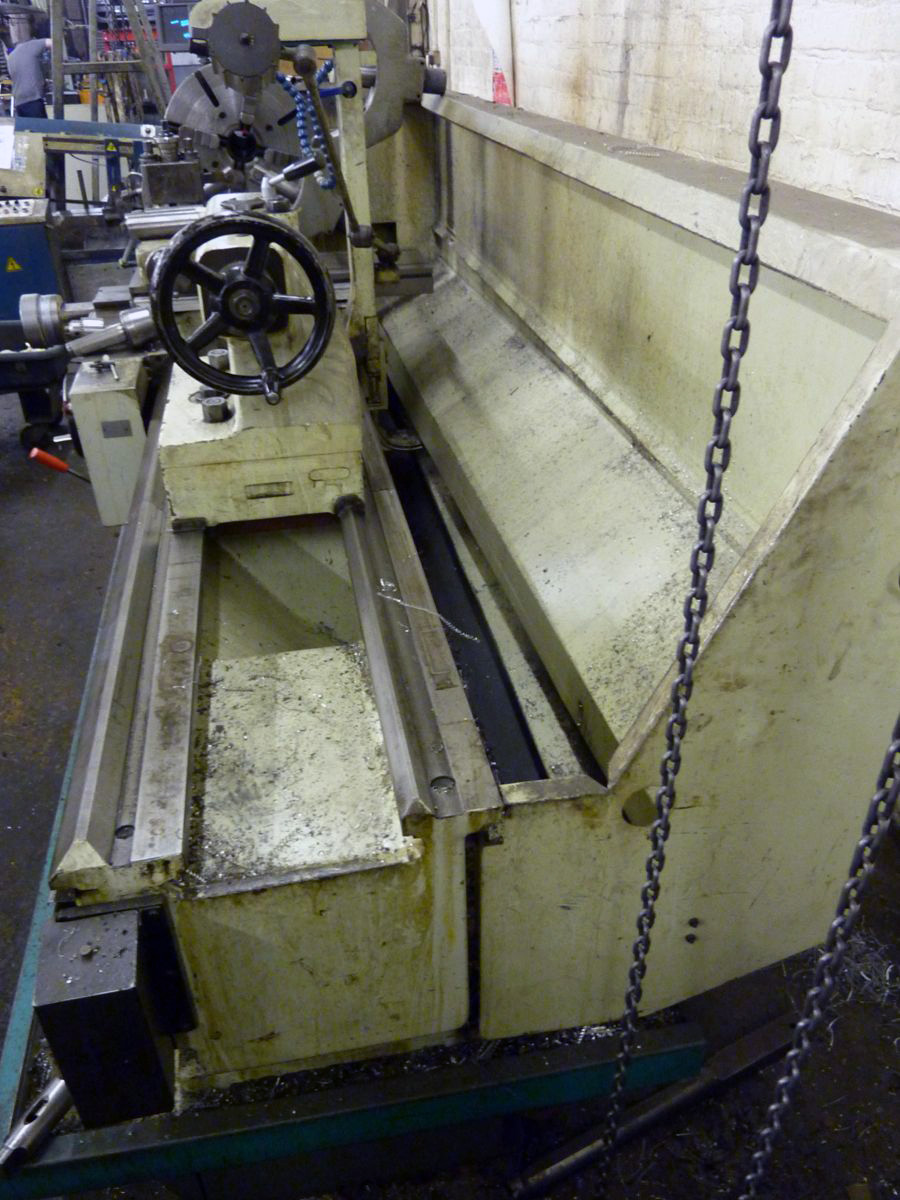

2m bed

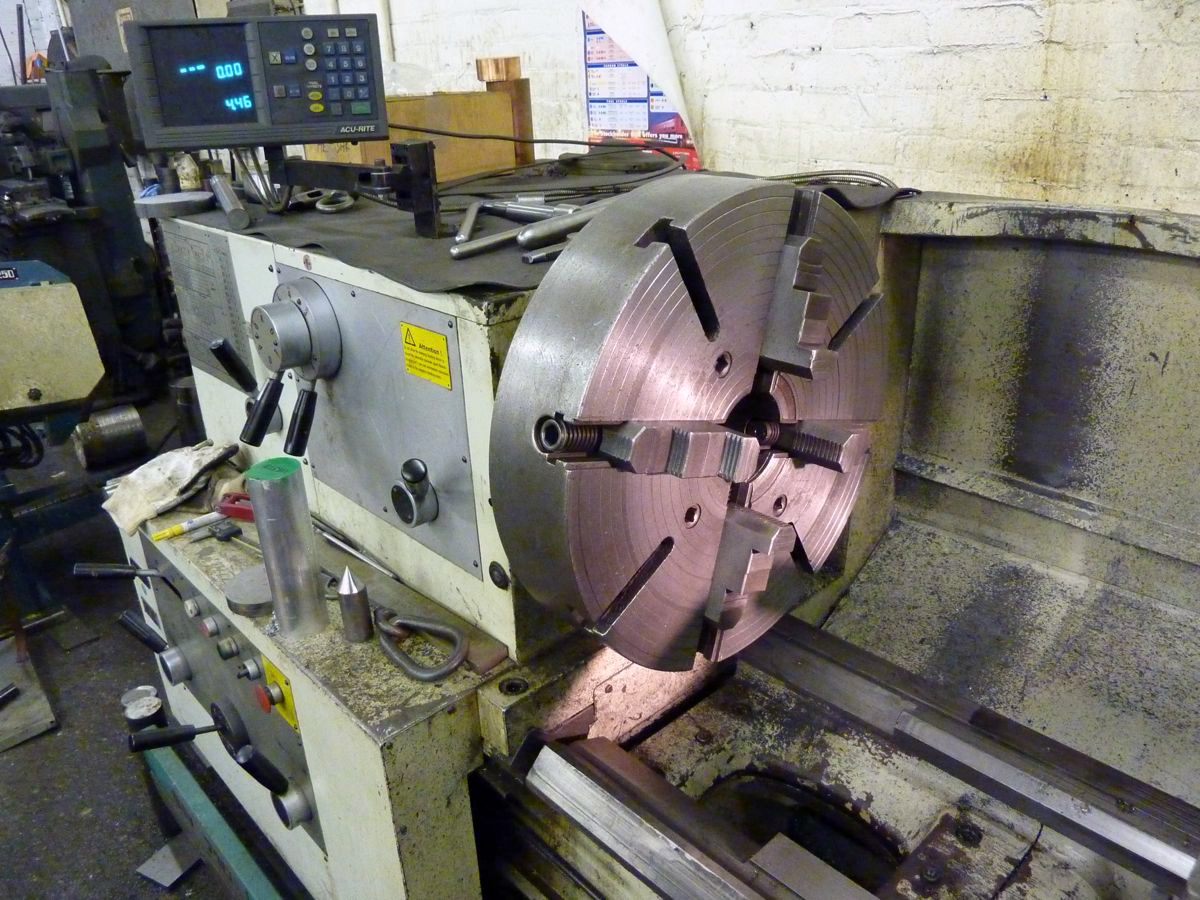

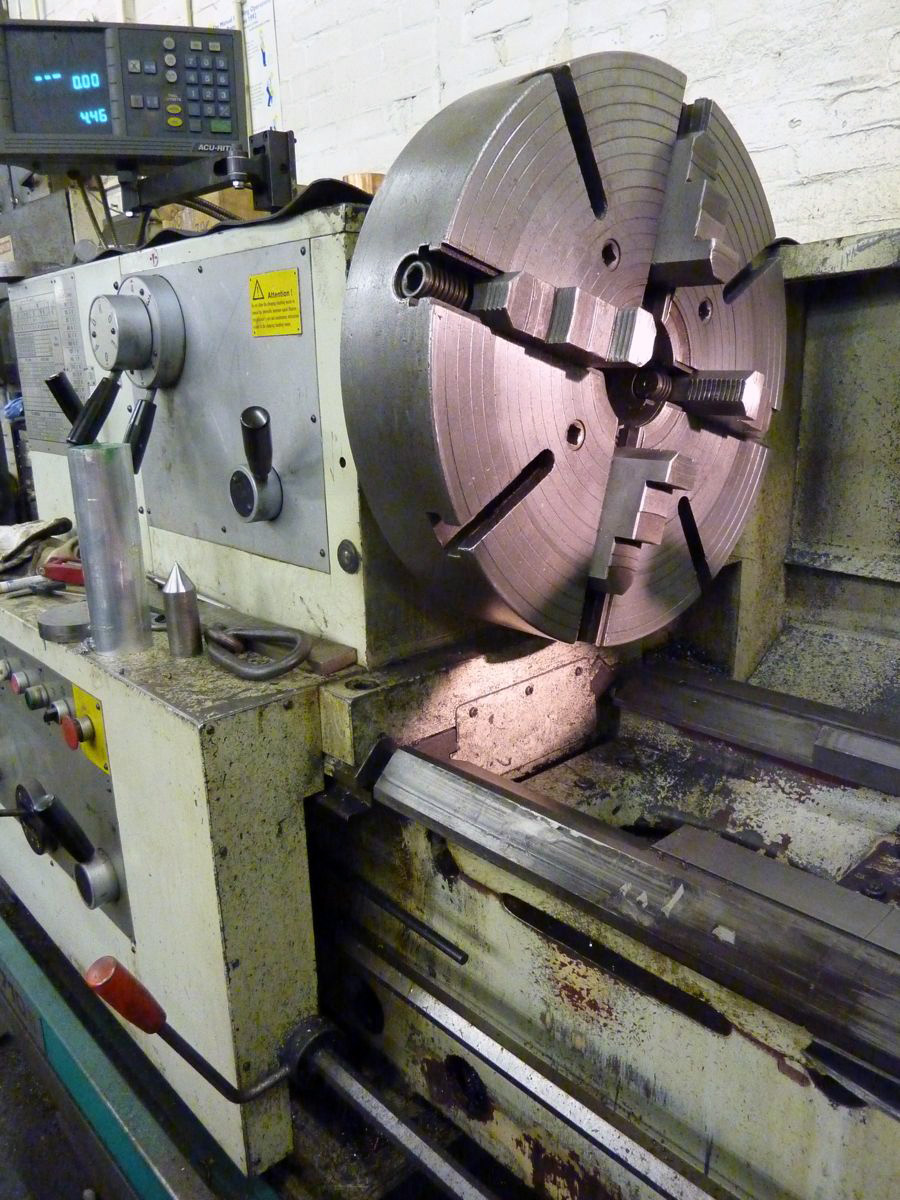

4 jaw chuck

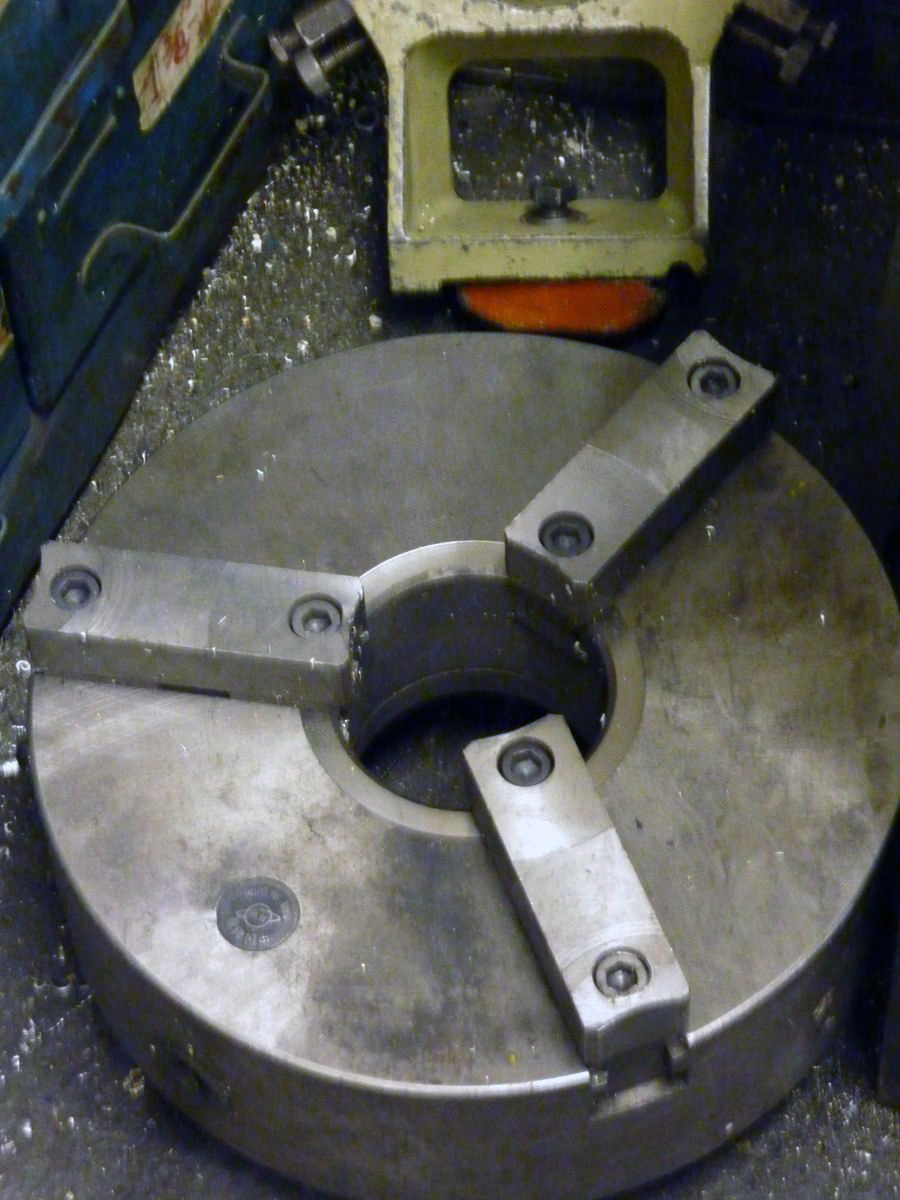

3 jaw chuck
850 mm 4 jaw chuck

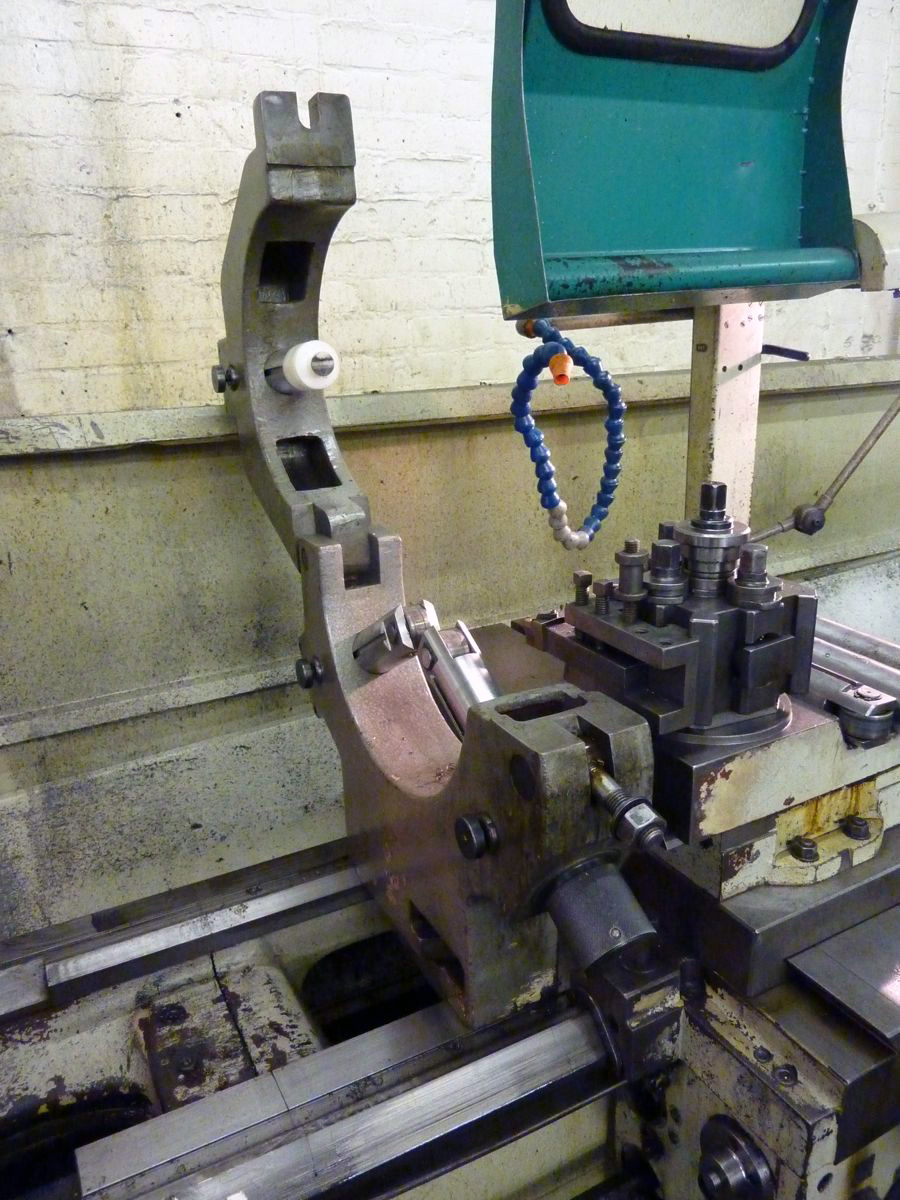

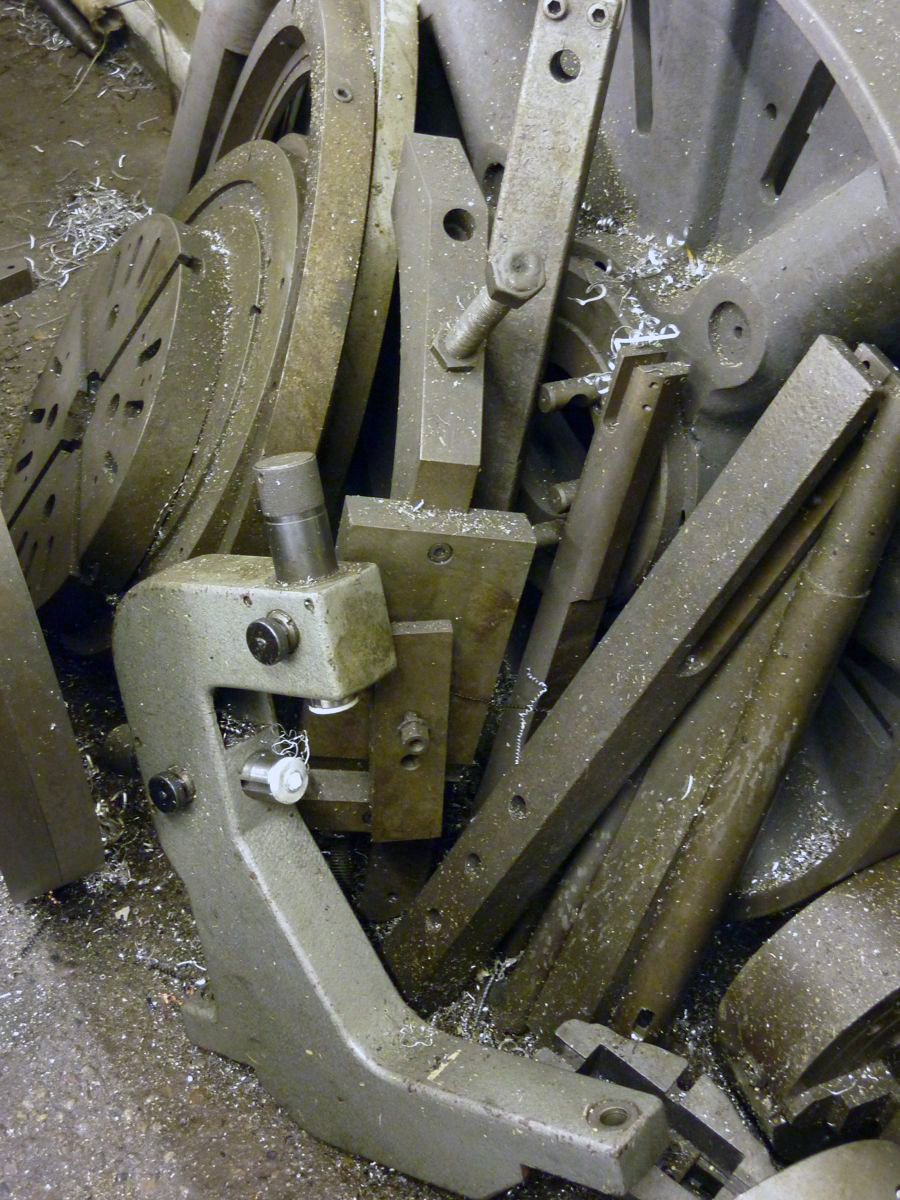

Moving Steady
Fix steady

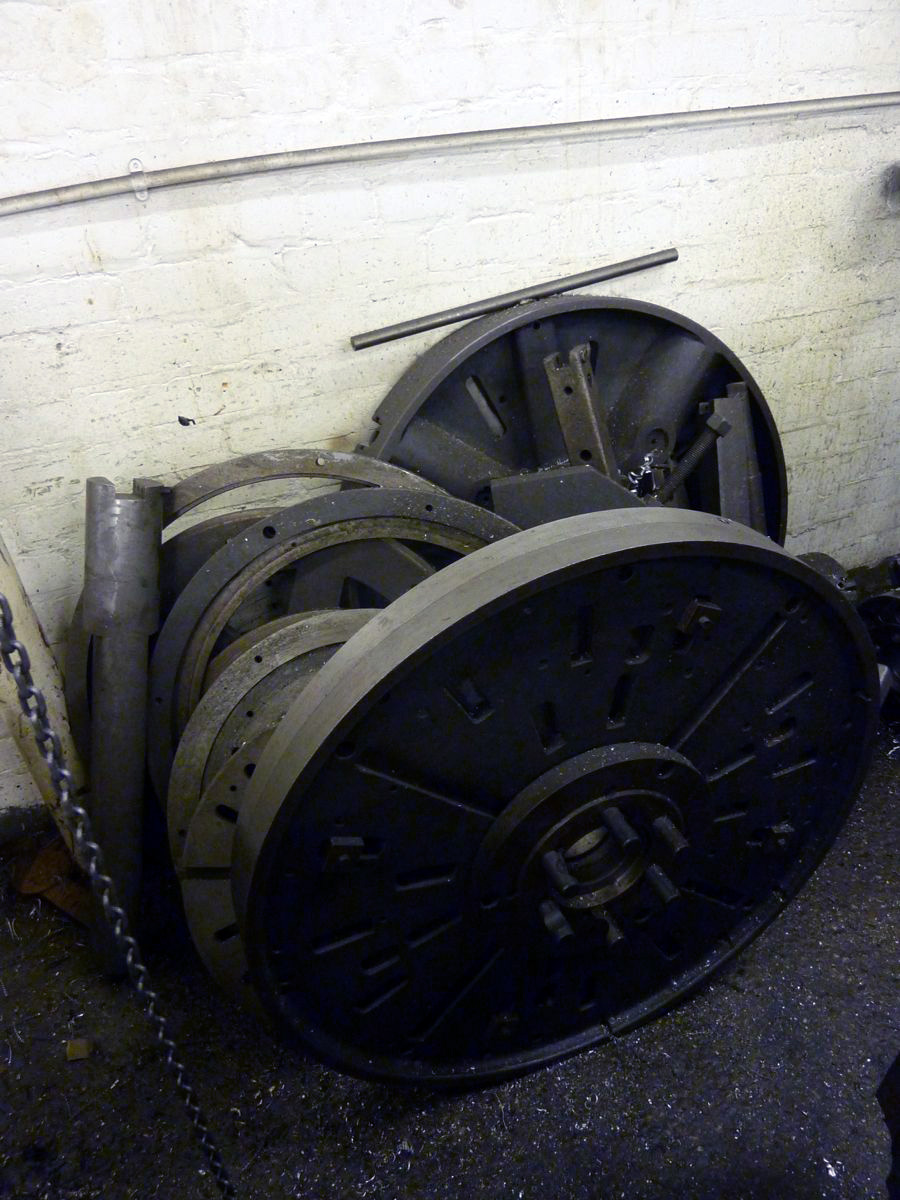

Selection of face plates

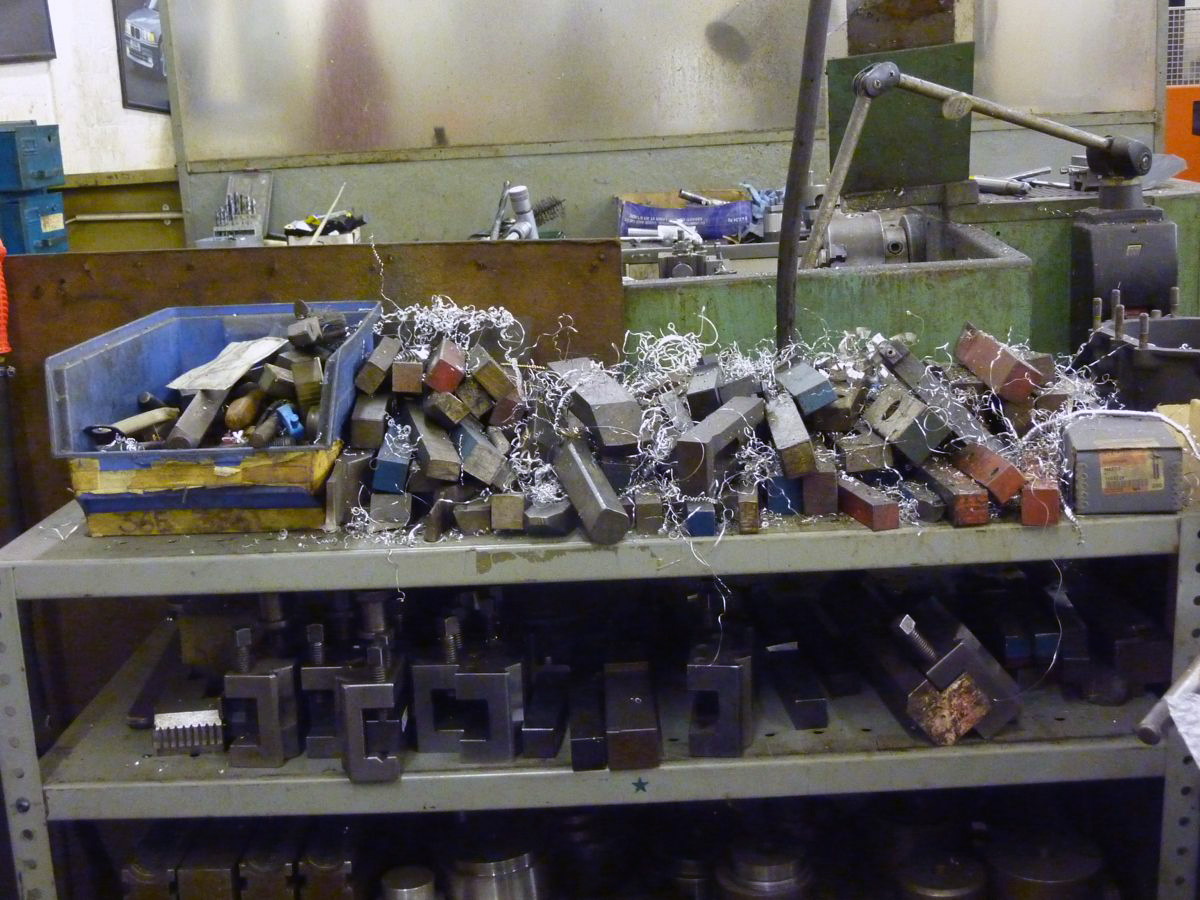

8 of tool post holders
Gap piece

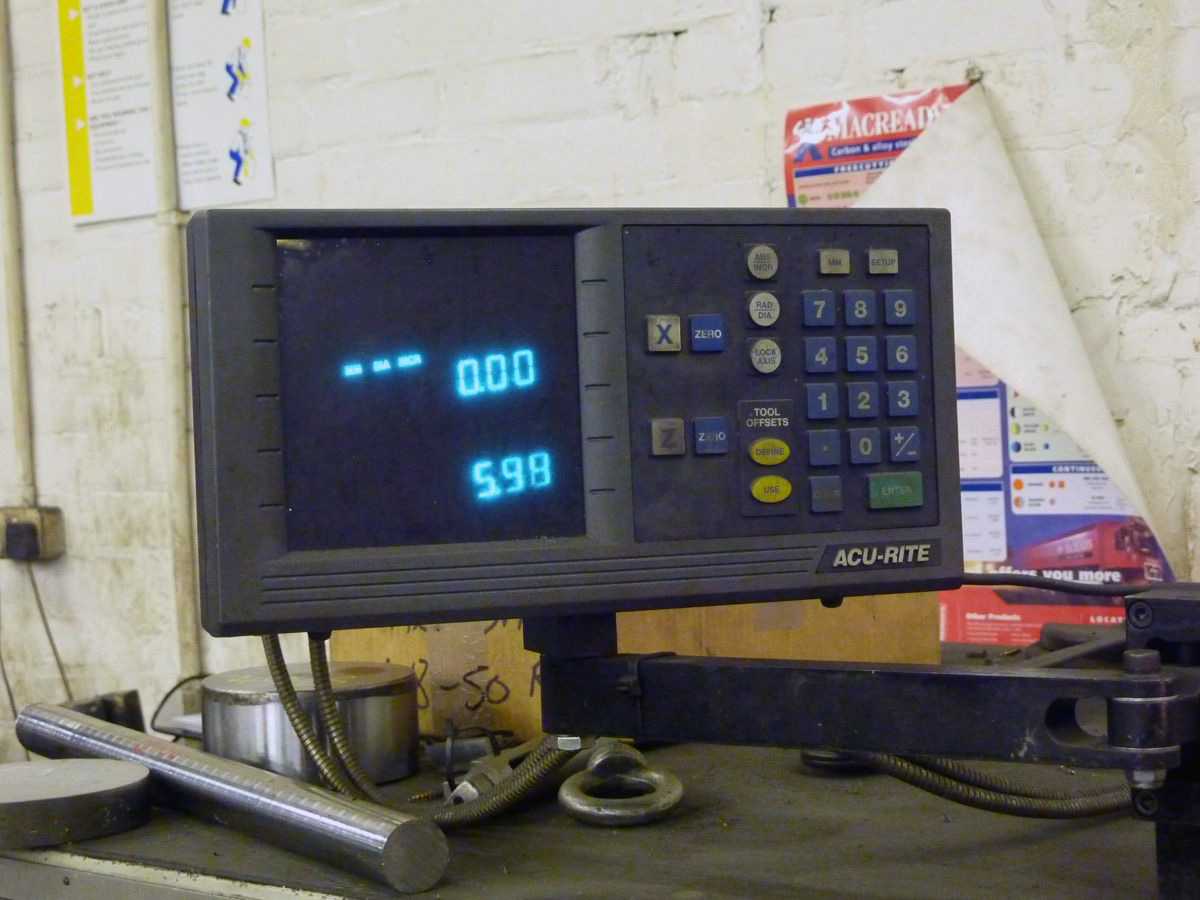

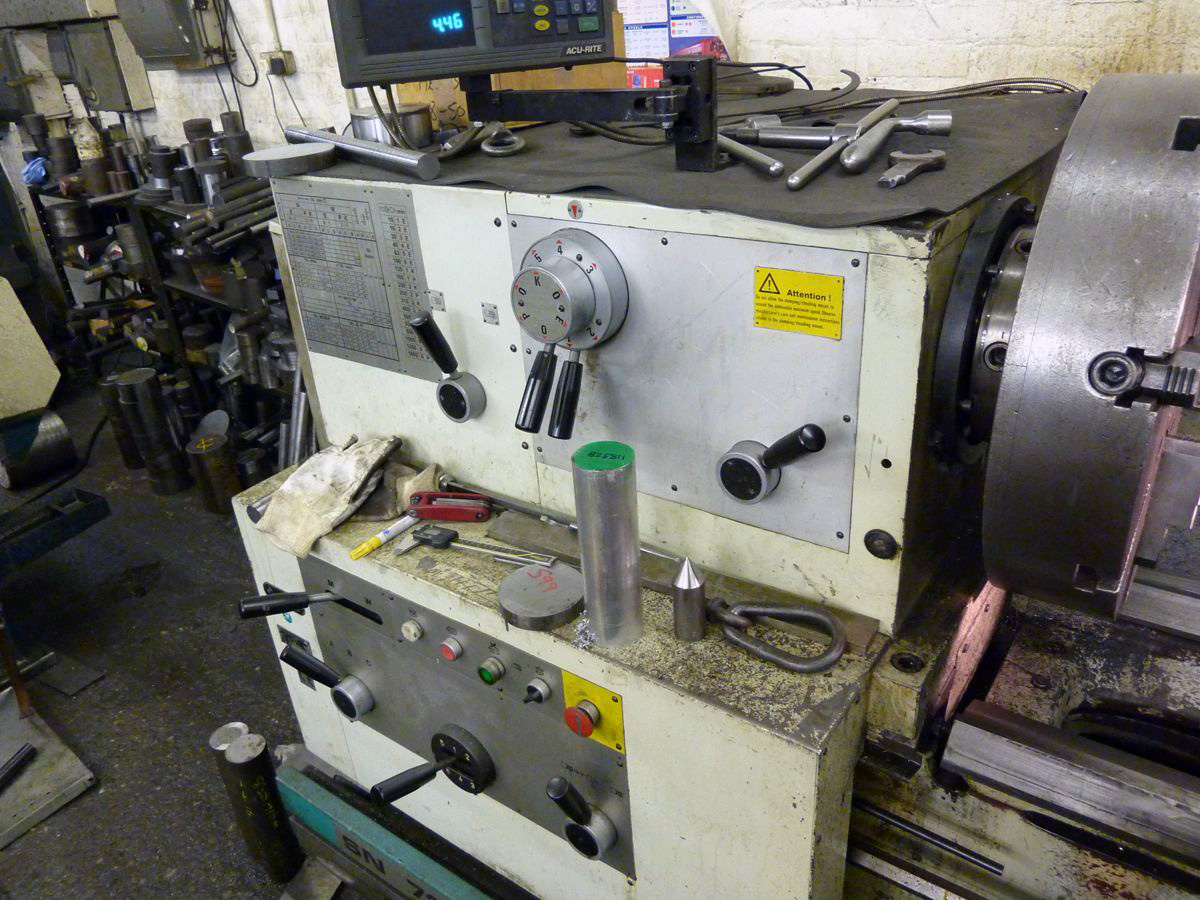

ACU-RITE Digital Readout
Selection of carbide tooling

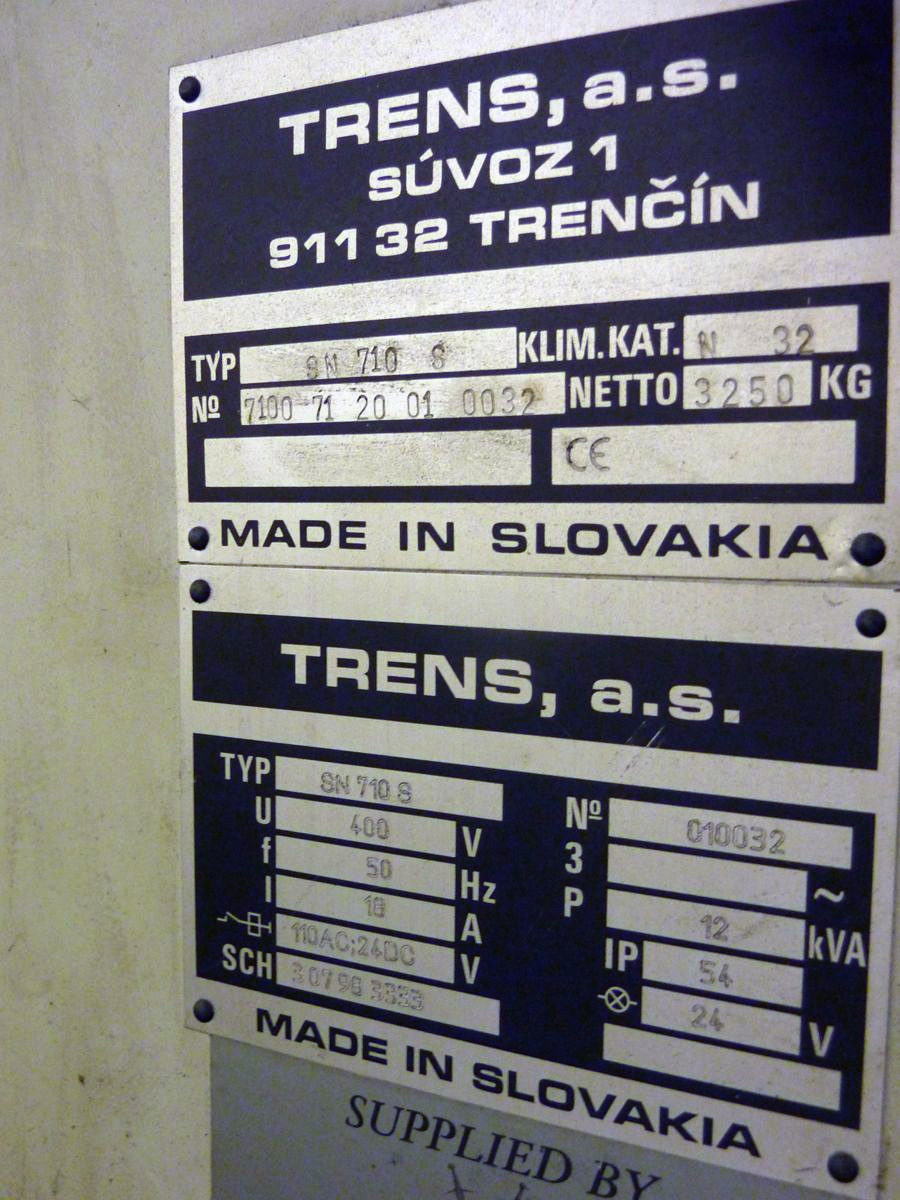

sn 7100 71 20 01 0032
|
SN 710 S is a universal centre lathe with main motor output of up to 11 kW and spindle bore up to 105 mm. Its unique design and high quality guarantee high stability at material machining. Major advantage of this model is an option of design with extended bore and higher power. |
||||||||||||||||||||||||||||
| Technical parametres Working range
Work piece weight
Spindle
* bore 105 mm ** bore 130 mm |
||||||||||||||||||||||||||||

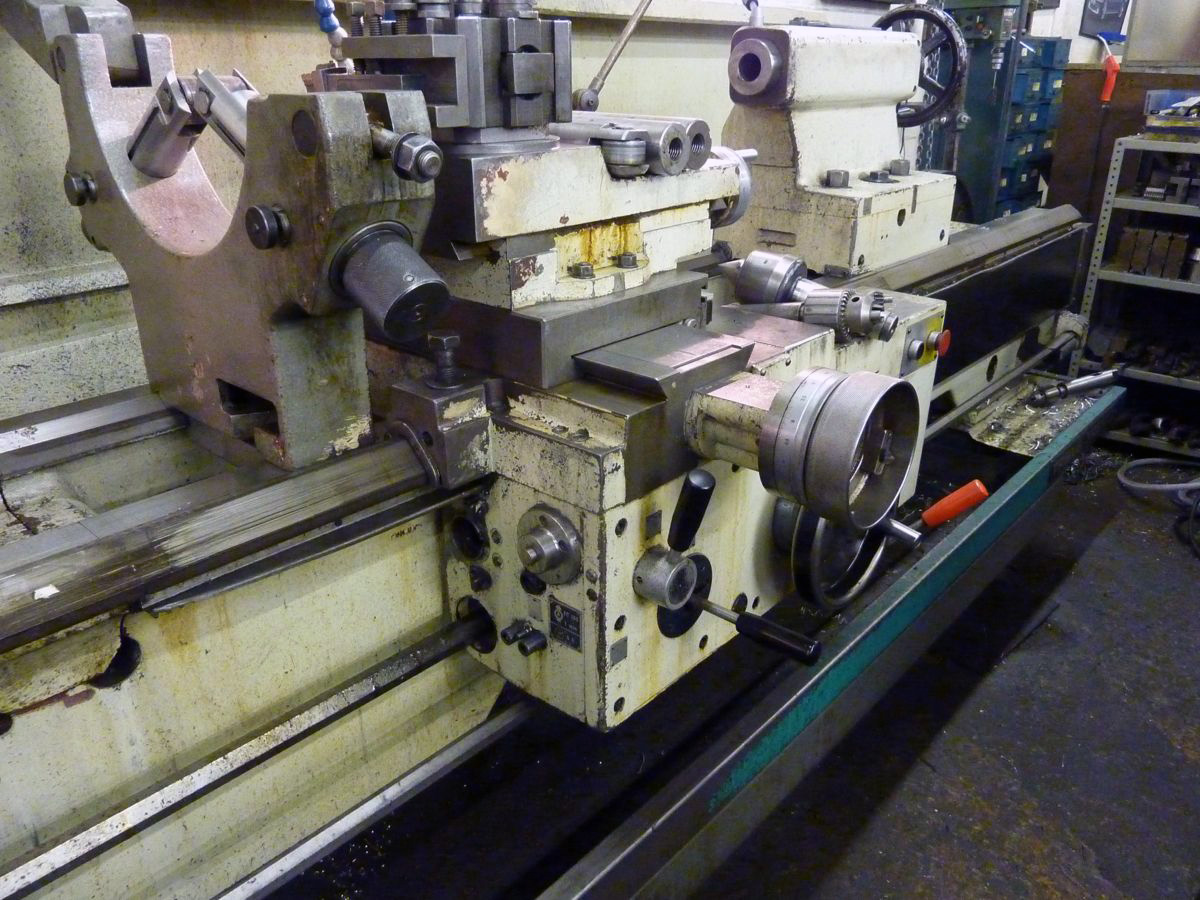

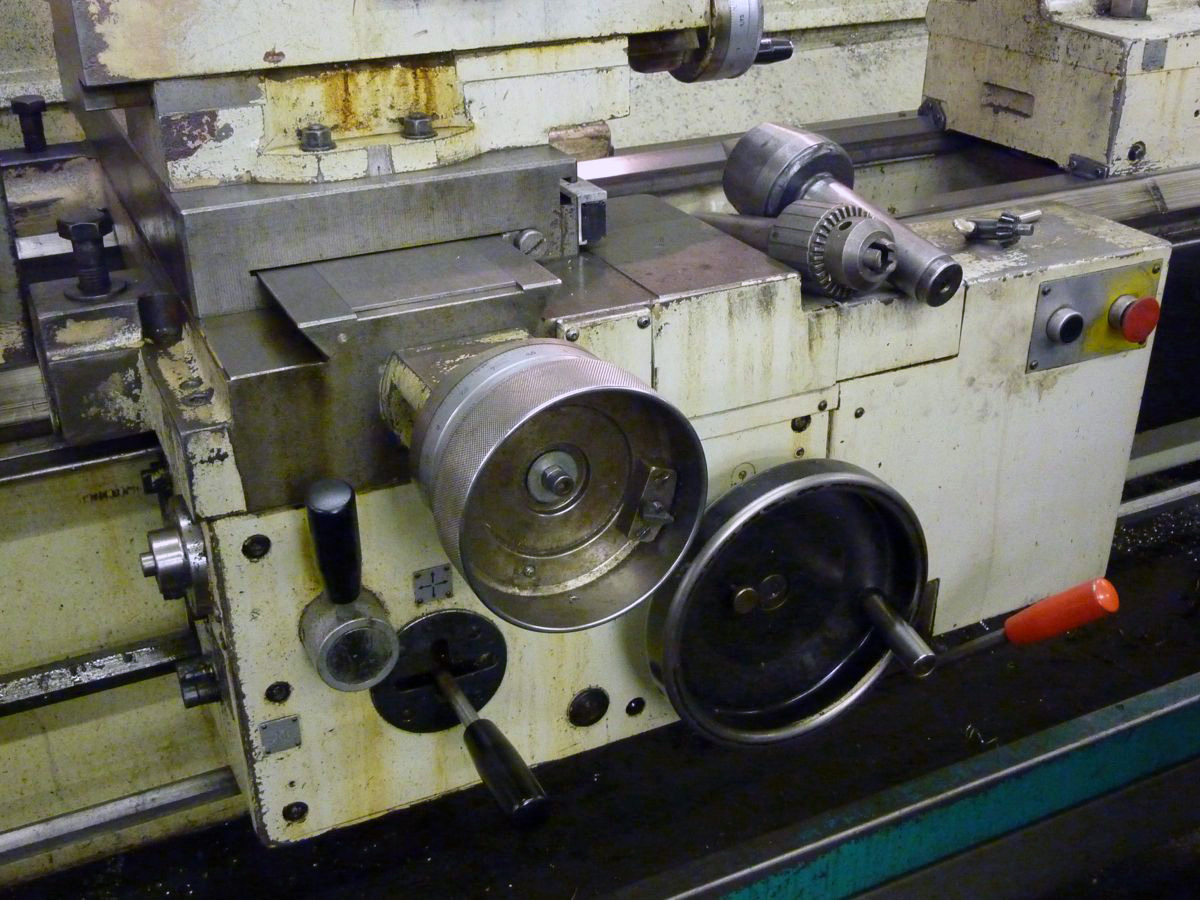

Carriages
| Cross slide working travel | 400 mm |
| Tool slide working travel | 180 mm |
| Max. tool size | 40 x 25 mm |
| Traverse feed number | 38 |
| Working range of longitudinal feed | 0,039 - 4,8 mm.rev -1 |
| Working range of cross feed | 0,0195 - 2,4 mm.rev -1 |
| Longitudinal rapid traverse | 3000 mm.min -1 |
| Cross rapid traverse | 1500 mm.min -1 |

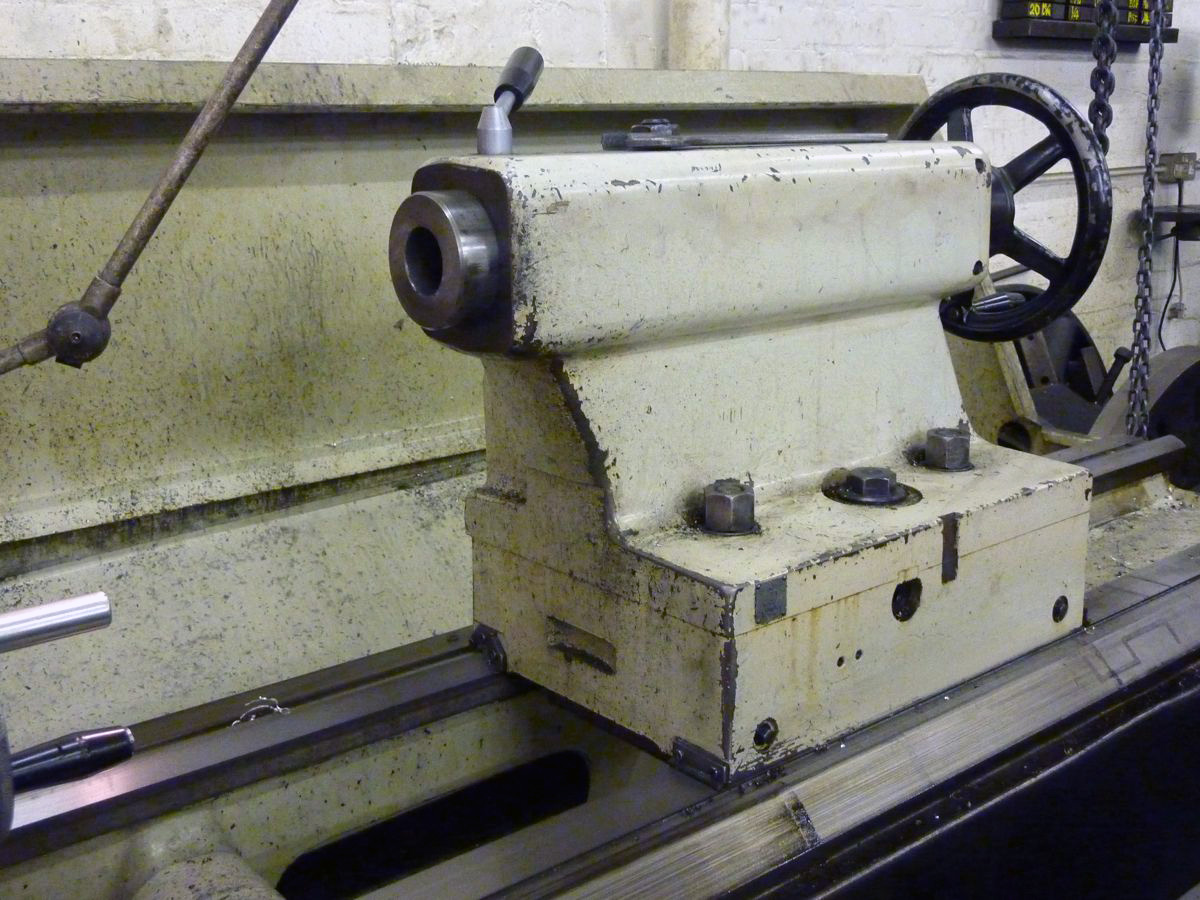

Tailstock
| Tailstock sleeve diameter | 100 mm |
| Tailstock sleeve travel | 240 mm |
| Tailstock sleeve internal taper | MORSE 6 |
| Cross resetting | ±10 mm |
Threads
| Metric threads | - number | 29 |
| - range | 0,5 - 40 mm | |
| Whitworth threads | - number | 38 |
| - range | 1 - 80 threads./1" | |
| Modular threads | - number | 26 |
| - range | 0,25 - 20 mm | |
| Thread Diametral Pitch | - number | 31 |
| - number of DP thread | 2 - 72 |
Power drives
| Total power input | 9,2 kVA |
| Supply voltage | 3 x 400 V ± 10% |
| Motor output: | |
| - main drive | 7,5 kW |
| - coolant pump | 0,09 kW |
| - rapid traverse | 0,94 kW |
Dimensions
| Width x Height | 1275x1635 mm |
| Length for DBC 2000 | 4015 mm |
Weight
| Length for DBC, 2000, | 3250 kg |

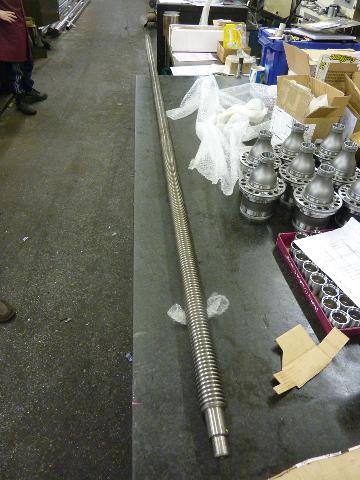

The Lead Screw, was removed from machine to be checked after been knocked, and will be refitted and fully working before the machine leaves site.
Location: Solihull
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
