Lot 1 - TRUMPF Trumatic LY 2500 Laser system
Description:

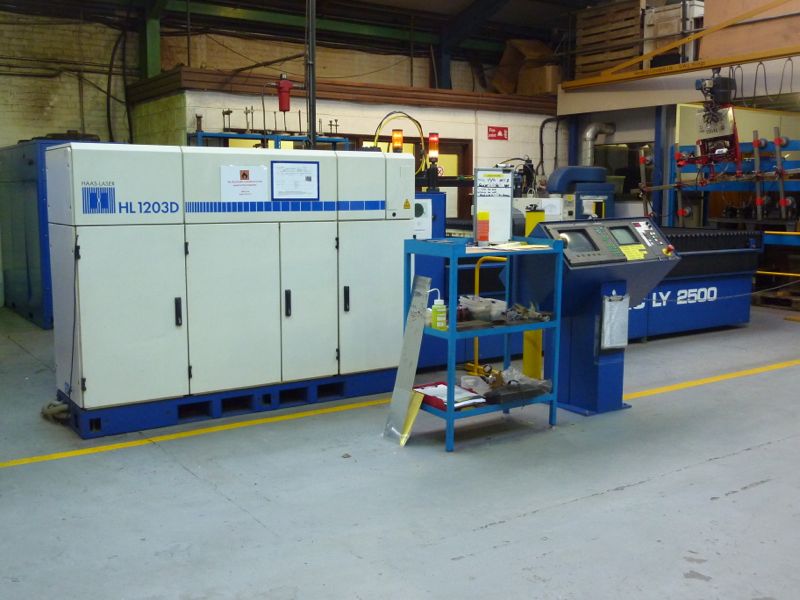

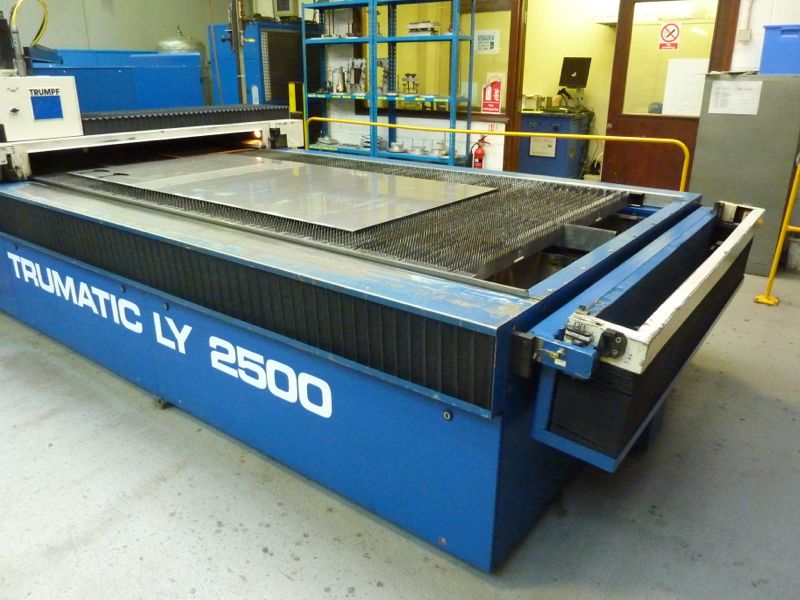

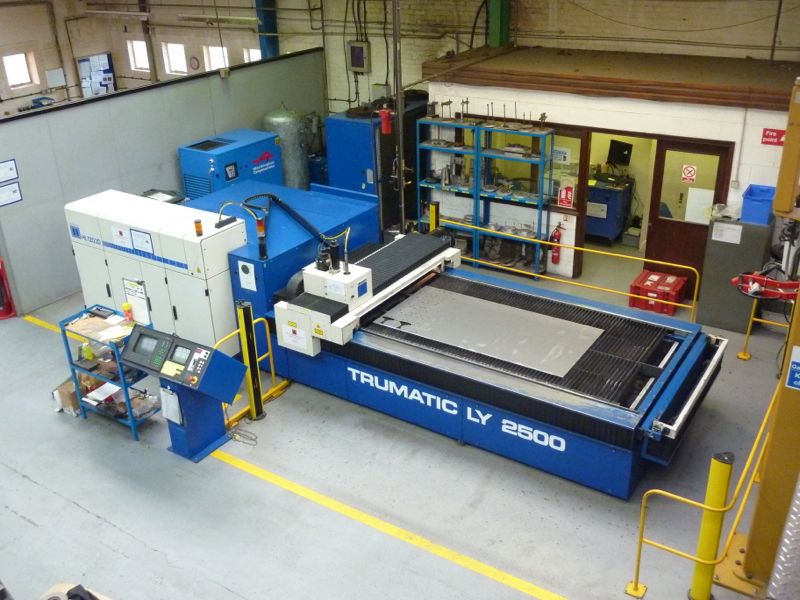

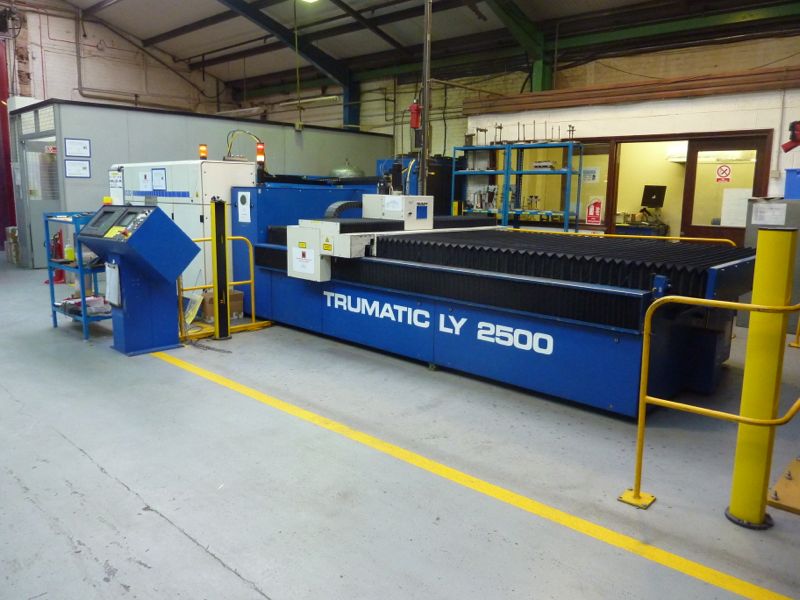

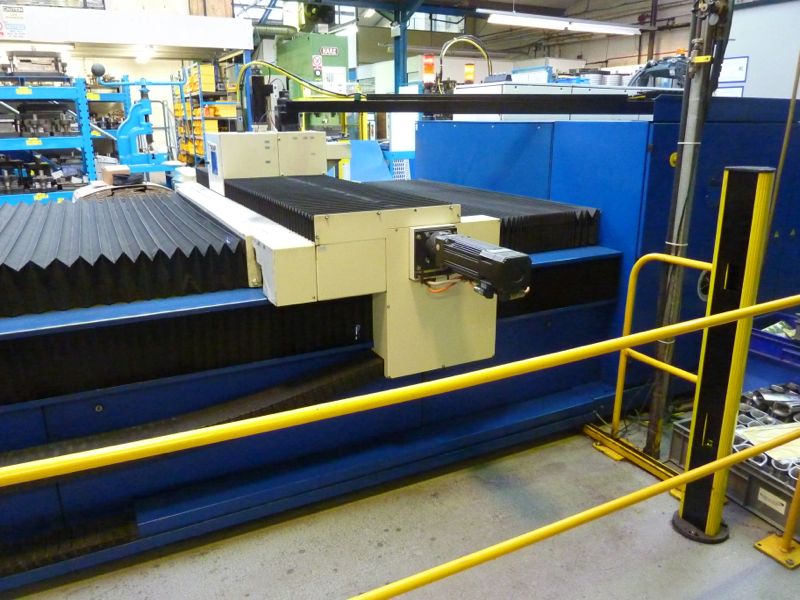

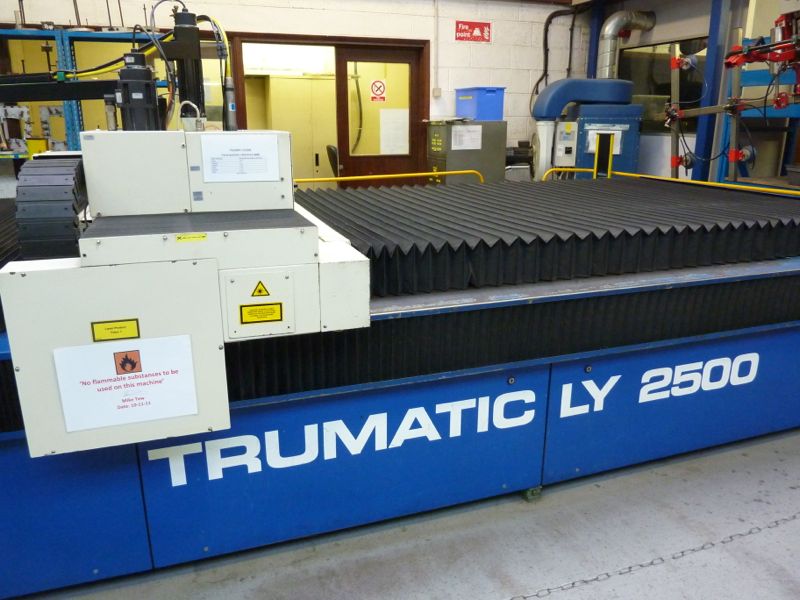

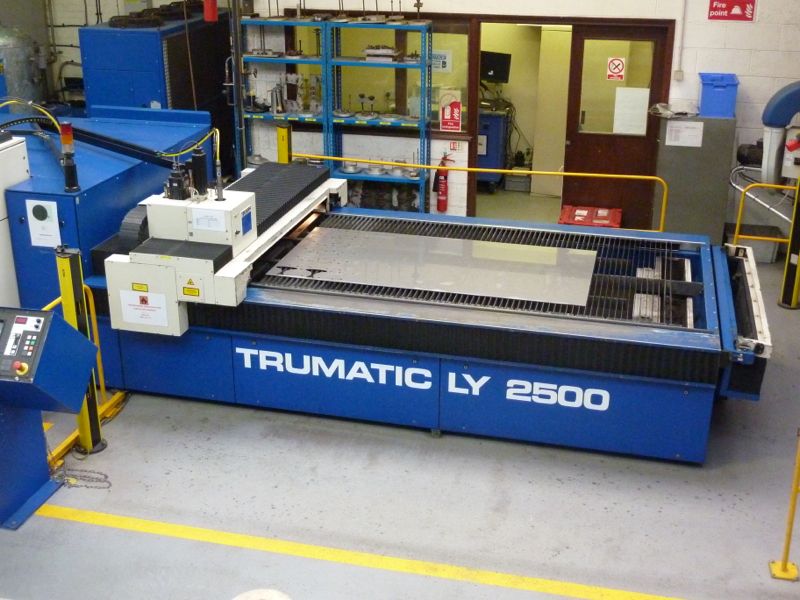

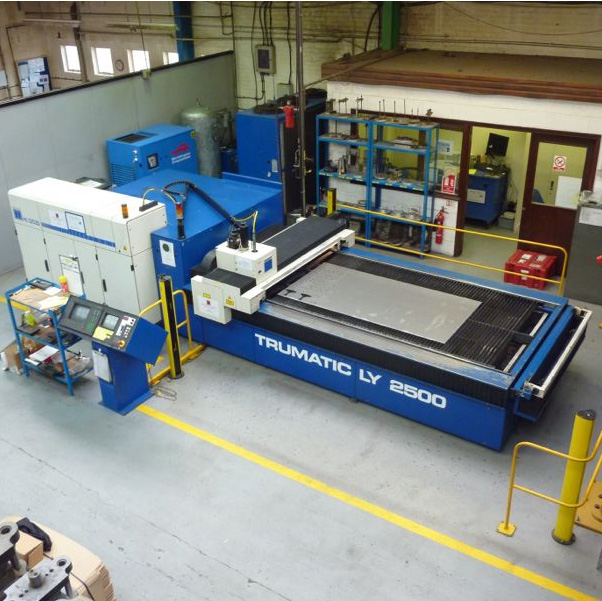

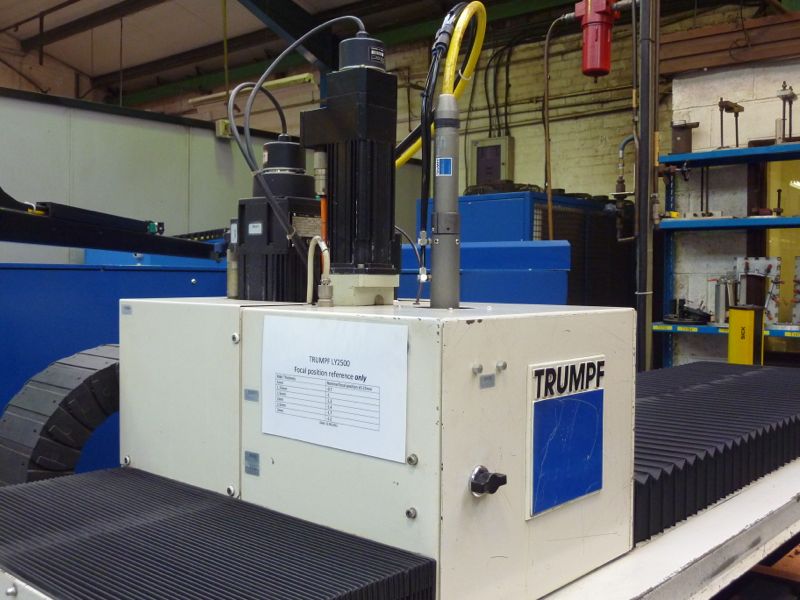

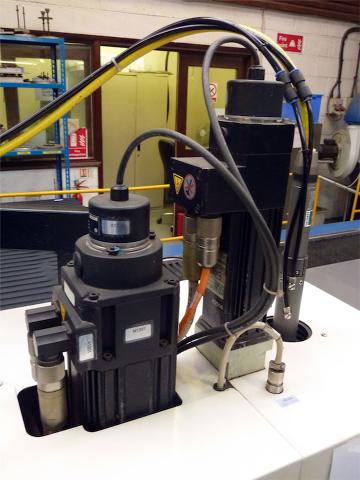

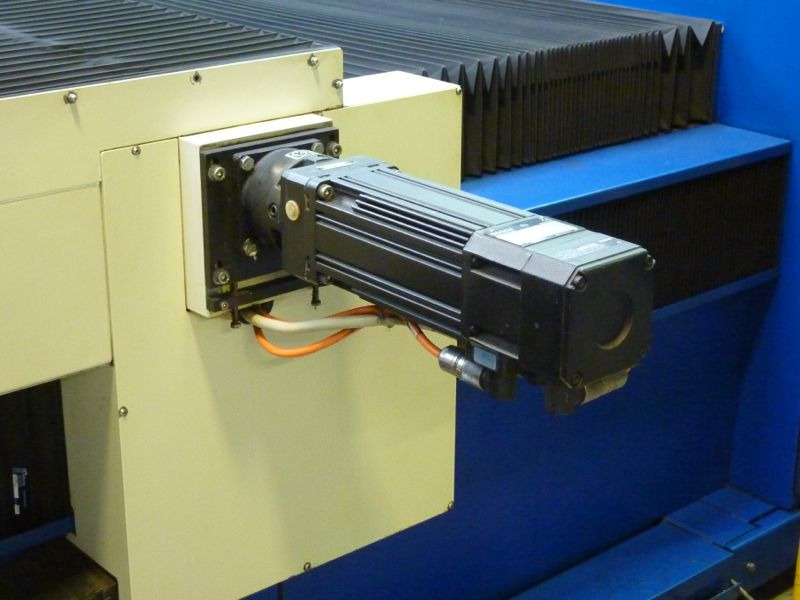

TRUMPF Trumatic LY 2500 CNC Laser

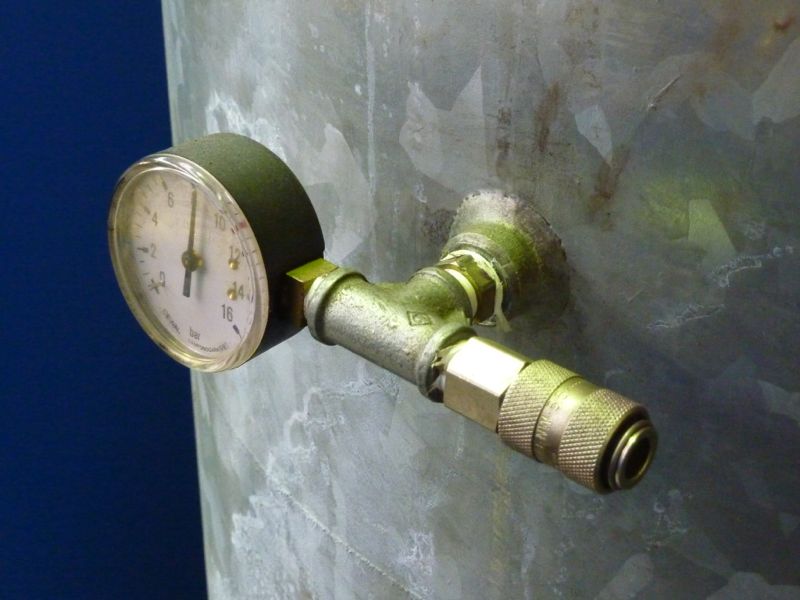

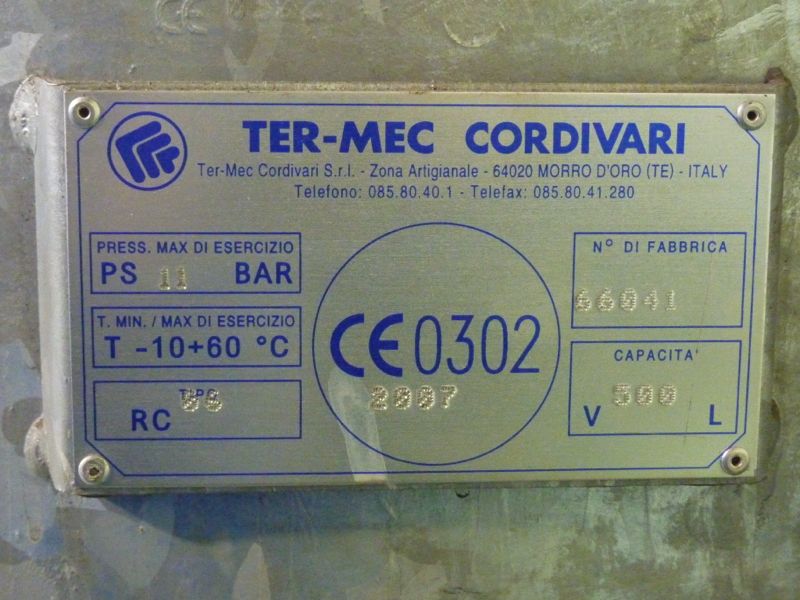

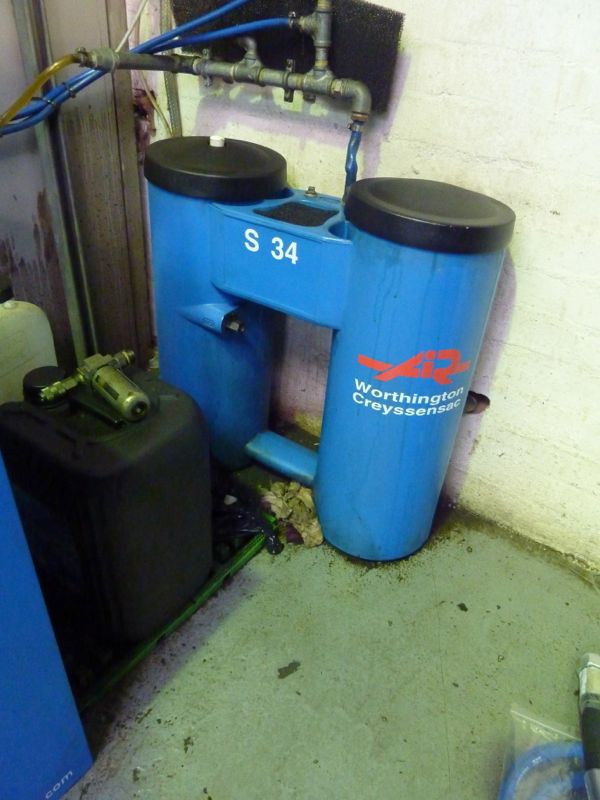

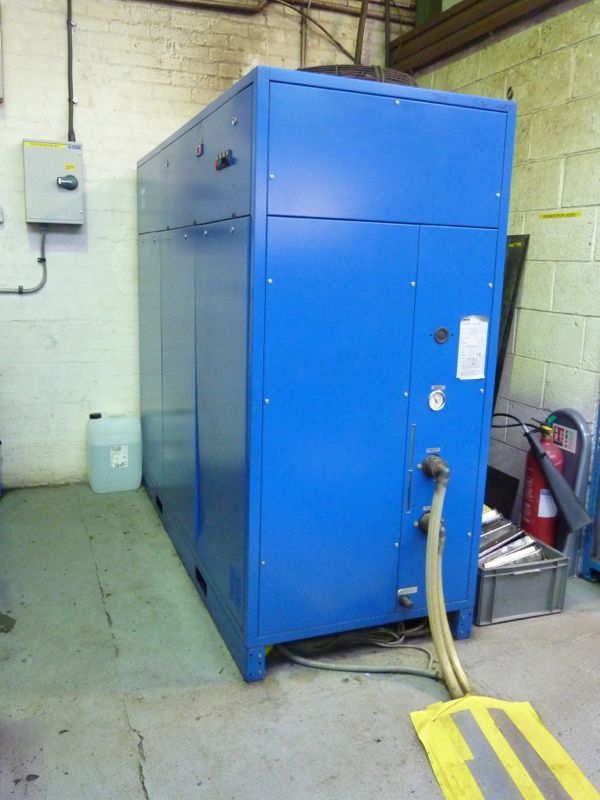

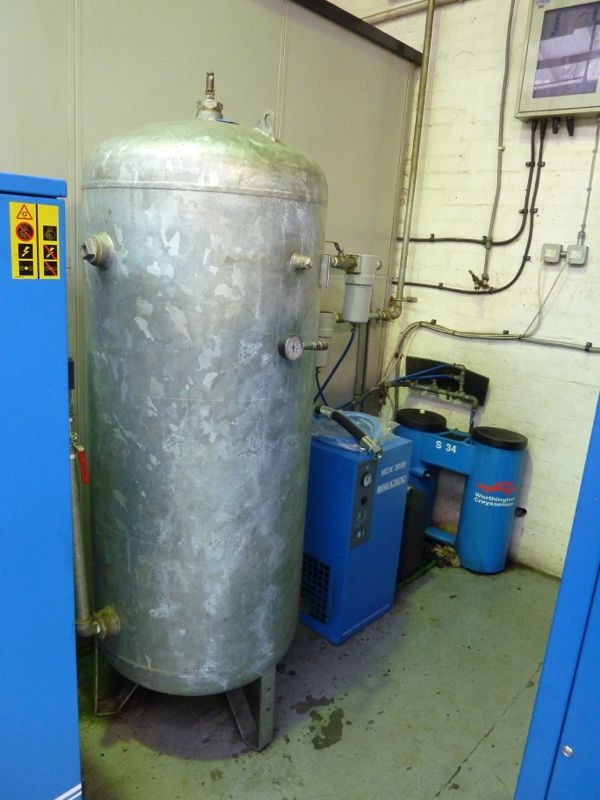

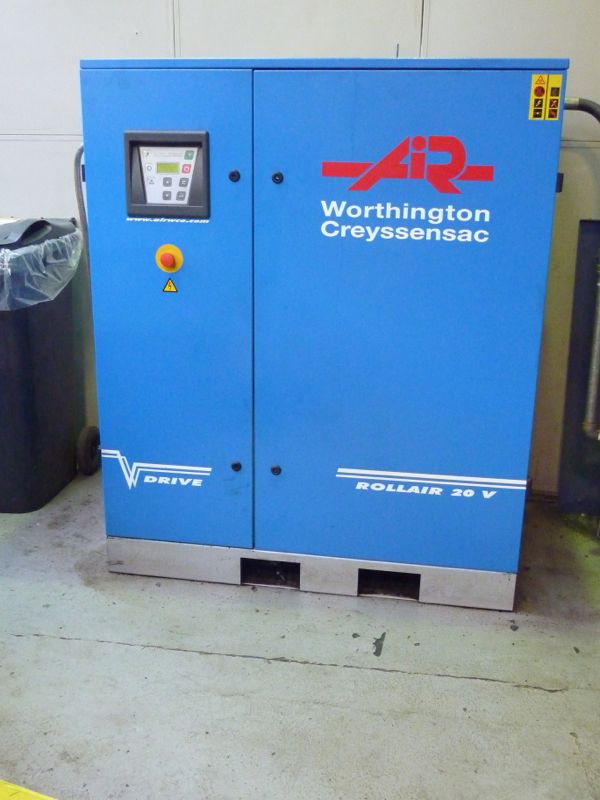

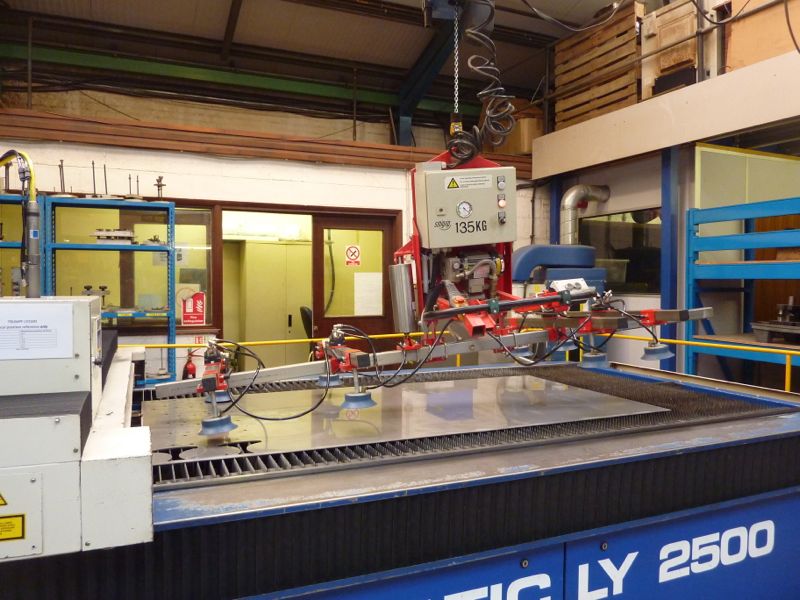

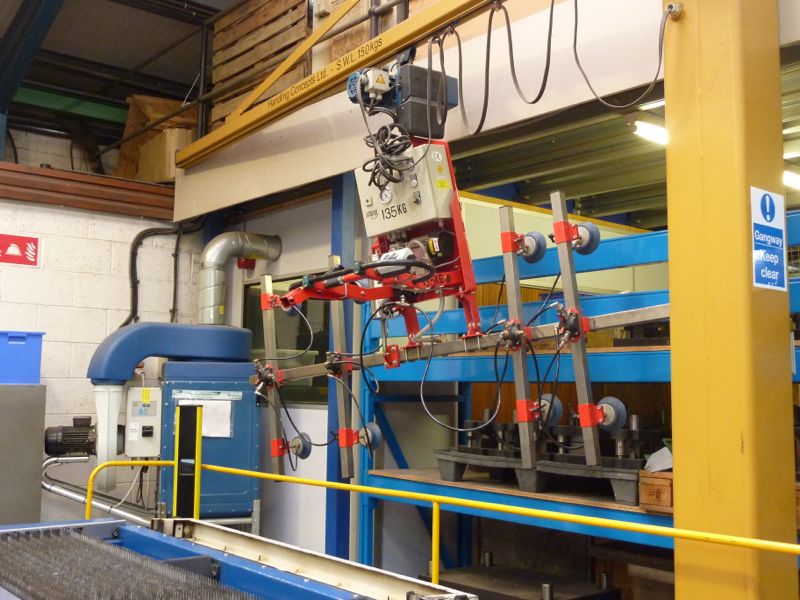

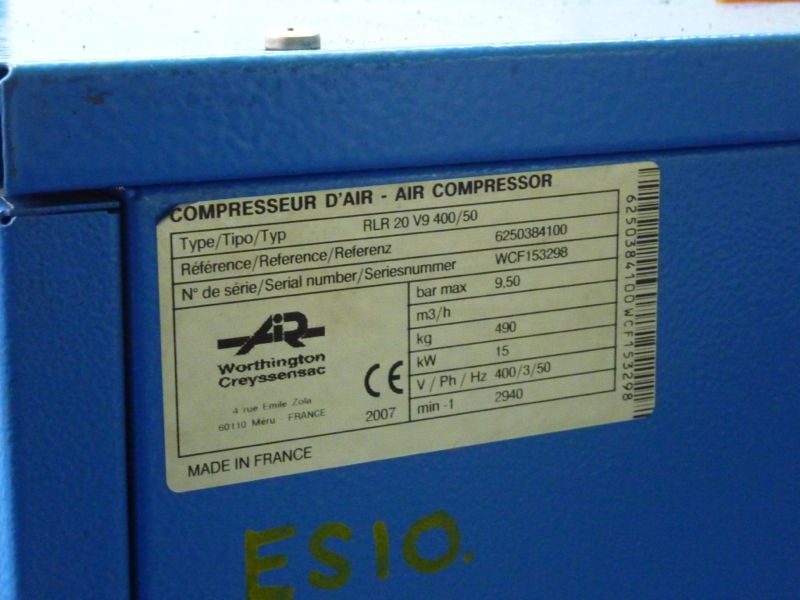

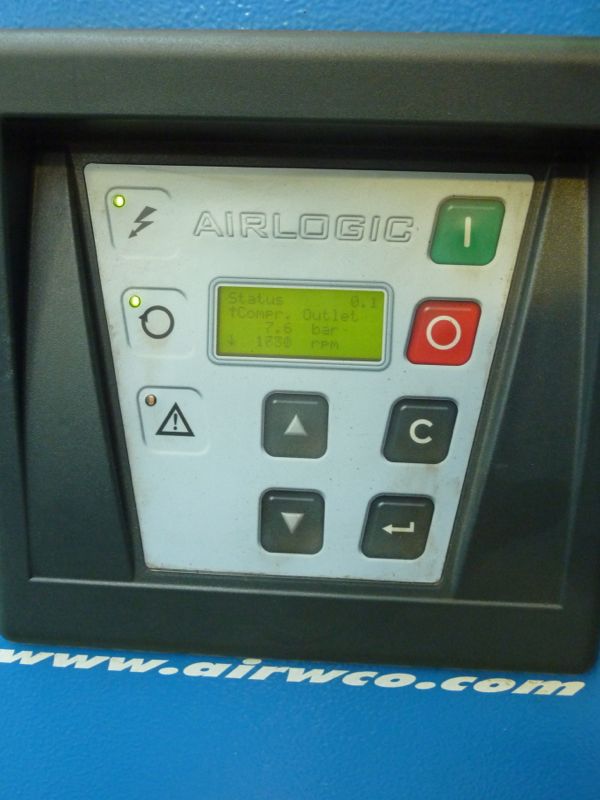

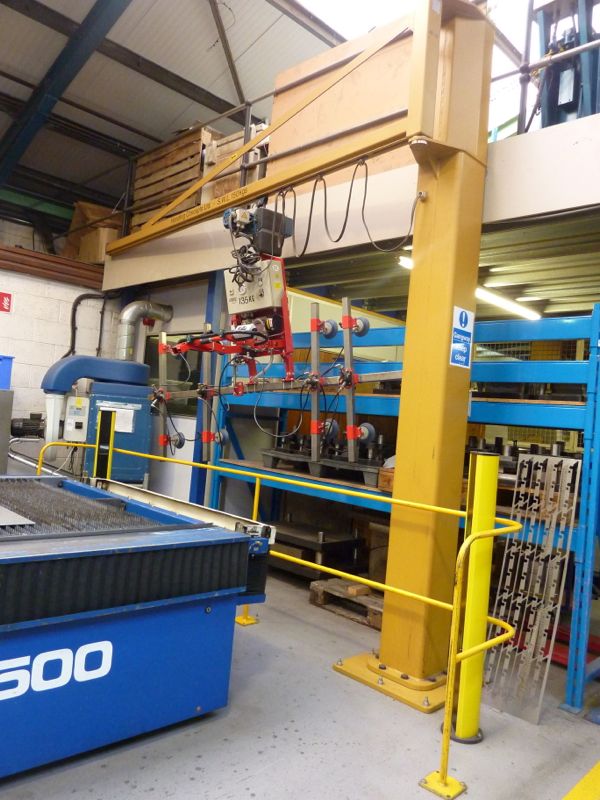

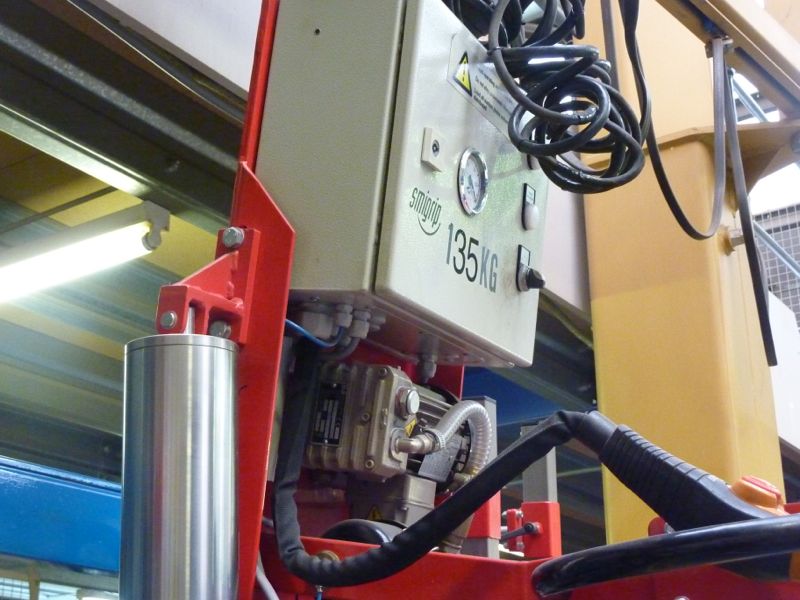

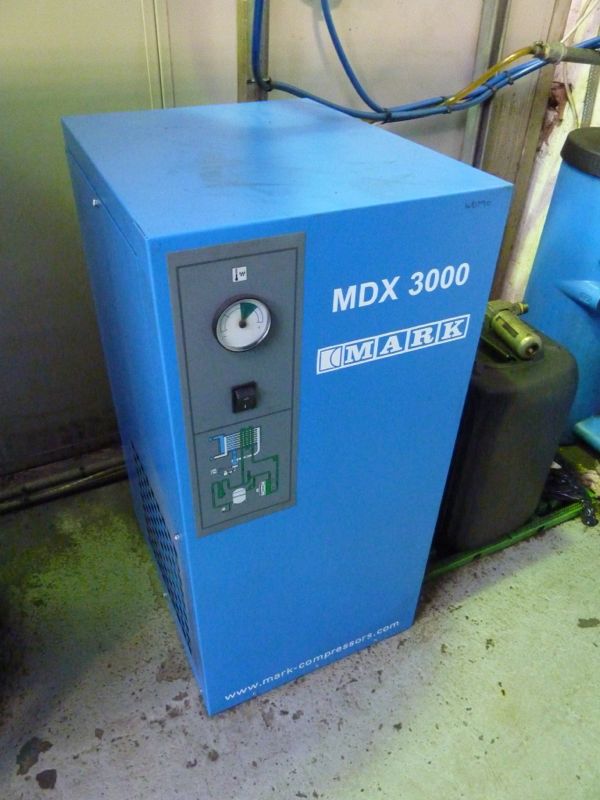

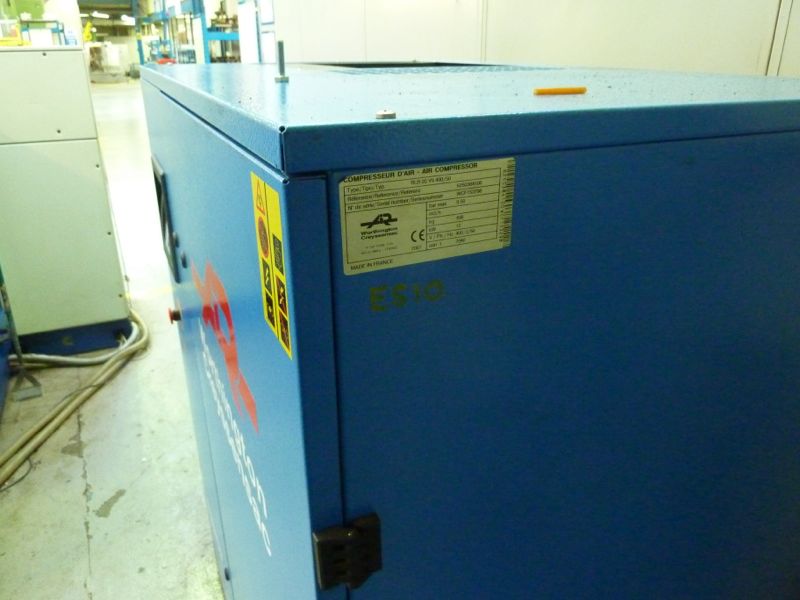

Including Compressors and Loading system.
Year of manufacture: 1999

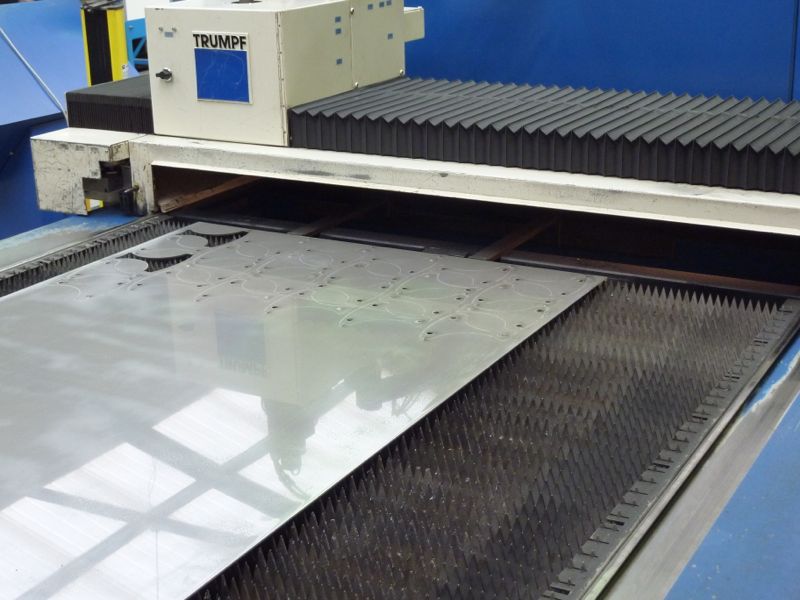

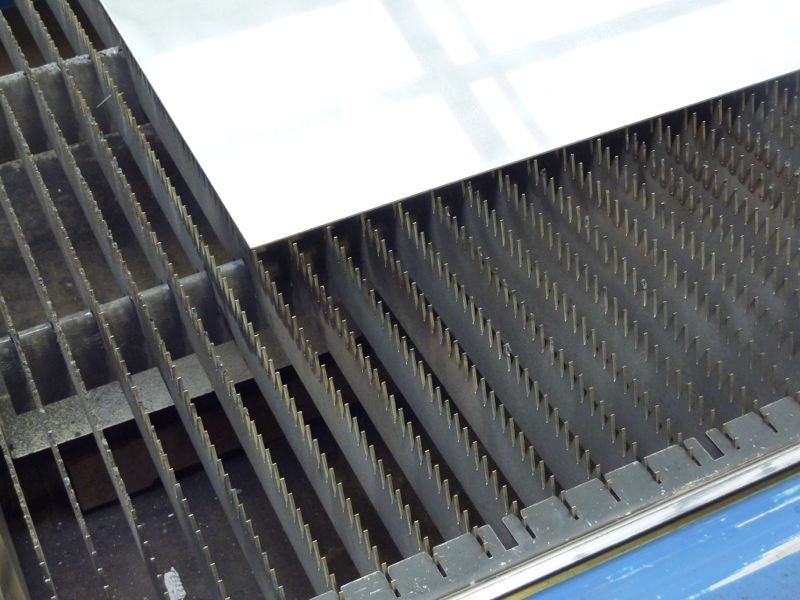

Working area (X & Y): 1250 x 2500mm
Cutting head max. height (Z axis): 100mm
Controlled axis: 3
Output power: 1200 W

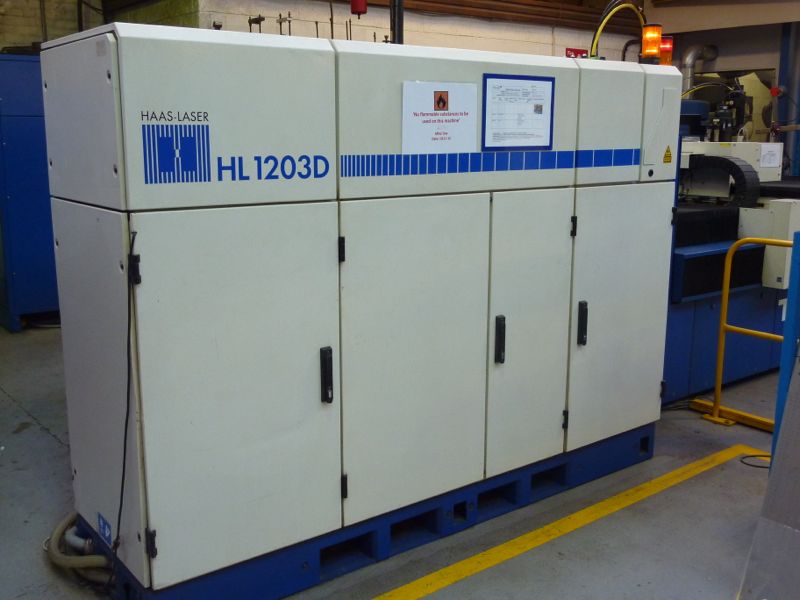

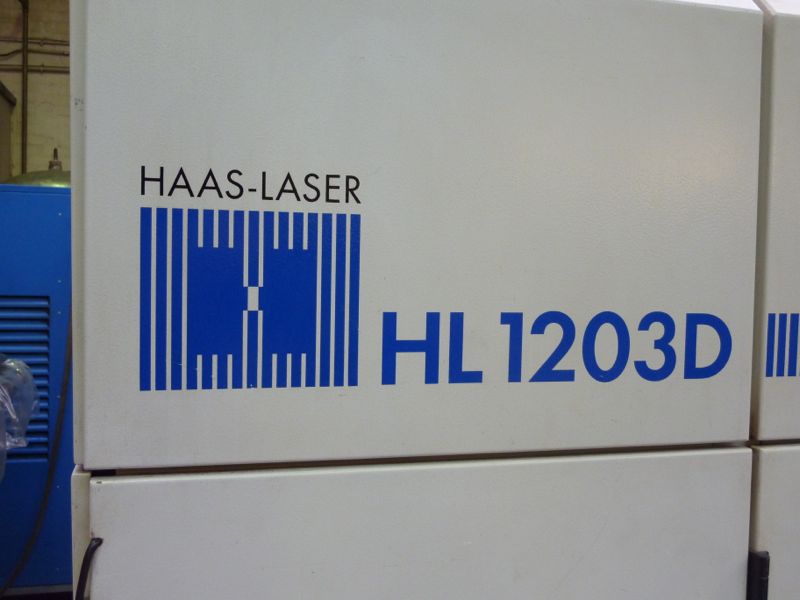

Laser: YAG

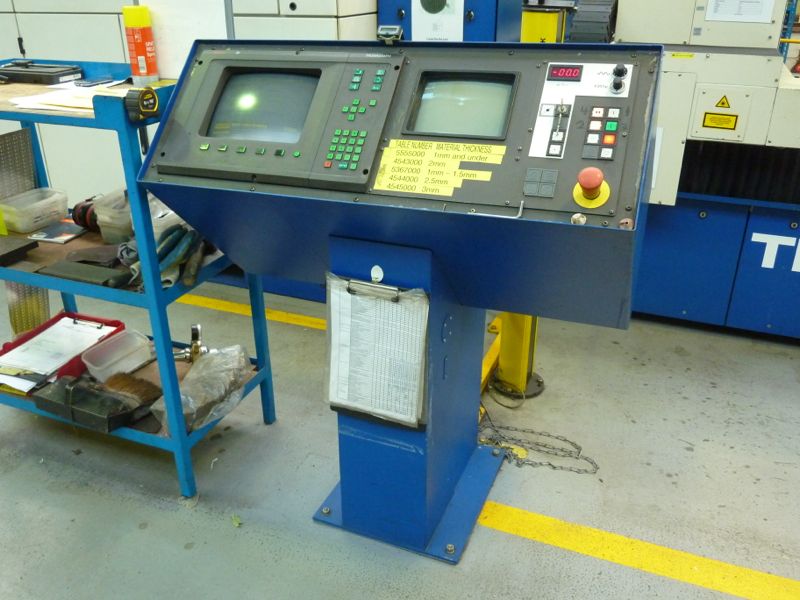

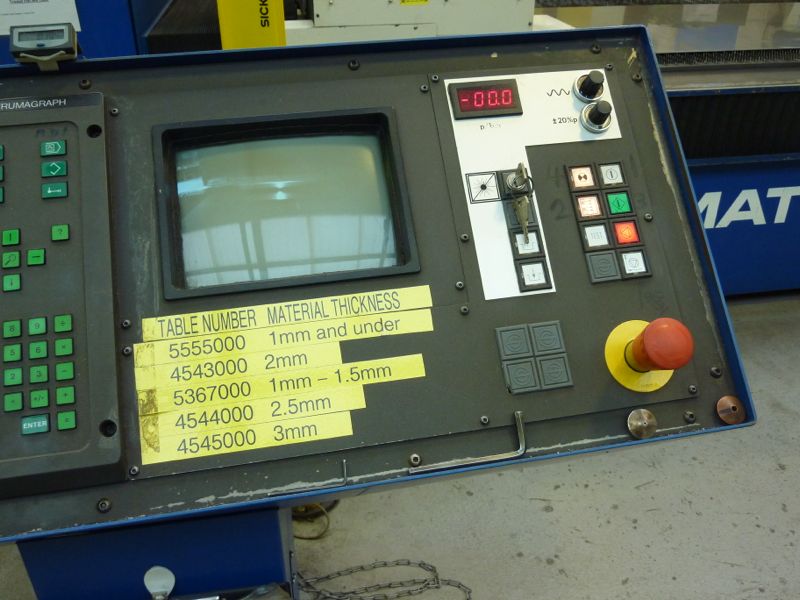

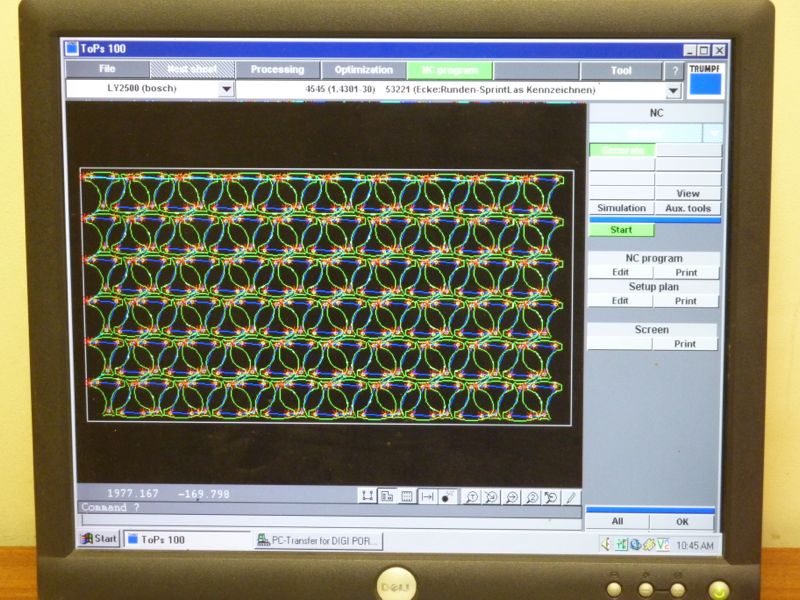

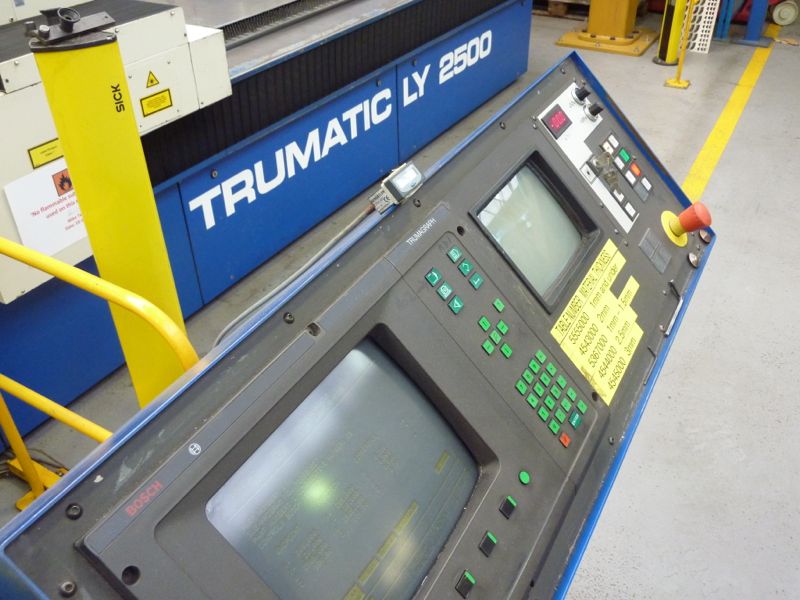

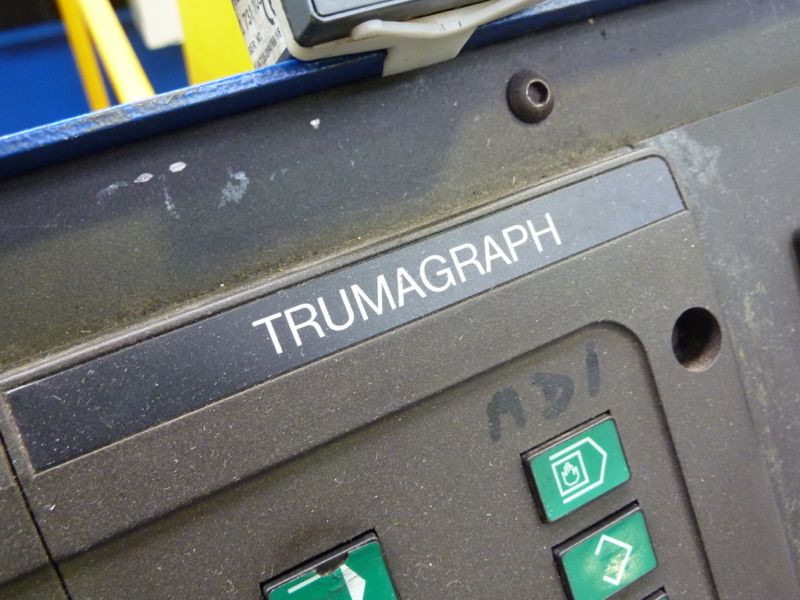

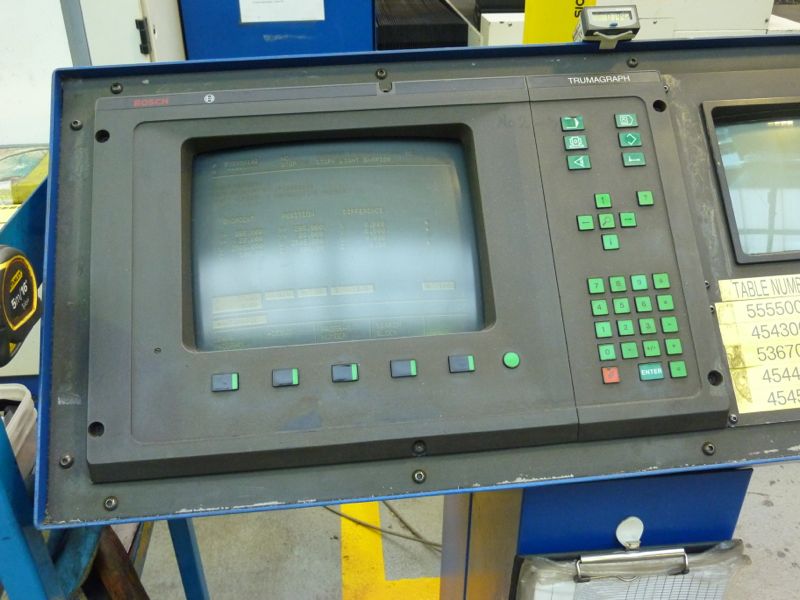

Controller: BOSCH/ Trumagraph CC220 S and ToPs 100 version 4
Max workpiece weight: 250kg
Power requirement-67Kva

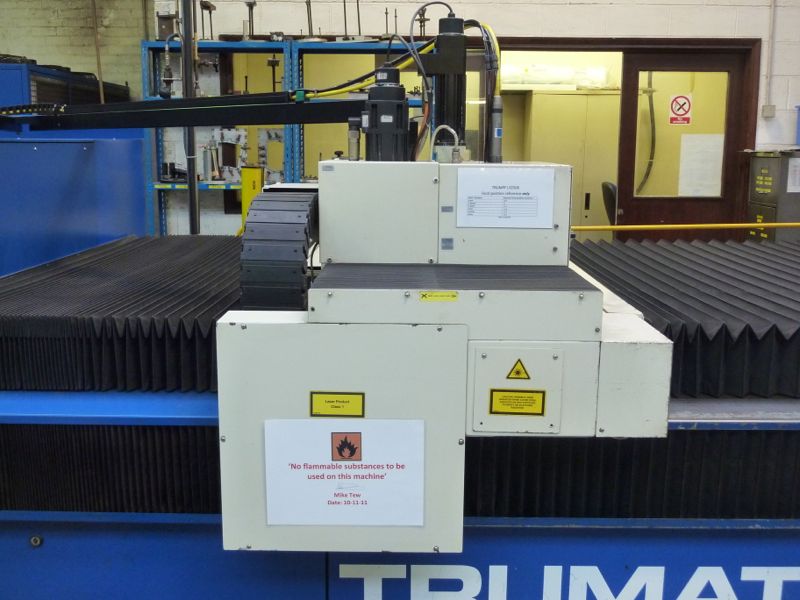

Number of cutting heads: 1
Diemensions of main machine only: 6.8m x 2.9m
Machine Space requirement: Approx. 30m2
Weight of machine: 5000 KG
Max. sheet thickness(St37): 10mm
mild steel: 9 mm
stainless: 4 mm

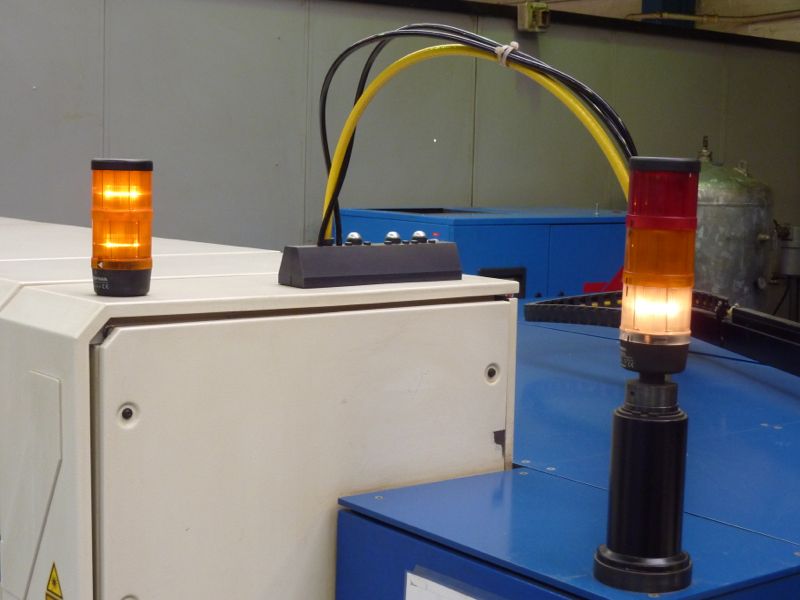

Safety Equipment

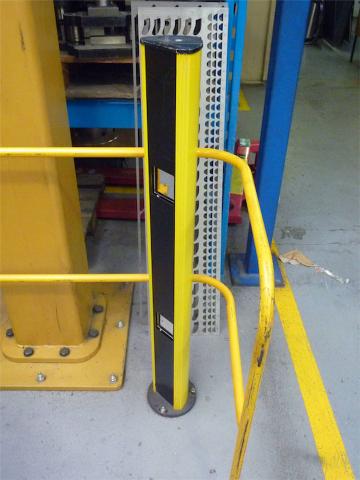

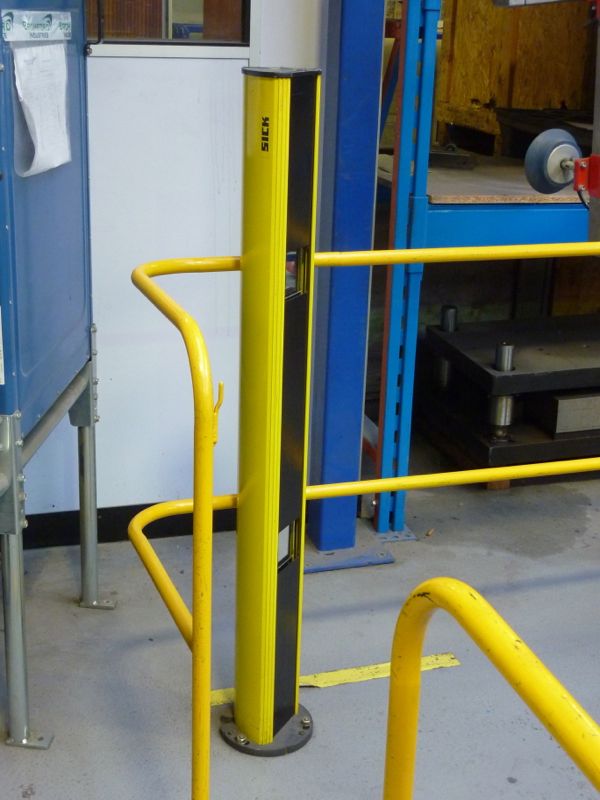

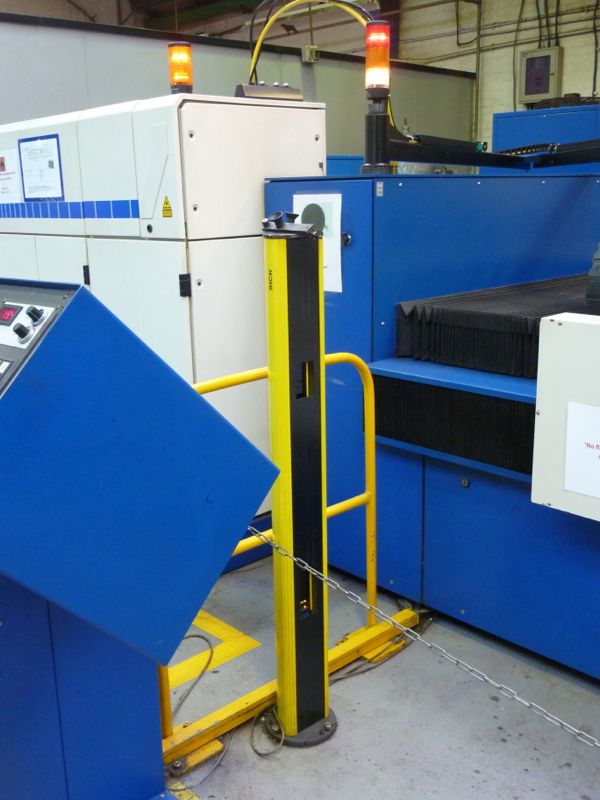

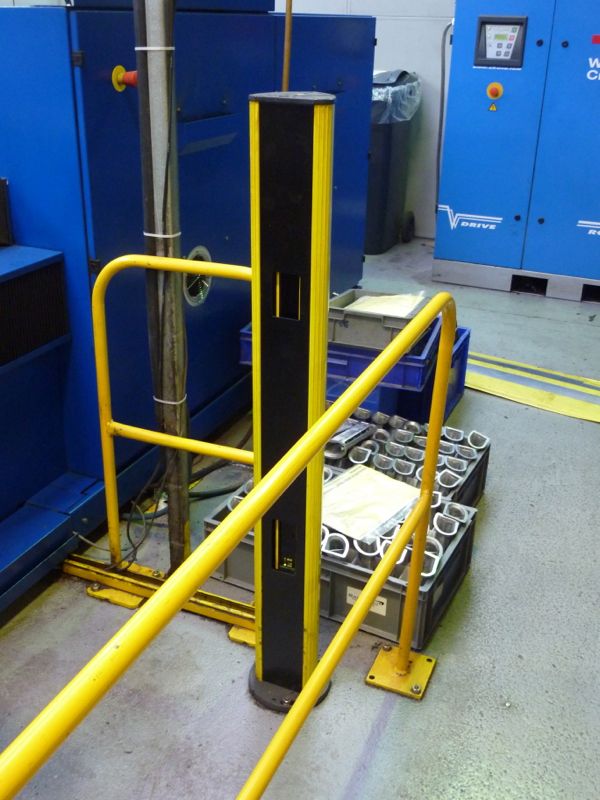

4 x Dual Beam Light guards to secure the danger area.

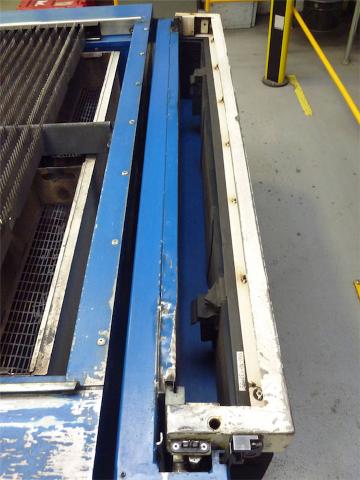

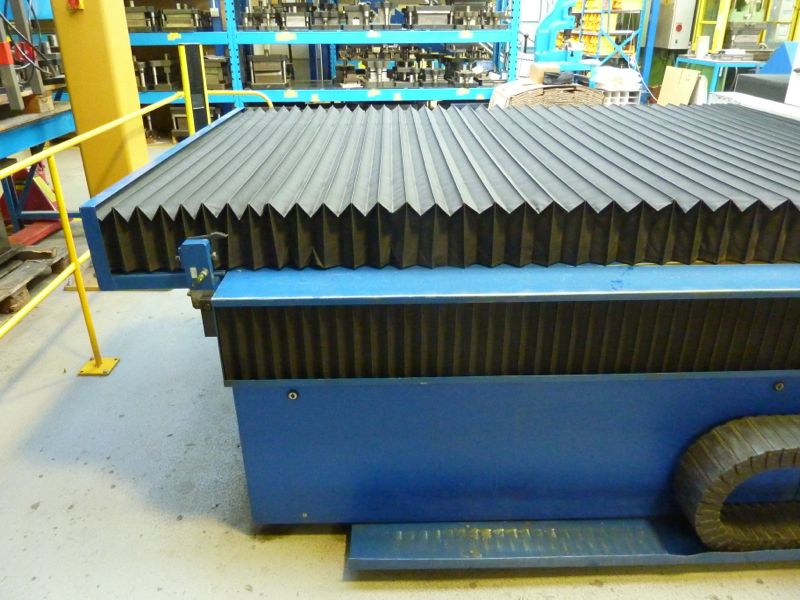

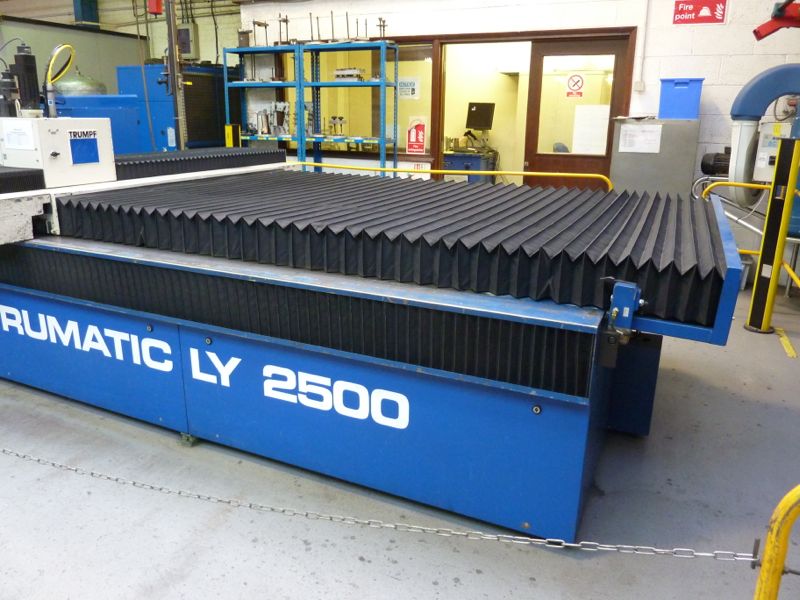

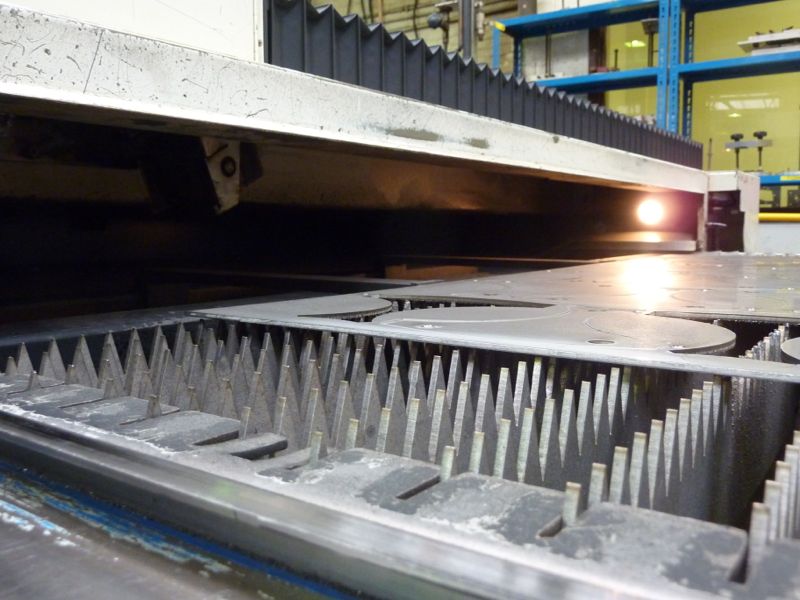

Bellow Encapsulates the entire work area.
Can be seen under power at a leading Midlands Aerospace Company.
Location: Alcester
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
