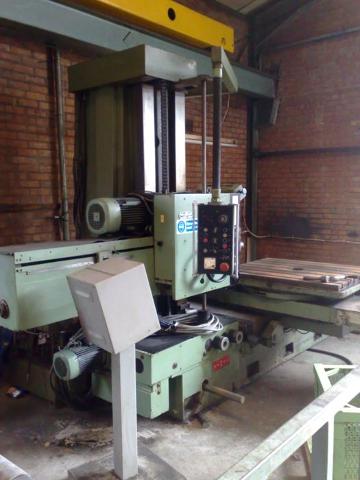

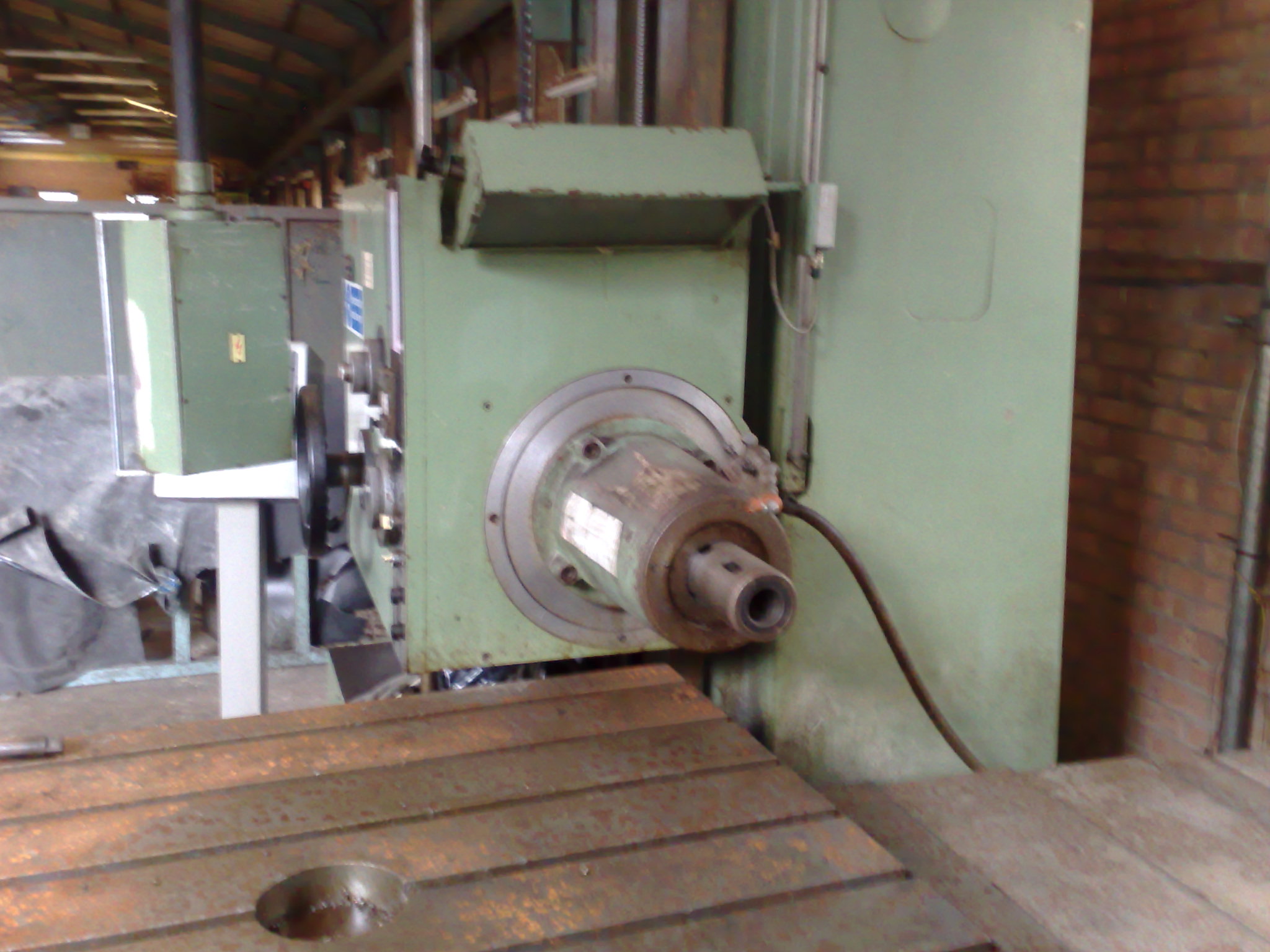

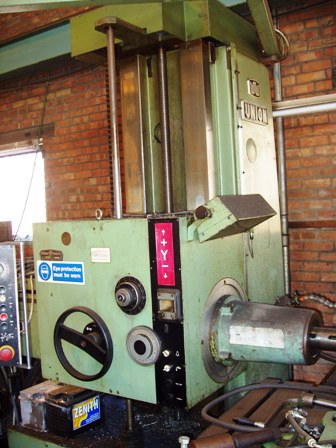

Lot 33 - UNION BFT90/3 Horizontal Borer with Manual and NC control

Description:

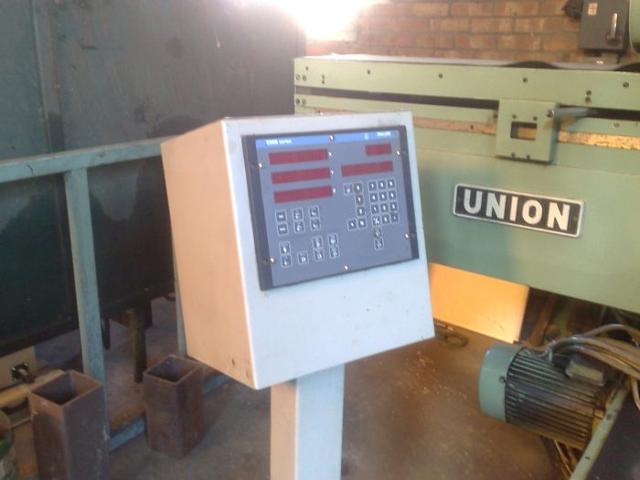

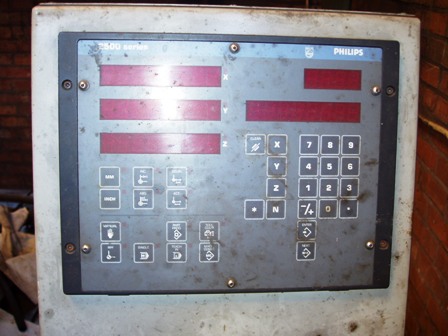

UNION BFT90/3 Manual and NC control

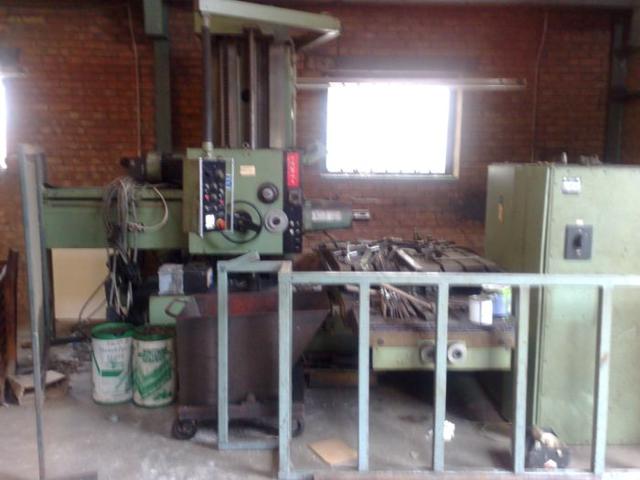

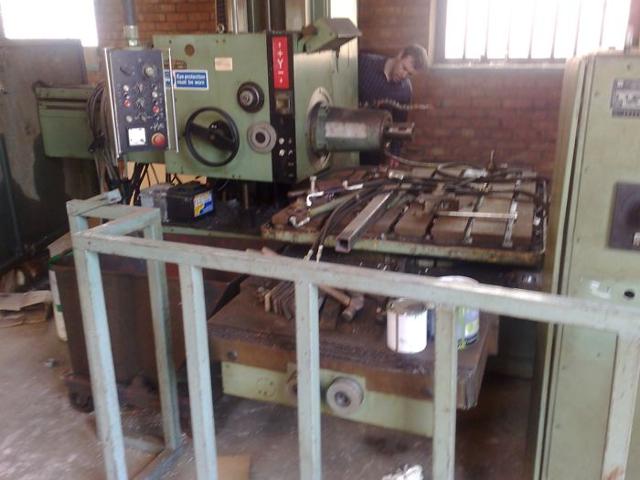

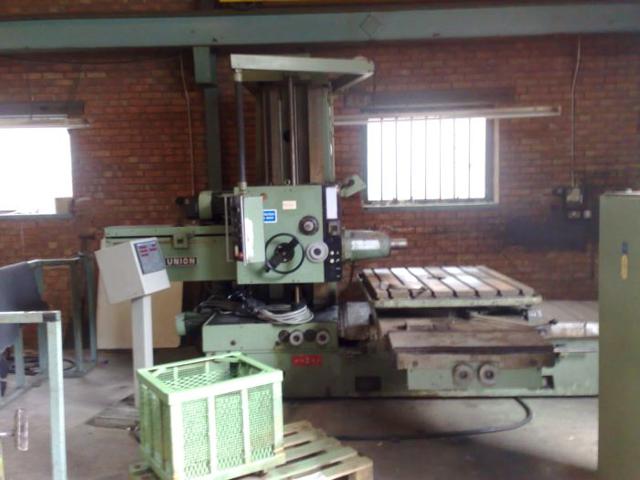

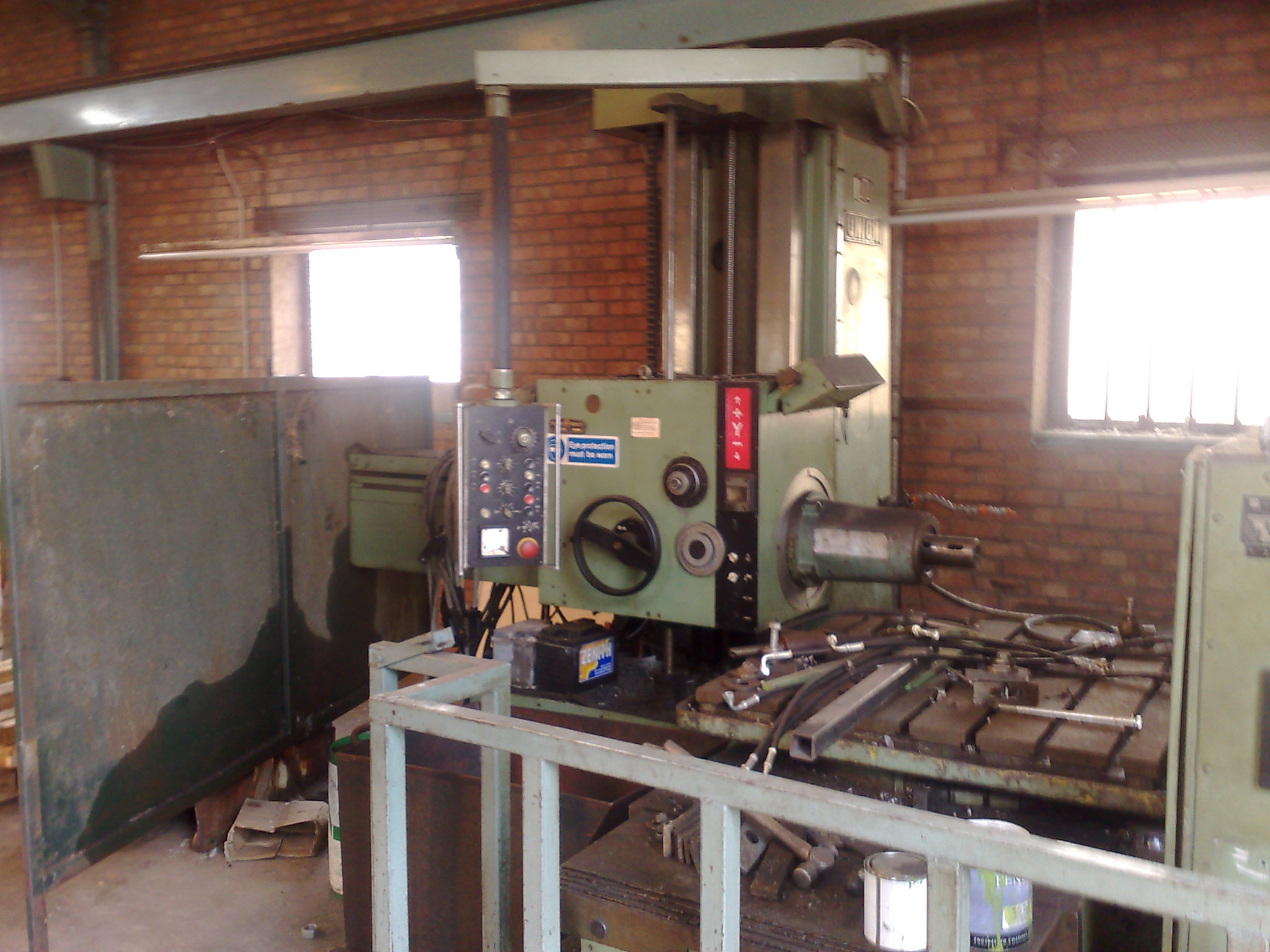

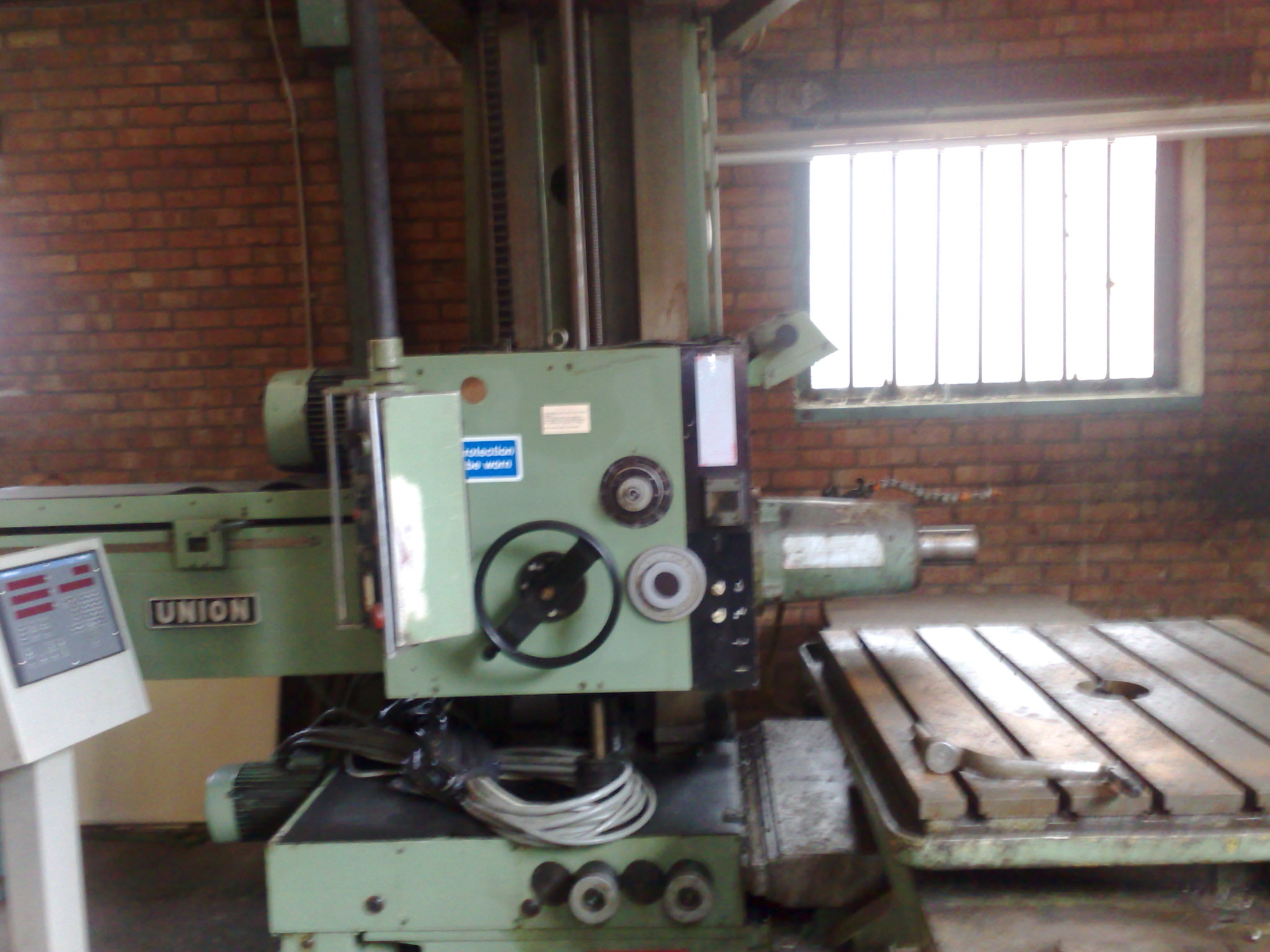

Table type boring mill Union BFT 90/3

Year: 1980 approx

Technical details

Spindle diameter 90 mm
Table 1000x1200 mm t-slots width 22 mm t-slots distance 140 mm t-slots number 7
Table long.travel 800 mm table trasv.travel 1000 mm headstock vert.travel 1000 mm spindle travel 710 mm
Morse'a spindle taper 5
Spindle speeds number 27 spindle speeds 8-1600 rpm
Feeding range 0.003-20 mm/rev metric threads 0.25-20 mm.

Box of Morse Taper holders

Location: Rugby, CV23 8LD

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
