Description:

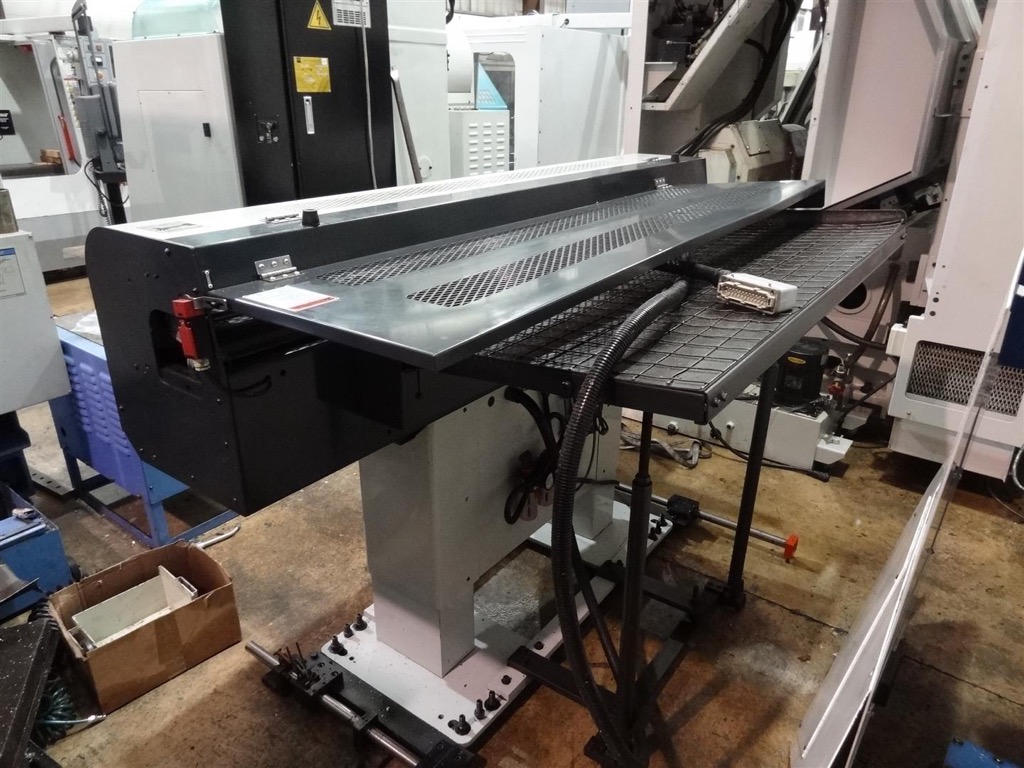

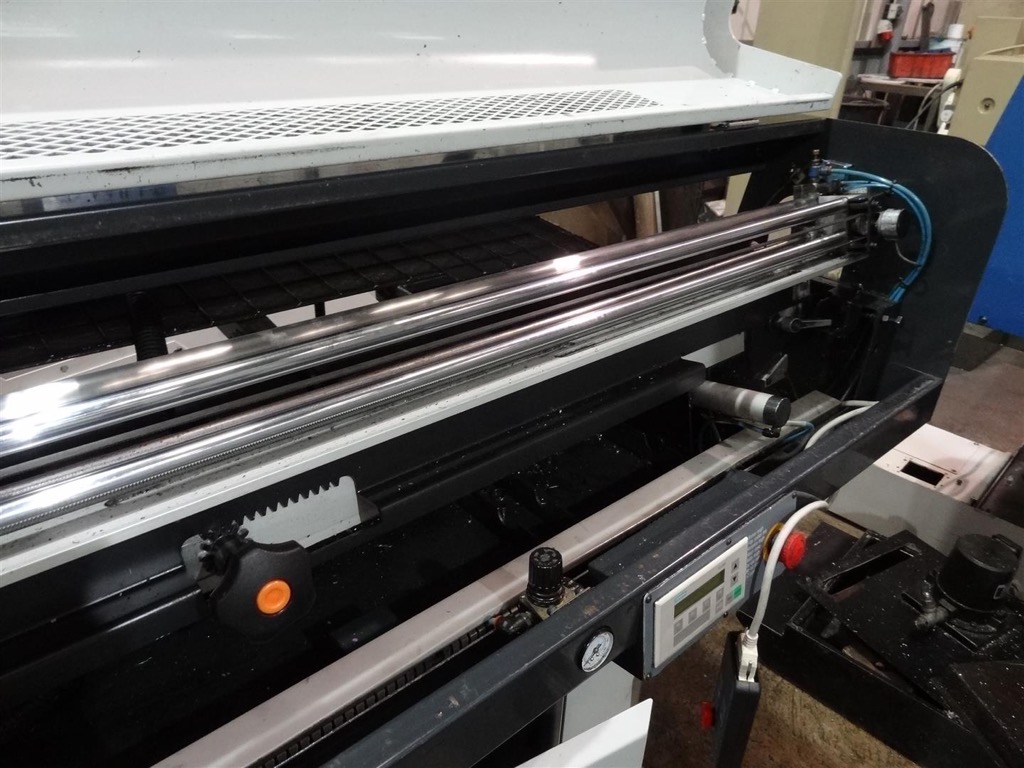

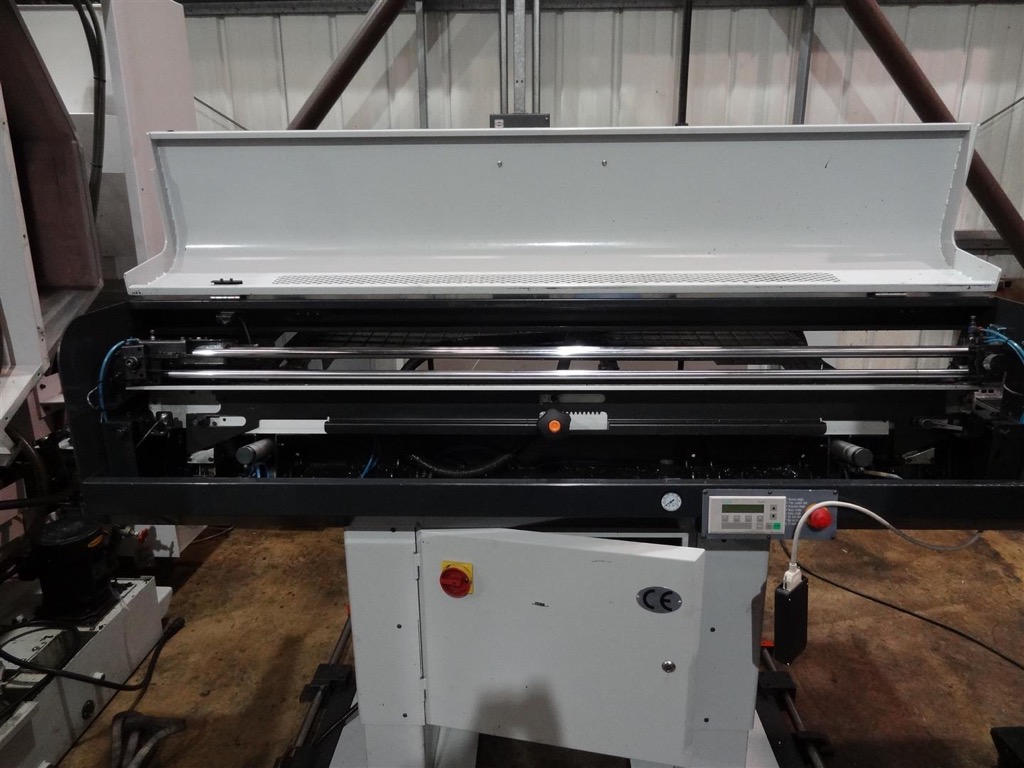

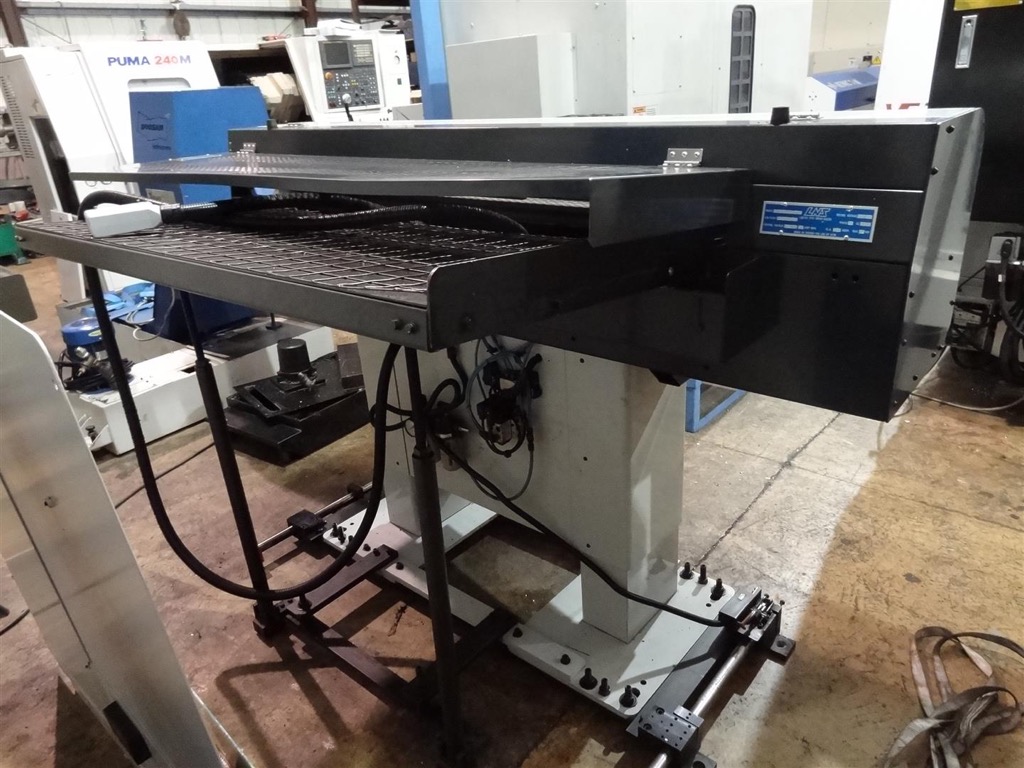

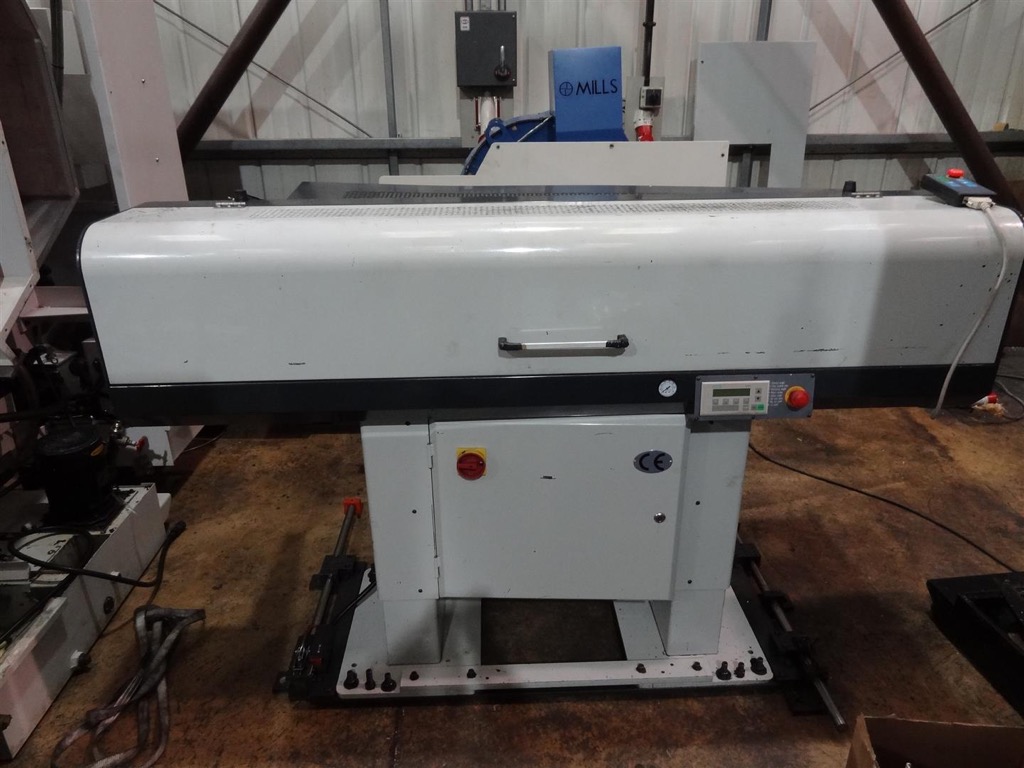

Used LNS Eco Load - 1 Short Magazine Barfeed (2003)

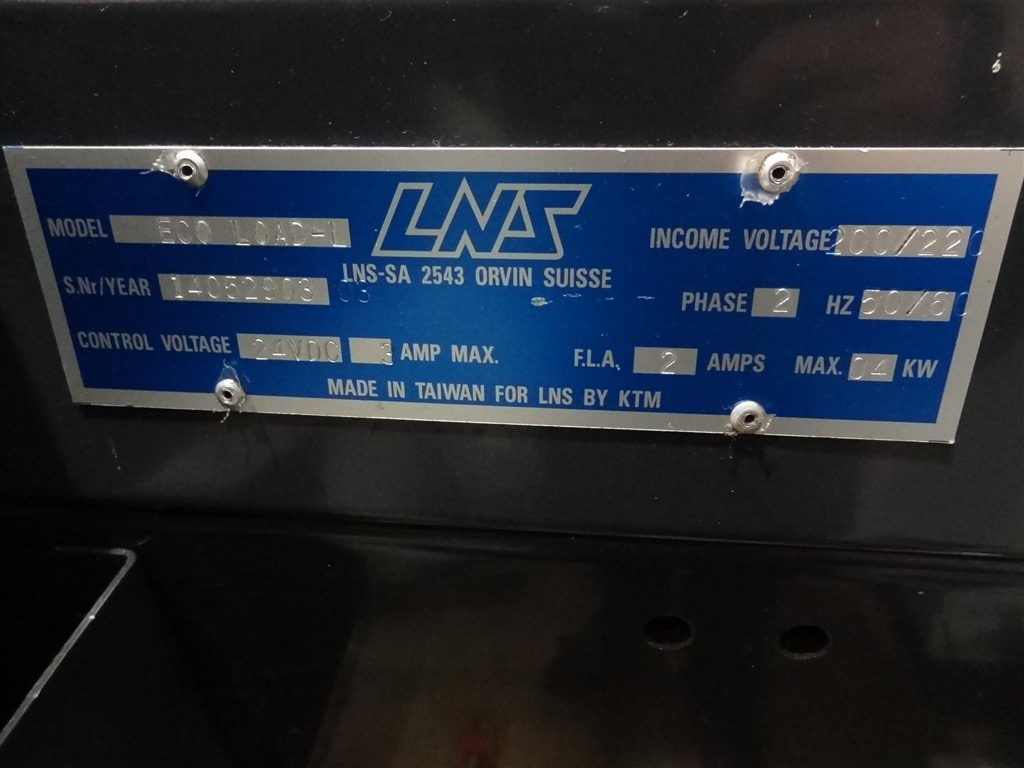

S/n:14052903
Year: 2003
Model: Mod Eco Load -1
Bar Diameter Capacity 1/4" - 2-5/8"
Bar Length Capacity 12" - 59" (length of spindle)
Pusher Diameters 6/12/20 mm
Pusher Drive Air Via Rodless Cylinder
Magazine Capacity 25 Linear Inches
Operating Voltage 220v/60hz/0.5amp
Control Voltage 24v
Tray Capacity 25"
Machine dimensions 78" x 44" x 48" H
Floor Space (approx.) 75" x 39"
Weight (approx.) 1,014 lbs.
(Previously interfaced to a Daewoo Puma 2500SY CNC Lathe)
Location: Leicester
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Time remaining
24 Sep 2015 15:00:00 BST
