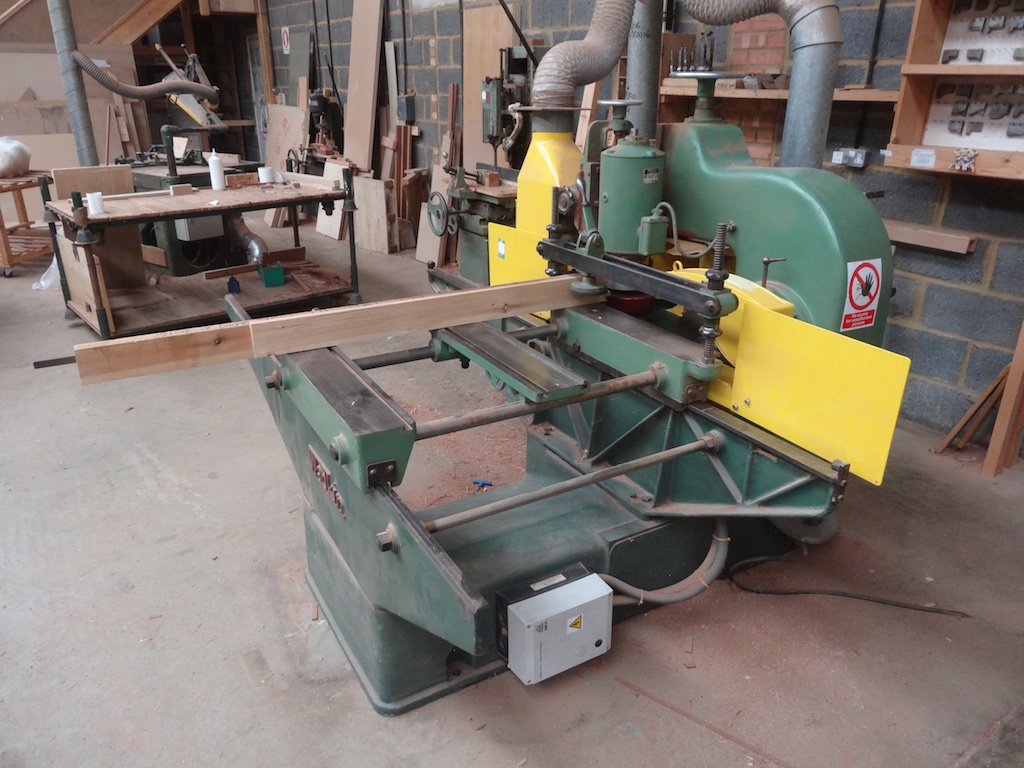

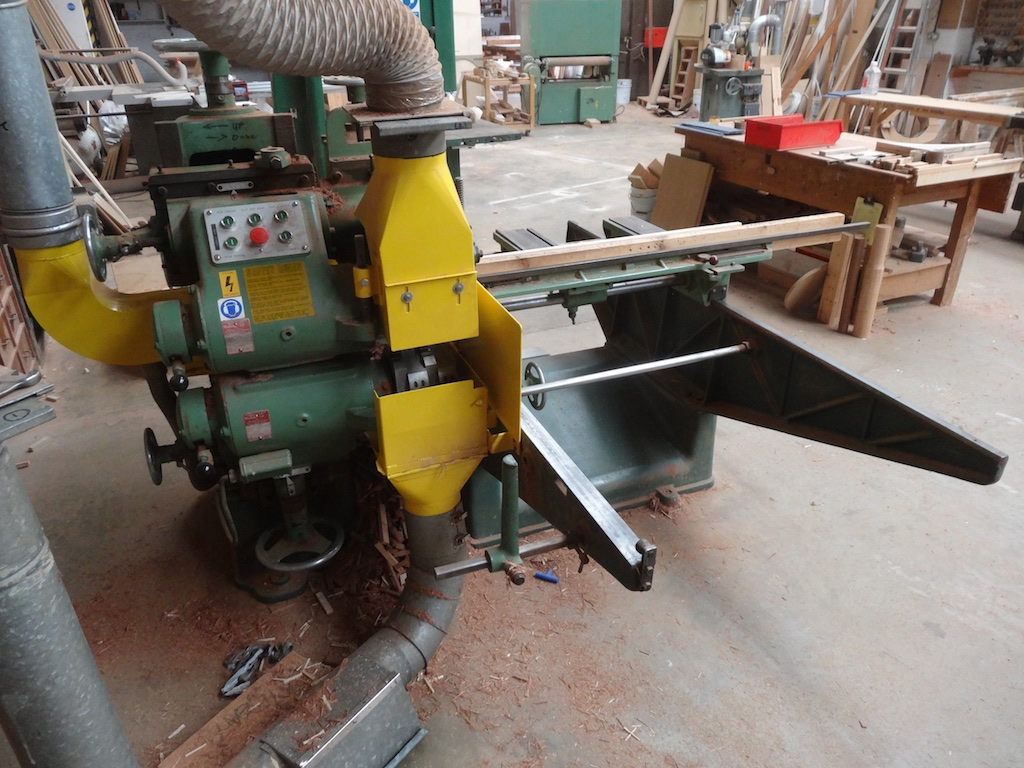

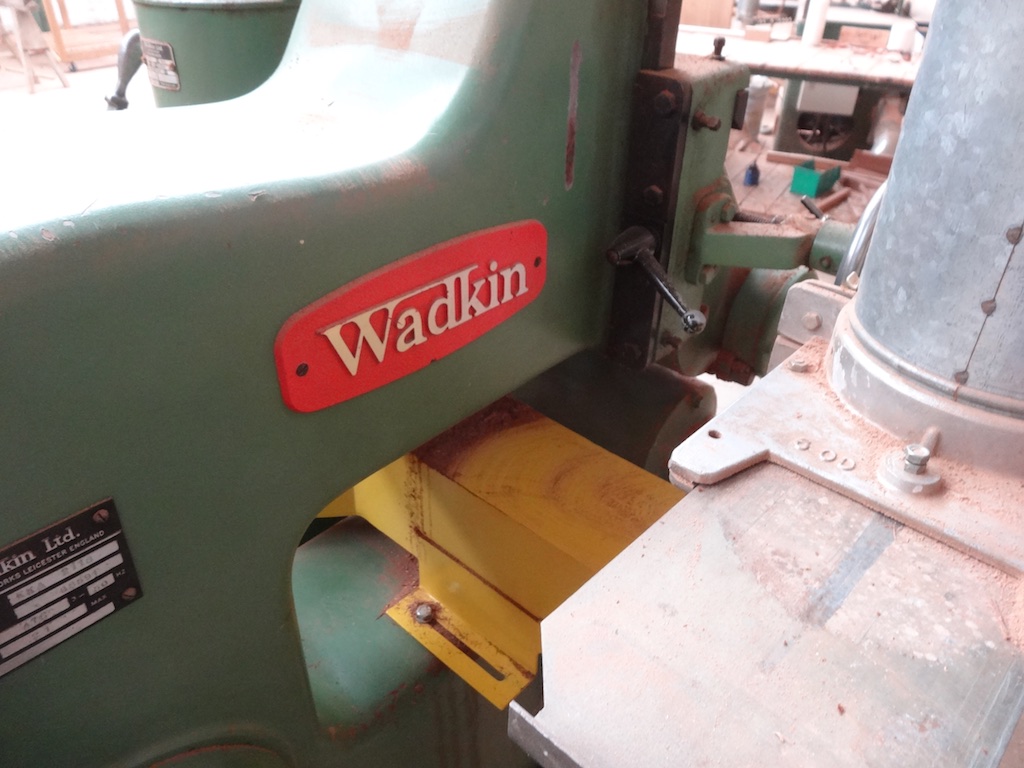

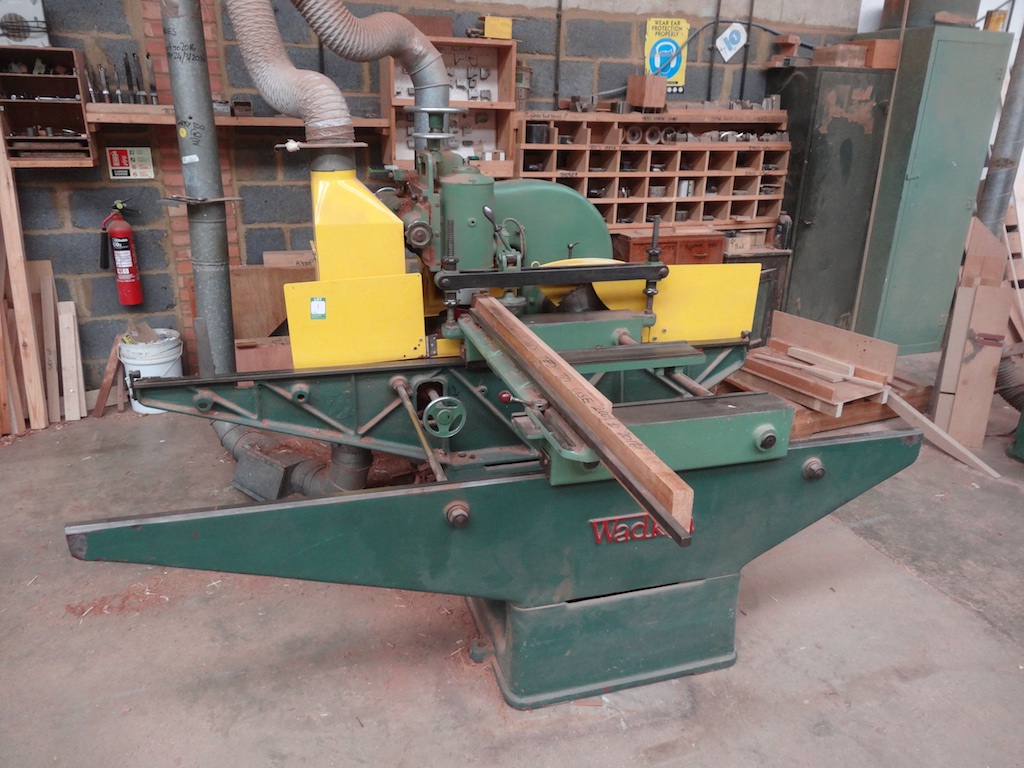

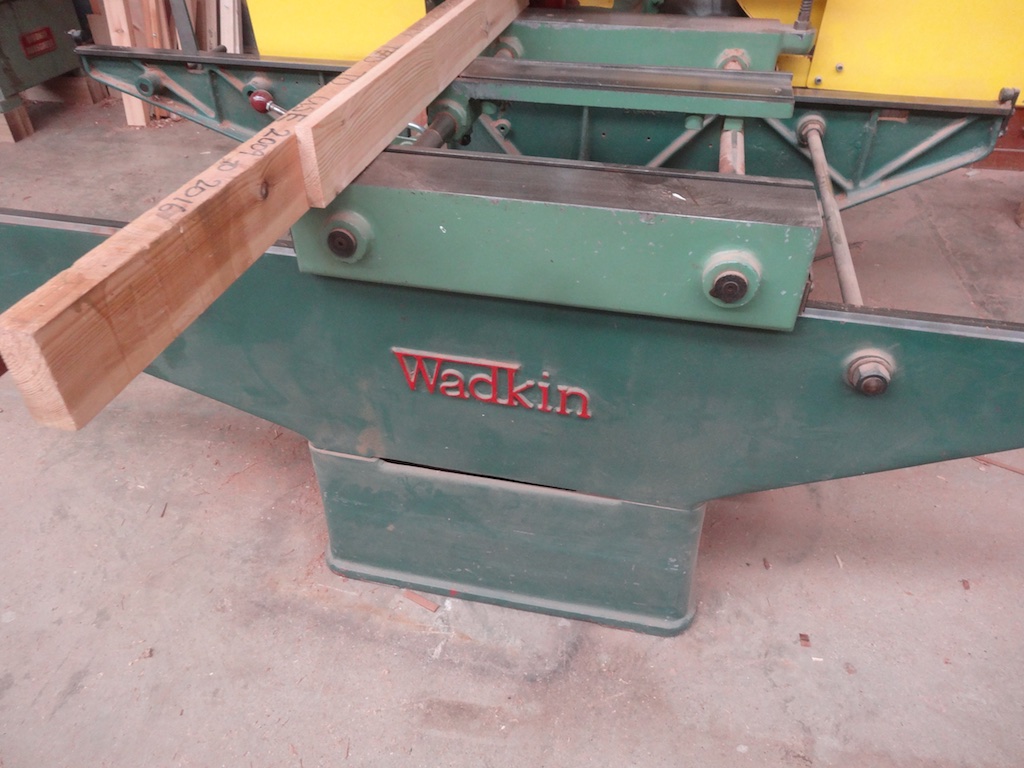

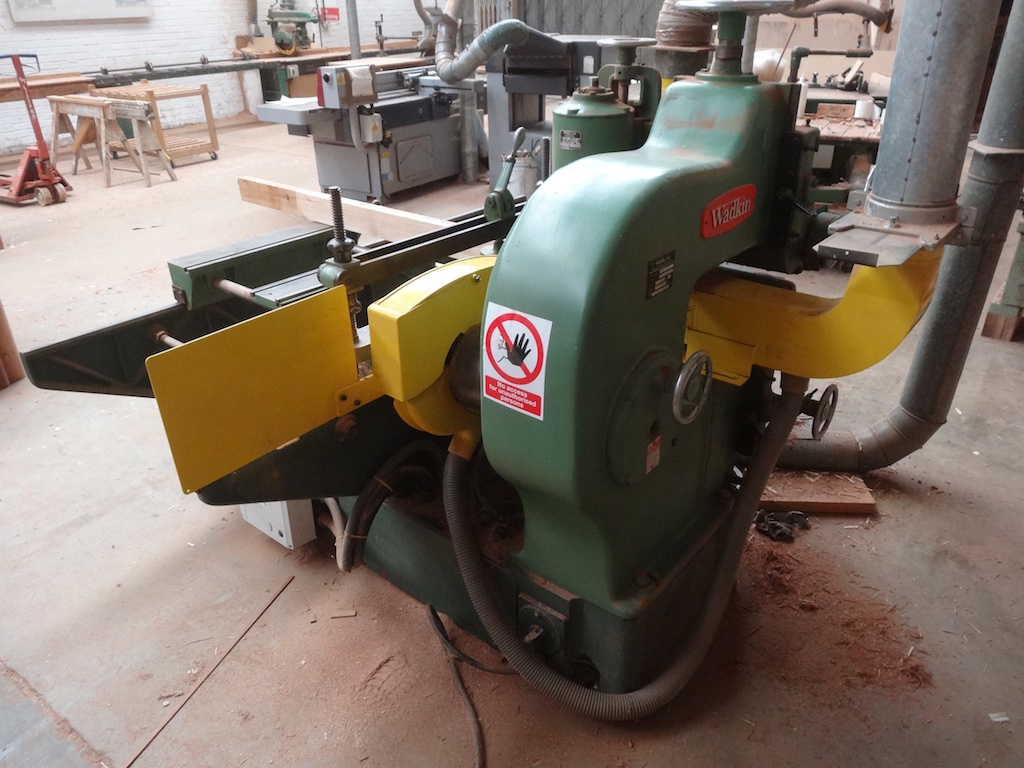

Lot 1 - Wadkin EKA434 5 Head Tenoner with guards

Description:

Wadkin EKA434 5 Head Tenoner with Power Brake and Guards

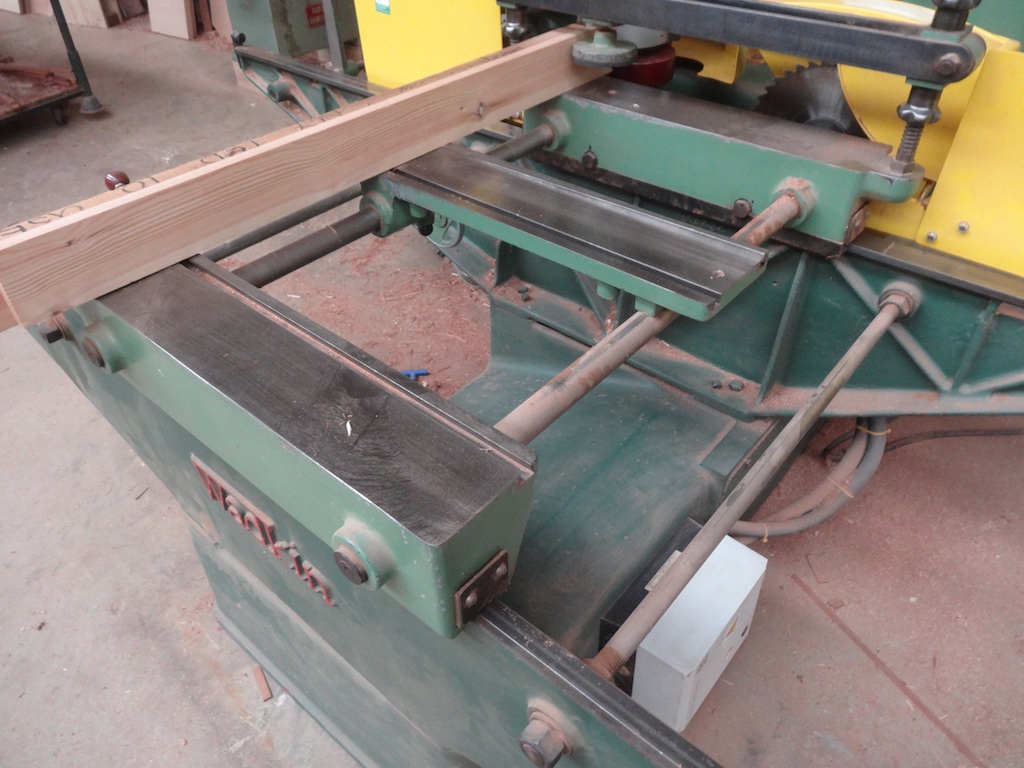

Length of table: 1067mm
Width of table: 673mm
Height of table: 838mm

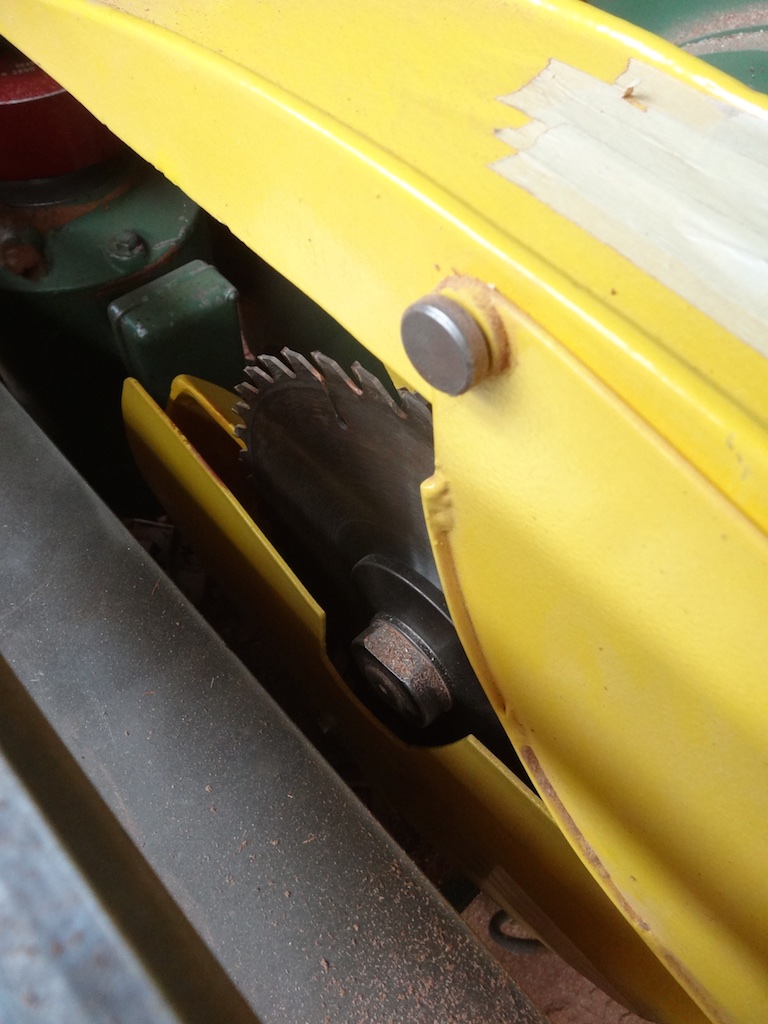

Diameter of cutting-off saw: 356mm
Maximum diameter of cross cut saw for fixing to top tenon head: 356mm

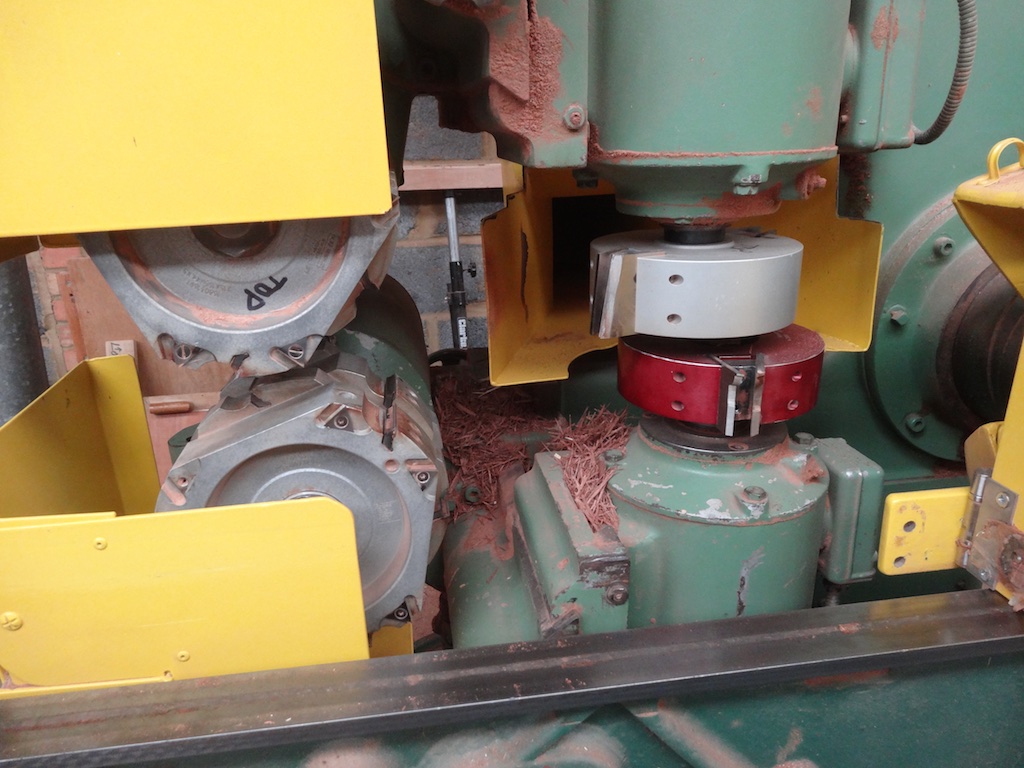

Diameter of grooving heads: 279mm
Maximum width of grooving heads: 102mm
Will admit timber up to: 610mm x 152mm
Will cut tenons at one operation: 152mm
Will trench or groove up to: 610mm
Will cross cut up to: 610mm

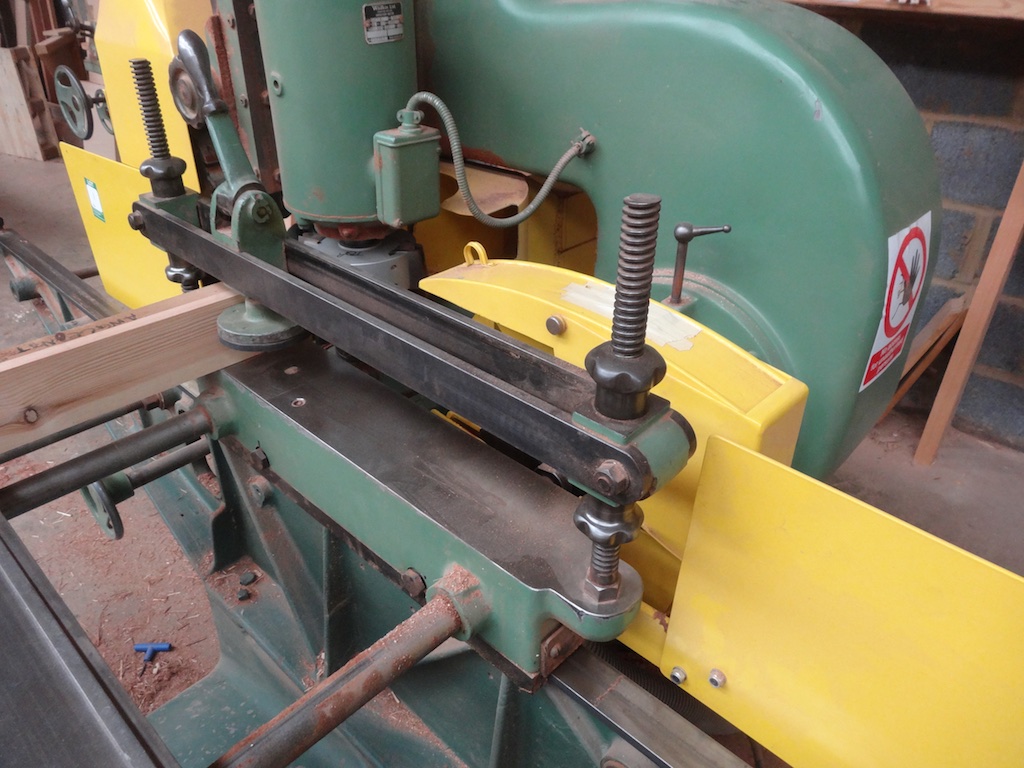

Will admit between table and cramps: 178mm

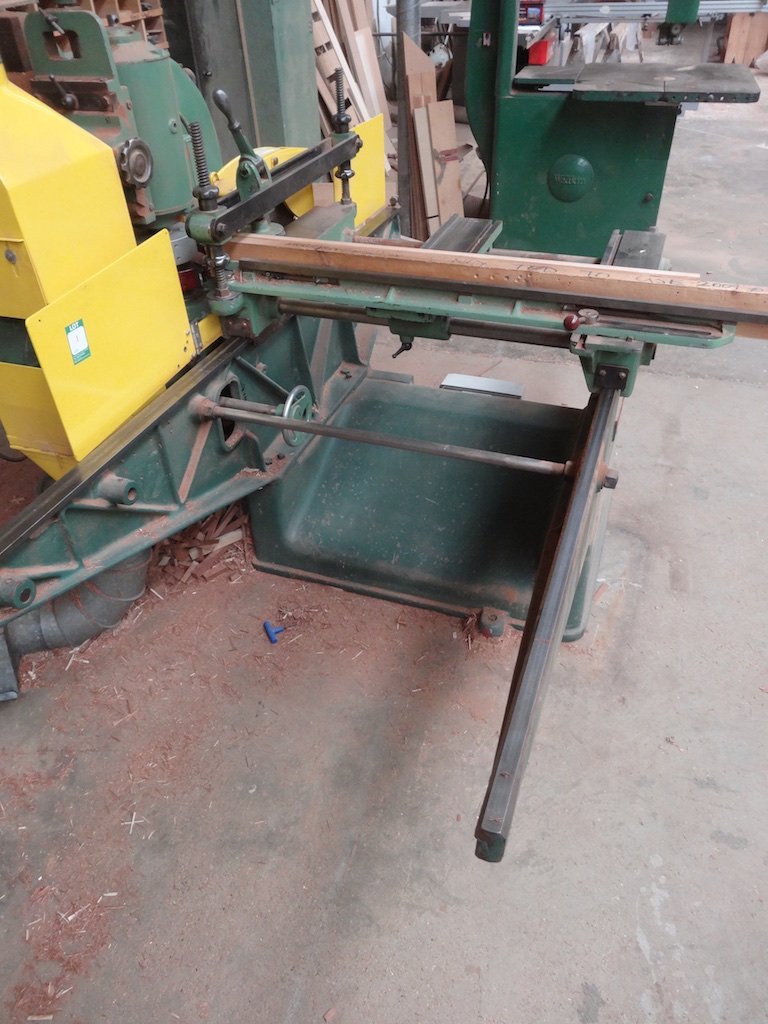

Will take 7'4" (2235mm) between shoulder of tenons using turnover
stop on table
Fence may be swivelled 45° for angular tenoning

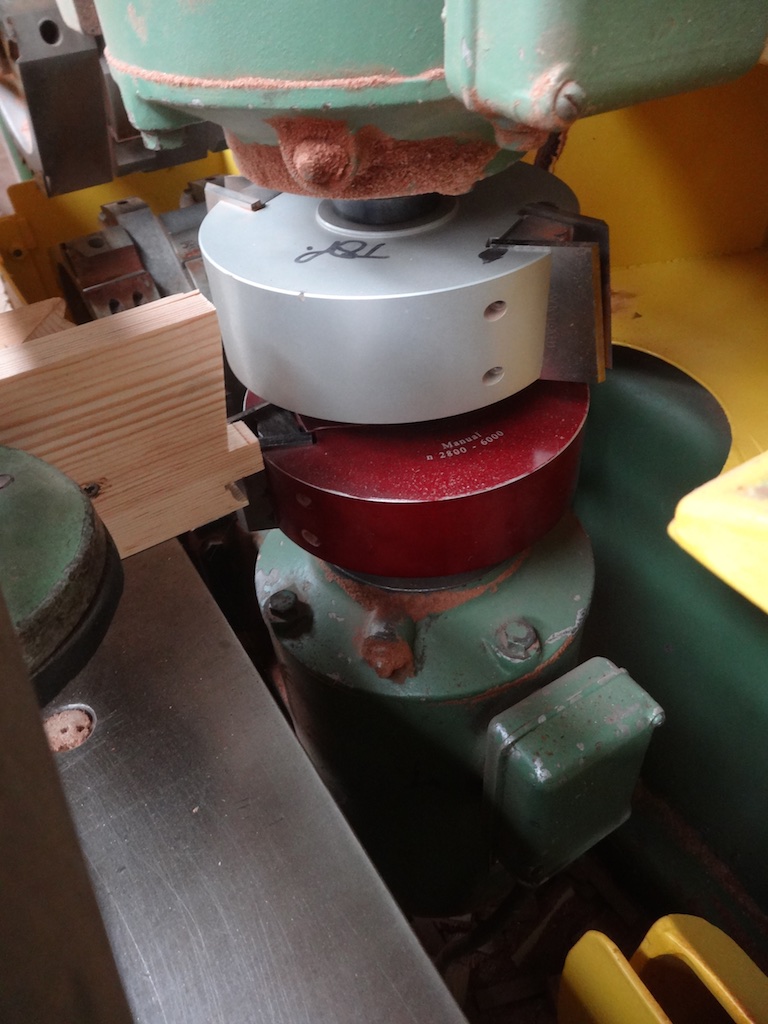

Top cutterhead will raise 6t" (165mm) above the table

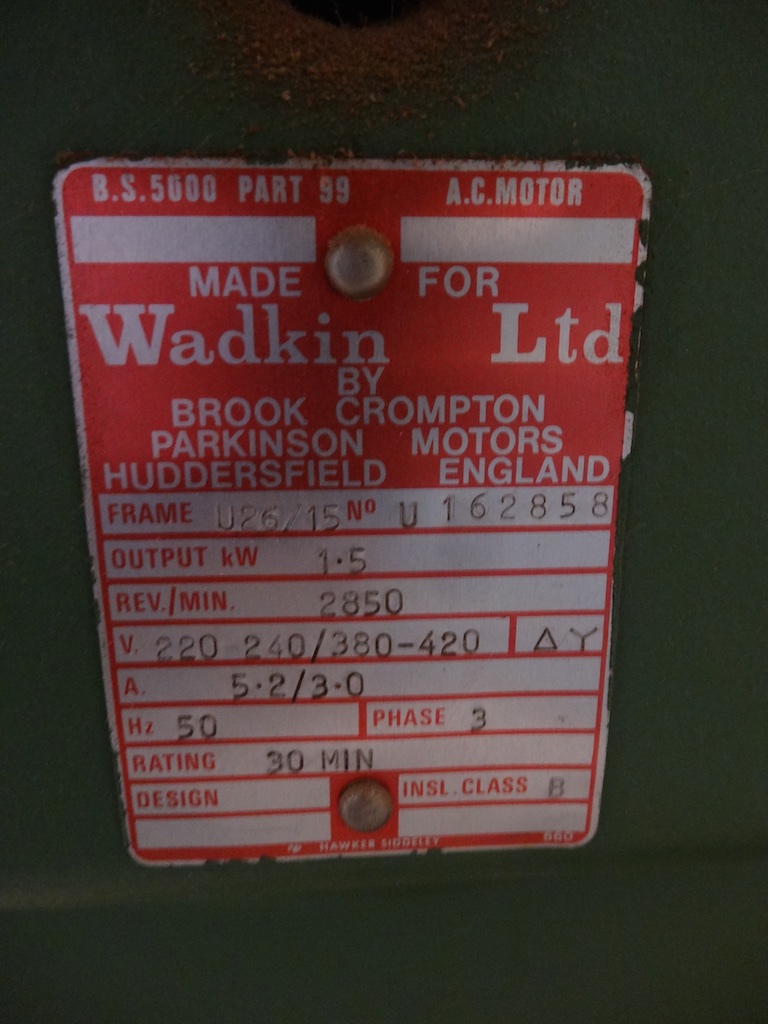

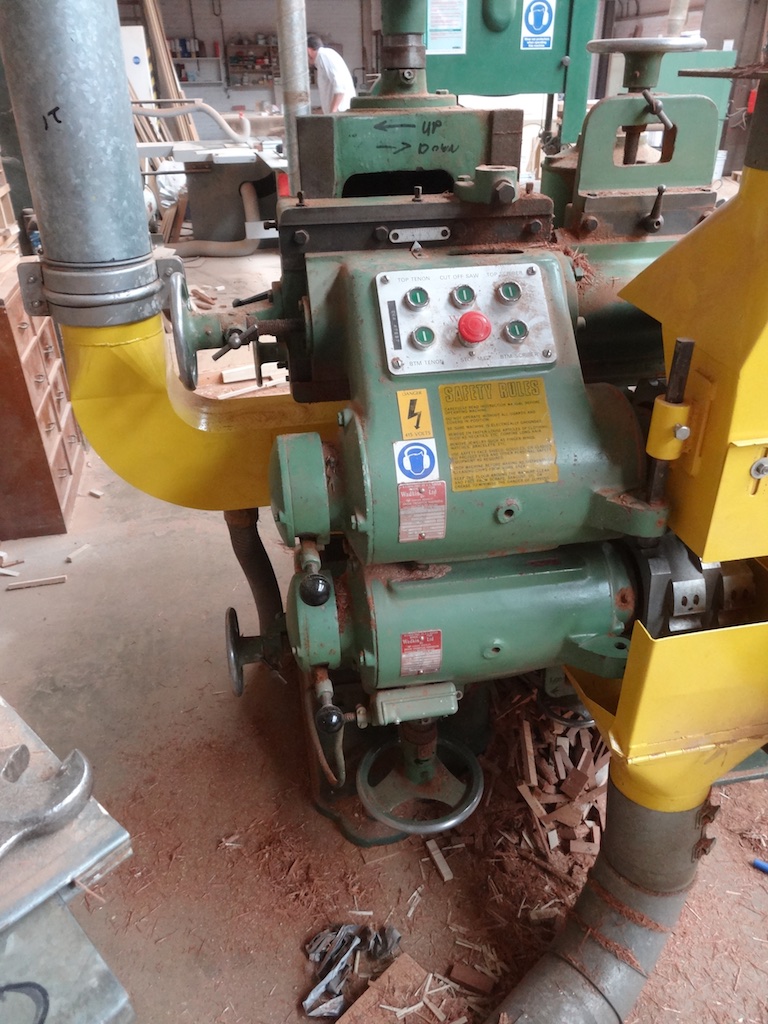

Motors on all heads are 2 h. p. at 3,000 r. p. m. for 50 cycles
and 3,600 r. p. m. for 60 cycles

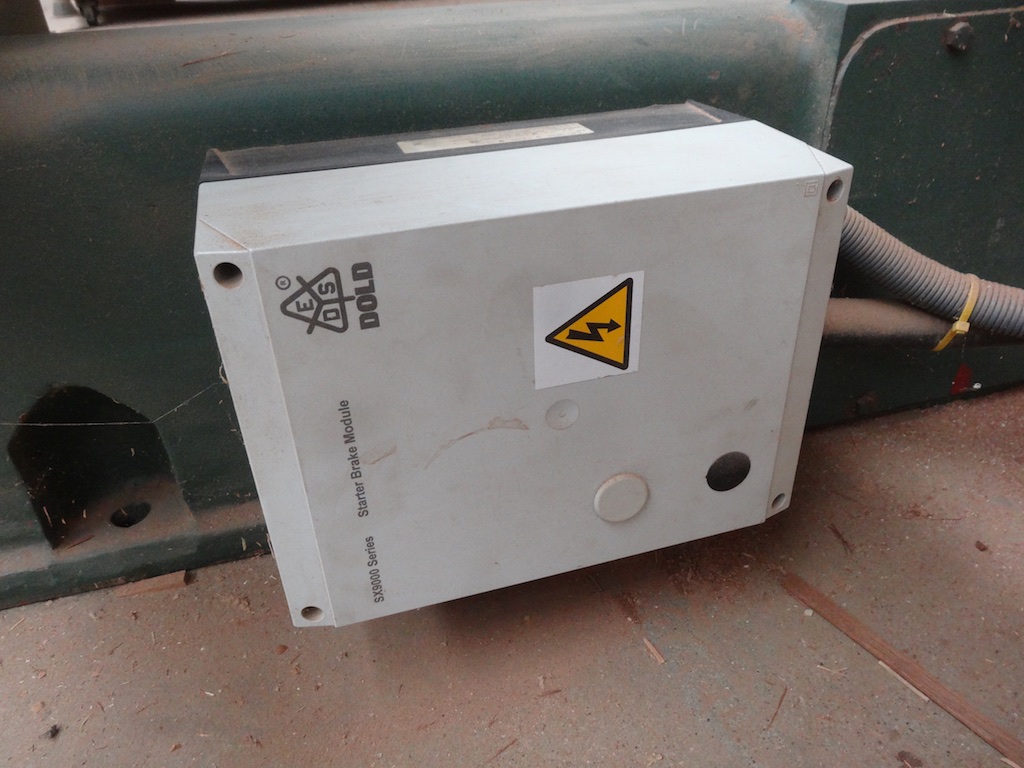

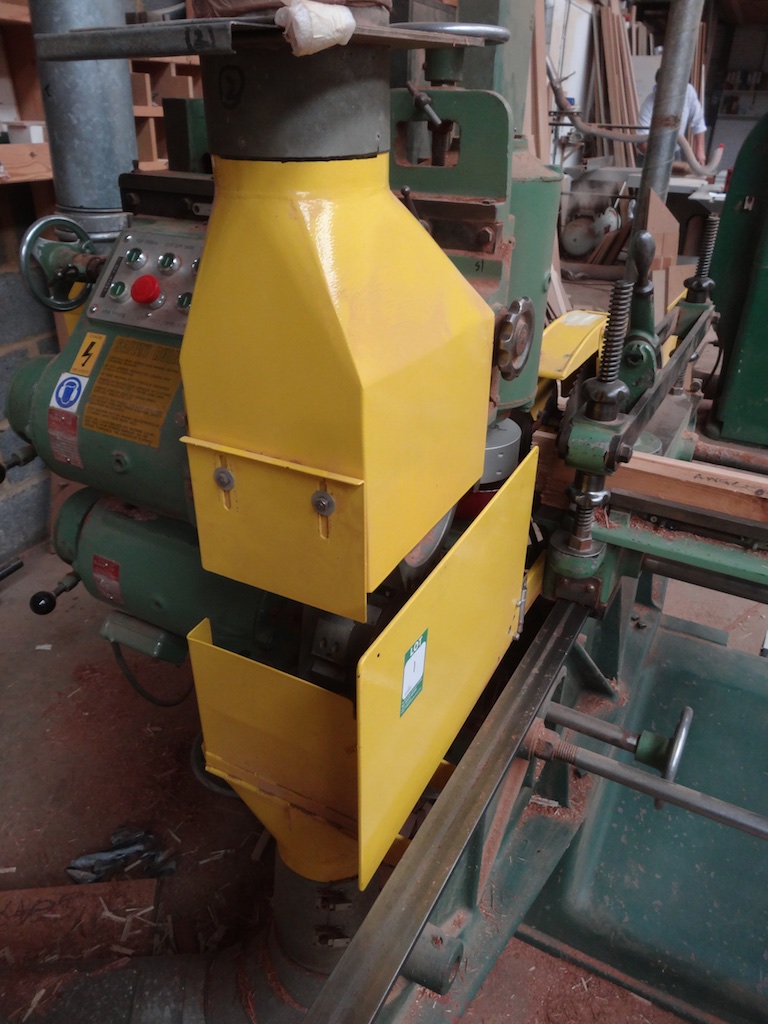

Guards and Power Brake

Net weight with top and bottom scribing heads and cutoff saw 1600kg
Dimensions 210cm X 225cm X 156cm High

Location: Thame

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
