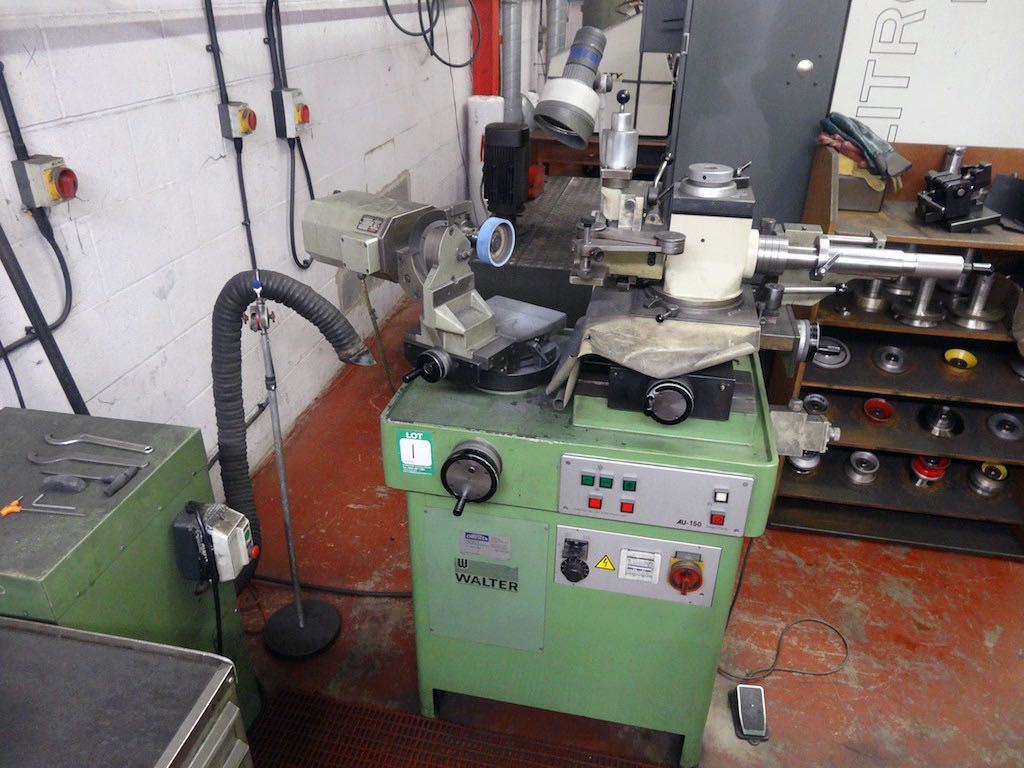

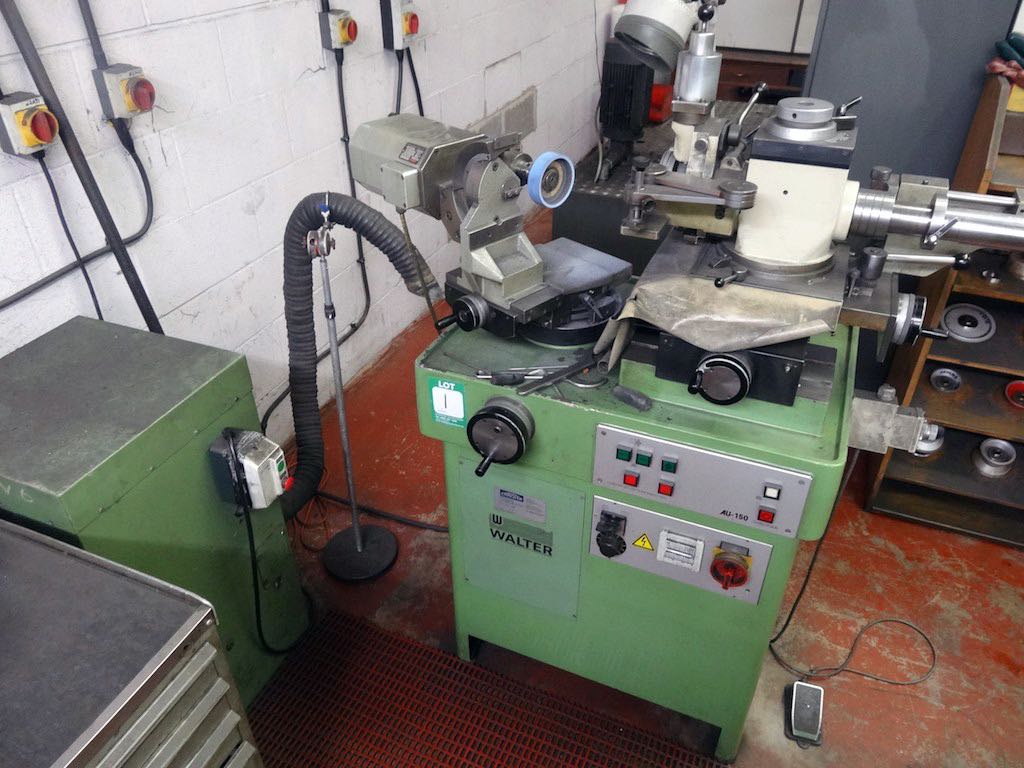

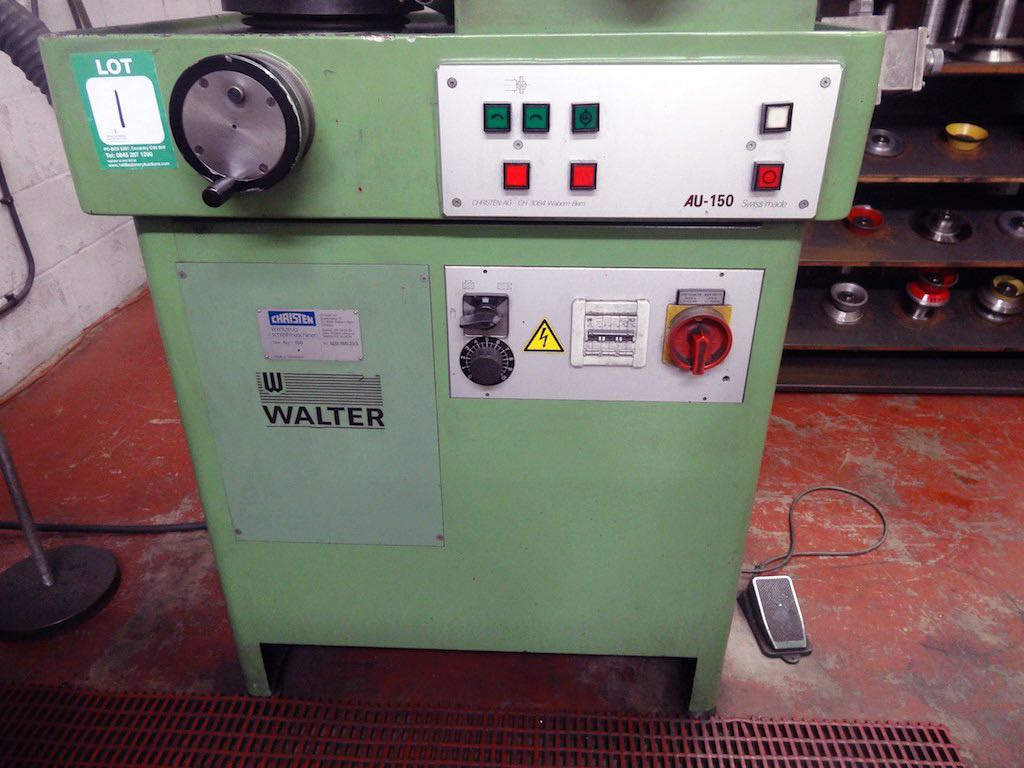

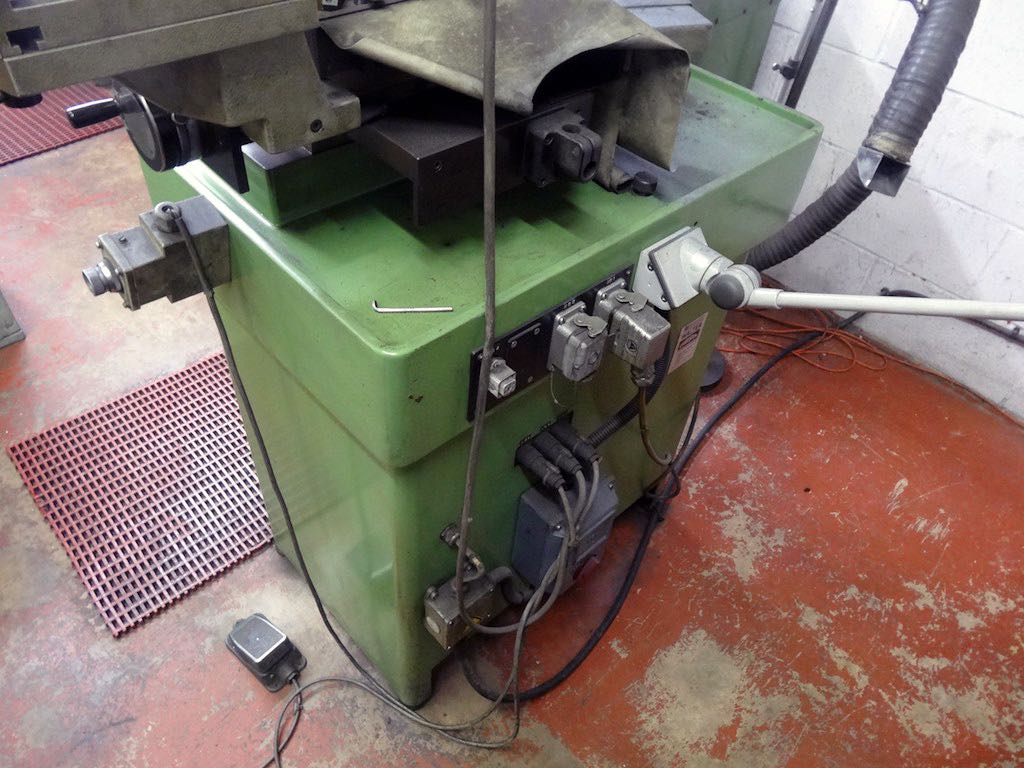

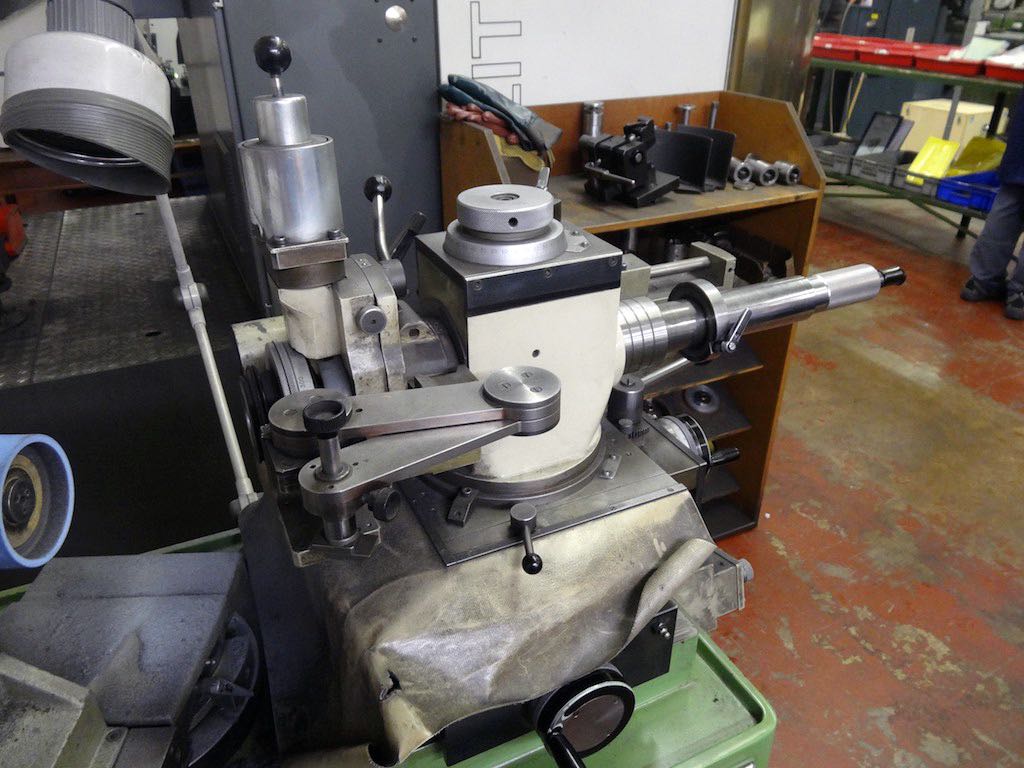

Walter AU-150 Tool and Cutter Grinder

Lot 7 - Walter AU-150 Tool and Cutter Grinder

Description:

S/n: 502-150-223
L x W x H: 1400 x 910 x 1600mm
Weight: 360kg

W.Steinegger AG Biel CH
No. 91264351
Type: EG71. 100/2

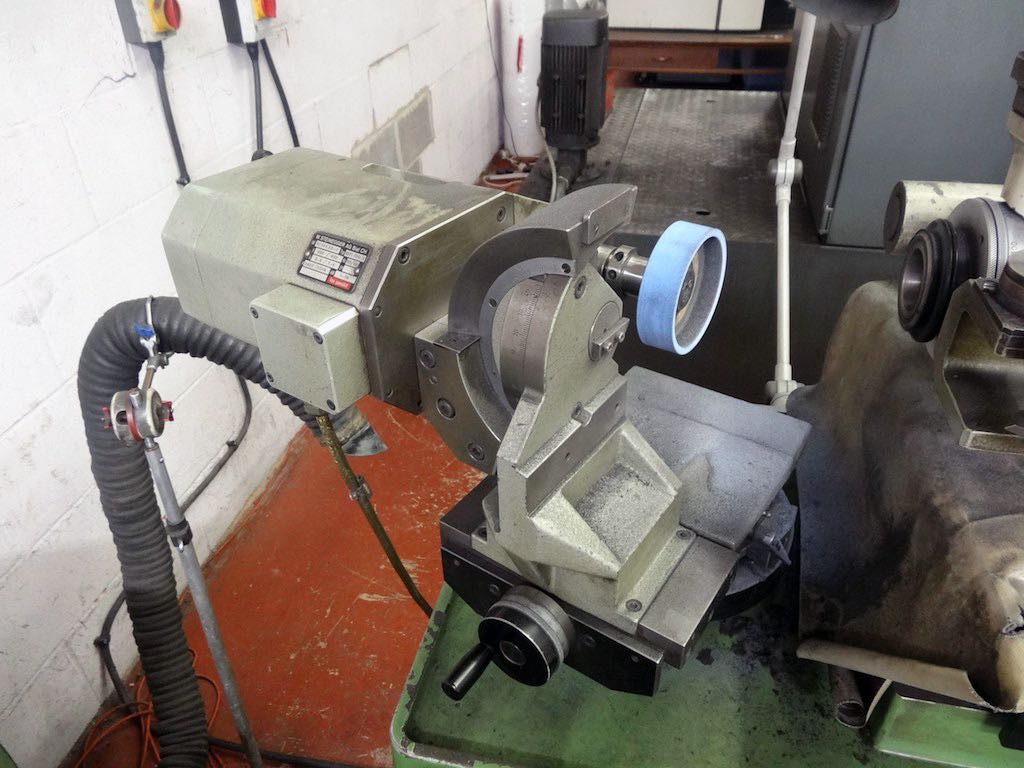

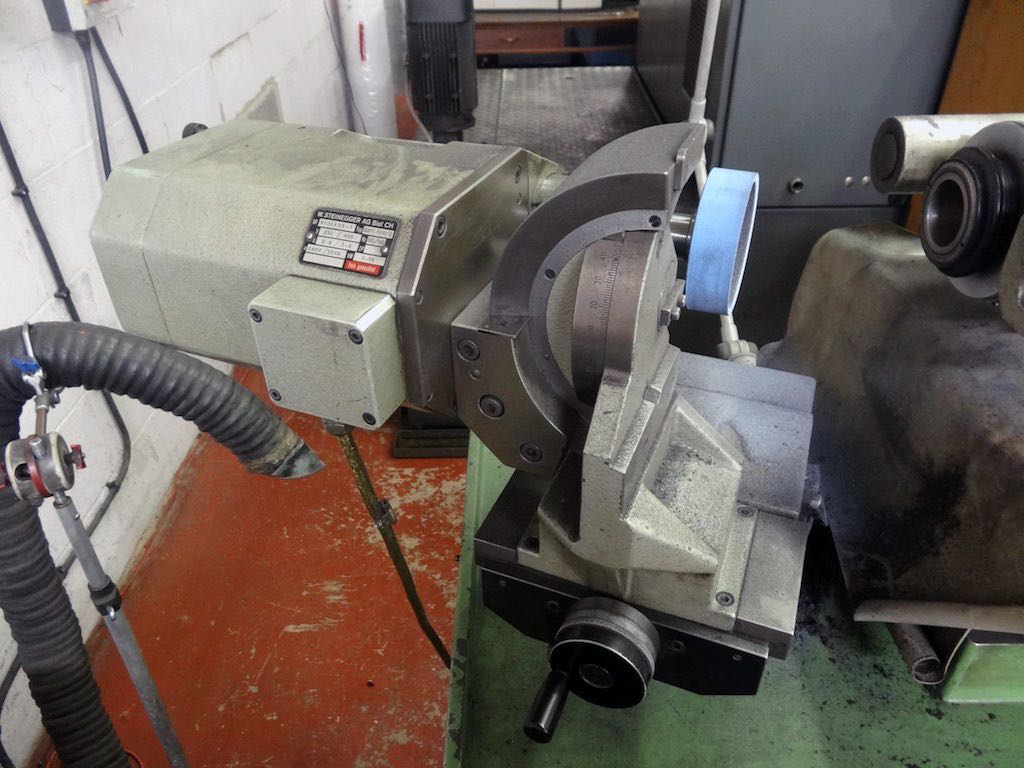

3.5" Grinding Wheel
Grinding Diameters: 1-160mm
Grinding movement longitudinal travel: 150mm
Additional longitudinal adjustment: 160mm
Grinding movement cross travel: 35mm
Additional cross travel adjustment: 180m
Wheel head height adjustment: 110mm
Radius concave: 25mm
Radius convex: 55mm

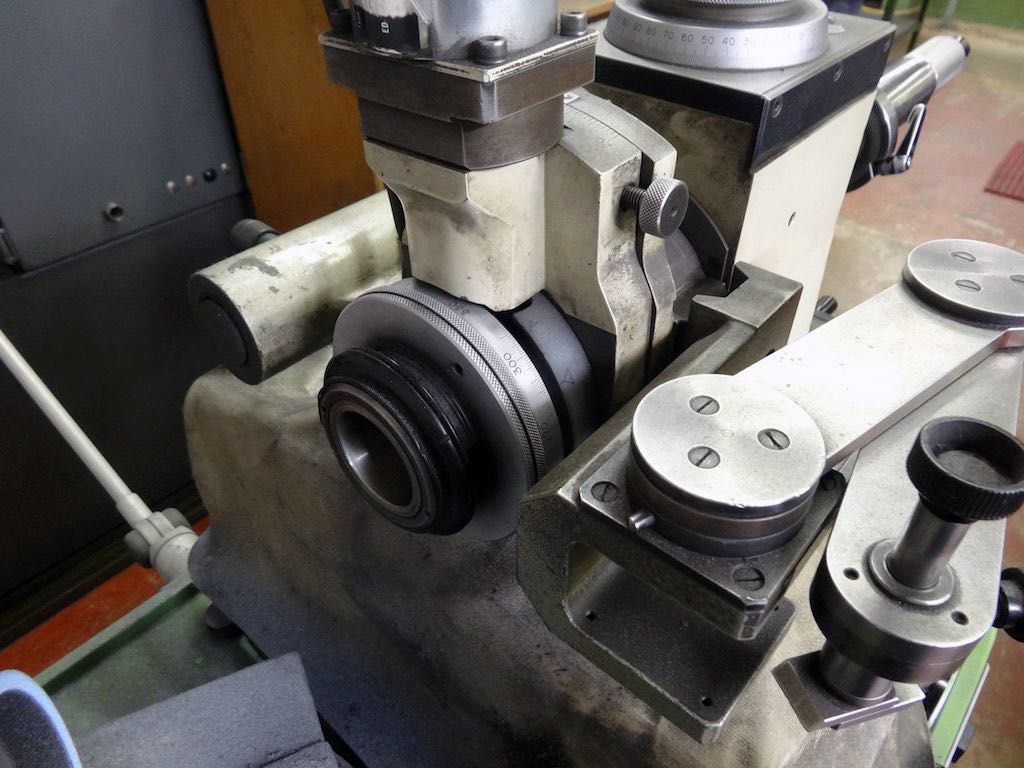

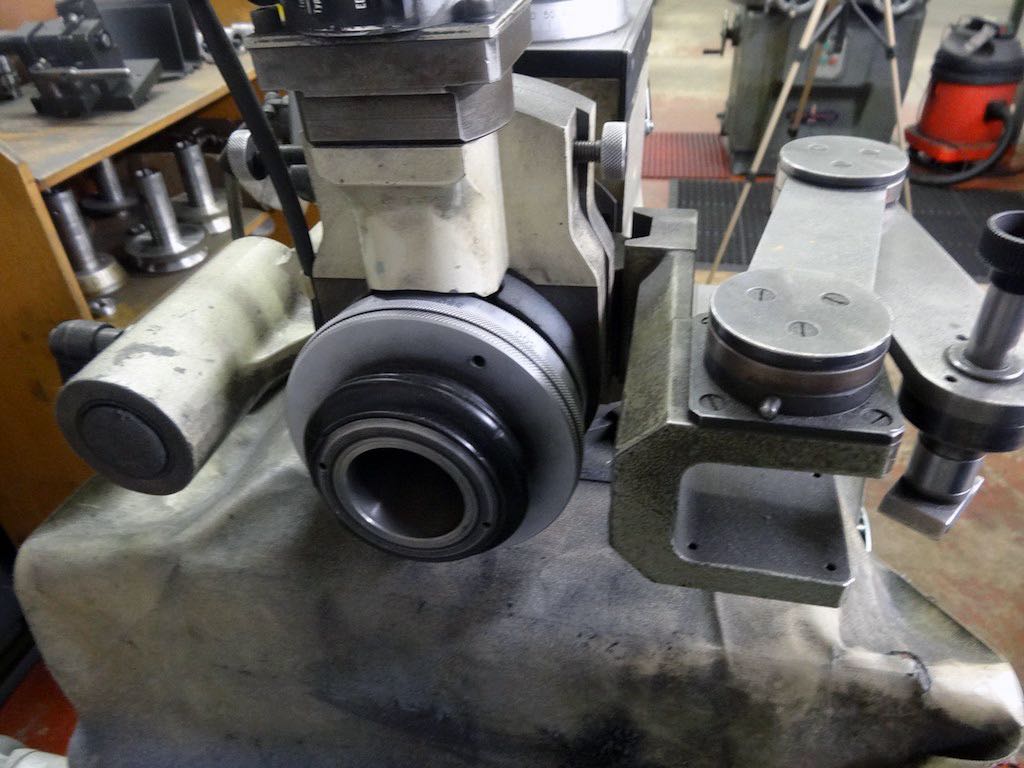

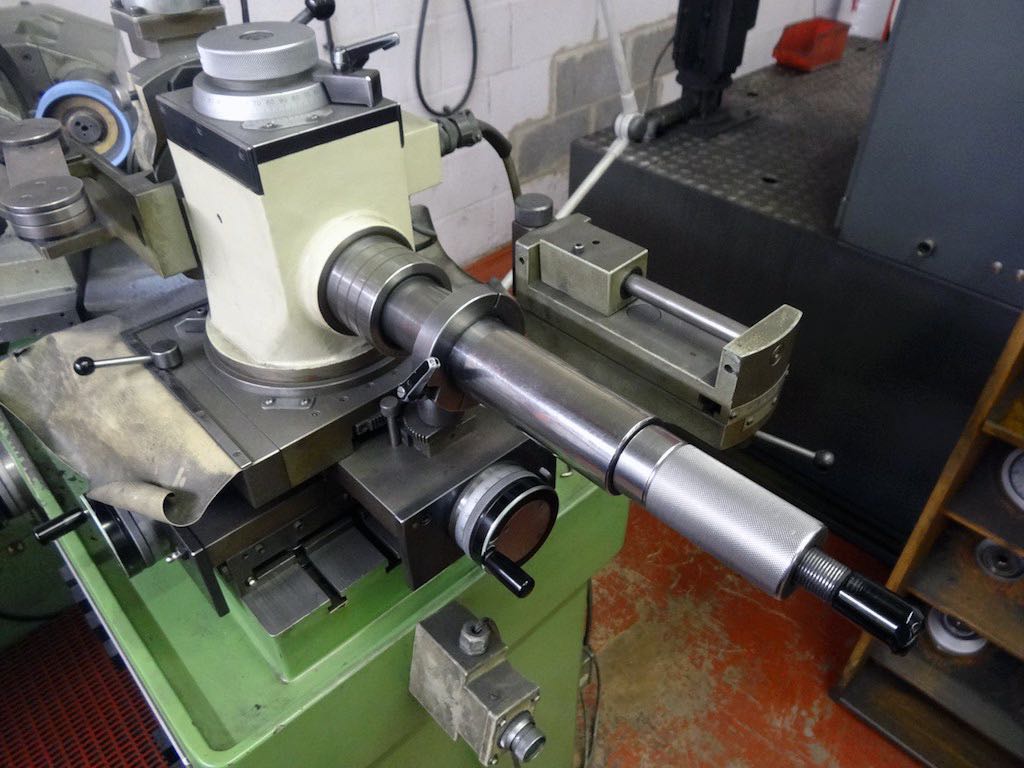

Workpiece spindle adaptor: ISO 40
Standard index plate: 24
Spiral Grinding:
Infinitely adjustable left and right,
Also possible with the support finger.
Maximum diameter of grinding wheel: 100mm
Grinding wheel bore: 20mm
Grinding spindle speeds (rpm):3700/4900/6075/7500
Finished in RAL 6011 green and grey hammer.

Extraction Unit:
L x W x H: 450 x 450 x 850mm

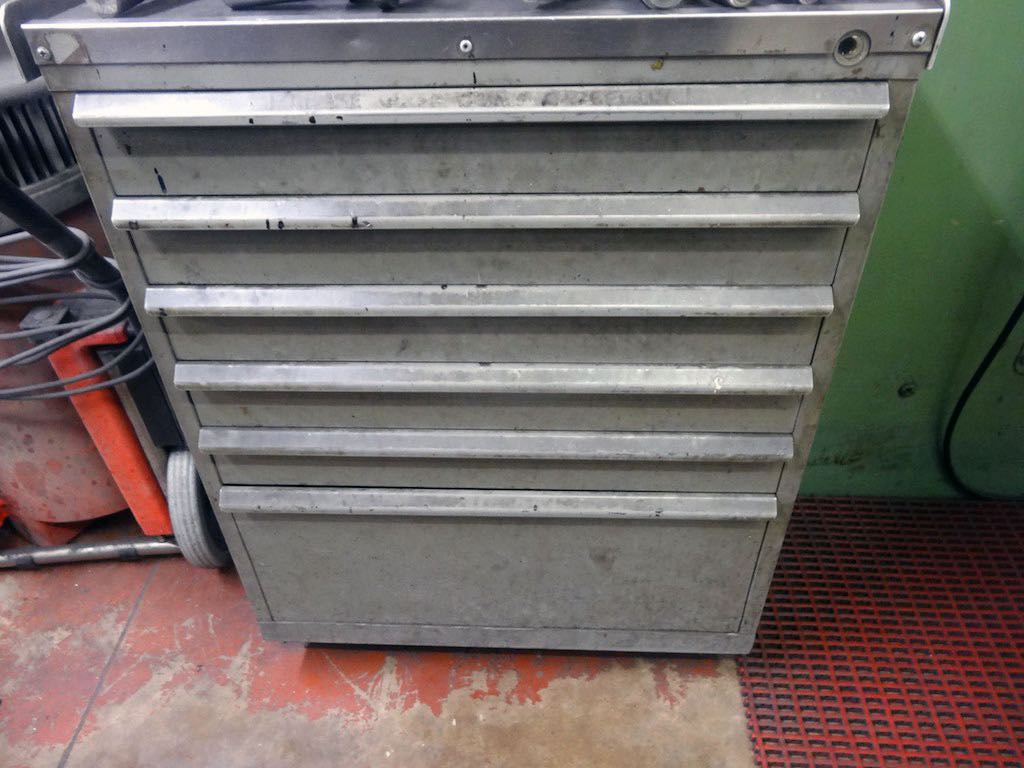

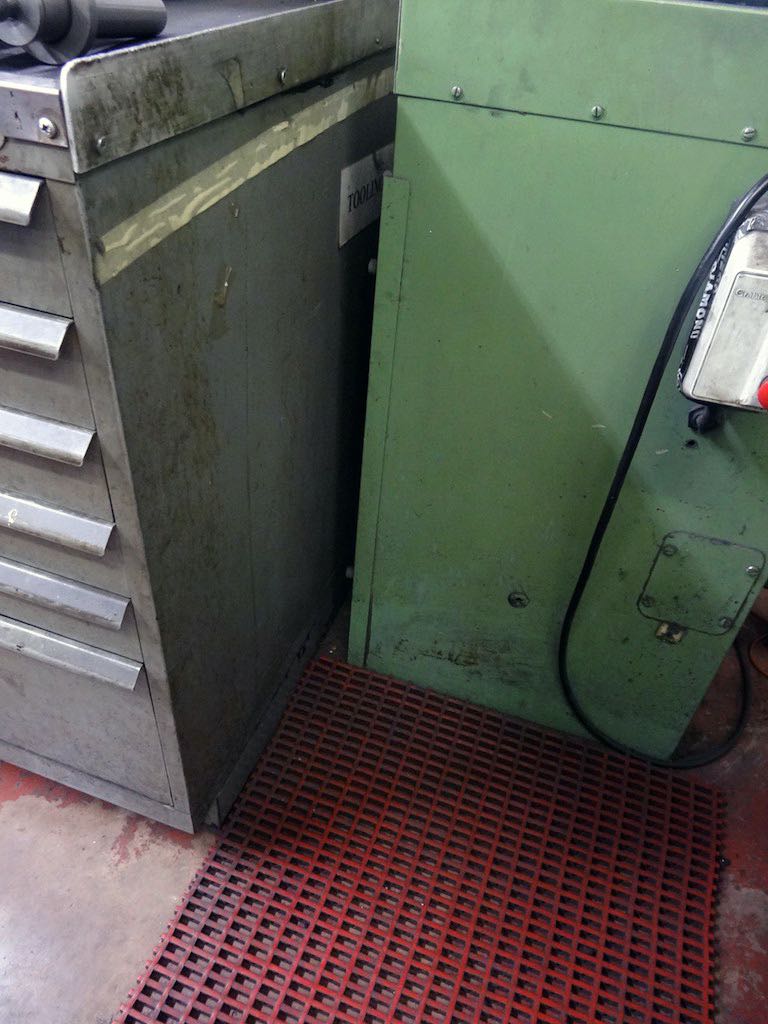

Includes Cabinet and Tooling

Cost in excess of £40,000 new

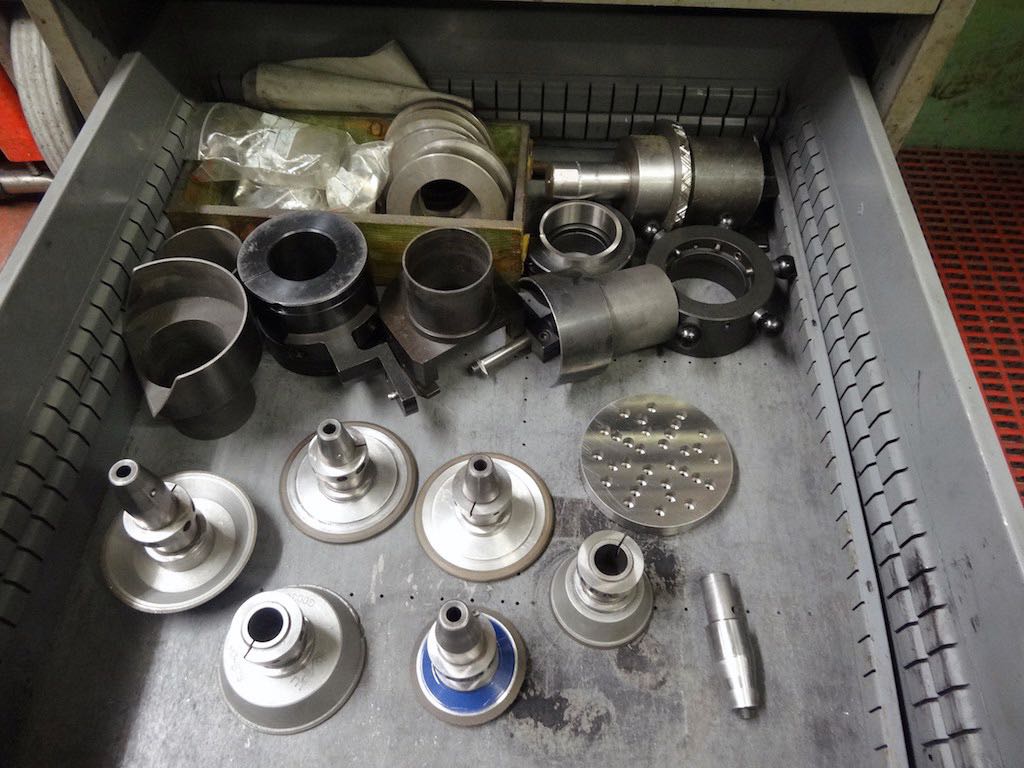

Includes:

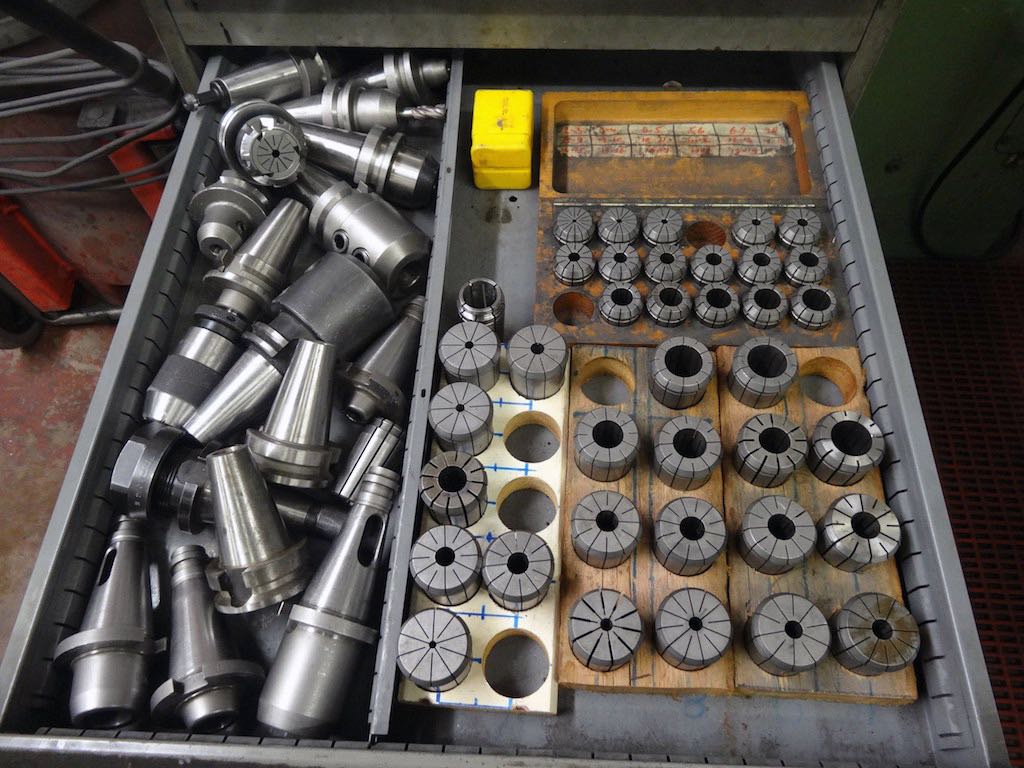

ER Collets
BT40 side and face, and collet holders

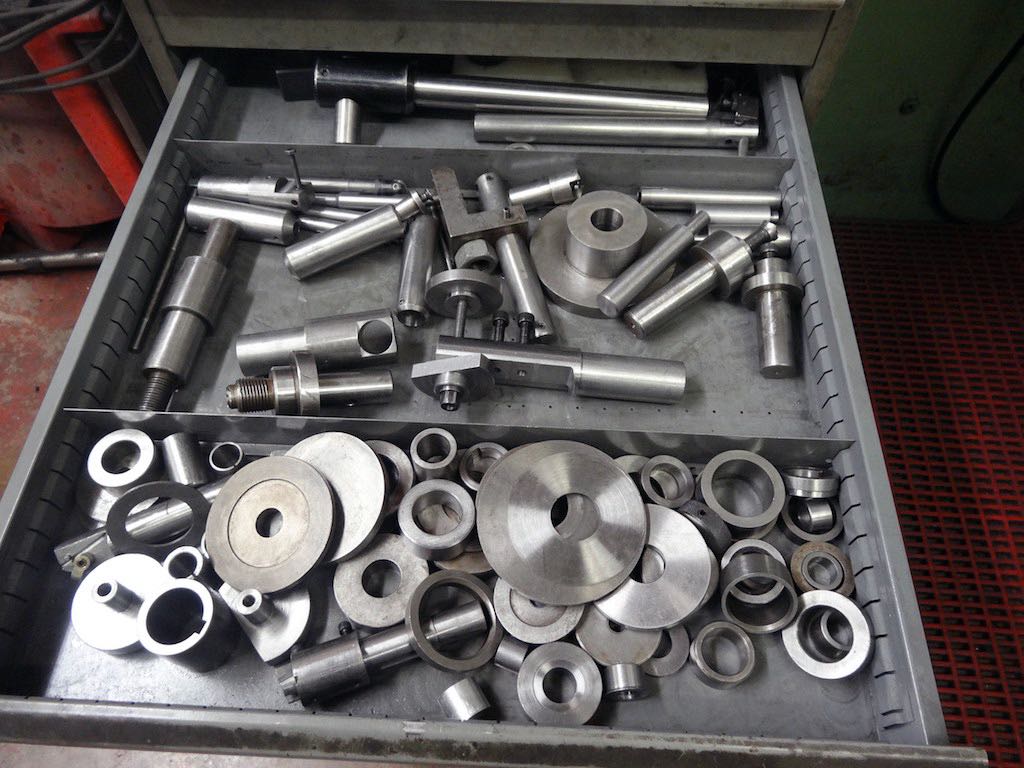

Various Holders

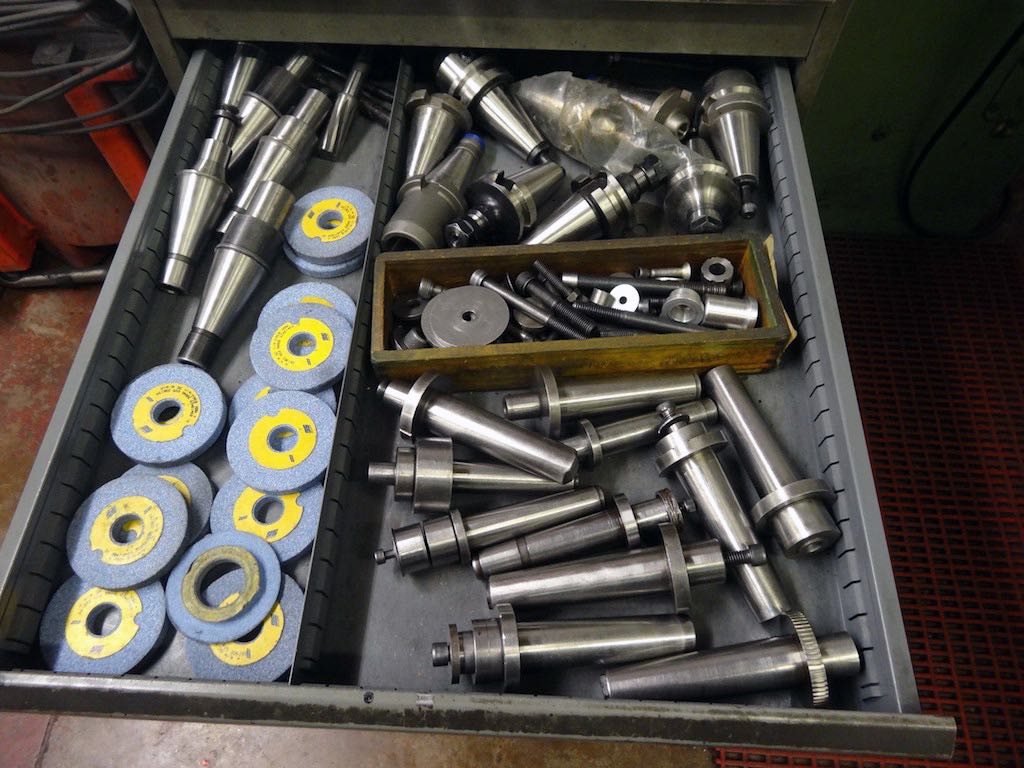

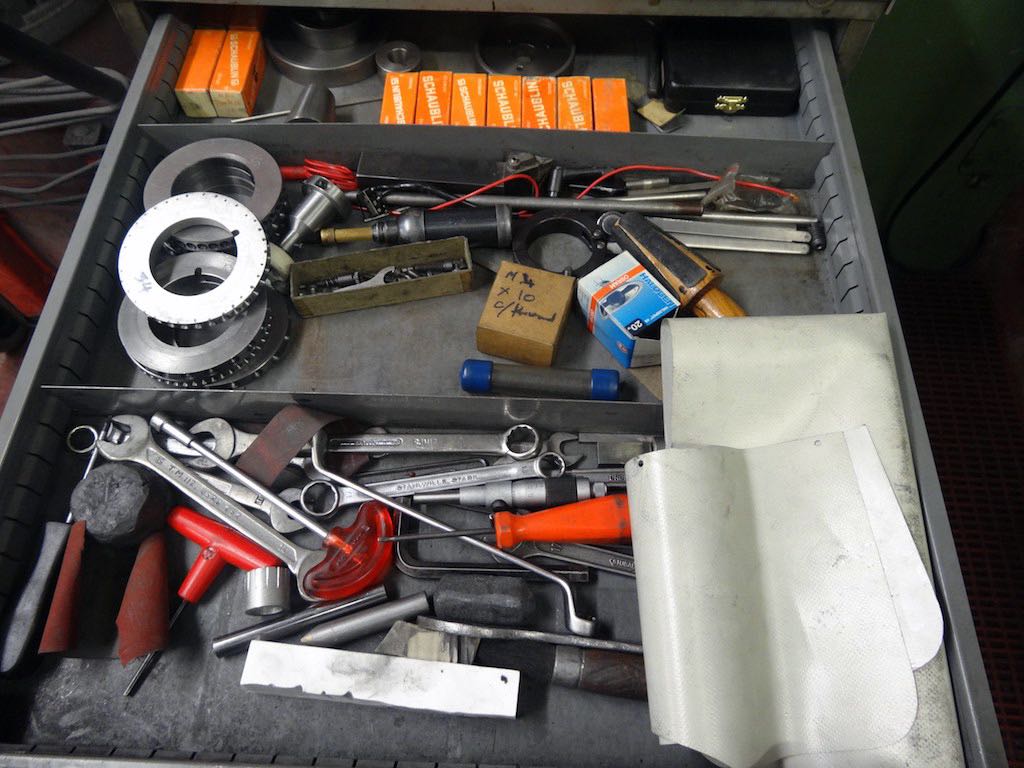

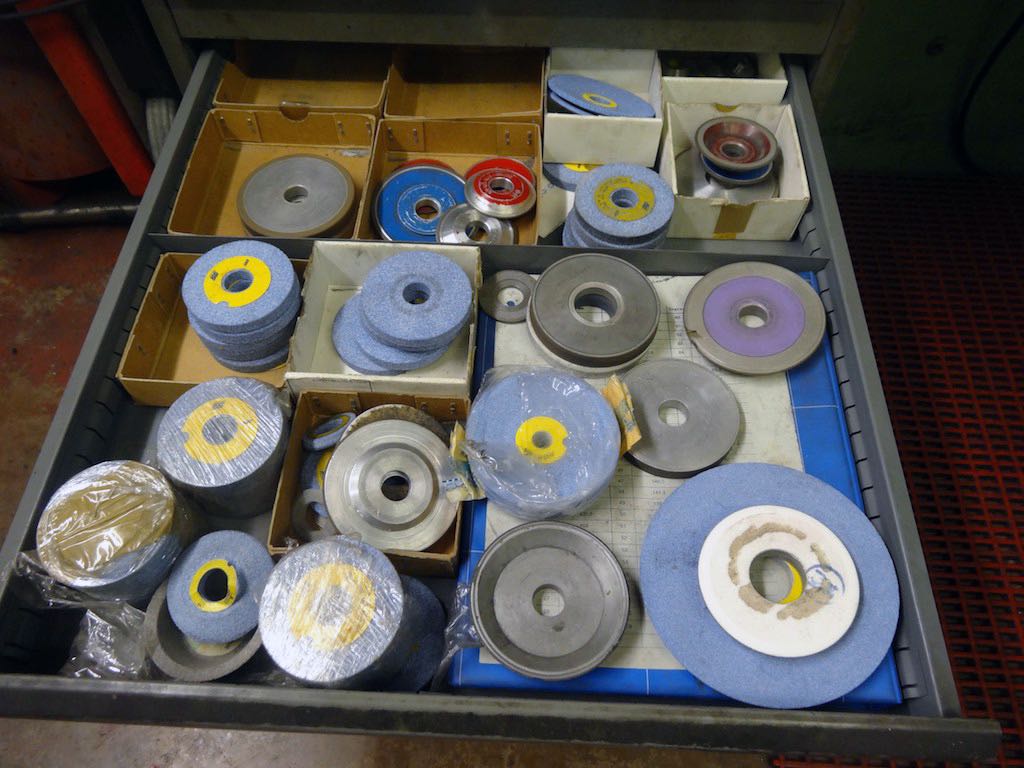

Includes draws with tooling

Location: Telford
