Lot 6 - Ward 10 Lathe
Description:

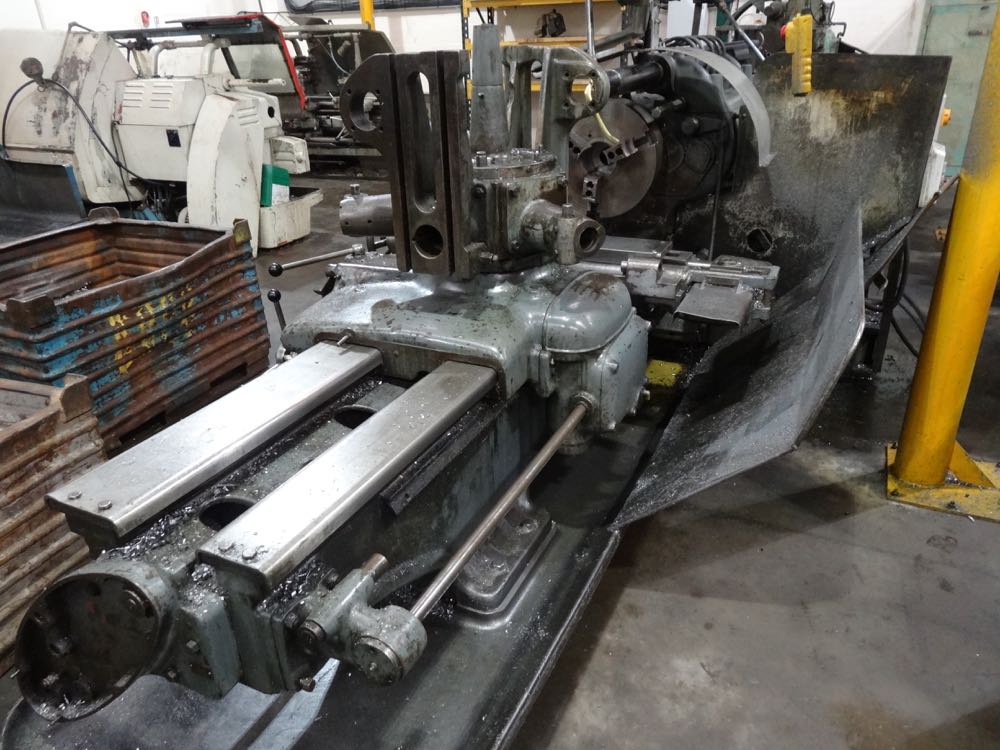

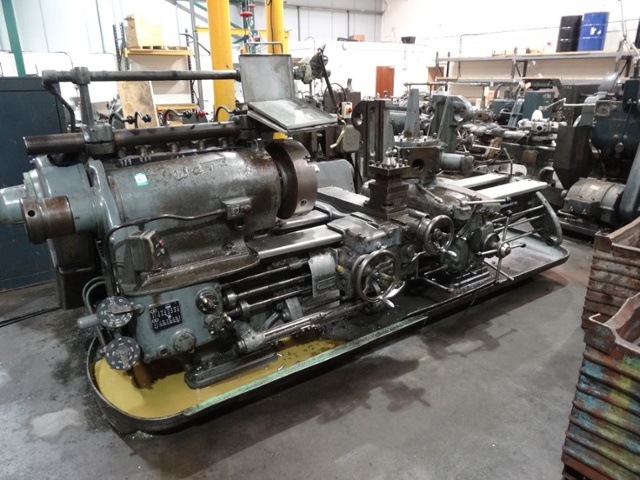

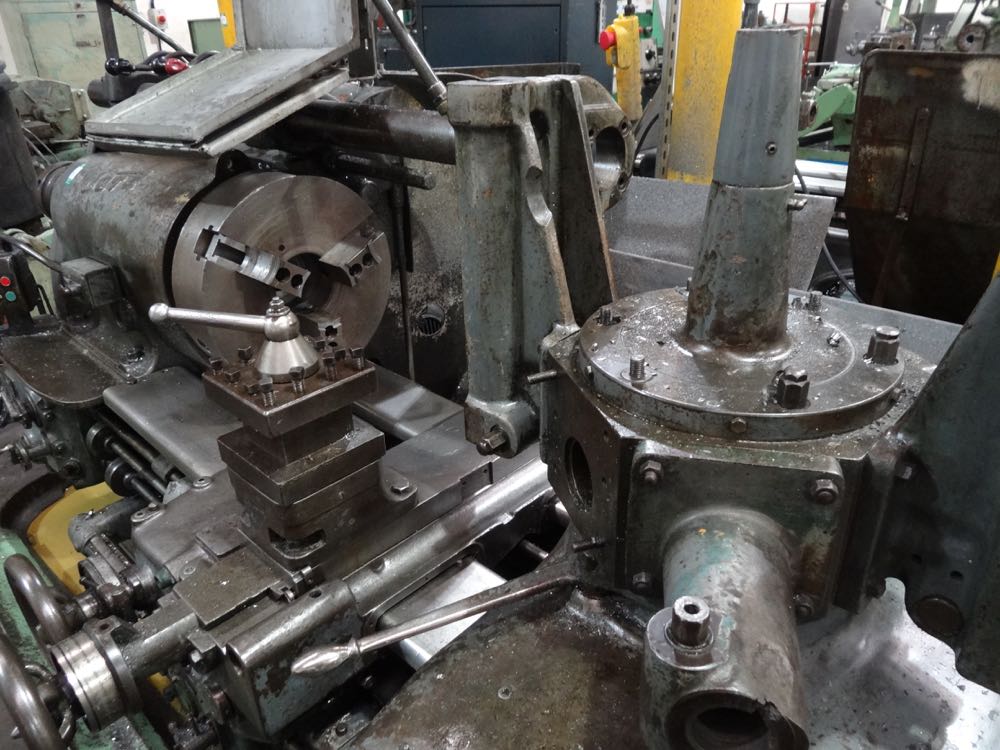

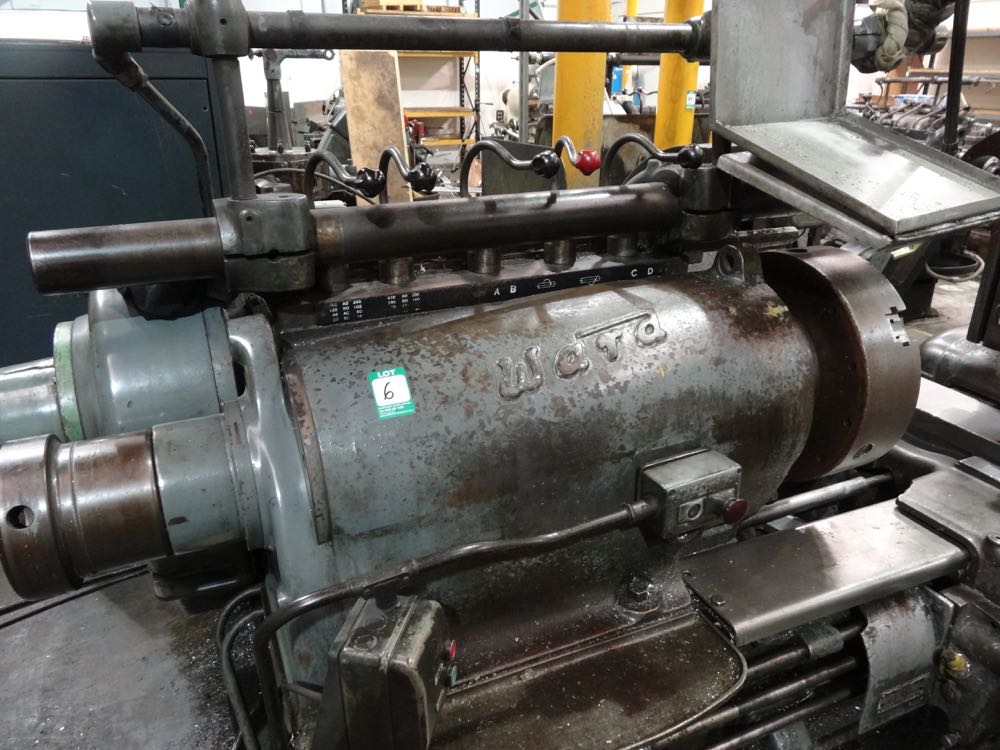

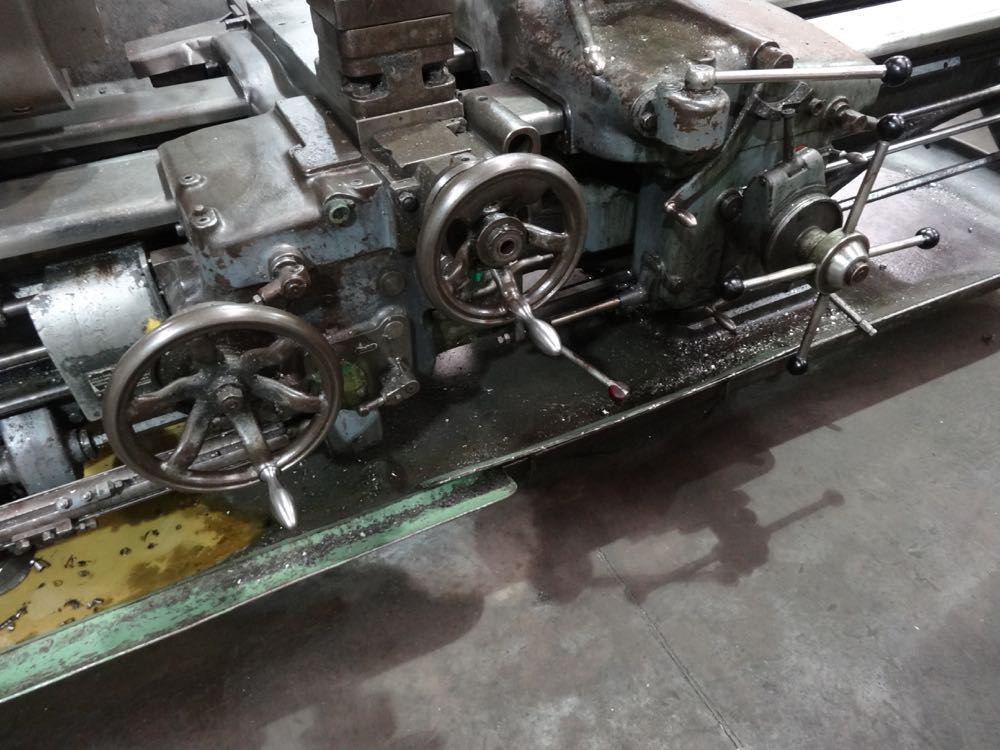

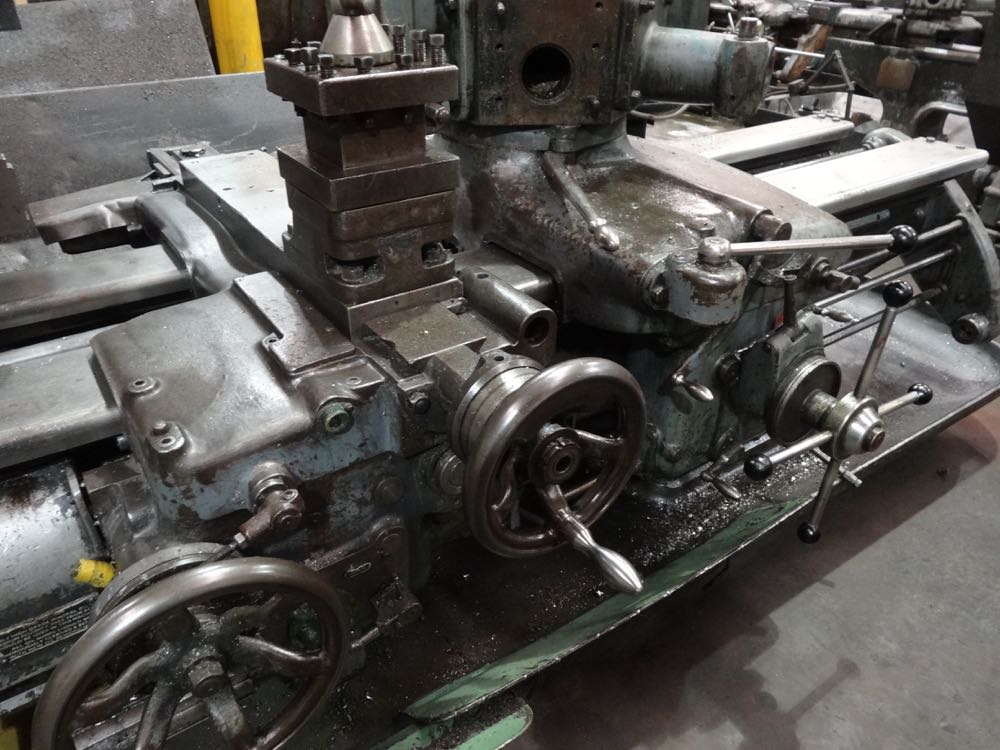

Ward 10 Lathe
General production machining (drilling / turning)
Motor Power:
15 Horse power
380 - 420 Volts
21 Amps
Maximum rpm 470

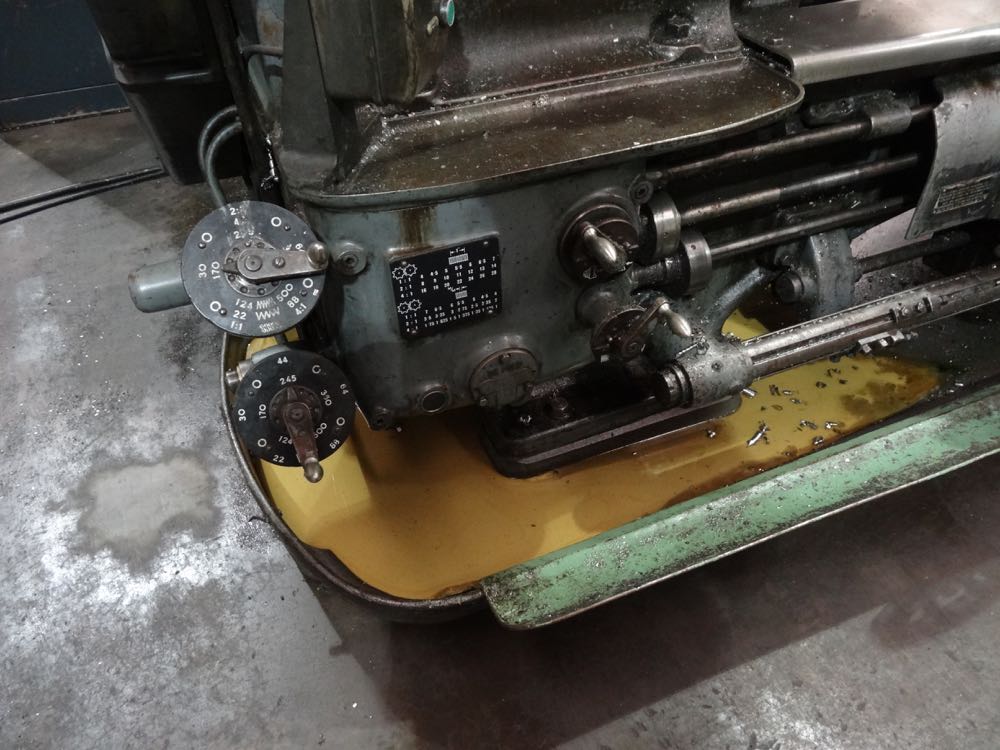

500 cuts per inch up to 22 cuts per inch is the feed speeds
Bore 4.25”

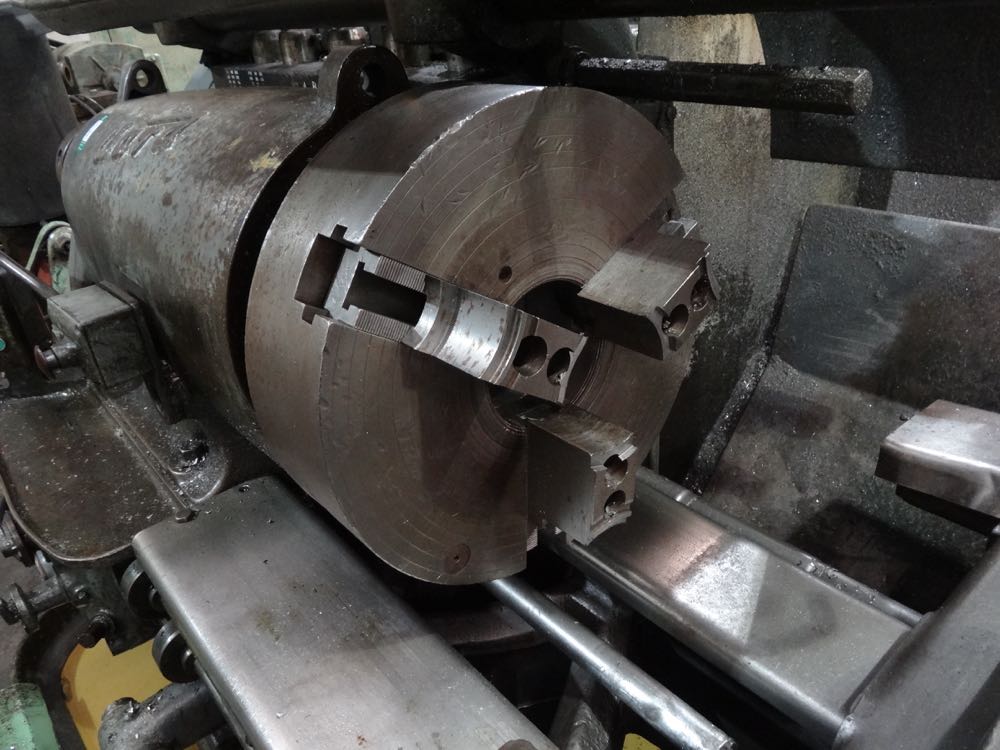

Chuck 18” chuck currently on the machine, max size recommended 20”

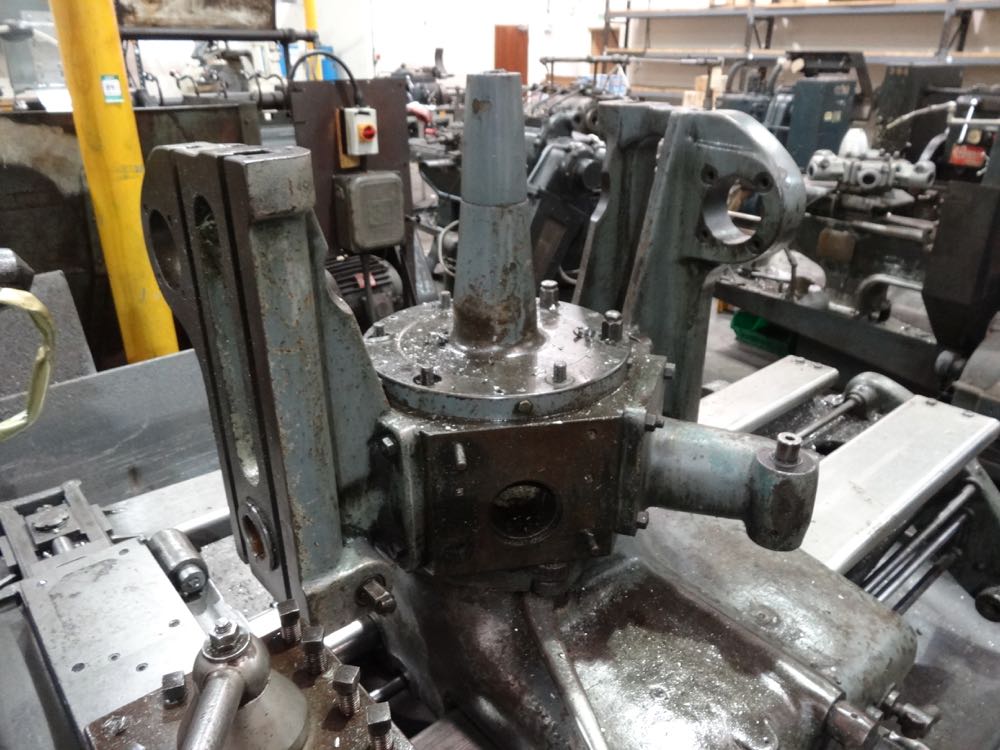

Bed Length: Chuck to turret 60”
L x W x H:3950 x 2005 x 1900mm
Location: West Midlands
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
