Lot 0 - Webster & Bennett 48" EV Vertical Borer
Description:
Sold Subject to payment

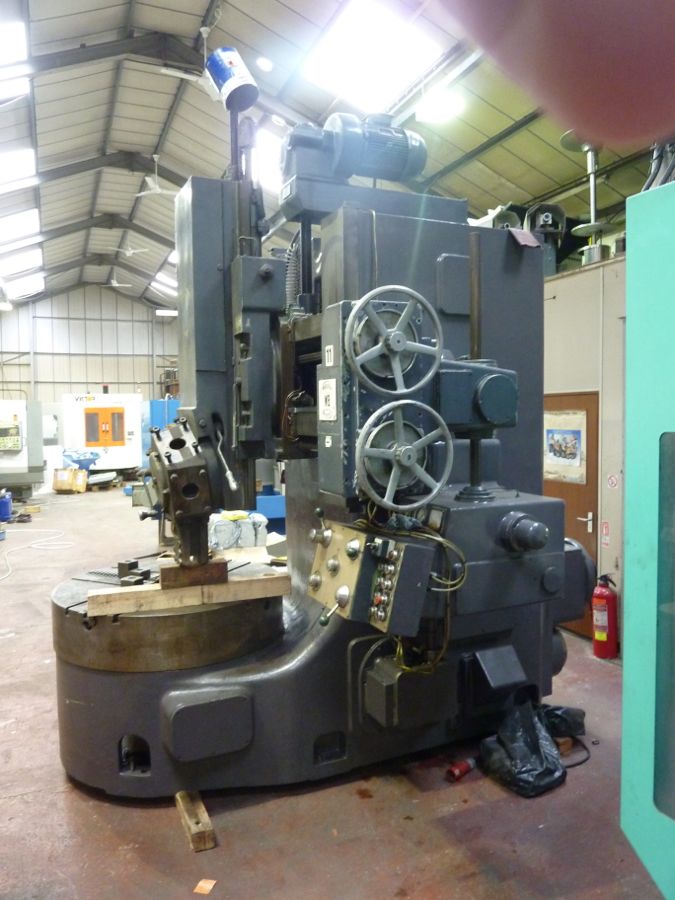

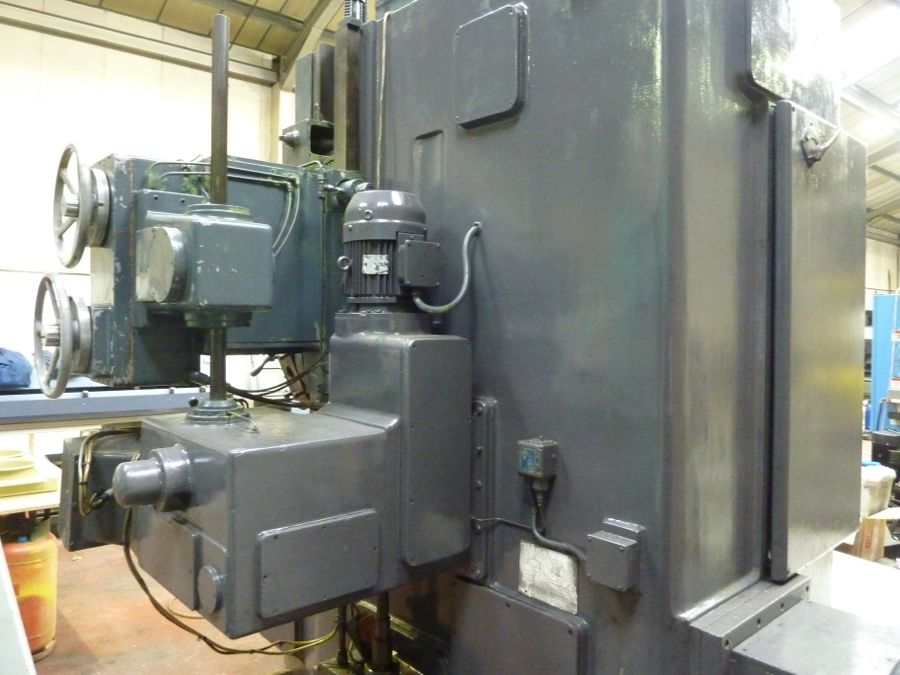

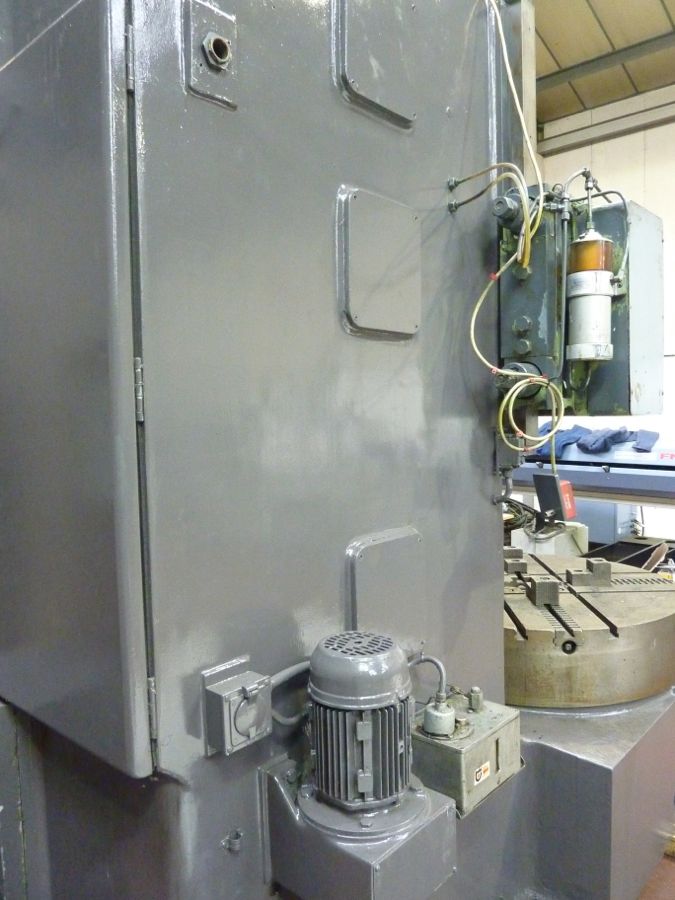

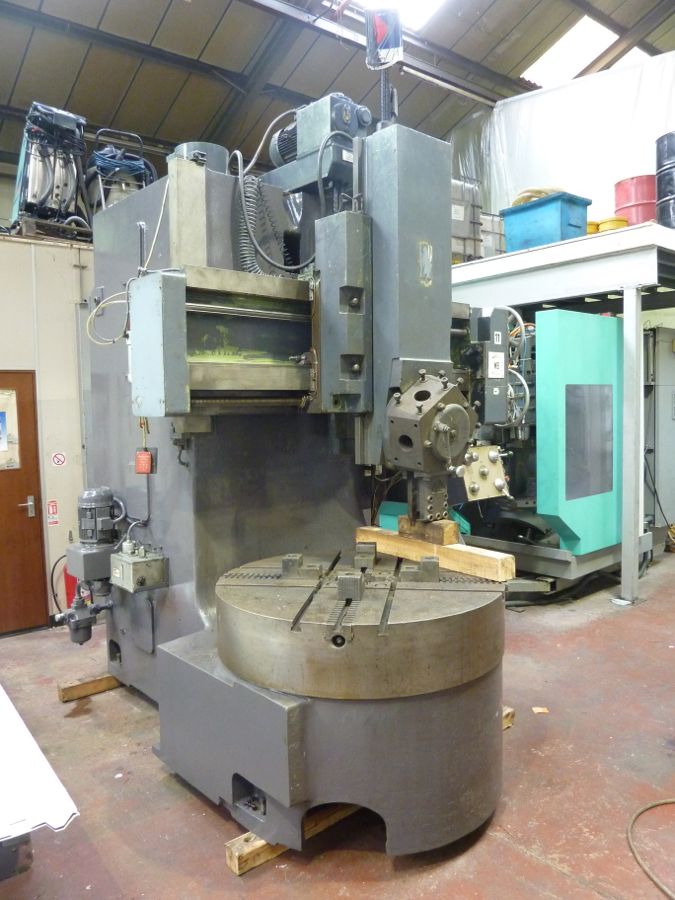

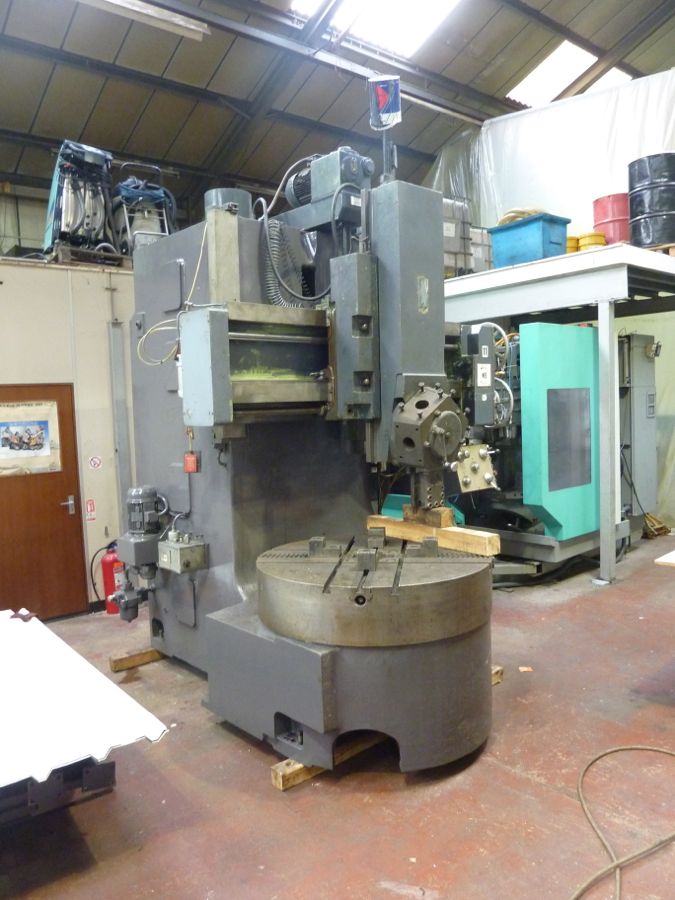

Webster & Bennett 48" Series EV (Elevating rail)
Nice machine that has been decommissioned and is ready for transport.

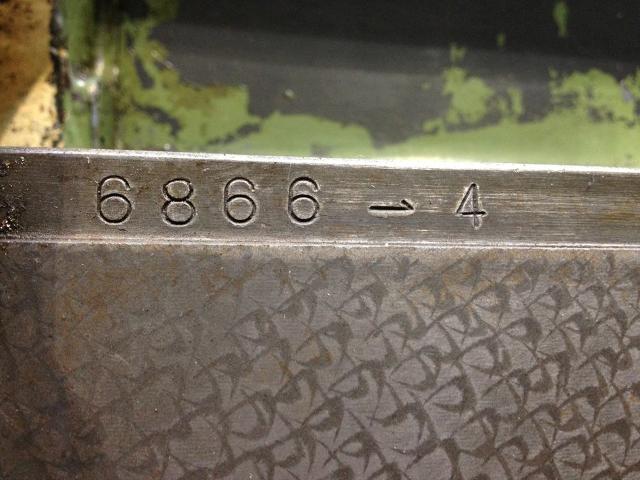

Serial Number: 6866-4

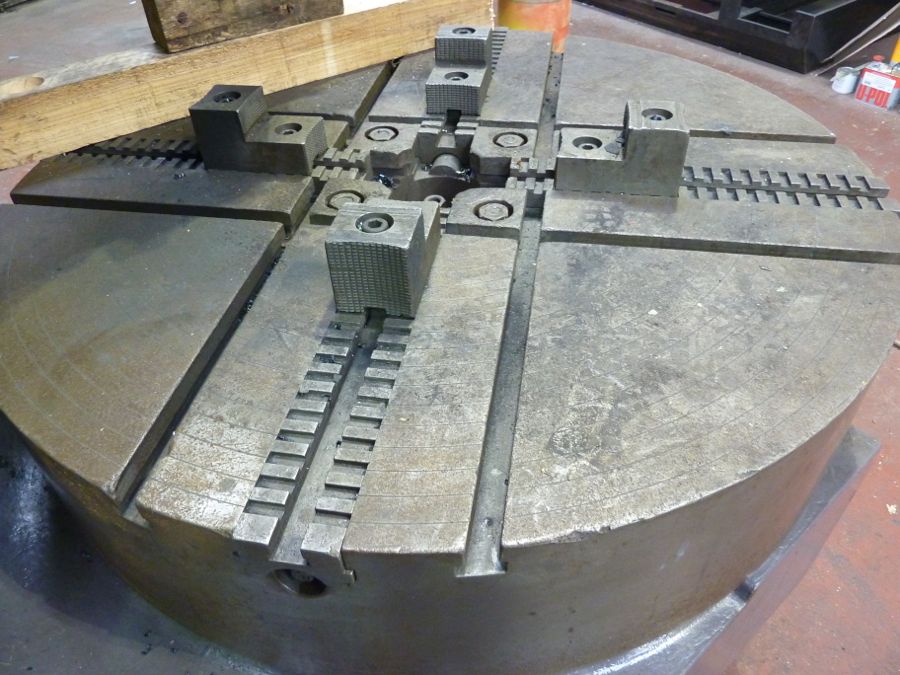

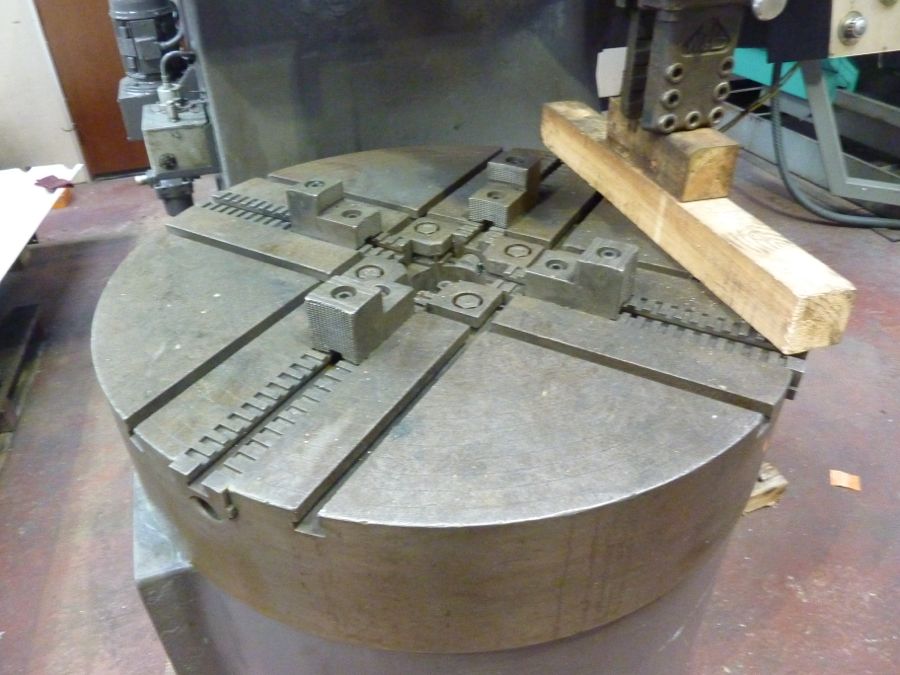

4 Jaw Chuck Diameter: 48" 1219mm
Admits in diameter: 59" 1499mm
Maximum Diameter Turned for travel of turret slide: 54" 1372mm
Maximum Diameter Turned for Length of B2X Toolholder: 58" 1473mm
Minimum height under cross slide: 26" 660mm
Admits inheight under cross slide when auto trip is fitted: 22.5" 572mm
Maximum height under cross slide: 48" 1219mm
Vertical adjustment of cross slide: 22" 559mm
Maximum height under turret: 59" 1499mm

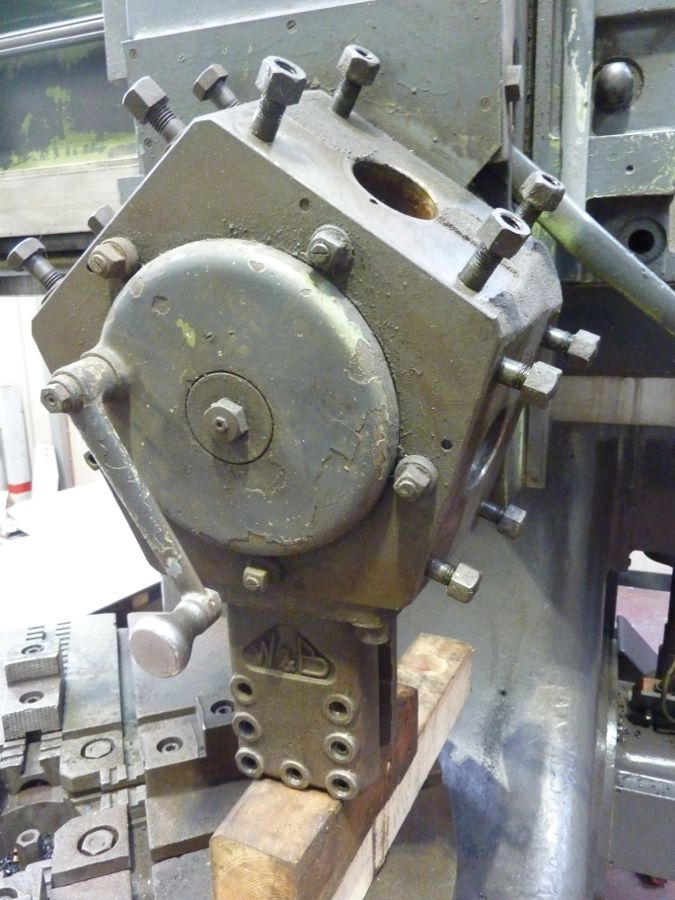

Vertical travel of Turret slide: 38" 965mm
maximum Length that can be bored: 28" 711mm
Diameter of Spindle Bore: 3.75" 95mm
Horizontal Feed of turret from chuck to centre outwards: 34 5/8" 880mm
Diameter of turret holes: 3"
Floor Space required: Front 95" 2413mm, Side 132" 3353mm
Distance from chuck centre to juction face: 24.5" 622mm
Distance from chuck centre to front of cross slide: 17" 432mm
Number of Speeds: 12
Number of Feeds: 12
Horsepower of Main motor (Horizontal foot mounted):30-40
Approximate Weight (Excluding external Equipment): 11176kg
Total Height: 167" 4231mm
Standard Transit Height: 139" 3531mm
Minimum Height for transist purposes if required: 109" 2769mm
Location: Coventry
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
