Lot 1 - WMW Heckert Union BFP130/6 Floor Type Horizontal Boring & Milling Machine
Description:

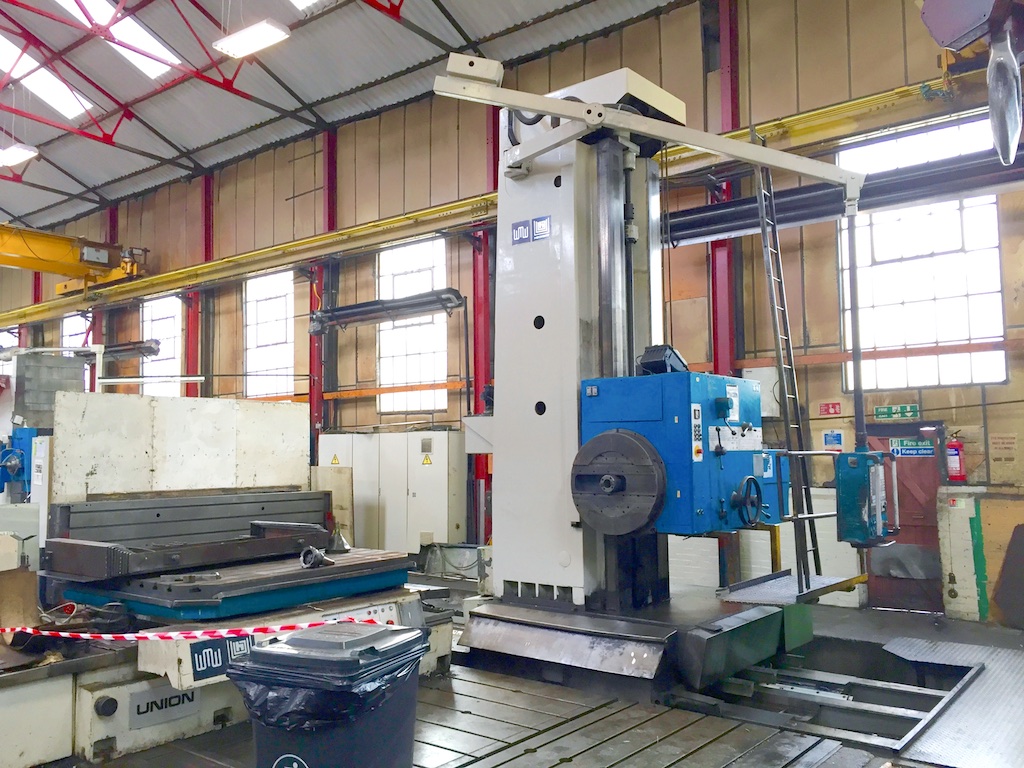

WMW Heckert/ Union Floor Type Horizontal Boring and Milling Machine
Model BFP 130/6 CNC Floor Type Boring Machine
Serial no. 11409
YOM: 1982

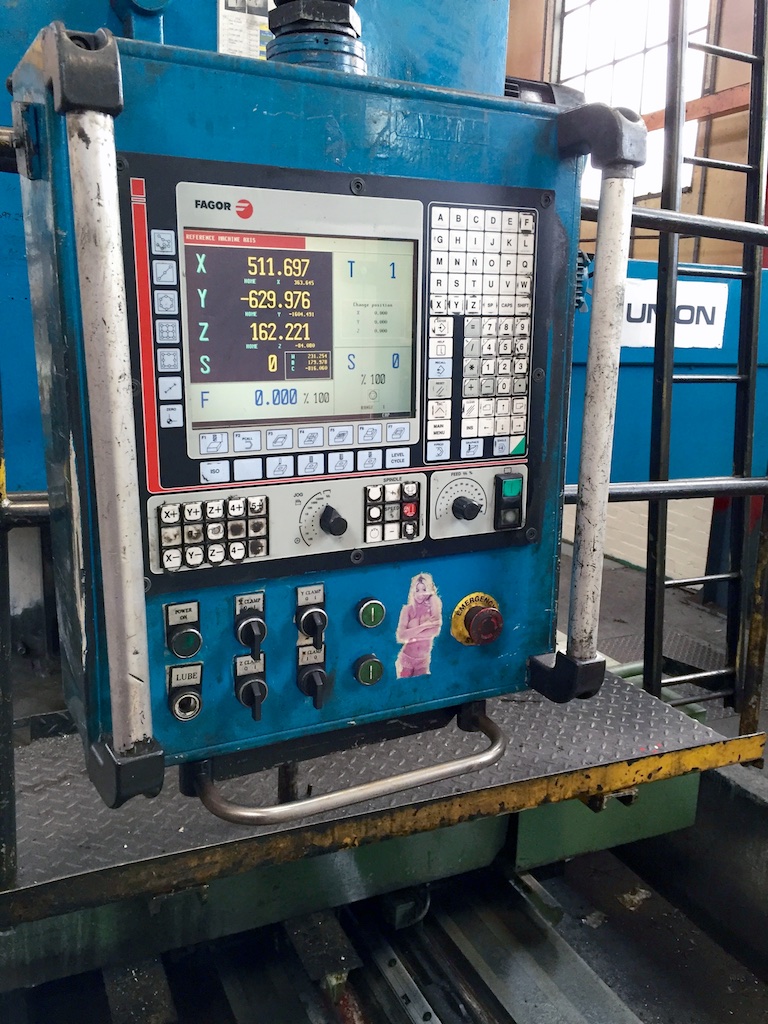

Fagor 8055 CNC retrofitted in 2005
Spindle 130mm dia
Facing Head 800mm dia
Spindle
speeds 4.5 – 900 rpm
50 iso
travel 1,000mm
Y axis: Vertical travel of spindle head 2,500mm

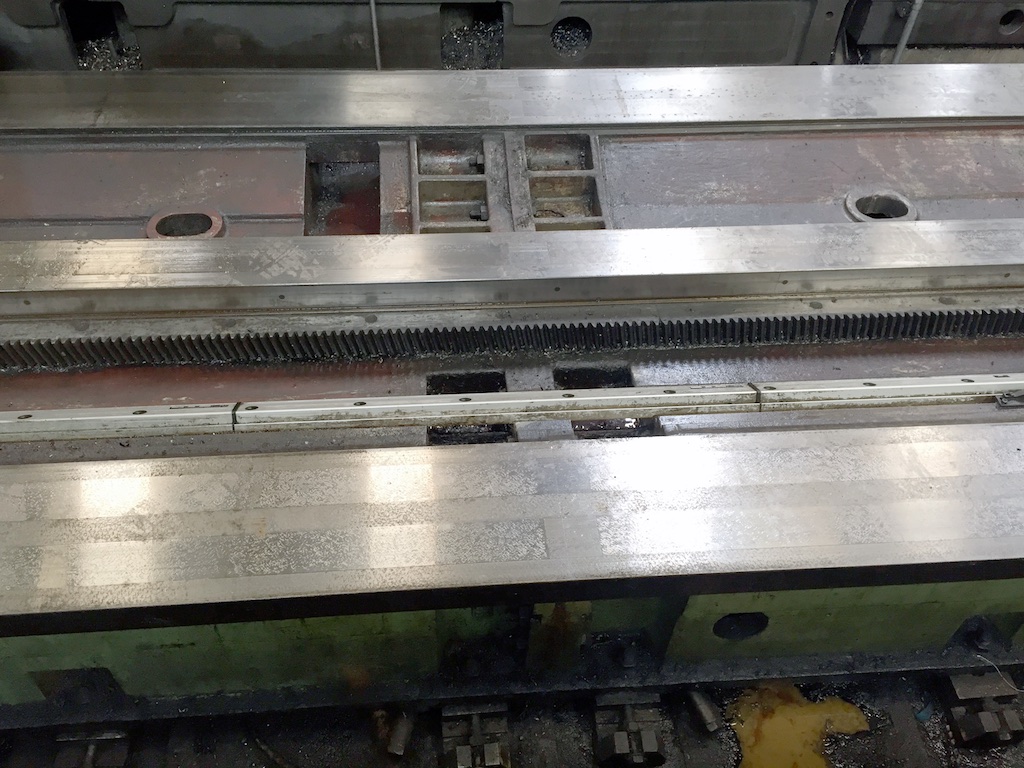

X axis: Horizontal Travel of column along bed 5,600mm
Main motor 18.5kw

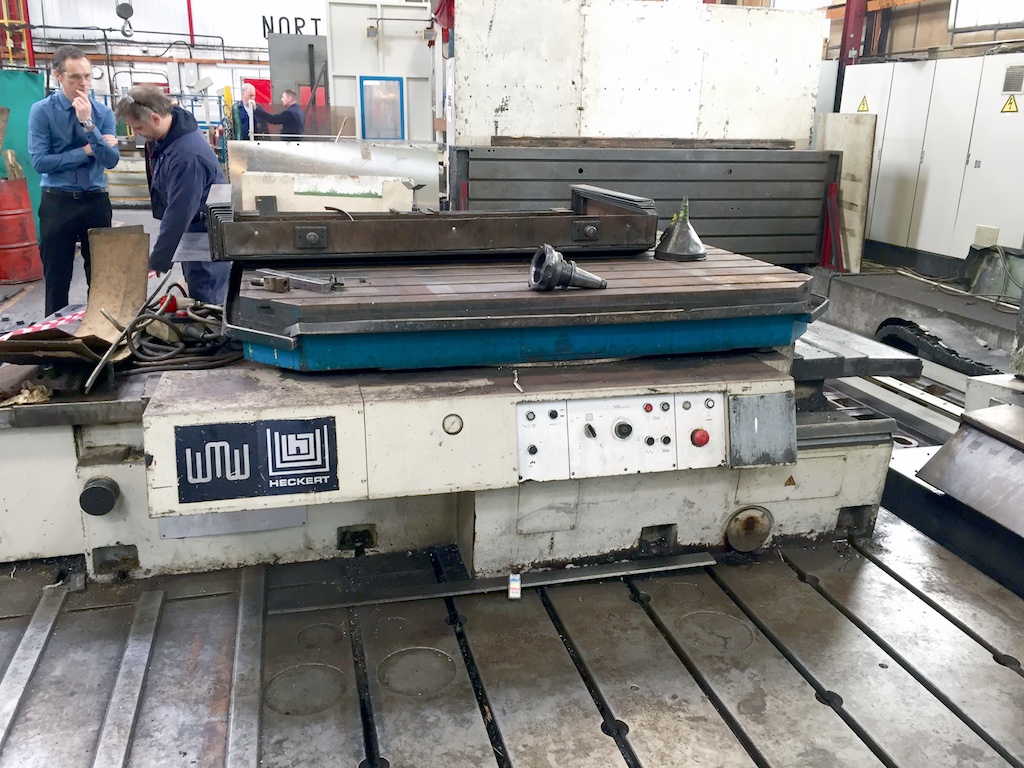

WMW Union Model TI 1800 Rotary table
1,800mm x 2,000mm
1,200 traverse
12.5 tone capacity

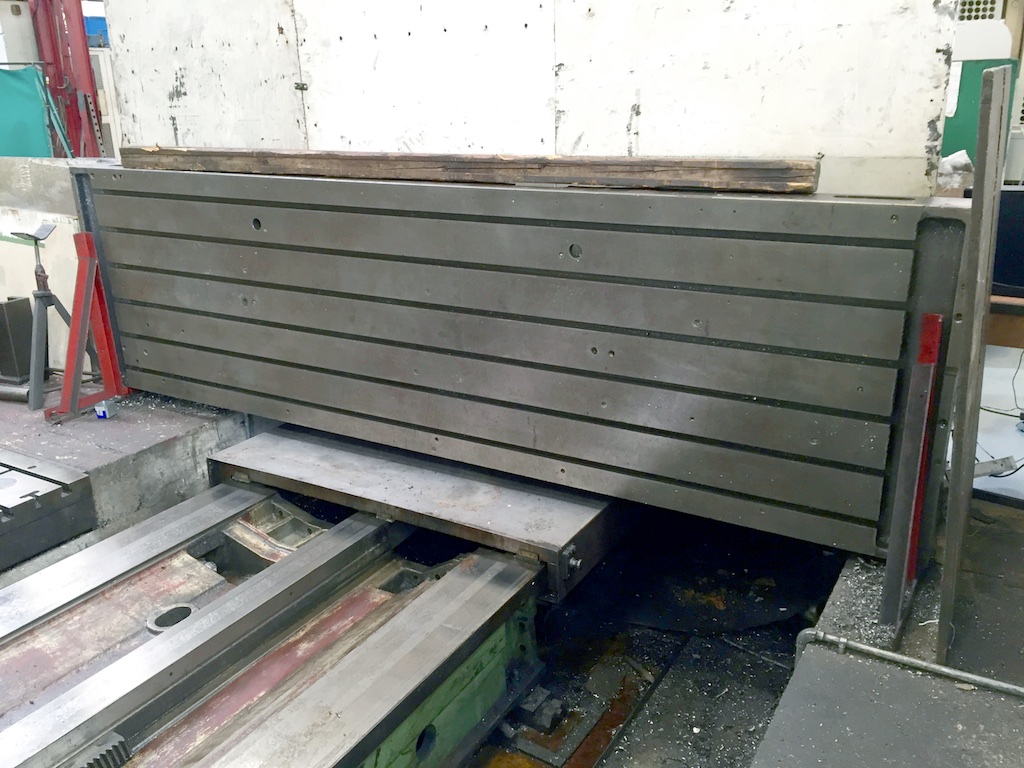

Floor plates 7,000mm x 4250mm

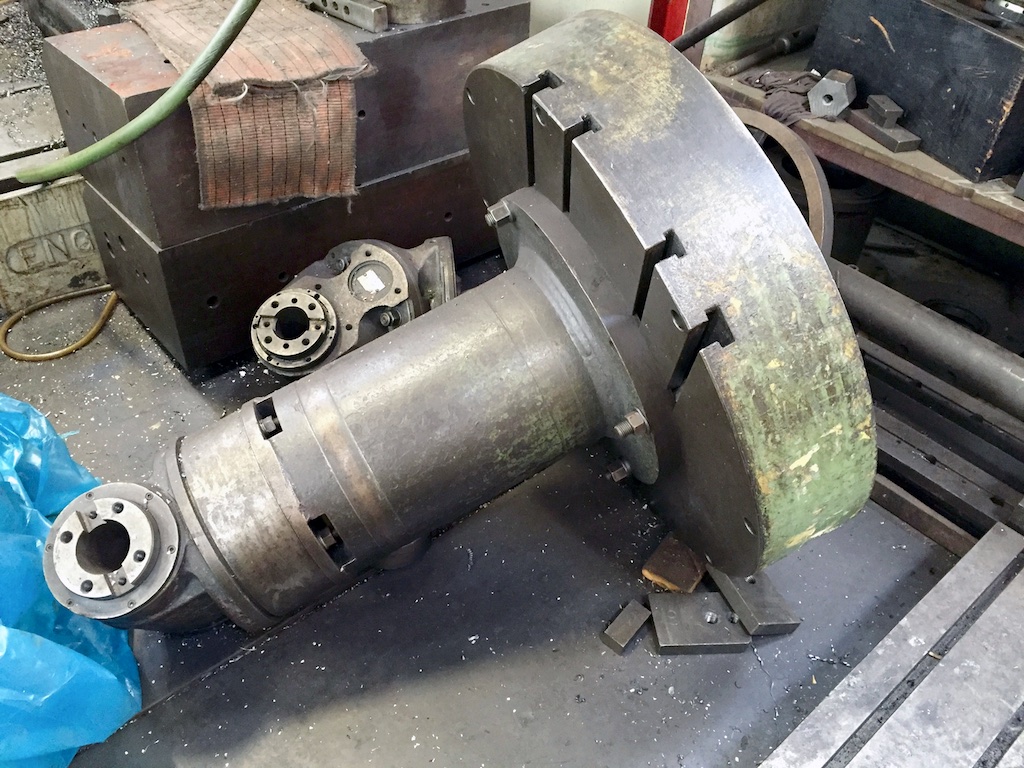

Milling attachment
Spindle support

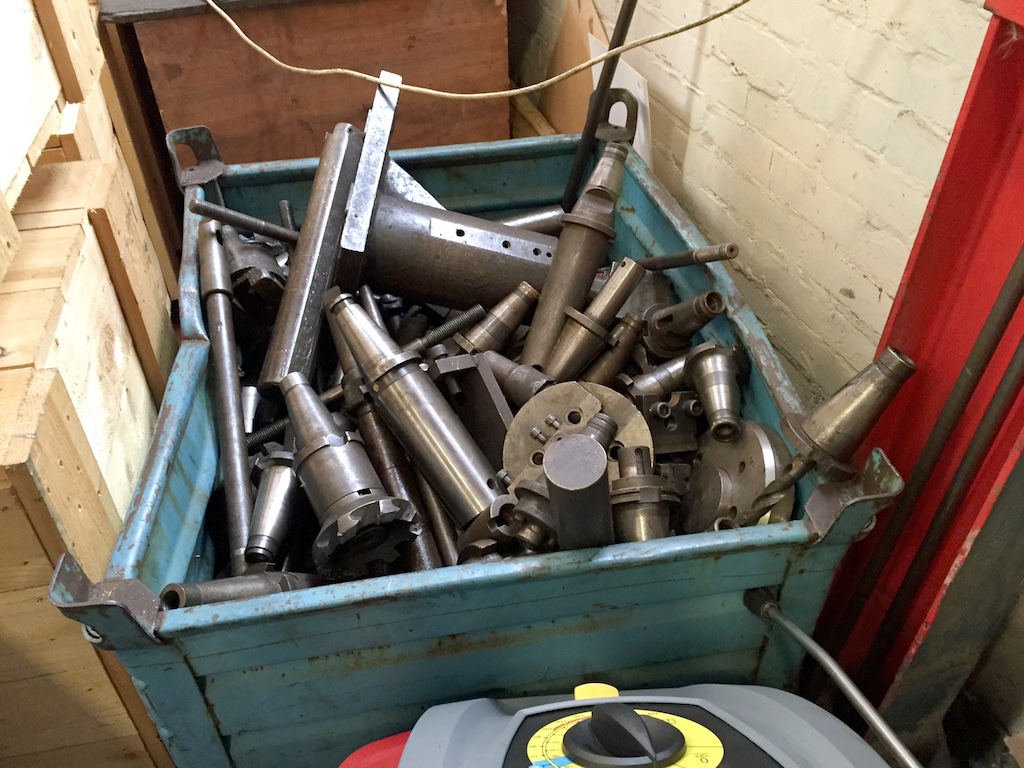

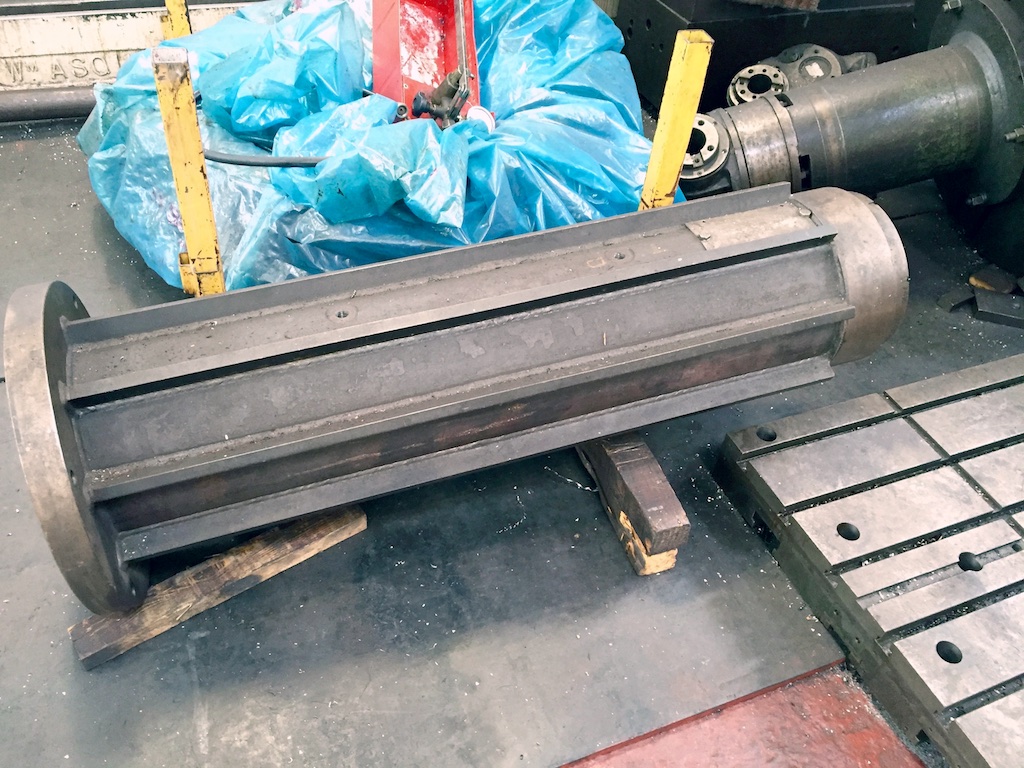

All tooling as photographed
All manuals and foundation drawings
Location: Sheffield
*Please note this is currently stored at a facility in Sheffield - It can be loaded free of charge and has already been prepared for shipment
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
