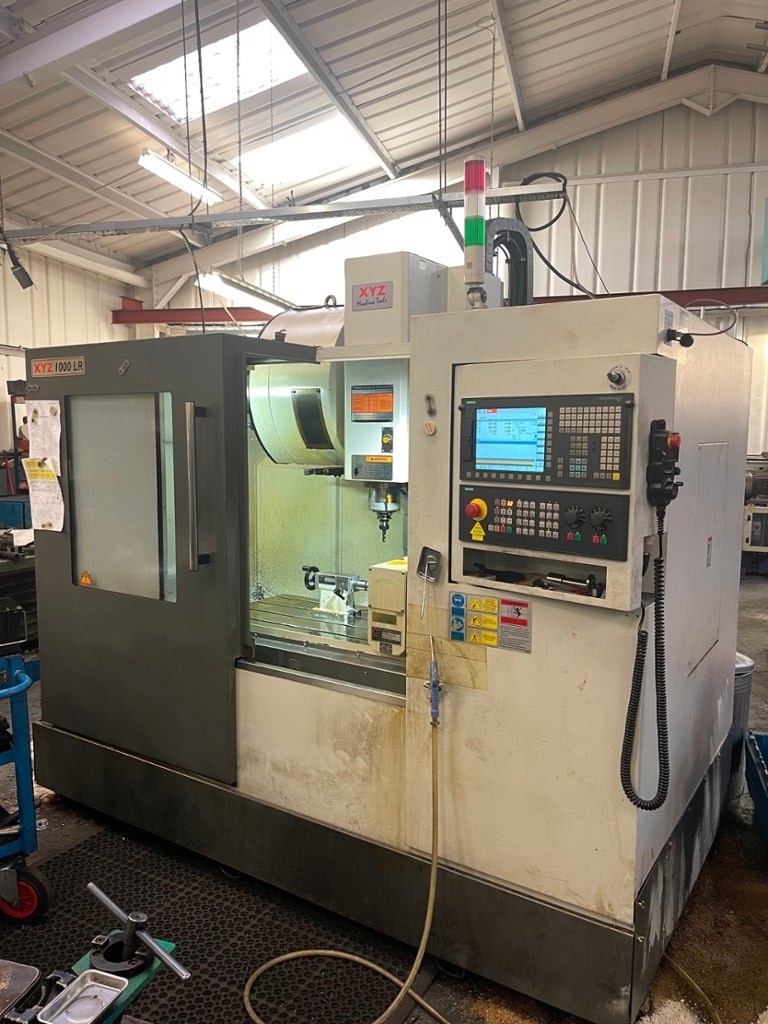

XYZ 1000LR CNC Vertical Machining Centre (2017)

Lot 2 - XYZ 1000LR CNC Vertical Machining Centre (2017)

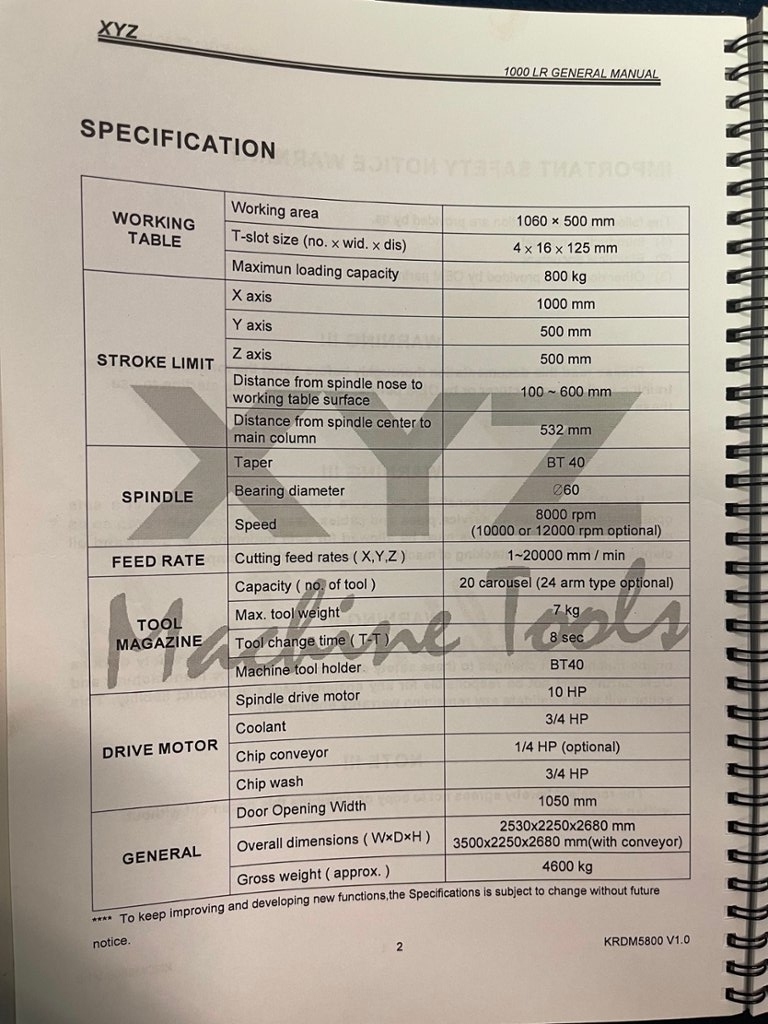

Description:

Working Table

Working area - 1060 x 500mm, T-Slot size (no. x wid x dis) - 4 x 16 x 125mm, Maximum loading capacity - 800kg

Stroke Limit

X axis - 1000mm, Y axis - 500mm, Z axis - 500mm, Distance from spindle nose to working table surface - 100 ~ 600mm, Distance from spindle center to main column - 532mm

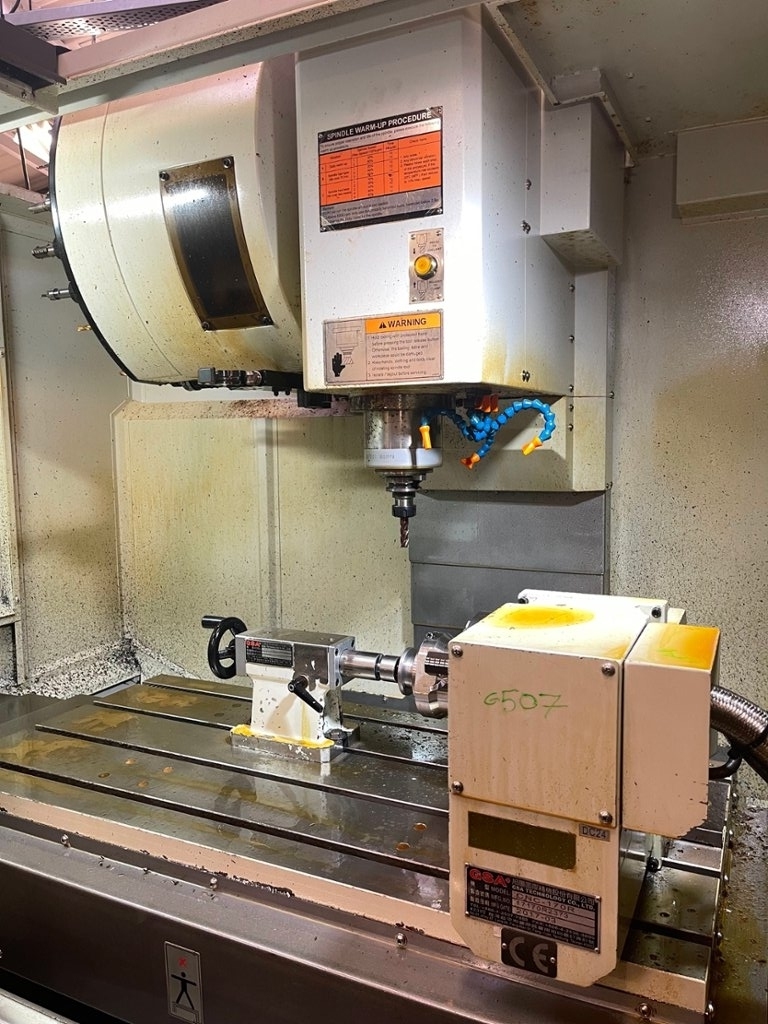

Spindle

Taper - BT40, Bearing diameter - 60, Speed - 8000 RPM (10000 or 12000 RPM optional)

Feed Rate

Cutting Feed Rates (X,Y,Z) - 1 ~ 20000 mm/min

Tool Magazine

Capacity (no. of tool) - 20 Carousel (24 arm type optional), Max tool weight - 7 kg, Tool change time (T-T) - 8 secs, Machine tool holder - BT40

Drive Motor

Spindle drive motor - 10HP, Coolant - 3/4HP, Chip conveyor - 1/4HP (optional), Chip wash - 3/4HP

Door opening width - 1050mm

Dimensions with conveyor (W x D x H) - 3500 x 2250 x 2680mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
