Lot 27 - XYZ 1430M Lathe with DRO (2009)
Description:

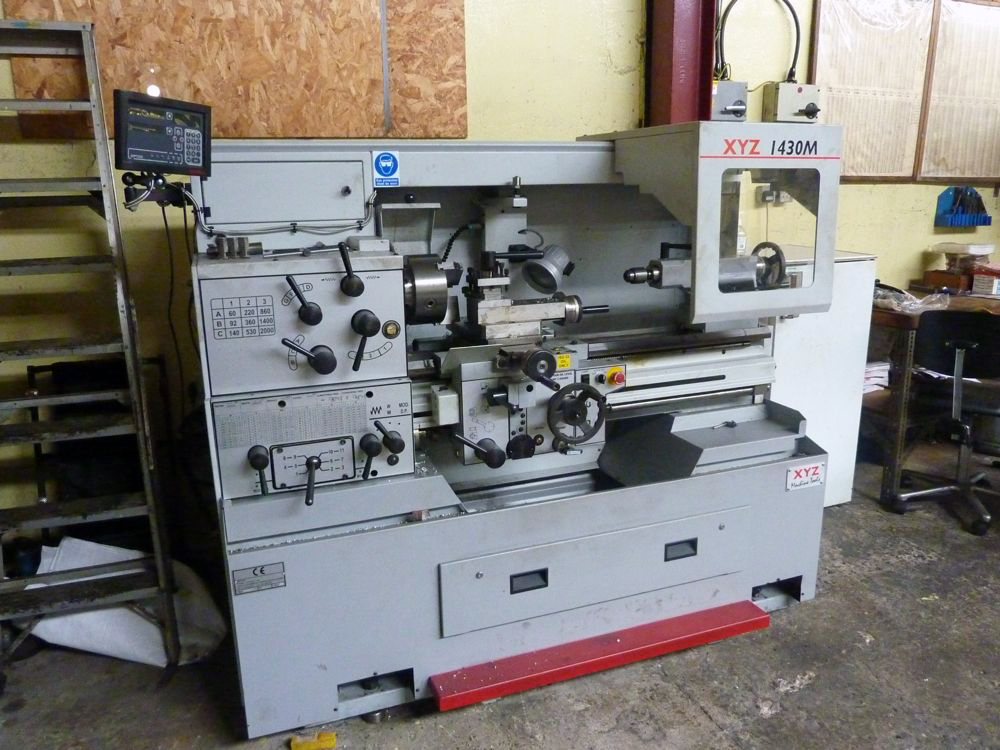

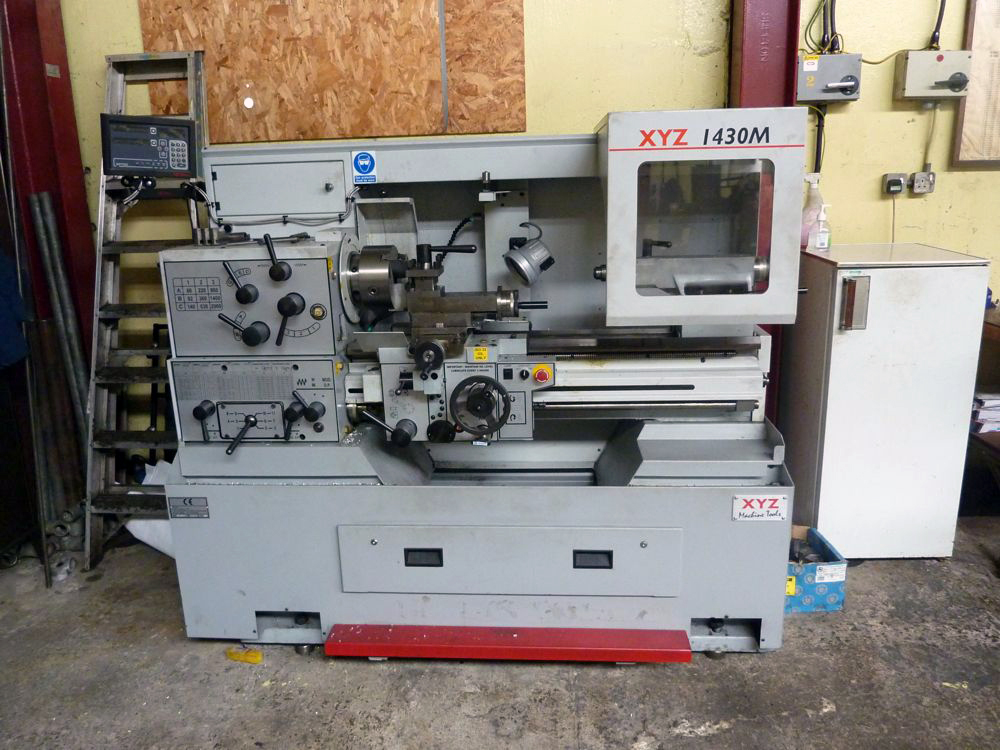

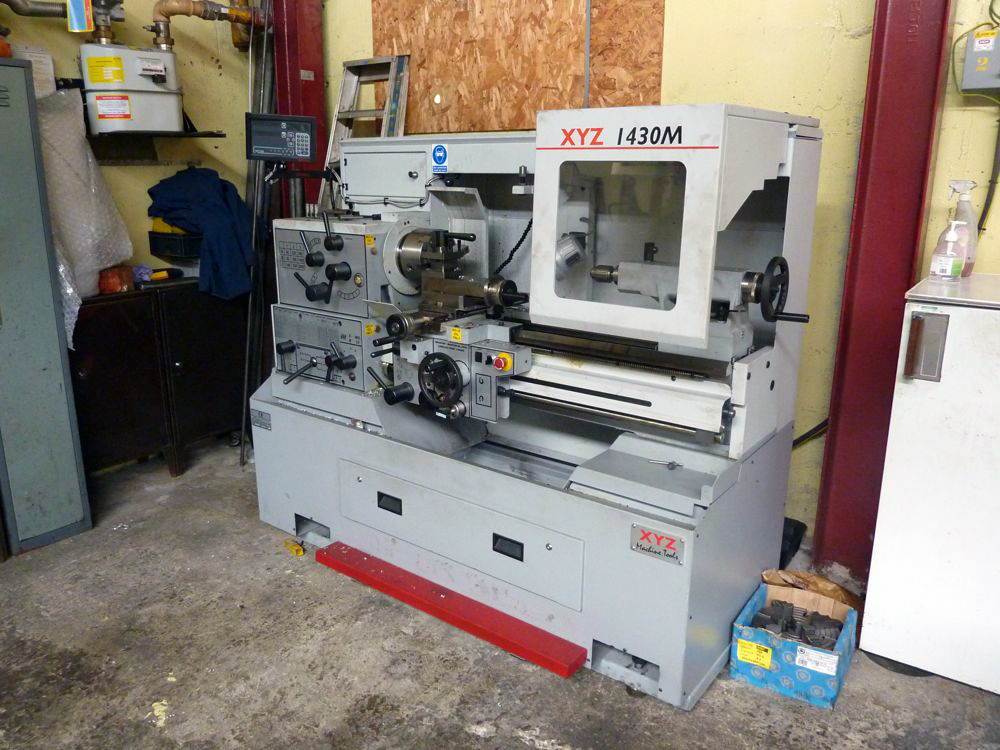

XYZ 1430M Lathe with DRO (2009)
Swing over bed 360mm
Swing in gap 520mm
Gap in front of face plate 120mm
Swing over cross slide 205mm
Distance between centres 750mm
Cross slide travel 120mm
Main spindle
Type of slide nose D 1-5
Main spindle bore 42mm
Taper of spindle sleeve MT4

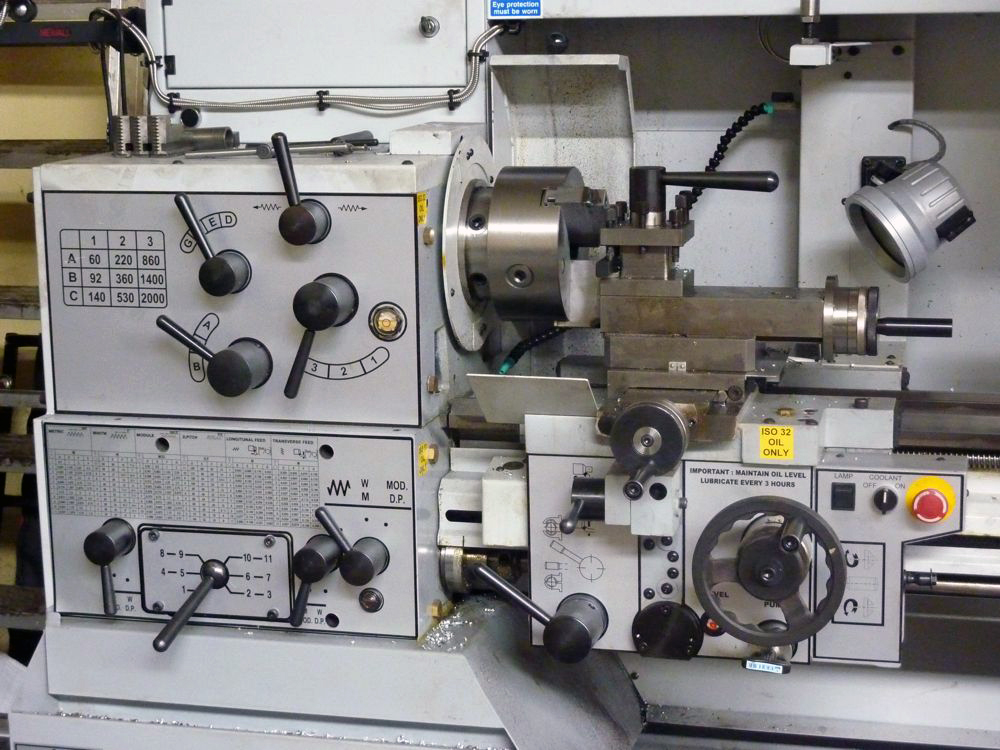

Spindle speeds 60-2000 rpm
Number of spindle speeds 9

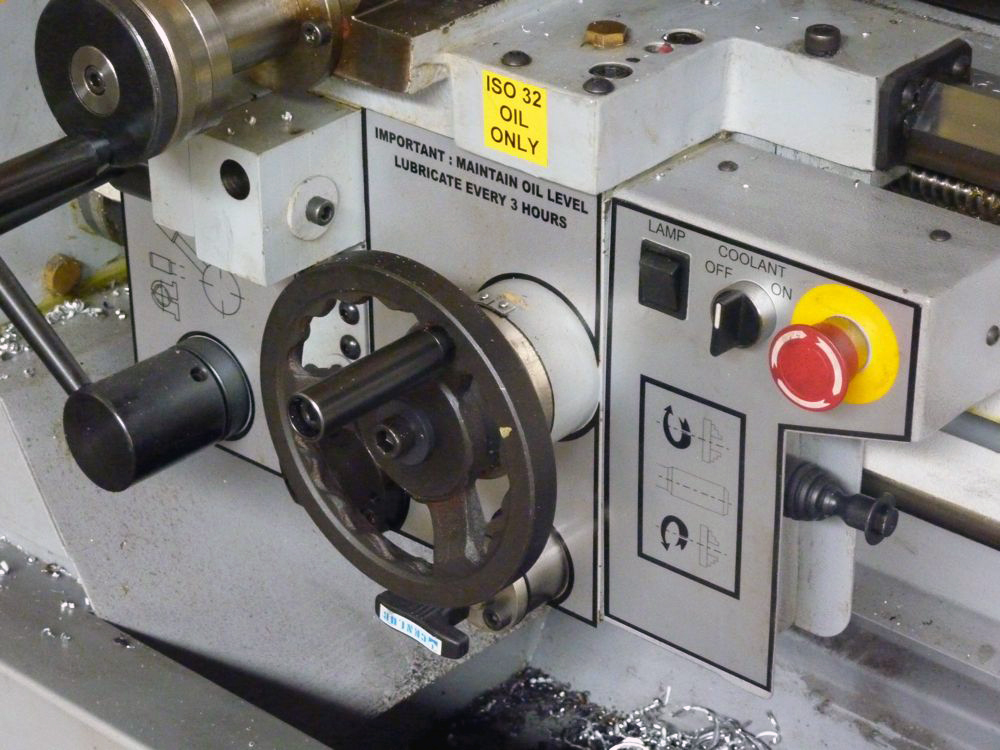

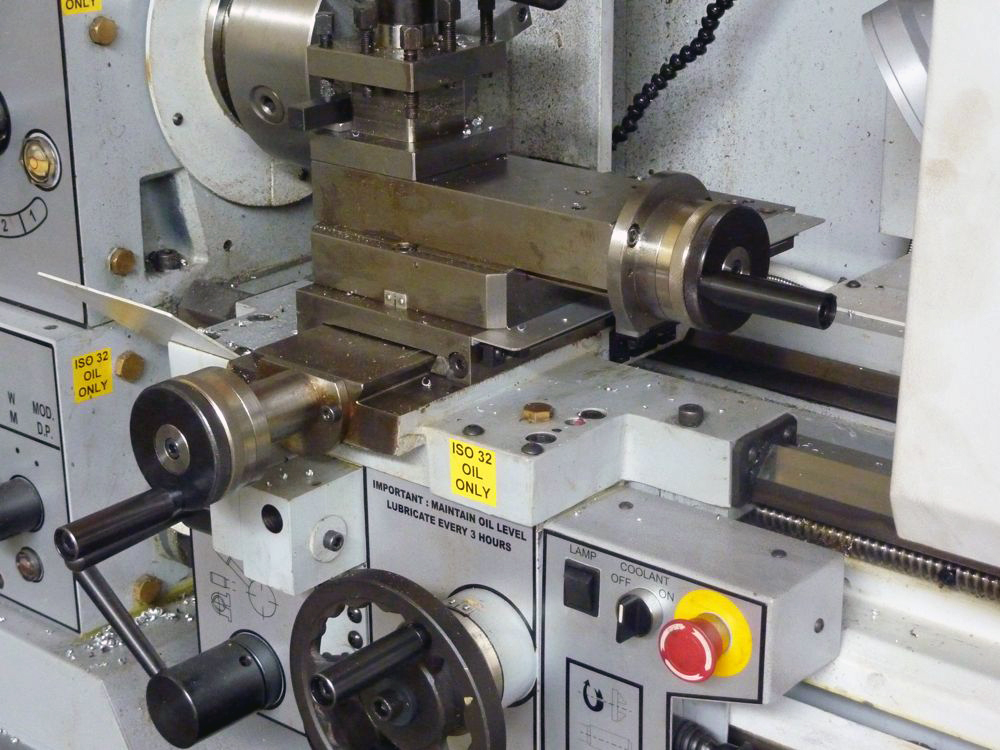

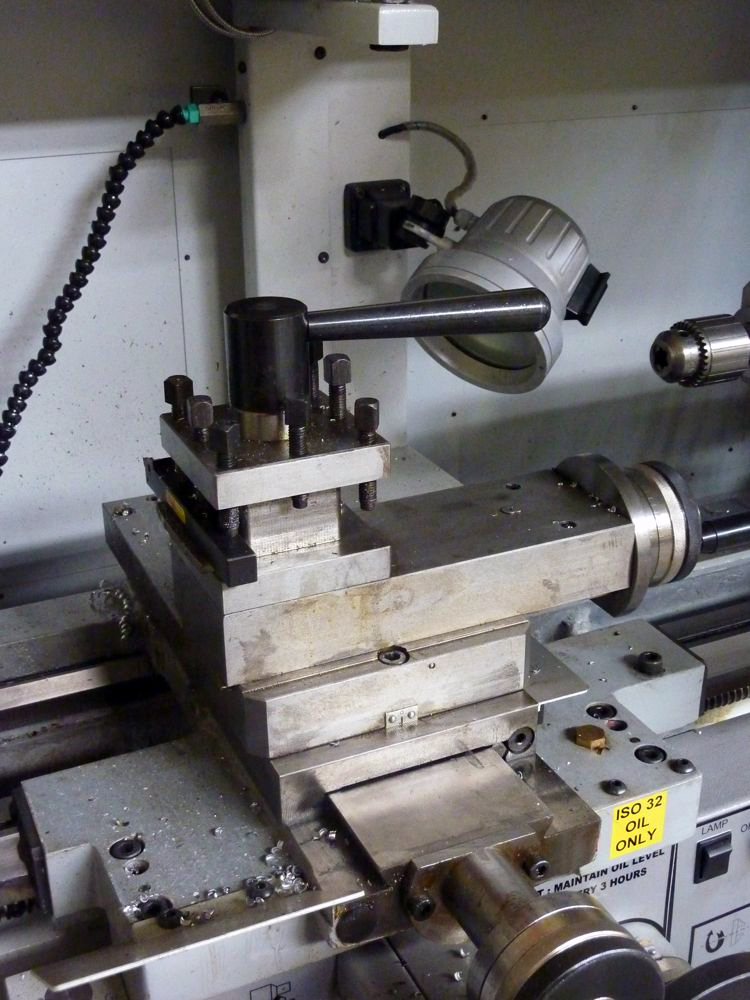

Carriage
Compound slide travel 105mm
Max size cutting tool 20mm
Bed
Bed width 250mm

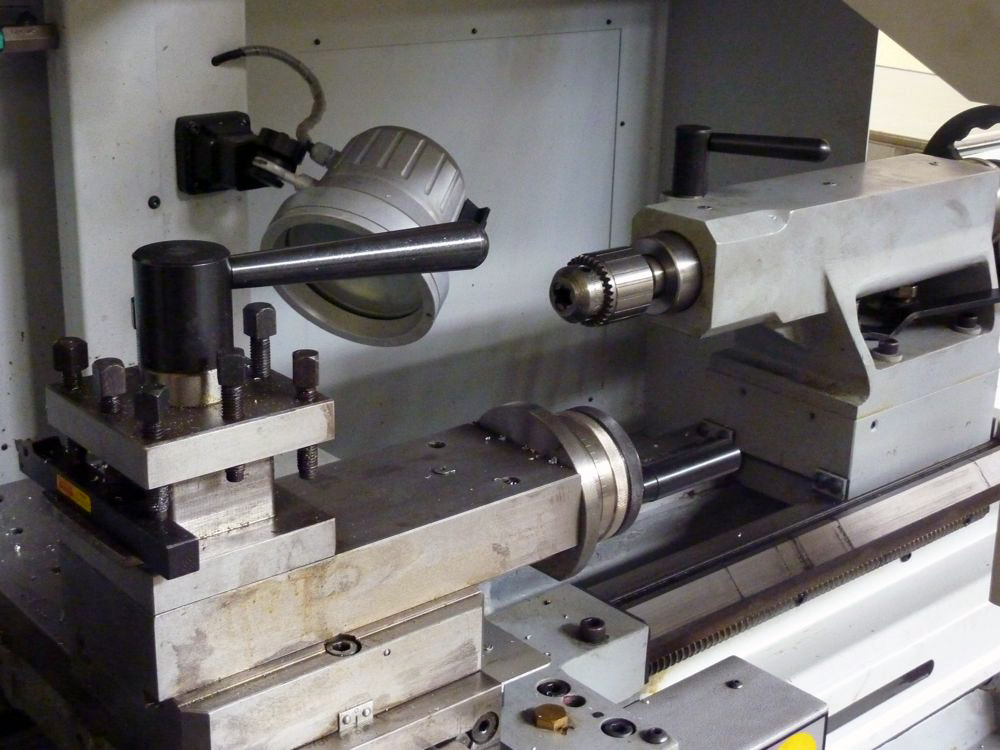

Tailstock
Quill diameter 58mm
Quill travel 180mm
Taper of centre MT4

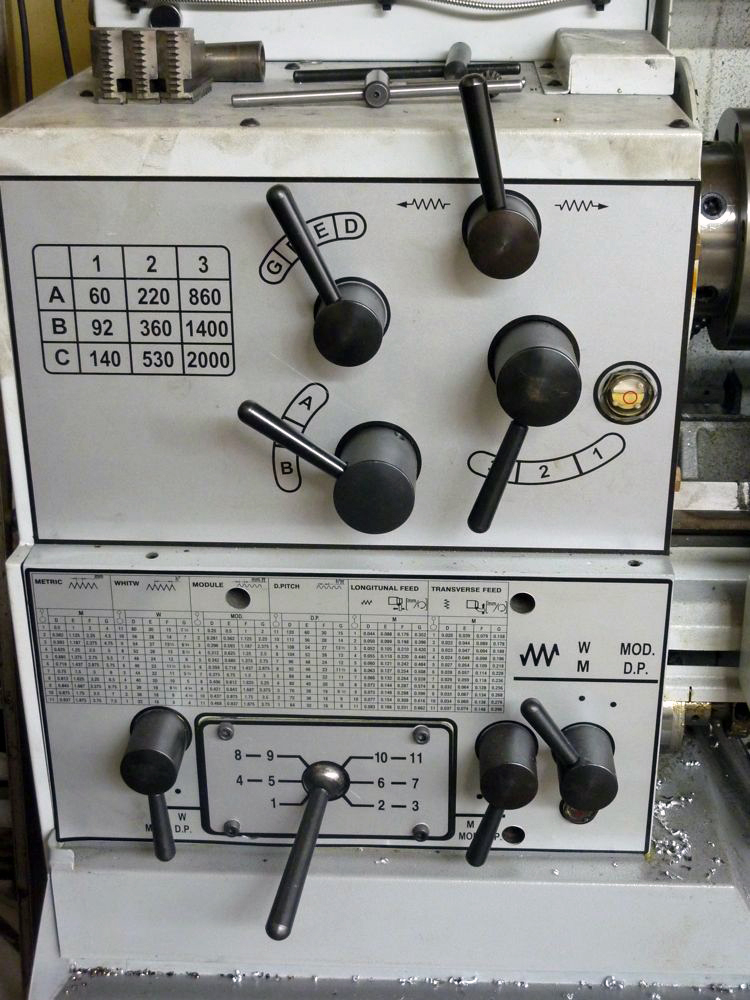

Threading and Feeding
Pitch 6mm
A wide variety of threads and feeds available
Main drive motor 3/1.5 hp
Weight 770 kg
Incudes

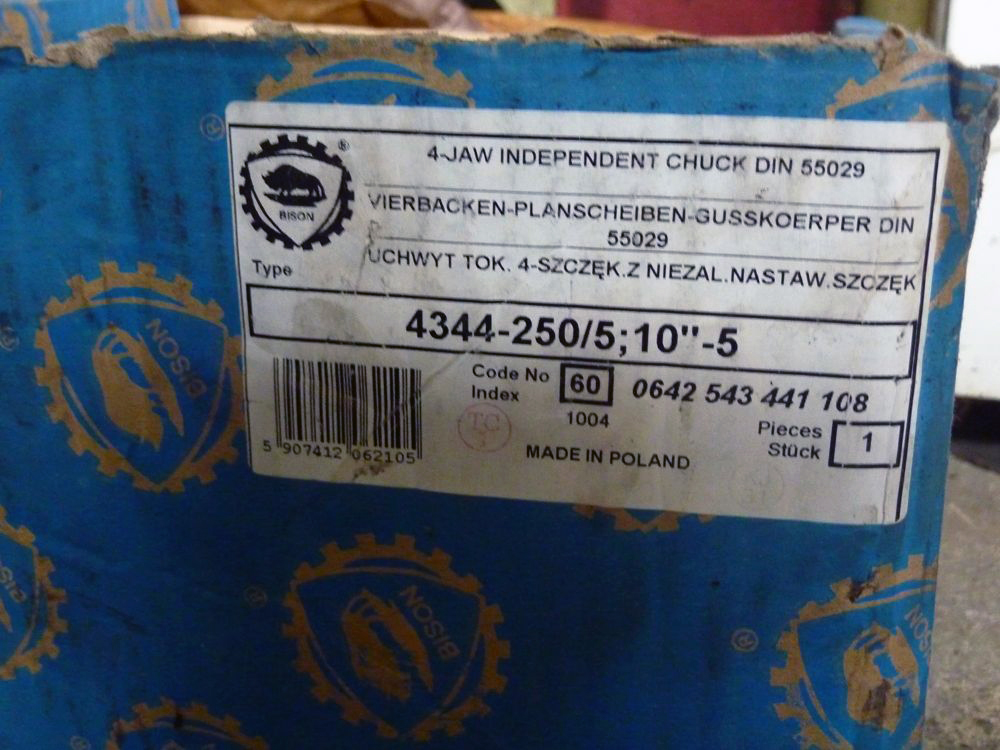

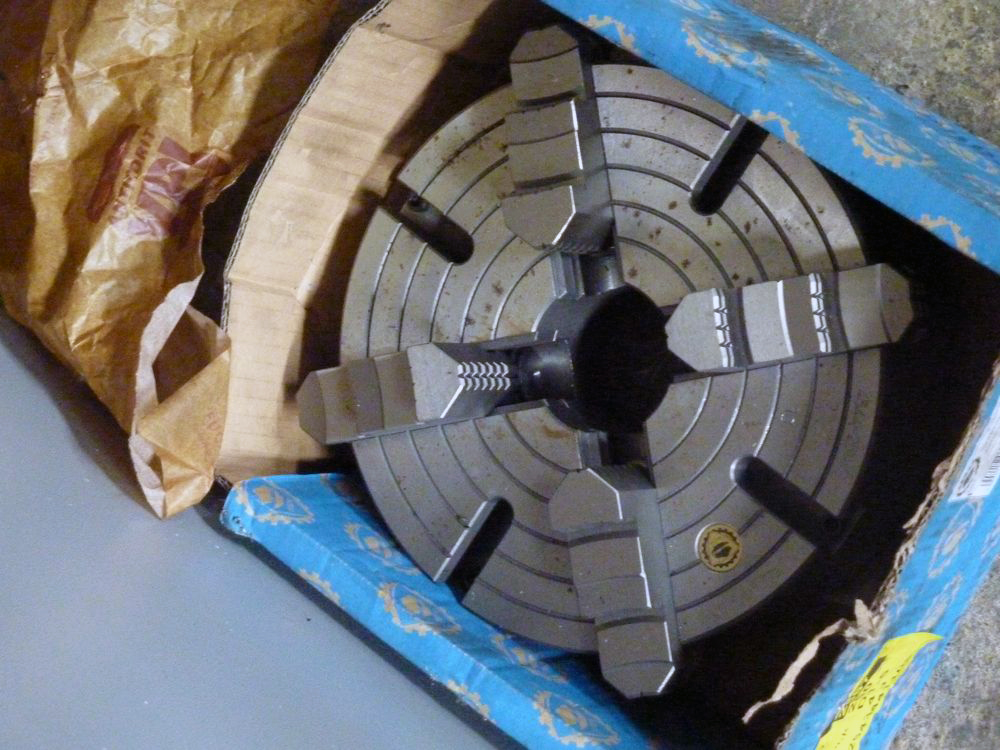

4 Jaw Independent Chuck

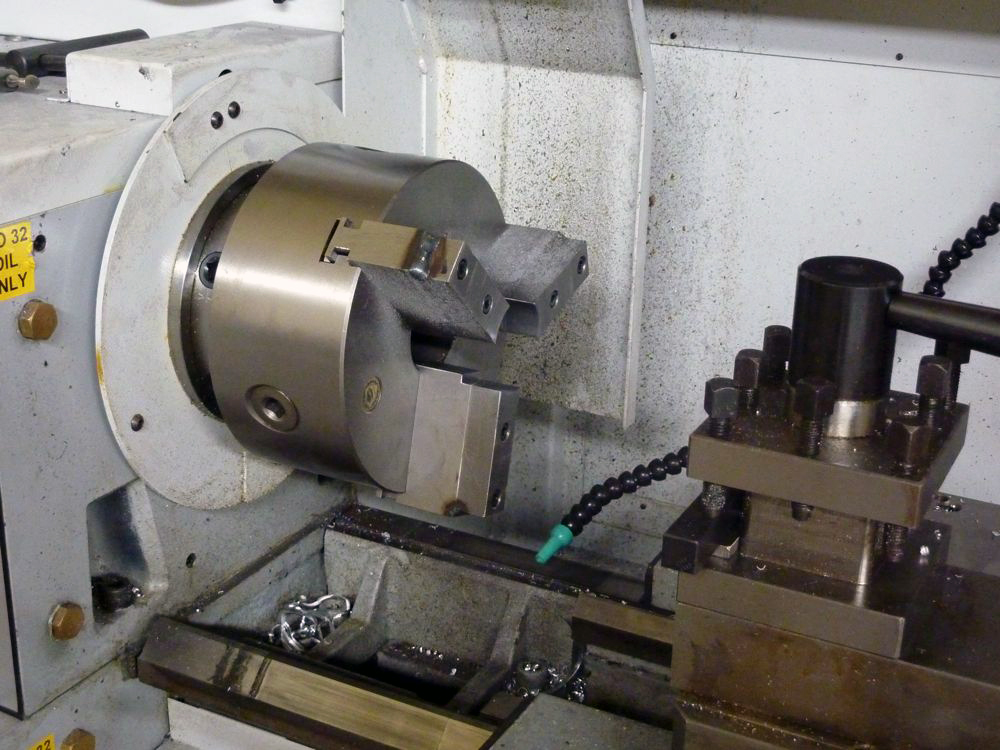

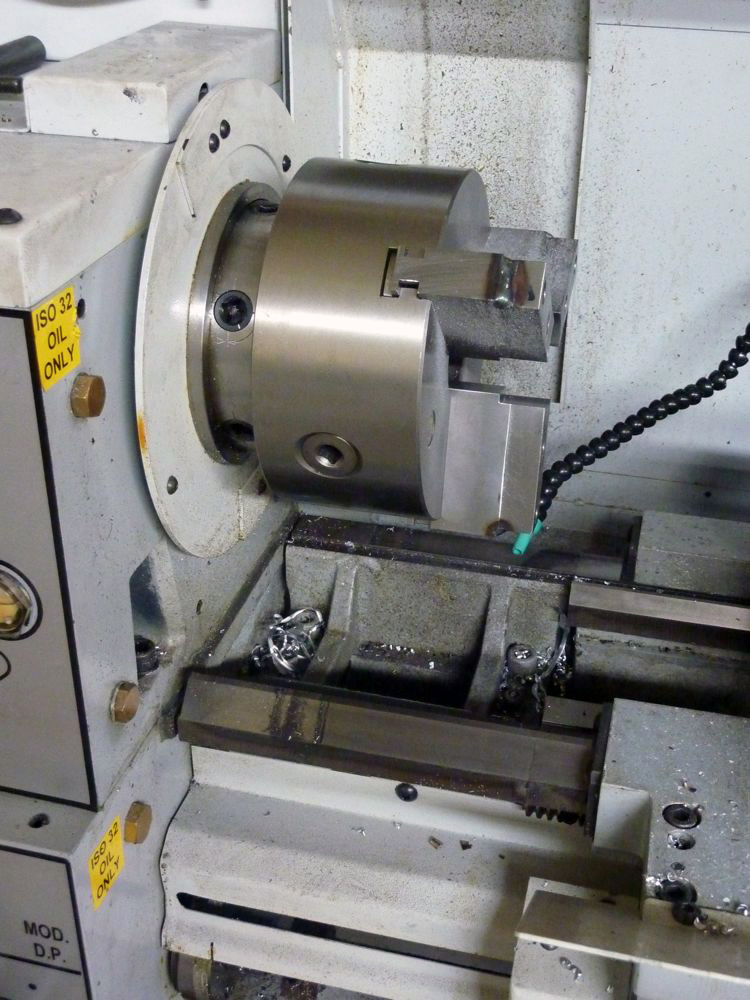

3 jaw Chuck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
