Lot 2 - XYZ 1510 VMC (Year 2010)
Description:

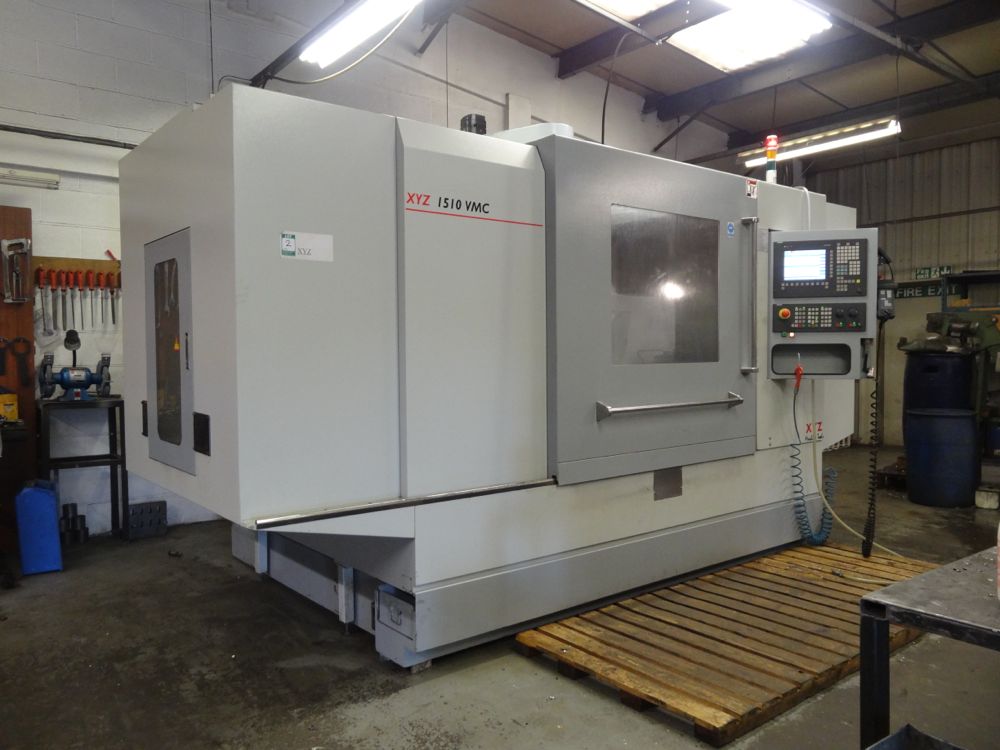

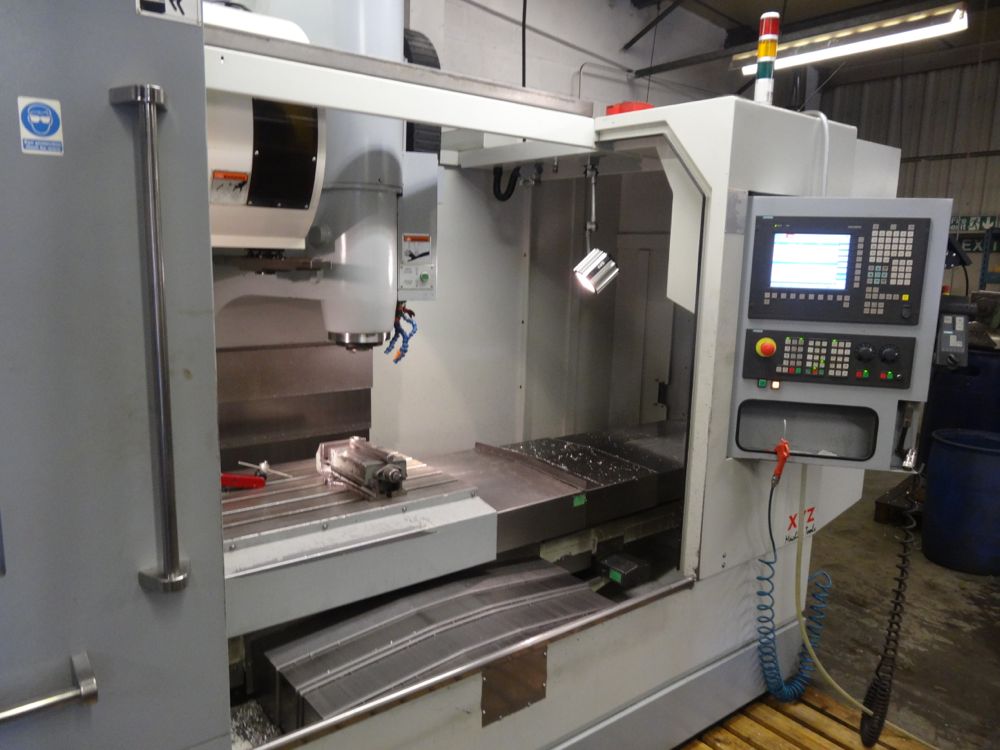

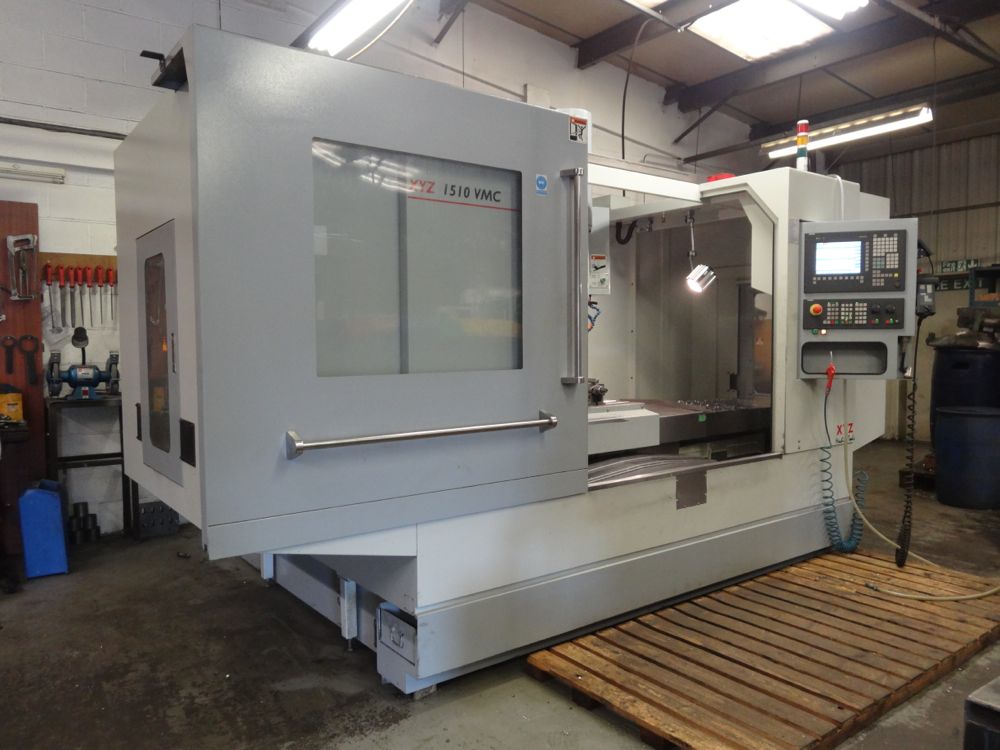

XYZ 1510 VMC
sn. V0904002
Year 2010

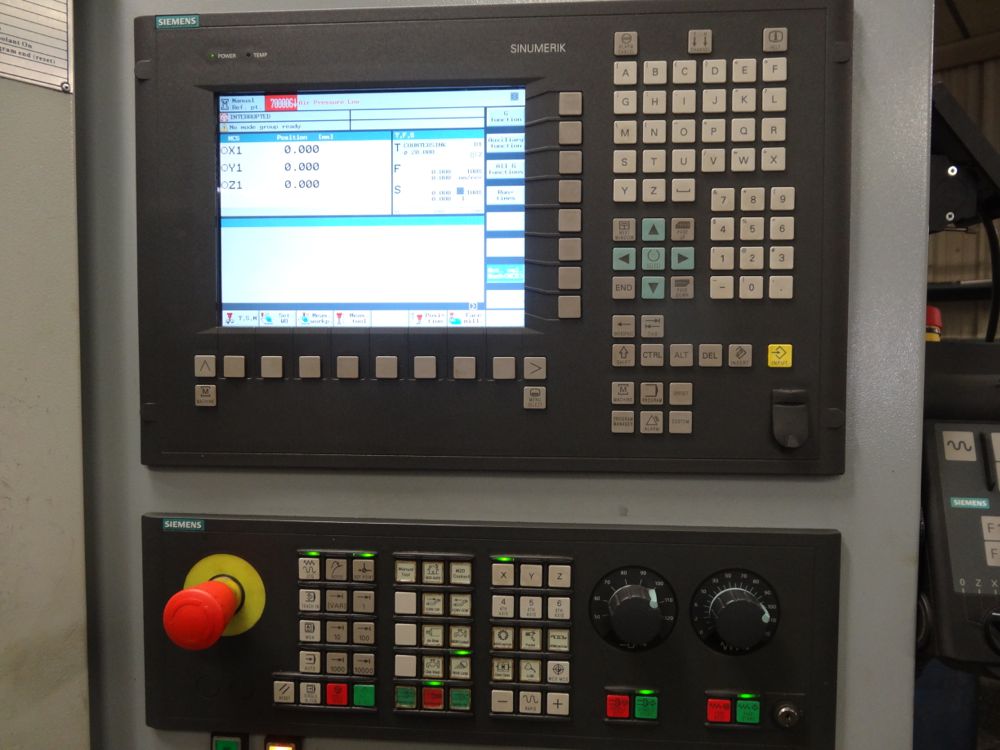

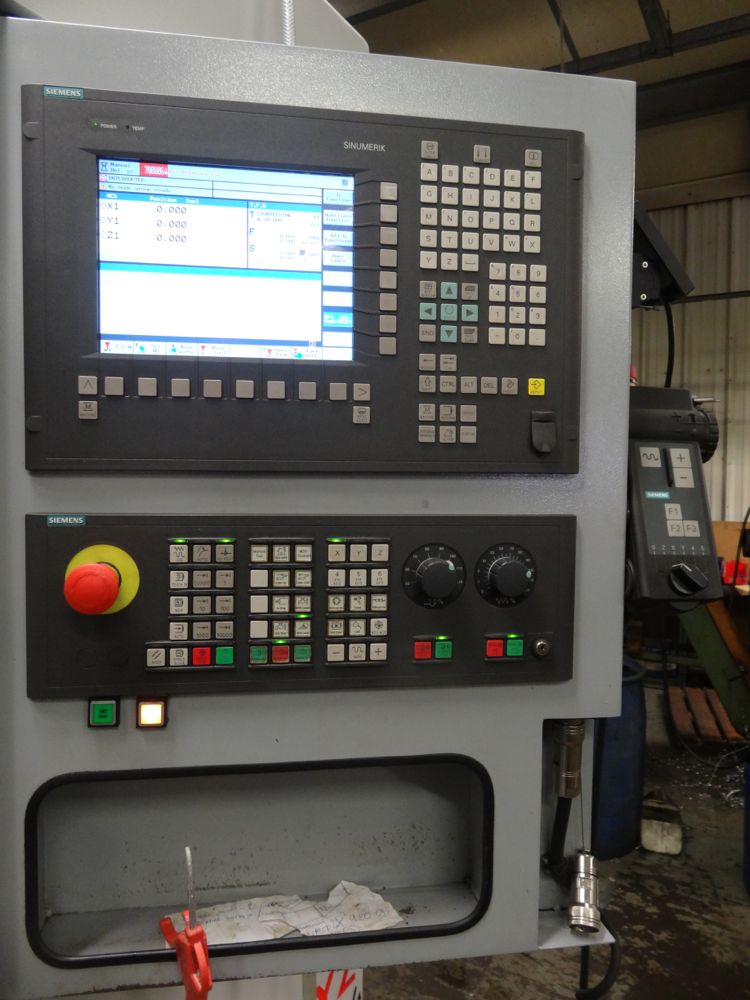

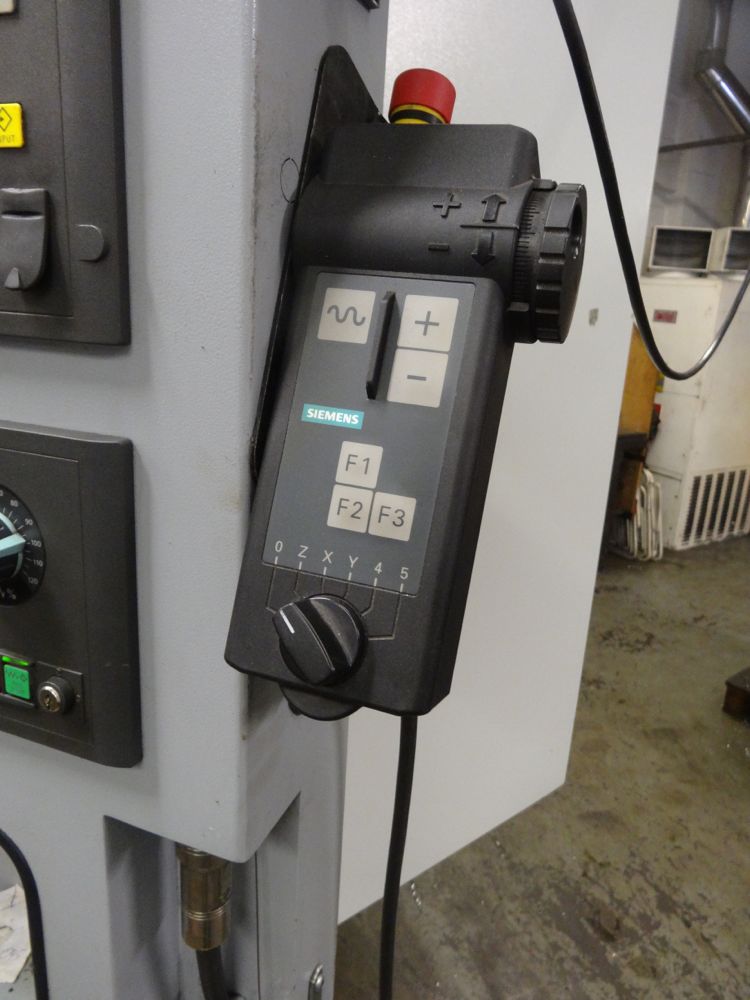

Seimens 810D Control
ShopMill release 6/4/2013
Capacity
X travel: 1500mm
Y travel: 600mm
Z travel: 600mm

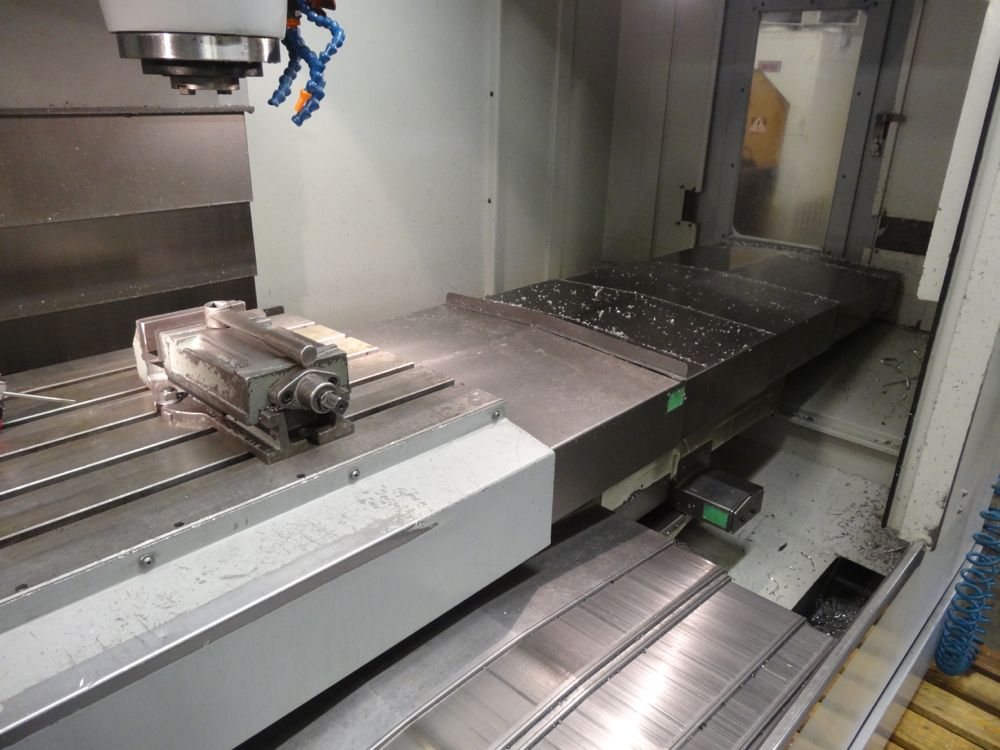

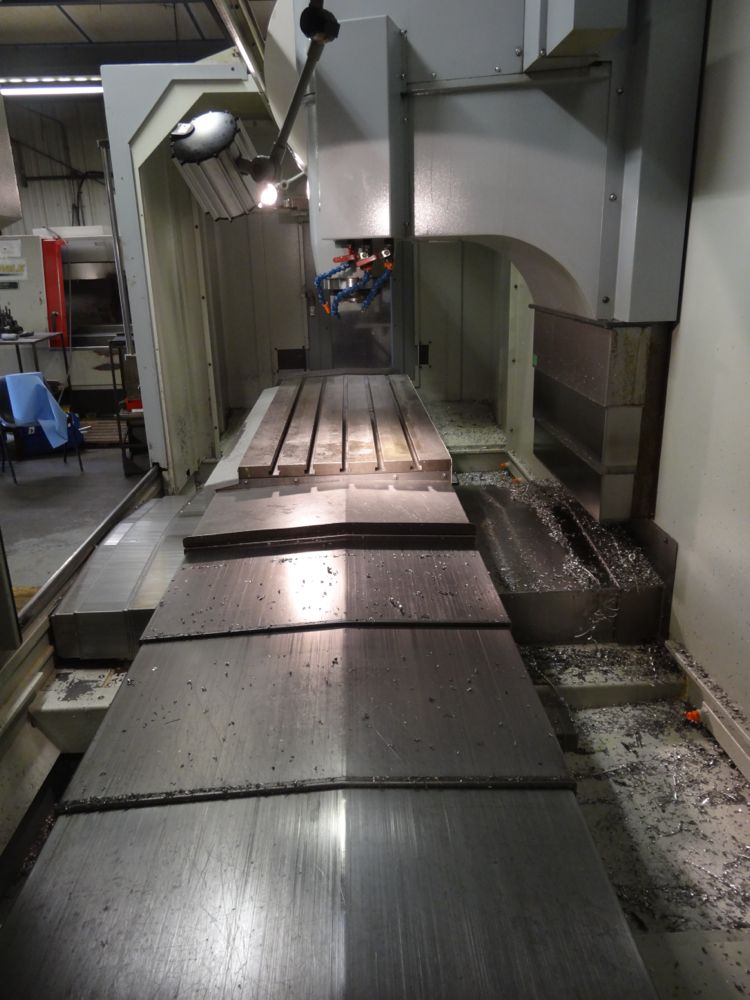

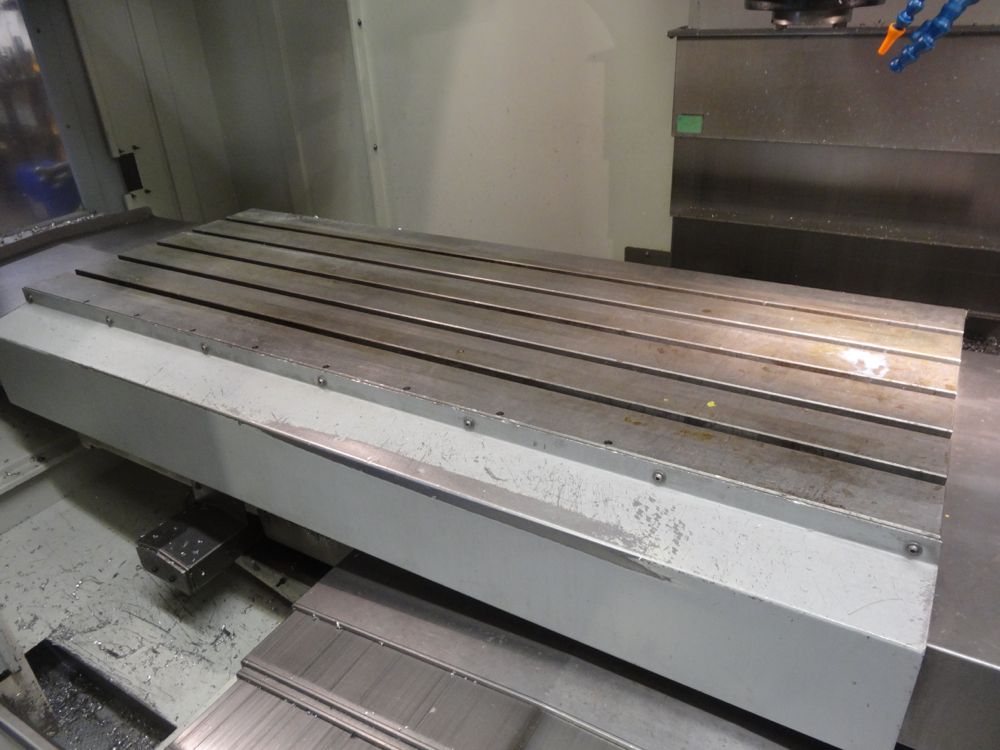

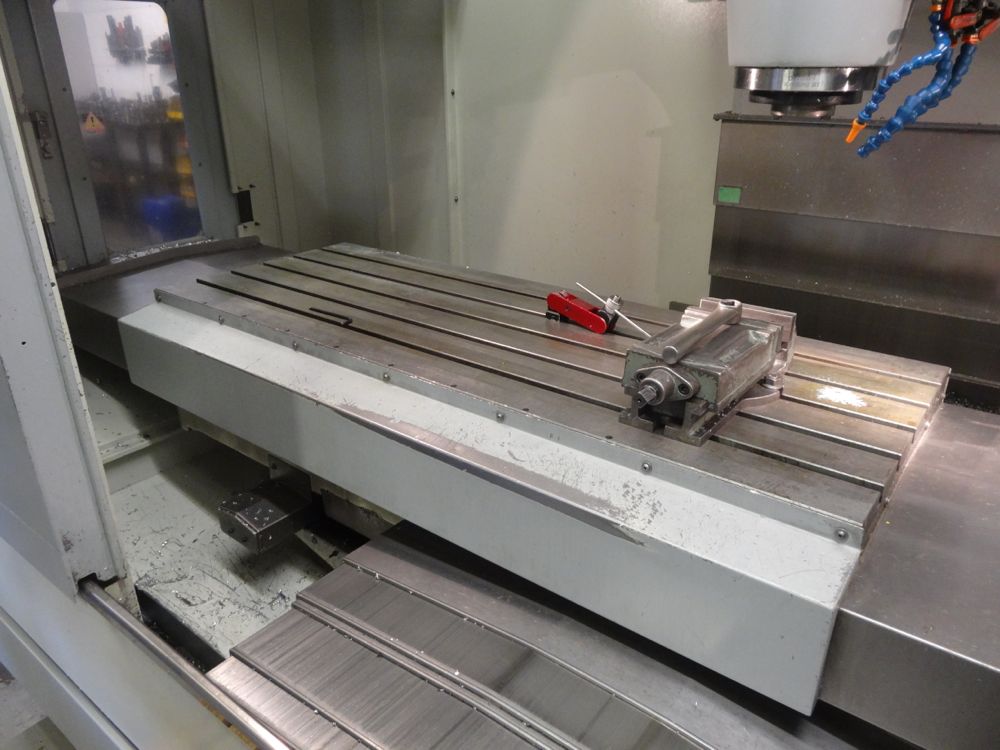

Table size: 1600 x 600mm
Spindle centre column: 625mm
Spindle to table: 150 - 754mm
Column front to table: 345 - 949mm
Rapid feed XYZ axis: 16M/min Box Way
Cutting feed rates:1 - 16000mm/min
Max Table load: 1200kg
T slot size: 18mm
T slot number & patch: 5 @ 75mm

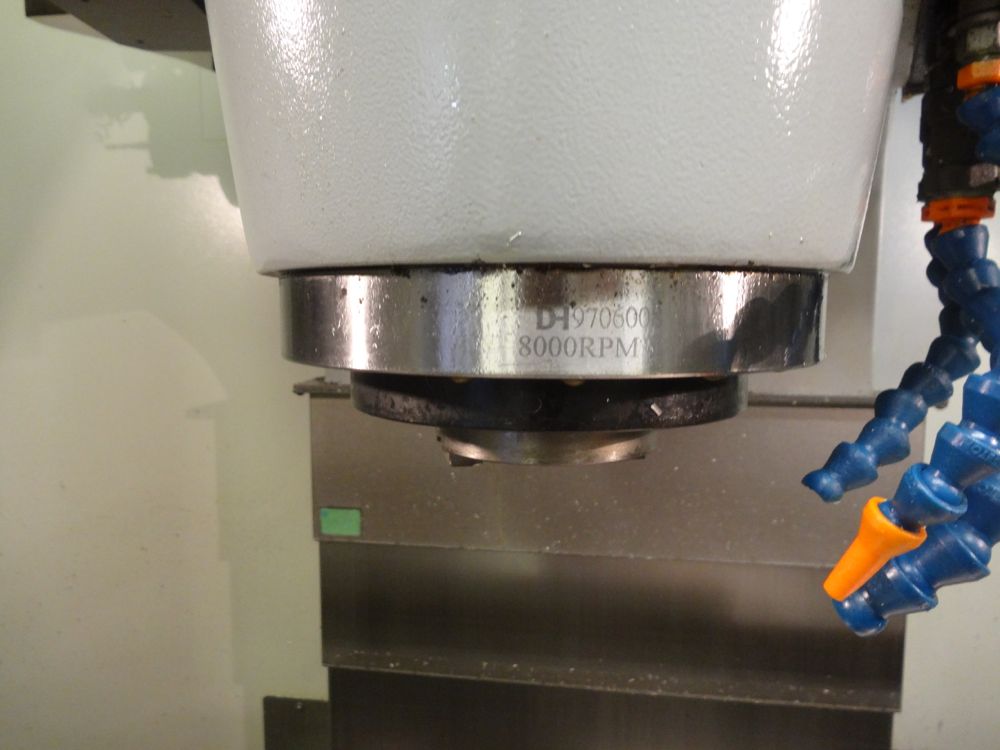

Spindle speed: 8 - 8000 rpm
Spindle motor: 20hp

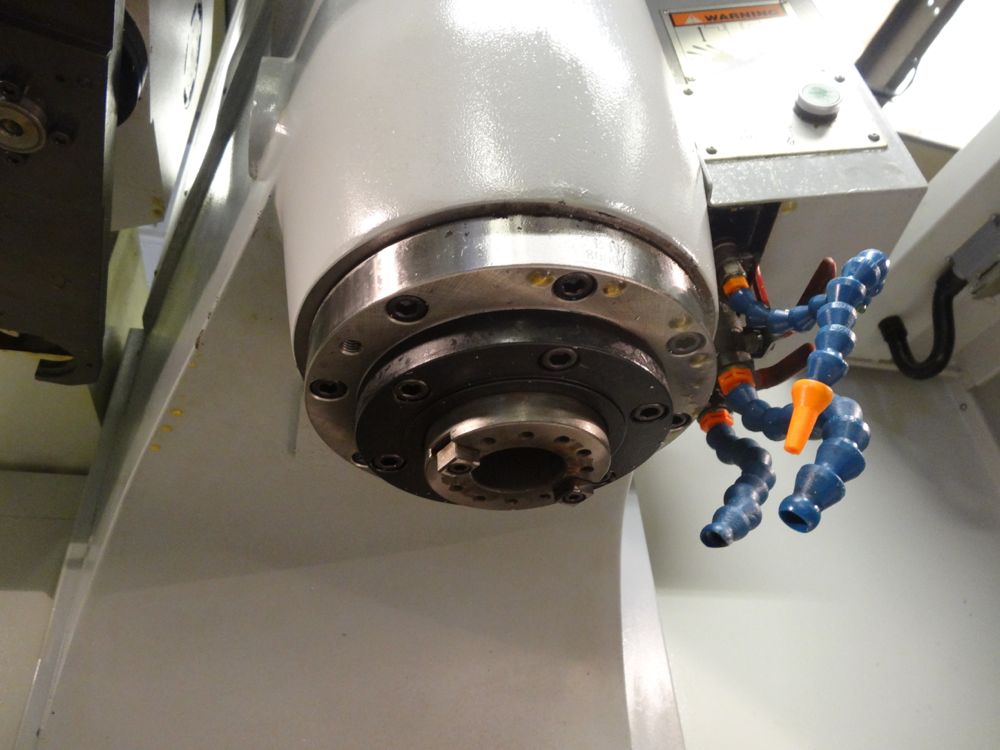

Spindle taper: BT40

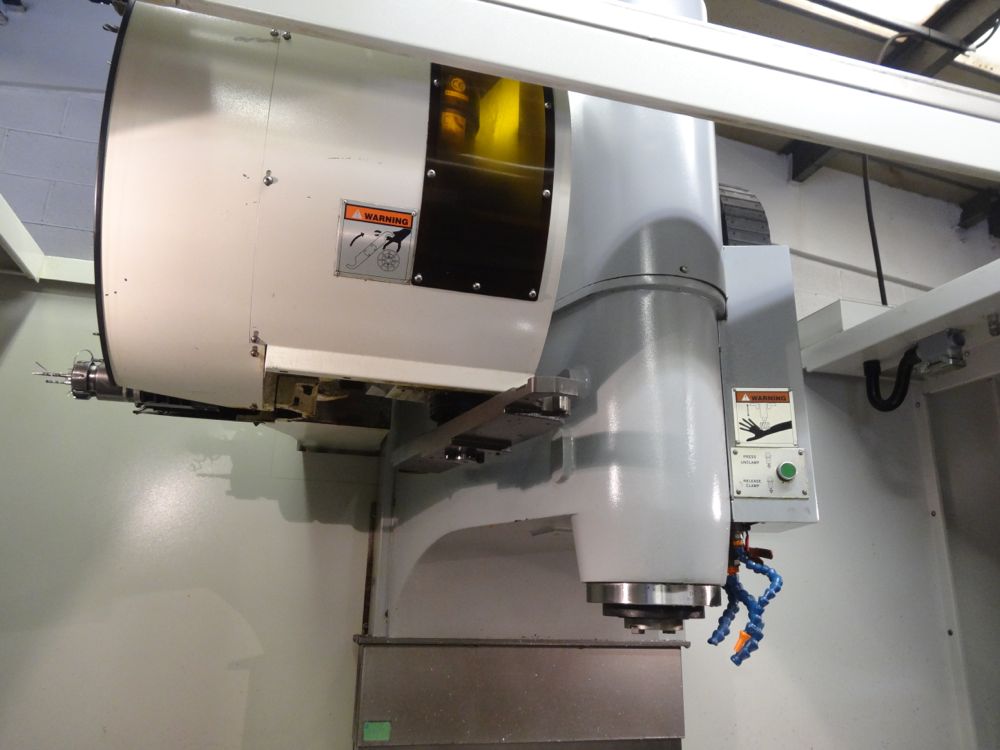

Tool magazine capacity: 24arm type
Tool change time tool to tool: 2.5 sec
max tool diameter: 100mm
Max tool Weight: 7kg
Coolant capacity: 200L
Ball screw size (grade C3): 40mm P10

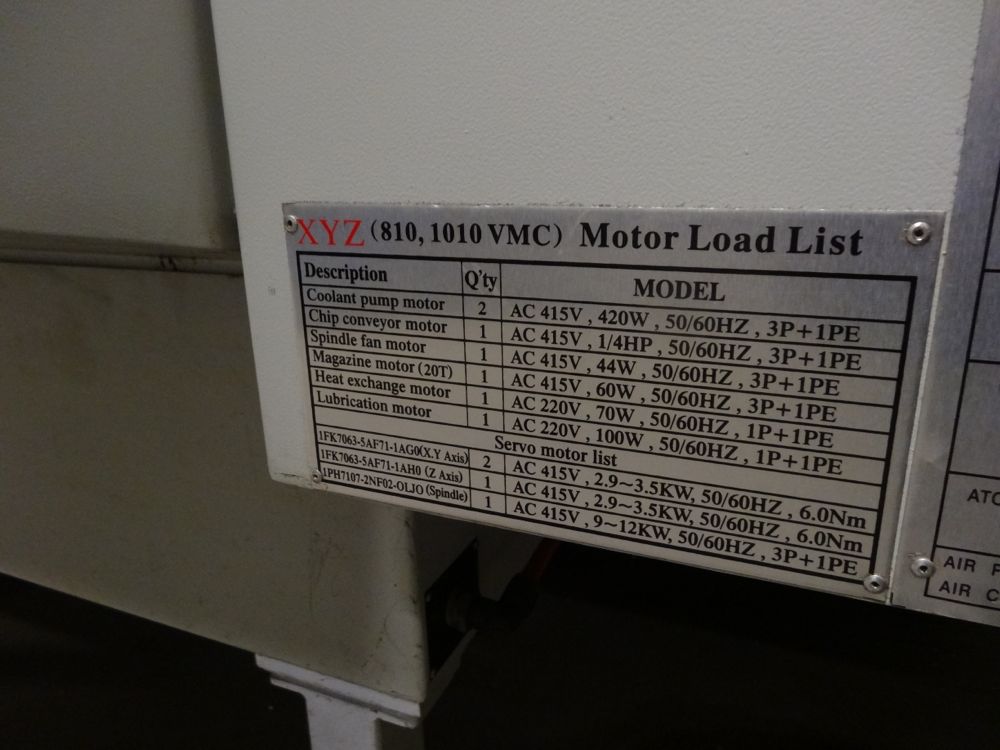

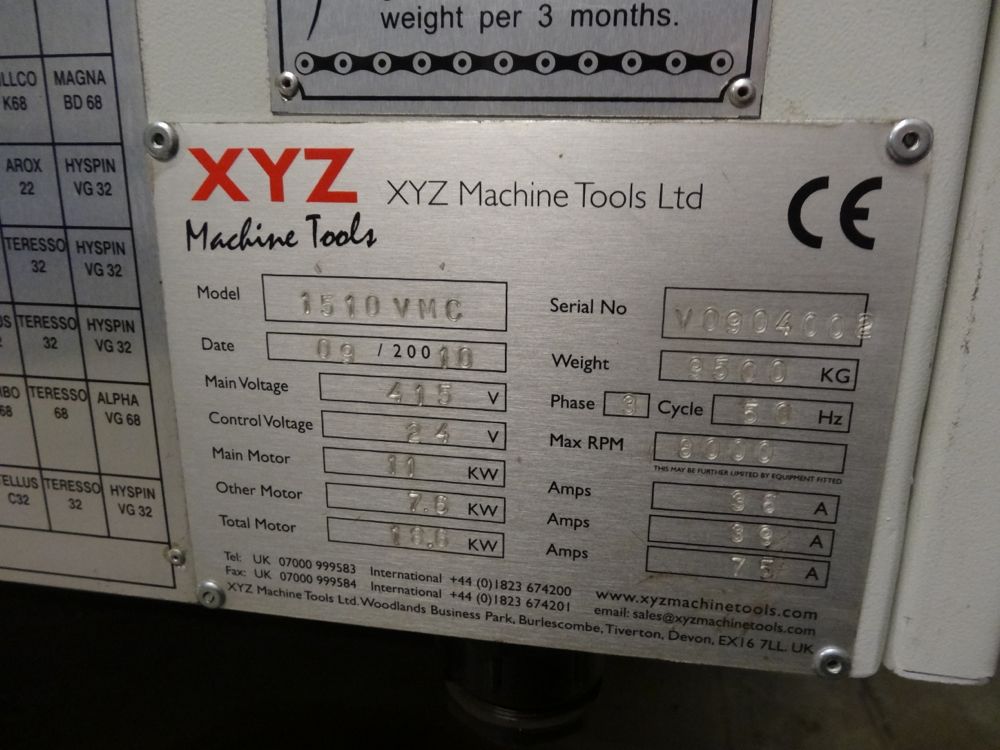

Main voltage: 415V
Main motor: 11kW
Other motor: 7.6kW
Total motor: 18.6kW
3 Phase: 5.0hz
Weight: 9500kgs
Footprint W x D x H: 4200 x 3130 x 2800mm
Location: Engments Ltd, Derby
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
