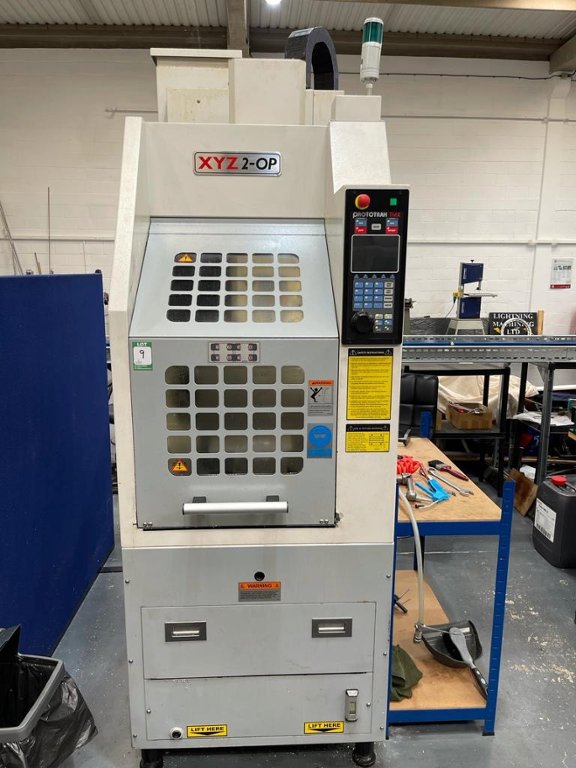

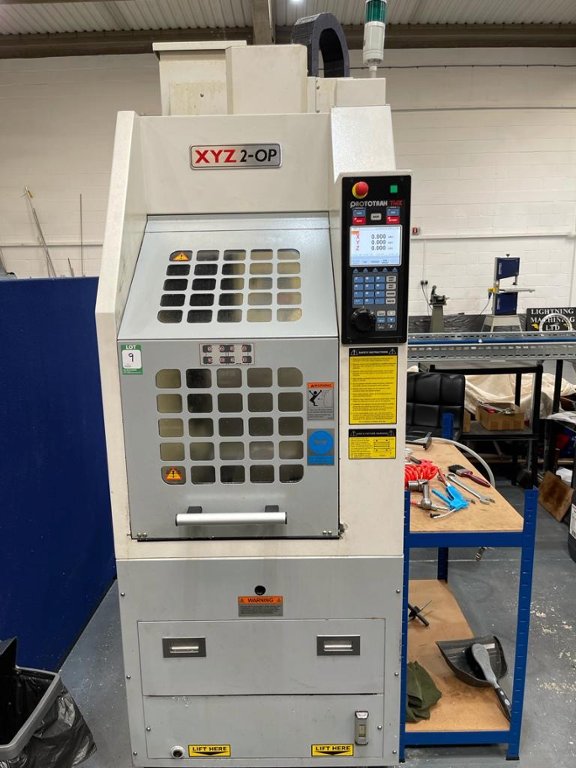

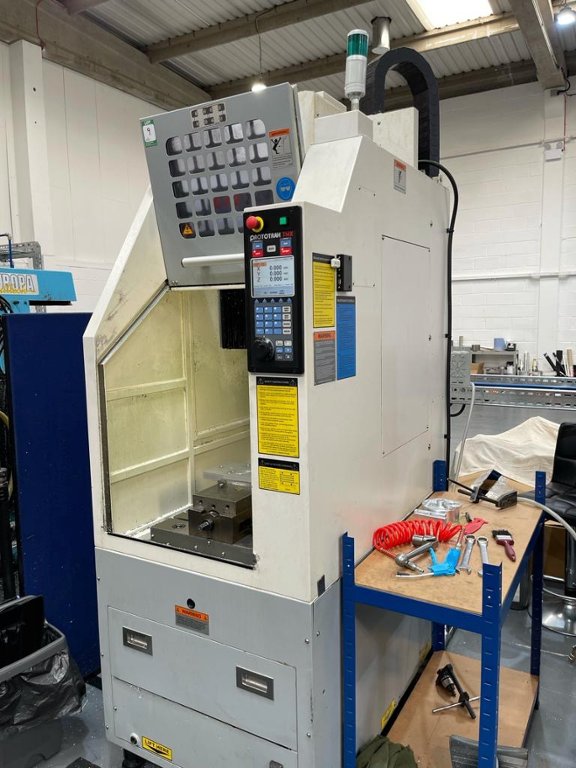

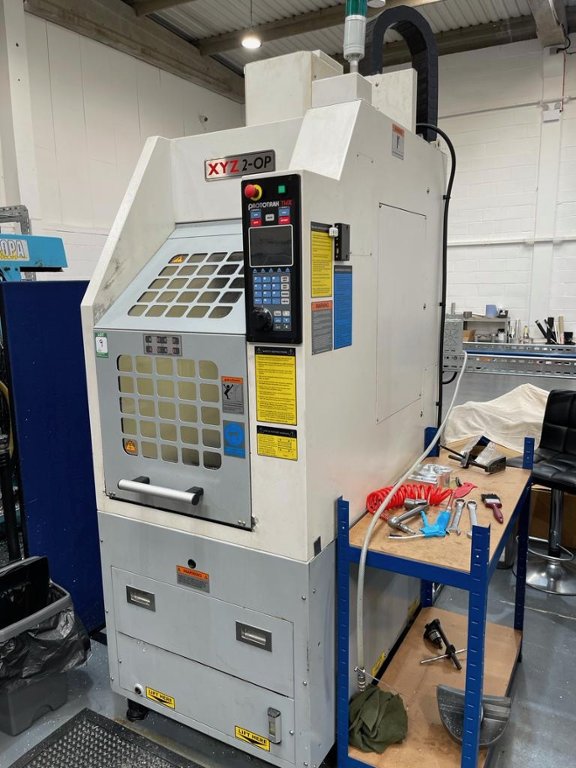

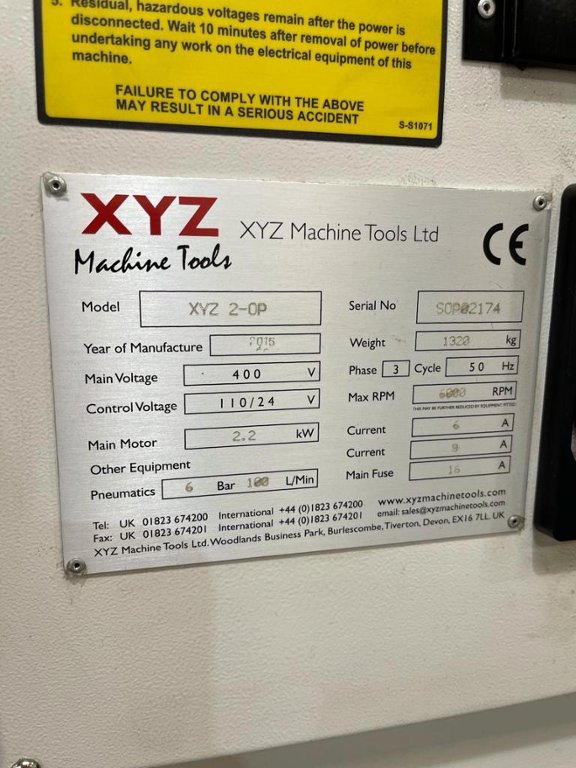

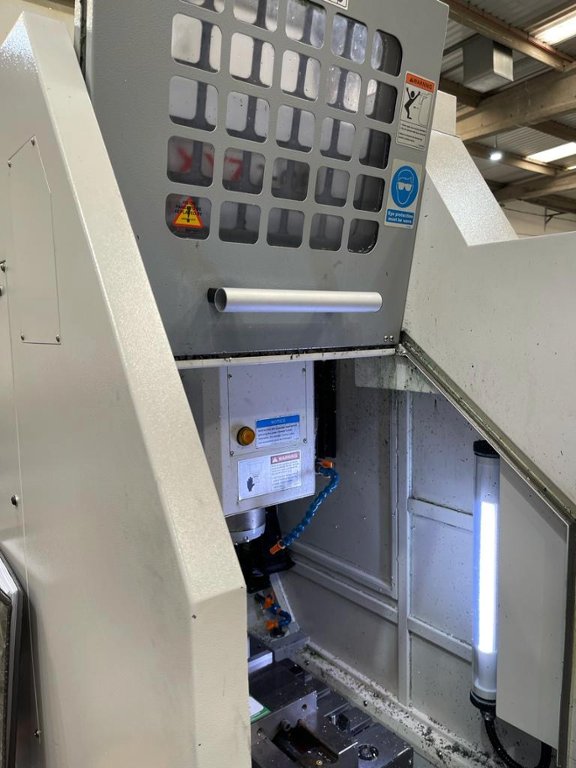

XYZ 2-OP CNC Vertical Machining Centre (2015)

Lot 9 - XYZ 2-OP CNC Vertical Machining Centre (2015)

Description:

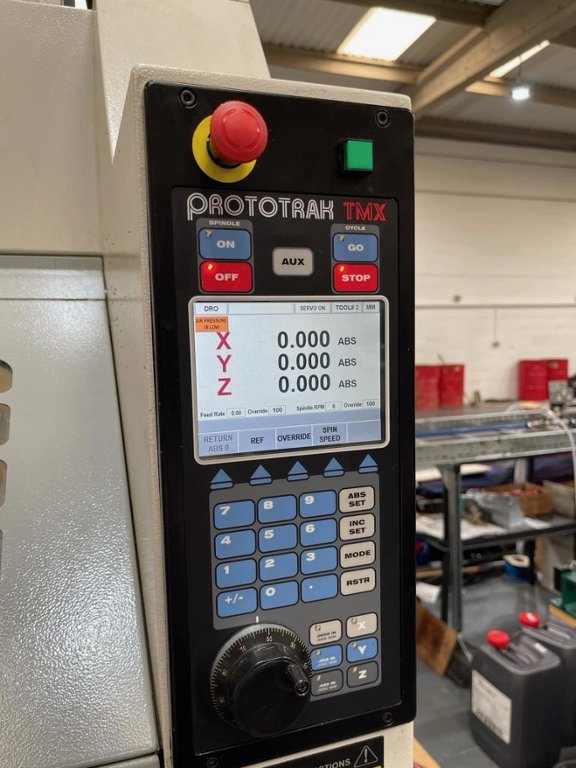

Protrak TMX Control

Comes with approximately 8 BT30 Toolholders

Vice NOT included

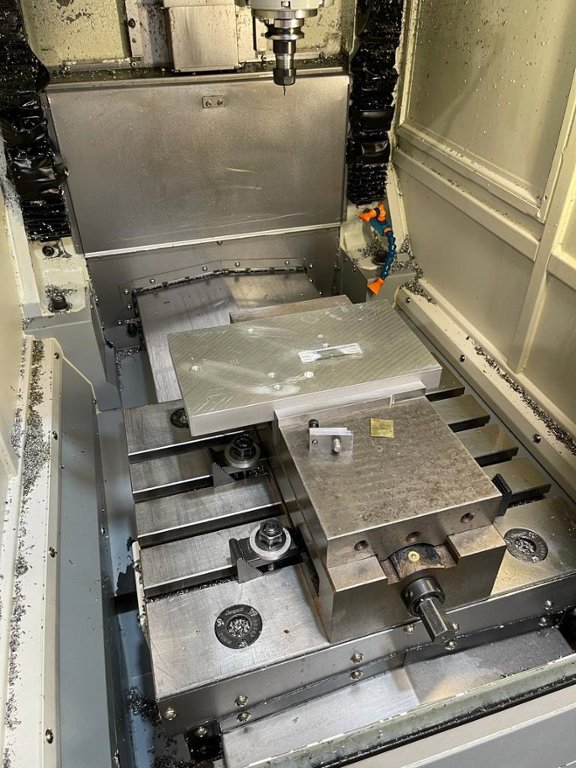

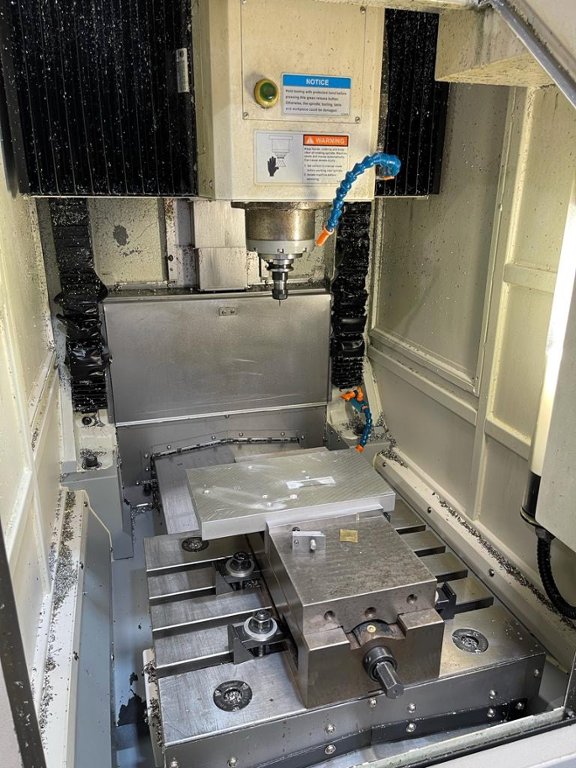

Table dimensions

Table size - 457mm x 381mm, Number of tee slots & pitch - 4 @ 63mm, Tee slot width - 16mm, Table max load - 227kg, Ball lock Hold down force - 1020kg @ 4n-m of torque

Travel

X Axis - 356mm, Y Axis - 457mm (305mm of machining travel), Z Axis - 432mm, Maximum distance from spindle nose table surface - 514mm, Maximum distance from spindle nose table surface - 69mm, Maximum swing clearance from spindle centre to column - 356mm, Maximum rapid speed X, Y & Z Axis, inches per minute - 15240 mm/min

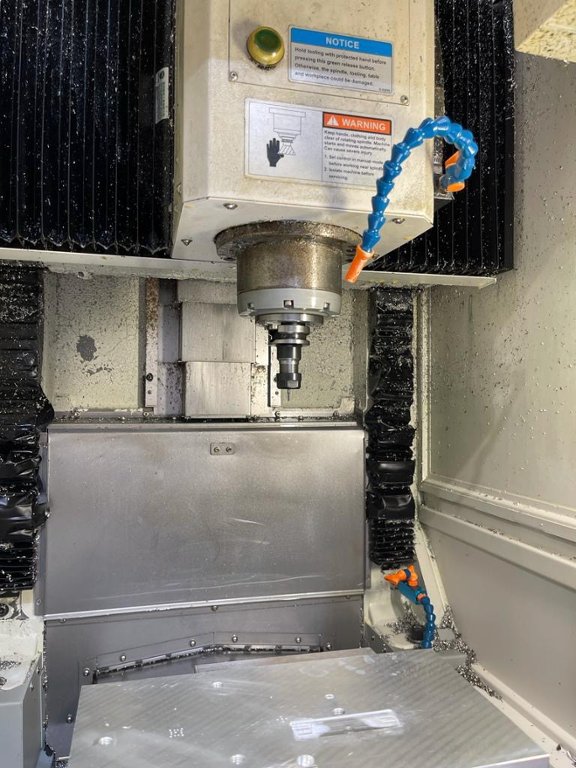

Spindle

Tool holder type - BT30, Spindle nose diameter - 56mm, Maximum RPM - 6000

Automatic tool carrier

Tool capacity - 8, Maximum tool diameter - 50.8mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
