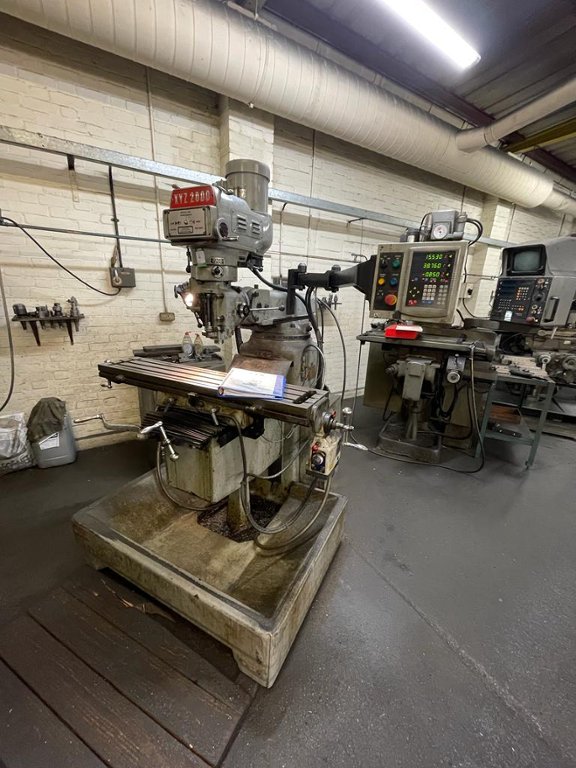

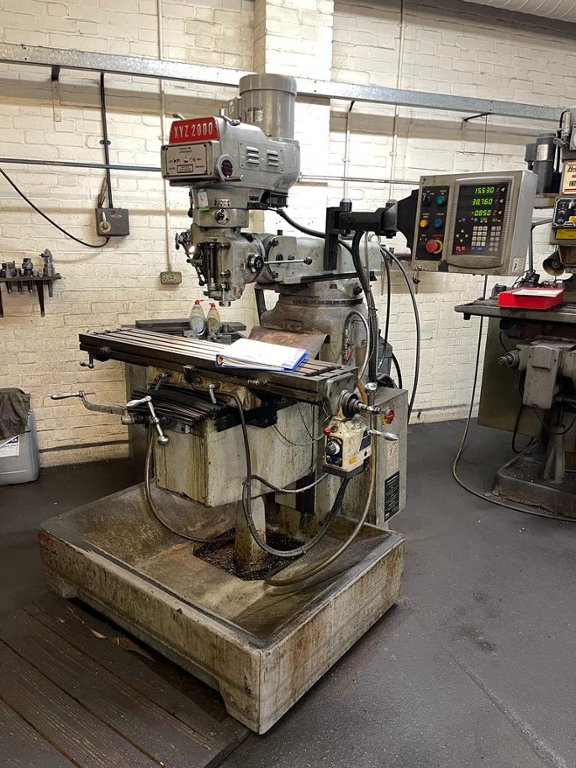

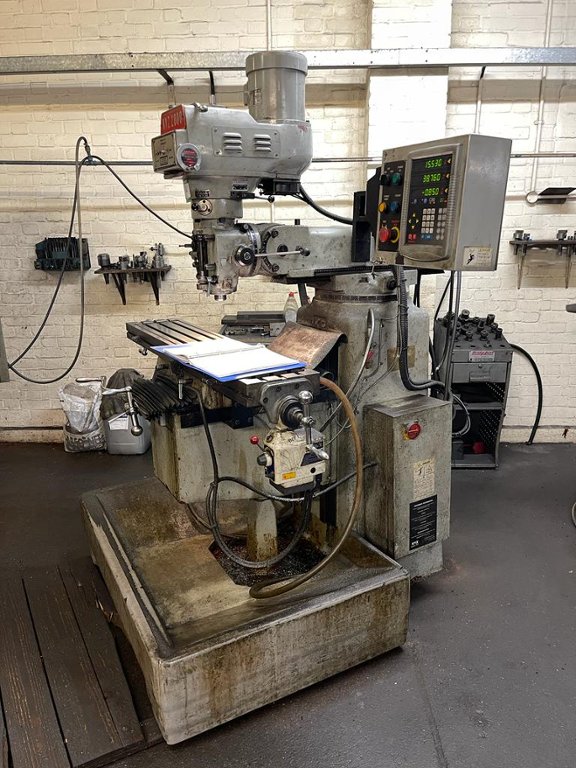

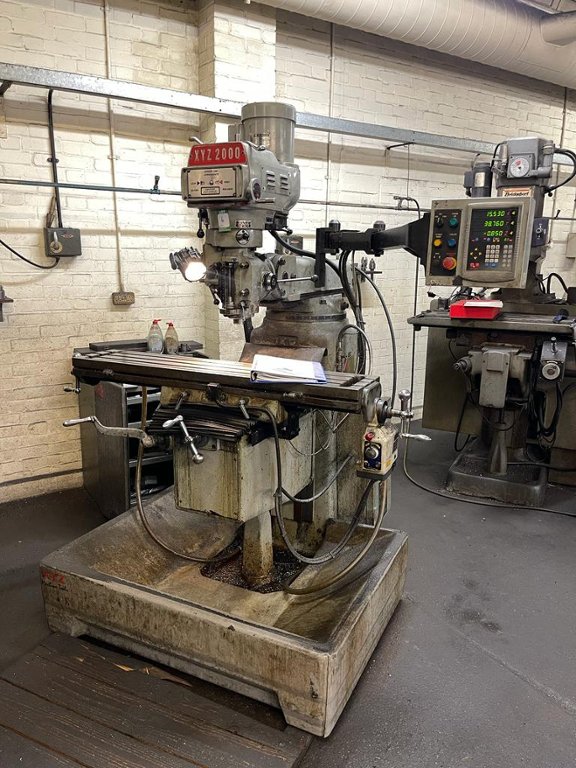

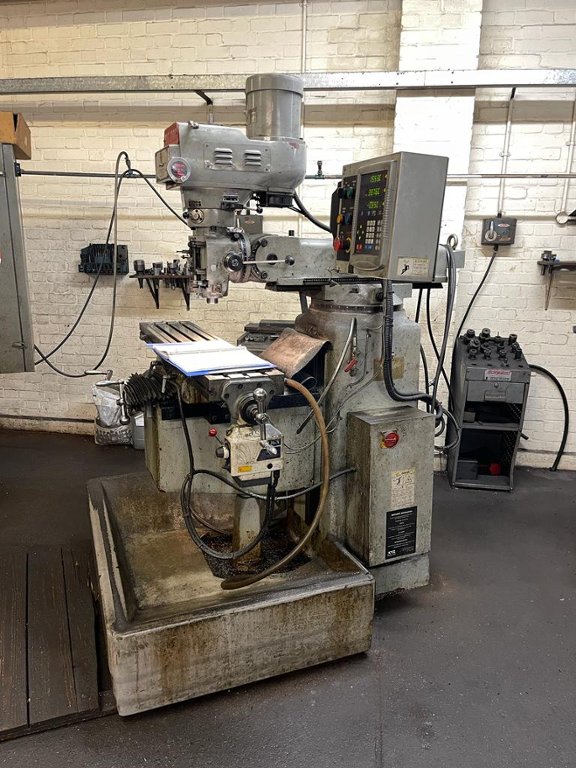

XYZ 2000 Milling Machine

Lot 4 - XYZ 2000 Milling Machine

Description:

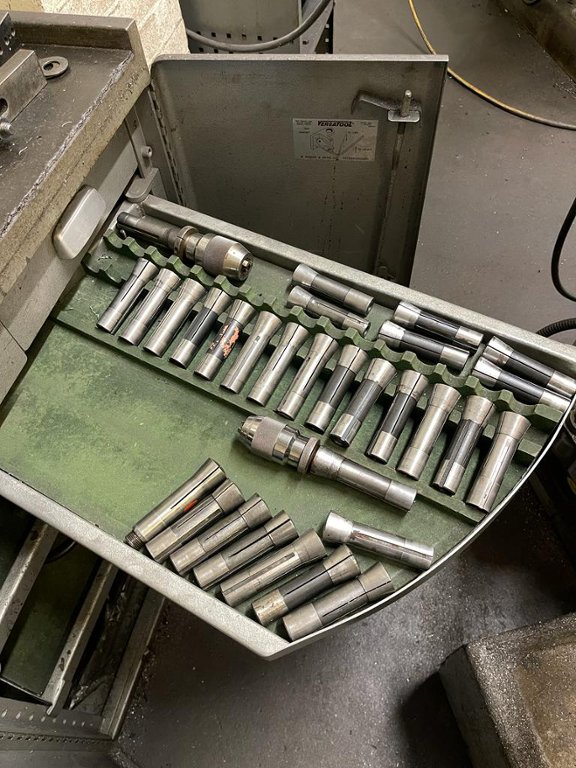

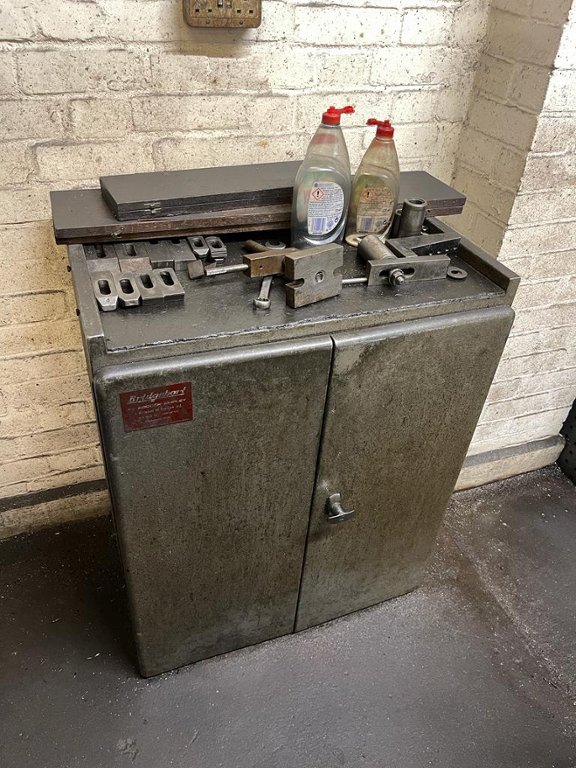

Comes with a selection of tooling

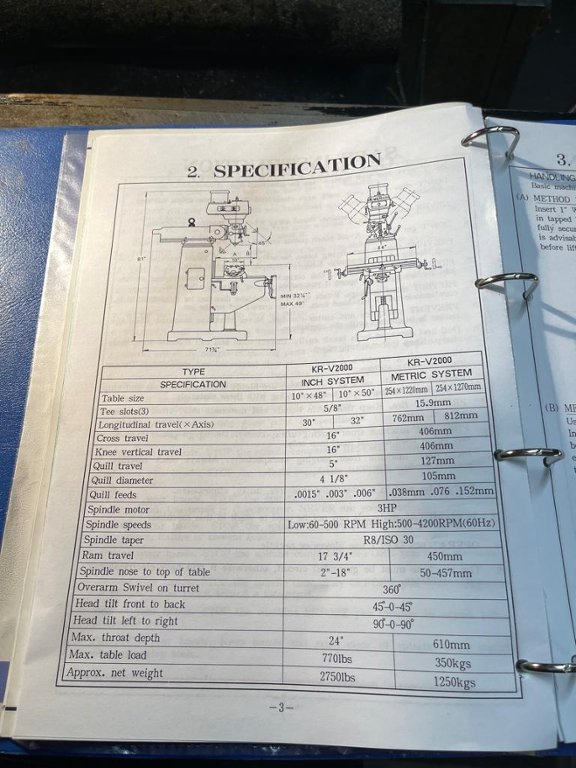

Table Size - 254x1220mm 254x1270mm

Tee Slots (3) - 15.9mm

Longitudinal Travel (X Axis) - 762mm 812mm

Cross Travel - 406mm

Knee Vertical Travel - 406mm

Quill Travel - 127mm

Quill Diameter - 105mm

Quill Feeds - .038mm.076.152mm

Spindle Motor - 3HP

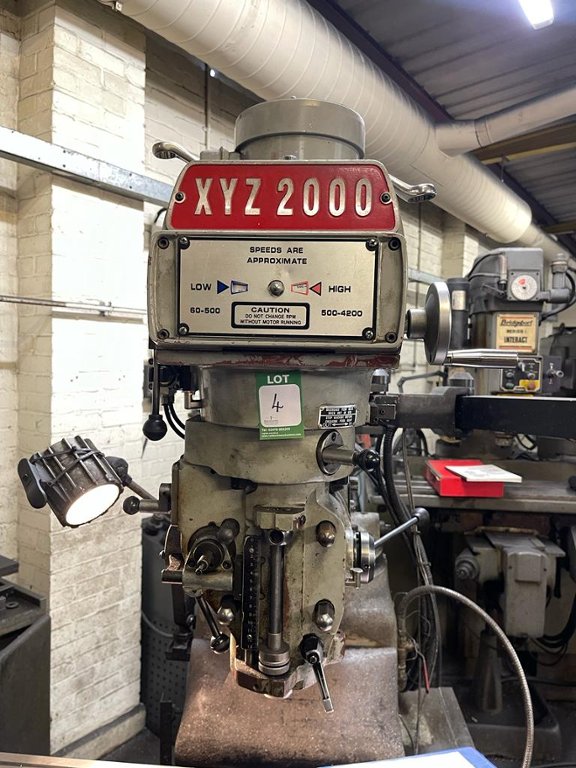

Spindle Speeds - Low:60-500RPM High:500-4200RPM (60Hz)

Spindle Taper - R8/ISO30

Ram Travel - 450mm

Spindle Nose to Top of Table - 50-457mm

Overarm Swivel on Turret - 360deg

Head Tilt Front to Back - 45deg-0-45deg

Head Tilt Left to Right - 90deg -0 -90deg

Max Throat Depth - 610mm

Max Table Load - 350kg

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
