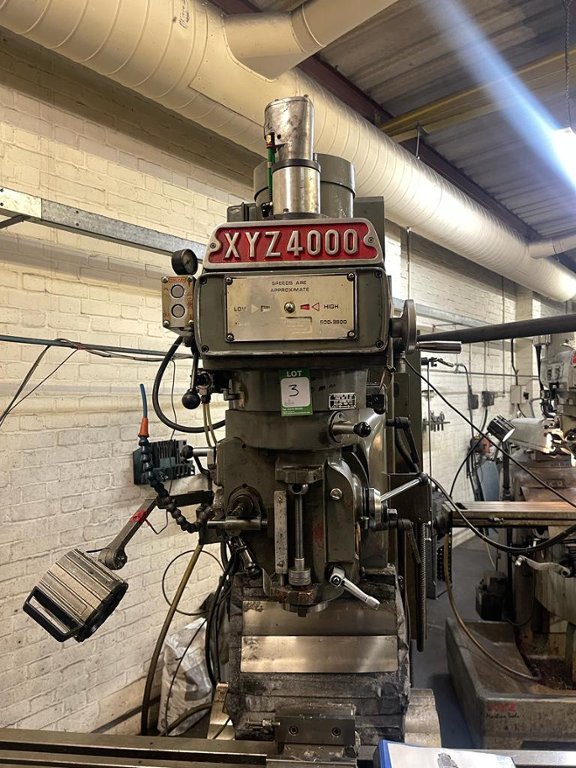

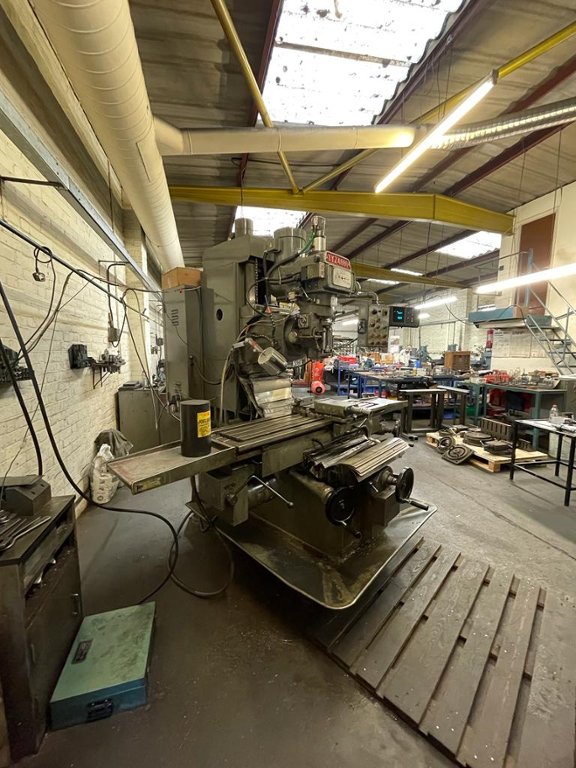

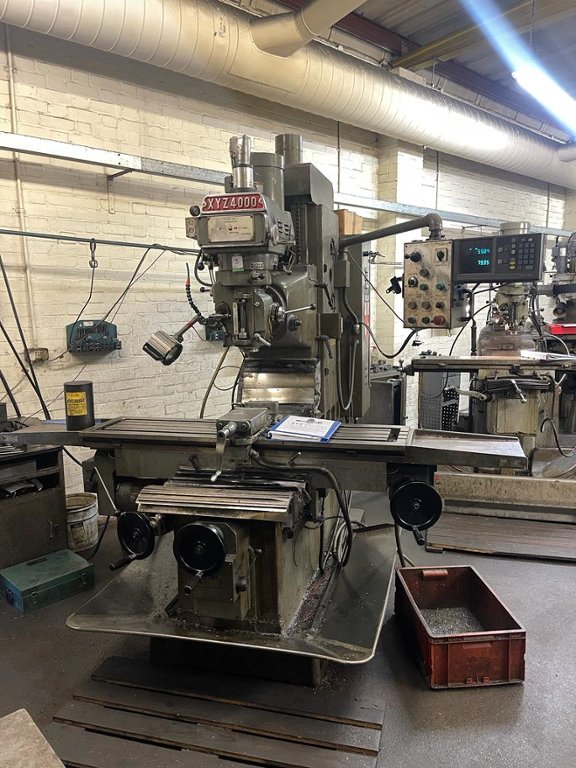

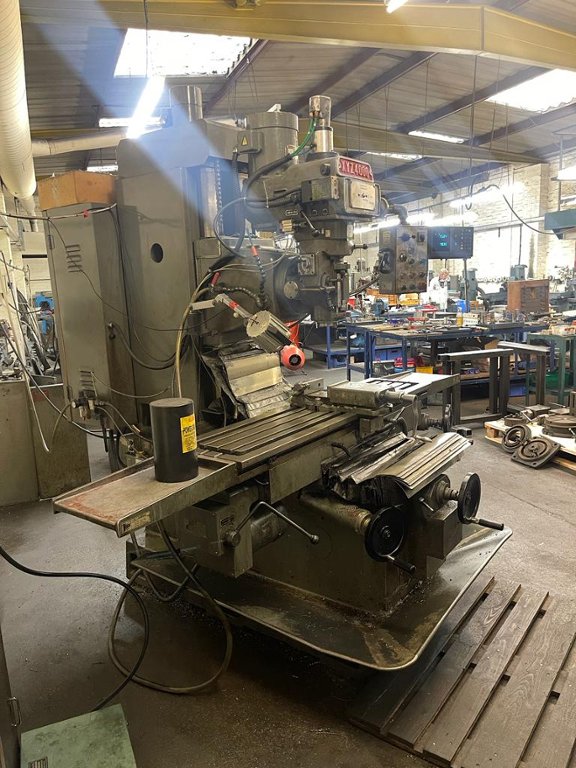

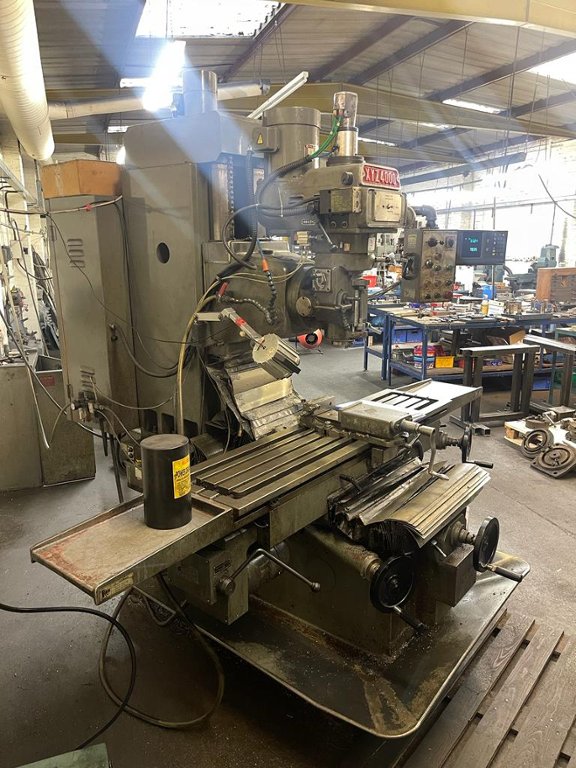

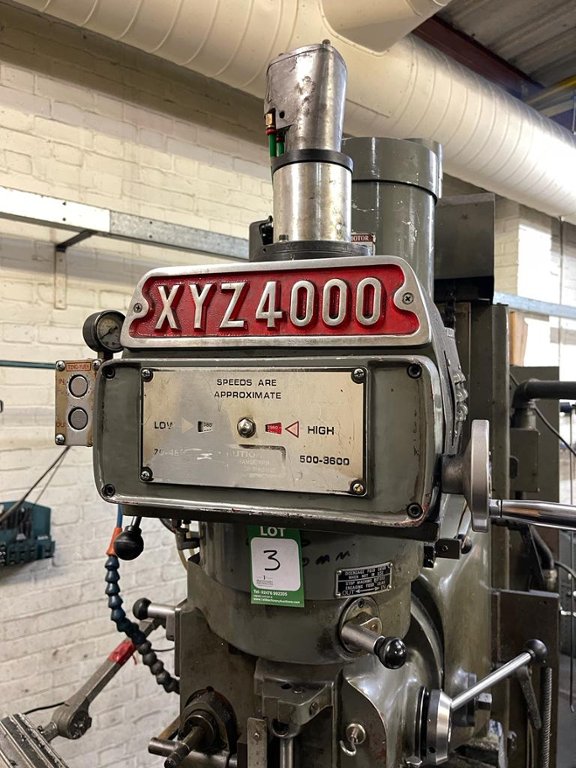

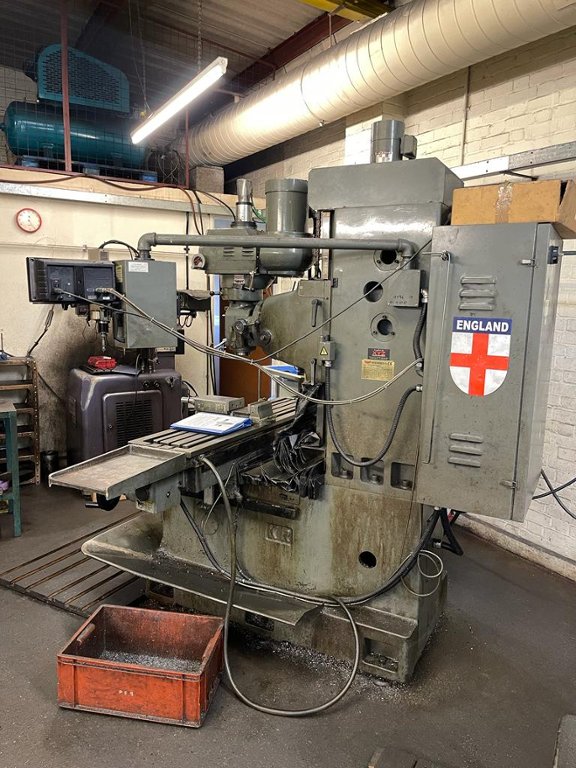

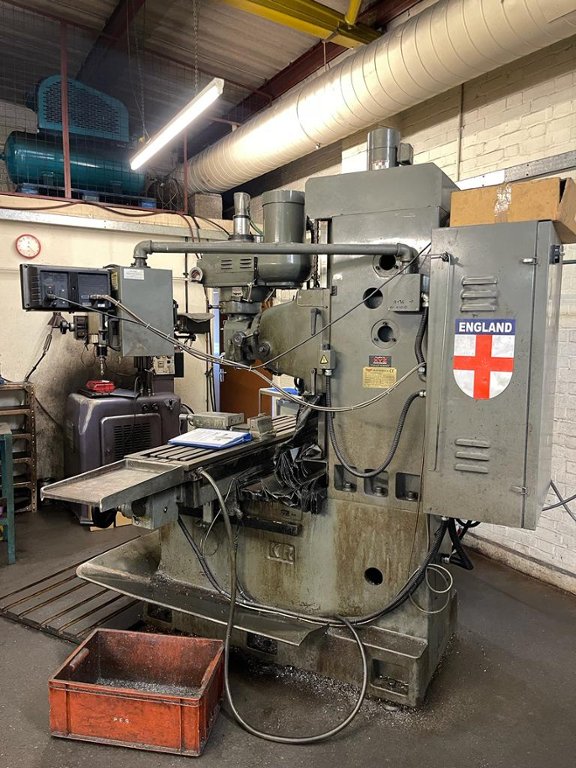

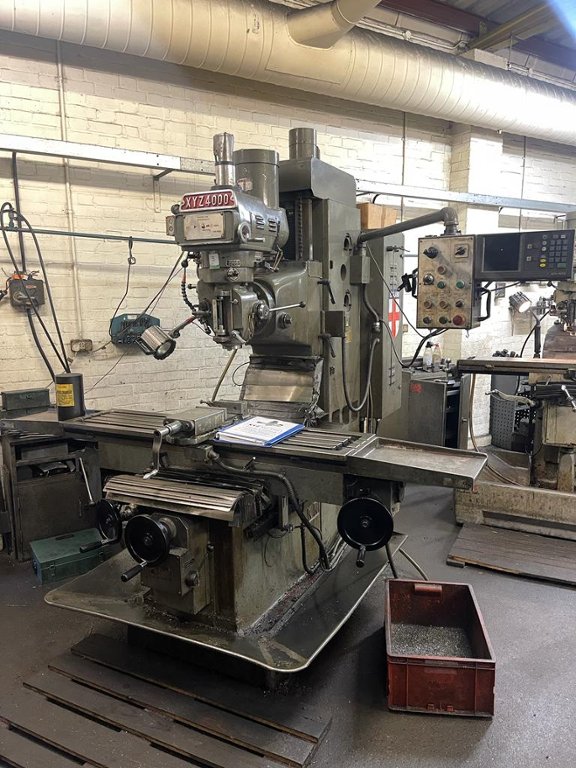

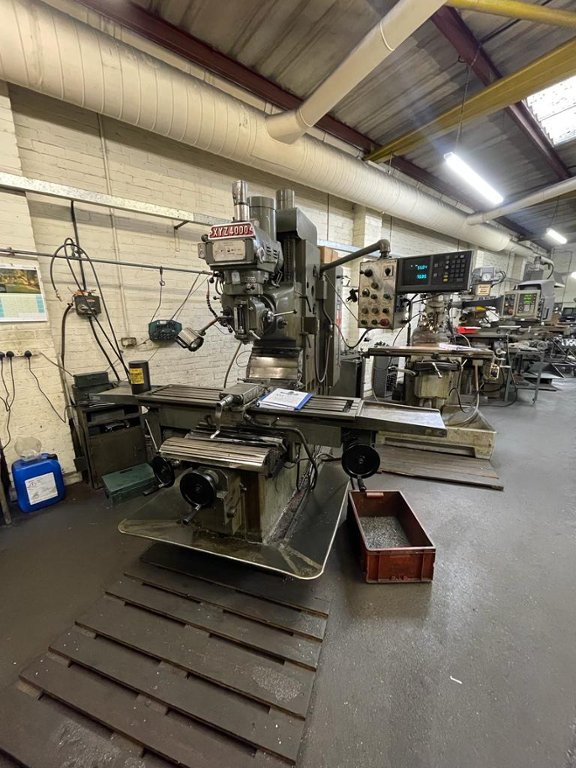

Lot 3 - XYZ 4000 Bed Milling Machine (1997)

Description:

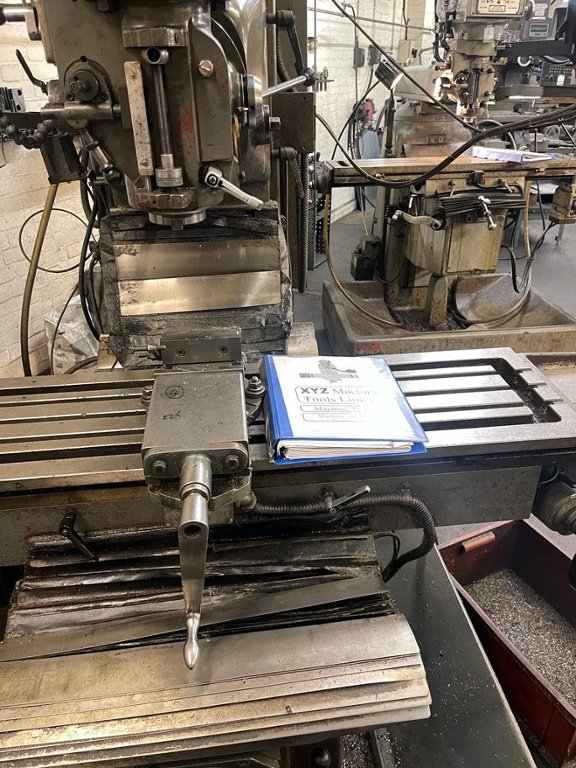

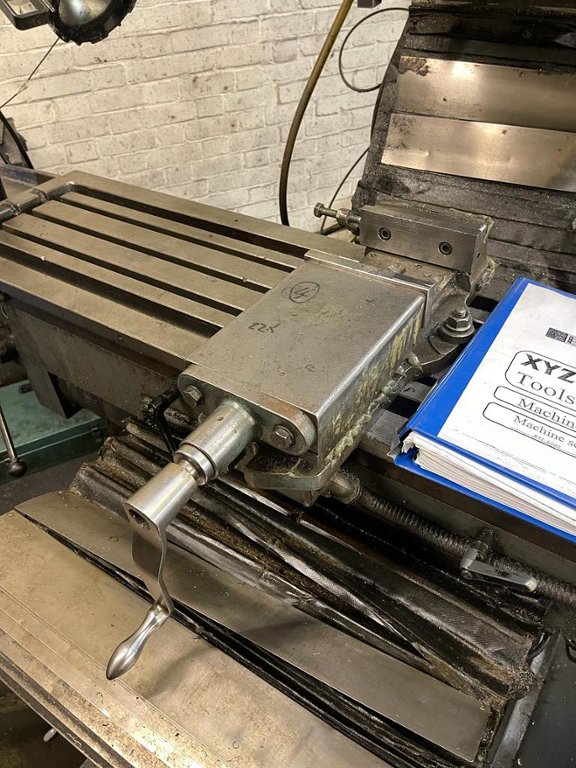

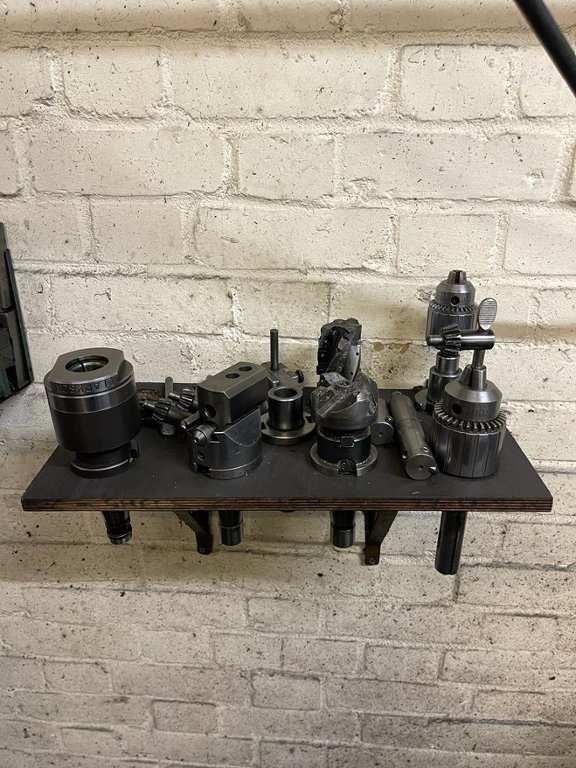

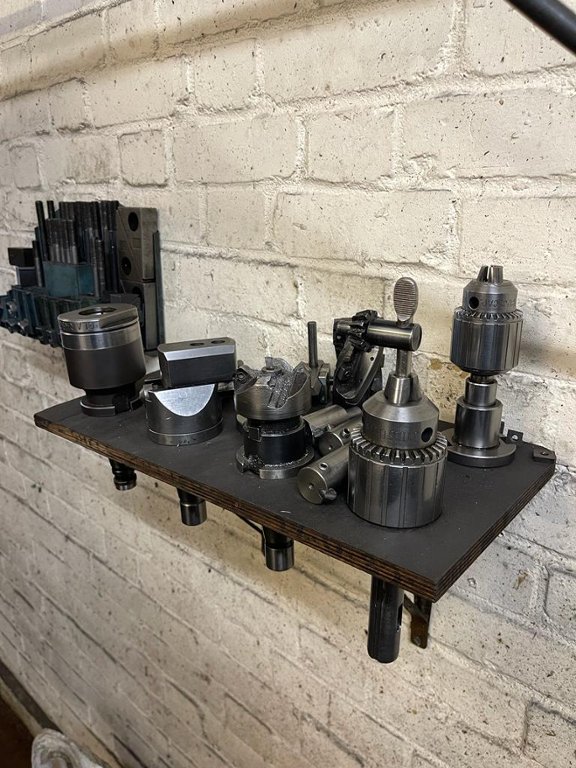

6" Vice & Selection of Tooling

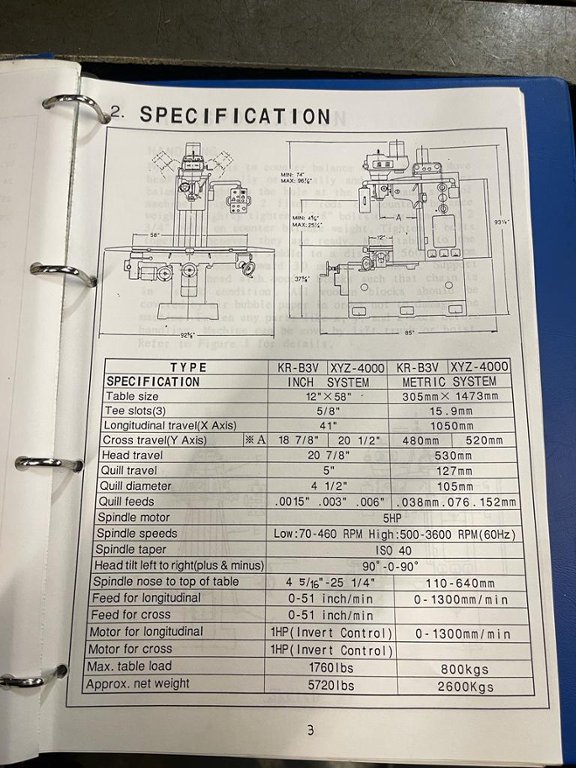

Table Size - 305 x 1473mm

Tee Slots (3) - 15.9mm

Longitudinal Travel (X Axis) - 1050mm

Cross Travel (Y Axis) - 520mm

Head Travel - 530mm

Quill Travel - 127mm

Quill Diameter - 105mm

Quill Feeds - .038mm.076.152mm

Spindle Motor - 5HP

Spindle Speeds - Low:70-460RPM High:500-3600RPM (60Hz)

Spindle Taper - ISO40

Head Tilt Left to Right (plus & minus) - 90deg -0 -90deg

Spindle Nose to Top of Table - 110-640mm

Feed for Longitudinal - 0-1300mm/min

Motor for Longitudinal - 0-1300mm/min

Max Table Load - 800kg

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

08 Mar 2023 15:00:00 GMT


Final remove by date: 22/Mar/2023

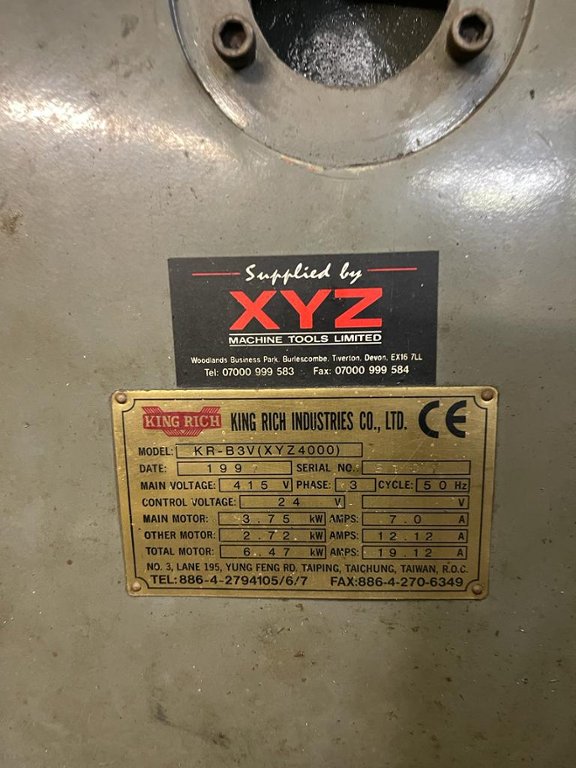

Serial Number: 8107

Location: Stanstead Abbotts, Ware

Lot location

Transport information

  • Width: 240cm
  • Depth: 230cm
  • Height: 230cm
  • Weight: 2600kg
