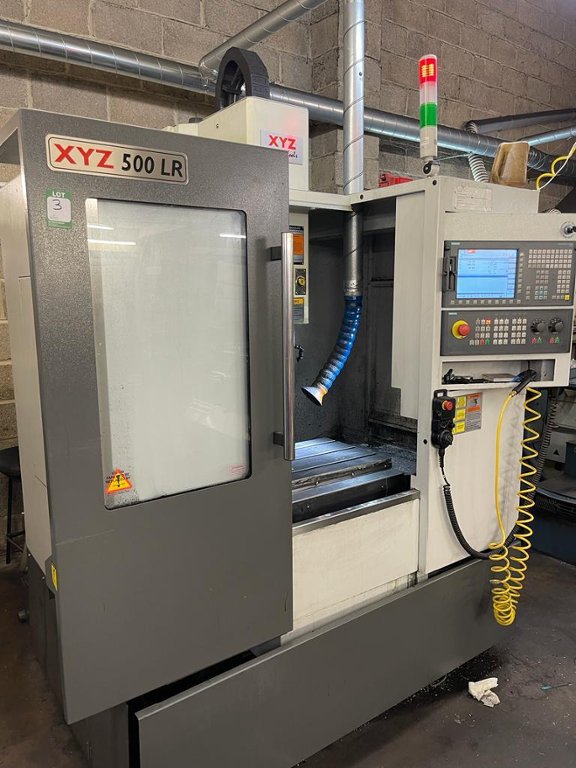

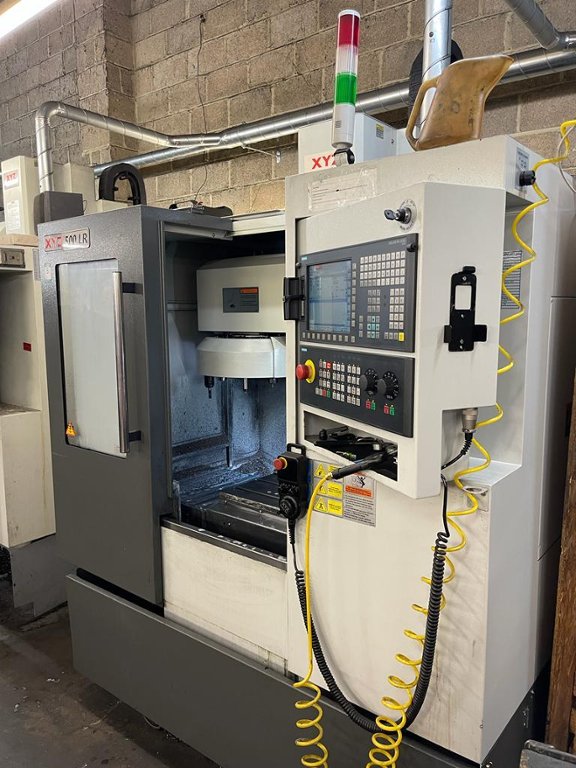

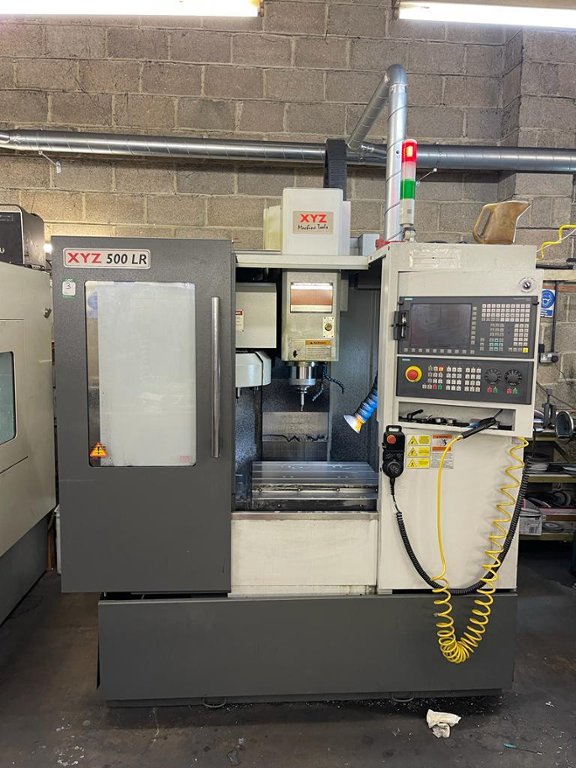

Lot 3 - XYZ 500 LR Vertical Machining Centre (2018)

Description:

X travel - 510 mm, Y travel - 400 mm, Z travel - 450 mm, Table size - 580 x 400 mm, Spindle centre to column - 415 mm, Spindle to table - 100 - 550 mm, Column front to table centre - 215 - 615 mm, Rapid feed XYZ axis - 20 M/min, Cutting feed rates - 1-20,000 mm/min, Max table load - 250 kg, T slot size - 16 mm, T slot number & pitch - 3 @ 125 mm, Spindle speed - 5-8,000 rpm, Spindle motor - 15 kW / (20 HP), Spindle taper - BT 40, Tool magazine capacity - 12 carousel, Tool change time tool to tool - 8 sec, Max tool diameter - 100 mm, Max tool weight - 6 kg, Coolant capacity - 105 L, Ballscrew size (grade C3) - 28 mm P8, AC servo motor size - X and Y 8Nm Z 12Nm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

07 Apr 2022 15:10:00 BST


Final remove by date: 21/Apr/2022

Location: Devon

Lot location

Transport information

  • Width: 1660 mm
  • Depth: 1860 mm
  • Height: 2300 mm
  • Weight: 2400 kg
