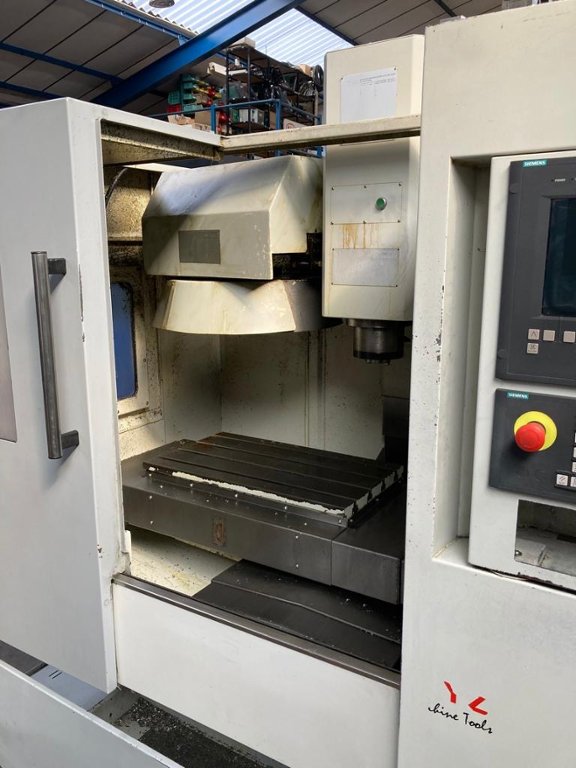

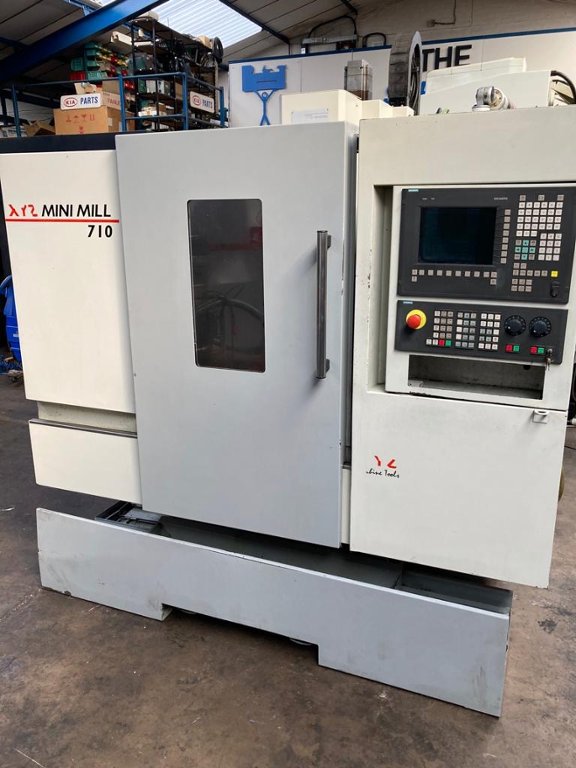

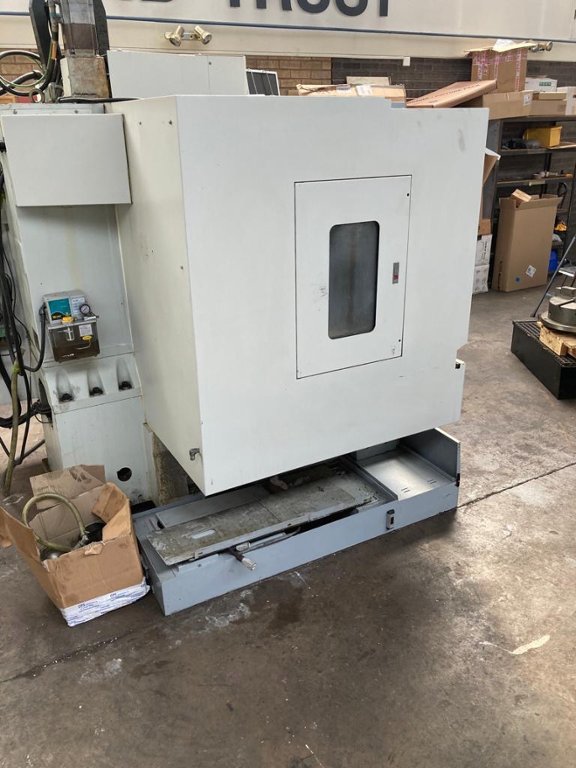

XYZ 710 Mini Mill (2006)

Lot 4 - XYZ 710 Mini Mill (2006)

Description:

Working Table

Working Area - 760 x 430mm

T Slot Size - 16mm

Stroke Limit

X Axis - 710mm

Y Axis - 450mm

Z Axis - 510mm

Distance from spindle nose to working table service - 100 ~ 610mm

Distance from spindle center to main column - 492mm

Spindle

Taper - BT40

Bearing diameter - 65

Speed - 60~8000 RPM

Feed Rate

Cutting feed rate (X,Y,Z) - 1~10000 mm/min

Rapid traverse rate (X,Y,Z) - 20000 mm/min

Tool Magazine

Capacity (no of tool) - 16

Max tool weight - 8kg

Tool change time (next tool) - 8 sec

Machine tool holder - BT40

Drive Motor

Spindle drive motor - 10/13 HP

Coolant - 3/4 Hp

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
