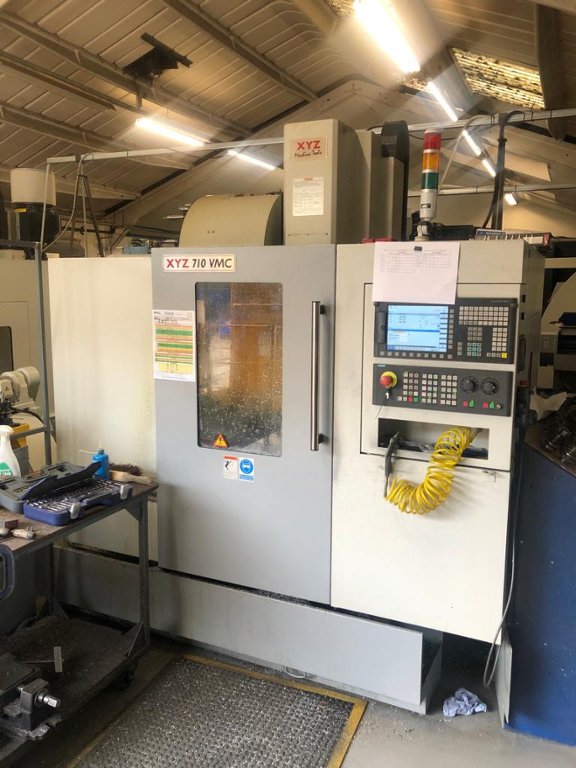

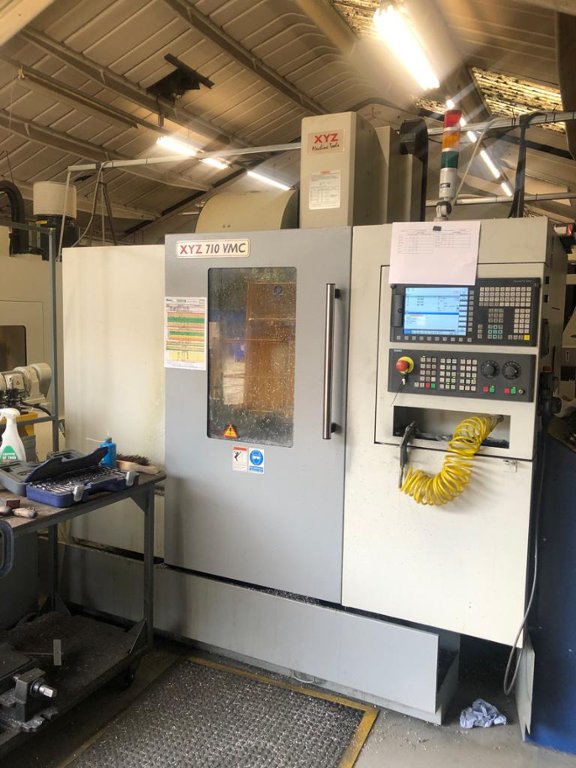

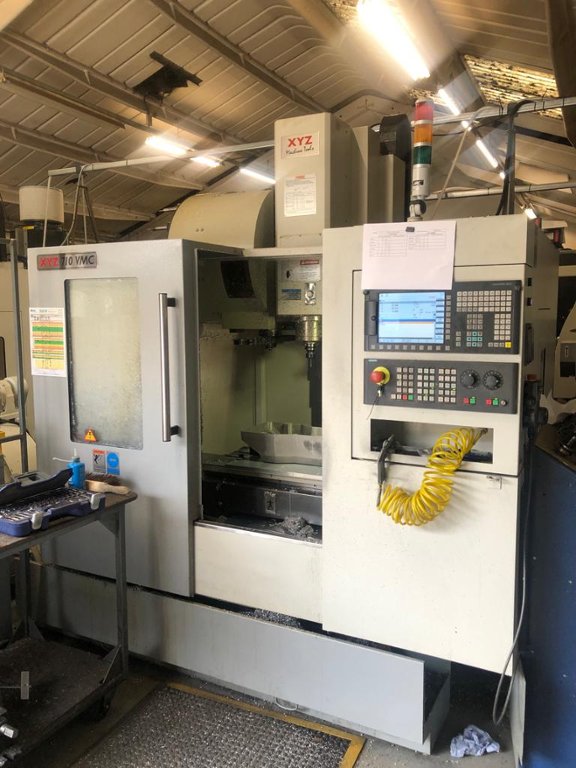

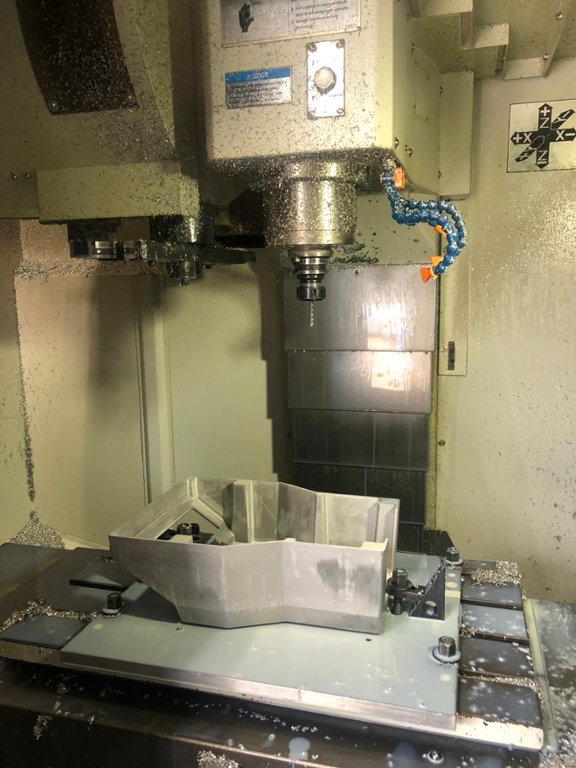

Lot 4 - XYZ 710 Vertical Machining Centre (2014)

Description:

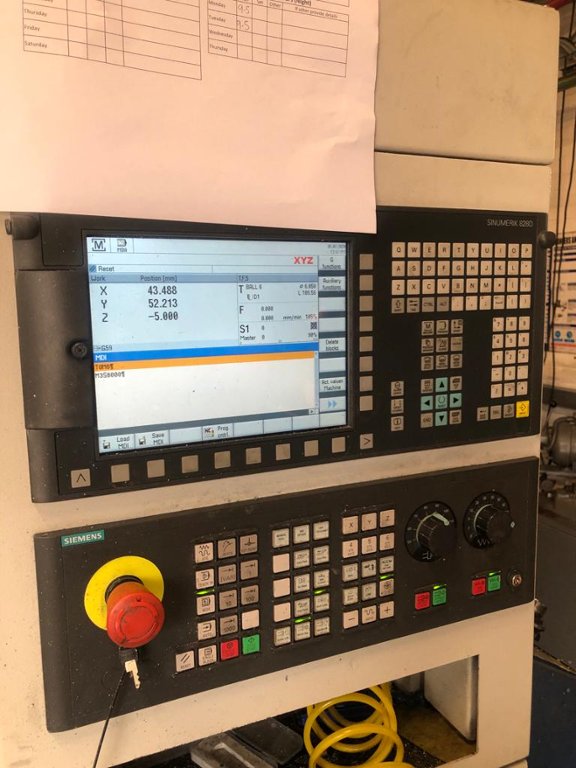

Siemens 828D Control

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

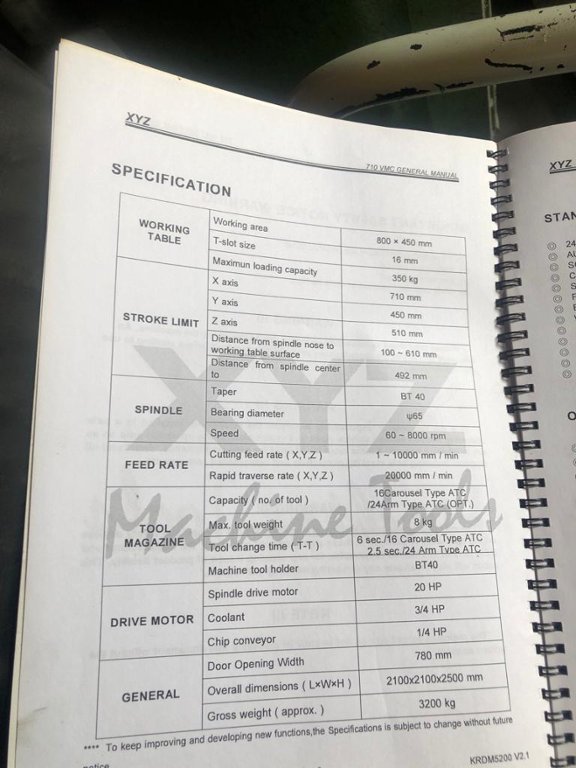

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

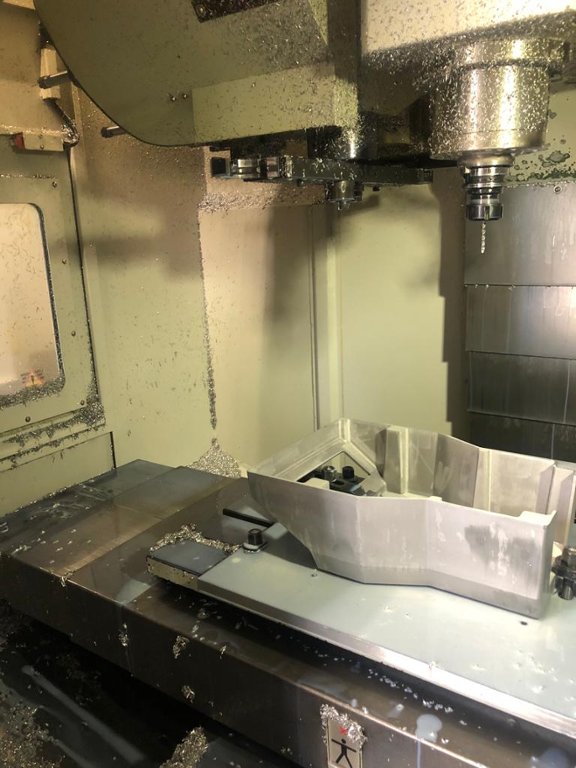

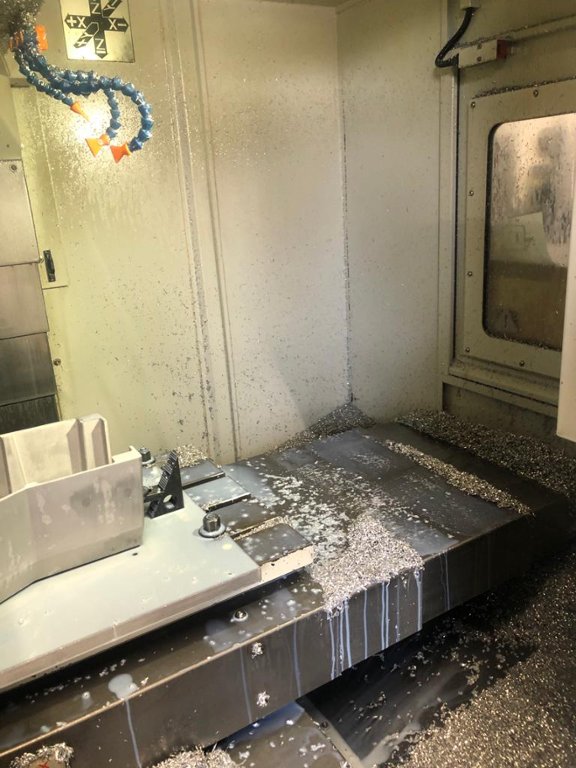

Working Table

Working Area - 800 x 450 mm

T-Slot size - 16 mm

Maximum Loading Capacity - 350 kg

Stroke Limit

X Axis - 710 mm

Y Axis - 450 mm

Z Axis - 510 mm

Distance from Spindle Nose to Working Table Surface - 100 - 610 mm

Distance from Spindle Centre - 492 mm

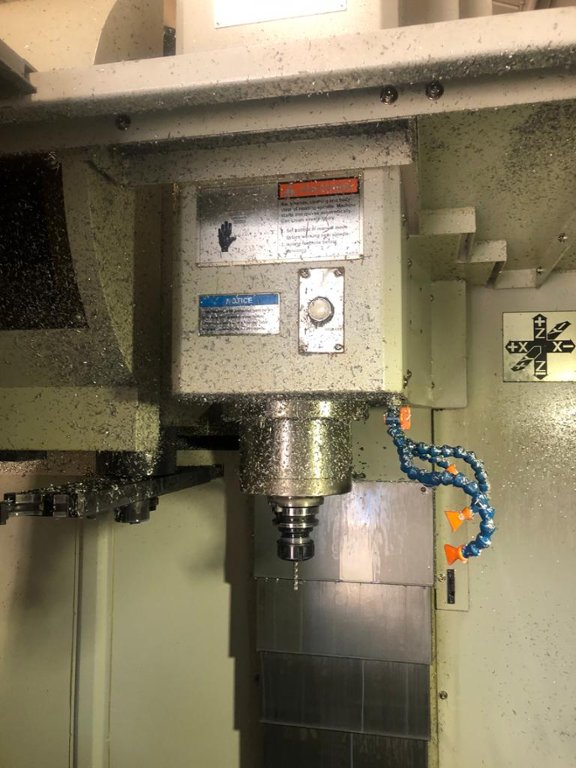

Spindle

Taper - BT40

Bearing Diameter - 65

Speed - 60 - 8000 rpm

Feed Rate

Cutting Feed Rate (X,Y,Z) - 1 - 1000 mm/min

Rapid Traverse Rate (X,Y,Z) - 20000 mm/min

Tool Magazine

Capacity (No of Tools) - 16 Carousel Type ATC/24 Arm Type ATC (OPT)

Max Tool Weight - 8 kg

Tool Change Time (T-T) - 6 sec./ 16 Carousel Type ATC 2.5 Sec./ 24 Arm Type ATC

Machine Tool Holder - BT40

Drive Motor

Spindle Drive Motor - 20HP

Coolant - 3/4 HP

Chip Conveyor - 1/4 HP

General

Door Opening Width - 780mm

Bid information

Time remaining

DAYHRSMIN
140711

05 Mar 2020 15:00:00 GMT

Opening bid: £15000

Bids: 0



Your Bid:

£


Minimum increment: £150

Autobid:

£

Final remove by date: 19/Mar/2020

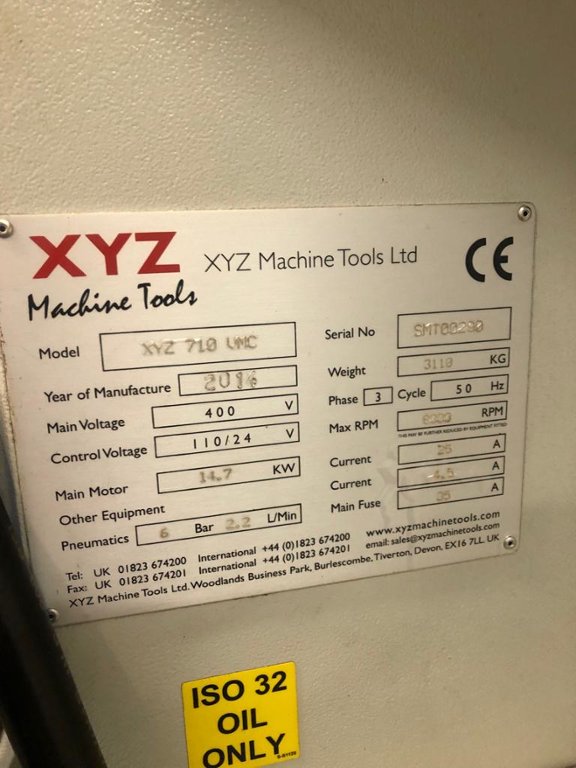

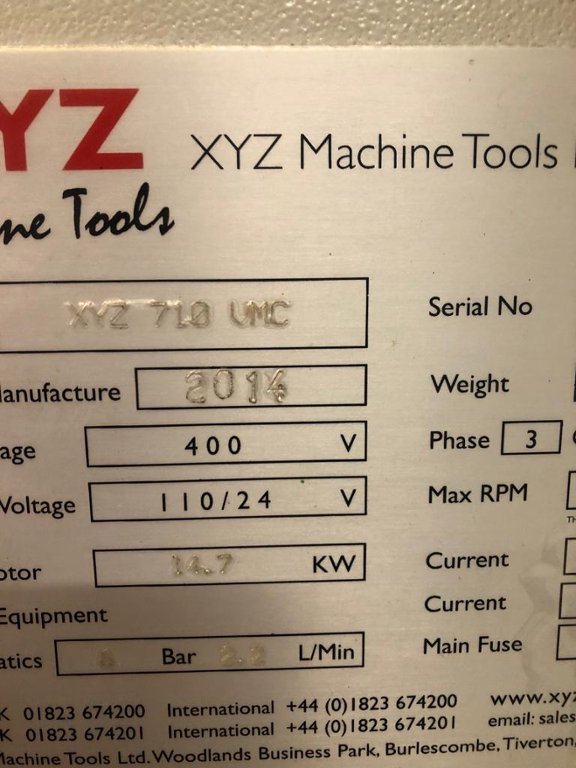

Serial Number: SMT00289

Location: Coventry

Lot location

Transport information

  • Width: 2100mm
  • Depth: 2100mm
  • Height: 2500mm
  • Weight: 3200 kg
  • Other Transport Details: Loaded to transport £150
