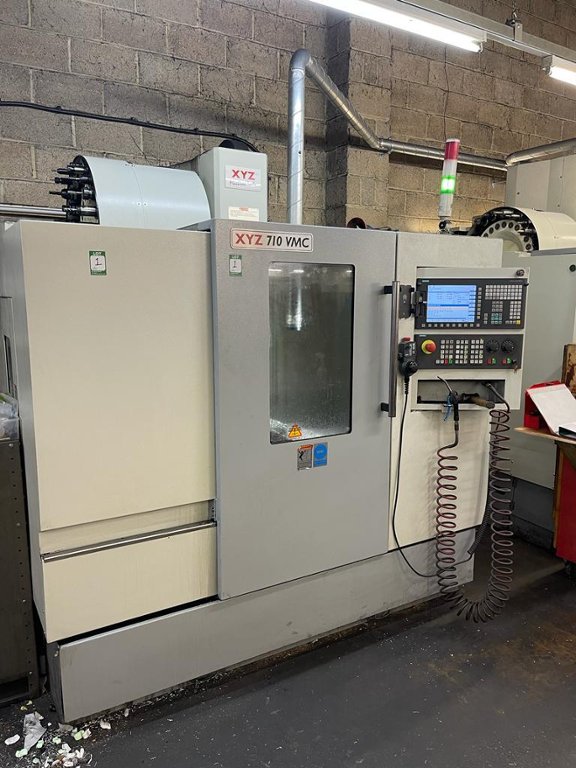

XYZ 710 Vertical Machining Centre (2015)

Lot 1 - XYZ 710 Vertical Machining Centre (2015)

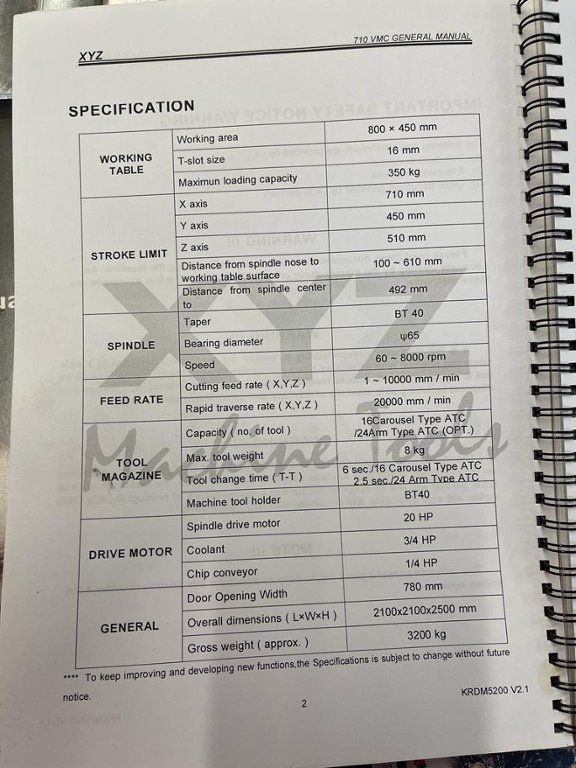

Description:

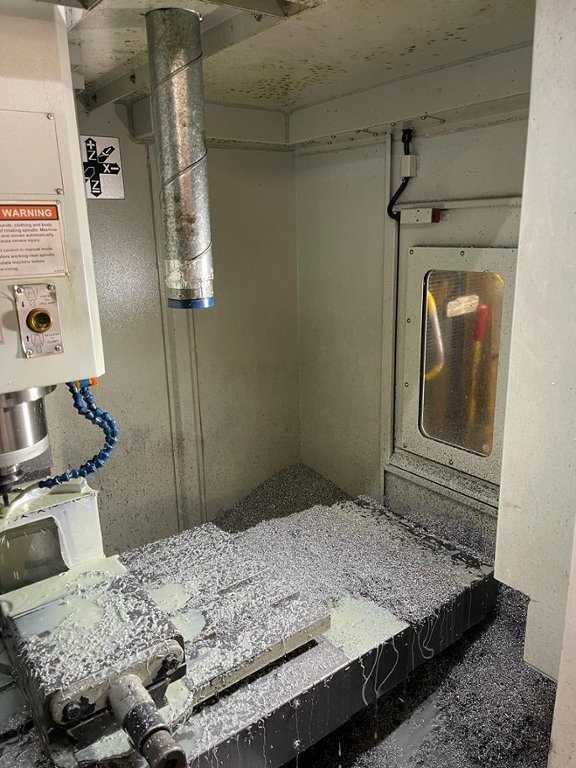

Working Table

Working area - 800 x 450mm, T-Slot Size - 16mm, Maximum loading capacity - 350kg.

Stroke Limit

X Axis - 710mm. Y Axis - 450mm, Z Axis - 510mm, Distance from spindle nose to working table surface - 100 ~ 610mm, Distance from spindle centre to - 492 mm.

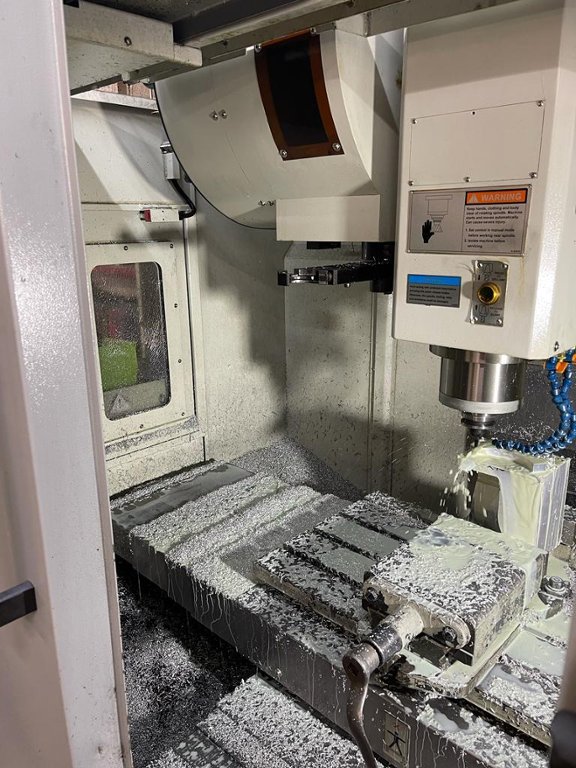

Spindle

Taper - BT40, Bearing diameter - 65, Speed - 60 ~ 8000 rpm

Feed Rate

Cutting feed rate (X,Y,Z) - 1 ~ 10000 mm/min, Rapid traverse rate (X,Y,Z) - 20000 mm/min

Tool Magazine

Capacity (no of tool) - 16 carousel type ATC/24 arm type ATC (opt), Max tool weight - 8 kg, Tool change time (T-T) - 6. sec,16 carousel type ATC 2.5 sec/24 arm type ATC, Machine tool holder - BT40

Drive Motor

Spindle drive motor - 20HP, Coolant - 3/4 HP, Chip conveyor - 1/4 HP

Door opening width - 780mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
