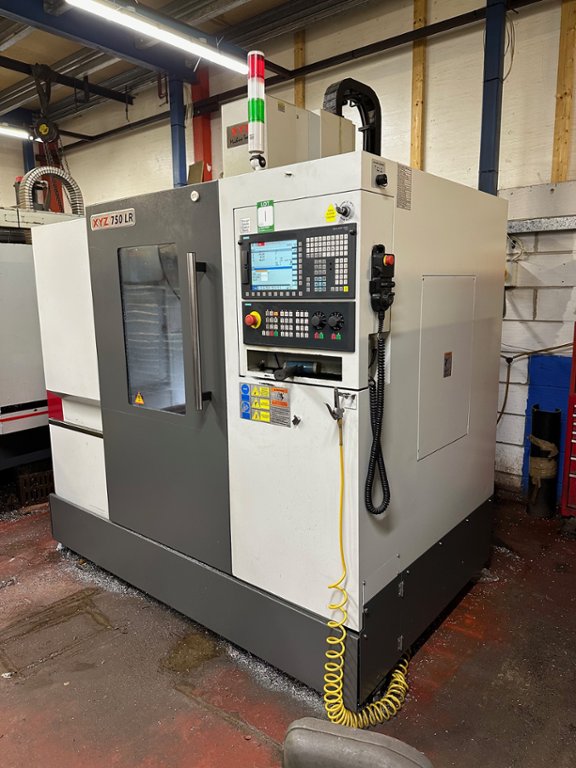

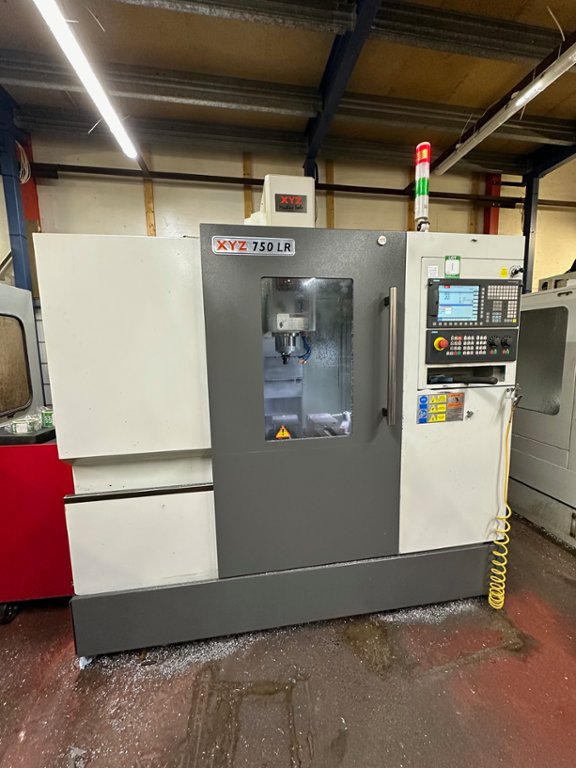

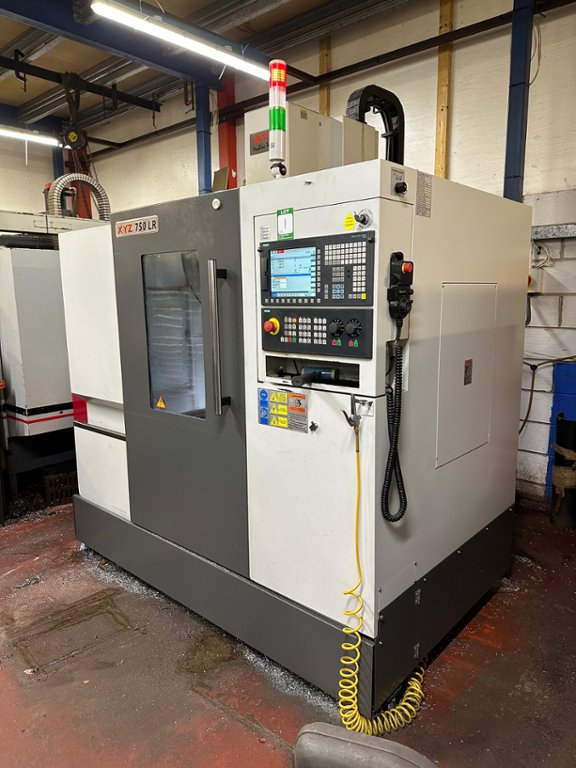

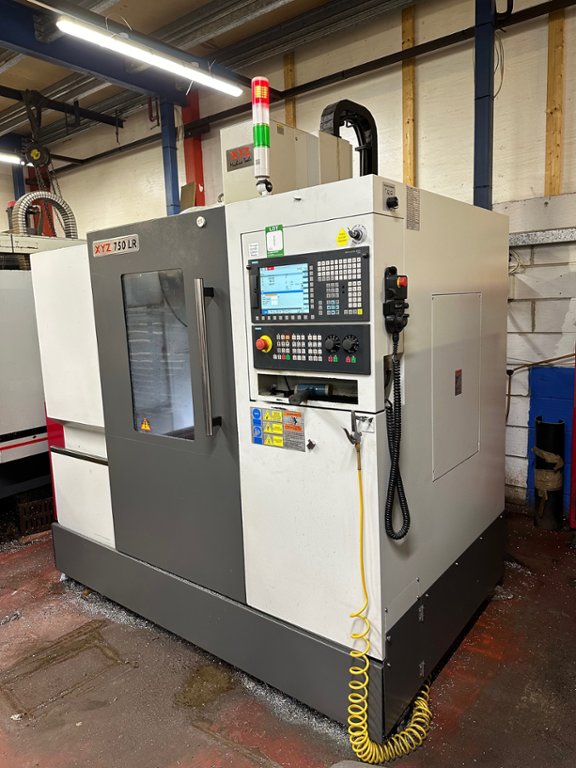

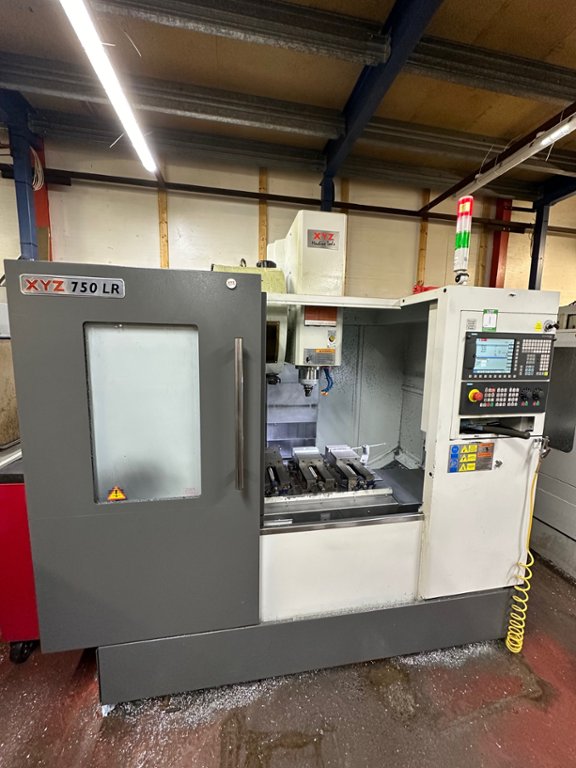

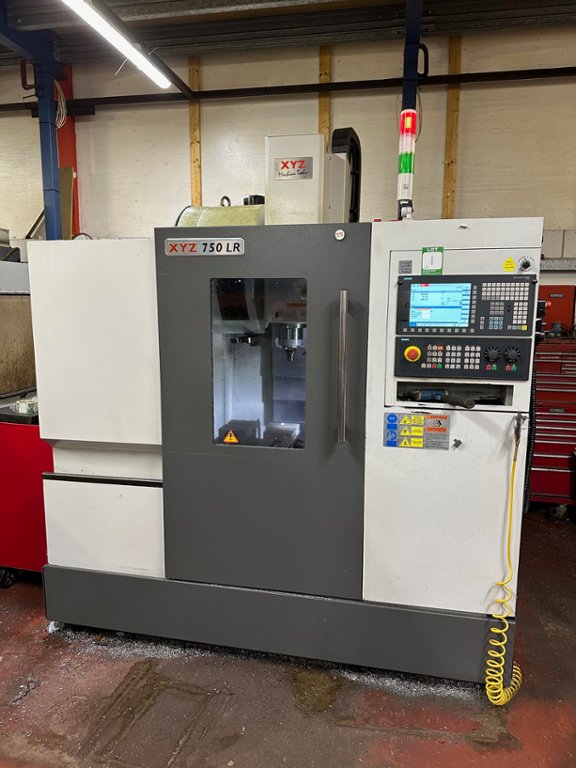

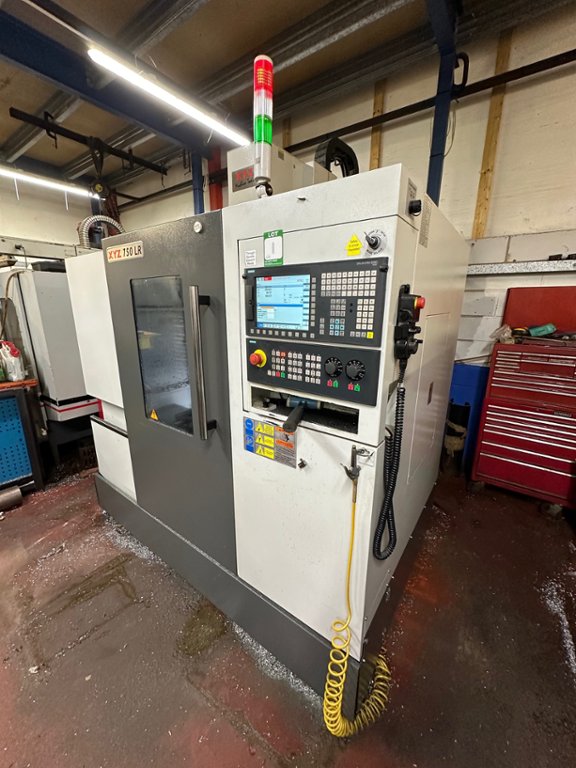

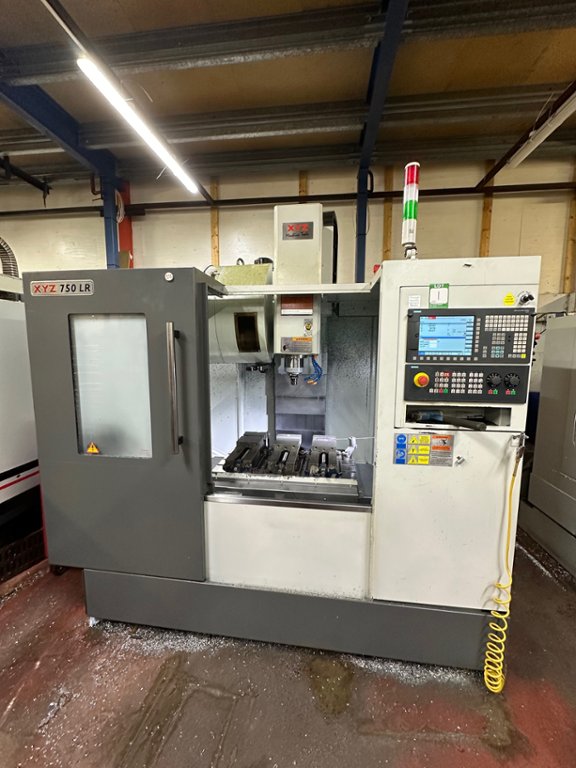

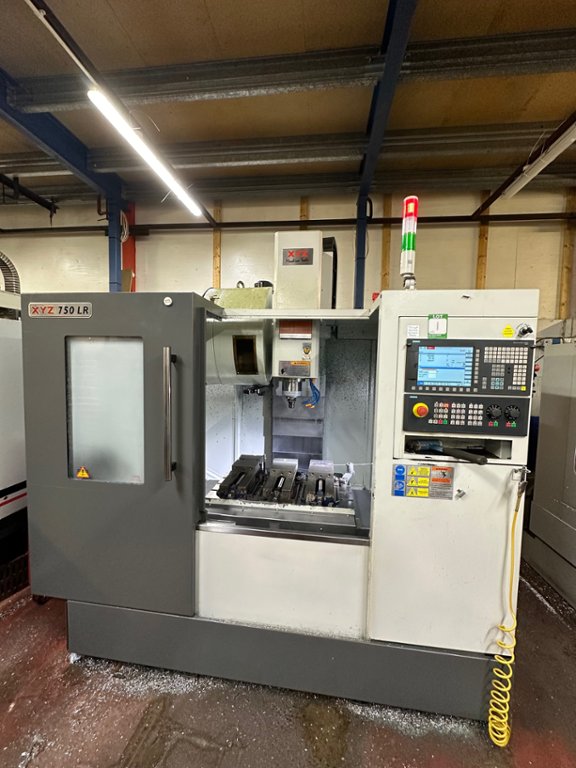

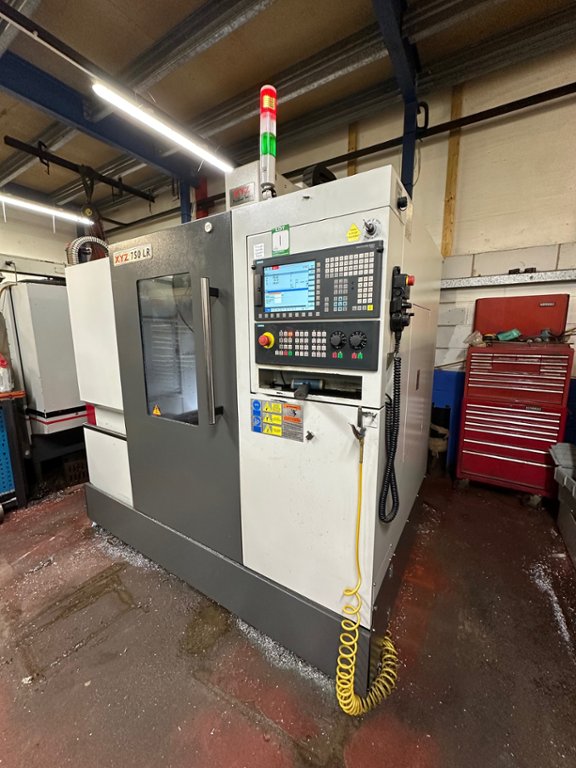

Lot 1 - XYZ 750 LR Vertical Machining Centre (2019)

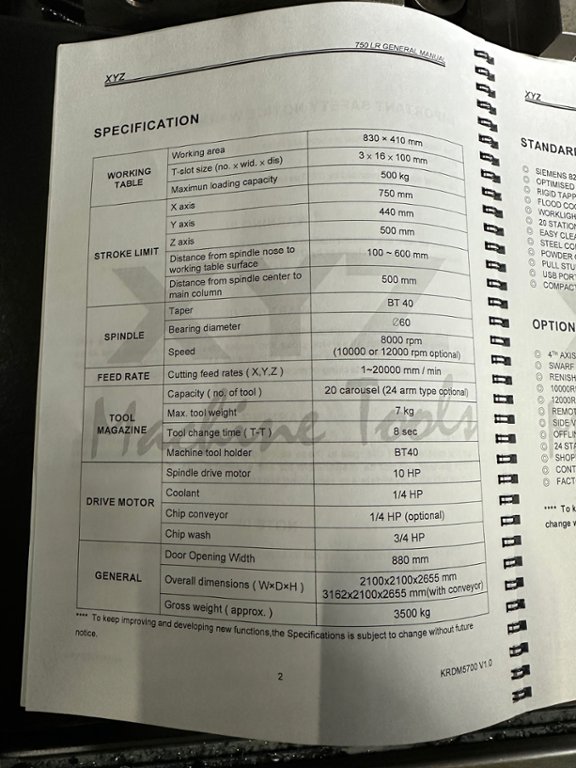

Description:

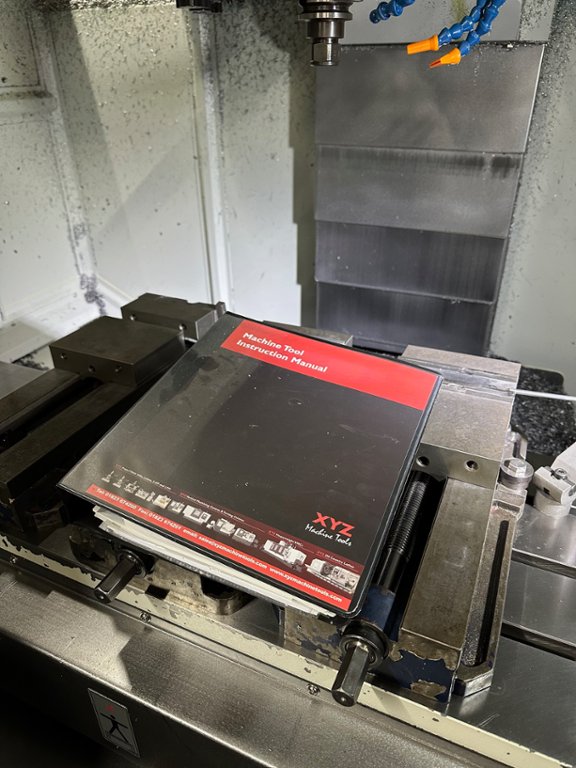

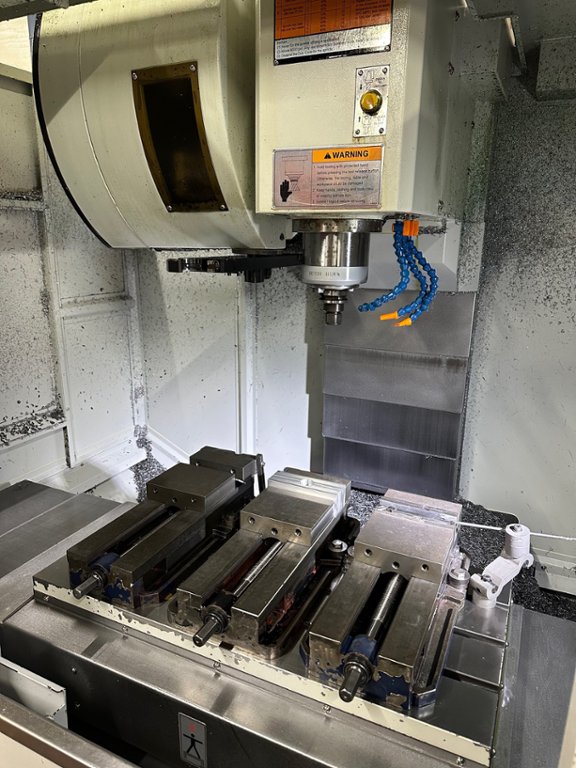

Vices NOT Included

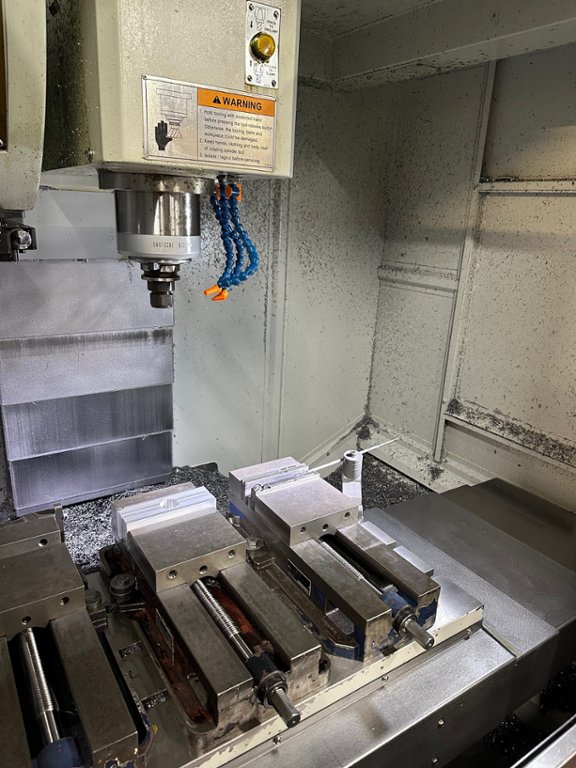

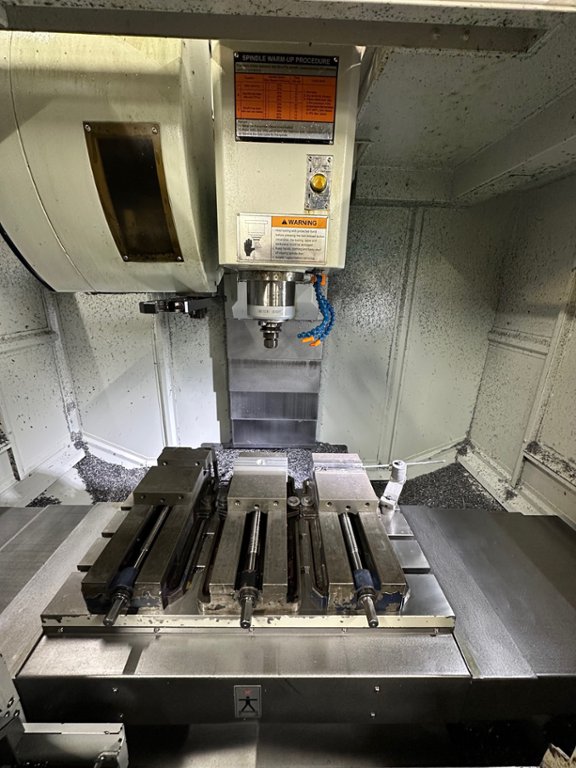

Working Table

Working area - 830 x 410mm, T-Slot Size (no x wid x dis) - 3 x 6 x 100mm, Maximum loading capacity - 500kg

Stroke Limit

X Axis - 750mm, Y Axis - 440mm, Z Axis - 500mm, Distance from spindle nose to working table surface - 100 - 600mm, Distance from spindle centre to main column - 500mm

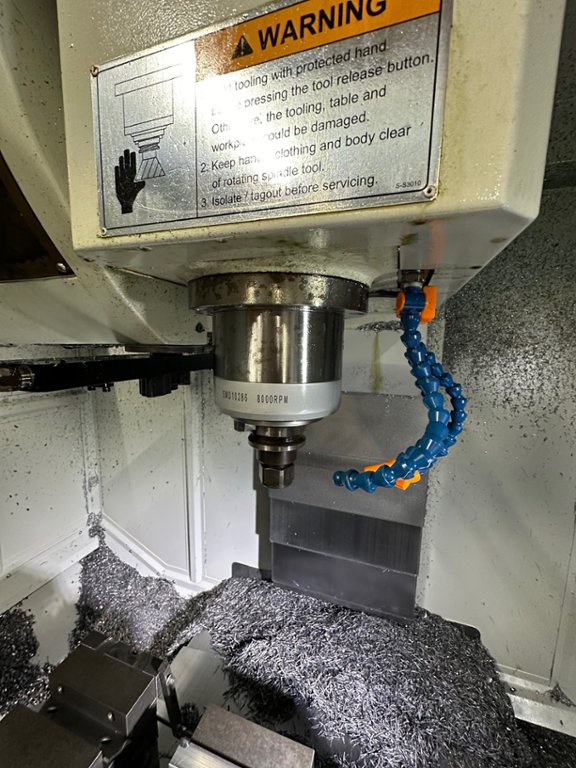

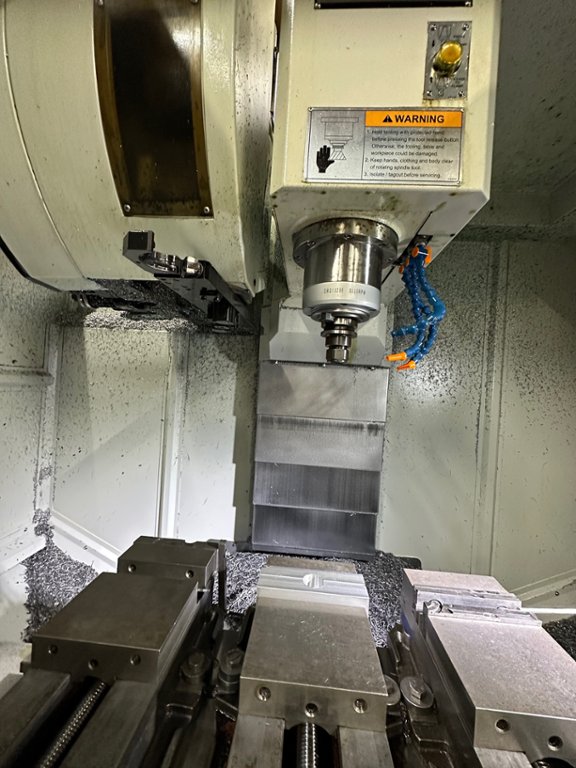

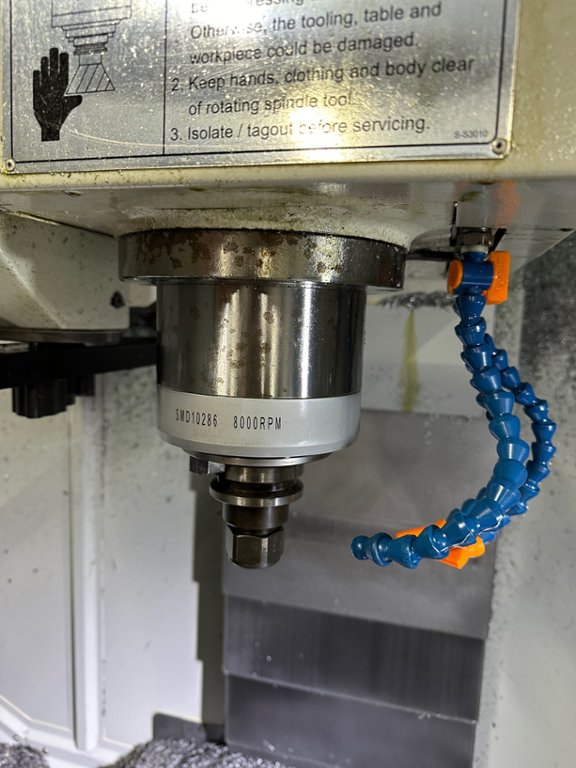

Spindle

Taper - BT40, Bearing diameter - 60, Speed 12000RPM

Feedrate

Cutting feedrates (X, Y, Z) - 1-12000mm/min

Tool Magazine

Capacity (no of tools) - 20 carousel (24 arm type optional), Max tool weight - 7kg, Tool change time (T-T) - 8sec, Machine Tool Holder - BT40

Drive Motor

Spindle drive motor - 10HP, Coolant - 1/4HP, Chip conveyor - 1/4HP (Optional), Chip wash - 3/4HP

General

Door opening width - 880mm

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

09 May 2024 15:30:00 BST


Final remove by date: 23/May/2024

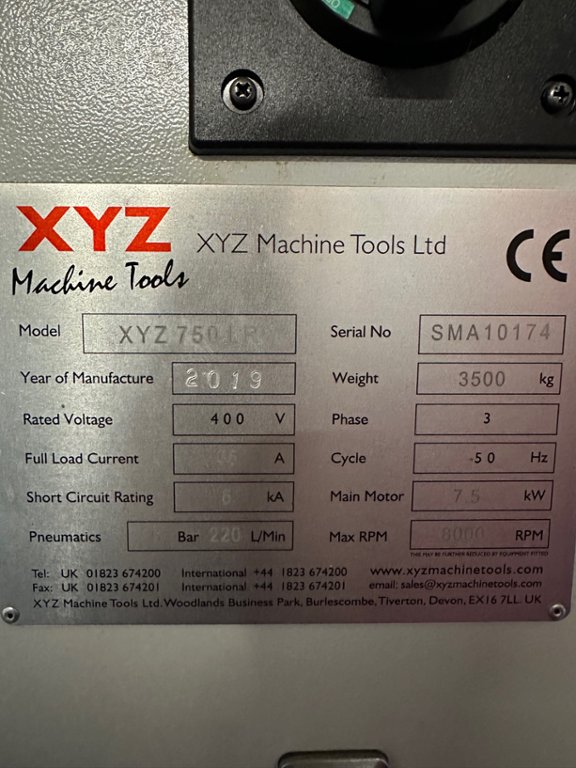

Serial Number: SMA10174

Location: Dorset

Lot location

Transport information

  • Width: 3162mm
  • Depth: 2100mm
  • Height: 2655mm
  • Weight: 3500kg
  • Other Transport Details: Decomissioned and loaded to suitable transport £500
