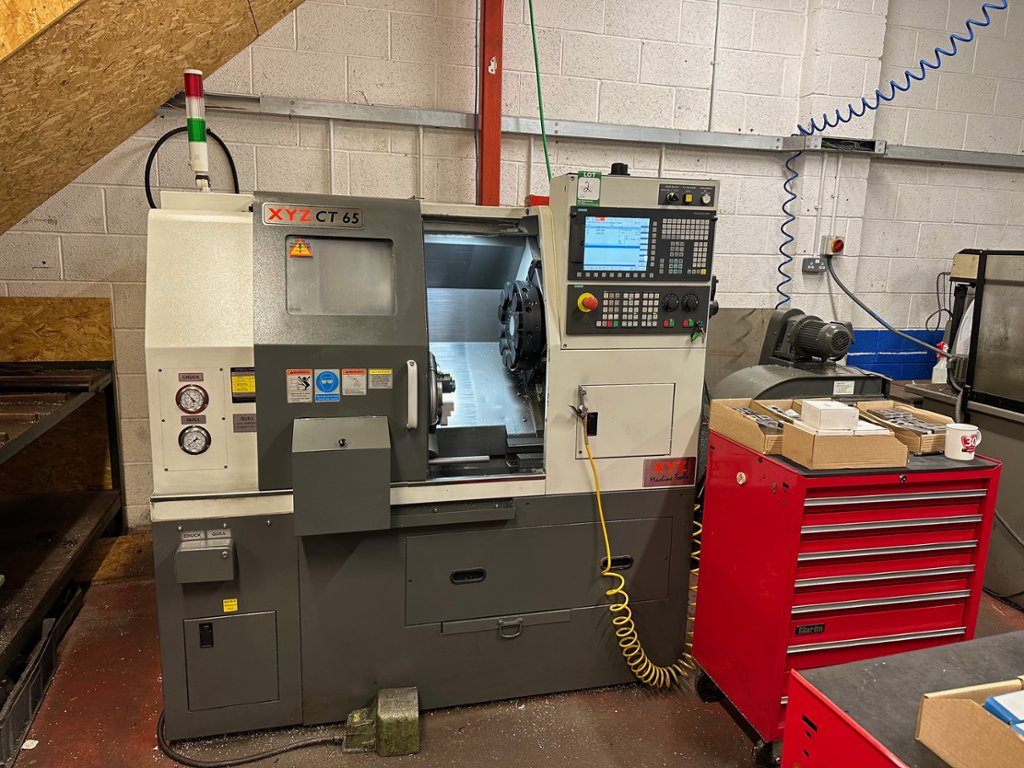

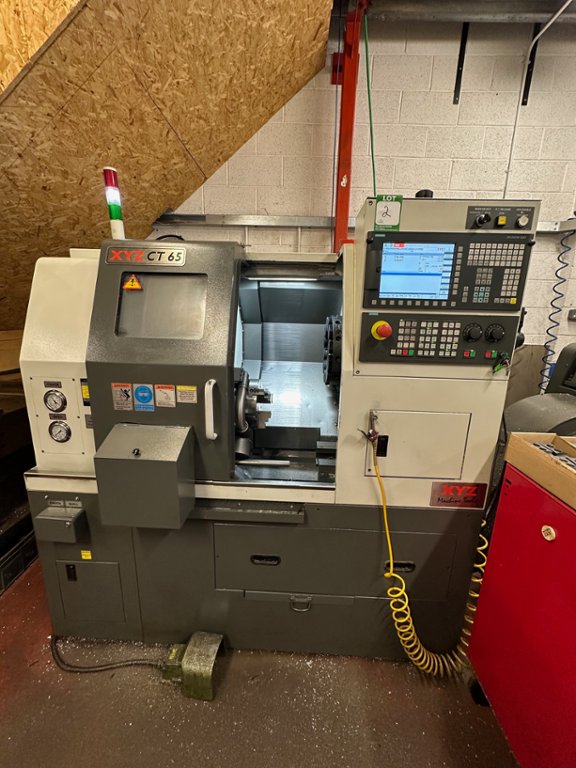

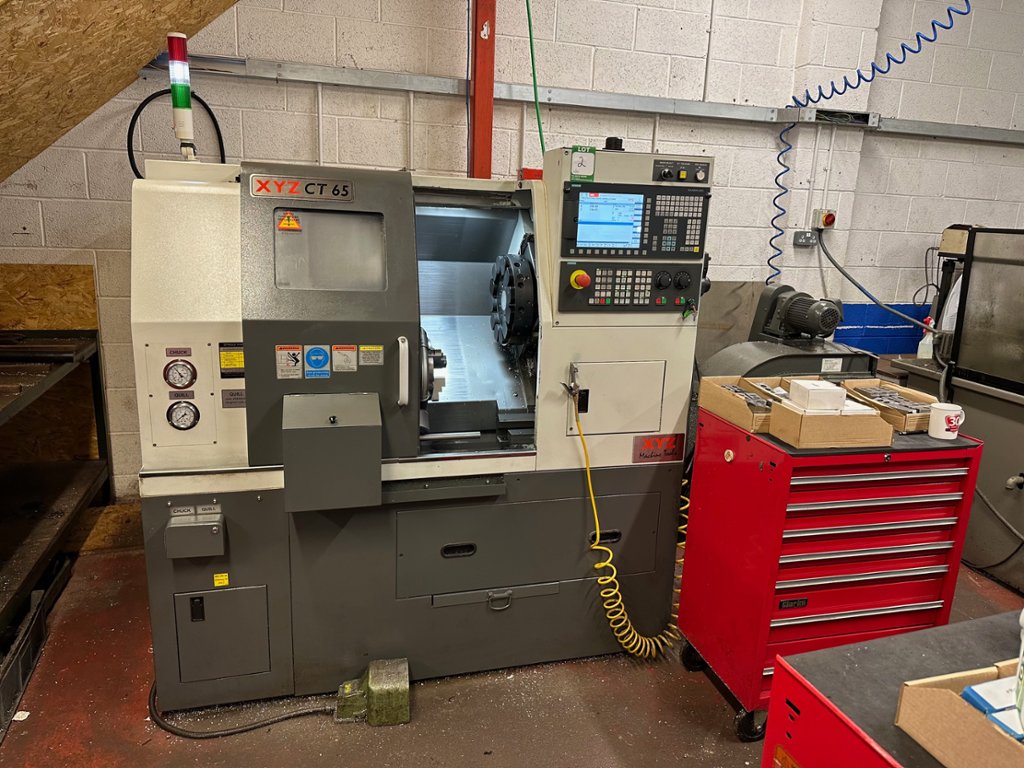

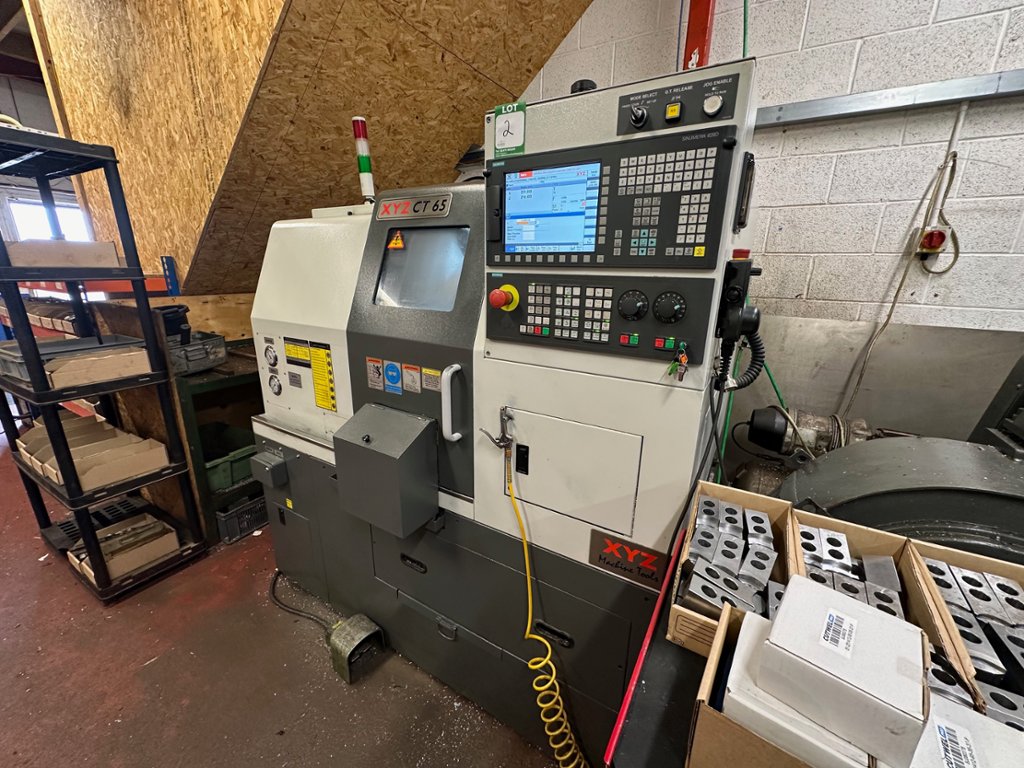

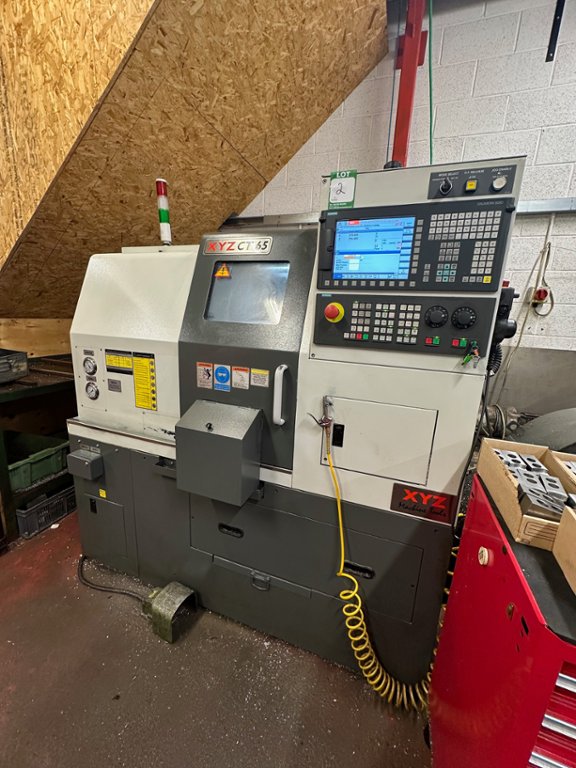

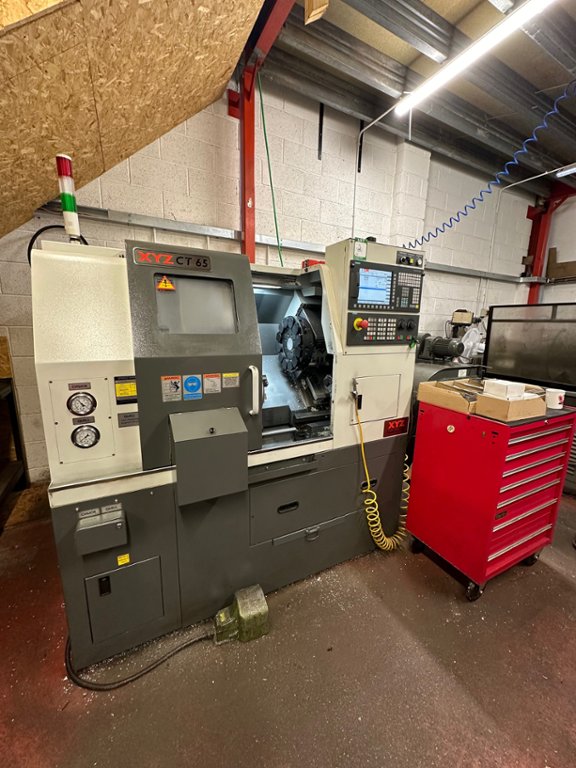

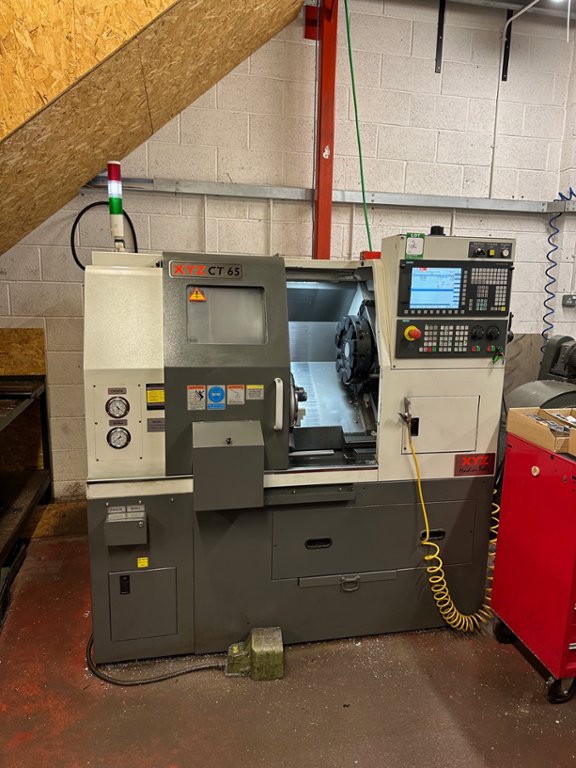

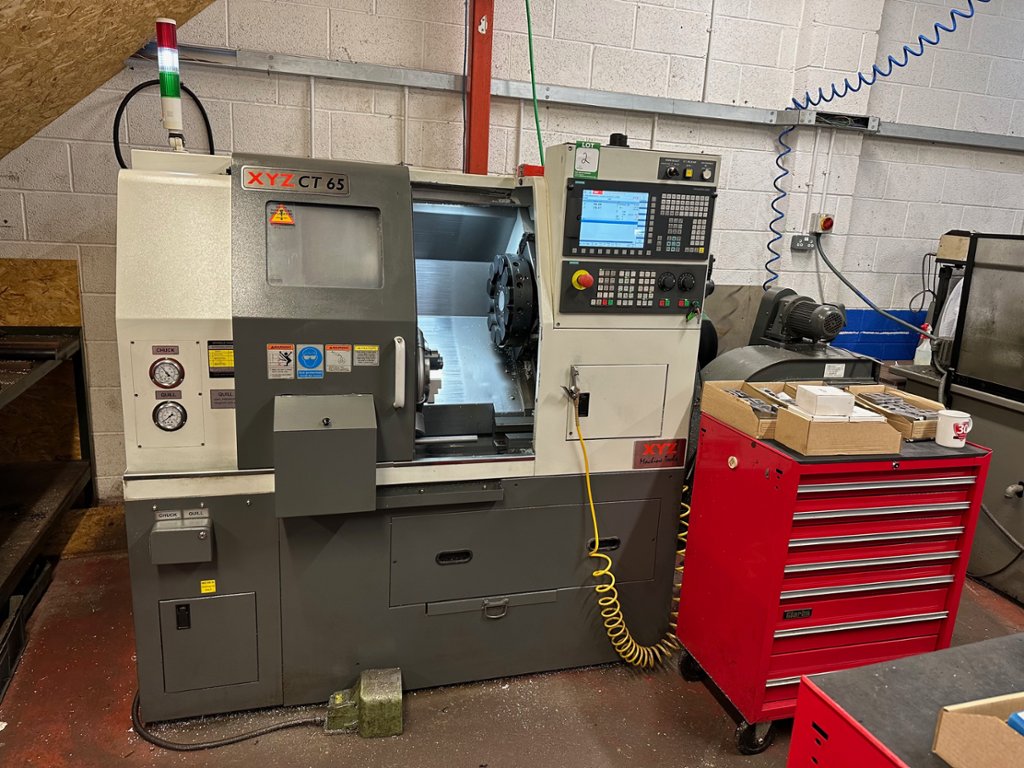

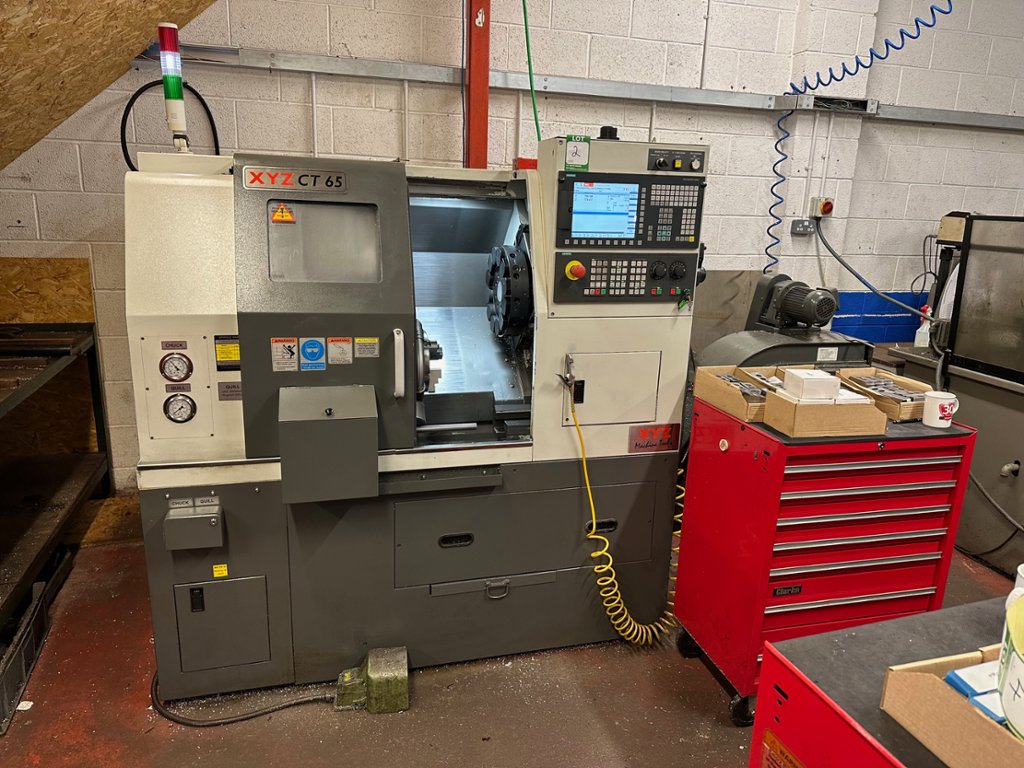

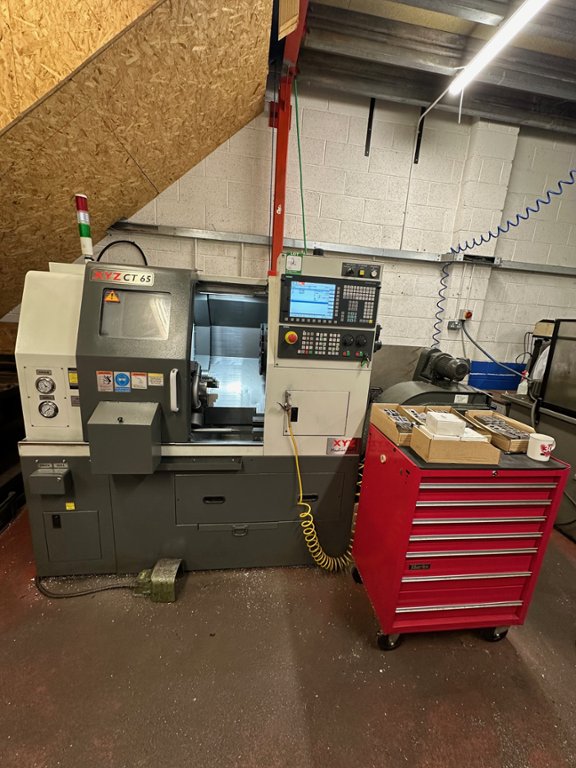

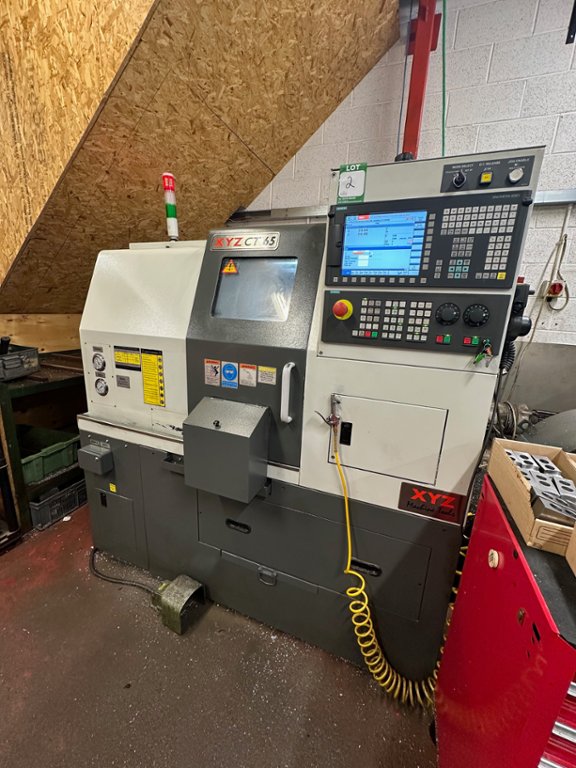

Lot 2 - XYZ CT 65 CNC Lathe (2017)
Description:
Vices NOT included

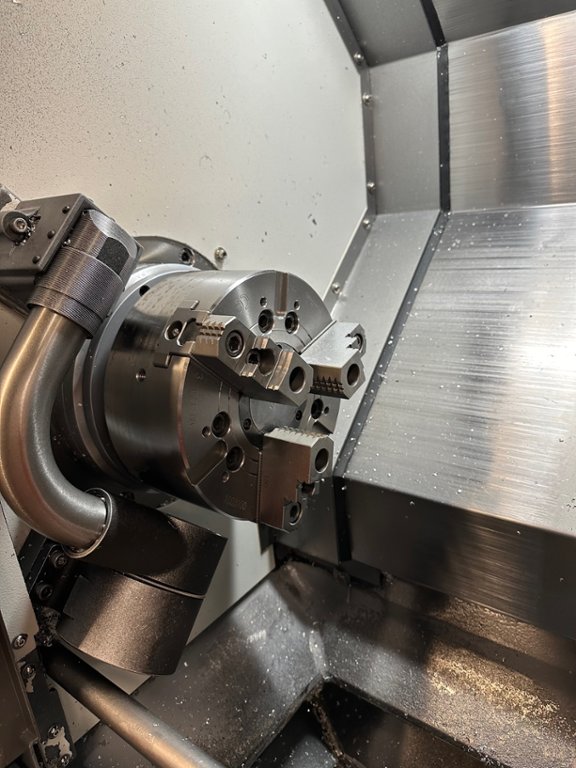

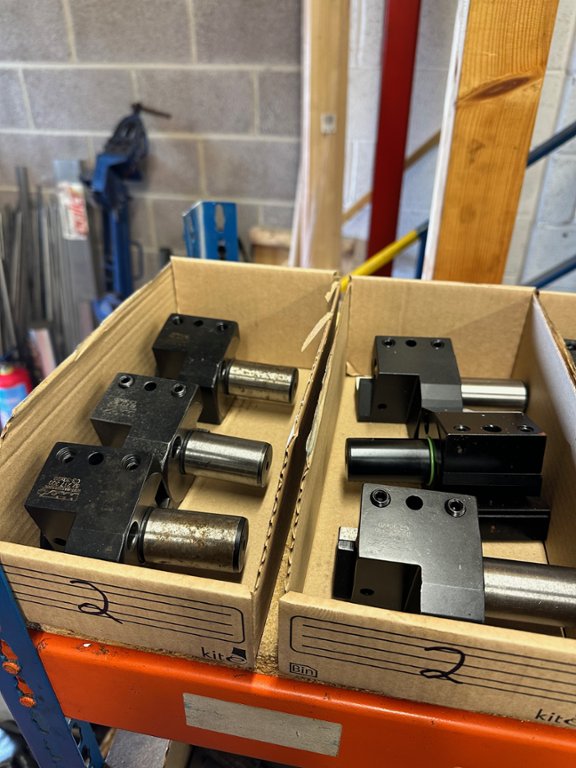

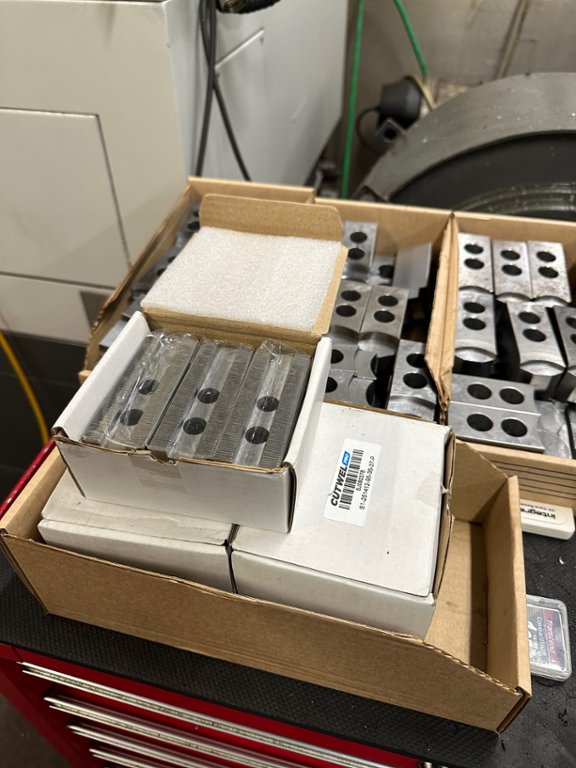

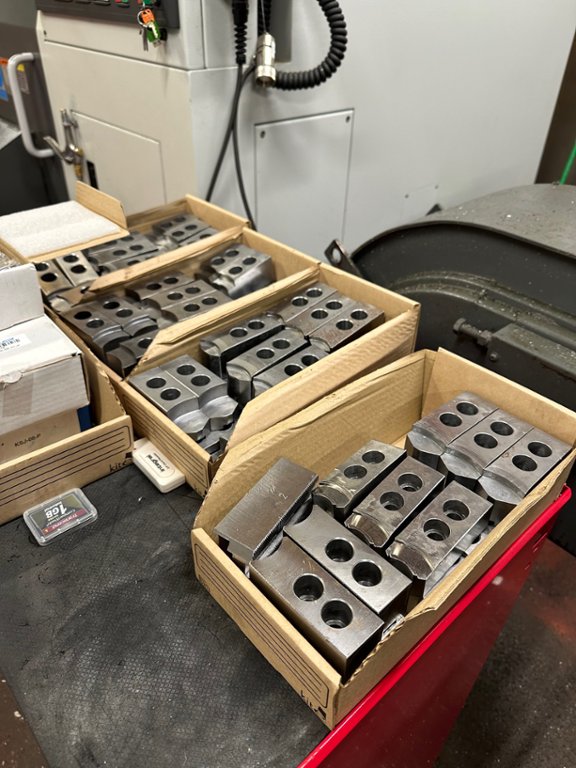

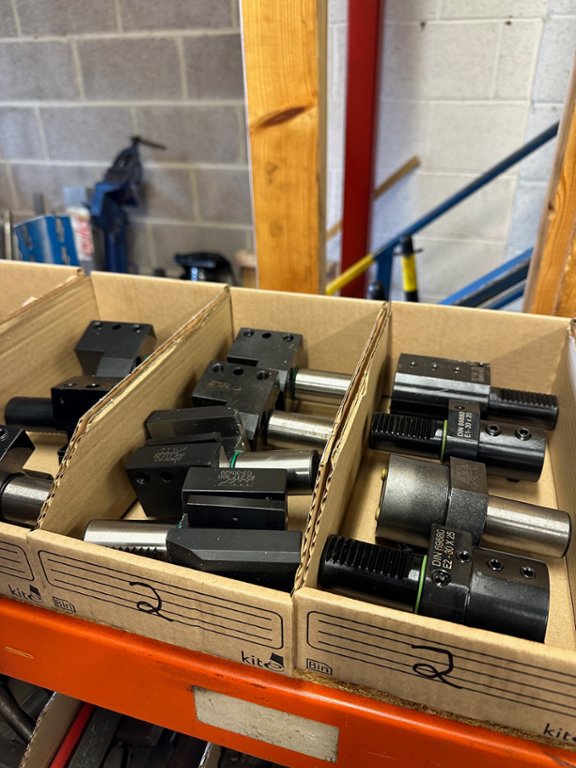

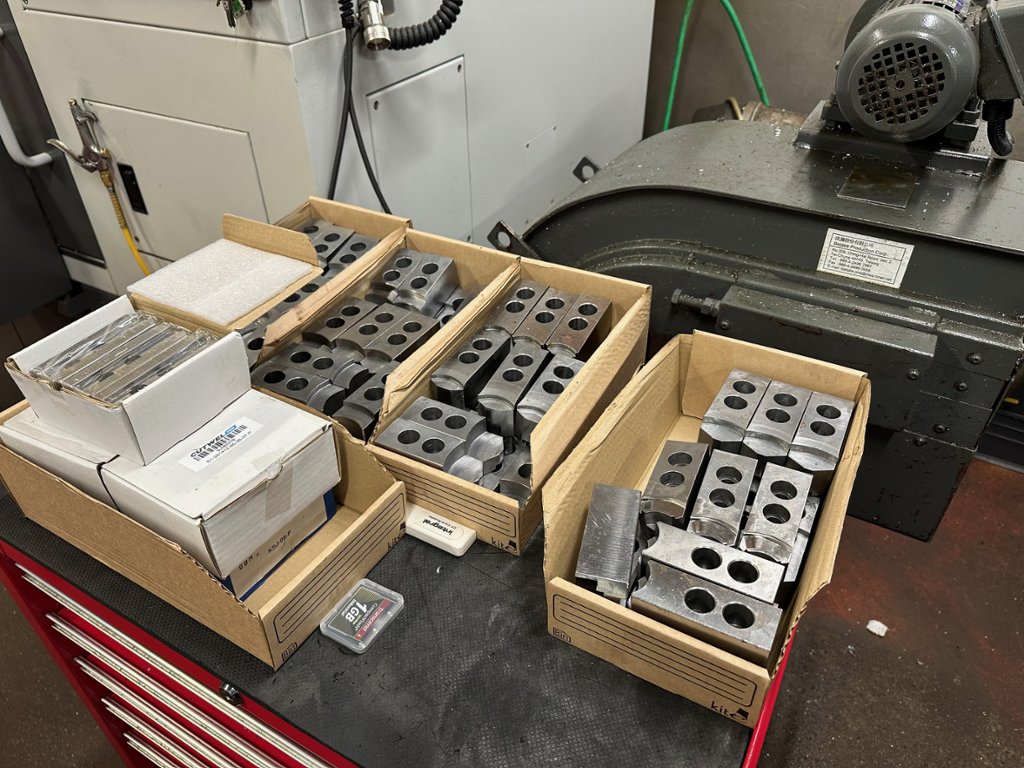

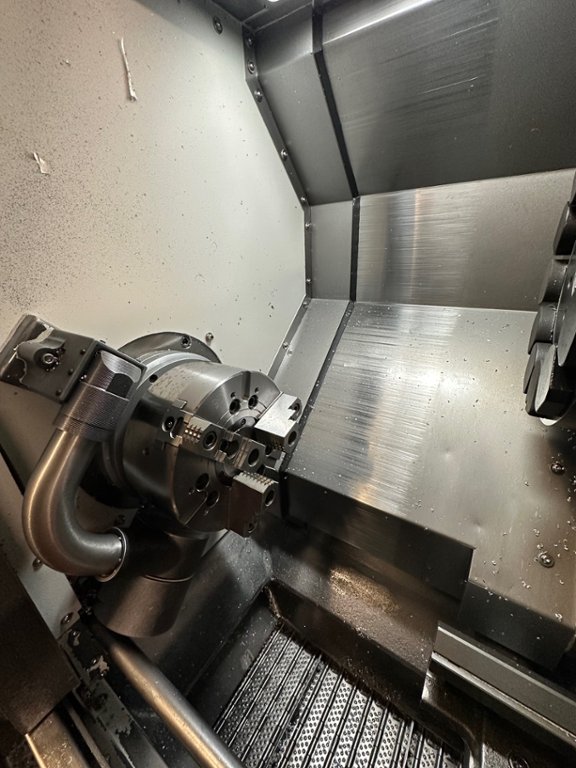

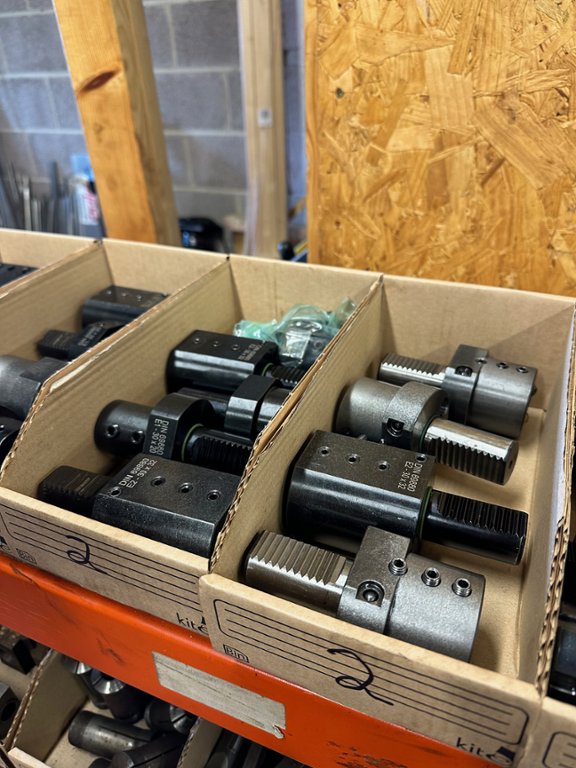

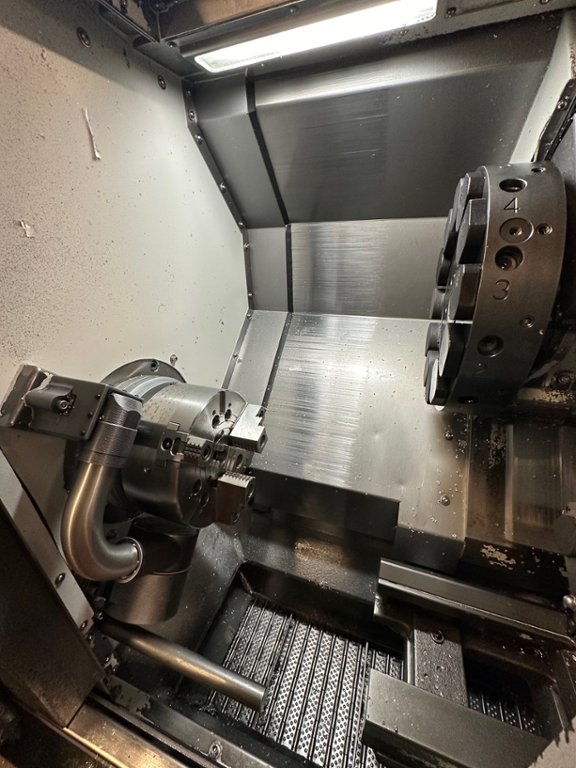

Comes with a 8" 3 Jaw Chuck & selection of jaws & brand new soft jaws, also comes with a selection of tooling.

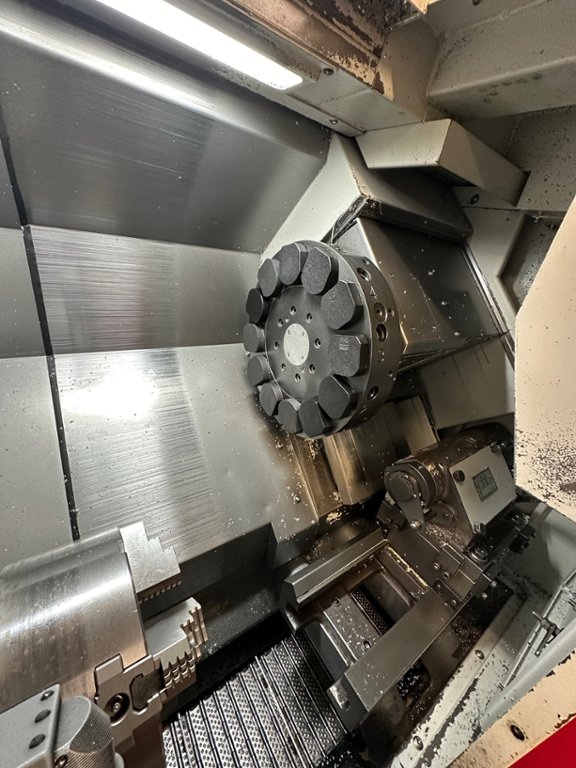

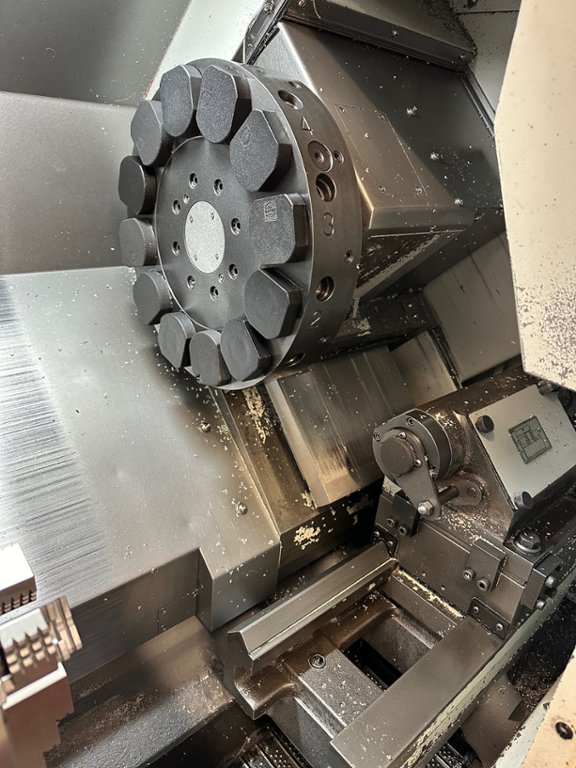

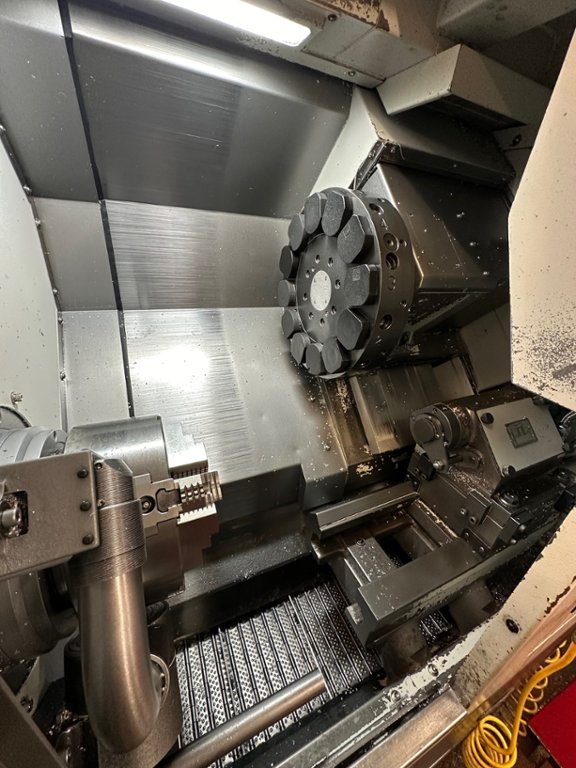

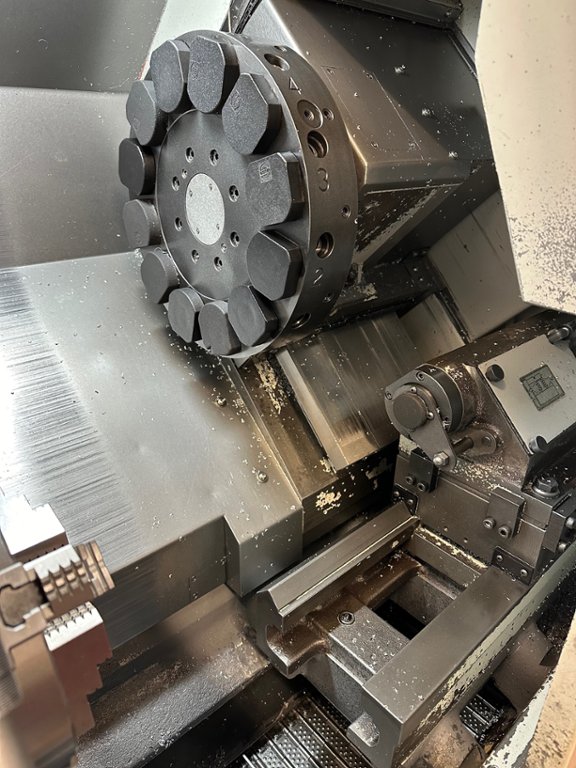

Power chuck diameter - 200mm, Maximum swing - 400mm, Swing over carriage cover - 400mm, Maximum turned diameter - 220mm, Maximum turned length - 280mm, X Axis travel - 185mm, Z Travel - 325mm, Spindle center height from floor - 998mm, Spindle nose - A2-6, Spindle bore - 61mm, Bar capacity - 65mm, Spindle front bearing internal diameter - 100mm, Max spindle speed - 4500RPM, Spindle motor - 20 hp, Spindle speed for full power - 1500RPM, X & Y Axis rapid traverse rate - 20 m/min, X Axis slideway configuration - Hard box way, Z Axis slideway configuration - Hard box way, Basescrew diameter (X & Z) - 28/32mm, Servo motors (X, Z & Turret) - 8.0Nm, Turret - 12 station 30 VDI, Turning tool shank dimensions - 20 x 20mm, Max boring bar diameter - 32mm, Tail stock quill taper - MT4, Quill diameter & travel - 60 x 90mm, Max quill thrust - 800kg, Coolant tank capacity - 80L, Coolant pump delivery - 30 l/min @ 0.8bar
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
09 May 2024 15:00:00 BST

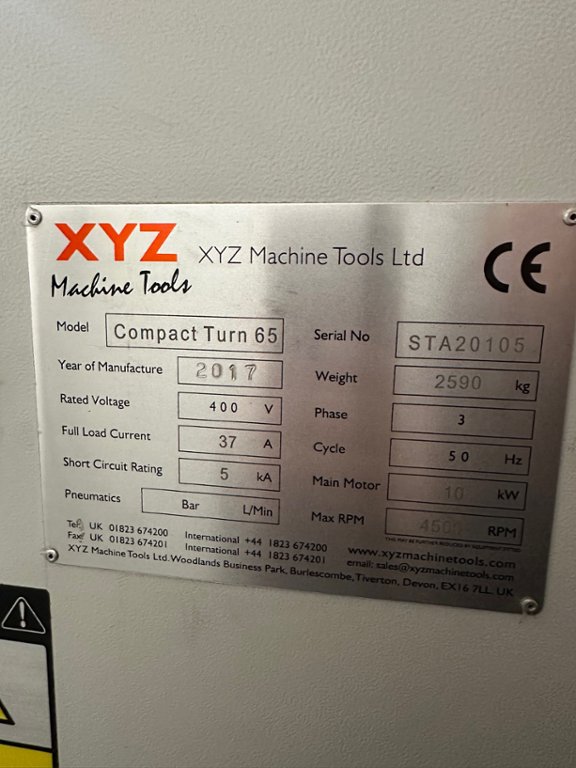

Serial Number: STA20105
Location: Dorset
Transport information
- Width: 1700mm
- Depth: 1450mm
- Height: 1715mm
- Weight: 2590kg
- Other Transport Details: Deccomissioned and loaded to suitable transport £500
