Lot 29 - XYZ Lathe
Description:

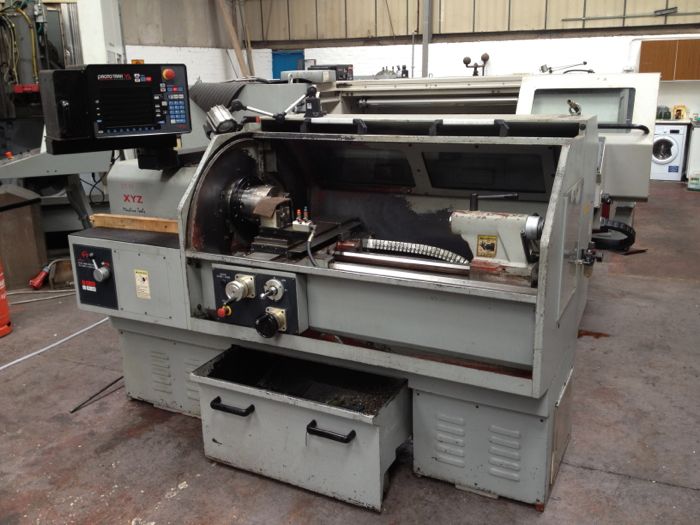

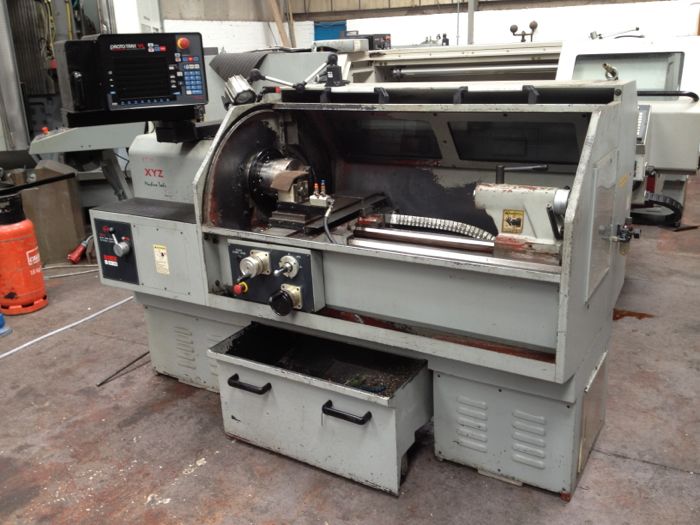

XYZ Lathe

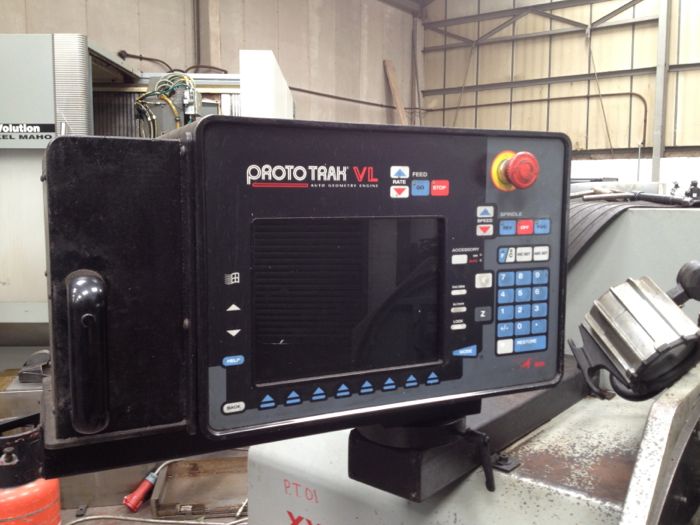

Protrak VL Control
Swing over bed: 360 mm
Swing in Gap: not applicable
Gap in front of faceplate: not applicable
Swing over cross slides: 225 mm
Cross Slide Travel: 185 mm
Distance between centres: 1000 mm
Maximum Cutting Length: 900 mm
Spindle bore: 52 mm

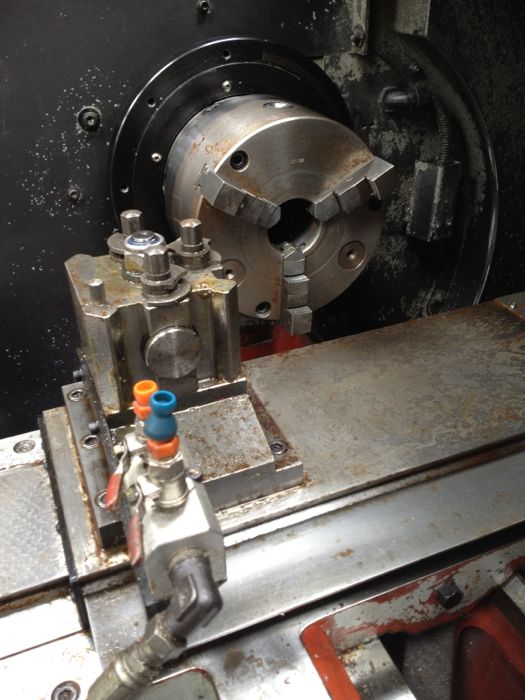

Spindle nose: D 1-6 camlock
Spindle taper: MT4 in bush
Spindle motor: 5.75 Kw (7.5hp)

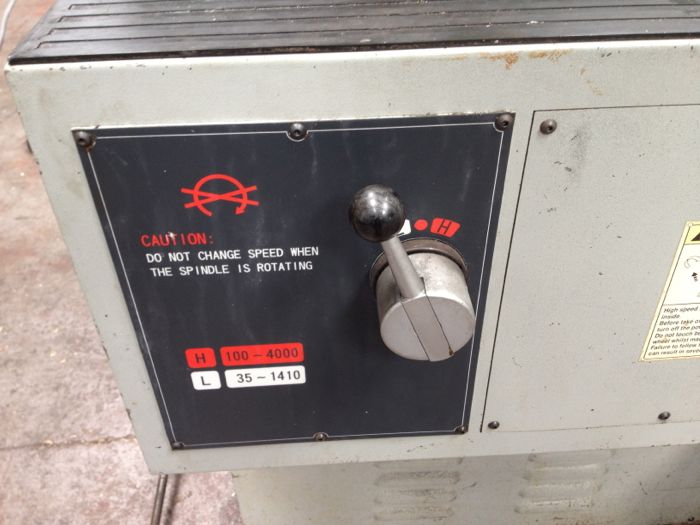

Spindle speeds: 50-4000 rpm - 2 ranges

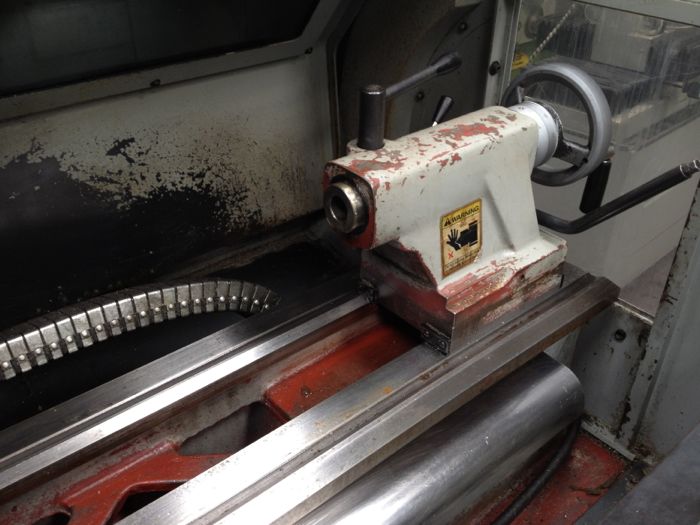

Tailstock Travel: 150 mm
Tailstock taper: MT4
Tailstock diameter: 60 mm
Bed Width: 300 mm
Footprint L x D x H: 2300 x 1250 x 1750 mm
Weight: 2600 kg
Location: Coventry
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
