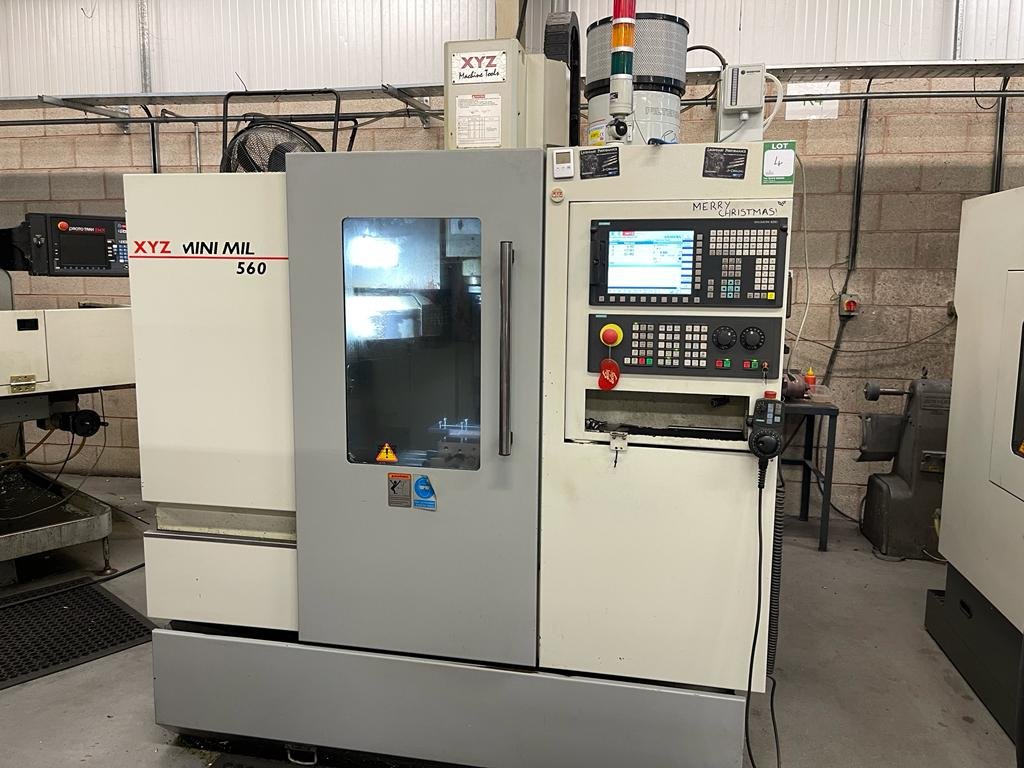

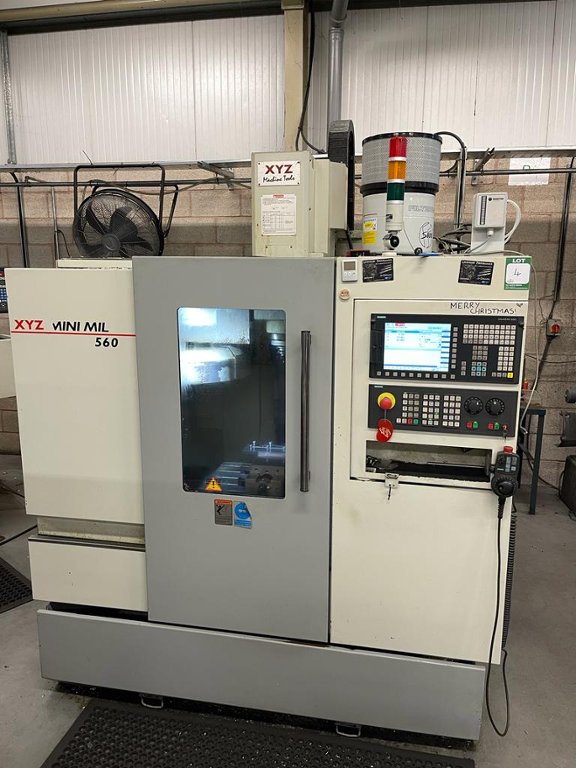

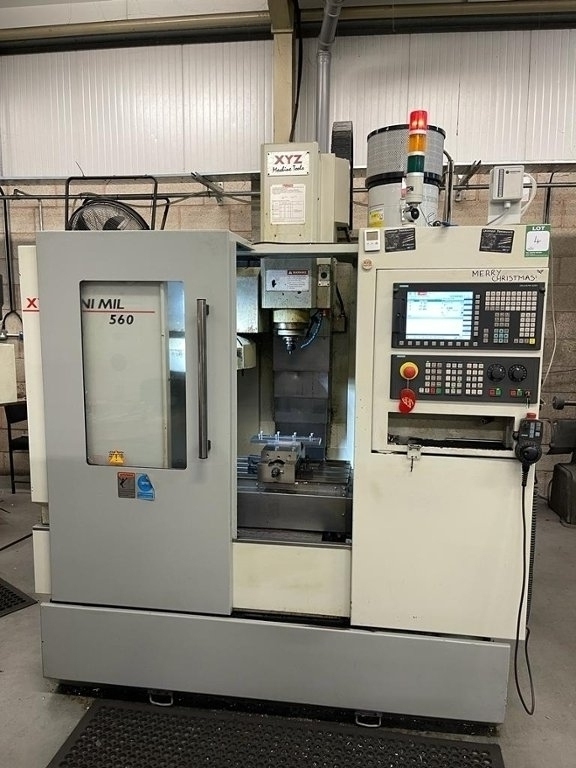

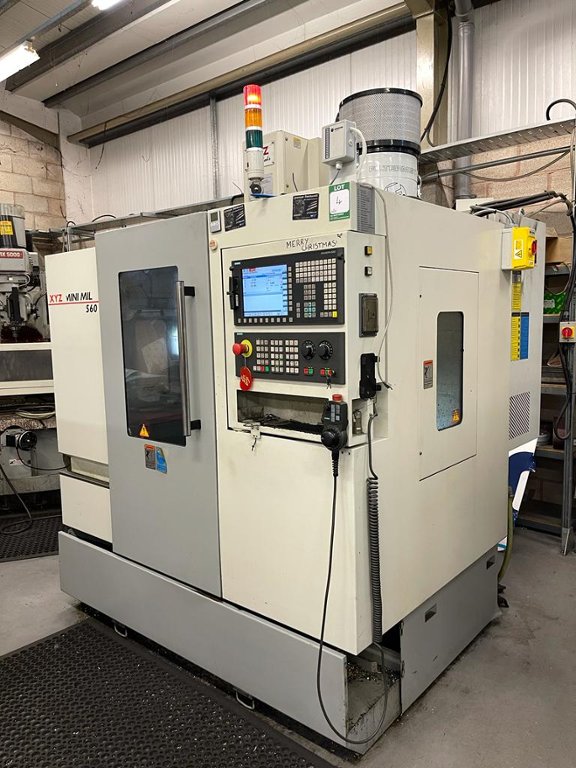

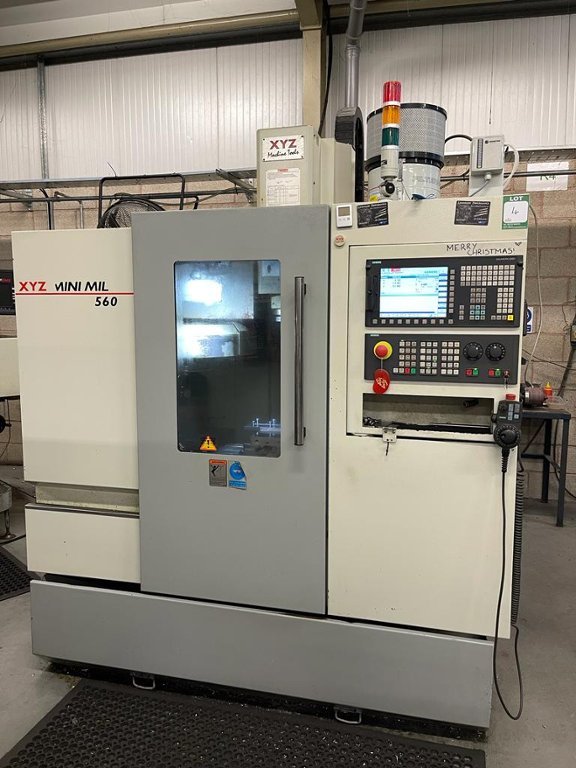

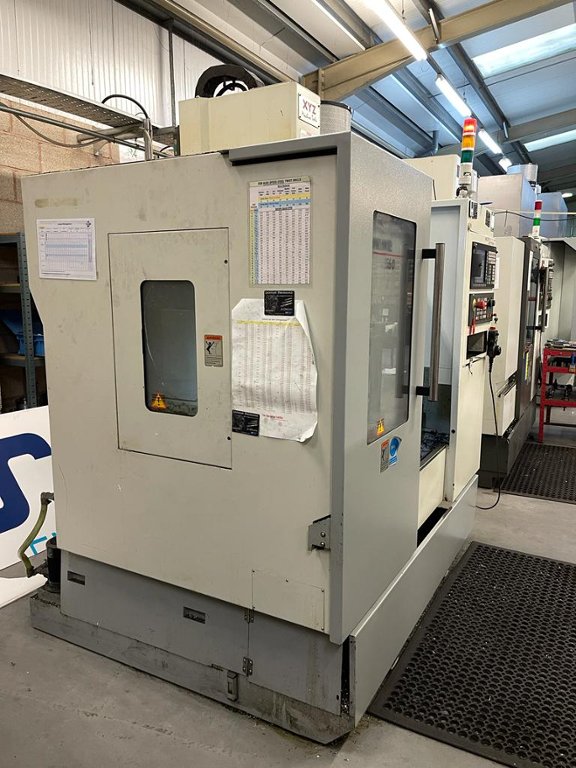

XYZ Mini Mill 560 (2011)

Lot 4 - XYZ Mini Mill 560 (2011)

Description:

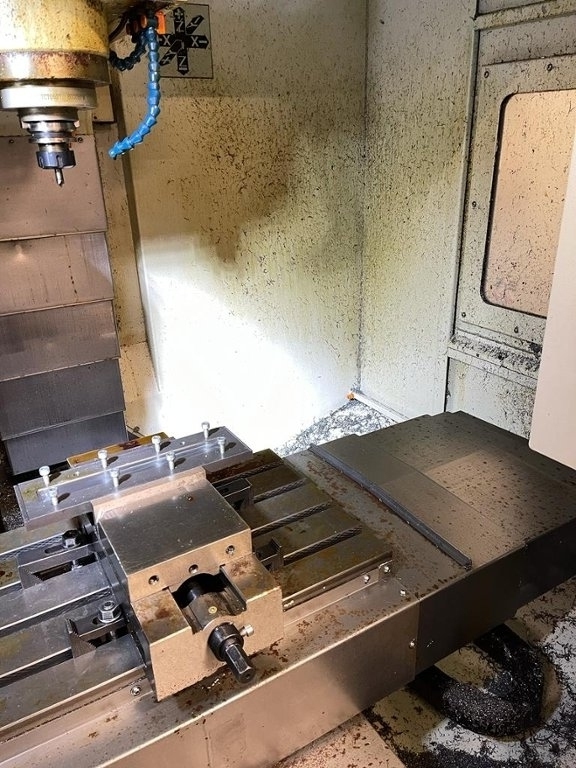

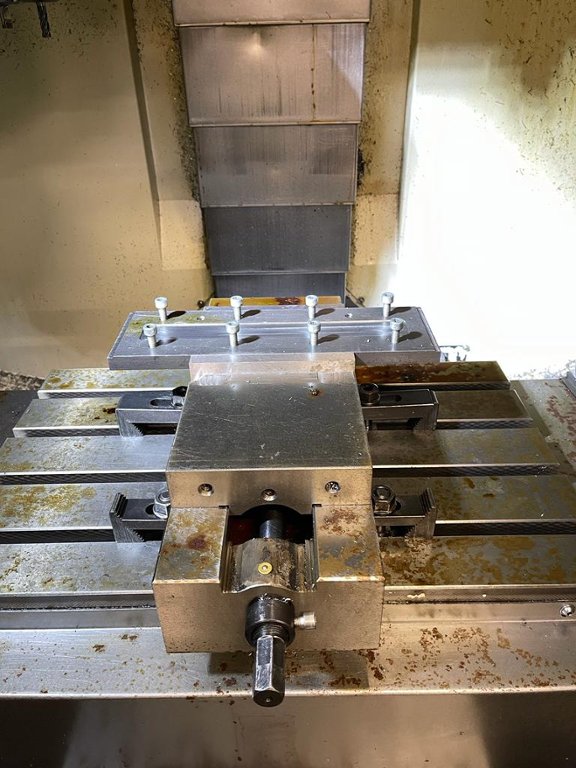

Working Table

Working area - 610 x 370mm, T-Slot size - 16mm, Maximum loading capacity - 320 kg

Stroke Limit

X axis - 560mm, Y axis - 400mm, Z axis - 500mm, Distance from spindle nose to working table surface - 100~600mm, Distance from spindle centre to main column - 440mm

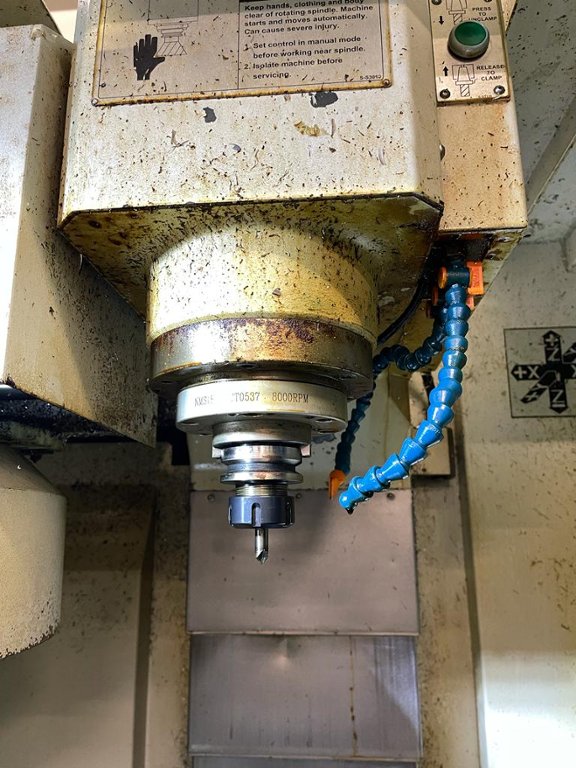

Spindle

Taper - BT40, Bearing diameter - 65, Speed - 80~8000 RPM

Feedrate

Cutting feed rate (X, Y, Z) - 1~10000 mm/min, Rapid traverse rate (X, Y, Z) - 20000 mm/min

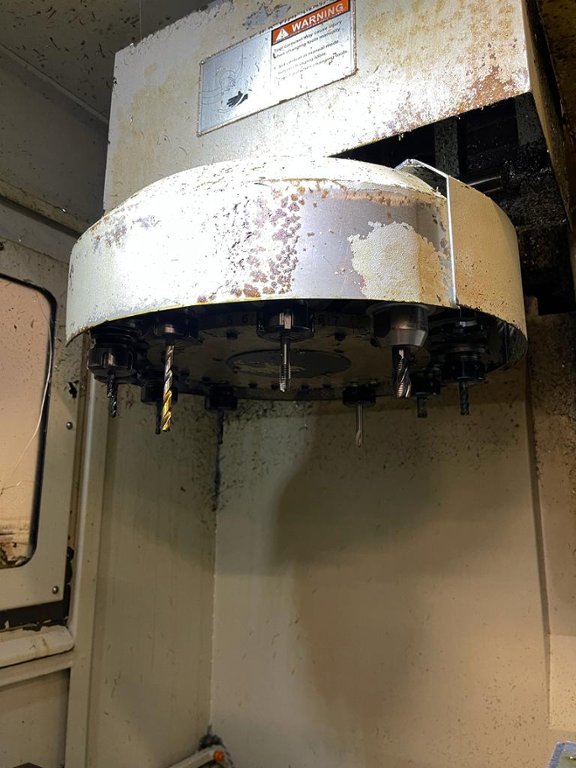

Tool Magazine

Capacity (no of tools) - 10, Max tool weight - 8 kg, Tool change time - 8 sec, Machine tool holder - BT40

Drive Motor

Spindle drive motor - 10 HP, Coolant - 1/2 HP, Chip conveyor - 1/8 HP

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
