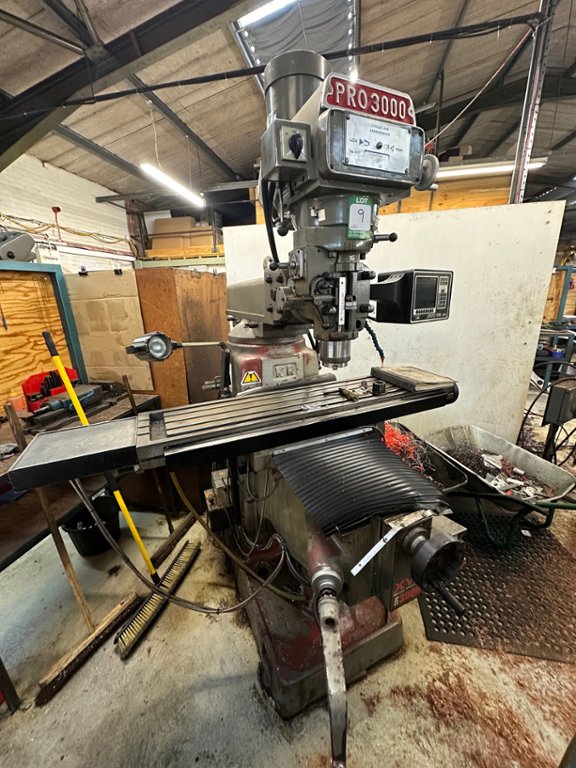

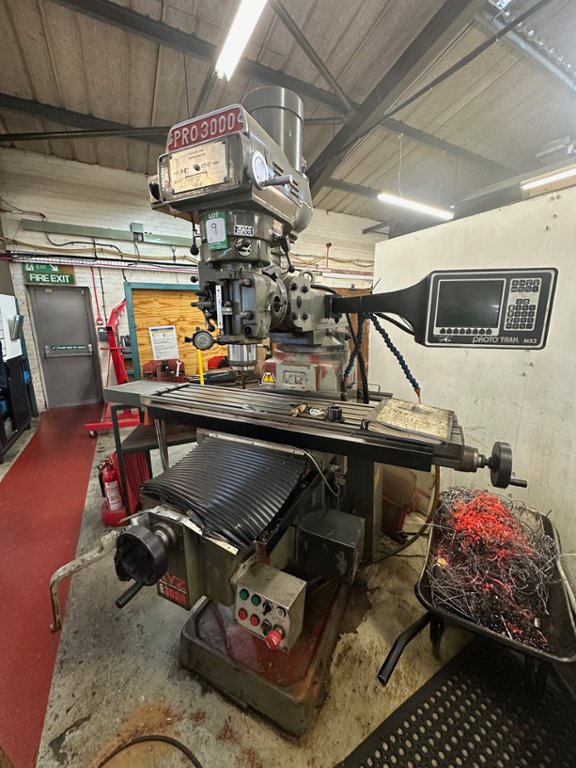

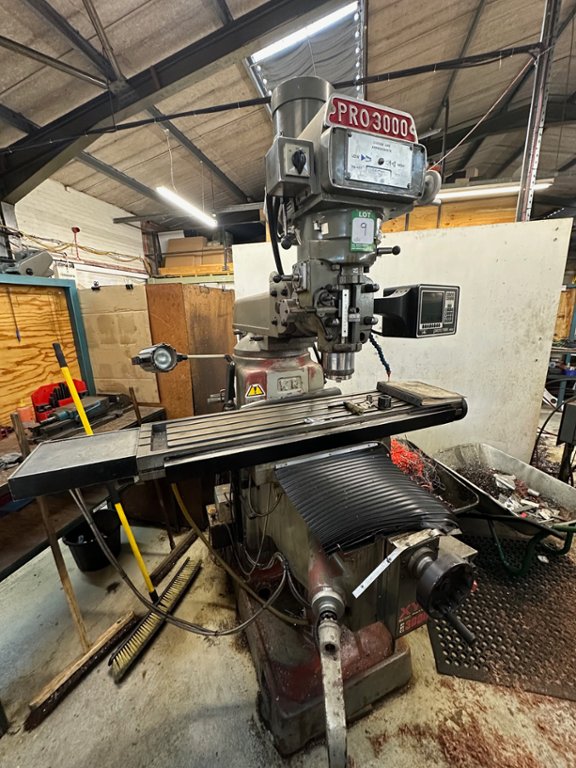

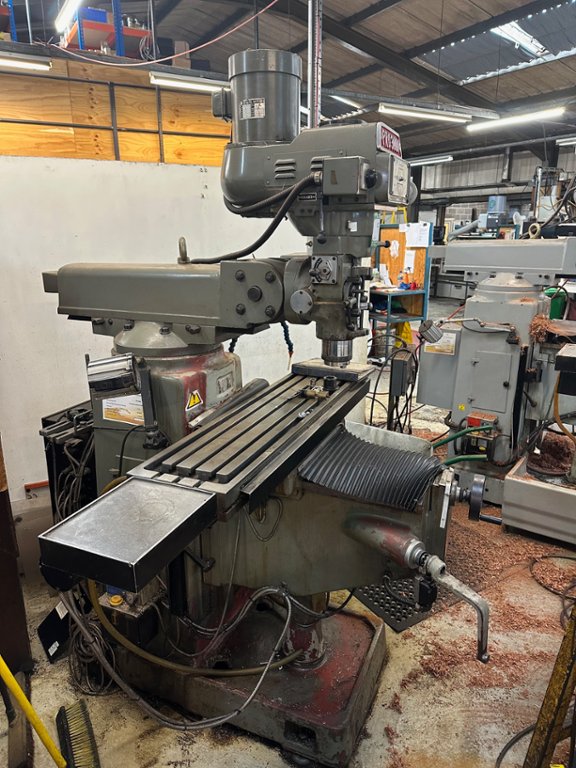

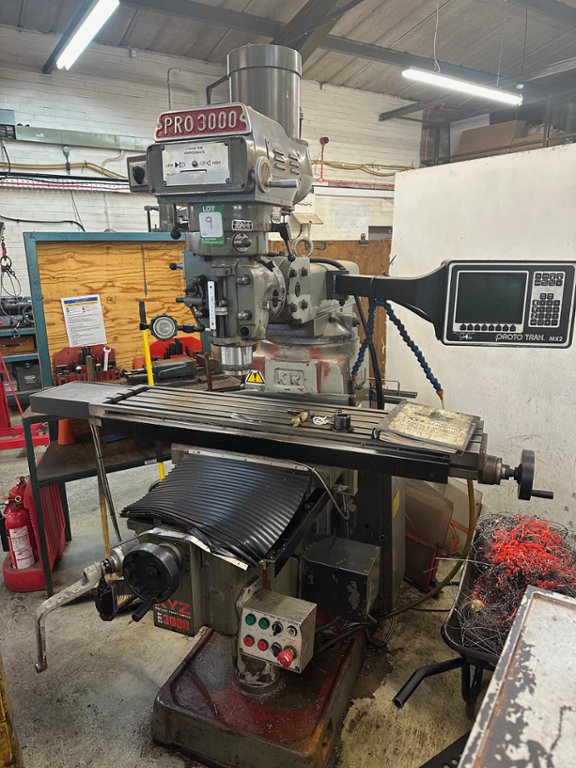

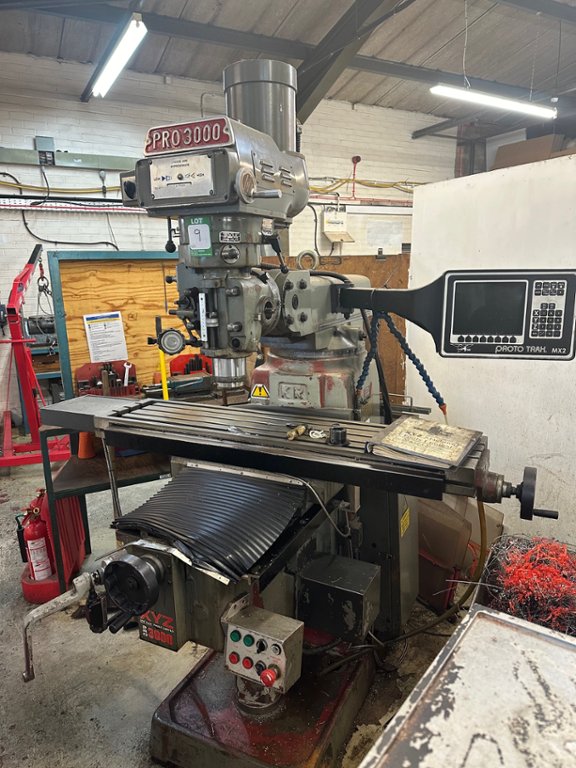

Lot 9 - XYZ Pro 3000 CNC Turret Mill (1998)
Description:
Table size - 305 x 1272mm, Tee Slots(3) - 15.9mm, Longitudinal Travel (X Axis) - 863mm, Cross Travel - 406mm, Knee Vertical Travel - 406mm, Quill Travel - 127mm, Quill Diameter - 105mm, Quill Feeds - .038mm 076 .152mm, Spindle Motor - 5HP, Spindle Speeds - Low:70-460RPM High 460-3600 RPM (60Hz), Spindle Taper - ISO40, Ram Travel - 450mm, Spindle Nose to the Top of table - 50-457mm, Overarm Swivel on Turret - 360deg, Head Tilt Front to back - 45-0-45deg, Head Tilt Left to Right - 90-0-90deg, Max Throat Depth - 610mm, Max Table Load - 550kg
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
Bid information
Time remaining
27 Mar 2024 15:10:00 GMT

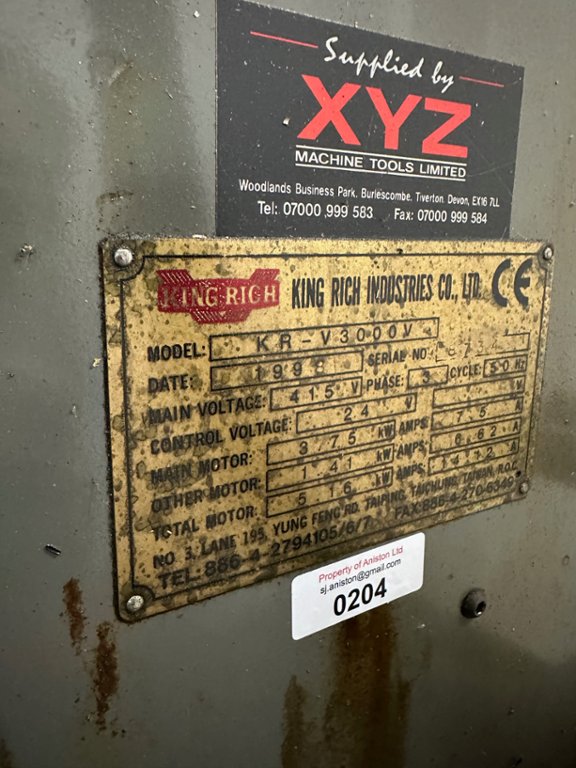

Serial Number: 8734
Location: Somerset
Transport information
- Weight: 1650kg
- Other Transport Details: Decommissioned & Loaded to suitable transport £200
