XYZ SM 3000 VMC with Proto Trak SM Control (2002)

Lot 2 - XYZ SM 3000 VMC with Proto Trak SM Control (2002)

Description:

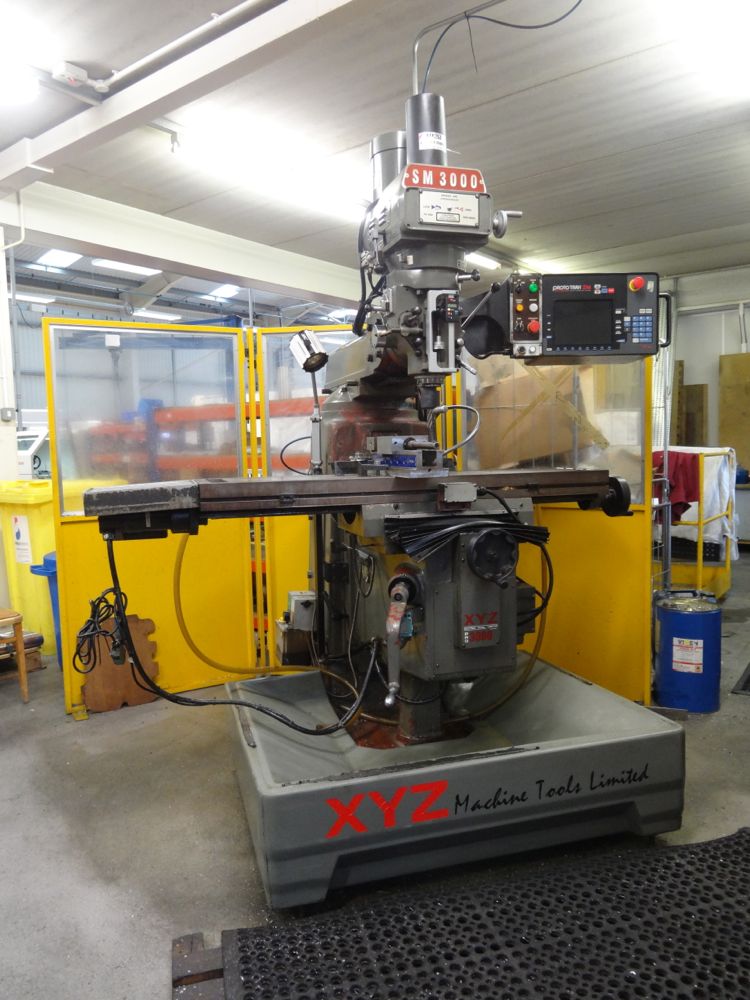

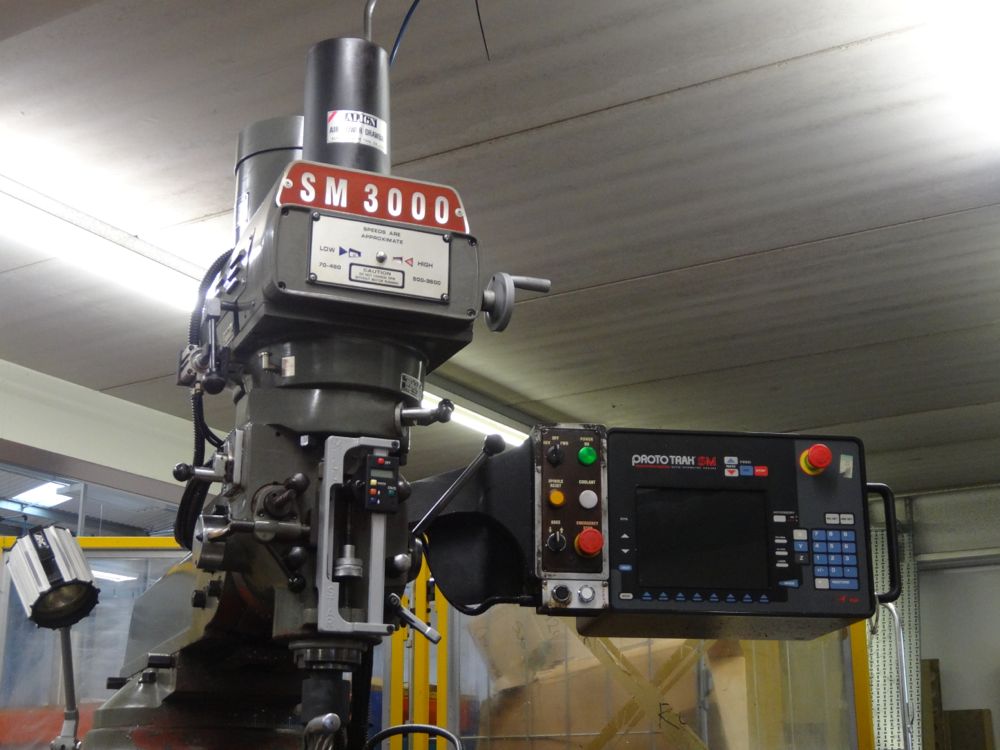

XYZ SM 3000 VMC

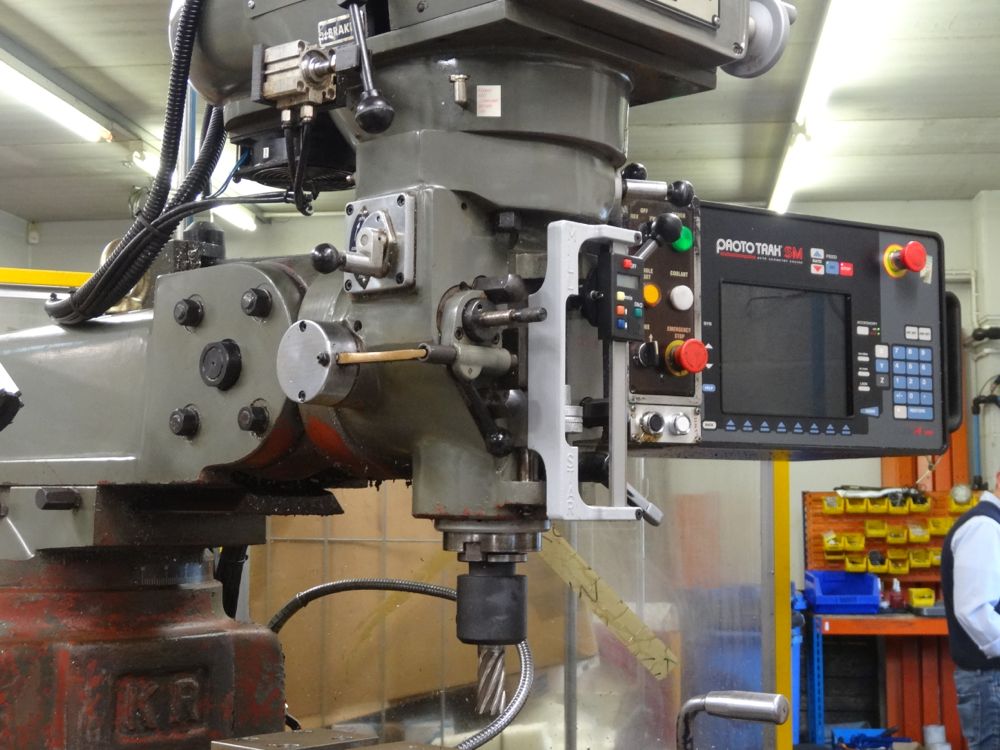

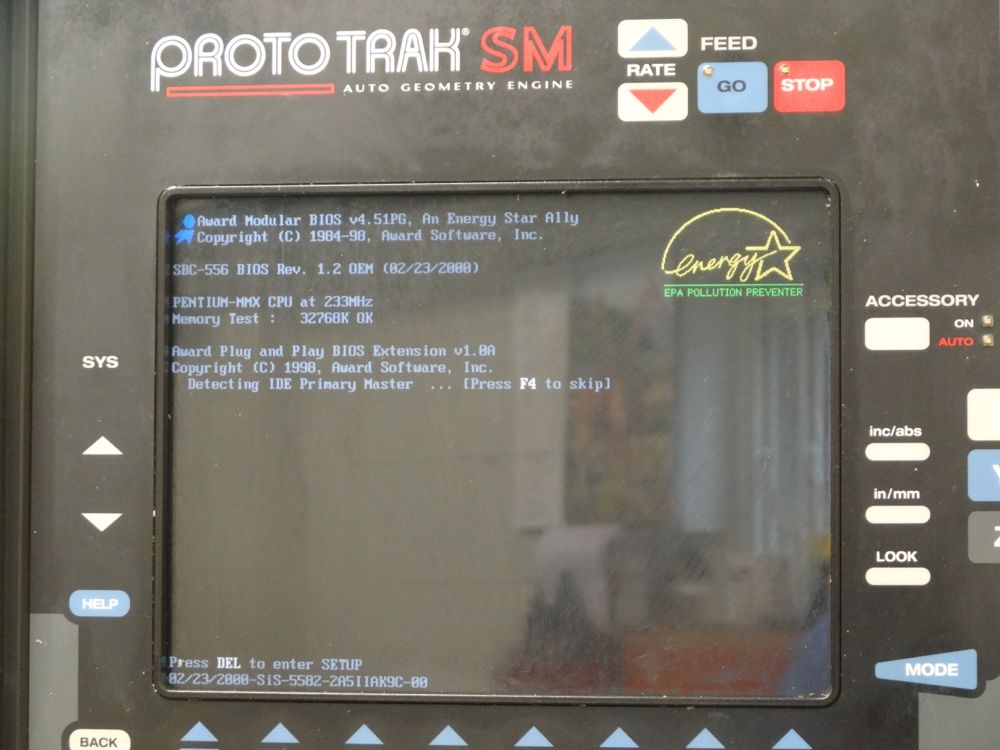

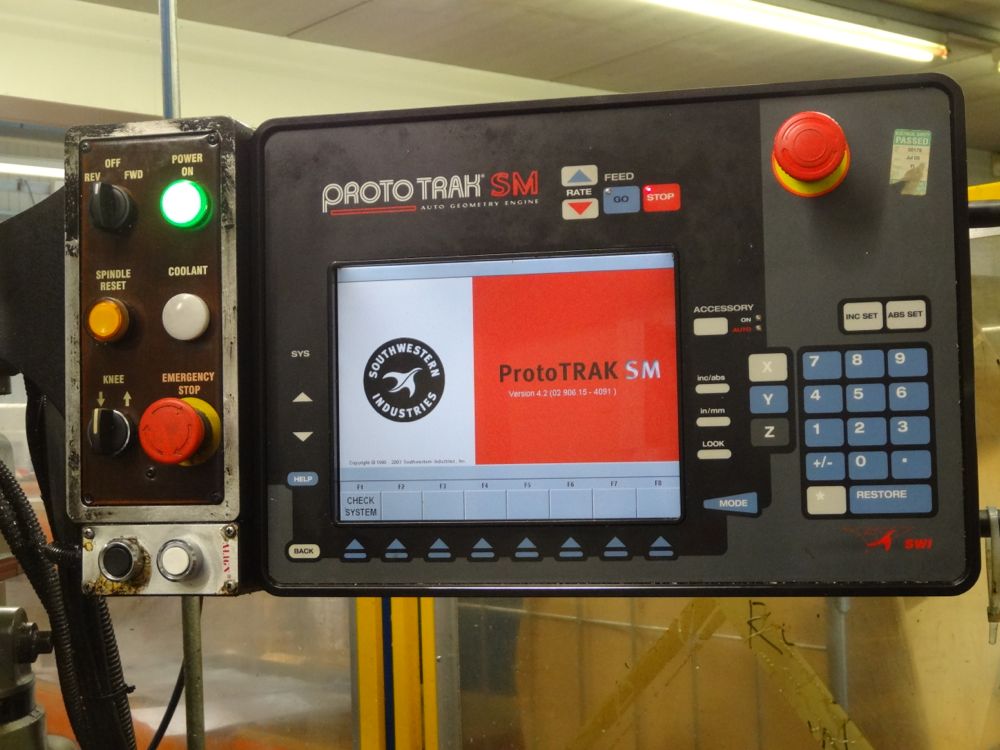

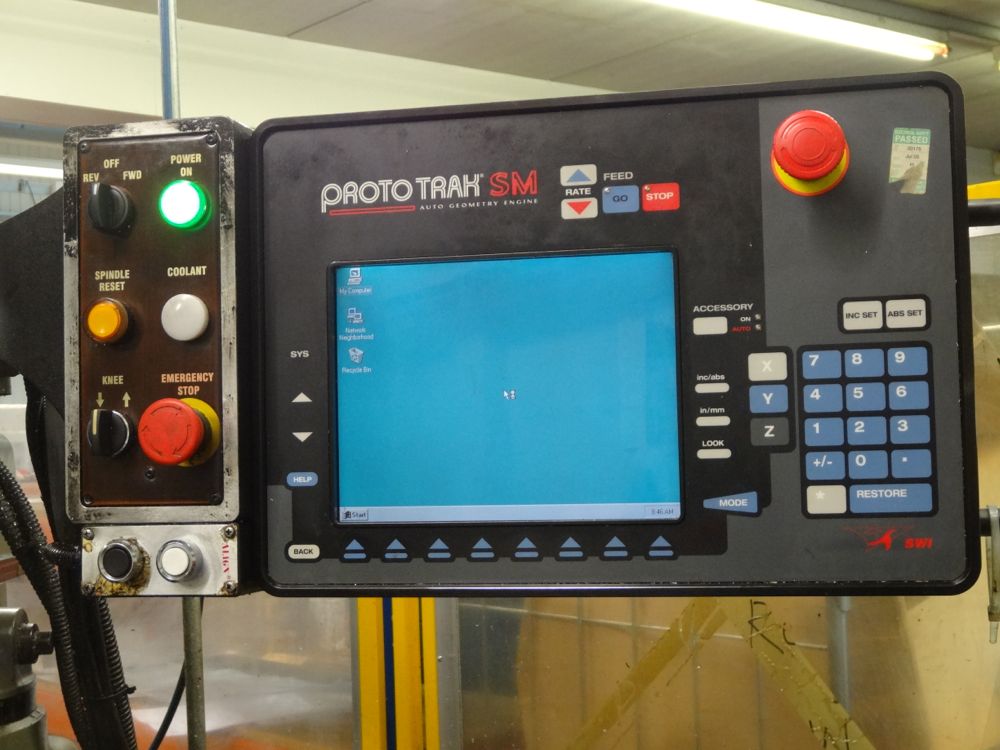

Prototrak SM Control
Year:2002

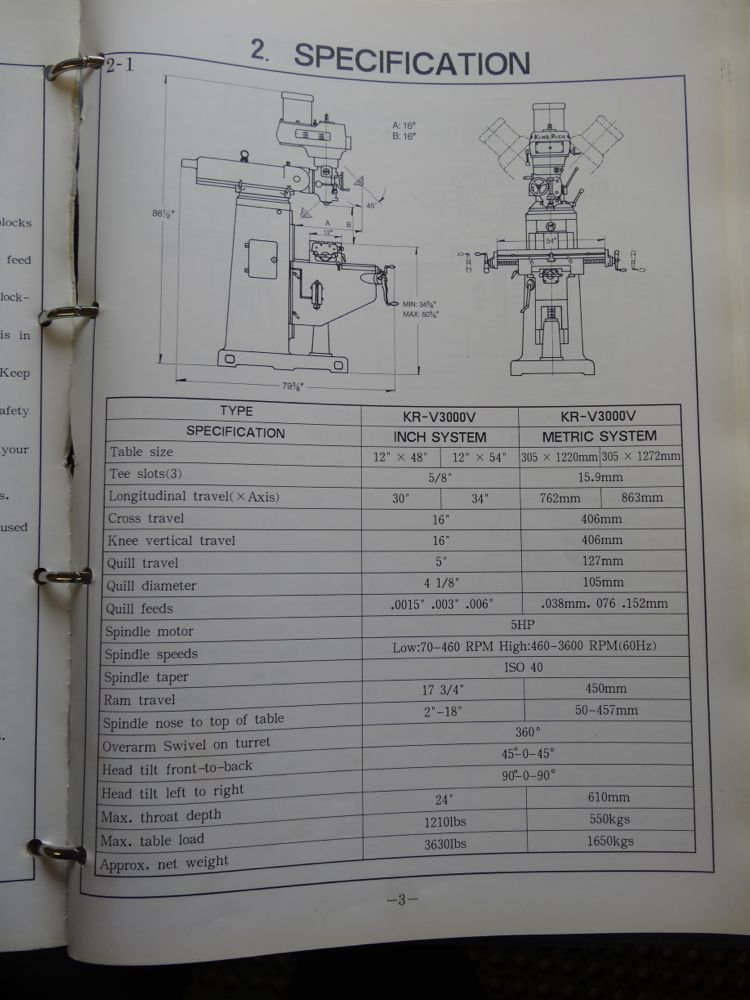

Table Size: 300 x 1400
Travel X axis: 863mm
Cross travel: 406mm
Knee Vertical Travel: 406mm
Quill Travel: 127mm
Quill Diameter: 105mmSpindle Motor: 5HP
Spindle Speeds: 70-3600rpm
Spindle taper: ISO40
Power draw bar,

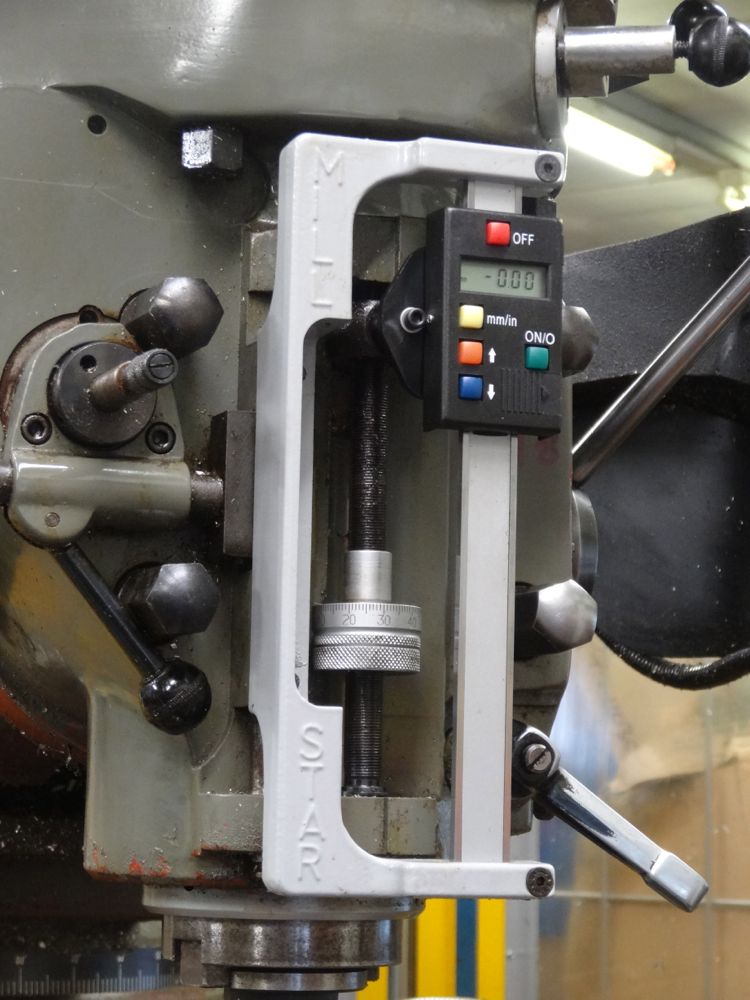

3-axis digital read out (Manual quill).

Overarm Svivil on turret: 360 degrees

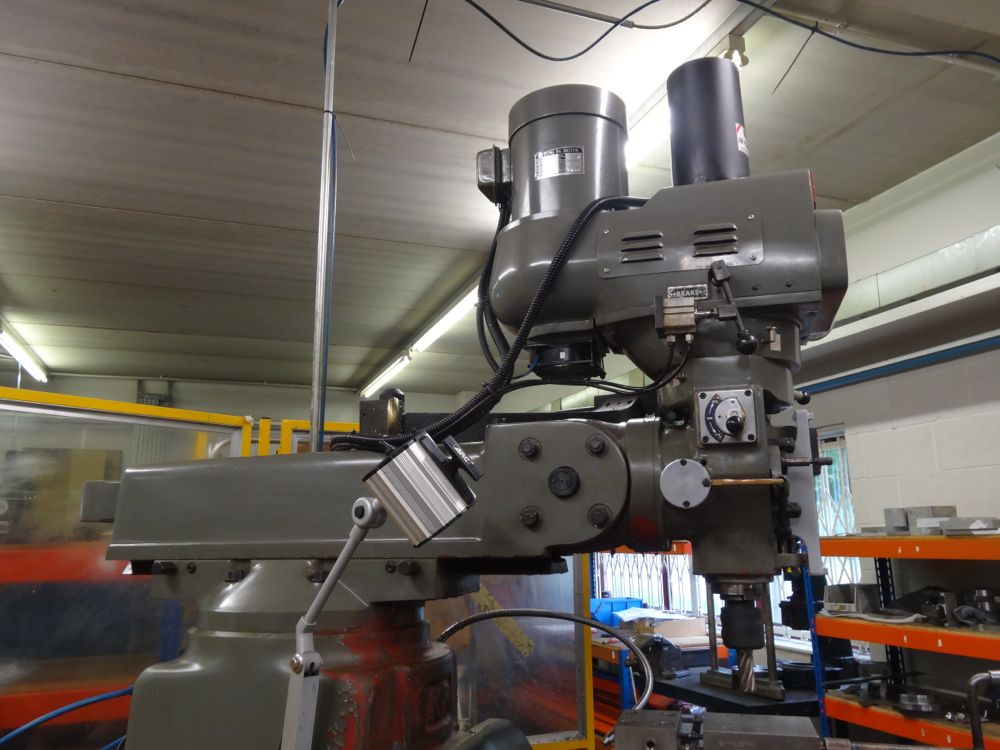

Head Tilt Front to Back: 45-0-45 degrees

Head Tilt Left to Right: 90-0-90 degrees
max Throat Depth: 610mm

Table Load: 550kg
Approx Weight: 1650kg

Location: Stonehouse, Gloucestershire

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
