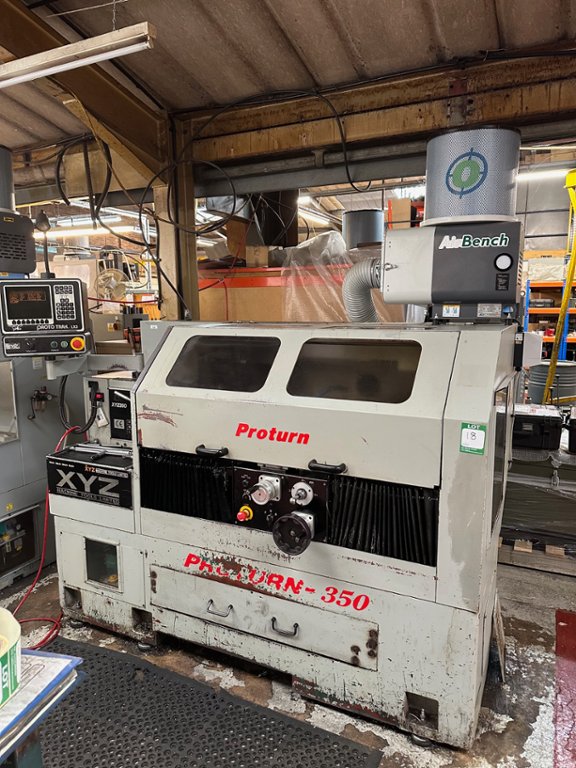

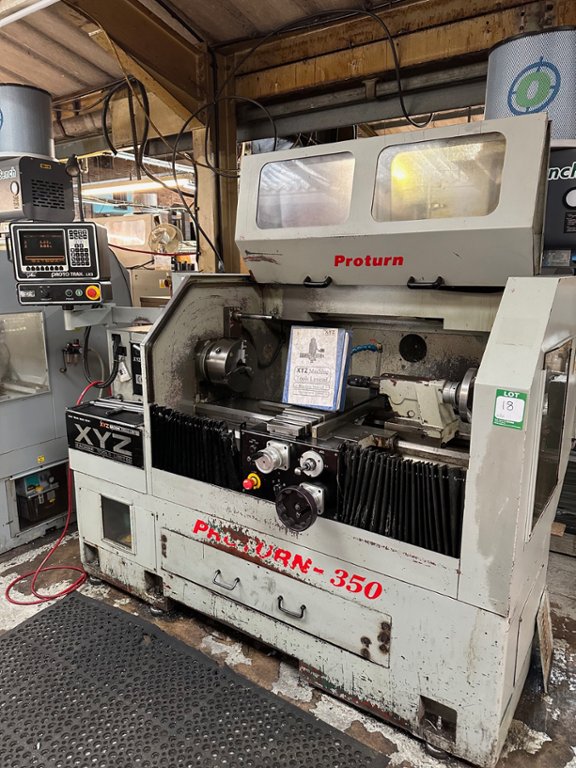

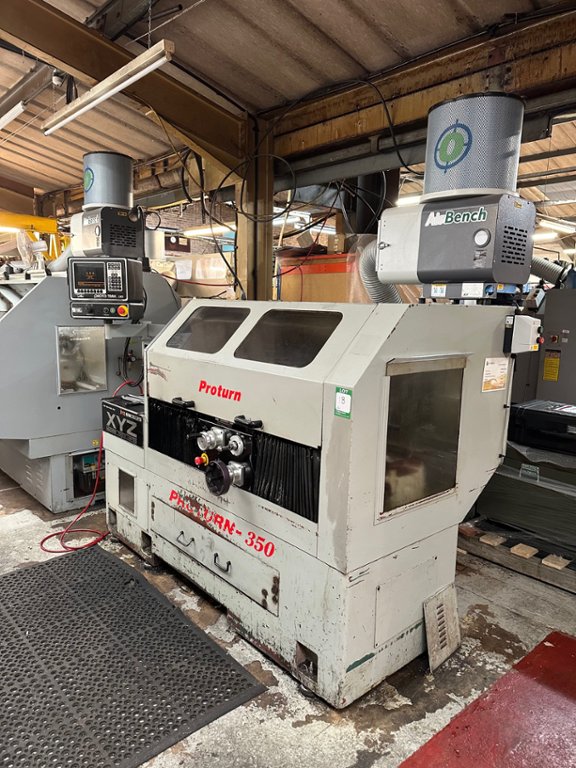

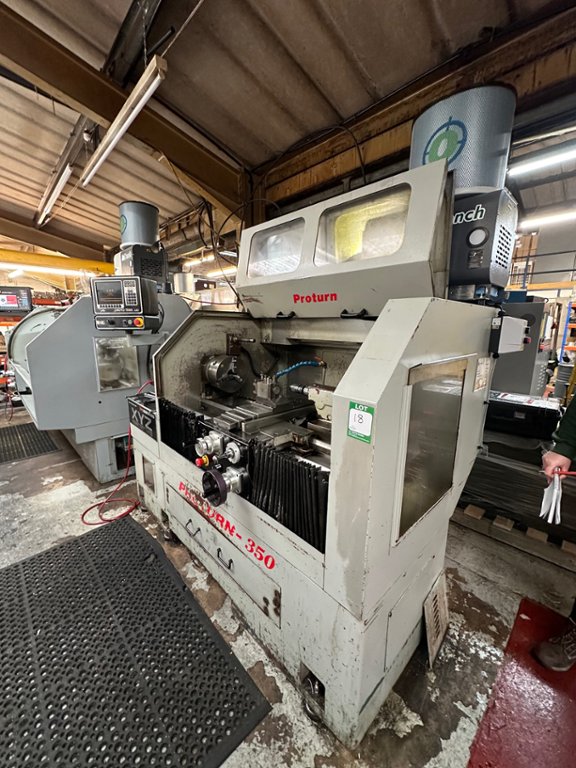

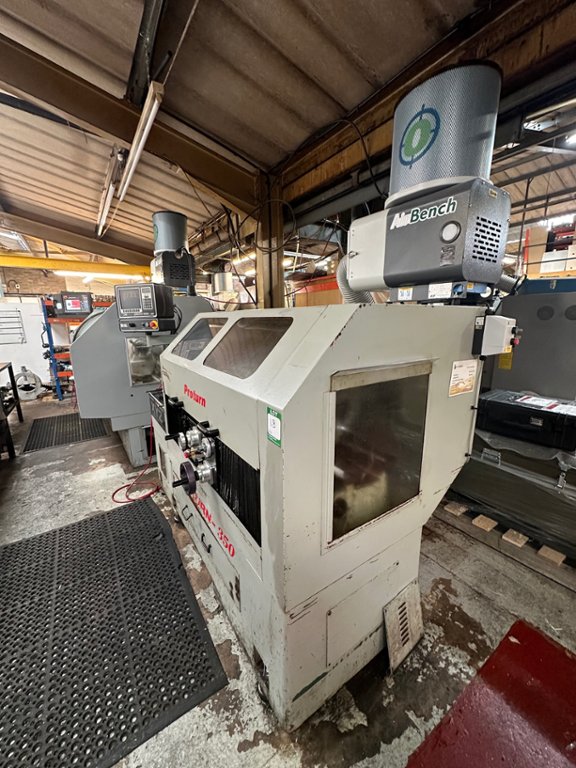

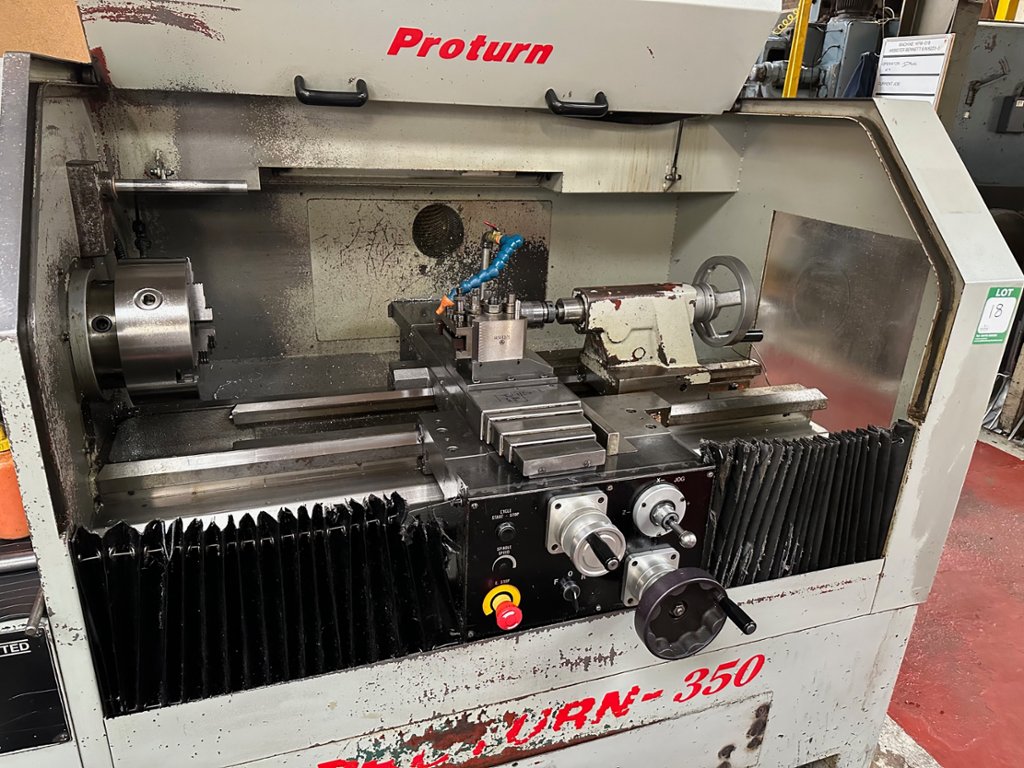

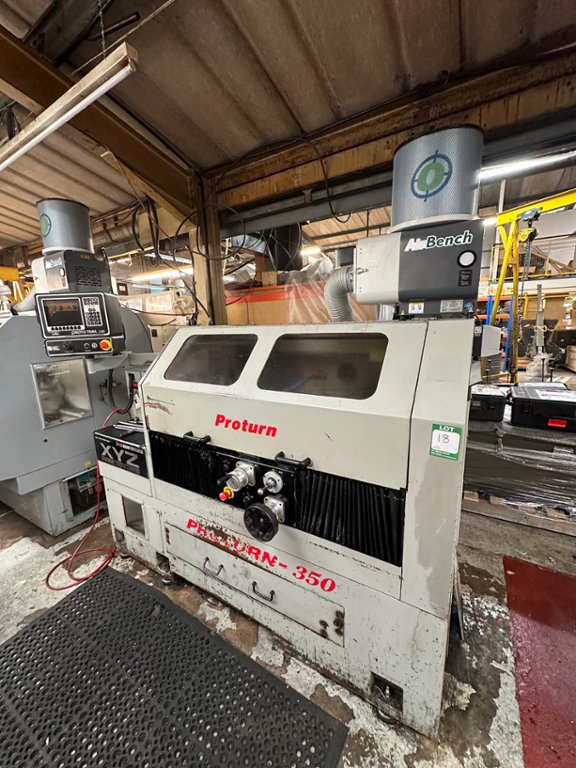

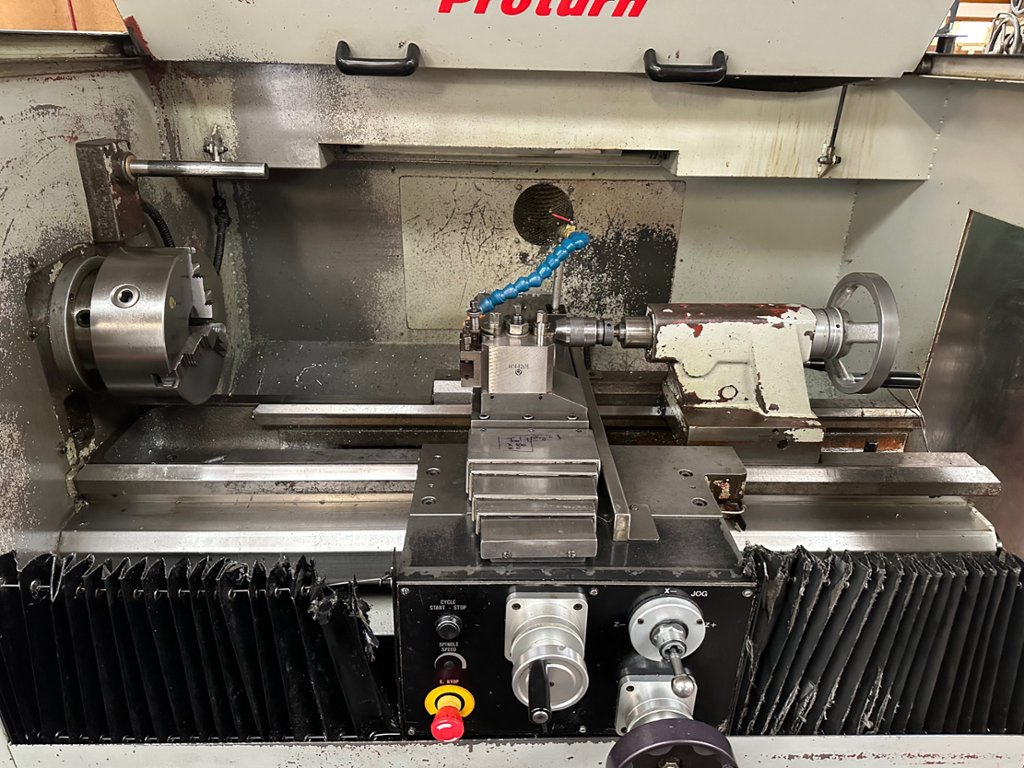

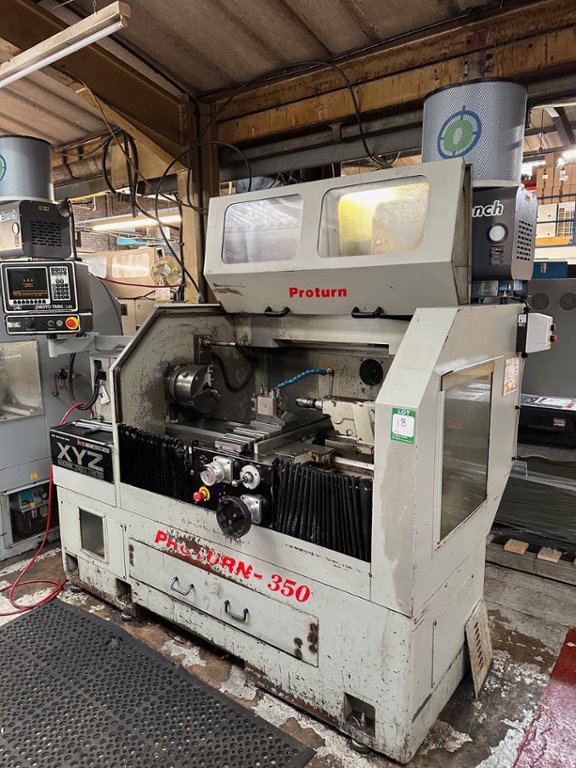

XYZ Proturn 350 Gap Bed Centre Lathe (1999)

Lot 18 - XYZ Proturn 350 Gap Bed Centre Lathe (1999)

Description:

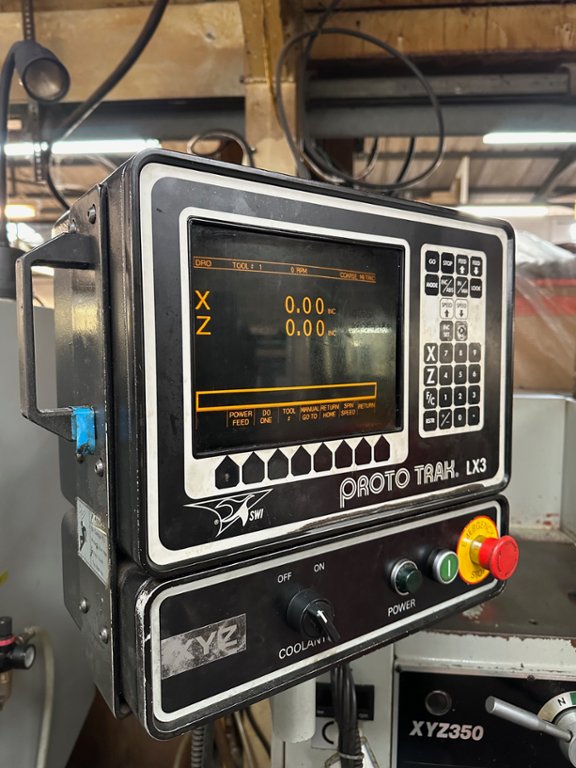

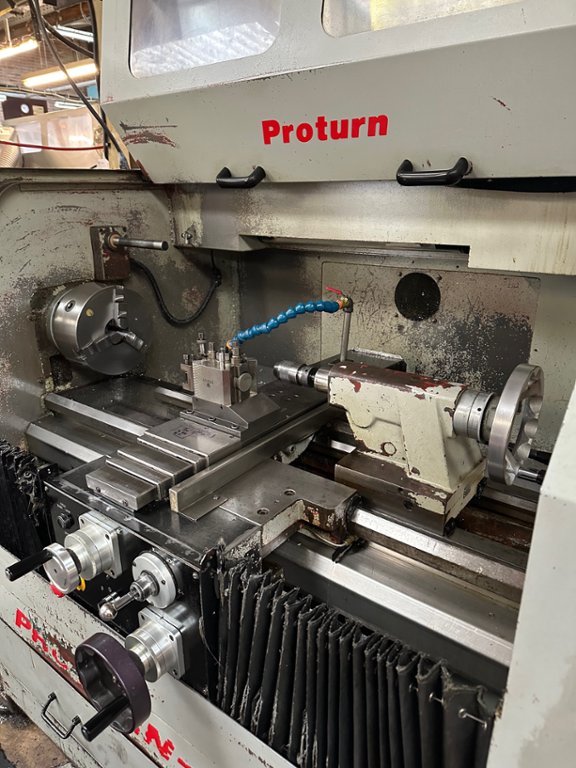

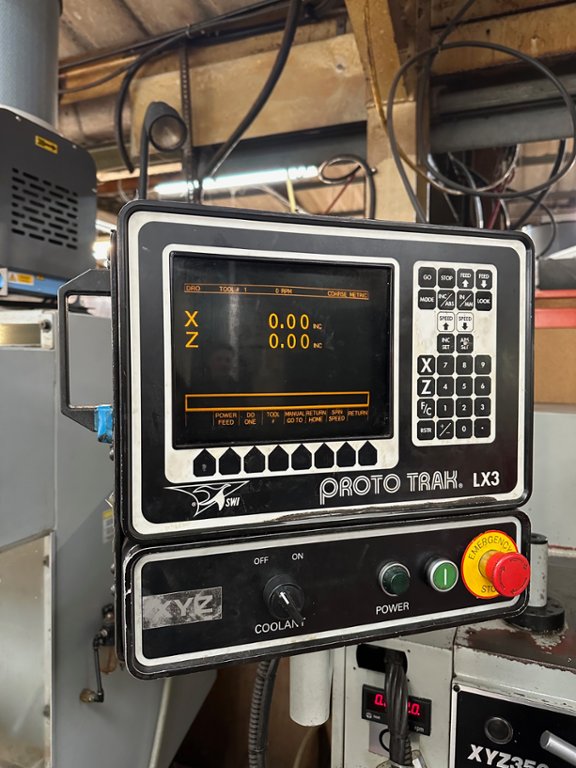

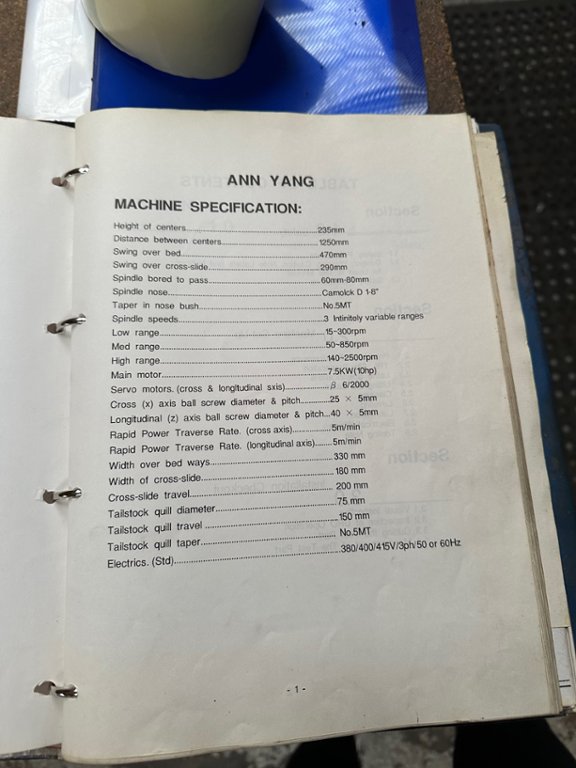

Height of centres - 235mm, Distance between centres - 1250mm, Swing over bed - 470mm, Swing over cross-slide - 290mm, Spindle bored to pass - 60 -80mm, Spindle nose - Camlock D 1-8", Taper in Nose bush - No.5MT, Spindle Speeds - 3 variable ranges, Low range - 15-300RPM, Med range - 50-850RPM, High range - 140-2500RPM, Main motor - 7.5kW, Servo motors (cross & longitudinal axis) - 6/2000, Cross (x) axis ball screw diameter & pitch - 25 x 5mm, Longitudinal (z) axis ball screw diameter & pitch - 40 x 5mm, Rapid power traverse rate (cross axis) - 5m/min, Rapid power traverse rate (longitudinal axis) - 5m/min, Width over bedways - 330mm, Width of cross slide - 180mm, Cross slide travel - 200mm, Tailstock quill diameter - 75mm, Tailstock quill travel - 150mm, Tailstock quill taper - No.5MT

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
