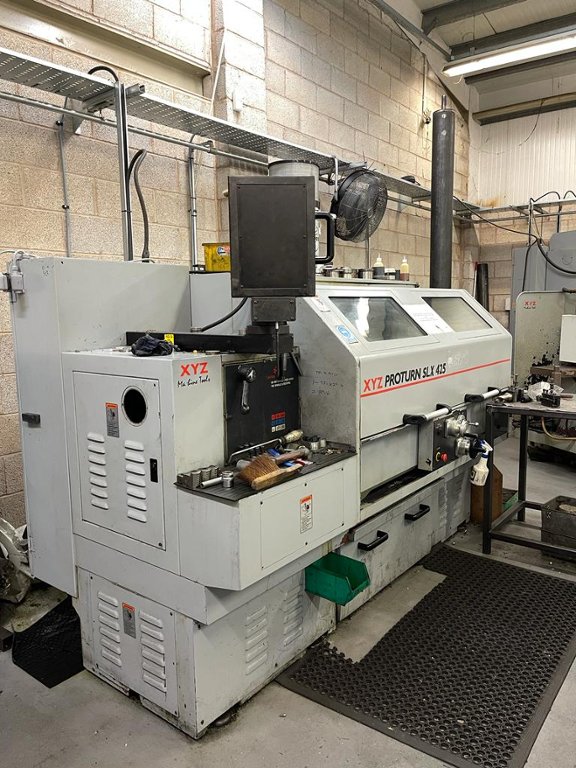

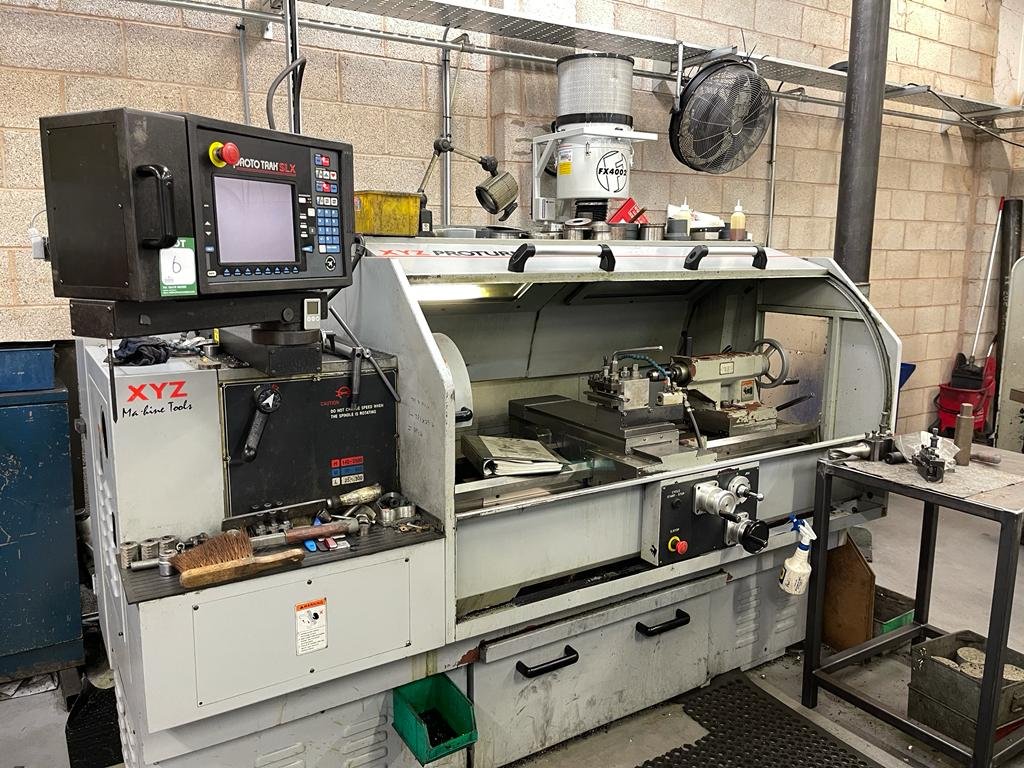

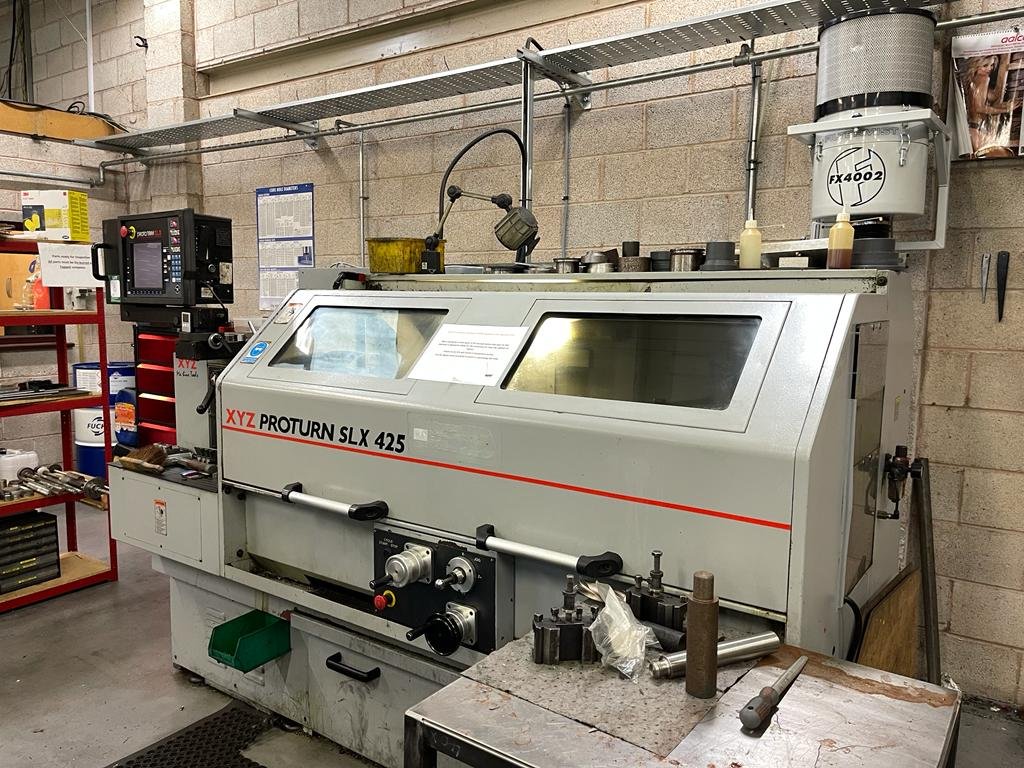

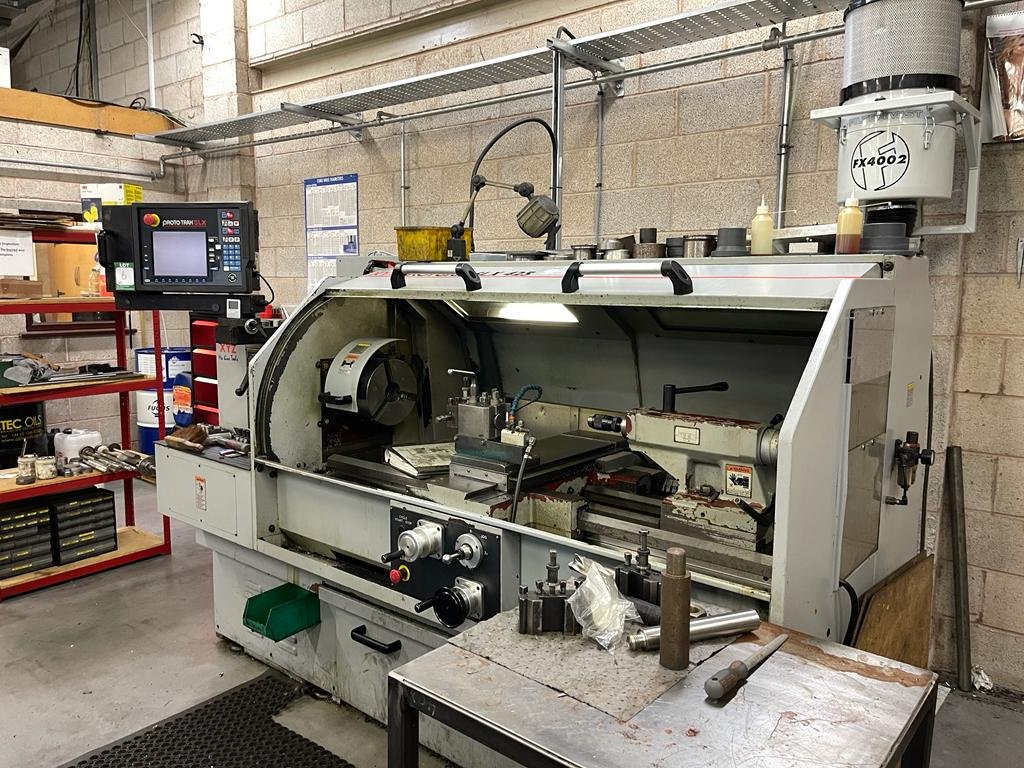

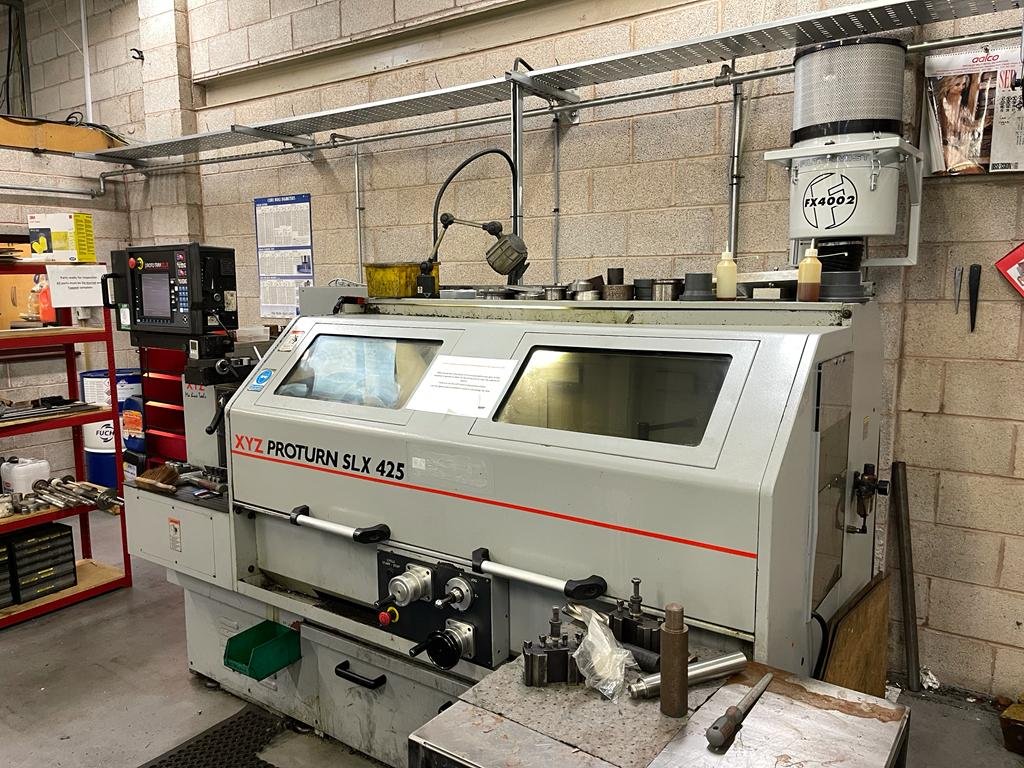

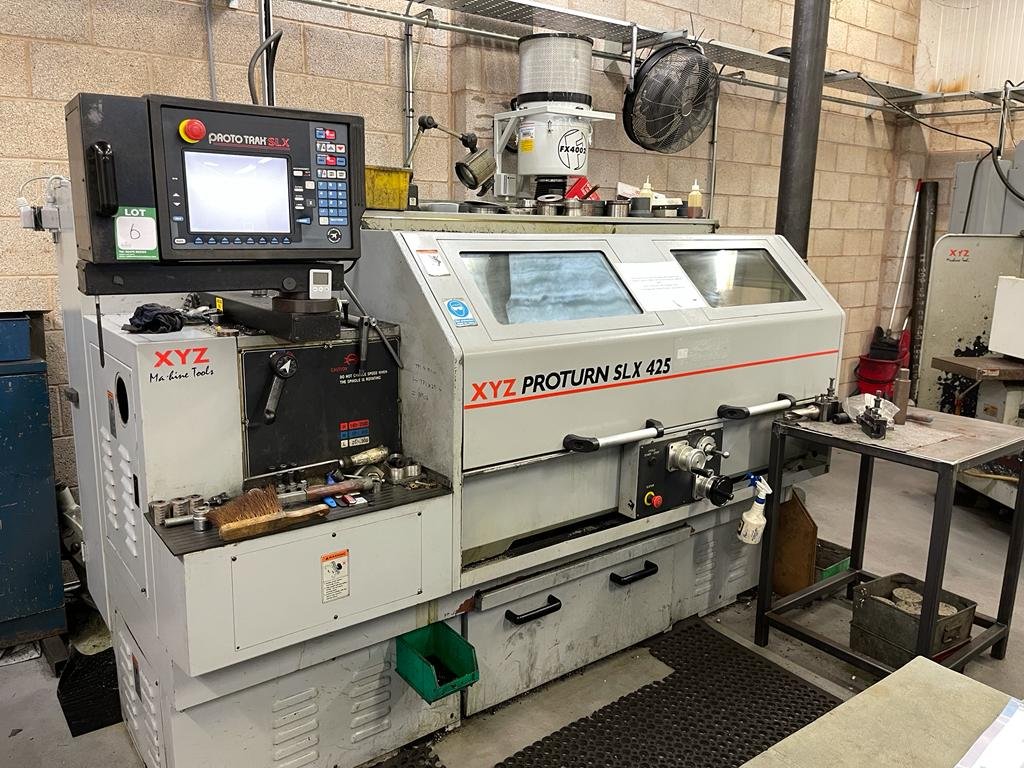

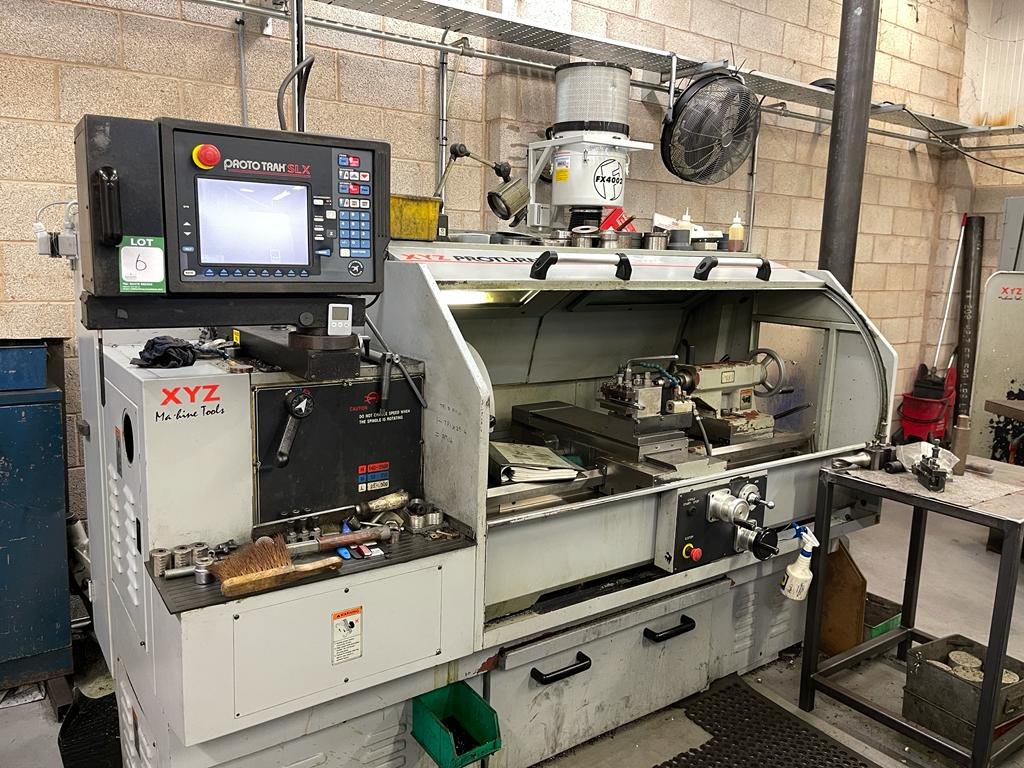

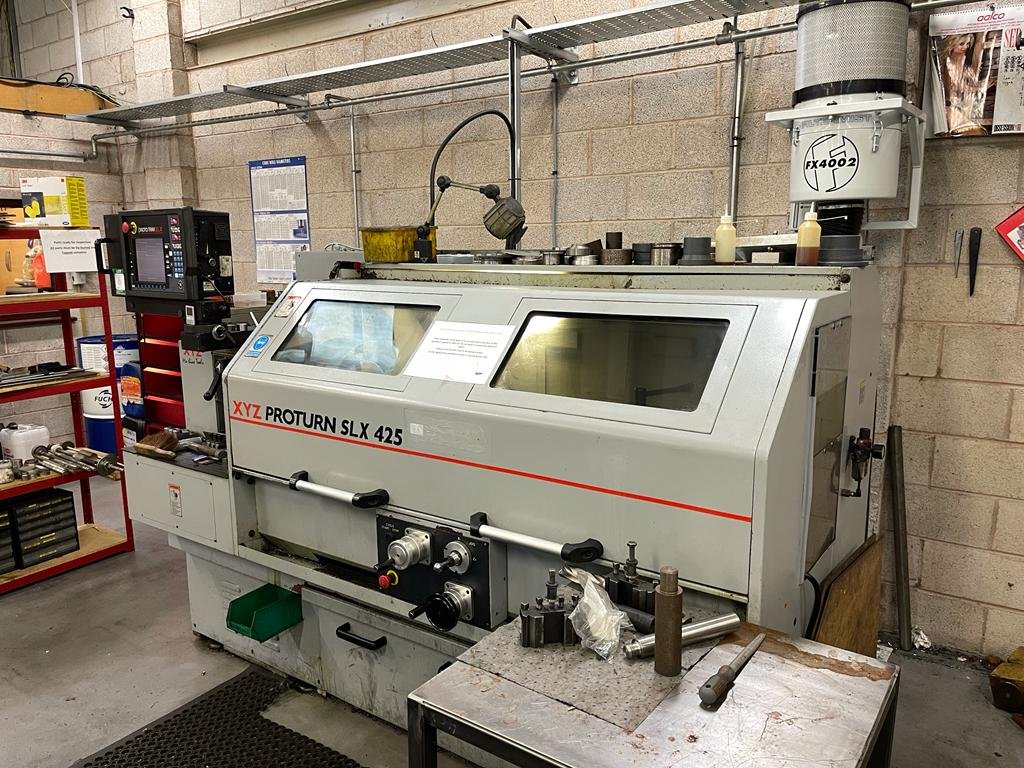

XYZ Proturn SLX 425 CNC Lathe ( 2007)

Lot 6 - XYZ Proturn SLX 425 CNC Lathe ( 2007)

Description:

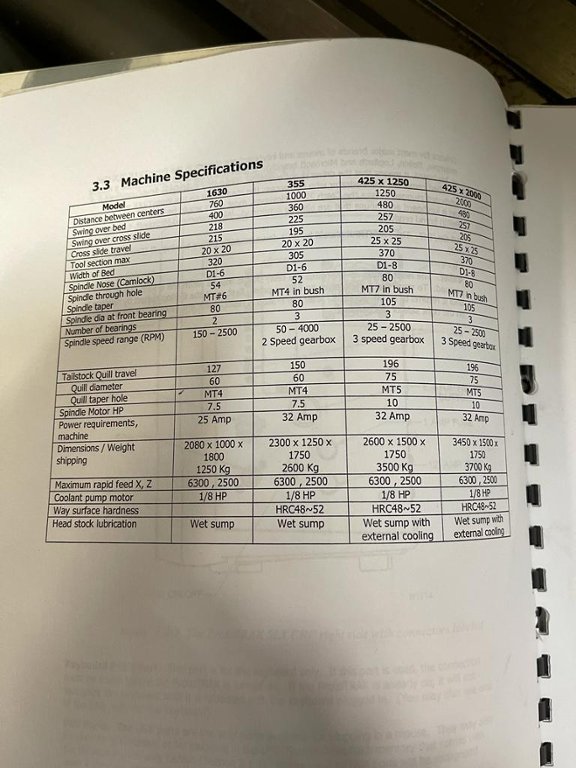

Distance between Centres - 1250, Swing over bed - 480, Swing over cross slide - 257, Cross slide travel - 205, Tool section max - 25 x 25, Width of bed - 370, Spindle nose (camlock) - D1-8, Spindle through hole - 80, Spindle taper - MT7 in bush, Spindle dia at front bearing - 105, Number of bearings - 3, Spindle speed range (RPM) - 25 - 2500 - 3 speed gearbox, Tailstock quill travel - 196, Quill diameter - 75, Quill taper hole - MT5, Spindle motor HP - 10, Power requirements - 32 amp, Maximum rapid feed - X, Z - 6300, 2500, Coolant pump motor - 1/8 HP, Way surface hardness - HRC48~52, Head stock lubrication - Wet sump with external cooling

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
